Echo PB-46HT User manual

POWER BLOWER
Operator'sManual
MODEL PB-46HT TYPE 1E
Serial Number 007116 & Up
PB-46LN TYPE 1E
Serial Number 001051 & Up
PB-60HT TYPE 1E
Serial Number 001001 & Up
WARNING DANGER
Readrulesforsafeoperationandallinstructionscarefully. ECHOprovidesthisOperator'sManualwhich
mustbereadandunderstoodforproperandsafeoperation.
89861021062
04/99
X7501123802
WARNING
The engine exhaust from this
product contains chemicals known
to the State of California to cause
cancer, birth defects or other
reproductive harm.

2
WARNING DANGER
Read rules for safe operation and instructions carefully. ECHO provides this Operator's Manual which must be read
and understood for proper and safe operation.
TABLE OF CONTENTS
Introduction .............................................................. 2
- The Operator's Manual ..................................... 2
Manual Safety Symbols and Important Information ..3
Safety .........................................................................3
- GeneralDescription ............................................3
- Decals .................................................................4
- InternationalSymbols.........................................4
- Equipment ...........................................................5
- Fuel .....................................................................5
- Personal Condition and Safety Equipment .........6
- SafeOperation ....................................................7
- ExtendedOperation/ExtremeConditions ............8
Description ................................................................9
- EmissionControl.................................................9
- Contents .............................................................9
Specifications........................................................... 11
Assembly ................................................................. 12
- InstallBlowerPipes .......................................... 12
- InstallStickHandle ........................................... 12
Pre-Operation ........................................................... 13
- Fuel ................................................................... 13
Operation ................................................................. 14
- StartingColdEngine ......................................... 14
- StartingWarmEngine ....................................... 15
- Stopping Engine ............................................... 15
- OperatingBlower .............................................. 15
Maintenance ............................................................ 17
- SkillLevels ........................................................ 17
- Maintenance Intervals ...................................... 17
- Airfilter............................................................. 18
- FuelFilter .......................................................... 18
- SparkPlug......................................................... 19
- CoolingSystem................................................. 19
- ExhaustSystem................................................. 20
- Carburetor Adjustment ..................................... 21
Troubleshooting ...................................................... 22
Storage ..................................................................... 23
ServicingInformation............................................... 24
- Parts.................................................................. 24
- Service .............................................................. 24
- Customer Assistance........................................ 24
- Warranty Card .................................................. 24
- Additional or Replacement Manuals ................ 24
- Manual Ordering Instructions .......................... 24
Specifications, descriptions and illustrative material in
this literature are as accurate as known at the time of
publication, but are subject to change without notice.
Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job-
dependability. Read and understand this manual. You will find it easy to use and full of helpful operating tips and
SAFETYmessages.
THE OPERATOR'SMANUAL --
contains specifications and information for operation, starting,
stopping, maintenance, storage and assembly specific to this product.

3
P OWER B LOWER
O PERATOR ' S M ANUAL
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key words
and what they mean to you.
This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead
to serious personal injury to operator and bystanders.
The circle with the slash symbol means whatever is shown
within the circle is prohibited.
SAFETY
GENERAL DESCRIPTION
IMPORTANT
See Description and Specification sections and Decals in this section for full description and illustration of power
head, and blower assembly.
IMPORTANT
NOTE
IMPORTANT Theenclosed message
provides information necessary for the
protection of the unit.
NOTE This enclosed message provides tips
for use, care and maintenance of the unit.
BLOWER
PIPES
THROTTLE POSITION
LEVER/STOP SWITCH
RECOIL
STARTER
HANDLE
AIR FILTER
MUFFLER

4
WARNING
DANGER
ENGLISHTRANSLATION
This unit can be
dangerous and cause
serious injury if
improperly used. To
reduce injury risk to
operator, helpers and
bystanders, read and
understand the
Operator's Manual,
which is provided in
Spanish.
Esta unidad puede ser
peligrosa y producir
lesiones personales
graves si no se usa en
forma adecuada. Para
reducir el riesgo
delesionarse, los
operadores, los
ayudantes y los
espectadores deben
leer y comprender el
Manual Del Operador
que se entrega
escrito en español.
PELIGRO
ADVERTENCIA
SPANISH DECAL
Read and follow all safety
precautions in the operator's
manual. Operators, helpers &
bystanders can be severely
injured by blown objects and
must wear specified ANSI
Z87.1 eye protection. Always
wear hearing protection when
operating.
-WARNING-
-DANGER-
GENERAL WARNING DECAL
HOT DECAL
PB-46LN
MAXIMUM SOUND LEVEL 65dB(A)
measured at 15 m (50 ft.) per ANSI B175.2-1996 •
MAXIMUM SOUND LEVEL
measured at 15 m (50 ft.) per ANSI B175.2-1996 •
PB-46HT
70dB(A)
DECALS
Locate these safety decals on your unit. The complete unit illustration,
found in the "DESCRIPTION" section, will help you locate them.
Make sure the decals are legible and that you understand and follow
the instructions on them. If a decal cannot be read, a new one can be
ordered from your ECHO dealer. See PARTS ORDERING instruc-
tions for specific information.
Symbol
description/application
Symbol form/shape
Read and understand
Operator's Manual.
Wear eyes, ears and
head protection
Hot
Surface
Fuel and oil mixture
Finger Severing
Emergency stop
Symbol
description/application
Symbol form/shape Symbol
description/application
Symbol form/shape Symbol
description/application
Symbol form/shape
Ignition
ON/OFF
Carburetor adjustment
- Idle speed
Carburetor adjustment
- High speed mixture
Carburetor adjustment
- Low speed mixture
Primerbulb
INTERNATIONALSYMBOLS

5
P OWER B LOWER
O PERATOR ' S M ANUAL
EQUIPMENT
Before operation a complete check of the unit must be performed:
- Check unit for loose/missing nuts, bolts and screws. Tighten
and/or replace as needed.
- Inspect fuel lines, tank and area around carburetor for fuel leaks.
DO NOT operate unit if leaks are found.
Spark Arrestor Muffler
- The spark arrestor muffler controls the exhaust noise and prevents
hot, glowing particles of carbon from leaving the muffler. Make
sure the spark arrestor screen is in good repair and properly seated
in the muffler. (Refer to Exhaust System Maintenance pg. 19.)
Parts
- Do not use blower if any part is missing or damaged.
- Have repairs done only by an authorized ECHO Service dealer.
- Do not use any attachment, accessory or replacement part unless it
is recommended in this Operator's Manual.
FUEL
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling or serious personal injury may result.
- Use an approved fuel container.
- DONOTsmokenearfuel.
- DONOTallowflamesorsparksnearfuel.
- Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
- NEVERrefuelaunitwhentheengine isHOT!
- NEVERrefuelaunitwith theenginerunning.
- DONOTfillfueltanksindoors.ALWAYSfillfueltanks
outdoors over bare ground.
- Securely tighten fuel cap after refueling.
- Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
After Refueling;
- Wipe any spilled fuel from the unit.
- Move at least 3 M (10 ft.) from refueling location before starting.
After use;
-DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container.
3M
10'MINIMUM
ATTACHMENTS
AND
ACCESSORIES

6

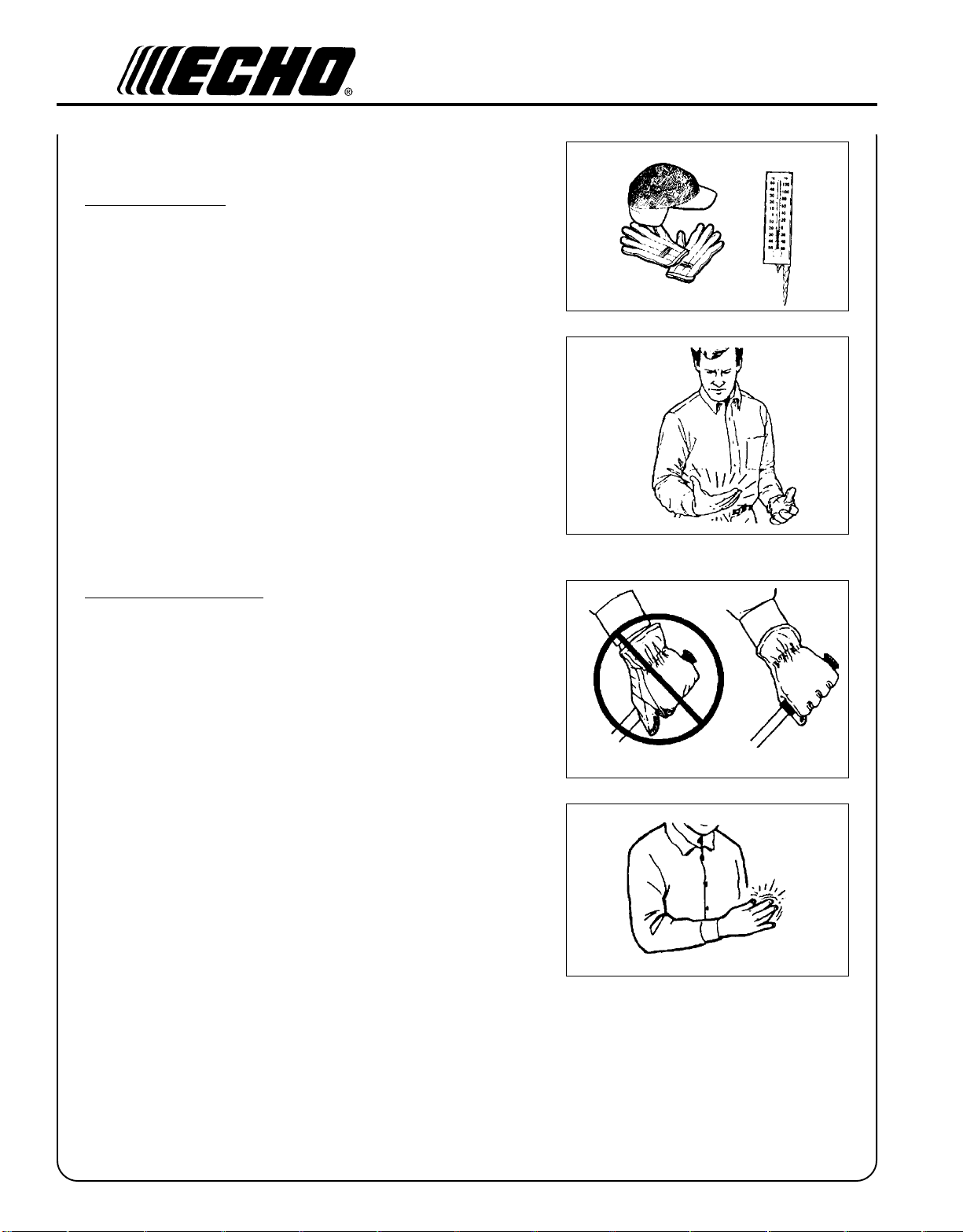

Physical Condition --
Your judgment and physical dexterity may not be good:
- if you are tired or sick,
- if you are taking medication,
- if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection --
Wear eye protection that meets ANSI Z87.1 or CE requirements
whenever you operate the blower.
Hand Protection --
Wear no-slip, heavy duty work gloves to improve your grip on the
blower handle. Gloves also reduce the transmission of machine
vibration to your hands.
Breathing Protection --
Wear a face mask to protect against dust.
Hearing Protection --
ECHO recommends wearing hearing protection whenever unit is used.
Proper Clothing --
Wear snug fitting, durable clothing;
- Pants should have long legs, shirts with long sleeves.
- DO NOT WEAR SHORTS,
- DO NOT WEAR TIES, SCARVES, JEWELRY.
Wear sturdy work shoes with nonskid soles;
- DO NOT WEAR OPEN TOED SHOES,
- DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and blower intake. Retain hair with
cap or net.
PERSONAL CONDITION AND SAFETY EQUIPMENT
WARNING DANGER
Power Blower users risk injury to themselves and others if the power blower is used improperly and
or safety precautions are not followed. Proper clothing and safety gear must be worn when operating a blower.

7
P OWER B LOWER
O PERATOR ' S M ANUAL
Hot Humid Weather --
Heavy protective clothing can increase operator fatigue which may
lead to heat stroke. Schedule heavy work for early morning or late
afternoon hours when temperatures are cooler.
SAFE OPERATION
Determine Operation Area --
- Review area to be cleared. Look for potential hazards such as
stones or metal objects.
- Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15M (50 ft.) while the
blower is in use.
- Do not operate this product indoors or in inadequatly ventilated
areas..
- Take wind conditions into account: avoid open doors and windows.
- Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
- Do not point blower at people or animals.
Use Proper Clothing & Equipment
- Before starting the unit, equip yourself and any other person
working within the 15M (50 ft.) Safety Zone with the required
Protective Equipment and clothing.
- Keep long hair away from engine and blower intake. Retain hair
with cap or net.
- Start unit on ground with throttle at idle. Check that blower pipe
is not blocked by the ground or by any objects.
Keep A Firm Grip
- Hold handle with fingers together encircling the handle.
Keep A Solid Stance
- Maintain footing and balance at all times. Do not stand on
slippery, uneven or unstable surfaces. Do not work in odd posi-
tions or on ladders.
- Do not perform Maintenance or Assembly procedures with engine
running.
Noise Control
- Follow local noise regulations on sound levels and hours of
operations. Use only during appropriate hours.
- Never use a higher speed setting then necessary to perform a task.
The higher the engine speed the louder the blower noise.
- Be a good neighbor.
Avoid Hot Surfaces
- During operation, the exhaust area may become very hot, too hot to
touch. Avoid contact during and immediately after operation.

8
EXTENDED OPERATION/EXTREME CONDITIONS
Vibration and Cold --
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommended because the minimum exposure which might trigger the
ailment is unknown.
• Keep your body warm, especially the head, neck, feet, ankles,
hands and wrists.
• Maintain good blood circulation by performing vigorous arm
exercises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the blower or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries --
It is believed that overusing the muscles and tendons of the fingers,
hands, arms and shoulders may cause soreness, swelling, numbness,
weakness and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged expo-
sure to vibration may contribute to CTS. CTS can cause severe pain
for months or even years. To reduce the risk of RSI/CTS, do the
following:
• Avoid using your wrist in a bent, extended or twisted position.
Instead try to maintain a straight wrist position. Also, when
grasping, use your whole hand, not just the thumb and index
finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed & force in which you do the repetitive movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if
you feel tingling, numbness or pain in the fingers, hands, wrists or
arms. The sooner RSI/CTS is diagnosed, the more likely perma-
nent nerve and muscle damage can be prevented.

9
P OWER B LOWER
O PERATOR ' S M ANUAL
DESCRIPTION
EMISSION CONTROL
The emission control system for this engine is EM (Engine Modifica-
tion).
An Emission Control Label is located on the engine. (This is an
EXAMPLE ONLY, information on label varies by engine FAMILY).
CONTENTS
1-Power Head
1-Blower Pipe Assembly
1-Plastic Bag
1- Operator's Manual
1- Warranty Registration Card
1- ECHO Emissions and Warranty Statement
2- Clamps w/screws
1- Stick Handle Assembly
1-Bottle ECHO 2-Stroke Oil Mix
IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: SEH044U124RA
DISPLACEMENT: 44CC
THIS ENGINE MEETS U.S. EPA PH1 AND 1995-1999 CALIFORNIA
EMISSION REGULATIONS FOR ULGE ENGINES. REFER TO
OWNER'S MANUAL FOR MAINTENANCE SPECIFICATIONS AND
ADJUSTMENTS.

10
1. AIR CLEANER - Contains replaceable air filter element.
2. SPARK PLUG - Provides spark to ignite fuel mixture. Spark plug is located under the cover on LN models.
3. MUFFLER/SPARK ARRESTOR -The spark arrestor muffler controls the exhaust noise while the spark
arrestor prevents hot, glowing particles of carbon from leaving the muffler where they could possibly start a fire.
4. SERIAL NUMBER LABEL - Located on underside of unit below starter housing. Lists model number and
serial number of unit. If unit is emission certified, label identifies unit as TYPE 1E.
5. RECOIL STARTER HANDLE - Pull recoil handle slowly until starter engages, then quickly and firmly. When
engine starts, return handle slowly. DO NOT let handle snap back or damage to unit will occur.
6. PRIMER BULB - Pumping primer bulb before starting engine draws fresh fuel from the fuel tank priming the carburetor for
starting. Pump the bulb 10 times until fuel is visible in clear fuel return line.
7. CHOKE - Move lever DOWN to close choke (starting position) and for emergency stopping. Move UP to open
choke (run position).
8. FUEL TANK CAP - Covers and seals fuel tank.
9. THROTTLE POSITION LEVER/STOP SWITCH - Combination stop switch and variable speed throttle lever.
When the lever is moved all the way forward the blower is at Wide Open Throttle (W.O.T.). When the lever is
moved rearward to detent, the blower is at idle. When the lever is moved rearward past the idle detent the blower
will stop.
10. SAFETY DECAL - Lists important safety precautions.
11. HANDLE - Rotates downward for throttle control access. Spring loaded for flexible operation.
12. SHOULDER HARNESS - Used to support unit on operator's back. The straps are adjustable.
13. BLOWER PIPES - Twist lock design.
14. FLEXIBLE PIPE - Allows for full range of movement.
