Echo PW-3600 User manual

NOTICE AVIS AVISO
Do not use E15 or E85 fuel in this
product. It is a violation of federal
law and will damage the unit and
void your warranty. Only use unleaded gasoline containing
up to 10% ethanol.
Ne pas utiliser d’essence E15 ou E85 dans ce produit. Une
telle utilisation représente une violation de la loi fédérale
et endommagera l’appareil et annulera la garantie. Utiliser
seulement de l’essence sans plomb ne contenant pas plus
de 10 % d’éthanol.
No utilice combustibles E15 o E85 con este producto. Esto
constituye una violación a la ley federal, dañará la unidad
y anulará la garantía. Use únicamente gasolina sin plomo
con un contenido de hasta 10 % de etanol.
Operator’s Manual
Manuel d’utilisation
Manual del operador
CALIFORNIA PROPOSITION 65
PROPOSITION 65 DE L’ÉTAT DE CALIFORNIE
CALIFORNIA - PROPUESTA DE LEY NÚM. 65
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
AVERTISSEMENT : Cancer et dommages à la reproduction– www.P65Warnings.ca.go
v
ADVERTENCIA: Cáncer y daño reproductivo– www.P65Warnings.ca.gov
3600 PSI (253.1 kfg/cm2) Pressure Washer
Laveuse à pression de 253,1 kgf/cm
2
(3 600 PSI)
Lavadora a presión de 253,1 kgf/cm
2
(3 600 PSI)
PW-3600
Su lavadora a presión ha sido diseñada y fabricada de conformidad
con las estrictas normas para brindar fiabilidad, facilidad de uso
y seguridad para el operador. Con el debido cuidado, le brindará
muchos años de sólido y eficiente funcionamiento.
ADVERTENCIA Para reducir el riesgo de lesiones,
elusuariodebeleerycomprenderelmanualdeloperadorantes
de usar este producto.
Le agradecemos su compra.
Ce laveuse à pression a été conçue et fabriquée conformément
à nos strictes normes de fiabilité, simplicité d’emploi et sécurité
d’utilisation.Correctement entretenue,ellevousdonnerades années
de fonctionnement robuste et sans problème.
AVERTISSEMENT Pour réduire les risques de
blessures, l’utilisateur doit lire et veiller à bien comprendre le
manuel d’utilisation avant d’employer ce produit.
Merci de votre achat.
Your pressure washer has been engineered and manufactured to our high standard for dependability, ease of operation,
and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING To reduce the risk of injury, the user must read and understand the operator’s manual before
using this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
99922205396 (TTI#995000832)
7-29-19 (REV:01)

ii
A - Push pins in and pull up on handle to
remove (enfoncer les goupilles et tirer sur la
poignée pour retirer, empuje los pasadores
hacia dentro y tire del mango para quitarlo)
B - Push pins in and push down on handle to
install (enfoncer les goupilles et appuyer
sur la poignée pour installer, empuje los
pasadores hacia dentro y empuje el mango
hacia abajo para instalarlo)
See this fold-out section for all of the figures
referenced in the operator’s manual.
Consulter l’encart à volets afin d’examiner toutes les figures
mentionnées dans le manuel d’utilisation.
Consulte esta sección desplegable para ver todas las figuras
a las que se hace referencia en el manual del operador.
A - Fuel cap (bouchon de carburant, tapa del
combustible)
B - Starter grip and rope (poignée du lanceur et
corde, mango del arrancador y cuerda)
C - Fuel tank (réservoir de carburant, tanque de
combustible)
D - Oil cap/dipstick (bouchon / jauge d’huile,
tapa del aceite con varilla de nivel)
E - Auxiliary handle (auxiliary handle, auxiliary
handle)
F - Muffler (silencieux, silenciador)
G - Fuel valve (robinet de carburant, válvula de
combustible)
H - On/off switch (interrupteur marche/arrêt,
interruptor de encendido/apagado)
I - Choke (volet de départ, anegador)
J - High pressure hose (tuyau haute pression,
manguera de alta presión)
K - Nozzle storage (rangement de buse,
compartimientos para boquillas)
L - Handle (poignée, mango)
M - Trigger handle (poignée de gâchete, mango
del gatillo)
N - Trigger with lock out (gâchette avec
verouillage, gatillo con seguro)
O - Spray wand (lance de pulvérisation, tubo de
rociado)
P - Air cleaner cover (couvercle de filtre à air,
cubierta del limpiador de aire)
Fig. 2
C
D
L
B
A
B
A
A
B
E
M
J
I
G
H
Fig. 1
N
K
F
O
A - Axle (essieu, eje)
B - Wheel (roué, rueda)
C - Washer (rondelle, arandela)
D - Mounting hole (trou de montage, agujero de
montaje)
E - Hitch pin (axe de blocage, pasador del
enganche)
Fig. 3
C
A
B
E
D
P

iii

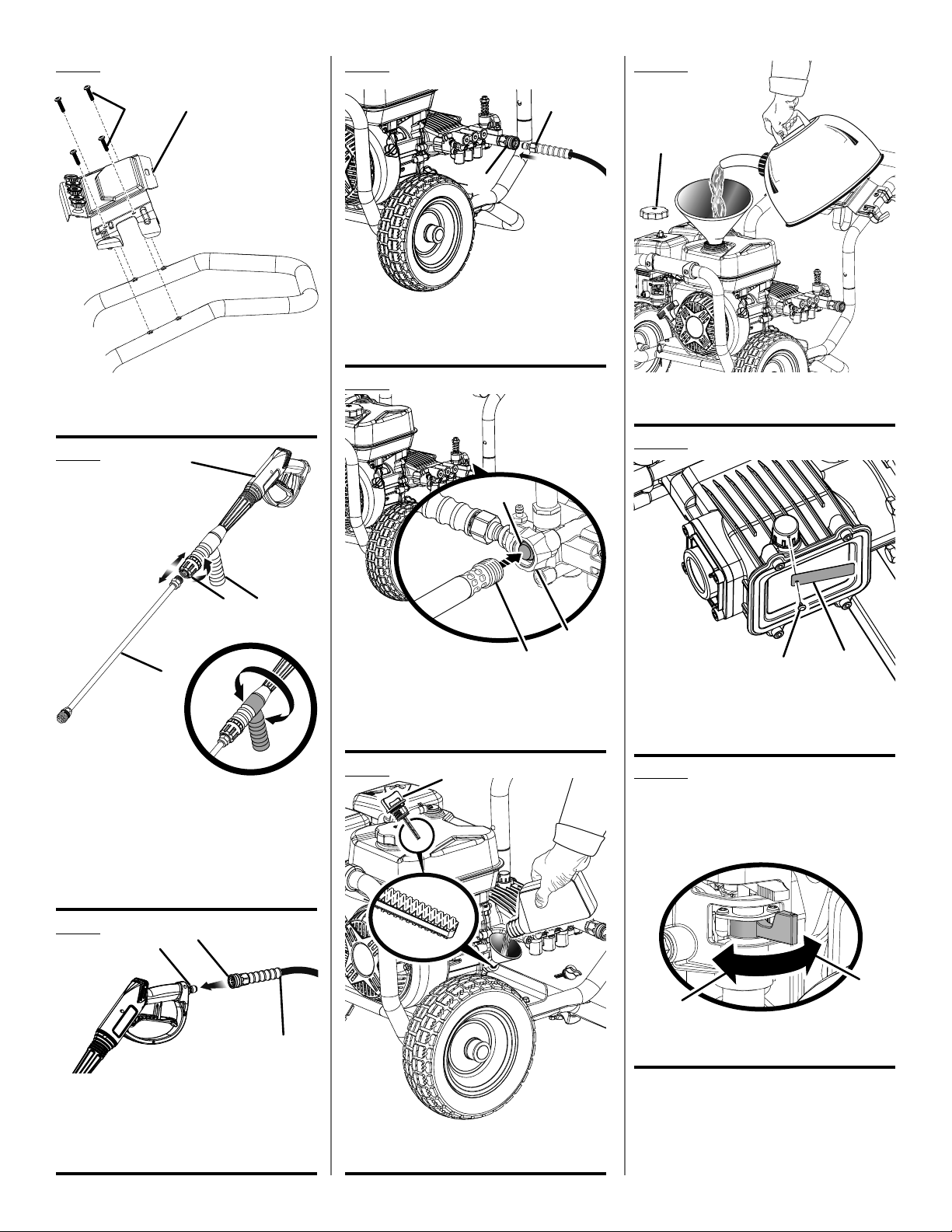

Fig. 5
Fig. 6
A - Trigger handle (poignée à gâchette, mango
del gatillo)
B - Connector (connecteur, conector)
C - Spray wand (lance de pulvérisation, tubo de
rociado)
D - Auxiliary handle (poignée auxiliaire, mango
auxiliar)
A - Collar (collier, casquillo)
B - Inlet coupler (raccord d’entrée, acoplador de
entrada)
C - High pressure hose (tuyau haute pression,
manguera de alta presión)
A
B
C
BA
C
D
Fig. 7
A - Inlet coupler (raccord d’entrée, acoplador de
entrada)
B - Collar (collier, casquillo)
A
B
Fig. 8
A - Water intake (rise d’eau, entrada de agua)
B - Screen (tamis, cedazo)
C - Garden hose (tuyau d’arrosage, manguera
de jardín)
A
C
B
Fig. 9
A - Oil cap/dipstick (bouchon / jauge d’huile, tapa
del aceite con varilla de nivel)
A
A - OPEN (ouvrir, abra)
B - CLOSED (pour fermer, para cerrar)
FUEL VALVE
ROBINET DE CARBURANT
VÁLVULA DE COMBUSTIBLE
B
A
Fig. 12
A - Fuel cap (bouchon du réservoir, tapa del
tanque de combustible)
A
Fig. 10
Fig. 11
A - Black plug (bouchon noir, tapón negro)
B - Caution label (autocollant de mise en garde,
etiqueta de precaución)
AB
Fig. 4
A - Screws (vis, tornillos)
B - Storage panel (panneau de rangement, panel
de almacenamiento)
B
A

iv

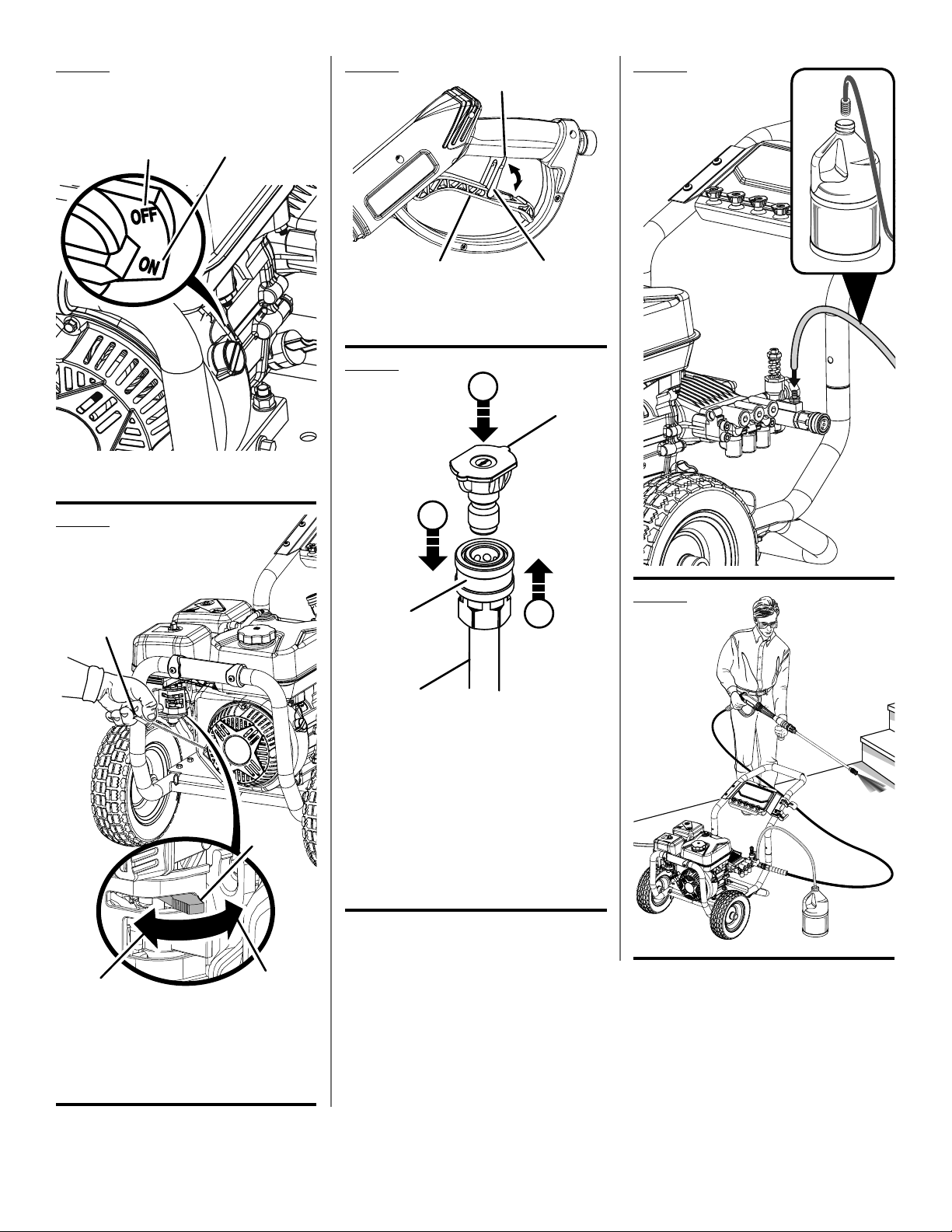

Fig. 16
Fig. 14
A - Starter grip and rope (poignée du lanceur et
corde, mango del arrancador y cuerda)
B - Choke (volet de départ, anegador)
C - RUN (marche, funcionamiento)
D - START (démarrage, arranque)
A - Trigger (gâchette, gatillo)
B - Slot (fente, ranura)
C - Lock out (bouton de verrouillage, seguro)
Fig. 15
A
Fig. 18
A - Nozzle (embout, boquilla)
B - Quick-connect collar (bague à connexion
rapide, casquillo de conexión rápida)
C - Spray wand (lance de pulvérisation, tubo de
rociador)
D - Pull back the quick-connect collar (tirer la
bague à connexion rapide, tire del collar de
conexión rápida)
E - Push the nozzle into place (insérer en place
la buse, introduzca la boquilla en su lugar)
F - Push the collar forward (poussez en avant la
bague, empuje del collar adelante)
C
B
ON/OFF SWITCH
INTERRUPTEUR MARCHE/ARRÊT
INTERRUPTOR DE ENCENDIDO/APAGADO
A - OFF (arrêt, apagado)
B - ON (marche, encendido)
AB
Fig. 13 Fig. 17
A
E
D
F
A
B
C
DC
B
“CLICK”
«DÉCLIC»
“HASTA
QUE TRABE”

v

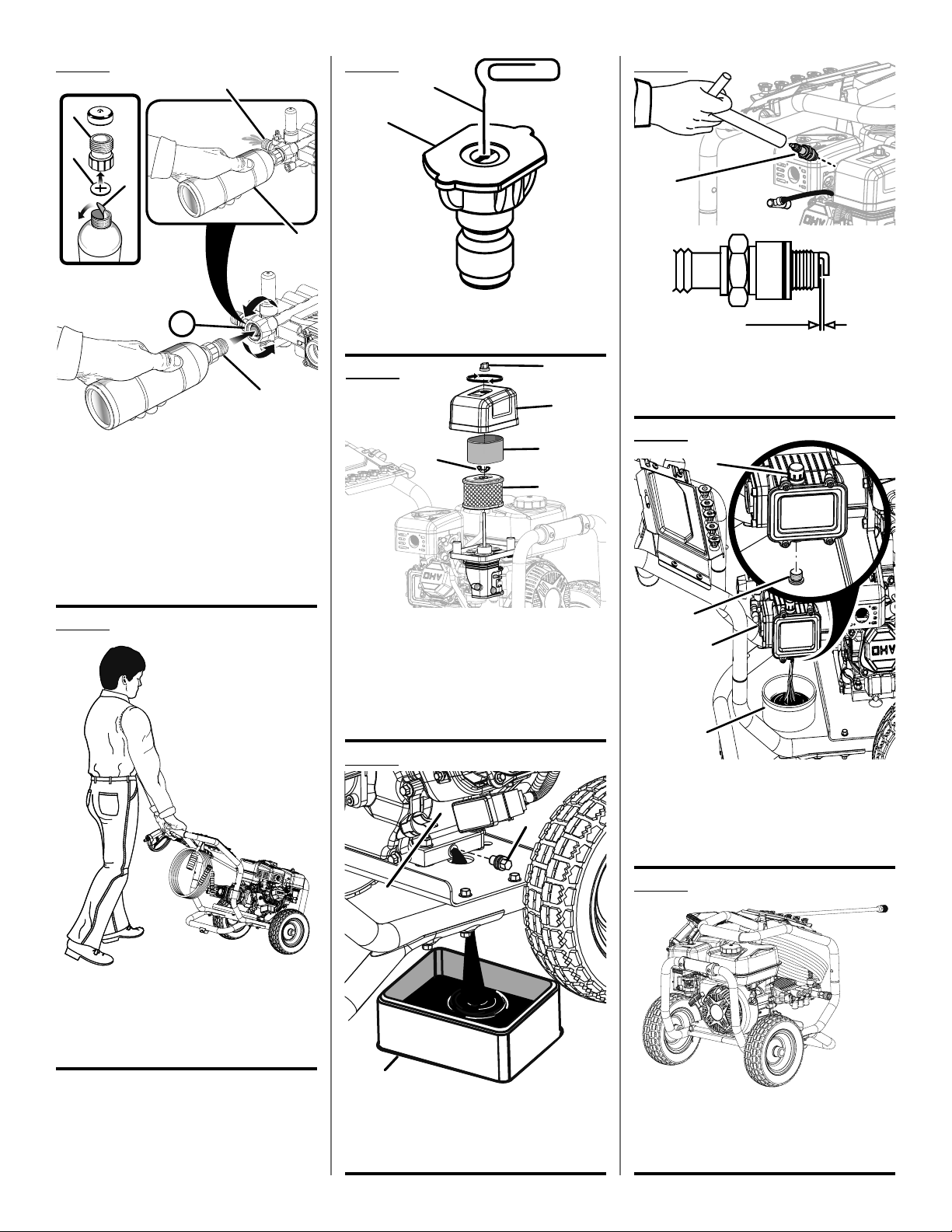

Fig. 20
Fig. 26
TO MOVE THE MACHINE
DÉPLACEMENT DE LA MACHINE
PARA MOVER LA MÁQUINA
TO STORE THE MACHINE
REMISAGE DE LA MACHINE
PARA GUARDAR LA MÁQUINA
Fig. 19
A - Threaded top (bouchon vissé, parte superior
roscada)
B - Rubber seal (joint de caoutchouc, sello de
goma)
C - Paper seal (sceaux de papier, sello de papel)
D - Water intake (rise d’eau, entrada de agua)
E - Pump outlet (sortie de la pompe, orificio de
descarga de la bomba)
F - Pump protector (protecteur de pompe,
protector de bomba)
C
B
A
A
F
D
Fig. 21
A - Straightened paper clip (trombone droit, clip
para papel abierto)
B - Nozzle (buse, boquilla)
A
B
E
Fig. 25
A - Sight glass (voyant fenêtre, visor)
B - Oil drain plug (huiler le bouchon d’égout,
tapón de drenaje del aceite)
C - Container (envase, recipiente)
D - Pump oil cap (bouchon d’huile de la pompe,
tapa de aceite de la bomba)
A
C
B
D
A - Wing nut (écrou à oreilles, tuerca de
mariposa)
B - Air cleaner cover (couvercle de filtre à air,
cubierta del limpiador de aire)
C - Foam filter (filtre de mousse, filtro de
espuma)
D - Paper filter (filtre de papier, filtro de papel)
Fig. 23
Fig. 22
B
A
C
A - Oil drain plug (bouchon de vidange d’huile,
tapón de drenaje del aceite)
B - Container (conteneur, recipiente)
C - Engine (moteur, motor)
A
A - 0.7–0.8 mm (0.028–0.031 in.) [0,7–
0,8 mm (0.028–0.031 po), 0,7–0,8 mm
(0.028–0.031 pulg.)]
B - Spark plug (bougie, bujía)
Fig. 24
B
C
A
D
A
B

2 English
Product Registration..........................................................................................................................................................2
Enregistrement du produit / Registro del producto
Important Safety Instructions ............................................................................................................................................3
Instructions importantes concernant la securite / Instrucciones de seguidad importantes
Specific Safety Rules.........................................................................................................................................................4
Règles de sécurité particulières / Reglas de seguridad específicas
Symbols......................................................................................................................................................................... 5-6
Symboles / Símbolos
Features.............................................................................................................................................................................7
Caractéristiques / Características
Assembly....................................................................................................................................................................... 8-9
Assemblage / Armado
Operation................................................................................................................................................................... 10-14
Utilisation / Funcionamiento
Maintenance.............................................................................................................................................................. 14-17
Entretien / Mantenimiento...............................................................................................................................................................15-18
Troubleshooting...............................................................................................................................................................18
Dépannage / Corrección de problemas............................................................................................................................................... 19
Warranty ..........................................................................................................................................................................19
Garantie / Garantía............................................................................................................................................................................... 20
Parts Ordering and Service ............................................................................................................................... Back Page
Commande de pièces et réparation / Pedidos de piezas y servicio .......................................................... Page arrière / Pág. posterior
TABLE OF CONTENTS
TABLE DES MATIÈRES / ÍNDICE DE CONTENIDO
PRODUCT REGISTRATION
ENREGISTREMENT DU PRODUIT / REGISTRO DEL PRODUCTO
Thank you for choosing ECHO Power Equipment
Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product online. It’s FAST and
EASY!
NOTE: Your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you
in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
* * *
Merci d’avoir choisi ECHO Power Equipment
S’il vous plaît allez sur (http://www.echo-usa.com/Warranty/Register-Your-ECHO afin d’enregistrer vos unités neuves en
ligne. C’est rapide et facile!
NOTE : Vos informations ne seront jamais vendues ou utilisées inadéquatement par ECHO INC. L’enregistrement des
unités nous permet de vous contacter dans l’éventualité improbable d’un rappel ou d’une mise à niveau technique ainsi
que certifier que vous en êtes le propriétaire en cas de besoin d’une réparation sous garantie.
* * *
Gracias por elegir ECHO Power Equipment
Por favor, ingrese a sitio web http://www.echo-usa.com/Warranty/Register-Your-ECHO para registrar su nuevo producto
en línea. Es RAPIDO y FACIL!
NOTA: Su información nunca será vendida o mal utilizada por ECHO, Inc. El registro de su compra nos permite comunicarnos
con usted en el caso de una actualización de servicio, o el retiro del producto del mercado, y verificar la propiedad de su
producto para consideraciones de garantía.

English 3
DANGER
Risk of fire and serious burns: Never remove fuel cap
when unit is running. Shut off engine and allow the unit
to cool at least five minutes. Remove cap slowly.
WARNING
Read and understand all instructions. Failure to follow
all instructions listed below may result in electric shock,
fire and/or carbon monoxide poisoning which will cause
death or serious personal injury.
Read All Instructions
Know your tool. Read the operator’s manual carefully.
Learn the machine’s applications and limitations as well
as the specific potential hazards related to this tool.
Keep guards in place and in working order. Never oper-
ate the tool with any guard or cover removed. Make sure
all guards are operating properly before each use.
Remove adjusting keys and wrenches. Form habit of
checking to see that keys and adjusting wrenches are
removed from tool before turning it on.
To reduce the risk of injury, keep children and visitors
away. All visitors should wear safety glasses and be kept
a safe distance from work area.
Keep the area of operation clear of all persons, par-
ticularly small children, and pets.
Do not start or operate the engine in a confined space,
building, near open windows, or in other unventilated
space where dangerous carbon monoxide fumes can
collect. Carbon monoxide, a colorless, odorless, and
extremely dangerous gas, can cause unconsciousness
or death.
Use right tool. Don’t force tool or attachment to do a
job it was not designed for. Don’t use it for a purpose not
intended.
Dress properly. Wear long pants and long sleeves. Do
not wear loose clothing, neckties, or jewelry. They can get
caught and draw you into moving parts. Rubber gloves
and nonskid footwear are recommended when working
outdoors. Also wear protective hair covering to contain
long hair.
Do not operate the equipment while barefoot or when
wearing sandals or similar lightweight footwear. Wear
protective footwear that will protect your feet and improve
your footing on slippery surfaces.
Exercise caution to avoid slipping or falling.
Always wear eye protection with side shields marked
tocomply with ANSIZ87.1. Followingthis rule will reduce
the risk of serious personal injury.
Don’t overreach or stand on a ladder, rooftop, or other
unstable support. Keep proper footing and balance at
all times.
Use only recommended accessories. The use of im-
proper accessories may cause risk of injury.
Follow the maintenance instructions specified in this
manual.
Check damaged parts. Before further use of the tool, a
guard or other part that is damaged should be carefully
checked to determine that it will operate properly and
perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged must be
properly repaired or replaced by a qualifed service center
to avoid risk of personal injury.
Never leave tool running unattended. Turn power off.
Don’t leave tool until it comes to a complete stop.
Keep the engine free of grass, leaves, or grease to
reduce the chance of a fire hazard.
Keep the exhaust pipe free of foreign objects.
Follow manufacturer’s recommendations for safe
loading,unloading, transport, andstorage of machine.
Be thoroughly familiar with controls. Know how to stop
the product and bleed pressure quickly.
Keep tool dry, clean, and free from oil and grease.
Always use a clean cloth when cleaning. Never use brake
fluids, gasoline, petroleum-based products, or any sol-
vents to clean tool.
Stay alert and exercise control. Watch what you are
doing and use common sense. Do not operate tool when
you are tired. Do not rush.
Do not operate the product while under the influence
of drugs, alcohol, or any medication.
Check the work area before each use. Remove all
objects such as rocks, broken glass, nails, wire, or string
whichcan be thrownorbecome entangled in the machine.
Do not use tool if switch does not turn it off. Have
switch replaced by an authorized service center.
Before cleaning, repairing, or inspecting, shut off the
engine and make certain all moving parts have stopped.
Disconnect the spark plug wire, and keep the wire away
from the plug to prevent accidental starting.
Avoid dangerous environment. Don’t use in damp or
wet locations or expose to rain. Keep work area well lit.
Neverusein anexplosiveatmosphere.Normalsparking
of the motor could ignite fumes.
Do not operate while smoking or near an open flame.
Do not operate around dry brush, twigs, cloth rags, or
other flammable materials.
WARNING: Risk of injection or injury – Do not direct
discharge stream at persons.
IMPORTANT SAFETY INSTRUCTIONS

4 English
Usecaution when positioning the pressurewasher for
use. Warm air from the engine could cause discolored
spots on grass.
Never direct a water stream toward people or pets,
or any electrical device.
Before starting any cleaning operation, close doors
and windows. Clear the area to be cleaned of debris,
toys, outdoor furniture, or other objects that could create
a hazard.
Never pick up or carry a machine while the engine is
running.
Never start the machine if ice has formed in any part of
the equipment.
Do not use acids, alkalines, solvents, flammable ma-
terial, bleaches, or industrial grade solutions in this
product. These products can cause physical injuries to
the operator and irreversible damage to the machine.
Always operate the machine on a level surface. If the
engine is on an incline, it could seize due to improper
lubrication (even at the maximum lubricant level).
WARNING: High pressure jets can be dangerous if
subject to misuse. The jet must not be directed at per-
sons, animals, electrical devices, or the machine itself.
Hold the trigger handle securely with both hands. Ex-
pect the trigger handle to move when the trigger is pulled
due to reaction forces. Failure to do so could cause loss
of control and injury to yourself and others.
Never attempt to make any adjustments while the
engine (motor) is running (except where specifically
recommended by the manufacturer).
Protective covers must always cover rotating parts
when the engine is running.
Keep cooling air intake (starter grip and rope area) and
muffler side of the engine at least 3 feet (914 mm) away
from buildings, obstructions, and other combustible
objects.
Keep the engine away from flammables and other
hazardous materials.
Keep away from hot parts. The muffler, exhaust gases,
and other engine parts become very hot. Do not touch
the muffler or place any body parts in the path of hot
exhaust gases, which can cause burns and other serious
personal injuries.
Do not touch the spark plug and ignition cable when
starting and operating the engine.
Check fuel hoses and joints for looseness and fuel
leakage before each use.
Check bolts and nuts for looseness before each use. A
loose bolt or nut may cause serious engine problems.
Always refuel outdoors. Never refuel indoors or in a
poorly ventilated area.
Neverstorethe machinewith fuelinthe fueltank inside
a building where ignition sources are present, such as
hot water and space heaters, clothes dryers, and the like.
If the fuel tank has to be drained, do this outdoors into
a container approved for gasoline and away from all
ignition sources.
To reduce the risk of fire and burn injury, handle fuel
with care. It is highly flammable.
Do not smoke while handling fuel.
Add fuel before starting the engine. Never remove the
cap of the fuel tank or add fuel while the engine is running
or when the engine is hot.
Loosen fuel cap slowly to release pressure and to keep
fuel from escaping around the cap.
Replace all fuel tank and container caps securely.
Wipe spilled fuel from the unit.Move 30 feet (9 m) away
from refueling site before starting engine.
If fuel is spilled, do not attempt to start the engine, but
move the machine away from the area of spillage and
avoid creating any source of ignition until fuel vapors
have dissipated.
Never attempt to burn off spilled fuel under any
circumstances.
Before storing, allow the pressure washer to cool for
30 minutes and drain fuel from the unit.
Store fuel in a cool, well-ventilated area, safely away
from spark and/or flame-producing equipment.
Store fuel in containers specifically designed for this
purpose.
Empty fuel tank and restrain the unit from moving
before transporting in a vehicle.
When servicing use only recommended or equivalent
replacement parts. Use of any other parts may create a
hazard or cause product damage.
ONLY use cold water.
Make sure minimum clearance of 3 feet (914 mm) is
maintained from combustible materials.
Never spray close to the surface to be cleaned as you
can damage the surface.
After stopping the engine, always pull the trigger on
thetrigger handleto relieve storedpressurein the high
pressure hose. Failure to do so could result in serious
personal injury.
For outdoor use only.
Ensure the high pressure hose is properly connected
before using the product.
Save these instructions. Refer to them frequently and
use them to instruct other users. If you loan someone this
tool, loan them these instructions also.
SPECIFIC SAFETY RULES

English 5
Some of the following symbols may be used on this product. Please study them and learn their meaning for safe
operation of this product.
Symbol Name Designation/Explanation
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
Wet Conditions Alert Do not expose to rain or use in damp locations, and never direct
a water stream toward any electrical device.
Hot Surface and Exhaust Gases
To reduce the risk of injury or damage, avoid contact with any
hot surface and do not place any body parts in the path of hot
exhaust gases.
Risk of Injections
To reduce the risk of injection or injury, never direct a water
stream towards people or pets or place any body part in the
stream. Leaking hoses and fittings are also capable of causing
injection injury. Do not hold hoses or fittings.
Risk of Explosion Do not spray flammable liquids. Flammable liquids, fuel, and
their vapors are explosive and can cause severe burns or death.
Risk of Fire Do not add fuel when the product is operating or still hot. Fire
can cause severe burns or death.
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
Symbol Signal Meaning
DANGER Indicates a hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION Indicates a hazardous situation, that, if not avoided, may result in minor or
moderate injury.
NOTICE (Without Safety Alert Symbol) Indicates information considered important, but
not related to a potential injury (e.g. messages relating to property damage).

6 English
Some of the following symbols may be used on this product. Please study them and learn their meaning for safe
operation of this product.
Symbol Name Designation/Explanation
Toxic Fumes
Running this product indoors can result in death due to carbon
monoxide, a poison gas you cannot see or smell. Never operate
indoors,even if windows and doors areopen. Only use outdoors
and at least 20 feet (6 m) away from windows, doors, and
openings or vents.
Kickback To reduce the risk of injury from kickback, hold the spray wand
securely with both hands when the machine is on.
Electric Shock Do not use near electric power lines or receptacle outlets.
Chemical Burns
To reduce the risk of injury or damage, DO NOT USE ACIDS,
ALKALINES,BLEACHES,SOLVENTS,FLAMMABLEMATERIAL,
OR INDUSTRIAL GRADE SOLUTIONS in this product.
SYMBOLS

English 7
Product specifications
Fuel Tank Capacity........................................................................................................................................... 0.95 gal. (3.6 l)
Lubricant Fill Volume............................................................................................................................................. 14 oz.(0.4 l)
Maximum Pounds Per Square Inch Pressure* .................................................................................3,600 psi (253.1 kgf/cm2)
Maximum Gallons Per Minute*................................................................................................................... 2.5 gpm (9.5 LPM)
Maximum Inlet Water Temperature ......................................................................................................................104˚F (40 ˚C)
Replacement Spark Plug......................................................................................................... Torch/LG F7RTC or equivalent
*Max. rating determined by PWMA Standard PW101
Know Your Pressure Washer
See Figure 1.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
Automatic Soap Injection System
Place the soap injection hose with filter into your desired
pressure washer detergent to apply detergent quickly and
easily to your cleaning project. Use of the soap nozzle will
activate the soap injector at a 20:1 dilution ratio.
Auxiliary Handle
The auxiliary handle helps prevent loss of control. For ease
of operation, use the handle with either the left or right hand.
The handle can be rotated 360°.
Compact Storage
The handle can be rotated to the storage position when not
in use to save space.
Fuel Tank
This fuel tank has a maximum capacity of 0.95 gal. (3.6 l).
Use unleaded automotive gasoline in the engine.
Hose Storage
Once the high pressure hose is rolled, hang it on the back
of the machine using the stretch strap to secure in place.
On/Off Switch
The on/off switch is used in combination with the starter
grip and rope to start the engine. It is also used to turn the
engine off.
Soap Nozzle
The blue or black soap nozzle is used to apply detergent at
low pressure only.
Starter Grip and Rope
The starter grip and rope is pulled to start the machine.
Thermal Relief Valve
This pump feature will prevent water temperatures from
reaching harmful levels by releasing a small amount of
water. Once the water has drained, the thermal relief valve
will reset itself.
Trigger Handle
The trigger handle has a gripping surface that provides
added control of the spray wand and helps reduce fatigue.
Trigger with Lock Out
Pulling the trigger releases a stream of water for high
pressure cleaning. The lock out provides protection against
unauthorized use.
FEATURES

8 English
Unpacking
This product requires assembly.
Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing list
are included.
NOTE: This tool is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
WARNING
Do not use this product if any parts in the Packing List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-800-432-ECHO (3246) for assistance.
Packing List
Pressure Washer
35 ft. (10.7 m) High Pressure Hose
Trigger Handle
Spray Wand
Quick-Connect Nozzles (5)
Soap Injection Hose with Filter
Axles (2)
Hitch Pins (2)
Washers (2)
Wheels (2)
4-Cycle Engine Lubricant (SAE 30 or SAE 10W30)
Disposable Funnel
Storage Panel and Screws
Operator’s Manual
WARNING
If any parts are damaged or missing do not operate this
tool until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
WARNING
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in
a hazardous condition leading to possible serious per-
sonal injury.
WARNING
To prevent accidental starting that could cause serious
personal injury, always disconnect the engine spark plug
wire from the spark plug when assembling parts.
Installing the Wheels
See Figure 2.
Locate the axles, hitch pins, washers, and wheels.
Slide the axle through the hole in the center of the wheel.
Slide the washer onto the axle.
Lift the machine and slide the axle into the wheel mount-
ing hole in the machine base as shown.
Push the hitch pin into the hole on the end of the axle to
secure the wheel assembly.
NOTE: The hitch pin should be pushed into the axle until
the center of the pin rests on top of the axle.
Repeat with the second wheel.
Installing the Handle
See Figure 3.
The handle is shipped in the storage position. Before using,
move the handle to the operating position.
Push and hold the buttons on the frame, then slide the
handle over the lock buttons and remove the handle from
the frame.
CAUTION
Be careful to avoid pinching your fingers or hands when
installing the handle onto the frame.
Turn the handle so that the handle is facing away from
the pressure washer. Push and hold the buttons on the
frame as you slide the handle over the lock buttons on
the frame.
Installing the Storage Panel
See Figure 4.
Align the holes in the storage panel with the holes in the
handle, as shown.
Thread the screws into the holes. Tighten securely using
a Phillips screwdriver (not provided).
Connecting the Spray Wand to the Trigger
Handle
See Figure 5.
Place the threaded endof the spray wand in the connector
on the end of the trigger handle.
Turn the connector as shown until it stops. This secures
the spray wand in place.
NOTE: The trigger handle is equipped with an auxiliary
handle. The auxiliary handle helps prevent loss of control.
For ease of operation, use the handle with either the left or
right hand. The handle can be rotated 360°.
ASSEMBLY

English 9
ASSEMBLY
Connecting the High Pressure Hose to the
Trigger Handle
See Figure 6.
Pull back and hold the collar on the high pressure hose.
Insert the inlet coupler on the trigger handle into the collar.
 Release the collar and push until it locks into place. Pull
on the hose to be certain it is properly secured.
Connecting the High Pressure Hose to the
Pump
See Figure 7.
Completely uncoil and straighten the high pressure hose
to prevent kinks.
NOTE: See Using the High Pressure Hose in Operation
for more information about using the high pressure hose.
Pull back and hold the collar on the pump. Insert the inlet
coupler on the end of the high pressure hose into the
collar.
 Release the collar and push until it locks into place. Pull
on the hose to be certain it is properly secured.
Connecting the Garden Hose to the Pressure
Washer
See Figure 8.
NOTICE
Always observe all local regulations when connecting
hoses to the water main. Some areas have restrictions
against connecting directly to public drinking water sup-
ply to prevent the feedback of chemicals into the drink-
ing water supply. Direct connection through a receiver
tank or backflow preventer is usually permitted.
The water supply must come from a water main. NEVER use
hot water or water from pools, lakes, etc. Before connecting
the garden hose to the pressure washer:
Run water through the hose for 30 seconds to clean any
debris from the hose.
Inspect the screen in the water intake.
If the screen is damaged, do not use the machine until
the screen has been replaced.
If the screen is dirty, clean it before connecting the garden
hose to the machine.
To connect the garden hose to the machine:
Completely uncoil the garden hose or remove completely
from reel to prevent kinks.
NOTE: There must be a minimum of 10 feet (3 m) of un-
restricted hose between the pressure washer intake and
the hose faucet or shut off valve (such as a “Y” shut off
connector).
With the hose faucet turned completely off, attach the
end of the garden hose to the water intake. Tighten by
hand.
NOTICE
Do not run the pressure washer without water supply
connected and turned on, as this may damage the high
pressure seals and decrease pump life. Completely
unwind the hose from its reel or coil and make sure the
hose is not being restricted by tires, rocks, or any other
objects that may lessen or prevent water flow to the
pressure washer.
DO NOT OVERTILT THE UNIT!

10 English
WARNING
Do not allow familiarity with this product to make you
careless. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
WARNING
Do not use any attachments or accessories not recom-
mended by the manufacturer of this tool. The use of at-
tachments or accessories not recommended can result
in serious personal injury.
WARNING
Never direct a water stream toward people or pets, or
any electrical device. Failure to follow these instructions
could result in serious injury, electric shock, or death.
WARNING
Risk of serious burns. Do not touch the muffler or place
any body parts in the path of hot exhaust gases, which
can cause burns and other serious personal injuries.
NOTICE
This product is not equipped with a spark arrestor and
cannot be used on U.S. forest lands; in addition, product
users must comply with Federal, State, and local fire pre-
vention regulations. Check with appropriate authorities.
NOTICE
Before each use, inspect the entire product for dam-
aged, missing, or loose parts such as screws, nuts, bolts,
caps, etc. Tighten securely all fasteners and caps and
do not operate this product until all missing or damaged
parts are replaced. Please contact customer service or
an authorized service center for assistance.
Applications
You may use this tool around the house for cleaning most
small to large horizontal or vertical exterior surfaces, smaller
exterior objects and structures, and outdoor equipment and
tools.* You can:
Clean or remove mold and mildew from weathered decks,
driveways, patios, walkways, sidewalks, etc.
Remove dirt from various exterior vertical surfaces such
ashouse exteriors, siding, fences, brick,concreteor stone
walls, etc.
Wash boats, outdoor furniture, powered or non-powered
garden equipment, gutters, window screens, grills, play-
ground equipment, etc.
*Always test in an inconspicuous area first.
Adding/Checking Engine Lubricant
See Figure 9.
NOTE: This machine has been shipped with approximately
2 oz. (60 ml) of lubricant in the engine from testing. You must
addlubricant tothe enginebeforestarting it the firsttime.
NOTICE
Any attempt to start the engine without adding lubricant
will result in engine failure.
To add engine lubricant:
Place pressure washer on a flat, level surface. Do not tilt.
Unscrew the oil cap/dipstick by turning counter-
clockwise.
Before first use, pour all but 2 oz. (60 ml) of the provided
lubricant into the engine through the oil fill hole. Check
and add additional lubricant as needed until the level
reaches the upper portion of the hatched area on the
dipstick. Do not overfill.
Replace the oil cap/dipstick and securely tighten.
To check engine lubricant level:
Place pressure washer on a flat, level surface. Do not tilt.
Unscrew the oil cap/dipstick by turning counter-
clockwise.
Wipe dipstick clean and re-seat in hole; do not rethread.
Removedipstickagainand check lubricant level.Lubricant
level should fall within the hatched area on the dipstick.
If level is low, add 4-stroke engine lubricant (SAE 30 or
SAE 10W30) until the level reaches the upper portion of
the hatched area on the dipstick. Do not overfill.
Replace and secure the oil cap/dipstick.
NOTICE
Do not overfill. Overfilling the crankcase may cause
excessive smoke and engine damage.
Ethanol-Blended Fuels
NOTICE
Do not use E15 or E85 fuel in this product. It is a viola-
tion of federal law and will damage the unit and void
your warranty. Only use unleaded gasoline containing
up to 10% ethanol.
OPERATION

English 11
Adding Gasoline to the Fuel Tank
See Figure 10.
DANGER
Risk of fire and serious burns: Never remove fuel cap
when unit is running. Shut off engine and allow the unit
to cool at least five minutes. Remove cap slowly.
WARNING
Gasoline and its vapors are highly flammable and
explosive. To prevent serious personal injury and prop-
erty damage, handle gasoline with care. Keep away from
ignition sources, handle outdoors only, do not smoke
while adding fuel, and wipe up spills immediately.
WARNING
Always shut off engine before fueling. Never remove
fuel cap or add fuel to a machine with a running or hot
engine. Make sure the unit is sitting on a flat, level sur-
face and only add fuel outdoors. If the engine is hot, let
the unit cool for at least five minutes before adding fuel.
After fueling, immediately replace fuel cap and tighten
securely. Move at least 30 ft. (9 m) from refueling site
before starting engine. Do not smoke and stay away
from open flames and sparks! Failure to follow these
instructions could result in a fire and cause serious
personal injury.
WARNING
Check for fuel leaks. A leaking fuel cap, tank, or line is a
fire hazard and must be replaced immediately. If you find
any leaks, correct the problem before using the product.
Failure to do so could result in a fire that could cause
serious personal injury.
NOTE: This is a 4-cycle engine. DO NOT mix fuel and
lubricant together.
Move the fuel valve to the closed position.
Mixfuel stabilizer with gasoline accordingto fuel stabilizer
manufacturer’s directions.
Before removing the fuel cap, clean the area around it.
Remove the fuel cap.
Insert a clean funnel into the fuel tank then slowly pour
gasoline into the tank. Fill tank to approximately 1-1/2 in.
(3.81 cm) below the top of the tank neck (this allows for
fuel expansion).
Replace fuel cap and tighten securely.
Clean up any spills before starting the engine.
Starting and Stopping the Pressure Washer
See Figures 11 - 14.
NOTICE
Do not run the pressure washer without water supply
connected and turned on, as this may damage the high
pressure seals and decrease pump life. Completely
unwind the hose from its reel or coil and make sure the
hose is not being restricted by tires, rocks, or any other
objects that may lessen or prevent water flow to the
pressure washer.
Before first time use:
Remove caution label and black plug from the red cap
on pump.
Before starting the engine:
Connect all hoses.
NOTE: Make sure the pressure washer’s water intake
screen is in place and unclogged before connecting
garden hose.
Check all fluids (lubricant and gas).
Turn on the garden hose then squeeze the trigger to re-
lieve air pressure; hold the trigger until a steady stream
of water appears.
NOTE: Make sure the faucet is turned on fully and that
there are no kinks or leaks in the hose.
To start the engine:
Move the fuel valve to the OPEN position.
Put the on/off switch in the ON position.
Move the choke to the START position.
NOTE: If restarting after a brief stop (i.e., after refueling
or moving), leave the choke lever in the RUN position.
Grasp the starter grip and pull slowly until resistance is
felt. Give the starter grip a short, brisk pull to start the
engine.
NOTE: Do not allow the starter grip and rope to snap
back after starting; return it gently to its original place.
NOTICE
If the engine does not start after each pull of the starter
grip and rope, squeeze the trigger to relieve water pres-
sure before attempting to start the engine again.
Allow the engine to run for 5 seconds, then push the
choke to the RUN position.
NOTICE
Routinely make a visual inspection of the pump and
engine during use. If you notice any lubricant leaking
around the pump or engine seals, stop using the pres-
sure washer immediately. Contact customer service or
an authorized service center for repair. Failure to do so
may cause property damage.
OPERATION

12 English
To stop the engine:
Put the on/off switch in the OFF position.
Turn the fuel valve to the CLOSED position.
NOTE: Shutting off the engine will not relieve pressure in the
system. Pull trigger to release water pressure.
WARNING
While operating and storing, keep at least 3 feet
(91.4 cm) of clearance on all sides of this product, includ-
ing overhead. Allow a minimum of 30 minutes of “cool
down” time before storage. Keep all body parts, clothing,
combustible materials, and hoses away from the muf-
fler. Heat created by muffler and exhaust gases could be
hot enough to cause serious burns, ignite combustible
objects, and/or damage high pressure hoses that can
result in an injection injury.
Using the Trigger Handle
See Figure 15.
WARNING
Hold the trigger handle securely with both hands. Expect
the trigger handle to move when the trigger is pulled due
to reaction forces. Failure to do so could cause loss of
control and injury to yourself and others.
Pull back and hold the trigger to operate the pressure
washer.
Release the trigger to stop the flow of water through the
nozzle.
To engage the lock out:
Push up on the lock out until it clicks into the slot.
To disengage the lock out:
Push the lock out down and into its original position.
Start with the nozzle 1–2 ft. (30 à 60 cm) away from the
cleaning surface and carefully approach the surface just
until the desired level of cleaning is achieved. If the spray is
too close it can damage the cleaning surface.
Selecting the Right Nozzle for the Job
See Figure 16.
Each of the nozzles has a different spray pattern. Before
starting any cleaning job, determine the best nozzle for the
job.Referto the NozzleSelectionGuide for moreinformation
about which nozzle to choose.
OPERATION
Nozzle Selection Guide
High Pressure
(No Soap When Using These Nozzles)
Low
Pressure
(For Soap or
Gentle Rinse)
0º Red 15º
Yellow 25º Green 40º White Blue or Black
Soap Nozzle
Concrete, Brick, Masonry     
Siding, Gutters, House    
Fencing, Deck, Patio    
Lawn Equipment, Boat, RV   
Recommended Nozzle Use With Caution for Certain Applications

English 13
WARNING
NEVER remove nozzles without first turning off the en-
gine, relieving the water pressure in the trigger handle,
and locking the lock out on the trigger handle. NEVER
point the nozzle at your face or at others. The quick-
connect feature contains small springs that could eject
the nozzle with some force. Failure to follow these in-
structions could result in an eye injury or other serious
personal injury.
To connect a nozzle to the spray wand:
Turn off the pressure washer and shut off the water sup-
ply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Pull back the quick-connect collar.
Push the nozzle into place in the spray wand.
Push the collar forward so that the nozzle is secured
properly. Check to see that the nozzle is secure.
To disconnect a nozzle from the spray wand once the
cleaning job is complete:
Turn off the pressure washer and shut off the water sup-
ply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Pull back and hold the quick-connect collar.
Remove the nozzle by pulling it from the quick-connect
collar. Place nozzle in the nozzle storage area on the top
of the machine.
Using the High Pressure Hose
WARNING
Injection hazard. Fully unwrap and straighten high pres-
sure hose prior to and during each use and do not allow
it to become kinked. The high pressure hose features an
outer covering that provides strength to the hose. If the
outer covering becomes damaged, stop using the hose
and replace it immediately. A kinked or damaged hose
can develop a high pressure leak and result in a possible
injection or other serious personal injury.
To prevent damage to the outer covering:
Inspect the hose before every use.
Fully unwrap and straighten hose before use.
Do not allow the high pressure hose to be kinked.
Keep hose away from hot surfaces and sharp edges.
Do not pull unit by high pressure hose.
Do not allow hose to be crushed or wrapped around
objects.
Washing With Detergent
See Figures 17 - 18.
As sold, this unit is designed for use with “downstream”
pressure washer detergents. To convert for use with
“upstream” detergents, contact customer service or an
authorized service center for more information.
NOTICE
USE ONLY DETERGENTS DESIGNED FOR PRESSURE
WASHERS. Do not use household detergents, acids,
alkalines, bleaches, solvents, flammable material, or
industrial grade solutions, which can damage the pump
or cause property damage. Many detergents may re-
quire mixing prior to use. Prepare cleaning solution
as instructed on the solution bottle. Always test in an
inconspicuous area before beginning.
Place the open end of the soap injection hose over the
barbed fitting on the pump.
Place the filter end of the soap injection hose in the bot-
tom of the detergent bottle/container.
NOTE: The machine setting of this unit is 20:1, which
usually allows the use of 1 gallon (3.79 l) pressure washer
detergent without further dilution. Check your detergent
instructionsto be sureadditional dilutionis not necessary.
Install the blue or black soap nozzle on the spray wand.
Squeeze the trigger and wait approximately 5 seconds for
the detergent to appear.
Spray the detergent on a dry surface using long, even,
overlapping strokes. To prevent streaking, do not allow
detergent to dry on the surface.
Before shutting off the engine:
Place the filter end of the soap injection hose in a bucket
of clean water.
Spray the clear water through the spray wand until the
bucket is empty.
If any soap remains in the spray, repeat with a second
bucket of clean water.
Shut off the engine.
NOTE: Shutting off the engine will not relieve pressure
in the system. Pull trigger to release water pressure.
Rinsing With the Pressure Washer
Turn off the pressure washer and shut off the water sup-
ply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Remove the soap injection hose, if installed.
Remove the soap nozzle and place in the nozzle storage
area.
Select the right nozzle for the job. See the chart shown
earlier in the manual for selecting the appropriate nozzle.
OPERATION

Page 14 — English
MAINTENANCE
Normal maintenance, replacement or repair of emission
control devices and systems may be performed by any
authorized repair establishment or individual with original
or equivalent parts. Warranty and recall repairs must be
performed by an authorized service center; please contact
customer service for assistance.
WARNING
Before inspecting, cleaning or servicing the machine,
shut off engine, wait for all moving parts to stop, and
disconnect spark plug wire and move it away from
spark plug. Allow 30 minutes of cool down time before
performing any maintenance. Failure to follow these
instructions can result in serious personal injury or
property damage.
WARNING
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
WARNING
When servicing, use only recommended or equivalent
replacement parts. Use of any other parts could create
a hazard or cause product damage.
NOTICE
This product is not equipped with a spark arrestor and
cannot be used on U.S. forest lands; in addition, product
users must comply with Federal, State, and local fire pre-
vention regulations. Check with appropriate authorities.
NOTICE
Periodically, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps,
etc. Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts
are replaced. Please contact customer service or an
authorized service center for assistance.
OPERATION
Start at the top of the area to be rinsed and work down,
overlapping the strokes.
Using Pump Protector
See Figure 19.
Regular use of a commercially available pump protector
prolongs the life of the pressure washer by removing hard
water mineral deposits, lubricating pump seals and pistons,
and preventing freeze damage. Pump protector should
be added to the unit after every use and before storage.
Pump protector can be purchased at the retailer where you
purchased your pressure washer, or by calling customer
service.
The instructions that follow are typical for adding pump
protectorbut you should alwaysverifythespecific instructions
provided by the manufacturer of the pump protector used.
Turn off the pressure washer engine and shut off the water
supply. Pull trigger to release water pressure.
Disconnect garden hose and high pressure hose.
Unscrew threaded top from pump protector bottle and
remove paper seal from bottle. Reinstall top on bottle and
tighten securely.
NOTE: The rubber seal should remain inside the threaded
top. If it comes out, be sure to replace before reinstalling
the top.
Remove bottle cap and attach threaded end of bottle
securely to pressure washer pump water intake.
Squeeze bottle to inject contents into pump.
With engine switch off, pull starter grip and rope to cycle
pump, then squeeze bottle again to guarantee complete
coverage.
Pumpis protectedwhen the protectorfluid exits the pump
outlet.
Moving the Pressure Washer
See Figure 20.
NOTE: Never lift or carry this product using the handle.
Turn the pressure washer off.
Tilt the machine away from you slightly until it balances on
the wheels, then roll the machine to the desired location. Do
not tilt forward or sideways when moving.
DO NOT attempt to move the unit by pulling on any of
the hoses.
High Altitude Operation
Your engine is configured for operation below 2,000 feet
(609.6 m) altitude at the factory. Your engine must be
reconfigured for operationabove 2,000 feet (609.6m) altitude.
Operating the engine with the wrong engine configuration at
a given altitude may increase its emissions, decrease fuel
efficiency, degrade performance, and cause irreversible
damage. Engines configured for high altitude operation
cannot be operated in standard altitude conditions. An
authorized service center should ensure that your engine is
properly configured for your location.

English 15
General Maintenance
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which could result in serious personal
injury.
Before running the engine, perform the following pre-
operation steps:
Check that all bolts, nuts, etc., are securely tightened.
Make sure the air filter is clean.
Check both the engine lubricant level and the fuel tank
level; refill as needed.
Inspect the work area for hazards.
If there is excessive noise or vibration, stop the unit im-
mediately.
Nozzle Maintenance
See Figure 21.
Excessive pump pressure (a pulsing sensation felt while
squeezing the trigger) may be the result of a clogged or
dirty nozzle.
Turn off the pressure washer and shut off the water supply.
Pull trigger to release water pressure.
Remove the nozzle from the spray wand.
WARNING
NEVER remove nozzles without first turning off the en-
gine, relieving the water pressure in the trigger handle,
and locking the lock out on the trigger handle. NEVER
point the nozzle at your face or at others. The quick-
connect feature contains small springs that could eject
the nozzle with some force. Failure to follow these in-
structions could result in an eye injury or other serious
personal injury.
To free any foreign materials clogging or restricting the
nozzle, blow out or remove debris with a straightened
paper clip or fine needle (not included).
Using a garden hose, flush debris out of nozzle by back
flushing (running the water through the nozzle backwards
or from the outside to the inside).
Reconnect the nozzle to the spray wand.
Turn on the water supply and start the engine.
Cleaning/Replacing the Air Filter
See Figure 22.
Adirtyairfilterwillcausestartingdifficulty,lossofperformance,
and shorten the life span of the engine. Check the air filter
monthly. For best performance, replace the paper air filter
at least once a year.
Remove the wing nut from the air cleaner cover, then
remove the cover.
Remove the wing nut from the air cleaner assembly, then
remove the air cleaner assembly.
Separate the foam filter from the paper filter. Inspect both
filters and replace if damaged.
To clean the paper filter, use compressed air or tap the
paper filter element several times on a hard surface to
remove dirt.
Clean the foam filter with warm soapy water. Rinse and
let dry.
Apply a light coat of engine lubricant to the foam filter
element, then squeeze it out.
Reinstall the foam filter over the paper filter.
Reinstall the air cleaner assembly, then reinstall the wing
nut to secure.
NOTE: Make sure the gasket is in place before reinstalling
the air cleaner assembly.
Using a damp cloth, wipe the inside of the air cleaner
cover. Take care not to allow dust to enter the carburetor.
Reinstall the air cleaner cover, then reinstall the wing nut
to secure.
NOTE:Do notrun the pressurewasher without theair cleaner
assembly in place. Rapid engine wear will result.
Changing Engine Lubricant
See Figure 23.
Shut off the engine.
Clean the area around the oil cap/dipstick, then remove
the oil cap/dipstick.
NOTE: Remove the dipstick to allow lubricant to drain
easier and more quickly.
Disconnect the spark plug wire from the engine.
To drain the lubricant, remove the drain plug from the
bottom of the engine. Drain lubricant into an approved
container, then reinstall drain plug and tighten securely.
NOTE: Drain the lubricant while the engine is still warm
but not hot. Warm lubricant will drain quickly and more
completely.
WARNING
Do not change engine lubricant while it is hot. Accidental
contact with hot engine lubricant could result in serious
burns.
MAINTENANCE

16 English
MAINTENANCE
Fill with lubricant following the instructions in Adding/
Checking Engine Lubricant earlier in this manual.
For amount of lubricant needed to refill, see Product
Specificationsearlier in thismanual or the accompanying
engine manual, if applicable.
Before using the pressure washer, check to ensure that
no lubricant is leaking from the engine.
NOTE: Consult hazardous waste management guidelines in
your area for the proper way to dispose of used lubricant.
Checking the Spark Plug
See Figure 24.
Clean the area around the base of the spark plug before
removing to keep dirt and debris out of the engine. Re-
move spark plug.
Clean off carbon deposits on the spark plug electrode
using a plug cleaner or wire brush. Replace the plug if
worn or reuse is questionable. For replacement spark
plug, see Product Specifications earlier in this manual
or the accompanying engine manual, if applicable.
Check electrode gap. The gap should be 0.7 – 0.8 mm.
(0.028 – 0.031 in.) Adjust the gap, if necessary, by care-
fully bending the ground electrode.
Check the condition of the spark plug gasket.
Reinstall spark plug. Start the spark plug in its threads
by hand and finger-tighten.
Tighten with wrench to compress washer. If spark plug
is new, use 1/2 turn to compress washer appropriate
amount. If reusing old spark plug, use 1/8 to 1/4 turn for
proper washer compression.
NOTE: An improperly tightened spark plug will become
very hot and could damage the engine.
Changing the Pump Lubricant
See Figure 25.
NOTE: The pump was filled with lubricant at the factory.
FillthecrankcasewithSAE 15W-40 automotive gradelubricant
per pump specifications listed below. Do not run pump
without lubricant in crankcase. Change initial fill after 50
hours of run time. Thereafter, change oil every 3 months or
300 hour intervals.
To check oil:
Place pressure washer on a flat, level surface.
The sight glass is located above the drain plug. There is
a red dot in the center of the glass.
Alubricant level at the top of thereddot indicates lubricant
is at maximum level.
A lubricant level at or below the bottom of the red dot
indicates lubricant is below desired level, and lubricant
should be added.
To change oil:
Place a container under the pressure washer.
Loosen the pump oil cap. Remove the oil drain plug and
drain the old lubricant.
NOTE: Drain the lubricant while the pump is still warm
but not hot. Warm lubricant will drain quickly and more
completely.
WARNING
Do not change pump lubricant while it is hot. Accidental
contact with hot pump lubricant could result in serious
burns.
Replace the oil drain plug. Tighten securely.
Remove the pump oil cap.
Fillwith5 oz. (150ml) of pumplubricant. Type: SAE15W-40
automotive grade lubricant.
Replace pump oil cap and tighten securely.
NOTE: Consulthazardouswaste management guidelines in
your area for the proper way to dispose of used oil.
Pump Maintenance
Routinely make a visual inspection of the pump. If you notice
any leaking of lubricant around the pump oil seals, take the
pressure washer to an authorized service center for repair.
Ifyou notice excessive water leaks or low operating pressure,
the water seals may need to be replaced. We recommend
taking your pressure washer to an authorized service
center for repair, as service performed by inexperienced or
unauthorized persons may damage the pressure washer
and void your warranty.
Storing the Pressure Washer
See Figure 26.
NOTE: Regular use of fuel stabilizer and pump protector
will give you better performance of the unit and increase
the life of the pump.
WARNING
While storing, keep at least 3 feet (91.4 cm) of clearance
on all sides of this product, including overhead. Allow a
minimum of 30 minutes of “cool down” time before stor-
age. Heat created by muffler and exhaust gases could
be hot enough to ignite combustible objects.
Storein a dry, coveredareawherethe weather can’tdamageit.
It is important to store this product in a frost-free area. Always
empty water from all hoses and the pump before storing.
Drain the fuel tank completely by running the pressure
washer until the gas runs out. Stored gas can go stale in
30 days.
NOTE: Make sure the water supply is connected and
turned on when allowing the pressure washer engine to
run.
Make sure the on/off switch is in the OFF position and
and fuel valve is in the CLOSED position.
