Echo 9 Ultra H2 User manual

ECHO 9 Ultra H 2 OPERATION MANUAL
The Premier H 2 Enriched Water Purification System

02
Safety Precautions
Hot
Water
If a break down occurs, do not make a repair yourself. Contact our
customer service center, 1-800-337-7017.
If your machine becomes submerged
in water, unplug the power cord from
the wall BEFORE removing your
machine from the water.
Failure to do so may
cause electric SHOCK!
NEVER attempt to repair or service the unit
yourself. Contact customer service
1-800-337-7017.
Attempting to do so will VOID your valuable
warranty!
Do Not use your machine at voltages other than
specified.
Do Not plug in your machine where it will exceed
the rating of outlet or electric wiring.
Failure to do so can result in fire, injury and / or
damage to yourself,or wiring or machine!
NEVER touch the power cord or plug with
wet hands
- this may result in electric SHOCK!
Protect your machine from freezing temperatures
and direct sunlight.
Ensure the power plug is firmly and
properly inserted into the outlet
- Failure to do so may result in electric SHOCK
or fire!
Do Not attempt to repair or service the machine yourself! DO NOT OPEN OR DISASSEMBLE
your machine. Contact customer service.
1-800-337-7017
Attempting to do so will VOID your warranty!
Make sure to use your machine only with potable water suitable
for human consumption.
Do Not run hot water through your machine.
Do Not clean by pouring water over or spraying
the machine.
Unplug your machine if you plan Not to use it for an
extended period of time or turn off the master power
switch on the back of the unit.
Filter replacement may be
necessary

03
Do Not close, bend, pinch, press or otherwise
obstruct output ports or hoses.
If the appliance makes strange or unusual noises.
If burning smells are detected, unplug the power
cord immediately and contact customer service, to
arrange service for your machine at
1-800-337-7017.
pH Reagent Liquid Precautions
pH Reagent Liquid Precautions
Some Helpful Tips
Some Helpful Tips
Do not expose the pH measuring reagent to extreme heat, flames or fire.
It is Combustible.
For storing your alkaline water, glass or ceramic is best. Always try and
keep your stored water cool and away from direct sunlight.
Glass is preferable, but you can use plastic. We recomend only high quality plastics. It is always best
fresh out of the machine and ideal if consumed on a day to-day basis.
Do Not store alkaline water in stainless steel, bronze or aluminum containers.
Save the box and styrofoam your machine came packed in.
This will help if your machine needs to be transported at a later date.
If you are using your machine downstream of a reverse osmosis
system or running reverse osmosis water in your home,
remineralization of the water will be needed.
Do Not drink the pH reagent liquid, nor put it in the eyes or apply to the body.
- If the liquid is ingested, induce vomiting immediately and call a doctor.
- If the liquid gets in the eyes, flush immediately and thoroughly with
cool water; call a doctor.
- If spilled or dropped on your body, wash if off immediately.
Make sure to keep the pH reagent liquid tightly closed and out of the
reach of children.

04
Names And Functions
Front Side
Back Side
Water Spout
Front Cover
LCD Touch
Screen
Master Power Switch
AC Fuse Holder
Source Water Inlet
115v & 220v
Switch Inside
Filter Compartment
Speaker
Faucet Cable Port
(insert carefully)
Water Outlet
Filter Door

05

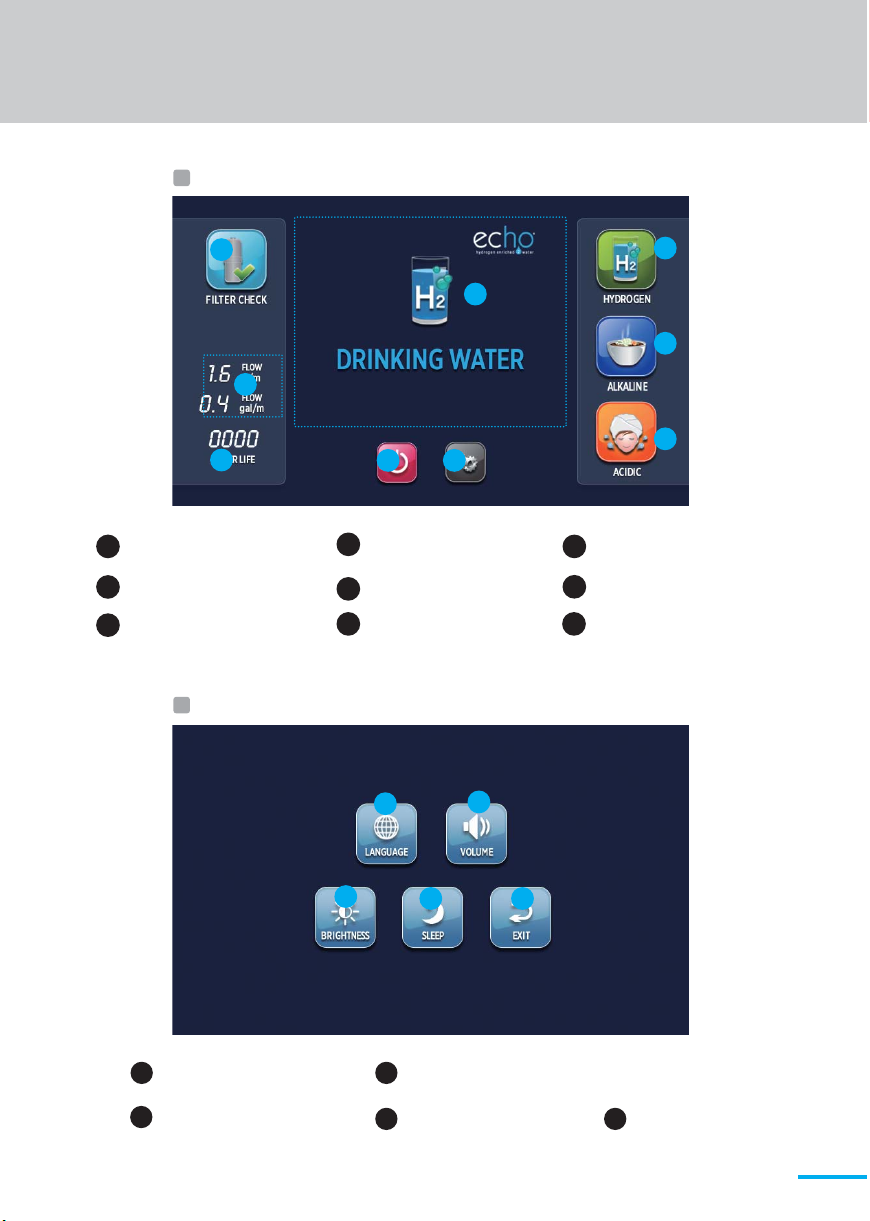

Indicators / Controls
Language selection button
Brightness selection button
l
Volume selection button
k
j
Sleep selection button
m
Setting Indicators / controls
l
j k
m n
Exit button
n
a
bc
g
h
i
d
e
f
Selection indicator
aOn /Off button
b
Acidic water button
f
Filter check button
gFlow indicator
hFilter life indicator i
Setting button
c
Hydrogen water button
dAlkaline water button e

06
How to Use
Initial operation
OFF ON
1
Power up your Hydrogen Water Machine.
-Turn power on with master power switch on back
of machine.
-The machine will go into power saver mode, automatically.
Touch the screen to wake up machine out of “sleep mode”.
Stand-by mode statusStart screen
2
Start water flow through your machine
- Press the desired water type: Hydrogen (H2) Water, Alkaline Water,or Acidic
Water (hypochlorous).
- If you choose Hydrogen Water first, you will hear water entering the machine’s
water chambers. This is normal. If you choose Alkaline Water First, the machine
startup may be quieter.
Note
Note
The water may initially come out discolored (light to charcoal gray) due to carbon particles
in the new filter. This is not harmful and is typical of all carbon filters. Allow the water to flow
for 2-3 minutes in the "H2 water" mode and this will flush out all the carbon dust.
4000
FILTER LIFE

07
Press the "HYDROGEN" button to begin flow of Hydrogen Water.
You will hear a voice confirmation
that "Echo Hydrogen Water" has been
selected, and the display panel will
show a green symbol.
The Echo Hydrogen Water
comes out of the top spout.
Nothing comes out of the lower water outlet.
When drinking hydrogen water
What would I use the Hydrogen Water for?
The pH of Hydrogen water is neither raised nor lowered and would be the same as your source
water. You can use it as both drinking water as well as taking medications.
When finished using the machine, press the Red power button.
The water will stop, the machine will drain water out of the water cell.
After a short time, the display panel willl go dark, indicating that the machine is in
“sleep mode”.
How to shut off the water flow from your machine
How To Check The Filter
Press the "FILTER CHECK" button
and the display panel will show a
digital filter life.
Hydrogen Water

08
Alkaline Water
※Higher than10pH water is not recommended for drinking for long periods of time.
2
Whenever you press alkaline water selection button repeatedly, it changes
level of alkaline water.
When drinking alkaline water
Some uses for the different levels of Alkaline Water
Alkaline water levels Note: pH levels will always vary with different source water(tap water).
Weak to Medium Alkaline water
Move up to this level after the initial
adjustment period.
Adjust to this level for 3-4 days.
Most people will drink at level 2 or 3.
Weak Alkaline water
This level is used for initial consumption period
(4-7 days). Let your body adjust slowly to this
increase in pH.
Level 1
Medium to Strong Alkaline water
This is the most common level of alkalinity for
drinking purposes. Some people may start to
detect a strong taste.
Level 3
Level 2
Strong Alkaline water
Generally, most people find this
very strong tasting and may have
powerful detoxifying effects.
Not recommended to drink water
at a10pH or higher, all the time.
Level 4
1
Press the "ALKALINE" button to select the desired setting from levels 1 - 4.
You will hear a voice confirmation that "Alkaline Water" has been selected, and the
display panel will show a Blue symbol and purple number corresponding to the level
selected.
Your machine will always "remember" the last setting used.
If the previous selection was Alkaline Level 2, when you select Alkaline Water again,
it will automatically produce water at Alkaline Level 2.
NOTE
NOTE
T
d
d
d
d

09
※Acidic water is not drinking water. Be careful not to drink acidic water, confusing it
with alkaline water or hydrogen water.
When using acidic water
1

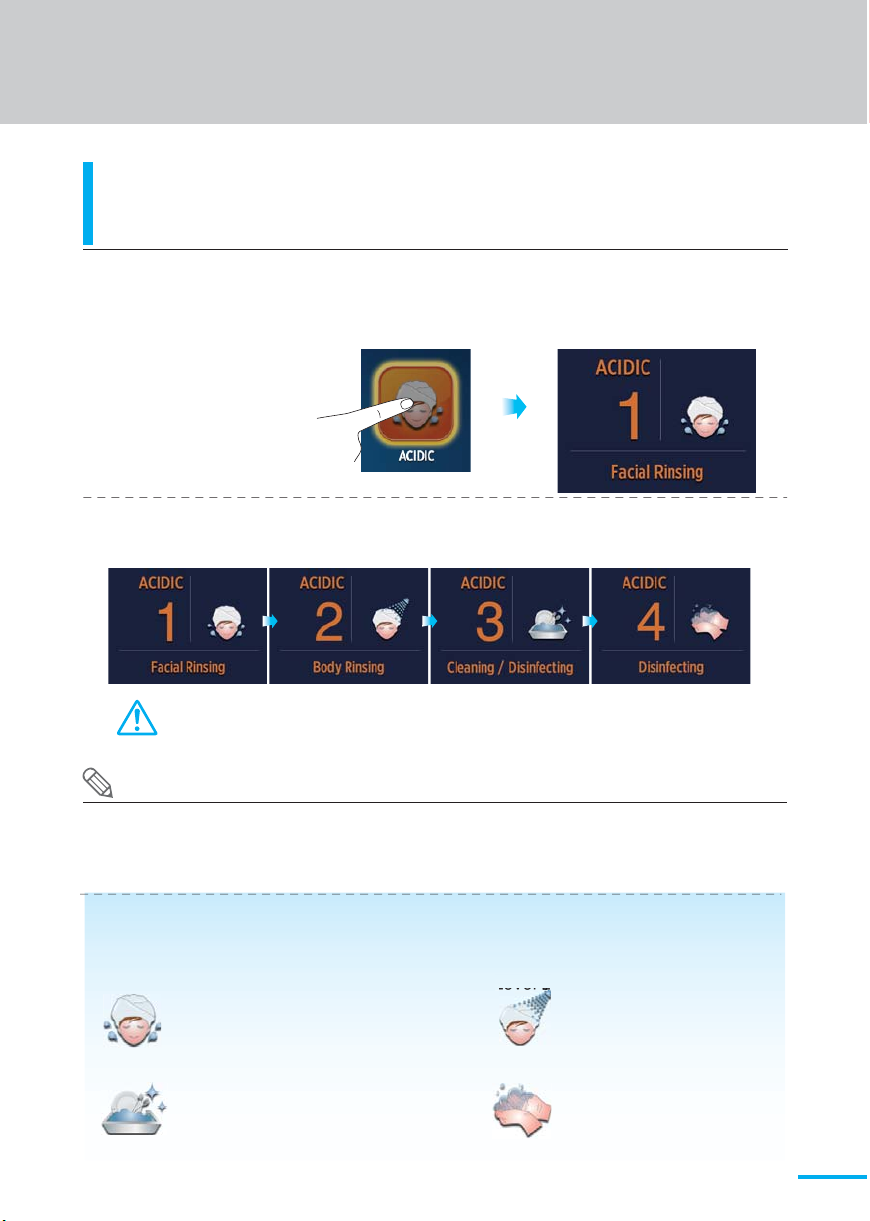

Press the "ACIDIC" button to select the desired acid levels, from 1 - 4.
You will hear a voice confirmation that "Acidic Water" has been selected, and the
display panel will show an Orange symbol and an orange number corresponding to the
level selected.
※Acidic water has many uses including washing the face, brushing the teeth, used as a
mouthwash, or washing the body. Also recommended for cleaning surfaces or creating a
natural household cleaner. Irrigate plants and flowers (level 1 acid).
Your machine will always "remember" the last setting used.
If the previous selection was Acid Level 2, when you select Acid Water again,
it will automatically produce water at Acid Level 2
NOTE
NOTE
2
Whenever you press acidic water selection button repeatedly, it changes the
number of acidic level.
Weak Acidic water.
Facial cleansing.Used for oral hygiene,
mouth wash, irrigating flowers and plants, etc.
Weak to Medium Acidic water.
For skin care, as an astringent and
oral hygiene, gargling, washing
your hair, etc.
Strong Acidic water.
For sterilization purposes.
Washing Produce, meat,
fish, poultry.
Medium to Strong Acidic water.
For cleaning in the kitchen.
Some uses for the different levels of Acidic Water
Descriptions of Acidic water levels. Note: pH levels will vary, based on your tap water.
Level 1
Level 3
Level 2
Level 4
Level
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Acid Water

Press the "VOLUME" button.
When the VOLUME screen
appears on the display panel,
press the + button to increse
the volume, press the - button to
decrease the volume.
VOLUME SETTING
10
How To Use
How to Change Settings
Press the "SETTING" button.
When the SETTING screen appears
on the display panel, press the
desired button for selection.
Press the "LANGUAGE" button.
When the LANGUAGE screen
appears on the display panel,
press the appropriate button for
desired language.
LANGUAGE SETTING

11
Press the "BRIGHTNESS" button.
When the BRIGHTNESS screen
appears on the display panel,
press the appropriate button
for the desired selection.
Press the "SLEEP" button.
When the SLEEP screen
appears on the display panel,
press the appropriate button
for the desired selection.
BRIGHTNESS SETTING
SLEEP SETTING

12
Replacing Your Echo® Filter
How to replace the filter
2

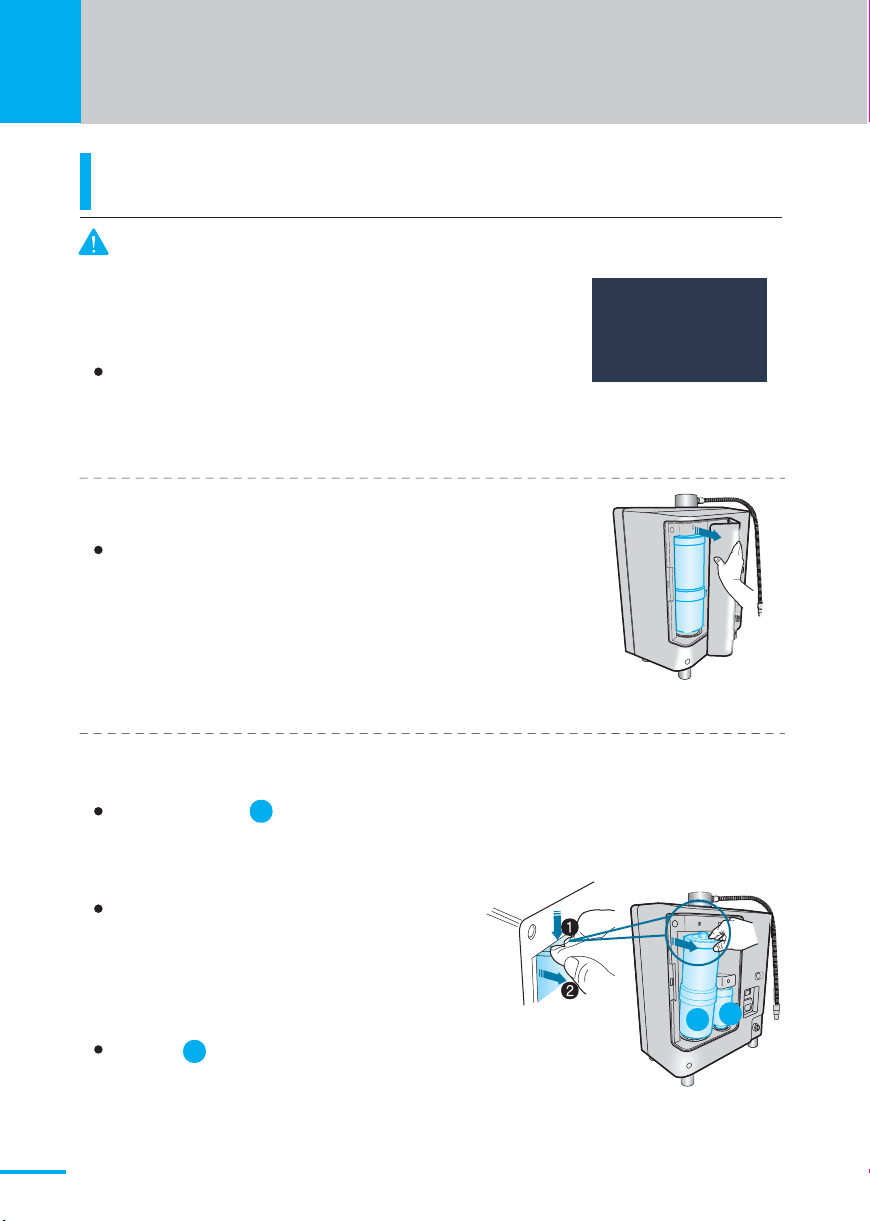

Open the filter housing cover.
1 Stop water flow supply by turning power switch on
back side of product to OFF position.
IMPORTANT! Stop water flow prior to filter replacement.
Take hold of the filter securely with your hand, press the top of filter firmly down
against the spring loaded mechanism(figure1) to disengage the top of the filter
and then pull it toward you (figure 2)and up to remove it.
The upper part of the filter is separated from
housing by pressing firmly down.
Once you have engaged the spring loaded
mechanism, you can then easily remove the
filter from the main body by pulling it toward you.
Remove filter with the same as method above.
Slide the cover to remove it.
e
top
of
the
filter
3
Remove the expired filter.
0000
FILTER LIFE
A
A
B
B
When the digital filter life indicator display 0000, or you see
the flickering filter symbol, it is time to replace your filter.

Check for leakage by running water through
your machine before replacing the housing cover.
A
Echo® 9 Ultra Replacement Filter
B
H2 Water Replacement Filter
13
6
The filter life indicator will automatically reset
once the machine detects a new filter present.
7
Flush out the carbon dust.
8
Replace the filter housing cover.
5
Once new filter is installed, rotate the filter until the arrow on the filter is aligned
with the arrow on the machine.
Your Echo® lter is equipped with a genomic chip. This chip communicates with the
machine how much water has owed through the lter.
Make sure the arrow on
filter lines up with the
arrow on the machine!
4
Insert the new filter into the compartment.
Remove the plastic caps covering both ends of the new filter.
Set the large opening (on the bottom of the filter cartridge)
onto the base in the center of the filter cushion.
Push the filter down and into the housing compartment
ensuring the opening at the top of the filter is seated
properly into the fitting, at the top of the housing.
Change filter with the same as method above.
4000
FILTER LIFE
The water flowing through will initially come out discolored
(light to charcoal gray) due to carbon particulates in the new filter.
It is not harmful.
Allow the water to flow for 2-3 minutes in the "H2" mode
and this will flush all the carbon dust.
A
B
Ultra Re
p
lacement Filt
e
er
Re
p
lacement Filt
er
r.
AB
★

14

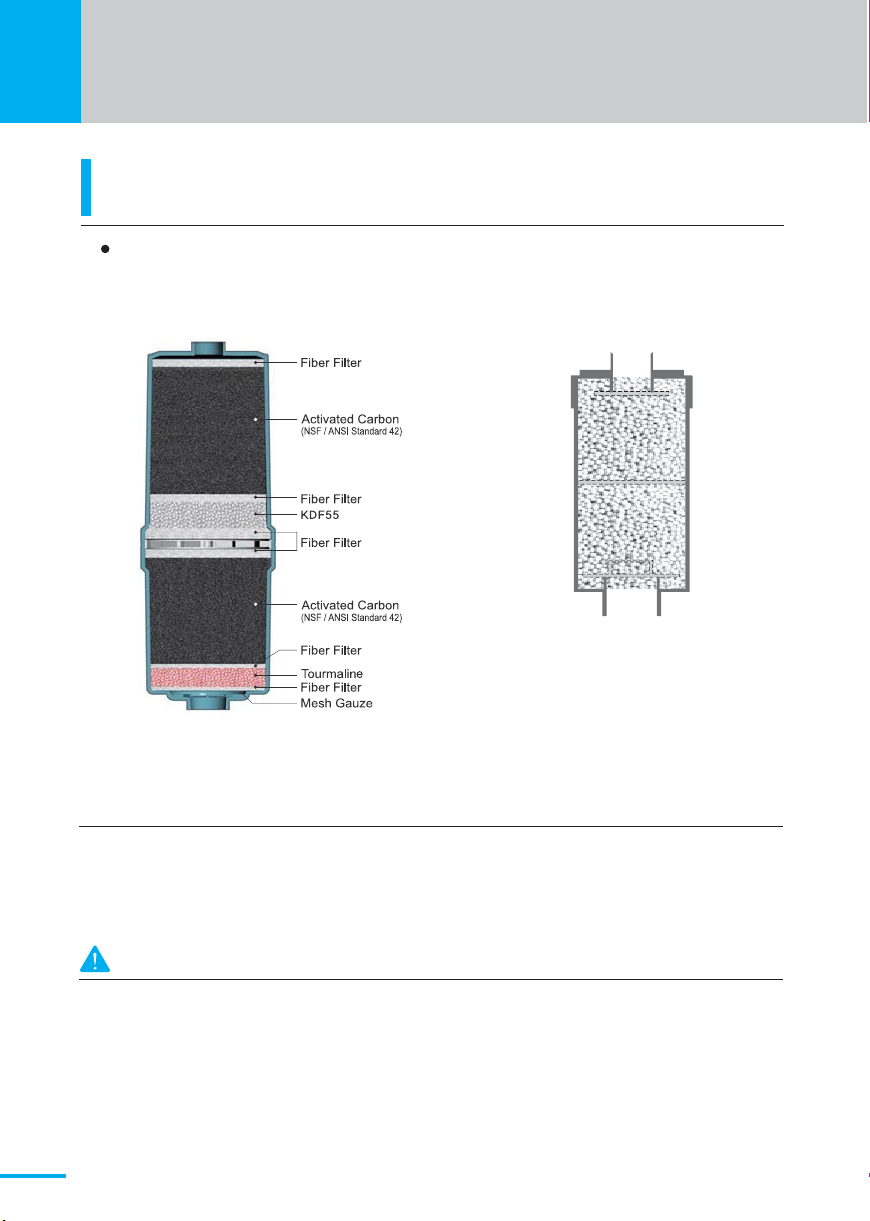

Composition Of Filter
Composition of filter
-Please replace lter when the water no longer tastes clean.
-Filter replacement may be needed , if you haven’t used your machine in a long period of time.
Effective period of filter use may differ greatly depending on season, usage, and
environment. (I.E. water pressure, quality, and amount of use)
Recommended period for changing filter
High Performance Carbon Filter
Please replace filter when prompted by machine or if any one of
the below occurs:
Echo® 9 Ultra Replacement Filter Hydrogen Water Filter
(Coconut Husk)
(Coconut Husk)
(NSF / ANSI 42)
(NSF / ANSI 42)

15
Measuring The pH of Water
- DO NOT consume water containing pH reagent.
- Keep the pH reagent Iiquid and color chart away from OPEN FLAMES!
- If contact with eyes, flush Iiberally with fresh water, and seek medical help.
- If ingested, induce vomiting, and seek medical help.
Caution
1
Fill the three test containers provided about 1/2 full
with alkaline, acidic, and H2 water each.
2
Add 2 or 3 drops of the pH reagent into the container
and stir if needed.
If the reagent and water are not mixed well, the
correct result may not occur, mix well.
How to measure pH
※Important Note: Water quality and mineral content vary greatly in different Iocations
and will directly impact machine performance with respect to pH and hydrogen production.
3
The pH value is determined by matching the color
on the pH color chart provided. A digital pH meter
is more accurate than reagent.
H2
WATER
ALKALINE
WATER
ACIDIC
WATER
H2
WATER
ALKALINE
WATER
ACIDIC
WATER

16
Counter Top Installation Instructions
Connecting to a Standard Faucet
Connecting to a Cold
Water Valve
Warning! Make sure the arrow on the
dust pre-lter is pointing
the same direction as the
water ow.
Warning!
Make sure the arrow on the
dust pre-lter is pointing
the same direction as the
water ow.
Dust Pre-Filter
Source water
Source water
Dust Pre Filter
diverter
valve
Cold Water Valve
outlet
inlet
inlet
T-Adapter
inlet
outlet

17

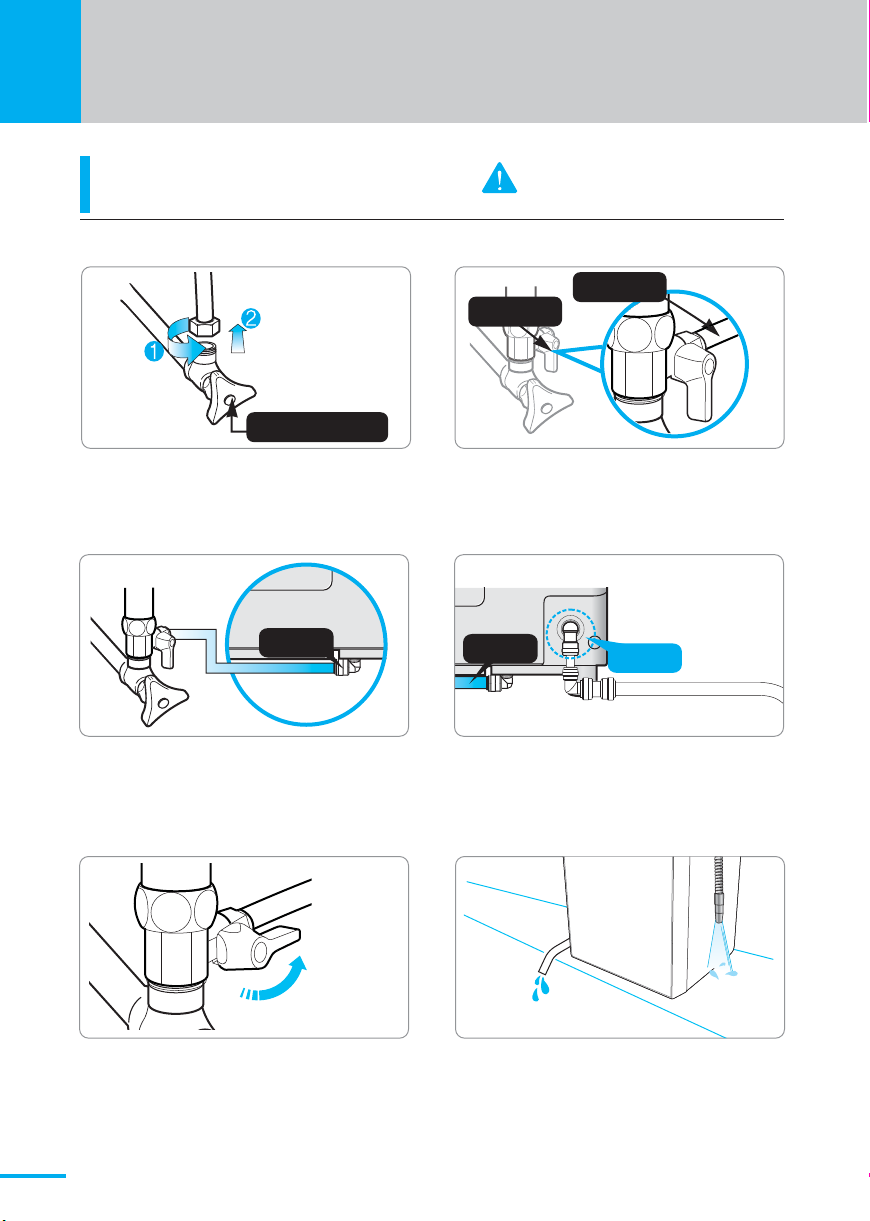

Installation: Diverter Valve
diverter valve
Before installing, shut o water supply.
Caution
1
Remove aerator from faucet. Attach
diverter valve. Use sizing rings and
grommet if needed.
3
Push the 1/4in.(PE) hose all the
way in the water inlet at the bottom
of the machine.
4
Connect stainless steel acid line
to the acidic outlet and allow it to
drain into your sink.
2
Connect 1/4 in.(PE) hose to the
diverter in "Figure 2". Shown above.
[Figure 4]
[Figure 1]
[Figure 5]
5
After finishing the connection of
"Figure 4" open the water supply
valve and adjust the water
pressure.
6
Check for leaks on all connections
after installation is completed.
[Figure 2]
diverter
PE Hose
inlet
[Figure 3]
inlet outlet
[Figure 6]

2
Connect 1/4 in.(PE) hose to the
t-adapter in "Figure 2"
3
Push the 1/4in.(PE) hose all the
way in the water inlet at the bottom
of the machine.
4
Connect stainless steel acid line
to the acidic outlet and allow it to
drain into your sink.
5
After finishing the connection of
"Figure 4" open the water supply
valve and adjust the water
pressure.
6
Check for leaks on all connections
after installation completed.
18
Installation Procedure 2 Before installing, shut o water supply.
Caution
1
Loosen the nut of the cold water
valve.
[Figure 1]
[Figure 5]
Cold water valve
[Figure 2]
PE Hose
t-adapter
inlet inlet
[Figure 4]
outlet
[Figure 3]
[Figure 6]

When using a Reverse Osmosis filter prior to the machine, you will need to
verify the R.O. storage tank pressure is 11-13psi.
You will also need to remineralize the water to have at least 100TDS in the
water for optimum performance.
You can purchase a TDS meter inexpensively.
Installation Precautions
Installation Precautions
Caution
19

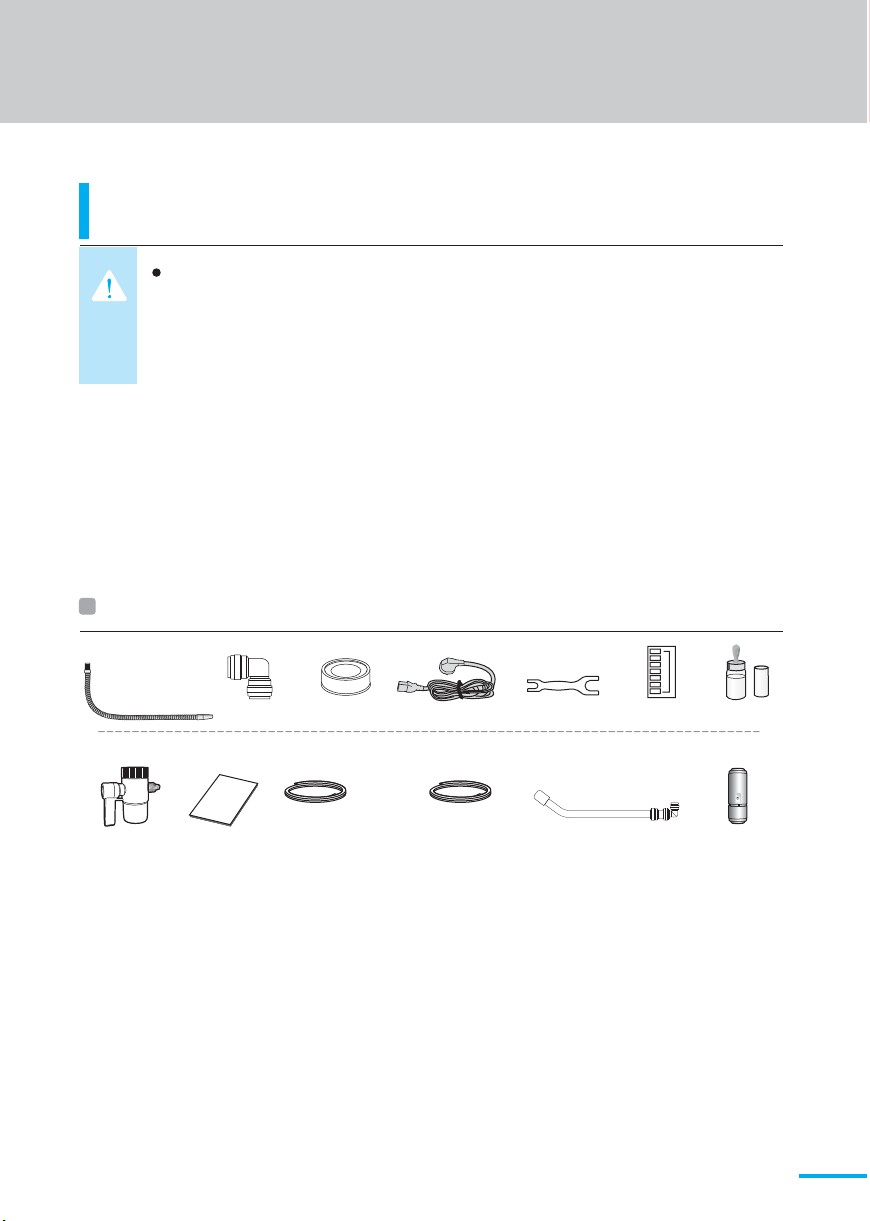

Accessories
pH test kit
Water Spout
Stainless Steel
Acid Outlet
AC cord Fitting spanner Elbow Teflon tape
1/4 in.Water
Source Hose(250cm)
Color chart
Manual
Manual Dust Pre-Filter
Diverter Valve 1/4 in.Water
Outlet Hose(120cm)

20
Product Specifications
No. 610 by KFDA (Korea Food & Drug Administration)
Hydrogen/Ion Water Generator
ECHO 9 Ultra H2
AC 120V or 240V, 50Hz~60Hz
SMPS
Max 1100W
10.4 x13.7 x 6.9 (WxHxD)in.(264.16x347.9x175.26) cm
10~71psi / .7 ~ 5Kgf/cm2
41~86ºF / 5ºC~29ºC
One Touch Automated Start
Continuous Electrolysis
9 Electrodes (5 Layers of Platinum over Titanium)
DARC system (3.5L/min. at 49.8psi)
H2 Water / Alkaline (4 levels) / Acidic (4 levels)
Patented Anti Scaling Technology
pH 4.0(±0.5)~11.5(±0.5)
Easy Replaceable Cartridge
Silver Activated Carbon, KDF55, Tourmaline
1056gal./4000L
LCD Graphic Display, Voice Prompt
Product Manufacture Permission Number
Feature
Model
INPUT Voltage
Power Supply
Power Consumption
Overall Dimension
Applicable Water Inflow Pressure
Applicable Water Temperature
Unit Operation Type
Electrolysis Method
Electrode
Electrolysis Capacity
Electrolysis Setting
Automatic Cleaning
pH Value
Filter Replacement
Filter Composition
Filter Life
Filter Life Indicator
Protection type and class against electric shock : Class Ⅱ device, Type B applied part
