User Manual
CAM-TGL
Back-up Camera
with Moving Guidelines
2
Thank you for purchasing the
EchoMaster Back-up Camera with
Moving Guidelines
EchoMaster Cameras are designed to
improve safety by providing high quality
images of surrounding areas and obstacles
in the vicinity of the vehicle. This may help
improve vehicle maneuvering capabilities
by displaying blind spots or areas not
normally visible to the driver.
Please ensure you read and understand all
aspects of this manual before installing or
using your EchoMaster products.
Before use, remove plastic cover on the camera lens
PLEASE NOTE
Installation Guide Installation Guide
3
tel - 800-477-2267
What’s Included:
uCamera
uLicense Plate Bracket
uInstallation Hardware
uWiring Harness (39”)
uRCA Cable (20’)
uUser Manual
Features:
u1/3” CMOS sensor
uOperates at 0.5 LUX
u170° viewing angle
uDynamic parking guidelines
uWater/Debris-proof rating: IP67
Before use, remove plastic cover on the camera lens
4

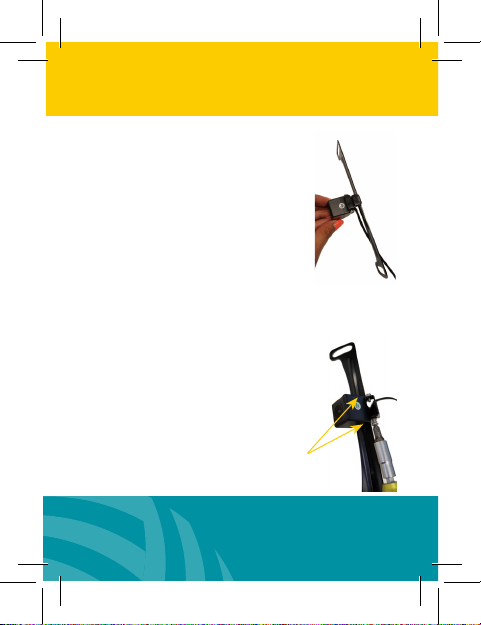

Out of the Box:
License Plate Bracket
The license plate bracket is
mounted to the camera when
you take it out of the box.
To Use Lip Mount Bracket:
Follow these steps to replace
the License Plate Bracket with
the Lip Mount Bracket.
Step 1
Remove the screws on each
side of the camera to remove
the license plate bracket.
-Screwdriver not included
Installation Guide Installation Guide
5
tel - 800-477-2267
Out of the Box:
License Plate Bracket
The license plate bracket is
mounted to the camera when
you take it out of the box.
To Use Lip Mount Bracket:
Follow these steps to replace
the License Plate Bracket with
the Lip Mount Bracket.
Step 1
Remove the screws on each
side of the camera to remove
the license plate bracket.
-Screwdriver not included
Step 2
Out of the Box: Lip Mount Bracket
Unscrew the screws on each
side of the lip mount bracket.
-Be careful to not lose the lock washers!
Step 3
Align the brackets
and replace the
screws and
lock washers.
Lip Mount Bracket is Now
Ready for Install
The camera is now ready to
mount to the vehicle’s lip.
-Screws and adhesive provided
6
Installing the Camera
- License Plate Mount
Step 1
Remove the screws that hold the
license plate to the vehicle and remove
the license plate.
Step 2
Find an opening (or drill a small hole)
to feed the camera cable into the
vehicle.
Installation Guide Installation Guide
7
tel - 800-477-2267
Installing the Camera
- License Plate Mount
Step 1
Remove the screws that hold the
license plate to the vehicle and remove
the license plate.
8

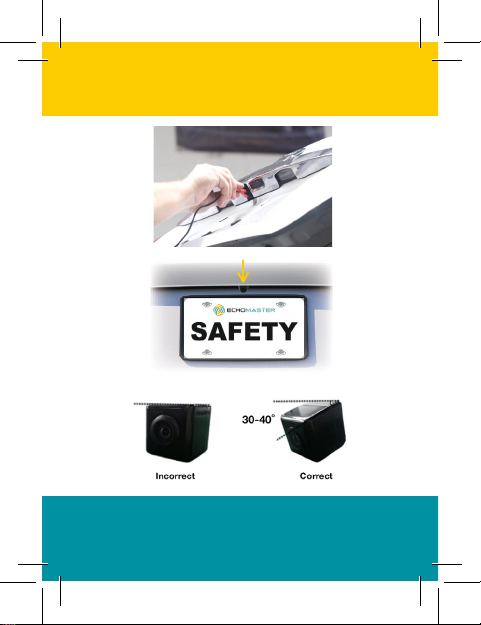

Step 3
Position the camera mounting bracket
behind the license plate.
Insert the screws to hold the camera
and license plate in place.
Step 4
The camera angle should be mounted
at 30 - 40 degrees downward for
dynamic guidelines to perform
correctly.
Step 5
Connect to the monitor.
(see instructions on page 12)
Installation Guide Installation Guide
9
tel - 800-477-2267
Step 3
Position the camera mounting bracket
behind the license plate.
Insert the screws to hold the camera
and license plate in place.
Step 4
The camera angle should be mounted
at 30 - 40 degrees downward for
dynamic guidelines to perform
correctly.
Step 5
Connect to the monitor.
(see instructions on page 12)
10
Installing the Camera
- Lip Mount
Step 1
Find an opening (or drill a small hole)
to feed the camera cable into the vehicle.
Step 2
Position the camera mounting bracket
on vehicle lip and screw into place.
Step 3
The camera angle should be mounted
at 30 - 40 degrees downward for
dynamic guidelines to perform
correctly.
Step 4
Connect to the monitor.
(see instructions on page 12)
Installation Guide Installation Guide
11
tel - 800-477-2267
Installing the Camera
- Lip Mount
Step 1
Find an opening (or drill a small hole)
to feed the camera cable into the vehicle.
Mounts to vehicle lip
Step 4
Connect to the monitor.
(see instructions on page 12)
12

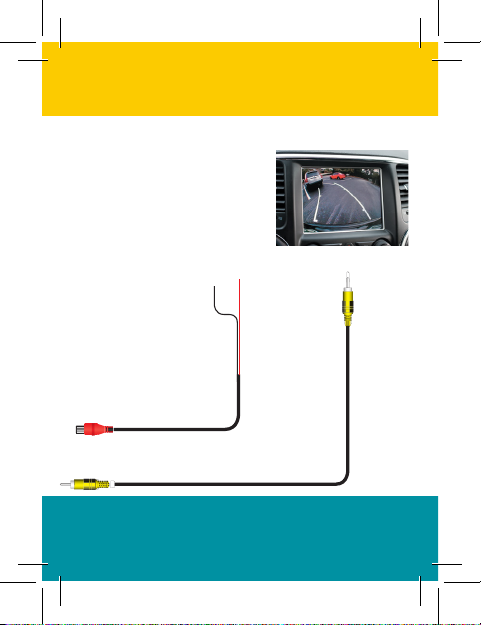

For both License Plate and Lip Mount
Connect to Monitor
Use harness and RCA cable to connect
the camera to your monitor with a
standard video input.
(533mm/21in)
Installation Guide Installation Guide
13
tel - 800-477-2267
GND (Black) VIDEO
+12V (Red)
Compatible with aftermarket radios, factory radios,
and rearview mirror monitors.
(6m/20ft)
(990mm/39in)
14

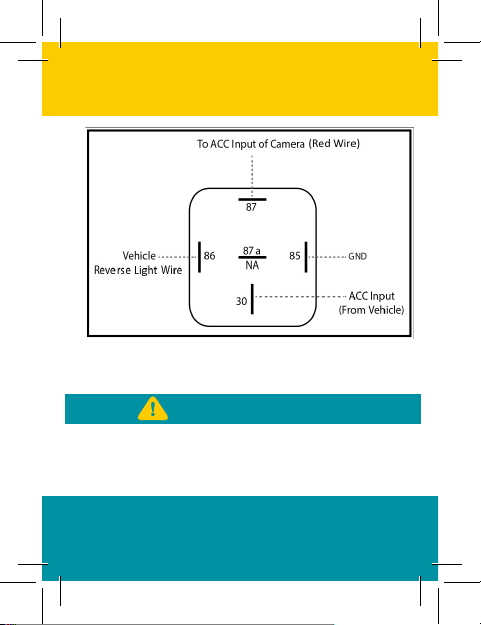

Installer Notes
Some vehicles’ reverse lamp
wires are now variable voltage
wires, and may cause a fuzzy or
distorted image. If you experience
this, please use a relay to power
your camera, as shown in the
diagram.
Installation Guide Installation Guide
15
These instructions are only a general guide.
If more assistance is needed, please consult
with a professional installer.
PLEASE NOTE
16
Camera
Sensor Type 1.3” CMOS PC3089
LEDs N/A
Illumination 0.5 LUX
Viewing Angle 170°
Mirror Image Yes
Normal View No
Water/Debris-Proof IP67
Audio No
Power Supply 12V DC
Current <180 mA
Operating Temp -4°F -+158°F/-20°C -+70°C
Dimensions - (mm/in) D (24.8/0.93) x W
(23.5/0.93)x H (23.5/0.93)
Installation Guide Installation Guide
17
tel - 800-477-2267
Camera
Dynamic Guidance
Trajectory Embedded
AGC Auto
BLC Auto
System NTSC
TV Lines 600
Resolution 762x504

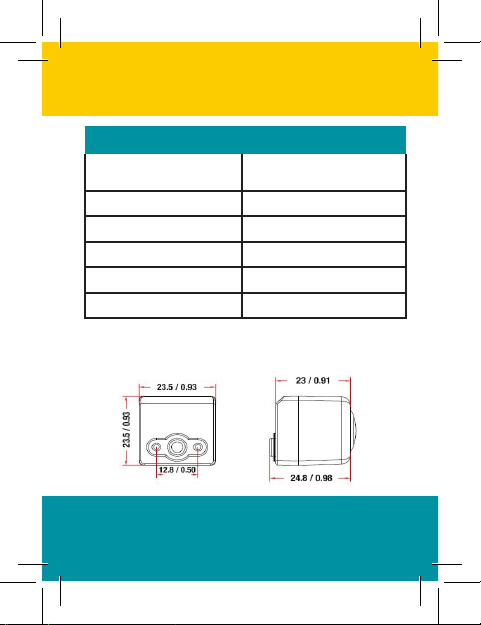

Camera Dimensions (mm/in)
