Ecler eMOTUS5OD User manual

v.20120413
eMOTUS5OD
WALL-MOUNT LOUDSPEAKERS
Outdoor loudspeaker
USER MANUAL

2
INDEX
1. IMPORTANT REMARK ..........................................................................................................3
2. IMPORTANT SAFETY INSTRUCTIONS .............................................................................3
3. IMPORTANT NOTE ................................................................................................................5
4. INTRODUCTION .....................................................................................................................5
5. KEY FEATURES.......................................................................................................................5
6. CONNECTING..........................................................................................................................6
7. POSITIONING, FITTING AND START-UP.........................................................................7
8. REAR PANEL...........................................................................................................................9
9. TECHNICAL SPECIFICATIONS..........................................................................................10
10. PACKING CONTENT............................................................................................................11

3
1. IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING (If applicable): The terminals marked with symbol of “ ” may be of
sufficient magnitude to constitute a risk of electric shock. The external wiring connected
to the terminals requires installation by an instructed person or the use of ready-made
leads or cords.
WARNING:To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING:An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
2. IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

4
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the
plugs, convenience receptacles, and at the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening sorts or when unused for long periods
of time.
13. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
14. Disconnecting from mains: Switching off the POWER switch all the functions
and light indicators of the amplifier will be stopped, but fully disconnecting the
device from mains is done unplugging the power cord from the mains input
socket. For this reason, it always shall remain readily operable.
15. Equipment is connected to a socket-outlet with earthing connection by means of
a power cord.
16. The marking information is located at the bottom of apparatus.
17. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on apparatus.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
WARNING:This product must not be discarded, under any circumstance, as
unsorted urban waste. Take to the nearest electrical and electronic waste
treatment centre.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be
caused to people, animal or objects due to failure to comply with the warnings above.

5
3. IMPORTANT NOTE
Thank you for choosing our Ecler eMOTUS5OD Outdoor loudspeaker!
It is VERY IMPORTANT to carefully read this manual and to fully understand its
contents before any connection in order to maximize your use and get the best
performance from this equipment.
To ensure optimal operation of this device, we strongly recommend that its
maintenance be carried out by our authorised Technical Services.
Ecler eMOTUS5OD comes with a 3-year warranty.
4. INTRODUCTION
eMOTUS5OD is a 5” loudspeaker designed for installing outdoor. A compact,
professional loudspeaker with great performance at a highly attractive price. Its
fantastic performance and unique design mean that it can easily be integrated into a
wide range of applications: theme parks, urban spaces, gardens, etc. Available in black
and white.
5. KEY FEATURES
•2-way cabinet, 5" woofer and 1" tweeter
•40WRMS @ 8Ω
•Power selector: 3,75 / 7,5/ 15 / 30W @ 100V & 8Ω position
•Outdoor design
•IP65 rated
•Back rubber cover for connections
•Available in black(RAL 9005) and white (RAL 9003) colour

6
6. CONNECTING
eMOTUS5OD accepts high or low impedance. In this regard, on the rear panel, there is
a 5-position switch for selecting your work mode. The first 4 positions allow for the
system to operate in high impedance, and the fifth, in low impedance. (*) The 4
positions on the power selector for a 100V line will make it possible to set the
maximum power with which each unit will operate. So, in areas where a low sound
level is needed, the lower positions will be used (3.75 to 7.5W), whereas in areas
where a higher level is required, the upper positions (15 or 30W) will be used.
Note: In the event of using the loudspeaker in installations at 70V, the power ratings
for the 100V position will be reduced to half of those indicated on the connector
terminals. In the case of 50V installations, they will be reduced to a quarter.
The fifth position corresponds to operating in low impedance (8) and a maximum
power of 40 WRMS. In the event of adopting this set up, the limitations of the amplifier
must be taken into account by connecting several loudspeakers to the output,
particularly if the impedance of the unit falls below 4. Also, it is important to ensure
that the connection cable joining the amplifier outputs and the loudspeakers are good
quality, and as short as possible. This becomes especially important when the distances
to cover are considerable and the impedance of the loudspeakers is low.
(*) The speaker distribution system on a 100V/70V line historically arises from the
technical need to mix loudspeakers with different impedances and/or power ratings on
the same line or amplifier channel, all without the need to be concerned about the total
impedance of the resulting unit. In addition to that, this solution makes it possible, with
minimum losses of power, to use long stretches of cable and a slightly shorter section
than that normally used in a low impedance installation.
CAUTION: eMOTUS5OD is delivered by default with the switch in the 100V/30W
position. If the system is accidentally connected to an amplifier with a low
impedance output, no damage will be done to the loudspeaker, but it will
perform well below its capacity. In the event of accidentally connecting the
loudspeaker to a 100V network with the switch in the 8position, it will be
seriously damaged.

7
7. POSITIONING, FITTING AND START-UP
In the packing of eMOTU5OD, you will find all that is needed to complete installation of
the unit.
The following should be observed as general rules:
•Always install on solid, firm surfaces.
•For good sound reproduction, there should be no hindrance between the units
and the audience.
•Adjust the levels of sound pressure to reproduction requirements. Despite its
small size, the eMOTUS5OD has a performance far higher than that of domestic
loudspeakers.
Procedure for installing on a surface:
1. Make three 6 mm drill holes in the wall, lining them up with the position of the
holes in the bracket.
2. Insert three 6 mm wall plugs in these holes.
3. Fasten the safety line on the back of the bracket.

8
4. Place the bracket in position, after first passing the line and the loudspeaker
cable through the square hole on the bracket. Fix the bracket to the wall.
Connect the loudspeaker cable to the connector on the rear part of the box,
using the Euroblock connector supplied. Ensure the correct polarity of the
terminals and that the cable goes through the square hole in the bracket. It is
advisable to place the protective housing supplied when the loudspeaker is
installed outdoors.
5. Place the acoustic box in its final position, vertically sliding it downward so that
the rail on its rear side fits with the bracket rail. Fasten the safety cable on the
rear part of the acoustic box, to avoid it accidentally falling and causing material
and/or personal damage.
6. Orientate the box to obtain the required position on the vertical and horizontal
axes. Tighten the Allen screws on the bracket to fix said position on both axes.
7. Adjust the power selector to the required position.

9

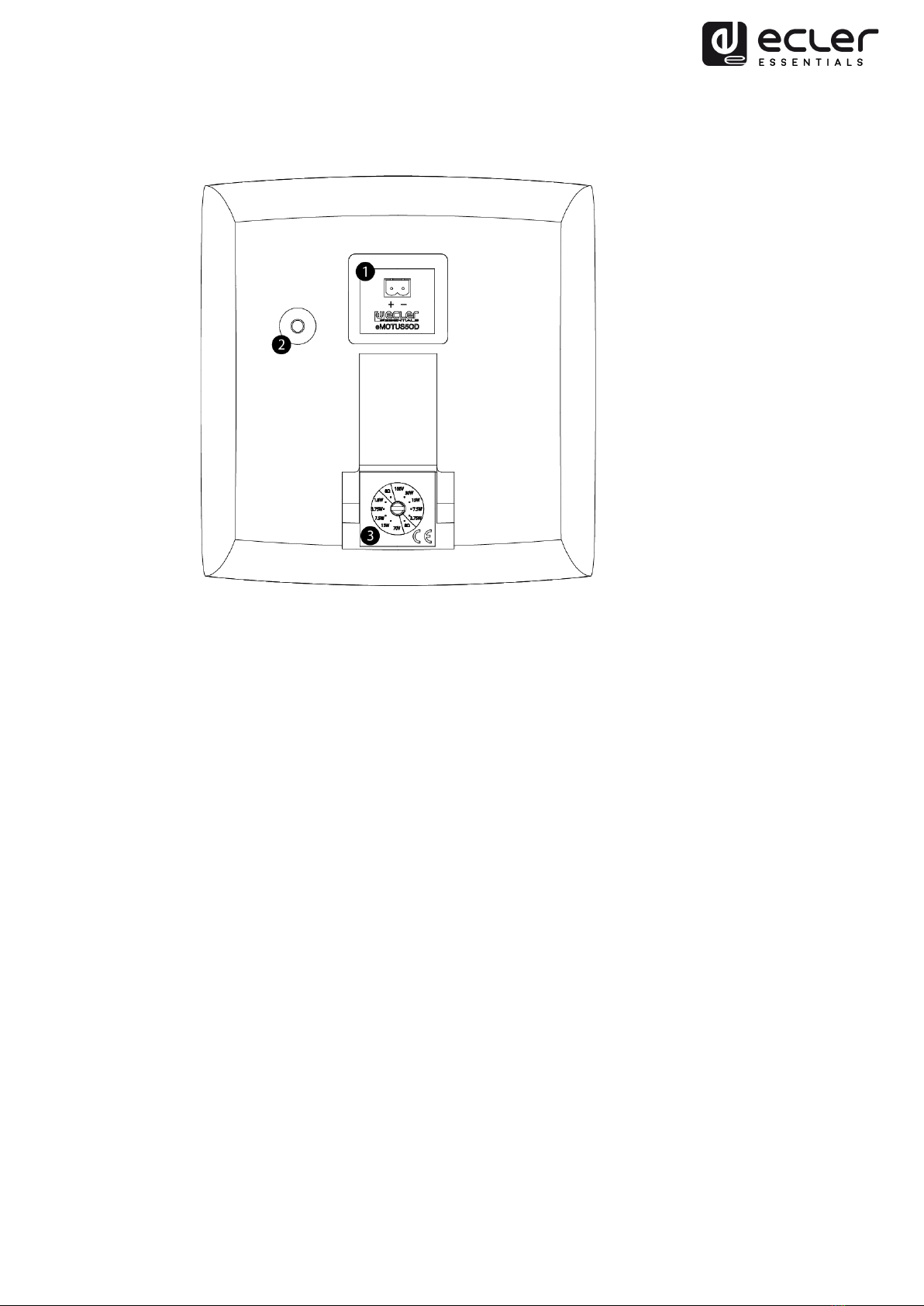

8. REAR PANEL
1. 2-terminal Euroblock connector
2. Attachment point for the safety cable
3. Power selector

10
9. TECHNICAL SPECIFICATIONS
eMOTUS5OD
System
Effective frequency range1
75 Hz - 20 kHz (-10dB)
Coverage angle2
150° x 150° (HxV)
Power handling
40W RMS / 160W Peak
Sensitivity3
85dB (1W/1m)
Maximum SPL4
101dB continuous / 107dB peak
Power options
100V: 30 / 15 / 7,5 / 3,75W & 8Ω
70V: 15 / 7.5 / 3.75 /1,8W & 8Ω
Recommended amplifier power
80W (8Ω)
Transducers
Ways
2-ways, full range
Low frequency driver
5’’ woofer
High frecuency driver
1’’ coaxial tweeter
Nominal impedance
8Ω
Physical
Connection type
2-terminal Euroblock connector (Input)
Power type selector
Selectable transformer tap
Installation options
Surface, desktop
Environmental
IP65 rated
Enclosure material
ABS cabinet
Grille material
Aluminium grille
Mounting system
ABS bracket
Finished color
White (RAL 9003) or black (RAL 9005)
Included accessories
Wall-mount bracket, adhesive legs, back rubber
cover & security steel cable
Optional accessories
PCS124 cluster-mount system
Dimensions
Not including brackets (HxWxD):
180 x 173 x 181mm / 7.1” x 6.8” x 7.1”
Including brackets (HxWxD):
180 x 173 x 248mm / 7.1” x 6.8” x 9.8”
Weight
Not including brackets: 2,2 kg. / 4.9 lb.
Including brackets: 2,5 kg. / 5.5 lb.
Pieces per box
2 units with included accessories
Shipping dimensions
HxWxD: 220 x 230 x 460mm / 8.7” x 9.1” x 18.1”
Shipping weight
5,0 kg. / 11.0 lb.
110dB below the sound pressure level at specified sensitivity
26dB below the sound pressure level than that at the direction of maximum level, Average from 1 kHz to 4 kHz.
3Measured on-axis, 2,83V, far field and referenced to 1 meter by inverse square law. Average from 100 Hz to 10 kHz.
4Calculated from sensitivity and power handling specifications, exclusive of power compression

11
10. PACKING CONTENT
•2 x eMOTUS5OD loudspeakers
•2 x articulated brackets for wall mounting
•5mm Allen key
•2 x metal safety lines against any possible flaking off, with corresponding screws
and lock washers.
•8 x adhesive legs for positioning the loudspeakers on a desktop
•Rear connection housing for outdoor use
•Quick reference guide
•Warranty card

12
All product characteristics are subject to variation due to production tolerances.
NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or
manufacturing that may affect these product specifications.
For technical queries contact your supplier, distributor or complete the contact form on our website,
in Support / Technical requests.
Motors, 166‐168 08038 Barcelona ‐ Spain ‐ ([phone] | [e-mail] | www.ecler.com
