Ecler WiSpeak TUBE User manual

50-0383-0110 WiSpeak EN
WiSpeak
WIRELESS PRO AUDIO
Transmitters - Receivers
USER MANUAL

2
INDEX
1. IMPORTANT REMARK ............................................................................................................4
2. IMPORTANT SAFETY INSTRUCTIONS...............................................................................4
3. IMPORTANT NOTE...................................................................................................................6
4. INTRODUCTION........................................................................................................................ 6
5. TRANSMITTER AND RECEIVER MODELS ......................................................................... 8
5.1. CORE model ................................................................................................................................ 8

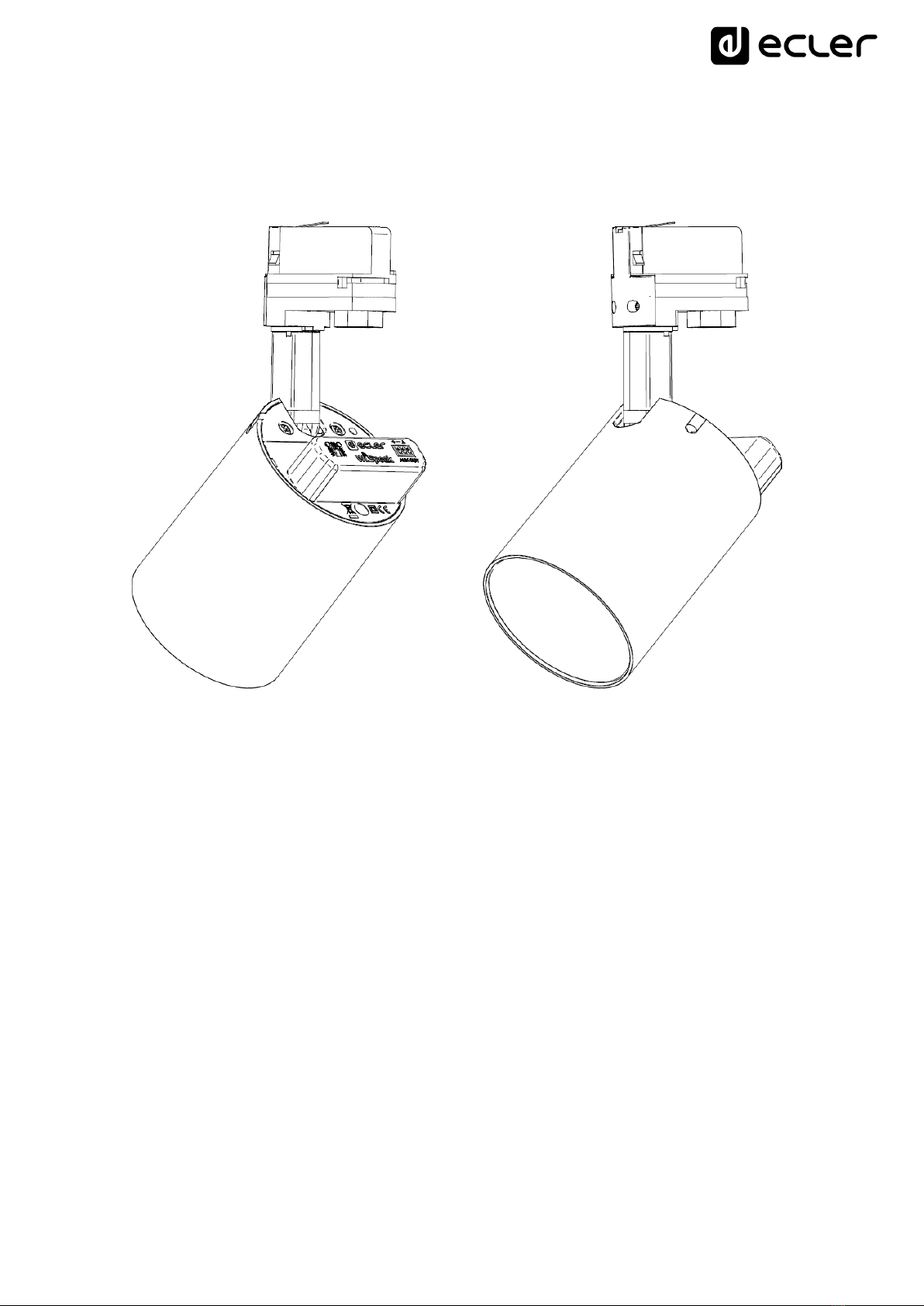

5.2. TUBE model...............................................................................................................................10

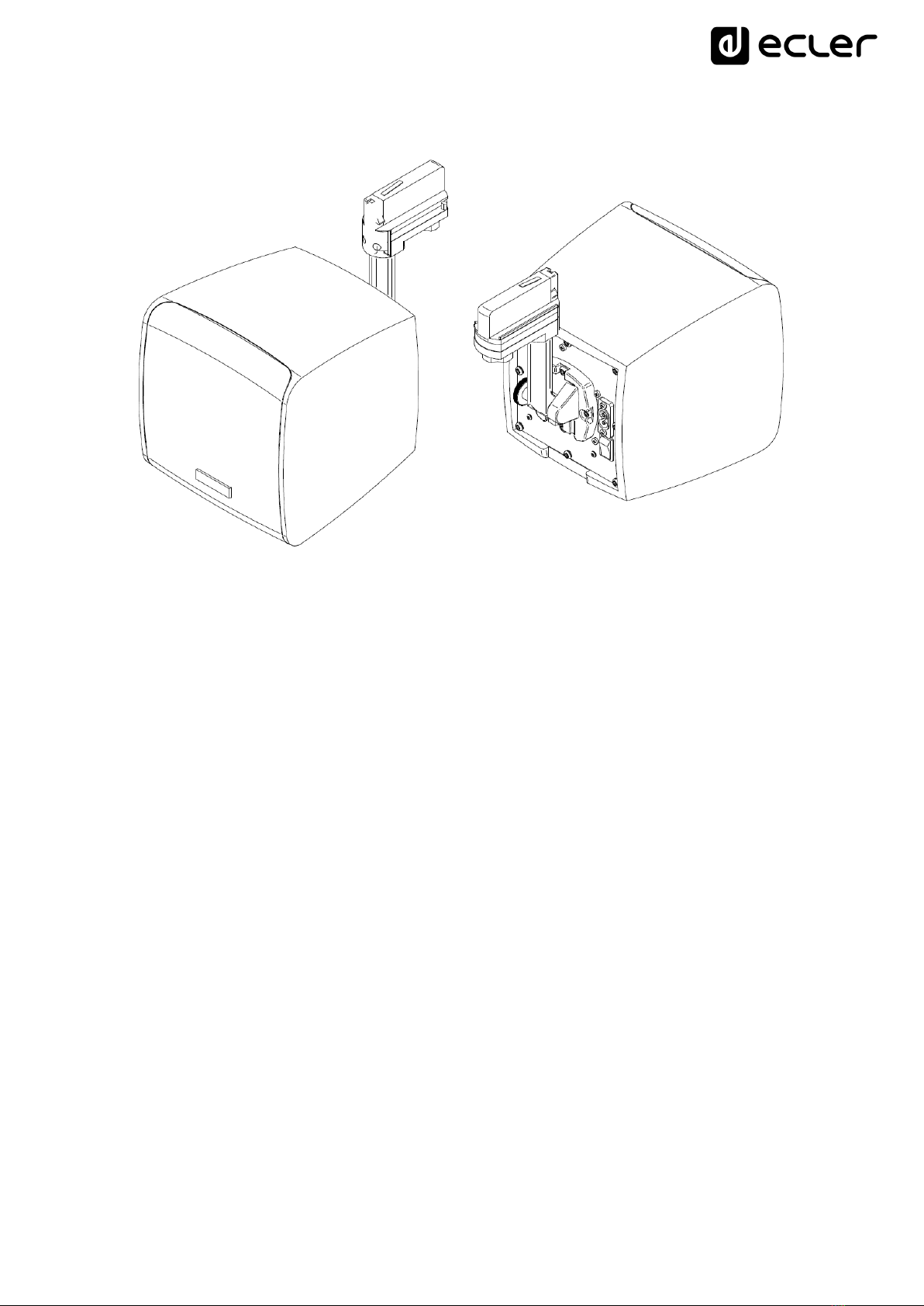

5.3. CUBE model ..............................................................................................................................11
5.4. GLOBE model............................................................................................................................12

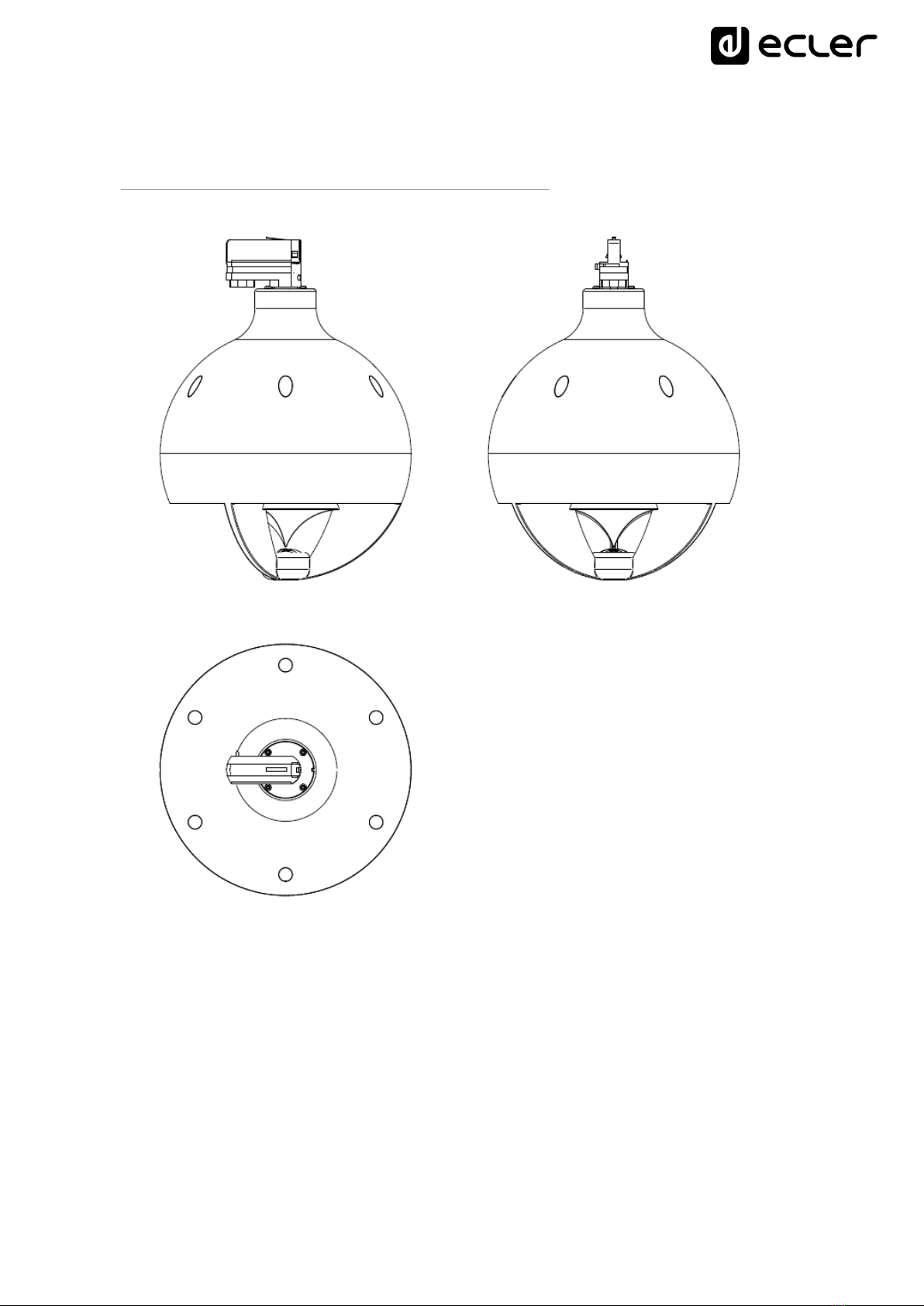

5.4.1 GLOBE RM model rail-mount version (lighting rail).......................................12

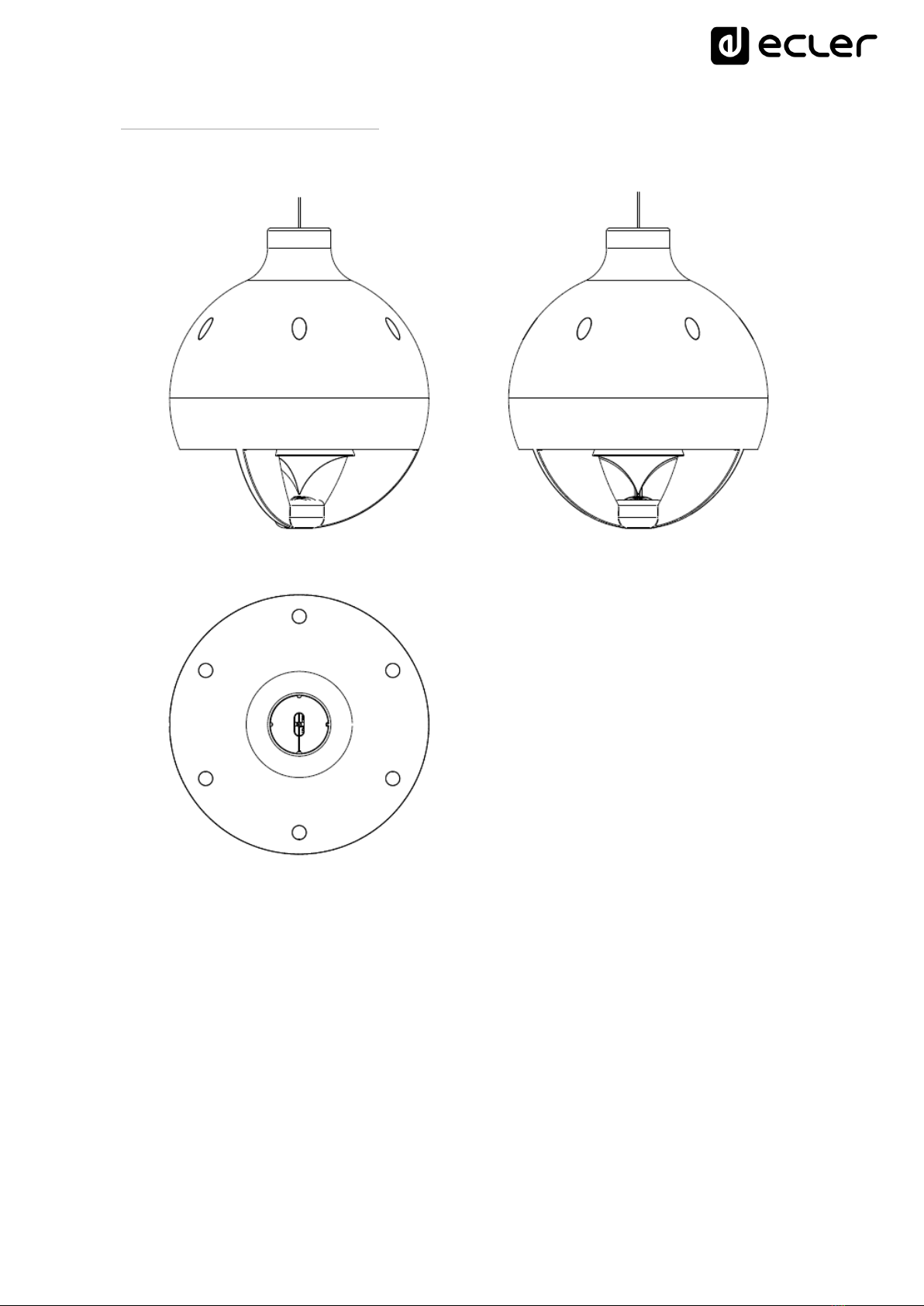

5.4.2 GLOBE PD model (pendant)...................................................................................13
6. WiSpeak RF TECHNOLOGY.................................................................................................14
6.1 Materials RF interference level.............................................................................................14
7. INSTALLATION .......................................................................................................................15

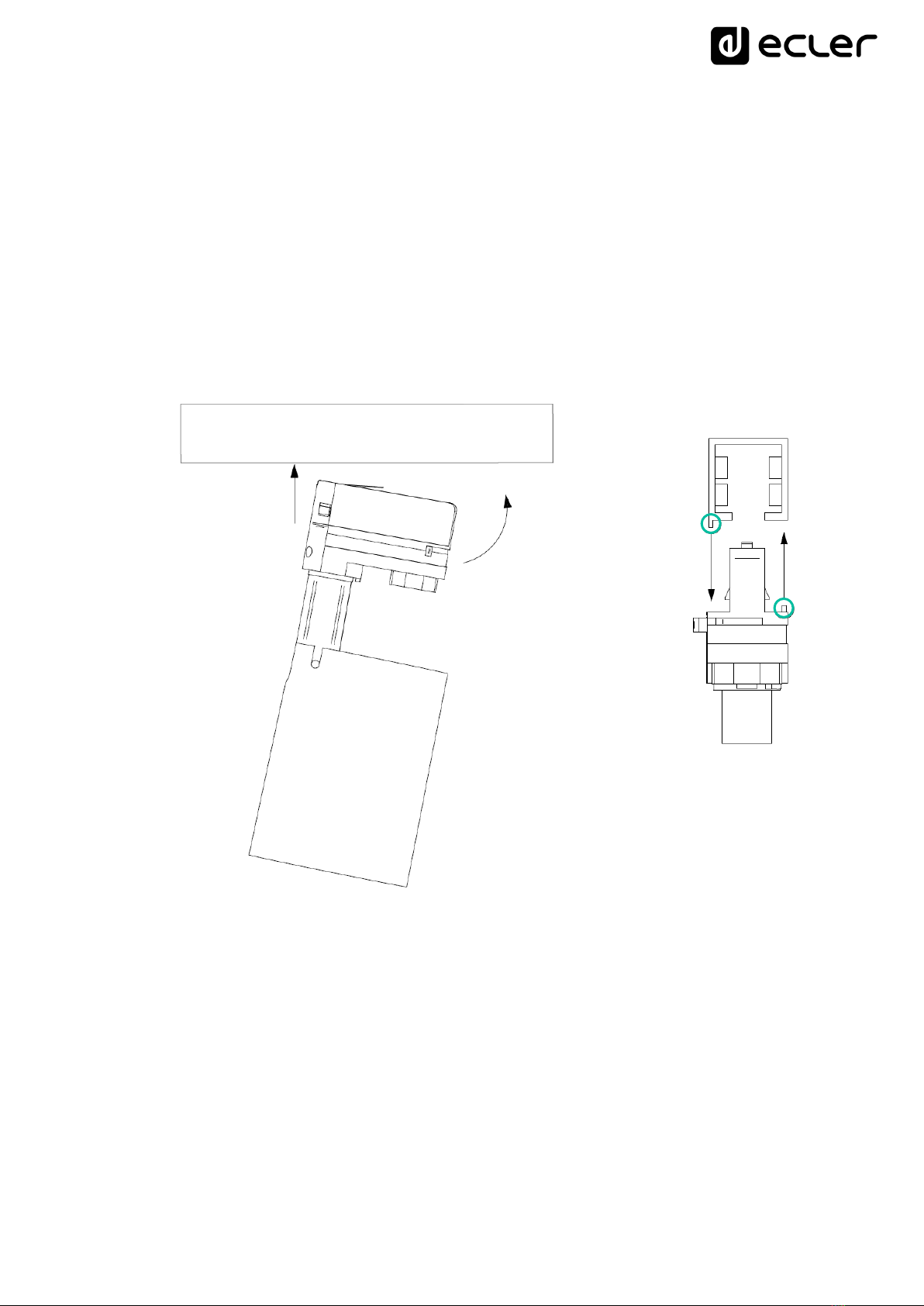

7.1. TUBE receivers mounting and power up..........................................................................15

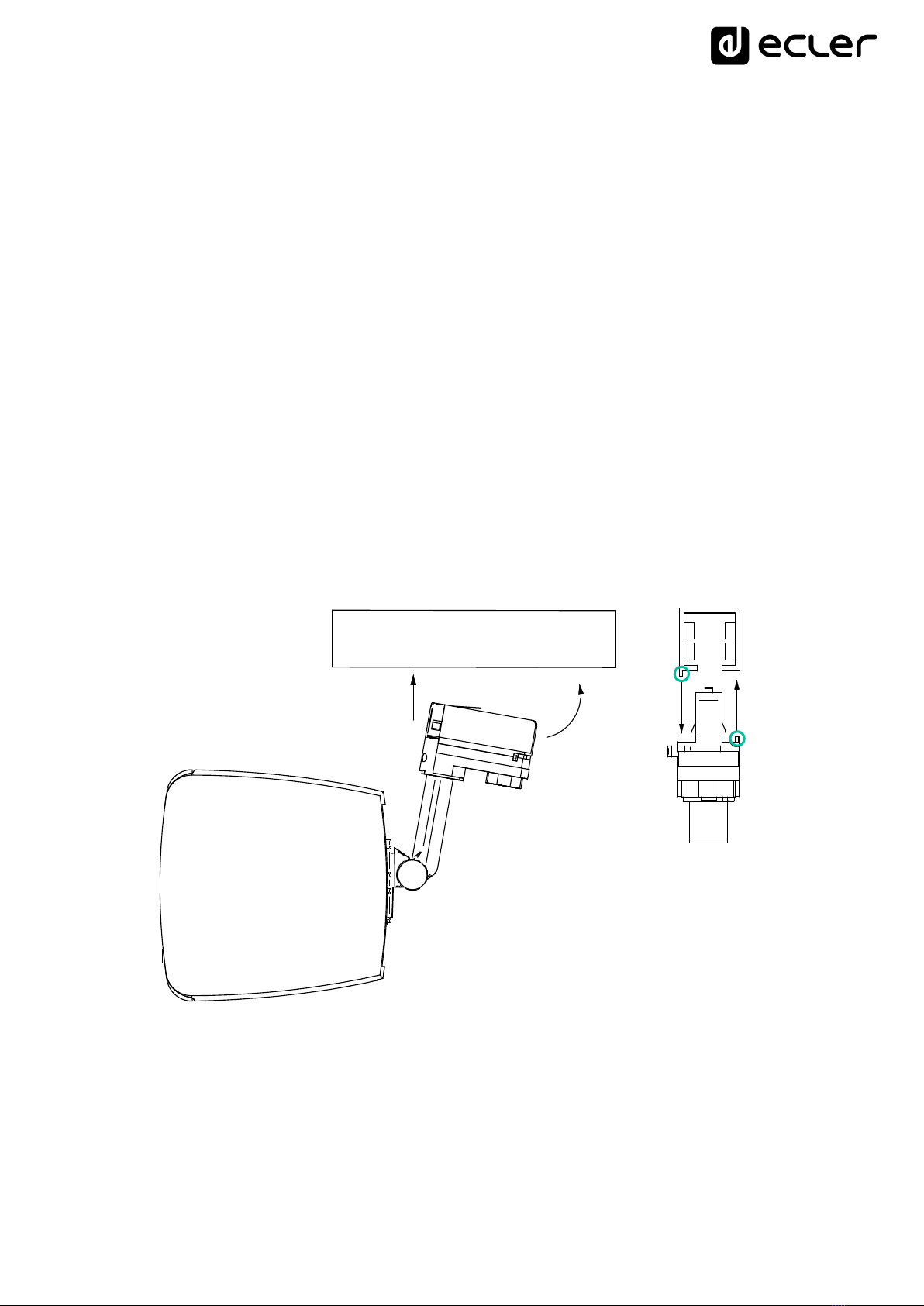

7.2. CUBE receivers mounting and power up .........................................................................17
7.3. GLOBE receivers mounting...................................................................................................20
7.4. CORE transmitter installation ..............................................................................................24
7.4.1 Multiple COREs installation....................................................................................26
7.5. Disassembling WiSpeak receivers from lighting rails installations ........................27
8. PAIRING THE RECEIVERS & STARTING UP THE WiSpeak SYSTEM.......................28
8.1 WiSpeak system receivers protection................................................................................29
9. CORE transmitter VOLUME control: REMOTE and MUTE control ports .................30
10. LED information, codes and additional procedures.......................................................31
10.1 CORE transmitter ...................................................................................................................31
10.2 TUBE / CUBE / GLOBE receivers.......................................................................................33
10.2.1. TUBE...........................................................................................................................33
10.2.2. CUBE ..........................................................................................................................34
10.2.3. GLOBE........................................................................................................................35

3
11. Extended information about the WiSpeak PAIRING PROCEDURE...........................36
12. UNPAIR PROCEDURE ...........................................................................................................37
13. SPECIAL RESET PROCEDURES..........................................................................................38
14. CLEANING.................................................................................................................................38
15. FUNCTION DIAGRAMS.........................................................................................................39
15.1. CORE .........................................................................................................................................39
15.2. TUBE..........................................................................................................................................40
15.3. CUBE .........................................................................................................................................41
15.4. GLOBE.......................................................................................................................................42
16. TECHNICAL CHARACTERISTICS .......................................................................................43
16.1. CORE .........................................................................................................................................43
16.2. TUBE..........................................................................................................................................45
16.3. CUBE .........................................................................................................................................47
16.4. GLOBE.......................................................................................................................................49
WiSpeak Grip control application ………………………..…….……………….……….….……51
17. WiSpeak grip INTRODUCTION...........................................................................................52
18. Bluetooth CONNECTION TO THE MASTER UNIT .........................................................53
19. WiSpeak grip MAIN SCREEN –CONNECTING TO A MASTER ..................................55
20. PAIRING THE RECEIVERS & STARTING UP THE WiSpeak SYSTEM.......................59
21. MASTER AUDIO SETUP ADVANCED FEATURES.........................................................62
21.1. Inputs.........................................................................................................................................63
21.2. Outputs.....................................................................................................................................64
21.3. WiSpeak CH1 / CH2 Settings ...........................................................................................65
22. LOUDSPEAKERS PAGE ADVANCED FEATURES..........................................................66
23. MASTER SETTINGS PAGE ...................................................................................................73
24. USER CONTROL PAGE .........................................................................................................76
25. WiSpeak FAQS (JAN 2020)..................................................................................................78

4

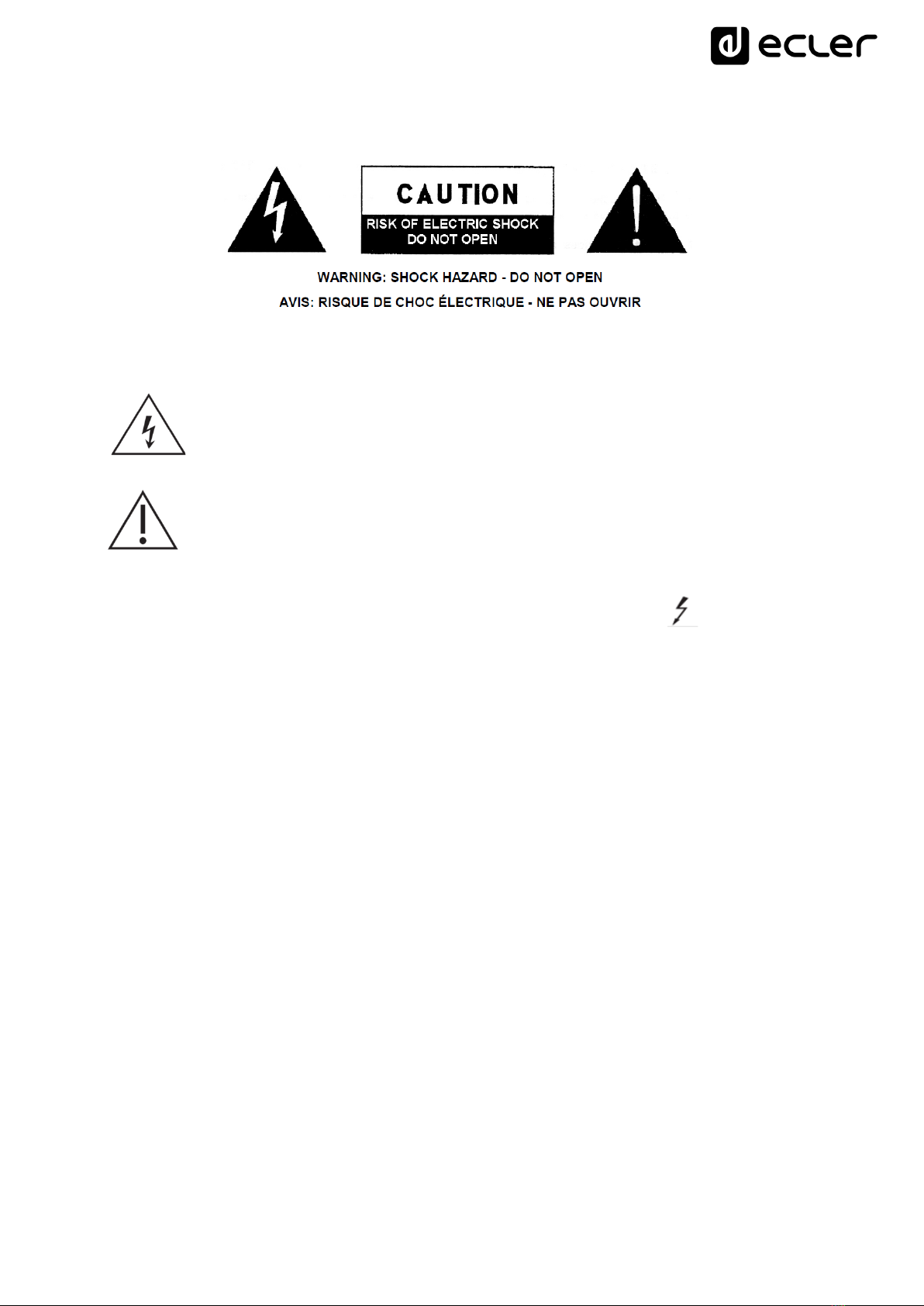

1. IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING (If applicable): The terminals marked with symbol of “ ” may be of
sufficient magnitude to constitute a risk of electric shock. The external wiring connected
to the terminals requires installation by an instructed person or the use of ready-made
leads or cords.
WARNING:To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING:An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
2. IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

5
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening sorts or when unused for long periods of
time.
13. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
14. Disconnecting from mains: Switching off the POWER switch all the functions and
light indicators of the amplifier will be stopped, but fully disconnecting the device
from mains is done unplugging the power cord from the mains input socket. Make
sure the house or building must be equipped with a circuit breaker as disconnect
device. For this reason, it always shall remain readily operable.
15. Equipment is connected to a socket-outlet with earthing connection by means of
a power cord.
16. The marking information is located at the bottom of apparatus.
17. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on apparatus.
18. External wiring shall be connected by a skilled person.
19. Only skilled person can replace the fuse.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
WARNING:This product must not be discarded, under any circumstance, as
unsorted urban waste. Take to the nearest electrical and electronic waste
treatment centre.

6
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be caused
to people, animal or objects due to failure to comply with the warnings above.
3. IMPORTANT NOTE
Thank you for choosing our Ecler WiSpeak Wireless Pro Audio system!
It is VERY IMPORTANT to carefully read this manual and to fully understand its
contents before any connection in order to maximize your use and get the best
performance from this equipment.
To ensure optimal operation of this device, we strongly recommend that its maintenance
be carried out by our authorised Technical Services.
Ecler WiSpeak hardware devices come with a 3-year warranty.
4. INTRODUCTION
Ecler WiSpeak is a technology that provides Wireless Professional Audio for fixed
(permanent or temporary) installations, including transmitter devices and receiver
(loudspeakers) devices.
The main highlights of the WiSpeak technology are:
•Simple and fast installation (with or without the use of the WiSpeak grip app)
•Plug & play: no wires, no construction works
•The receivers just need to get mains AC, usually from the already existing lighting
rails. They integrate an internal universal Power Supply (100-240VAC -50-60Hz)
•Solid and stable wireless transmission protocol, robust against audio drops
•Up to 500 m2 coverage (depending on the location of the transmitter and the
receivers, and the obstacles in between them)
•Master volume control and individual loudspeaker volume control, allowing for
audio level zoning
•WiSpeak grip app available for Android and iOS, for the setup and advanced
tuning of the system (Admin profile), as well as for the end user simple control
(User profile)

7
•Scalable: daisy-chain option from one receiver to a new transmitter, or from one
transmitter to a second transmitter, to extend the total amount of loudspeakers
and the area coverage
•Compatible with Eutrac and Global Trac Pro lighting rail standards
A WiSpeak installation is typically made up of one transmitter device and from 1, up to
a maximum of 24 receiver units, where:
•the transmitter device is the electronic unit that communicates with all the
receiver devices to create a WiSpeak wireless network, and takes the role of the
Master unit in it
•the receiver units are self-powered loudspeakers with wireless audio reception
and control capabilities, under the control of the Master unit
The Master unit has these main functions:
•to pair (link) and keep a stable communication with all the receiver units in the
system –when paired and within the valid wireless coverage range - supervising
the connection quality of them all
•to take care of the global configuration of the system (audio inputs in use,
equalisation, levels, etc.)
•to send the individual configuration commands to each receiver unit, as each
receiver can have customised parameters
•to send audio contents to all the receiver units, keeping a perfect synchronisation
among them all (<6ms latency and <1μs jitter)

8
5. TRANSMITTER AND RECEIVER MODELS
The available transmitter devices are:
5.1. CORE model
Main features:
•External, universal Power Supply (100-240VAC 50-60Hz)
•Compatible with WiSpeak grip app for set up and control functions (available for
Android and iOS), using Bluetooth® connection
•3 audio inputs available:
oAnalogue stereo, unbalanced. 2 x RCA connectors
oAnalogue stereo, balanced. 2 x Euroblock 3p connectors
oBluetooth®, class 1 (up to 25 meters range, maximum)
•1 x WiSpeak wireless audio signal transmitted (a mono conversion of the selected
input)
•1 x AUX OUT analogue signal available (a copy of the transmitted WiSpeak
signal). It can be used for linking the unit to external audio devices, like amplifiers,
mixers or subwoofer units
•MUTE port, to allow the system’s audio silencing when an external dry contact is
closed
•REMOTE port, to allow a simple general volume control for the end user -within
a programmable range- using a WPaVOL or compatible wall panel
•Maximum number of receivers under control per transmitter device = 24 units.
The system can be extended by linking a new transmitter to an existing receiver,
creating a second WiSpeak network that shares the audio contents and Master
volume with the first (main) one
•Front panel controls for source (input) selection and general (Master) volume
control

9
•Recommended maximum range from a CORE transmitter to any WiSpeak paired
receiver (TUBE CUBE or GLOBE): 12 meters, with direct line of sight (*)
•Front panel PAIR key: it allows pairing the receivers to the transmitter quickly and
easily, for a basic set up of the WiSpeak system.
Note: Additionally, WiSpeak grip app, available for Android and iOS, can be used
for an advanced set up and fine tuning of a WiSpeak system
•Front panel LED indicators
•Service USB-C port (not for external power supply, only for service updates
&firmware).

10
The available receiver devices are:
5.2. TUBE model
Main features:
•Lamp style self-powered WiSpeak receiver, including 3” driver
•Lighting rail mount included
•Surface mount accessory available, optional (ref. TUBE SMA)
•Universal, internal power supply, taking mains AC from the lighting rail bracket
(100-240VAC 50-60Hz)
•1 x WiSpeak wireless audio signal received, from the transmitter it is paired to
•1 x AUX OUT analogue signal available (a copy of the received WiSpeak signal).
It can be used for linking the unit to another WiSpeak transmitter, to extend the
network, or to external audio devices, such as amplifiers, mixers or subwoofer
units
•Back panel UNPAIR control and LED indicators.
•Lighting rail mount compatible (Compatible light rails: 4 wire 3 circuit track
system such as Global Track Pro, Eutrac or compatibles).

11
5.3. CUBE model
Main features:
•Loudspeaker cabinet style self-powered WiSpeak receiver, including 5” woofer
and 1” tweeter drivers.
•Lighting rail mount included.
•Surface / wall mount accessory included.
•Universal, internal power supply, taking mains AC from the lighting rail bracket
(100-240VAC 50-60Hz) or from the external AC wire (both included).
•1 x WiSpeak wireless audio signal received, from the transmitter it is paired to.
•1 x AUX OUT analogue signal available (a copy of the received WiSpeak signal).
It can be used for linking the unit to another WiSpeak transmitter to extend the
network or to external audio devices, such as amplifiers, mixers or subwoofer
units.
•Back panel UNPAIR control and front panel LED indicators.
•Lighting rail mount compatible (Compatible light rails: 4 wire 3 circuit track
system such as Global Track Pro, Eutrac or compatibles).

12
5.4. GLOBE model
5.4.1 GLOBE RM model rail-mount version (lighting rail)

13
5.4.2 GLOBE PD model (pendant)
Main features:
•32W RMS power rating
•Dispersion 360° x 160° (HxV)
•ABS reinforced with fibreglass
•RM version lighting rail mount compatible (Compatible light rails: 4 wire 3 circuit
track system such as Global Track Pro, Eutrac or compatibles)
•PD version with 2 x 5m steel cords for pendant installation
•RM version with universal, internal power supply, taking mains AC from the
lighting rail bracket (100-240VAC 50-60Hz)
•PD version with Euroblock power supply connection
•1x WiSpeak wireless audio signal received, from the transmitter it is paired to

14
•Front panel UNPAIR control and LED indicators
•12 meters maximum range, open space, for the WiSpeak wireless network (from
the transmitter to each receiver)
•Available in white (RAL 9003) and black colour (RAL 9005)
6. WiSpeak RF TECHNOLOGY
Ecler WiSpeak professional wireless technology system transmit audio via radio
frequency (not WIFI), using U-NII 5.1-5.8 GHz bandwidth.
WiSpeak is a robust and stable system. Each CORE has two antennas:
1. Working channel: first antenna transmits audio to receivers
2. Monitoring channel: the second antenna is scanning free channels in the
background, searching for the best options to jump in case of interference
There are 24 available channels in U-NII 5.1-5.8 GHz but not all channels are available
in all geographic regions due to regulatory controls.
Select the operating region using the WiSpeak grip app.
Warning: An RF system, even a robust one like WiSpeak, is always exposed to potential
performance failures when working in hostile RF environments.
6.1 Materials RF interference level
Type of barrier
Interference level
Wood
Low
Plaster
Low
Synthetic Material
Low
Glass
Low
Water
Medium
Bricks
Medium
Marble
Medium
Concrete
High
Metal
High
Mirror
Very High

15
7. INSTALLATION
7.1. TUBE receivers mounting and power up
The TUBE receivers come with the lighting rail bracket already mounted.
Follow these steps to install a TUBE unit in a lighting rail:
1. Ensure that the 4-position (OFF-1-2-3) circuit selector wheel in the TUBE unit is
in the OFF position
2. Insert the loudspeaker in the lighting rail, as shown in the image
Connection to a GLOBAL Trac Pro / Eutrac lighting rail (three-circuit lighting track system)

16
3. Rotate the safety lug to secure the loudspeaker on the lighting rail. Rotate the
circuit selector wheel to a position other than OFF, the one matching with a circuit
in the rail that will deliver mains AC to the unit. Then, the safety lug will be locked
4. Check whether the unit is really powered ON or not by watching the LED
indicators at its back panel: depending on the status of the receiver unit (at factory
defaults, already paired, etc) blinking or fixed lit LEDs will appear.
Both LEDs OFF permanently will mean that the unit is not powered, probably not
getting mains AC from the lighting rail. In this case, please check:
oThe lighting rail is really powered with mains AC
oThe TUBE receiver circuit selector wheel is in the right position. Check the
rest of positions to try to get a valid one, with some LED activity, thus
getting mains AC from the rail tracks
5. Orient the loudspeaker to obtain the required position on the vertical and
horizontal axes
Note: in case you want to install a TUBE receiver on a surface, where there is no available
lighting rail, you may want to use the optional surface mount accessory, ref. TUBE SMA:
In first place, mount and power the accessory with mains AC. Then, follow the previous
steps to insert and fix the TUBE unit in it.

17
7.2. CUBE receivers mounting and power up
The CUBE receivers come with a lighting rail bracket already mounted, but they also
include a wall / surface mount bracket that can replace the lighting bracket in case that
a wall mount is the chosen option.
A CUBE unit could be as well installed directly on a surface, like a desktop, shelf, table,
etc, without using the rail mount or the wall mount included brackets. To do so, the
supplied self-adhesive rubber legs can be attached to the unit’s bottom face, and the
connection to a standard AC plug can be performed using the supplied additional AC
cord.
Follow these steps to install a CUBE unit in a lighting rail:
1. Ensure that the 4-position (OFF-1-2-3) circuit selector wheel in the CUBE unit is
in the OFF position
2. Insert the loudspeaker in the lighting rail, as shown in the image
Connection to a GLOBAL Trac Pro / Eutrac lighting rail (three-circuit lighting track system)

18
3. Rotate the safety lug to secure the loudspeaker on the lighting rail. Rotate the
circuit selector wheel to a position other than OFF, the one matching with a circuit
in the rail that will deliver mains AC to the unit. Then, the safety lug will be locked
4. Power ON the unit by means of the back panel ON/OFF switch. Check whether
the unit is really powered ON or not by watching the LED indicators at its front
grill: depending on the status of the receiver unit (at factory defaults, already
paired, etc) blinking or fixed lit LEDs will appear.
Both LEDs OFF permanently will mean that the unit is not powered, probably not
getting mains AC from the lighting rail. In this case, please check:
oThe lighting rail is really powered with mains AC
oThe CUBE receiver circuit selector wheel is in the right position. Check the
rest of positions to try to get a valid one, with some LED activity, thus
getting mains AC from the rail tracks
oON/OFF switch is in ON position and AC cable is connected
5. Orient the loudspeaker to obtain the required position on the vertical and
horizontal axes

19
Follow these steps to install a CUBE unit on a wall:
1. Drill three 6 mm holes in the wall, matching the position of the holes in the bracket.
2. Insert three 6 mm wall plugs into them.
3. Place the wall bracket in place, previously passing the supplied AC cable (if required)
through the square hole in the bracket. Attach the bracket to the wall.
4. Place the speaker in its final position by sliding it vertically downward so that the
guide on its back side matches the guide on the bracket.
5. Fasten the safety guide at the back of the mount (as shown in the diagram).
6. Orient the loudspeaker to the desired position on the vertical and horizontal axes.
Tighten the Allen screws on the bracket to fix this position on both axes.
7. Power ON the unit by means of the back panel ON/OFF switch.

20
7.3. GLOBE receivers mounting
Follow these steps to install a GLOBE RM unit in a lighting rail:
1. Ensure that the 4-position (OFF-1-2-3) circuit selector wheel in the GLOBE unit
is in the OFF position
2. Insert the loudspeaker in the lighting rail, as shown in the image
Connection to a GLOBAL Trac Pro / Eutrac lighting rail (three-circuit lighting track system)
This manual suits for next models
5
Table of contents
Other Ecler Stereo System manuals
