Eclipse TD307MK3 User manual

JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
･Thank you for purchasing this product.
･Please read this owner's manual thoroughly prior to making any connections.
･If installation methods or non-standard parts not specified in this installation manual are used,
accidents or injury may result.
･Specialized knowledge and experience is required in order to install the speaker to a ceiling or wall. In such
a case, please consult a qualified technician.
･Installation by two people is always advised.
Keep this Owner’s Manual together with the Warranty Certificate in a safe place for future reference.
OWNER'S MANUAL
MANUAL No. 090001-15030700

- 18 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH

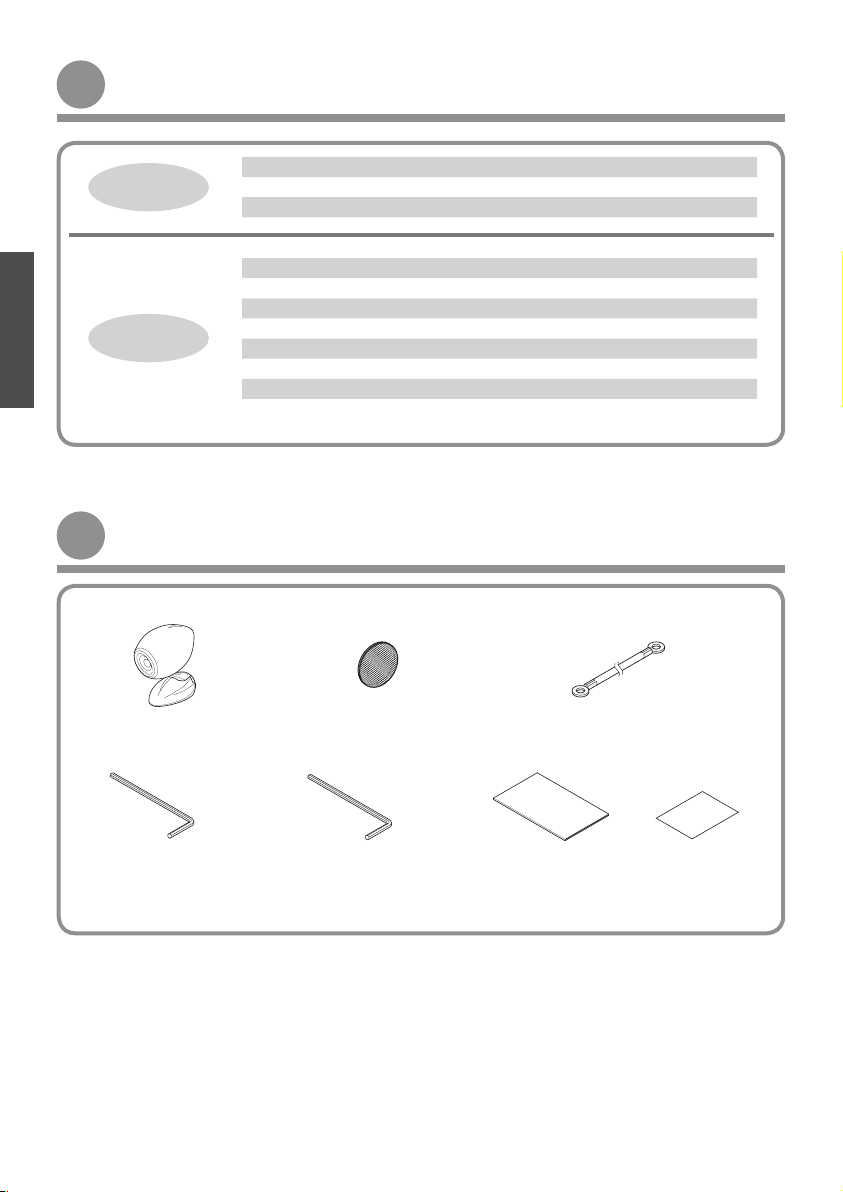

Parts listParts list Check that all of the following items are present
ContentsContents
Parts list 18
Safety guidelines 19
Checklist before use 19
Speaker installation example 20
Parts and connections 21
Adjusting the speaker angle 22
Installing the speaker grille 23
Reversing the position of the speaker arm to the base 24
On a ceiling or wall 25
Care / Specifications 31
Warranty and customer service 32
Installation
Before
installation
①Speaker X1 ③Safety cable
(hole thread diameter 4.5 mm) X1
④
Allen key (large)
(For securing speaker) X1
⑤Allen key (small)
(For securing drop-prevention
wire to speaker) X1
⑥Owner's Manual X1 ⑦Warranty
ツメ ×９
②Grille X1

- 19 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
･Be sure to set the volume to the minimum level before turning on the power supply for connected equipment
and before switching the input source. Sudden high levels of output can cause damage to the connected
speaker system.
･Even pleasant music can be a disturbance at times. To avoid disturbance in your neighborhood, enjoy your
unit at an appropriate volume. Remember that at night, even low volume carries into surrounding areas. Help
to maintain a pleasant living environment.
･Always be sure to turn off the power supply for the connected equipment before connecting the speaker.
･Be careful not to tip over the stand.
･Clean the unit by wiping it gently with a soft cloth moistened with neutral detergent. Do not use liquid solvents
such as gasoline or thinner to clean this product.
Caution
･The unit should be placed on a hard, flat surface. Placing the unit on an unstable surface may cause it to fall
over and cause injury.
･Do not climb on or swing from the unit. In particular, care should be exercised when children are present. The
unit may fall or break and cause injury.
Warning
･Do not open the unit as this may cause electric shock or injury. For repair or maintenance, please contact
a Customer Service Center. Do not attempt to modify the unit. This may cause fire or electric shock, and
invalidate the warranty.
･Do not place the unit in the bathroom or anywhere exposed to rain. Do not use the unit in places with high
humidity. This may cause fire or electric shock. Be particularly careful when using the unit in rainy weather
or near water. Do not place above or near the unit, any flower vases, plant pots, cups, makeup, any vessel
containing medicine or liquid or any small metal objects. In case any liquid or small metal objects enter the
unit, fire or electric shock may result.
Checklist before useChecklist before use
Warning
The information following this sign indicate situations where failure to follow the
instructions may result in death or severe injury.
Caution
The instructions which follow this sign indicate situations where failure to follow
the instructions could cause injury when using the product or physical damage to
equipment and surroundings.
Tip This section contains information that can help to prevent problems and damage to the
unit, and other useful information.
The following WARNING and CAUTION signs are used throughout this owner’s manual as well as on the product.
These signs alert the installer and users of important safety information to avoid risk of injury and damages to the
product. Make sure that you familiarise yourself with these symbols and their meaning.
Safety guidelinesSafety guidelines

- 20 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Installation on a floor or shelf ･Adjust the speaker angle. ➡Refer to P.22.
･Example of installation on a ceiling or wall. ➡Refer to P.25.
･Install the speaker to the ceiling or wall. ➡Refer to P.26 - 30.
･Adjust the speaker angle. ➡Refer to P.22.
Speaker installation exampleSpeaker installation example
Ceiling installation
･Example of installation on a ceiling or wall. ➡Refer to P.25.
･Install the speaker to the ceiling or wall. ➡Refer to P.26 - 30.
･Adjust the speaker angle. ➡Refer to P.22.
Wall mounting

- 21 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Speaker wire
Cable entry
point
Speaker wire
(diameter less than φ7 mm)
(Red)
Speaker base
Speaker arm
Speaker input terminals
⊕⊖
Tip
■ For speaker wire diameter less than φ7 mm
• If the speaker wire is passed through the cable entry point in the speaker base and the speaker arm, it will
improve the outer appearance of the speaker.
■ For speaker wire diameter φ7 mm or more
•The speaker wire cannot be passed through the speaker arm, so route it along the outside.
Tip
Parts and connectionsParts and connections
①Speaker
(Black)
• When connecting the speaker wires, insert the bare ends of the speaker wires correctly so that they do not
touch neighboring terminals, otherwise it may cause short-circuits.
• The speaker wires are not provided with the speaker, so purchase them separately.
Caution

- 22 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Use the Allen key (large) which is supplied with the
speaker to loosen the hex socket nut underneath
the speaker.
1
Set the speaker to the desired angle.
2
Securely tighten the hex socket nut.
3
Hex socket nut
360˚ rotation
The speaker is heavy, so hold it with your hand
when adjusting the angle.
Tip
The vertical angle of the speaker can be adjusted
within a range of +30° upward and -25° downward
from the horizontal. If the speaker is installed to a
ceiling or wall, refer to the installation examples on
P.25 for the vertical angle adjustment range. The left
and right angle adjustment range is 360°.
Tip
Adjusting the speaker angleAdjusting the speaker angle
+30°
-25°

- 23 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Install the grille as shown in the illustration.
1
TD307MK3-011
②Grille
①Speaker
Installing the speaker grille
Installing the speaker grille
• The grille may be attached when the speaker is
not in use or at the users discretion.
• Clip the edge of the grille to secure it.
Tip

- 24 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH

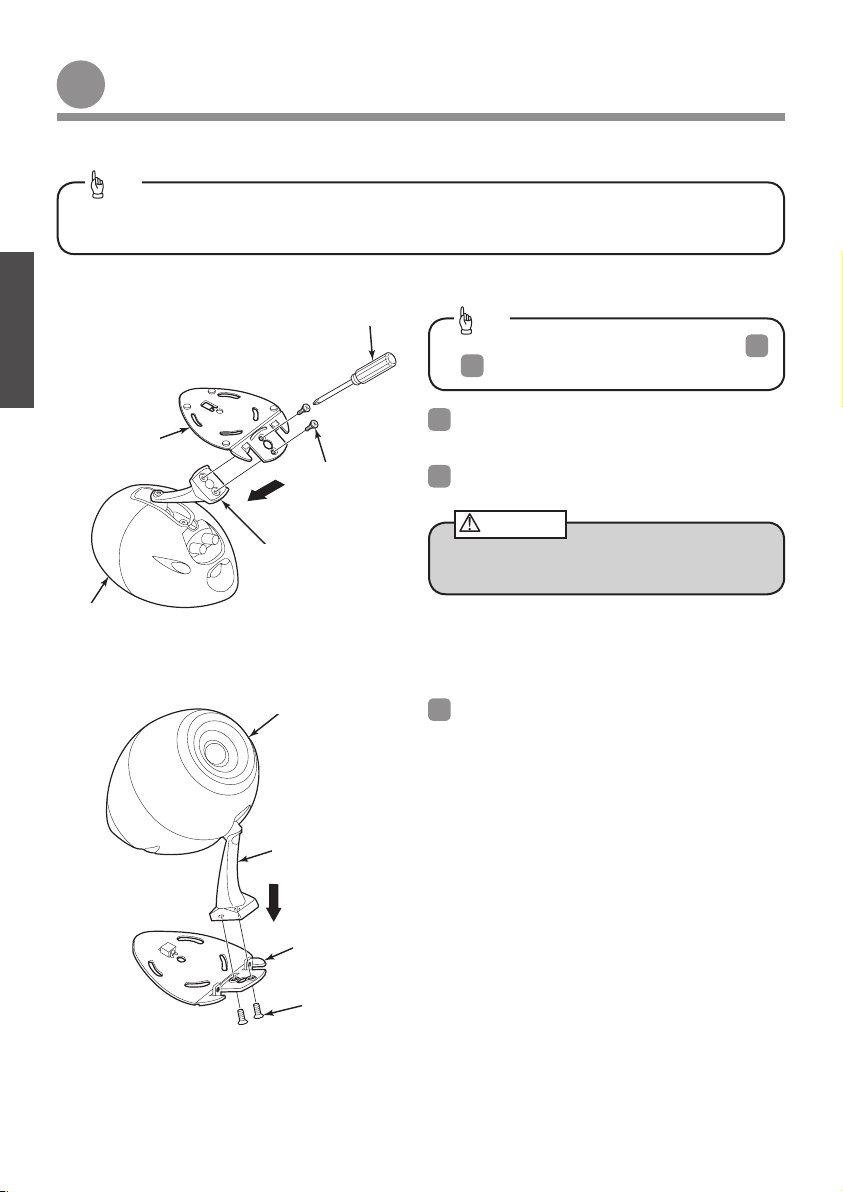

When disassembling the speaker, refer to steps
to of "Preparation for installation" on page 26.
1
2
Tip
Remove the screws which are securing the speaker
arm to the speaker base.
1
Remove the speaker arm from the speaker base.
2
Change the direction of the speaker arm and fit it
back to the speaker base.
3
Speaker base
Speaker base
Screws x2
Screws x2
Speaker arm
Speaker arm
The speaker is heavy, so use care when removing
it.
Caution
The TD307MK3 speaker can be installed in a variety of configurations by changing the way the speaker base
and speaker arm are installed.
Tip
Reversing the position of the speaker arm to the baseReversing the position of the speaker arm to the base
①Speaker
①Speaker
Screwdriver

- 25 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Ceiling
Wall
Leave enough
space.
Speaker wire (for diameter
of less than 7 mm)
Example 1.
Example 3.
0˚ - 30˚
60˚ - 90˚
Speaker wire (7 mm
diameter or more)
Speaker wire
(for diameter of less
than 7 mm)
Ceiling
Wall Leave
enough
space.
Speaker wire
(7 mm diameter or more)
Speaker wire
(for diameter of less
than 7 mm)
Leave enough
space.
35˚ - 90˚
Ceiling
Wall
0˚ - 55˚
Speaker wire
(for diameter of
less than 7 mm)
Leave
enough
space.
Ceiling
Wall
Example of installation to a ceiling or wall
Example 2.
Speaker wire
(7 mm diameter
or more)
Example 4.
Tip
Tip
Caution
Caution
• Please read this owner's manual thoroughly prior to carrying out installation and connections.
• If installation methods or non-standard parts not specified in this installation manual are used, accidents or
injury may result.
• Depending on the specific installation specialised skills may be required. In such cases, please consult a
qualified technician.
• Installation by two people is always advised.
• Please note the screws for fixing the product and safety cable to the ceiling are NOT supplied.
Caution
• Be sure to leave some space in between the speaker and the wall so that the speaker and wall do not touch.
• Leave enough space to insert a tool such as a screwdriver.
Caution
• In the case of example 2 and example 4, the direction that the base is facing will be reversed.
• In the case of example 2 and example 4, it will be necessary to adjust the assembly positions of the speaker
base and speaker arm. Refer to “Reversing the position of the speaker arm to the base” on P.24 for details on
changing the assembly positions.
Tip
This product can be installed on ceilings and walls. If installing on a ceiling or a wall, you will need to use extra screws
(sold separately). When installing the speaker, be sure to fit the safety cable.
On a ceiling or wallOn a ceiling or wall
①Speaker
Speaker wire
(7 mm diameter or
more)

- 26 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Remove the speaker base cover.
2
Remove the screws from the speaker base rear
cover, and then remove the speaker base rear
cover.
1
Speaker base
cover
Speaker base rear cover
Screws x2
Speaker base
- Preparation for installation -
①Speaker
Screwdriver
①Speaker
Speaker base

- 27 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH

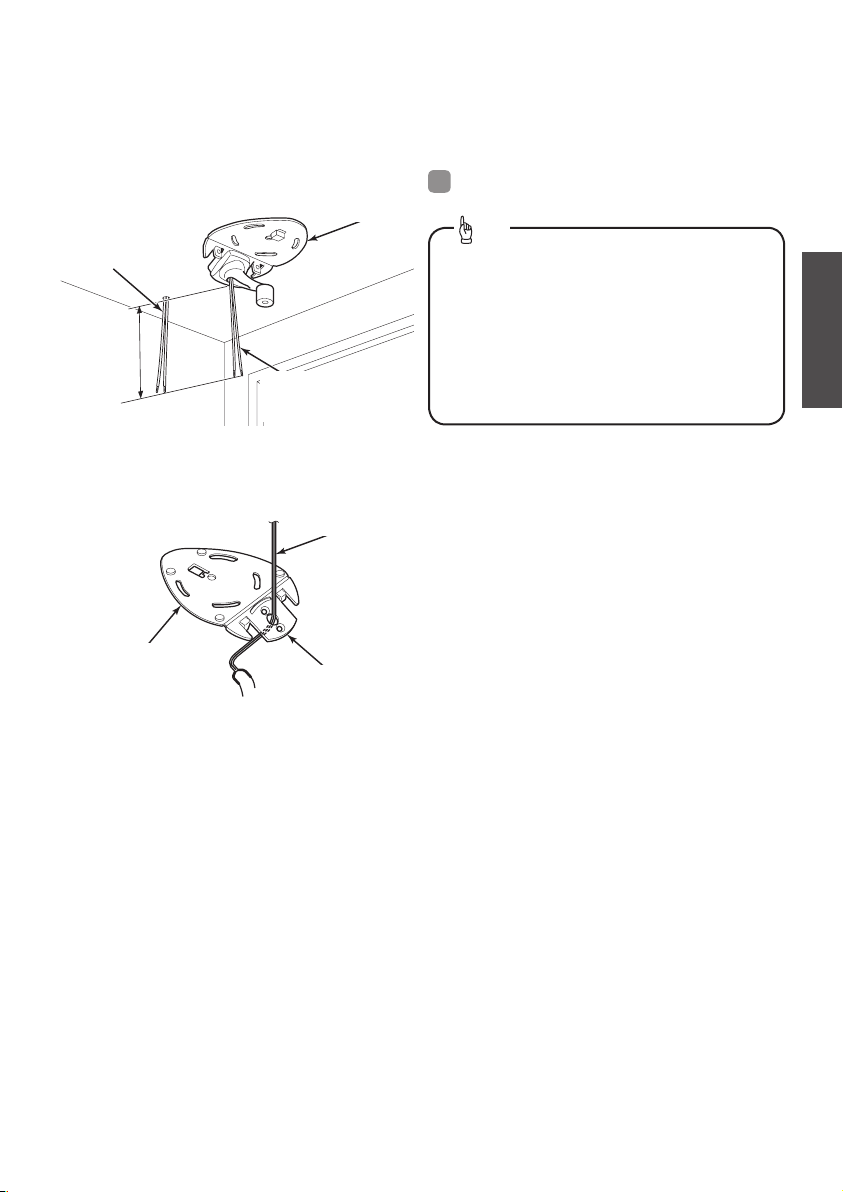

Use the speaker base to determine the installation
position for the speaker on the indoor ceiling, and
then use tape or similar to attach the speaker base
to the ceiling.
1
Install the safety cable to the speaker unit with the
hex socket screw.
5
Hex socket screw
Speaker base
Make marks for the speaker base mounting holes.
Use an awl or similar to make marks on the ceiling
at the speaker base mounting hole positions.
2
• Remove the hex socket screw from the speaker
unit and use it to install the safety cable to the
speaker unit.
• Install the safety cable securely to the speaker to
prevent the speaker from falling down.
• Place the speaker on top of the soft cloth while
working so as not to damage the speaker.
Caution
Speaker arm
Washer
Hex socket nut Remove the speaker arm from the speaker unit.
4
Remove the hex socket nut and washer which are
securing the speaker unit and the speaker arm.
3
The speaker unit is heavy, so use care when
removing it.
Caution
①Speaker
①Speaker
Remove
④Allen key (large)
- Installing the speaker base -
③Safety cable
⑤Allen key (small)
Steps and after are followed when using installation example 1 or example 3 on P.25. Furthermore, the
diagram shows example 1. For example 2 and example 4, refer to the installation example shown on P.25, and
make sure that the speaker base is facing the right way and that the speaker wires are positioned correctly.
Tip
1

- 28 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Speaker base
Screws (sold separately)
Fix the speaker base to the surface as shown using
suitable screws (sold separately).
3
• Securely fix the speaker base to prevent the
speaker from falling down.
• When securing the speaker base to the ceiling or
wall with the screws, tightening the screws too
much may distort the speaker base and prevent
the base cover from being attached.
Caution
• When installing the speaker base on the ceiling
or wall, the position and number of mounting bolts
used will be determined by the strength of the
ceiling or wall and the locations of beams.
• When installing the speaker base on the ceiling or
wall, use more screws (sold separately) using the
slits marked with to ensure the unit is secured.
TD307MK3-024
Speaker base
Slits for securing speaker base
(width 0.2 in. [5 mm])
Tip

- 29 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Speaker base
Speaker base
Route the speaker wires.
4
Speaker wire
(7 mm diameter or
more)
Speaker wire
(for diameter of
less than 7 mm)
• To make it easier to connect the speaker wires to
the speaker, leave about 8 inches (20 cm) of wire
available.
■ For speaker wire diameter less than φ7 mm
The speaker wires (sold separately) can be
passed through the speaker base and the
speaker arm to improve the outer appearance of
the speaker.
Tip
Speaker wire
(for diameter of
less than 7 mm)
Approx.
8 in.
(20 cm)
Cable entry point

JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Assemble the speaker base cover to the speaker
base.
3
Install the safety cable to the ceiling with a screw
(sold separately).
2
③Safety cable
Screws (sold separately)
Install the safety cable securely to the ceiling to
prevent the speaker from falling down.
Caution
Fix the safety cable to the ceiling in a place which is
strong, such as a beam location.
Tip
- 30 -
Securely fix the speaker to the speaker arm with the
hex socket nut and washer.
1
Speaker arm
Washer
Hex socket nut
- Assembling the speaker -
①Speaker
Securely tighten the hex socket nut and the washer.
Tip
Screws x2
Speaker base rear cover
For details on connecting the speaker wires, refer to
“Parts and connections” on P.21.
Tip
Connect the speaker wires (sold separately) to the
speaker input terminals.
5
Speaker base Rubber Guide
Speaker base
cover
Install the speaker base cover to the speaker base
so that the guide fits onto the rubber.
Tip
Install the speaker base rear cover to the speaker
base with the screws.
4

JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
■Maintenance
Before cleaning, be sure to turn off the power supply for all connected equipment and disconnect the power cords
from the electrical outlets. Remove any dirt from the unit by lightly wiping with a soft dry cloth.
If required moisten the cloth to remove surface dirt, then dry with
a soft cloth.
Do not use gasoline or thinners, etc. on this unit as it may damage
the cabinet.
■Problems during Operation of the Unit
During operation, the unit may stop working properly if it suffers from significant external disruption (impact shock,
static electricity, voltage fluctuation caused by lightning, etc.) or is operated incorrectly.
In this situation, turn the amplifier power switch to the “Off ” position.
Turn it back on again and check if normal operation has resumed. (If a problem persists, please contact our
Service Centre)
■Notice for WEEE directive
In accordance with the European Directive 2012/19/EU (for Waste Electric and Electronic Equipment=WEEE), this
product, which is labeled with crossed-out wheeled bin, may not be disposed of with household waste in member
states of the EU.
WEEE : Waste Electrical and Electronic Equipment
When disposing of this product in an EU member state, dispose properly in
accordance with the laws of that state, for example by returning it to the distributor.
WEEE has the potential effects on the environment and human health as a result of
the presence of hazardous substances.
You can contribute to eliminate these effects and to enhance reuse/recycle/ other
forms of recovery by your cooperation.
■Specifications
Specifications and appearance are subject to change without prior notification.
●Speaker
Diameter: 6.5 cm
Allowable input: Rated 12.5 W/Maximum 25 W
Impedance: 8 Ω
Dimensions: 135 mm(W) x 184 mm(D) x 212 mm(H)
Weight: Approx. 4.41 lbs. (2kg)
Care / SpecificationsCare / Specifications
- 31 -

- 32 -
JAPANESE
ENGLISH GERMAN FRENCH ITALIAN SPANISH
Warranty and customer serviceWarranty and customer service
■Customer service for enquiries related to usage, care, and repair of the product
Your rst point of contact should always be the ECLIPSE
approved retailer who sold you the product, or the
distributor of your country as they may be able to resolve
the issue.
For a genuine and agreed warranty claim, the product
along with the original receipt, should be returned to that
retailer/distributor for warranty repair. A warranty repair can
only be undertaken with a valid proof of purchase.
■
Warranty
Warranty period: One year (two years for EU
Countries) from the date of purchase.
Even during the warranty period, you may be
charged for services.
■
Minimum retention period of
performance parts for repair
Performance parts for repair are parts required to
maintain the performance of the product.
The minimum retention period of performance parts
for repair for this product is eight years from the end
of production.
■
Repairs after the warranty period
elapses
If the product can be made usable through repairs, it
will be repaired for a fee at your request.
■Repairs during the warranty period
The product will be repaired in accordance with the
warranty provisions.
Check your audio equipment for a long life!
Have you noticed any of
these symptoms?
● The power cable or plug is unusually hot.
● There is a burning smell.
● There is a deep cut in the power cable or it has deformed.
● Other problems or a malfunction.
Safety check
Stop using the product
To prevent the product from malfunctioning or causing an accident, turn the POWER switch o󰀨, unplug the
power plug from the power outlet, and request an inspection of the product.
For the likely charge to inspect and repair the product, contact as above.
