Eco removal systems Ecogum midi User manual

INSTRUCTION MANUAL

Steam Operated Machine

(Original Instructions)

Lance

weight 2.8kg

ECO REMOVAL SYSTEMS

Backpack fully

loaded 7.5kg

WARRANTY REGISTRATION

Thank you for purchasing a Eco removal systems product.

Warranty registration is quick and easy. Your registration will allow us to

activate your warranty.

To register online at:

www.ecoremovalsystems.com

and click the warranty option

Warranty covers parts and labour for a period of 12 months.

Please note this on all fair usage.

Please contact us to extend your warranty.

The Midi should be serviced every 12 months by the manufacturer or an

authorised agent only.

CONTENTS

How to use this manual 3

Safety Instructions 4

Operation 6

Cosumables 10

Safety Data Sheet 11

Declaration of Conformity 17

Notes 18

HOW TO USE THIS MANUAL SAFETY

This manual contains the following sections:

• How to Use This Manual

• Safety

• Operations

• Consumables

The HOW TO USE THIS MANUAL section will tell you

how to ﬁnd important information for ordering the

correct consumables.

Consumables may be ordered from authorized

dealers. When placing an order, the machine model

and machine serial number are important.

The model and serial number of your machine is

located inside of the backpack on the front case.

The SAFETY section contains important information

regarding hazardous or unsafe practices of the

machine. Levels of hazards are identiﬁed that could

result in product damage, personal injury, or severe

injury resulting in death.

IMPORTANT SAFETY INSTRUCTIONS

When using this machine, basic precaution must always be followed, including the following:

Using Machine -5˚ to +50˚ inside or outside

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

WARNING: To reduce the risk of ﬁre, electric shock, or injury

• Keep the unit upright at all times when operating and keep the lance held in an upright position always. Do

not put the lance down until 3 minutes after use or when it has cooled down.

• The rechargeable battery has been designed to be fully charged BEFORE each use.

• Only use manufacturer approved solution and fuel for the safe operation of the machine. Using other

consumable items in the machine invalidates the warranty and will lead to damage of the internal parts of the

machine and may pose a risk to the operator.

• Do not use the Midi machine unless you have read and understood the operating instructions manual.

• In the event of a breakdown contact the manufacturer or authorised distributor

• Never disconnect the lance or tamper with the lance especially when switched on.

• Please read the safety labels on the gas canister and detergent.

• Always wear appropriate PPE and beware of hot areas.

• Always dispose of equipment responsibly.

• Always dispose of lithium ion battery’s by approved disposable methods.

• Lance not to be rested on any on any surface when in use. Allow a distance of 24 inches or 60cms from

contact with the exhaust. Always hold the lance in an upright position when using, and always switch off

when not in use.

• Only use recommended detergents, gas and consumables. Only purchase through the manufacturer or

ofﬁcial distributor.

• Misuse or use of other detergents may adversely effect the safety of the machine. This will also invalidate the

warranty cover.

READ AND SAVE THESE INSTRUCTIONS

(and keep with the machine at all times)

SAFETY OPERATION

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identiﬁed by signal words

WARNING and CAUTION and FO R SAFE TY.

The level of hazard intensity is determined by the following deﬁnitions:

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or

property damage.

FOR SAFETY: To Identify actions which must be followed for safe operation of equipment. Report machine

damage or faulty operation immediately. Do not use the machine if it is not in proper operating condition.

Following is information that signals some potentially dangerous conditions to the operator or the equipment.

Read this information carefully. Know when these conditions can exist. Locate all safety devices on the machine.

Please take the necessary steps to train the machine operating personnel.

• FOR SAFETY - DO NOT OPERATE MACHINE:

• Unless Trained and Authorized.

• Unless Operation Guide is Read and understood.

• In Flammable or Explosive areas.

• In areas with possible falling objects

• When in an area where there is a possibility of an electrical storm.

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine.

Use manufacturer approved replacement parts.

WARNING:

CAUTION:

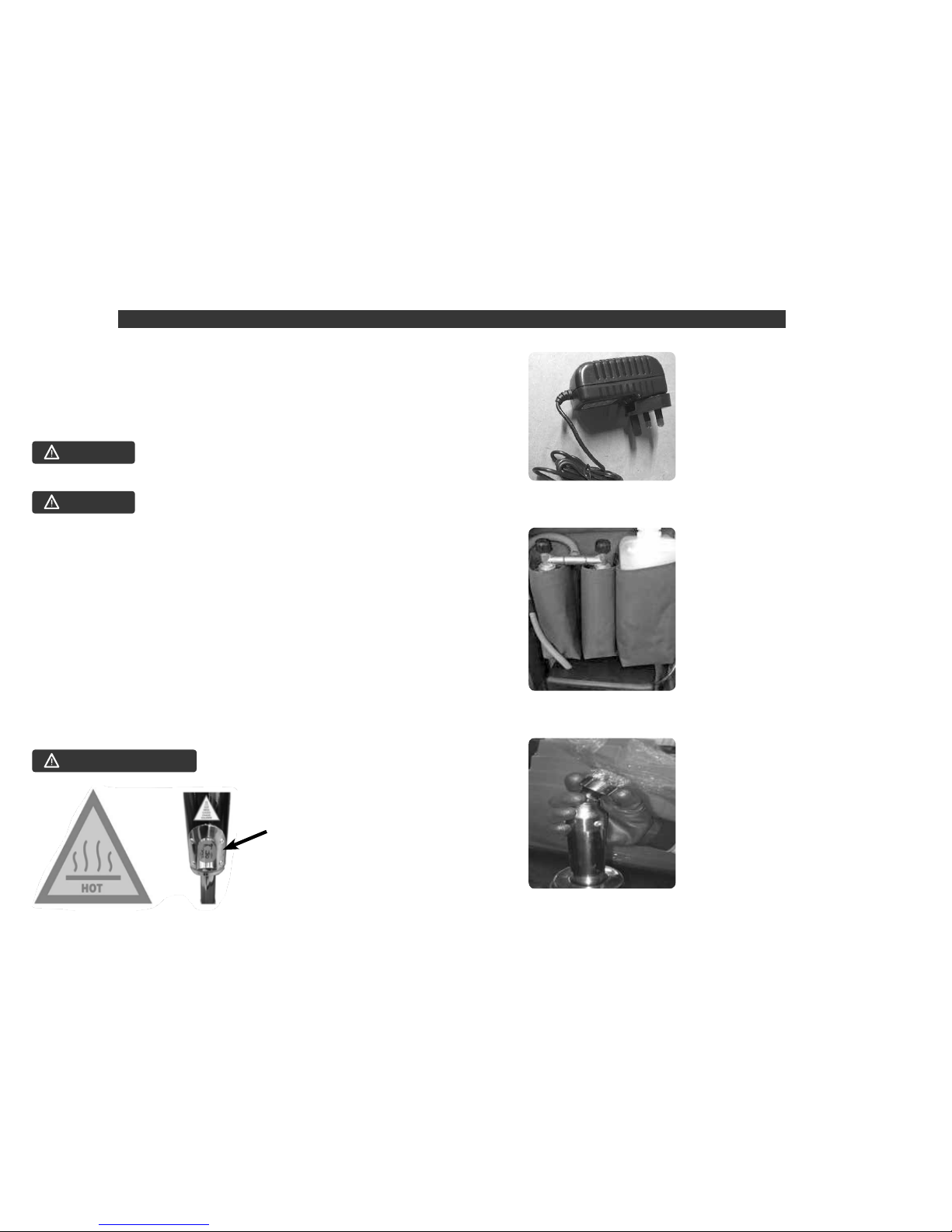

WARNING HOT AREA:

Do not tamper with the lance at any time,

refer to manufacturer.

When red label is showing black (hot) the

exhaust is HOT ( please note it will take

approximately 3 minutes to heat up the

boiler and the label to change to black)

When the black ( HOT) disappears and

turns to red the boiler is now cold ( please

note the time for this will depend on the

surrounding environment)

Charging the machine

Plug the charger into the charging port on the

machine.

It will take approximately 4 hours for the battery to

fully charge.

A fully charged battery will last for 8 hours. Charger

will show a red light while charging and a green light

when fully charged.

If charger displays anything other that the listed

colours, contact ERS.

Cleaning Gum

Ensure the battery has been charged and

disconnected from the charger (ensure this is done on

a even surface)

Place on a even surface and unzip the backpack

and undo the velcro which holds the pipe in place.

Unsrew the lid on the detergent bottle and insert the

bottle into the the large pocket.

Screw the cap onto the bottle (which is attached to

the unit by a tube) and make sure the tube is pushed

as far down the bottle as possible.

Srew the LPG gas bottles onto the gas valve manifold

and tighten hand tight and place into the 2 circle

pockets.

Secure the pipe using the velcro to the backpack Turn

the gas valves on by turning clockwise ( please note

the gas is now on)

Screw in the appropiate brush on to the end of the

nozzle on the lance.

Zip the rucksack back up.

Operator to place rucksack on thier back and adjust

straps accordingly (please see page 8 )

WARNING

Always remove the brush when its cold. Switch

off the machine and hold in a upright postion

for at least 3 minutes. Always remove the brush

by wearing gloves.

OPERATION OPERATION

Connect hand-held unit

Connect cable to base making sure that the pins line

up, then screw to lock in position. Do not start the

machine until strapped on to the operators back.

Operator to place on thier back and adjust straps

accordingly ( please see page 8 ) Do not start the

machine until strapped on the operators back

Important information

ALWAYS REMOVE THE HANDHELD CONTROLLER

WHEN THE MACHINE IS NOT IN USE

Using the hand held remote

to commence operation

• To commence operation make sure that the

ﬂuid controller is set to 0.

• Turn the on/off button to number 1 setting

which turns on the battery, which starts the

pump, the fan and the solenoid.

• After 5 seconds press the red button which

ignites the burner in the lance. You will hear this

ignite.

• Turn the ﬂuid controll dial to setting 10 until you

see detergent appear from the lance brush.

• Then turn the ﬂuid control dial to setting 0 for 1

minute while the boiler heats up.

• Next turn the ﬂuid contoll dial to the required

setting ( for gum removal set between 2-3 a

small adjustment may be required depending

on the surface or for a different use increase

accordingly)

• Note: The ﬂuid indicator will light up when the

solution is empty in the backpack.

1. BATTERY CHARGE INDICATOR

2. ON OFF BUTTON

3. RED IGNITION BUTTON

4. YELLOW FLUID CONTROL DIAL

5. FLUID LEVEL INDICATOR LIGHT

Adjusting the Machine

Unclip waist and chest straps. Loosen shoulder straps

and hip belt.

Put on unit by placing arms through shoulder straps

and secure and tighten the hip belt.

NOTE: For the most comfort, adjust unit so that the

hip belt covers the front hipbones and the bowed-

out portion of the back padding rests on the small

of the back.

Tighten the shoulder straps to the point where

the unit’s weight just starts to pull down on the

shoulders. Ideally most of the unit’s weight will

remain on the waist.

Adjust the chest strap position to be high on the

chest and tighten till comfortable.

Cleaning Gum

Once the machine has heated up, place the brush on

the piece of ﬂattened gum and wait 5-10 seconds.

Agitate the ﬂattened gum with the brush using

circular motions until you see gum disintegrate. Do

not scrub or apply pressure. The weight of the lance

with agitation is all that is required.

Remove the brush from the gum and use a broom to

sweep across the area. Determine if all the gum has

been removed or if more cleaning is required.

If further cleaning is required, repeat the cleaning

steps until gum is completely removed.

NOTE: Always complete a test patch on surfaces to

make sure no damage occurs to the ﬂooring

or surface.

109

OPERATION CONSUMABLES

End of Use

Place the machine on a level even surface

Turn the switch to “OFF”- 0

Unzip the backpack and turn the gas valves off by

turning clockwise and unscrew from the manifold,

unscrew the detergent bottle and remove from the

unit.

To drain the unit, on the handheld controller turn

“on” 1, turn the ﬂuid control dial to 10 until there

is no ﬂuid coming from the nozzle at the end of

the lance. BEFORE YOU DO THIS ENSURE THE

DETERGENT WAS ORIGINALLY REMOVED AND THAT

THE FLUID IS NOT EFFECTING ANY SURFACE.

Turn the power “off” 0 and un plug the handheld

controller

ENSURE THE HANDHELD CONTROLLER IS ALWAYS

UN PLUGGED WHEN THE UNIT IS NOT IN USE.

Always store the ERS MIDI in a well venilated dry area.

Product Code Min. Qty Description

ECOGSB 1 Gum Service Box

(2x gas cartridges, 4x detergent bottles, 2x ECORNB brushes)

ECOOSB 1 Oil Service Box

(2x gas cartridges, 2x detergent bottles, 1x ECOOBSS brushes)

ECOGPB 1 General Purpose Service Box

(2x gas cartridges, 4x detergent bottles, 1x ECOOBPP brushes)

ECORNB 20 Brush: Round - Black - Hard - Stainless steel (for hard surfaces)

ECOSNBGREY 20 Brush: Round - Grey - Medium - Polypropylene (for soft surfaces)

ECOSNBGREEN 20 Brush: Round - Green - Soft - Polypropylene (for carpet & matting)

ECOOBSS 10 Brush: Oblong - Blue - Hard - Stainless steel (for hard surfaces)

ECOOBPP 10 Brush: Oblong - Orange - Hard - Polypropylene (for soft surfaces & carpet)

Rolling Ball Lance

Support

The ergonomically designed

rolling ball lance support takes

the weight of the lance making

the cleaning process much easier

on the operators arms.

Durable Carry

Cart

Constructed in steel with rubber

wheels and velcro ﬁxings, this

makes easy work of moving the

backpack around.

Please note; The rolling ball and durable carry cart are added accessories please contact us for more details

Service Pack

Containing 4 x 2Ltr bottles of detergent,

2 gas canisters and 2 ECORNB brushes

1211

SAFETY DATA SHEET SAFETY DATA SHEET





 

 

 





 





 













 

 

 



 





 

 



 

 

 

 

 











According to 1907/2006/EC, Article 31

GUM REMOVER SOLUTION





 













 









    

    

 









 

 

 

 



 

 

 

 

 



 





 



1413

SAFETY DATA SHEET SAFETY DATA SHEET





 





 







 



 





 







 





 



 



 



 





 



 



 

 



According to 1907/2006/EC, Article 31

GUM REMOVER SOLUTION





 

 

 





 

 

   

 



 





 



 



 





 





 









    

    

 



 



1615

SAFETY DATA SHEET SAFETY DATA SHEET





 

 





 



 



 



 



 







 



 





 











 





 







SAFETY DATA SHEET

8. Exposure Controls

First Aid: Remove the affected person to fresh air. If breathing has stopped, administer artificial

DATE REVISED: 01.03.13

Take meas ures to preven t: respi ration. Gi ve external c ardiac mass age if neces sary. If the person is breathing, but unconscious,

Supersedes SDS dated N/A

Physical contact with liquid gas. Exposure to gas vapour in enc losed spac es. place i n the rec overy position . Obt ain medi cal ass istance i mmediat ely.

Date issued: 01.03.13

Exposu re Control Li mits, and s ource: Notes for D octors : No speci al inf ormati on.

THIS DATA SHEET HAS BEEN PREPARED IN ACCORDANCE WITH

Relevant on ly to unburned gases . The foll owing exposure limits are taken from the health & Safety

12. Ecological Information

CRONER'S HAZARD INFORMATION AND PACKAGING GUIDE

Executive Guidance Note EH40/2005 W orkplace exposure limits. Poss ible effec ts:

Wor kplace Expos ure Limits : No known effects on the environment.

Butane-Propane Gas Mixture (A.O.): Beh aviour:

Butane-Propane Mix Gas Cartridge

1450 mg/cubic metre (600ppm) 8-hourTWA value. No known ecological damage will be caused by this product.

Unique reference number(s):

1810 mg/cubic metre (700ppm) 15-minTW A value. Envir onmental fate:

GP03

Liquef ied Petroleu m Gas: When released to Air, soil and water, the majority of the product will rapidly evaporate.

Company name, address and normal telephone num ber:

1750 mg/cubic metre (1000ppm) 8-hourTWA value

13. Disposal Considerations

EcoGum, 349-353 High Street

2180 mg/cubic metre (1200ppm) 15-minTW A value. Likely r esidues/was te product (if any):

Harborne, Birmingham, B17 9PU, England

Resp irator y protec tion: No known resid ues. W aste prod uct: Metal C ontainer.

T: +44 (0)161 367 1315 F: +44(0)161 367 1316

Should be used if there is a risk of high vapour concent ration. S afe handling of any residues/waste product:

E: info@ecogum.co.uk

Hand p rotect ion: Any disposal route should comply with local by-laws and the requirements of the Environment

Emergency telephone no:

Use rubber gloves if in contact with liquid. Protection Act, 1990. Liquefied Butane Gases are subject to the Control of Pollution (Special

+44(0)161 121 427 5815

Skin p rotection: Waste) Regulations 1980.

2. Composition/Information on Ingredients

Wear protective over alls wi th long sleeves to protect exp osed sk in. For disposal of surplus quantities of GoSystem gas cont ainers , contact you r local sup plier, or

Preparation: BUTANE (LIQUEFIED PETROLEUM GAS) Eye prot ection : repres entative.

Substance CAS EC Index EEC Einics Use goggles or face shield when handling in liquid form.

14. Transport information

number: number: number: number: When used as a fuel source, th e above con trols will not be nec essary. Classification for carriage: Flammable gas

Butane 106-97-8 601-004-00-0 203-448-7 270-704-2 However, p roducts fuelled by LPG should always be used in well ventilated areas , ARD/RID Proper shipping name: Mixture of gases listed under 11º5º(b) Butane

Propane 74-98-6 601-003-00-5 200-827-9 200-827-9 pref erably out doors. (Liquefied Petroleum Gas ).

Hydrocarbons C3-4 Rich, Petroleum Distillates, Petroleum G as Liquefi ed.

9. Physical and Chemical Properties

Preparation identification number: 1965 (1075) Mixture AO, NOS, ARD

Other extremely fl ammable components.

Appearance: Colourless Land transport ADR/RID

3. Hazards Identifications

Odour: Distinctive and unpleasant (stenched)ARD/RID Class: 2

The mos t important hazards are: pH: Neutral UN Number: 2037

EXTREMELY FLAMMABLE GAS Boiling point/boiling point range: -42 Deg.C. Hazard Class: SF

EXPOSURE TO HIGH CONCENT RATIONS OF VAPOUR Flashpoint (ºC) closed cup: Less than -40 Deg.C. Packing Group: - Combination packages

CAN LEAD TO NAUSEA, HEADACH E, DIZZINESS AND Flammability (gas/solid): Not applicable (Fibreboard) - Limited Quantities

IN EXTREME CASES, LOSS OF CONSCIOUSN ESS, Autoflammability: 410/550 Deg.C, Labels: 2.1

AND IN OXYGEN DEFICIENT ENVIRONMENT S, DEATH. Explosive properties: Not applicable Name and description: RECEPTACLES SMALL CONT AINING

SKIN CONTACT W ITH LIQUEFIED GAS CAN CAUSE COLD BURNS Oxidising properties: Not applicable GAS (GAS CARTR IDGE)

4. First Aid Measures

Vapour pressure: 4.1 bar @ 20 Deg.C. Marin e Trans port IMDG

Immedi ate medical att ention r equired: Yes Relative density: @ 15 Deg.C:0,55 to 0,56 IMDG Class: 2

Prof essional ass istance f rom physic ian required : Yes Solubility (water and fat): Immiscible UN Number: 2037

Summary of first aid is as follows:

10. Stability & Reactivity

Packing Group: - Combination packages

Inhalat ion: remove sub ject t o fr esh air as soon as possible using self contained breathing Conditions to avoid: (Fibreboard) - Limited Quantities

apparatus if appropriate to protect rescuer. If subject breathing, keep warm and at rest, preferably Sources of ignition (store below 50 Deg.C.) Labels: 2.1

lying down. Do not leave the subject. Remove contaminated clothing if possible. If subject has Materi als to avoid : Name and description: RECEPTACLES SMALL CONT AINING

stopp ed breathing, give appropri ate artif icial res piration (p referably wit h a brook airway). Wh en Strong oxidising agents, e.g. chlorates which may be used in agriculture. GAS (GAS CARTRIDGE)

breathing starts, place subject in recovery position. Do not leave the victim. Get medical assistance Hazard ous dec omposition: Air transport ICAO/IATA

as soon as poss ible, remove to h ospit al for f urther tr eatment. Gi ve oxygen if avai lable (s hort The subs tances arising f rom the therm al decom posit ion of these products will largely depend ARD/RID Class: 2.1

applications, not continuous therapy). on the conditions bringing about the decomposition. T he foll owing s ubstances may be expected UN N umber: 2037

Skin contact: Immediately drench skin with cold water, irrigating the affected area for 10 minutes. As from normal c ombustion: Packing Group: - Combination packages

soon as possi ble get medic al aid and /or remove s ubject to h ospit al for s pecialis ed treatm ent. Carbon Dioxide: (Fibreboard) - Limited Quantities

Eye contact: Immediately drench eyes with cold water, irrigating the affected area for 10 minutes. As Polyc ycli c Ar omatic Hydroc arbons Labels: 2.1

soon as possi ble get medic al aid and /or remove s ubject to h ospit al for s pecialis ed treatm ent. Carbon Monoxide: Name and description: RECEPTACLES SMALL CONT AINING

Ingestion: Remove subject to fresh air as soon as possible, an d follow the gu idelines f or 'Inhalati on' Unburned Hydrocarbons GAS (GAS CARTRIDGE)

above. Wat er:

15. Regulatory Information

5. Fire-Fighting Measures

Unidentified Organic and Inorganic Compounds Supply l abel inf ormation: T his infor mation has been clas sified ac cording to t he requiremen ts

Suitable extinguishing media: Parti culate Matter : waste) Regulations 1980.

Dry powder - Use water fog/spray to contain the fir e. N itrogen Oxid es Dangerous for supply:

Unsuitable extinguishing media:

11. Toxicological Information

Symbols: Flame

Acut e Health Hazar ds and A dvice. Category of Danger: Extremely Flammabl e

Liquefied Butane Gases under normal conditions of storag e and us e are not li kely to pr esent a

Speci al exposure hazar ds in fir e: health hazard. The gas is heavier than air and in the event of a sp illage will c ollect in dep ress ions, R isk Phrases: R12 Extremely Fl ammable

pits, drains, confined spaces, etc.c where it can present a heal th hazar d Safety Phrases: S2 Keep out of reach of children

Inhalat ion

Requi red sp ecial p rotect ive equipment f or fire fi ghters: Exposure to higher concentrations of Liquefied Butane Gas es can lead to dr owsines s, S9 Keep container in a well ventilat ed place

Fires involving gases usually give off TOXIC FUMES and VAPOURS. unconsc iousness, and subsequent asphyxiation. Very high c oncent ration s can l ead to abnor mal S16 Keep away from sou rces of ign ition

heart rhythms and possibly death. Appl icabl e EU Pr ovision s and as sociated UK legislati on:

Prec autions : Inhalation of vapour s should be avoi ded. W here, except ionally, high er concentr ations

6. Accidental Release measures

of vapour are likely to be present, e.g. in the event of a sp illage in a badl y ventilat ed area, per sonsDangerous substances Directive 67/548/EEC

Pers onal prec autions: I f ther e is a leakage fr om a smal l amount of gas, evacuate people f rom the s hould not be al lowed to ent er the area, even in an emergency, until the atmosphere has been T he Preparati ons Directive 88/379/EEC

immedi ate danger area, and the area of the path of the gas cloud, if possible. Switch off all sources check ed and pas sed as safe b y a comp etent per son. The Chemi cals (Haz ard Inf ormation & P ackagi ng for supply) Regulations 2002 (SI No.1689) (CHIP3)

of ign ition. No sm oking. Isol ate leaking con tainer( s), if possible. Stop leak at source. If leakage First Aid: Remove the affected person to fresh air. If breathing has stopped administer artificial The C ontrol of Substanc es Hazardou s to Heal th (A mendmen t) Regulations 2004 (COSHH 2004)

cannot be st opped, r emove containers (s) to an is olated area, cl ear of buildi ngs, people an d sour ces resp iration . Gi ve external c ardiac mass age if neces sary. Obt ain medi cal ass istance i mmediat ely.

16. Other Information

of ignition. Skin Training advice:

Envir onmental precau tions : If poss ible, al low gas to be releas ed slowly int o the atm osphere to Skin contact with Liquefied Butane Gases, occurring as a result of t he rapid evaporation of th e T he most impor tant consi derations ar e handli ng and s torage. Code f Practic e 7, ref erenced below

produce a harmless dilution. Disperse gas using a hose reel fitted with a water spray or fog nozzle, or liquid gas, may result in cold burns. gives al l the nec essary inf ormation requ ired.

by air agi tation. Precautions: Avoid contact with the skin by the use of s uitable prot ective c lothing. Further information:

Methods for cleaning: Attempts should be made to prevent gas vapours entering drains or gullies. First Aid: Burns should be flushed with water to normalise temperature. Cover the burns with sterile Code of Practice 7 Storage of Full and Empty LPG Cylinders and Cartridges.

Vapour s will disperse t o atmosp here if suffic ient air flow is available. dressings. Do not apply ointments or powders. Obtain medical attention. Cron er's D angerous Su bstan ces

Wh ere appropriat e refer to inf ormation und er headin gs "8. Exposure controls" and "13. Disposal Eyes Sh ell Gas Technic al and Safety D ata Sheet. Shell UK Ltd.

cons iderat ions" Eye contact with rapidly evaporating Liquefied butane Gases may caus e cold bu rns. IMCO Guide

7. Handling and Storage

Precautions: If there is a risk of eye contact when handling the liquid, sensible eye protection Approved Supply List

Handling: GoSystem gas cartridges are supplied from the factor y in Fibreboar d Combination should be used. Oth er.

Packag es of 12 gas c artridges per package. First Aid: Burns should be flushed with water to normalise t emperatu re. Cover the eye wit h a sterile ARD/RID Regulations

Packages should be handled with care and kept upright when transferring the packages. dressing and obtain medic al attent ion immediatel y. The data contained in this Safety Sheet has been supplied as a requ irement by the Chemic als

Storage: the storage of LPG is subject to legislative controls . The prim ary piece of leg islat ion Ingestion (Hazard Identification and Packaging for Supply) Regulations 2002, for the purpose of protecting

affecting the storage of LPG is the Highly Flammable liquids and Liquefied Petroleum Gases Whilst this is not a normal h azard as sociat ed with Liqu efied B utane Gases, abuse by inverting gas the health and safety of industr ial and c ommercial us ers who are deemed capab le of

Regulations 1972. LPG must be stored in purpose built Containment systems. containers can result in the liquid being ingested. In these circumstances the hazards are the same understanding and acting on the infor mation provided .

LPGA Code of practice 7 should be consulted in order to comply with the legislation (obtainable as for inhalation. Please en sure that it is passed to the app ropriat e person(s ) in your compan y, who are c apable of
