Ecoglider City One S4-W User manual

USER’S MANUAL

USER INSTRUCTIONS
Welcome to the family of S4-W owners! We will guide you to know each function for the right and safe use
of Electric scooters. To ensure your safety, please read this manual carefully before riding and make sure you are
always following the requirements below:
Fully understand the information in this manual, including but not limited to the relevant instructions, precautions and warnings.
Fully understand the operation and contingency measures of electric scooters.
Be fully aware of warning labels of S4-W electric scooters.
We will not take any responsibility resulting from the unauthorized modification, failure to use original spare parts,or
installation of components that affect the performance and safety of the scooter.
Please contact the Local Customer Service Center if you have any questions about this bike.We are at our service at any time.
Wish you safe and pleasant riding experience!
Safety Instructions
To ensure the safety of you and others, please make sure to observe the following matters:
Do not ride after you take medications which may affect your riding ability, drink alcohol, or when you are unwell.
Observe traffic regulations and traffic signs and confirm the surrounding road conditions and scooter conditions at any
time,so as to actively avoid danger.
Wear safety equipment, such as helmet, and appropriate protective clothing if necessary, such as gloves and boots.
Perform a basic check each time before riding, so as to confirm the light, brake, tread and tire pressure and check other
parts for looseness or abnormal noise, and regularly go to Local Service Center for maintenance.
In order to ensure the safety of you and others, please DO NOT use high beam in good lighting conditions. The continuous
use of highbeamwillcausethevisualdisturbancetovehiclesandpedestriansontheoppositeside,thus affecting normal
driving.
Please do not make or answer any call during riding, which is likely to cause traffic accidents.

DESCRIPTION OF COMPONENTS AND PARTS
SCHEMATIC DIAGRAM OF COMPONENTS AND PARTS

DESCRIPTION OF COMPONENTS AND PARTS
DIAGRAM OF INSTRUMENT PANEL
.
Economical Gear, corresponding to number ” 1 ”
Cruising Gear, corresponding to the number “ 2 ”
Sport Gear, corresponding to the number “ 3 ”
○
1 Speeddisplay
Display current speed.
○
2 Driving time
Display Single driving
time.
○
3 ODO/TRIP
Total ODO Distance/
TRIP distance/
○
4 Power display bar
Display current battery level.
○
5 Gear display
Display current gear.
○
6 Failure warning Display
currentFailure
(Motor,Controller,Brake,
Accelerator)
○
7 Left Winker indicator,
Flashing in synchronization
with the Left winker.
○
8READY light
Ready for driving.
○
9Under-voltage of Battery
The charge indicating lamp lights up
When less than 10% electricity
remains.
○
10 Right Winker indicator,
Flashing in synchronization with the Right
winker.
○
11ON/OFF switch Light of Side stand
Light on when side stand working.
○
12 Charging of the scooter
The charge indicating lamp lights up
When charging the battery on the
scooter.
○ 13 Position light
The lamp lights up When the
daytime driving.
○
14 High beam indicator,
indicating highbeam on.

OPERATIONGUIDE
DETAILS OF INSTRUMENT PANEL

OPERATIONGUIDE
LEFT & RIGHT START BUTTON
① High/low beam switch button
Press up to turn on the high beam. Press
down to turn on the low beam.
② Winker button
Dial to the left side to turn on the Left winker.
Dial to the right side to turn on the Right winker.
③ Horn button
Press to make a sound and release to stop.
○
4 Parking button
Parking button has two modes: press to park the scooter and
parking indicator P goes on; andpress again(3 seconds) to exit the
parking status.
○
5 Headlamp button
Dial up to turn on the headlamp.
Dail down to to turn off the headlamp.
○
6Gear shift button
The scooter has three(3) Gear modes,
1 "Eco", 2 "Cruise", and 3 "Sport". Dial rightwards for "Eco",
middle for "normal"and left for "sport".
○
7 Recover button
When the scooter have failure warning on the Components
( motor/controller/brake/accelerator),always press this
button,driving the scooter slowly to find the nearest service.

OPERATIONGUIDE

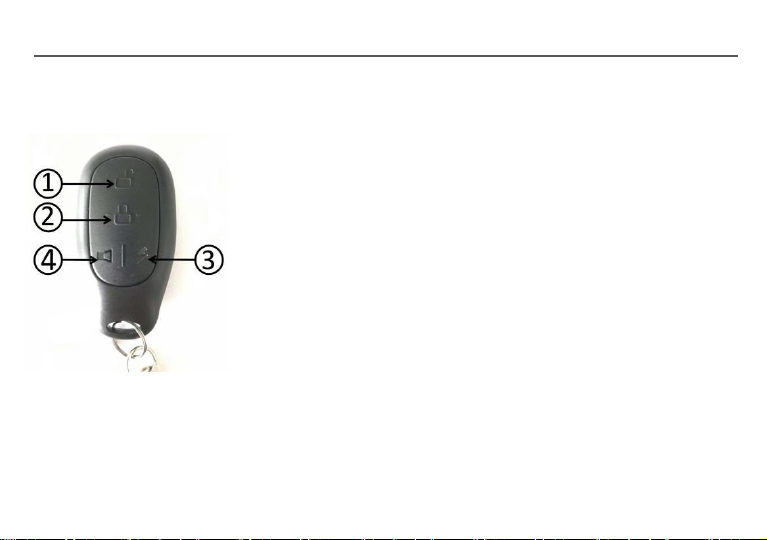

HOW TO OPERATE THE SMART REMOTE
CONTOL
With the advanced Smart Remote Controller, you can
easily lock or unlock your electric scooter by simply
pressing the button within 50 meters.
① Unlock
Press the unlock button, and the start button stays on. The
scooter enters into the [Unlocked State].
② Lock
When the scooter is in the [Static State], press the lock button,
and the start button flashes. The scooter enters the [Locked
State].
③ Remote keyless entry
After unlock the scooter,press this button twice within two(2)
seconds, and the scooter will be in the “Powered” state without
key.
④ Search key
Press this witch within 50m, “Bi Bi”sounds searching the
scooter.

OPERATIONGUIDE
OPEN THE STORAGE BOX AND SADDLE
① After the scooter stops, turn the handlebar to the far
left, insert the key into the physical handlebarlock, push
and rotate it leftwards to lock the scooter.
Insert the key into the physical handlebar lock, and rotate
it rightwards to unlock the scooter.
② Insert the key and rotate it leftwards, open the saddle
and the storage box will be opened when you hear a
[Click] sound.
③ Insert the key and rotate it rightwards, to start the
scooter for driving.

OPERATIONGUIDE
OPERATION OFAIRSWITCH / BATTERY CONNECTING
As the protection switch for the main power of electric scooter, the air
switch will automatically disconnect to ensure safety when the
scooter circuit is abnormal or the current caused by short circuit
exceeds the set safe value.
① Open the cap of battery case with the key,plug the battery cable
inside the socket,connecting the battery with scooter.
② Air switch ON/OFF
Before open the key,please turn ON this Air switch in
advance.
■Notes：In order to protect your safety, please turn off
the air switch when cleaning, storing the scooter for a long
time, or re- moving the battery pack.
③Battery case anti-theft lock / unlock
When you put down the battery case into the scooter,it is
locked with the key.
○
4 Unlock and Remove the battery case step by step.
Open the cap of the battery case with the key,unplug the
power cable,then pull up the battery case with one hand.

RIDINGGUIDE
CHECKS BEFORE RIDING
Make sure to check the following items before riding a Electric Scooter, which will guarantee your safety on the road.
1. Whether the handlebar is stable and flexible when turning.
2. Whether the switches on the right and left handlebars can work normally.
3.Whether the speed accelerator can work normally.
Make sure the tire pressure is normal. The suggested tire pressure is 26-29psi for front wheel and 29-32 psi for rear wheel.
4.Checktiresurfaceforcracks,damage,wear,andforeignmatterpunctureorattachment
5.Whether the tread depth is sufficient (>0.8 mm).
6.Whether any fault warning light on the instrument panel goes on after being powered.
7.Whether the battery is fully charged.
8. Whether the head and tail lights, brake lights and winkers can work normally.
9. Whether the horn can work normally.
10. Whether the rear mirrors are clean. Adjust them to the appropriate angle.
11. Whether the brake oil is sufficient, and whether the handlebars and brake system can work normally.
12. For any abnormality or operational concern, please contact local Customer Service Center.

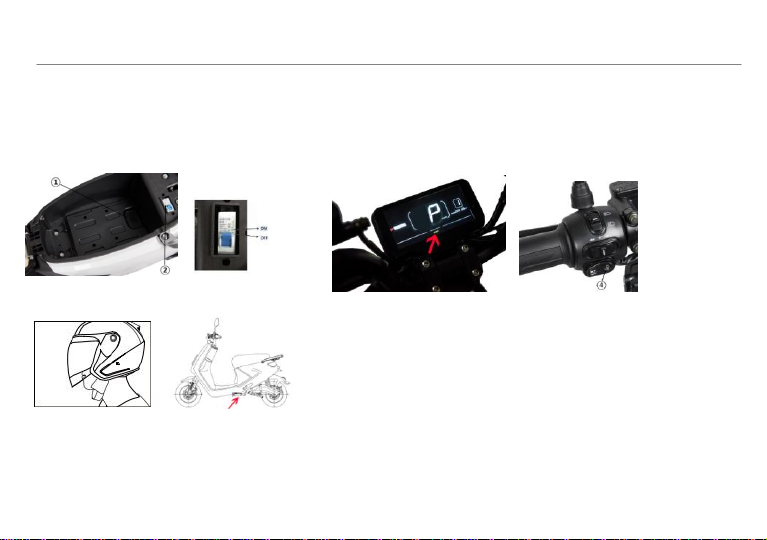

CHECKS BEFORE RIDING
CHECKS BEFORE RIDING
Make sure to check the following items before
riding, which will guarantee your safety on the road.
① Insert the key and turn leftwards, Open the
saddle, open the cap to conect the battery
cable,Turn On the Air switch.
② Put on the helmet, and retract the electronic
side stand.
③Insert the key and turn rightwards, “Powered”state is started,the Instrument
is opened, and the “READY”light is ON,scooter is ready for driving.
○
4Press the "P" button with three(3) seconds, to exit the Parking state,and the
“P”indicator goes off,then you can start driving.Gently turn the handlebar to ride
on the road.
■TIPS:
Before riding,make sure the electronic side stand retracted and rotate the
handlebar to ensure that the handlebar lock is closed. If the Parking button is
pressed when riding, the scooter will be dis- energized. So DO NOT press it when
riding for avoiding danger caused by the sudden loss of power.
If the electronic side stand is extended when riding, the bike will be dis-
energized. So DO NOT extend the electronic side stand when riding for
avoiding danger caused by the sudden loss of power.
The scooter must be fully stopped before starting. In case of abnormality
during riding, please ride carefully or push it to a safe place. DO NOT try
restarting the bike during riding or on the lane so as to avoid danger.

BATTERY USE INSTRUCTIONS

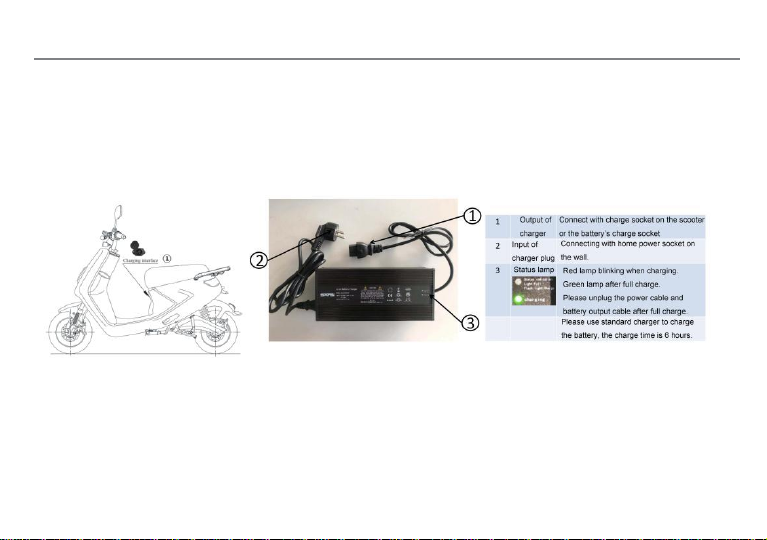

How to charge the battery
○
1 Insert the main charger plug into the charging port of the scooter.
Insert the chargers AC power plug into the home power socket, and the battery starts charging when the charger indicator
turns red.
The battery is fully charged if the charger indicator turns from red to green.

BATTERY USE INSTRUCTIONS
How to charge the battery
②Pull up the battery from scooter, Insert the main charger plug into the charging socket of the battery. Insert the chargers AC power
plug into the home power socket, and the battery starts charging when the charger indicatorturns red.The battery is fully charged if
the charger indicator turns from red to green.
■TIPS:
Short circuit of the cathode and the anode at the battery's input.
Keepitawayfromchildren,fireandheatsource.Itisstrictlyforbiddento throw it into the fire;Violent movements, shock and extrusion are
prohibited;
Onlythespecified chargercanbeused,andotherchargersareprohibited to chargethebattery;
This product has been subject to strict inspection before leaving factory, and it is strictly prohibited to dismantle it. Please
contact our company's after-sales department for any question.
■TIPS:
Do not expose the battery to water, and prevent it from being damped by water or rained.
Charge temperature: 0-45 °C, discharge temperature: -20-45 °C;
Battery capacity will be reduced when placed in a low- temperature environment;
Charge the battery when you use it, but make sure to charge it before the capacity is lower than 20%. When it is not used
for a long time, please remove it from the scooter.

BATTERY USE INSTRUCTIONS
STORAGE, MAINTENANCE AND TRANSPORTATION
Please charge the battery to half-saturation state when storing or transporting it (after the battery is discharged,
charge it for 3 hours).
Place it in a dry and ventilated place;
Battery and charger should be kept in a clean, dry, and ventilated place. Keep them away from corrosive materials, power
source and heat source;
Storage conditions: ambient temperature -20-35 °C, humidity < 65% RH;
When storing the charger, please disconnect it from the battery.
Regular maintenance can enhance the service life and driving safety of the electric scooter. Please refer to the following suggestions
and take care of your scooter.

MAINTENANCE
ROUTINE CLEANING AND MAINTENANCE
Cleaning：Please use clean water and neutral detergent to clean it, and use soft cloths and sponges to clean the surface;
it is prohibited to use metal brushes, sandpaper or the like to clean it, in order not to scratch the parts surface. After cleaning,
dry it with soft cloths.
■TIPS:
Please disconnect the air switch before cleaning.
Do not use strong water jet to directly wash it, so as to avoid the default of mechanical parts caused by water invasion.
Storage: try to park it in a dry and cool room to reduce the exposure to sun and rain and avoid the reduction of service life due
to corrosion of parts.
When left unused for a long time, please turn off the air switch and disconnect the power supply circuitto prevent over
discharging.
After long-term storage, please fully charge it before use.
REGULAR INSPECTION AND MAINTENANCE
The new scooter must be subject to the first inspection and maintenance inthe Service Center when it reaches 1,000 km
or two months (whichever comes first).
The scooter is recommended to be subject to regular inspection and maintenance in the Service Center at every 3,000 km
or six months (whichever comes first).
■TIPS:
Please disconnect the air switch before cleaning.
Do not use strong water jet to directly wash it, so as to avoid the fault of mechanical parts caused by being damped.

ROUTINE CLEANING AND MAINTENANCE
Regular maintenance can improve the service life and driving safety of the electric scooters. Please refer to the fol-lowing
suggestions and take care of your scooter.
Failure
Causes
Solutions
The scooter has no electricity,
and the READY lamp does not
shine.
Battery is poorly connected.
Air switch is not turned on.
Connect the battery properly at its main plug.
Turn on the air switch.
When turning the speed regulating
steering handle-bar, the motor
does not turn after being powered,
Low battery volume.
Side stand is not retracted.
Brake handle does not reach the right
position.
Steeringhandlebarfailure.
The controller plug is loose.
Controller failure.
Charge the battery.
Put away the side stand.
Close the parking key.
Place the brake handle at the right position.
Change handlebar.
Re-plug controller.
Change controller.
Speed is slow or mileage is short.
Low battery.
Under-inflated tire.
Heavily overloaded.
Brake pads interference.
Battery aging or normal scrap.
Charge the battery.
Inflate the tire, and check the tire pressure before
riding.
Foster a good habit, and keep the appropriate load
Change the brake pads and check the brake system
before riding.
Change battery.
Check whether the main plug is in a right place
Use the special charger.
Battery can not be charged.
Poor contact of the main plug of the
charger.
Do not use the wrong charger.
Battery aging or normal scrap.
Battery low-voltage protection.
Contact of the main plug again.
Contact with local service office of battery.

ROUTINE CLEANING AND MAINTENANCE
