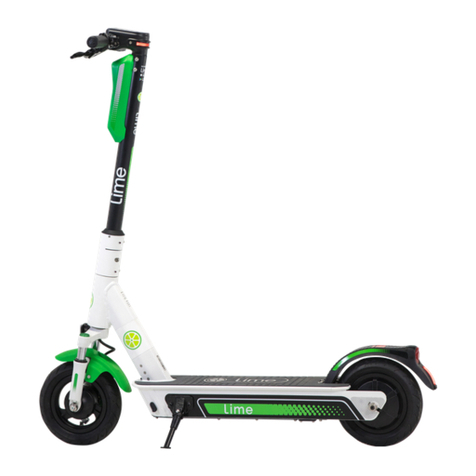

Lime Generation 3.0 Use and care manual

Generation 3.0
Central Console
Replacement
3/1/2019
Central Repair-Lime Technical Institute

Tools
Torx Wrench
List
1.T-handle Wrench - Torx
T10
2.Philips Screwdriver
12
T10
Phillips

3.0 Central Console Disassembly SOP
Technical Guideline
Video Link

Tools
-T10 Torx Wrench
Part
(none)
1. Remove the Center Console Cover
STEP 1
Tear off the stickers on the left and right sides,
then loosen the screws with a T10 wrench.
STEP 2
Use a T10 wrench to loosen the two screws on the
top and bottom.
CAUTION
2min

Tools
-Phillips Screwdriver
Part
2. Remove the Center Console Screws
STEP 3
Remove the central control cover.
STEP 4
Use a Phillips screwdriver to remove the 4 screws
that are fixed in the middle control. ***CAUTION***
CAUTION
Pull out the headlight
wire on the right side
first to avoid breaking
the wire.
1min

Tools
(none)
Part
(none)
3. Remove the Center Console
STEP 5
Pull out the central control wires carefully, making
sure not to unplug the wires while inside the neck.
STEP 6
Unplug the wire connectors. Make sure the wires
do not fall in the neck.
CAUTION
If the wires are
unplugged in the
neck, or fall back into
the neck, they are
extremely hard to
retrieve.
1min

3.0 Central Console Assembly SOP
Technical Guideline
Video Link

Tools
(none)
Part
-Working Center Console
1. Connect the New Center Console
STEP 1
Connect the center console terminals.
STEP 2
Insert the central control wire carefully into the
neck hole.
CAUTION
1min

Tools
-Philips Screwdriver
Part
(none)
2. Replace the Center Console Screws and Cover
STEP 3
Use a Phillips screwdriver to tighten the 4 screws,
and then route the headlight wire under the center
control.
STEP 4
Place the protective cover.
CAUTION
2min

Tools
-T10 Torx Wrench
Part
(none)
3. Replace the Center Console Screws
STEP 5
Tighten the top and bottom screws with a T10
wrench.
STEP 6
Tighten the three screws on the left and right with
a T10 wrench.
CAUTION
2min

Tools
(none)
Part
(none)
4. Replace the Stickers
STEP 7
Stick the left sticker.
STEP 8
Stick the right sticker.
CAUTION
30s

Remember to quality check & test ride.
Wrench On!
