ecoStage B560 User manual

LED WASH MOVING HEAD
Model : B560
Weight ：17.0KG
Power ：800W
Color ：RGBW

ITEM
1. Menu ....................................................................................................................02
2. Application notice ................................................................................................02
3. Parts introduction ..............................................................................................03
3. Fixture size............................................................................................................03
4. Product information .........................................................................................04
6. Control panel operate...........................................................................................05
7. DMX Channels.......................................................................................................09
2 Application notice
1: please check if device get loose during transportation .and ke ep regular maintenance
2: keep voltage steady-going , or the lamp can be damaged easily
3: please check the voltage if it get abnormal , do not switching on / off frequently
4: keep dry and ventilated for a long service life .
5: make sure switch off during installation and disassembly
Do not take out without authorization when fixture get abnormal
Should ask a professionals for inspection .
6: Install the stand , adjust the angel , connect the power supply and grand wire .
the computer will self - check about 30 seconds automatically after power up
7: do not look straight at light avoid any damage to eyes .
8: please use over 2.0 square wire .
9: no combustible or explosive materials around 0.5 m of light , do not touch the light by hands ,
10: Make sure Disconnection of power supply when installation and maintenence .

3 Parts introduction
01 —Lens
02 —Hands
03 —Body
04 —Hands
05 —Bottom
03
05
02
04
01

4 size
5 product information
1 : specification
Mix color equal , smooth color change , 37 pcs lamp can work as 4 group .
Use high transmittance France GAGGIONE LENSE
CH ：14/25/30CH;
Source ：15W RGBW 4 1 LED;
Voltage : 110-240V,50/60Hz;
Power : 800W;
Display : Touch screen ;
Lens : France Gaggione lens ，with zoom , Lens degree : 8 degree
Zoom : 7.9-38°
Dim : 0—100% linear Dim ;
Pan : 540°,8/16Bit;
Tilt : 270°, 8/16Bit;
IP: IP20;
Size : 413x320x486mm;
Carton : 535x440x585mm;
Weight: 17KG;
Gross weight ：20KG.

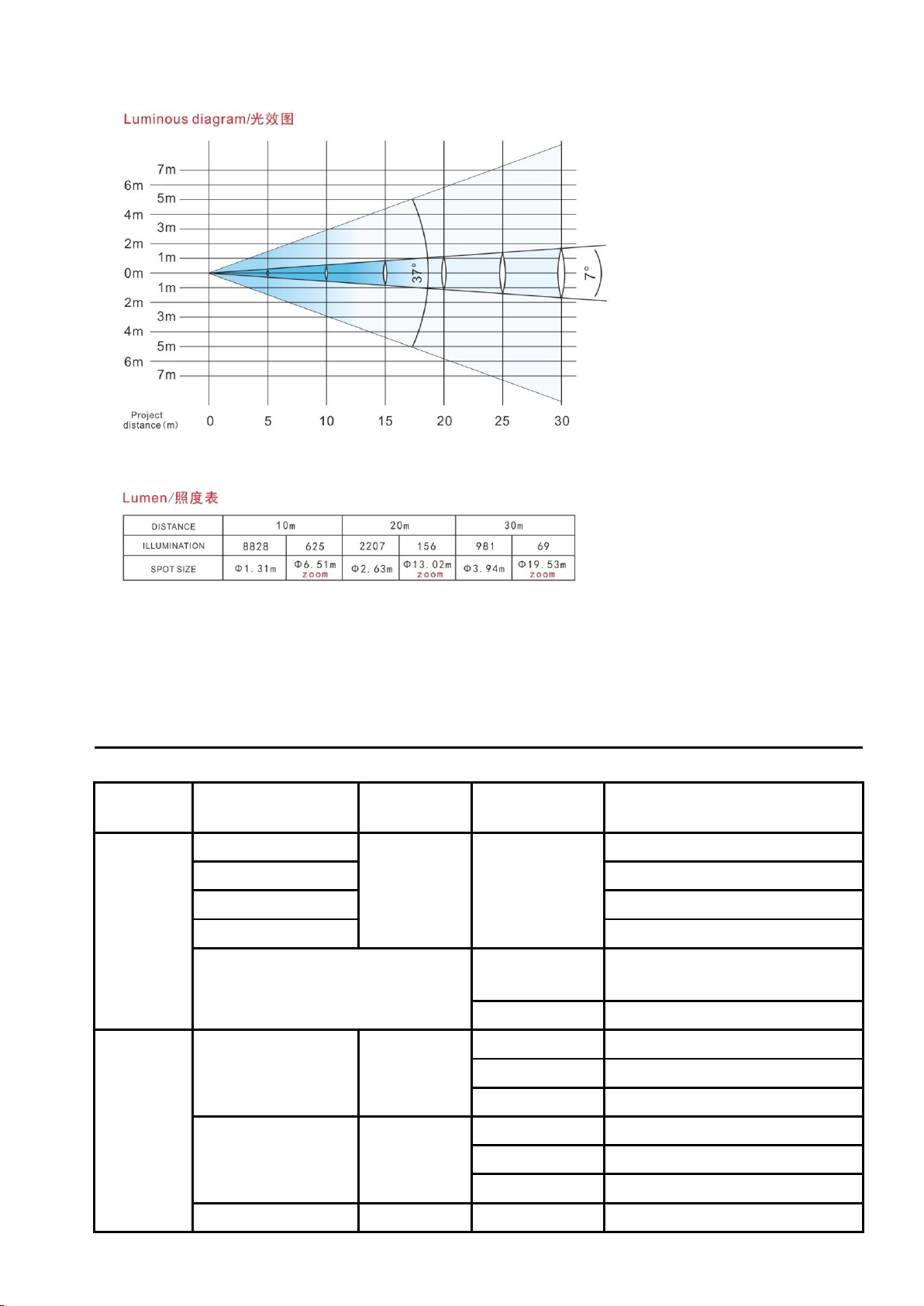

2: luminous diagram
6.CONTROL PANELMENU OPERATE
LM560 LCD DISPLAY CONTENTS
Main Menu
Submenu 1
Submenu 2
Function SET
Function description
DmxAddr
<<
001-512
address minimum value 1
<
address + 1
>
address -1
<<
address maximum value 512
SAVE
save date and back to main
interface
ESC
back to main interface
FEATURES
SETTING
Run Mode
DMX
DMX
Wire
Inactive
Aoto
Inactive
Channel Mode
14CH
14CH
25CH
25CH
30CH
30CH
Pan Reverse
Off
Pan Scan Normal

On
Pan Scan Reverse
Tilt
Off
Tilt Scan Normal
Recerse
On
Tilt Scan Reverse
Opto Check
Off
Pan/Tilt optical sensor testing off
On
Pan/Tilt optical sensor testing on
PT Speed
Noml
Pan/Tilt Scan Speed setting normal
Slow
Pan/Tilt Scan Speed setting slow
Fast
Pan/Tilt Scan Speed setting fast
Singl Clear
Off
keep signal data
On
clear signal data
ADV
enter advanced function
RST
reset and back to main interface
SAVE
save date and back to main
interface
ESC
back to main interface
ADVANCED
FUNCTION
Redress
ZEROSETTING
Pan
0-255
Motor zero calibration
Tilt
Focus
SAVE
save date and back to last
interface
>
the current value + 1
<
the current value - 1
ESC
back to last interface
ChanlDef
inactive
FactSett
inactive
UseManage
Limit
LimitTime
inactive
limitCont
inactive
DefConfig
YES
restore default and exit from
the current interface
NO
exit from the current interface
SAVE
save factory configuration ,exit
from current interface
FacConfig
EPRT
export factory configuration
exit from current interface
ESC
exit from current interface

ESC
back to last interface
UNLOCK
Venify1:
0-255
unlocking code
Venify2:
KEY
password to enter the next
interface, Otherwise the exit
from the current interface
ESC
exit from current interface
MANUAL
LAMP
REST
ALL
MOTER
all motors
XY
MOTER
function inactive
PART
MOTER
function inactive
YES
Reset the selected motor
ESC
back to last interface
TEST RUN
AUTO
auto
SOUND
sound control
ESC
back to main interface
SMULATE
DMX
Beam Strobe:
0-255
manual control
Beam Dimmer:
Focus:
Pan:
Pan Fine:
Tilt:
Tilt Fine:
Function:
Beam Macro:
Beam Red:
Beam Green:
Beam Blue:
Beam White:
Colour Grad:
Gobo:
Shape Selection:
Shape Speed:
Shape Fade:
Shape R:
Shape G:
Shape B:
Shape W:
Shape Dim:
Background Dim:

Reserved:
>
current value + 1
<
current value - 1
ESC
back to last interface
ESC
back to main interface
SYSTEM
INFO
DMX
VALUE
CH00-CH25
0-255
DMX value number
REST
INFO
Pan:
Right/Erro
Motor reset state
Tilt:
Focus:
Pan Opto:
Tilt Opto:
ESC
back to last interface
OTHER
INFO
Run Time:
0-9999
fixture running how many
hours
Run Count:
0-9999
fixture running times
Residue T:
Most
running hours unlimited
Residue C:
Most
running time unlimited
Type:
LM560
light model
Temp:
xxx
led temperature
Fan 1:
0-9999
Fan 1 rotate speed
Fan 2:
0-9999
Fan 2 rotate speed
Lampbrand:
CN/OSM
LED brand
DisVersion:
Vxxx
Panel software version number
XY Version:
Vxxx
XY Driver software version
number
M1 Version:
Vxxx
M1 software version number
ESC
back to last interface
ESC
back to main interface
DISPLAY
SETTING
Light Set:
1-7Lev
Backlight brightness Settings
Light Off:
On
backlight keeps on
1Min
backlight off in 1 minutes
2Min
backlight off in 2 minutes
3Min
backlight off in 3 minutes
Menu
Back:
Off
close menu to return
automatically
1Min
The menu returns after 1
minute
2Min
The menu returns after 2
minute

3Min
The menu returns after 3
minute
Light
Flash:
Off
Closing backlight flashing
On
open backlight flashing
Touch Cali:
Off
Close touch calibration
On
open touch calibration
SAVE
save the date and back to main
interface
ESC
back to main interface
DIMMER
SETTING
Dimmer Mode:
Fast
fast
Noml
smooth
Balance SW:
Off
The white balance off
On
The white balance on
Balance Red:
0-255
The white balance red
BalanceGreen:
The white balance green
Balance Blue:
The white balance blue
Balance White:
The white balance white
LM560 CHANNEL LIST
14CH
25CH
30CH
Function
DMX value
Description
1
1
1
Strobe
0 -19
Strobe OFF
20 -24
Strobe ON
25 -64
Strobe Fast-Slow
65 -69
Strobe ON
70 -84
Slow input Strobe Fast-Slow
85 -89
Strobe ON
90 -104
Slow output Strobe Fast-Slow
105-109
Strobe ON
110-124
Random Strobe Fast-Slow
125-129
Strobe ON
130-144
Random Slow input Strobe Fast-Slow
145-149
Strobe ON
150-164
Random Slow output Strobe Fast-Slow
165-169
Strobe ON
170-184
Pulse Strobe Fast-Slow
185-189
Strobe ON
190-204
Random Pulse Strobe Fast-Slow
205-209
Strobe ON

210-224
Strobe Fast-Slow
225-229
Strobe ON
230-244
Exposure Strobe Fast-Slow
245-255
Strobe ON
2
2
2
Dimmer
0 -255
Linear Dimmer Dark-Bright
3
3
3
Focus
0 -255
Linear Focus
4
4
4
Pan Rotation
0 -255
0~540 degree
5
5
5
Pan Fine
0 -255
Pan Fine
6
6
6
Tilt Rotation
0 -255
0~270 degree
7
7
7
Tilt Fine
0 -255
Tilt Fine
8
8
8
Function set
0 -9
No function
10 -14
Whole light Reset
15 -39
No function
40 -44
XY Normal mode
45 -49
XY Fast mode
50 -54
XY Slow mode
55-255
No function
9
9
9
Color tempreture
and Color
0 -9
No function
10 -14
Red
15 -19
Green
20 -24
Blue
25 -29
White
30 -34
2300
35 -39
2500
40 -44
2700
45 -49
3000
50 -54
3200
55 -59
3300
60 -64
3700
65 -69
4300
70 -74
4500
75 -79
4600
80 -84
5000
85 -89
5500
90 -94
5600
95 -99
6500
100-104
Light yellow
105-109
Apple Green
110-114
Pink
115-119
Orange
120-124
Deep Orange
125-129
UV
130-134
No function

135-174
Color clockwise run from fast to slow
175-179
Stop
180-219
Color anticlockwise run from slow to fast
220-224
No function
225-255
Random color Fast-Slow
10
10
10
Red beam
0-255
Red Dimmer Dark-Bright
11
11
11
Green beam
0-255
Green Dimmer Dark-Bright
12
12
12
Blue beam
0-255
blue dark - bright
13
13
13
White beam
0-255
white dark- bright
14
14
14
Color slow
change
0 -7
No function
8 -39
Red to Yellow
40 -71
Yellow to Green
72 -103
Green to Cyan
136-167
Blue to Magenta
168-199
Magenta to Red
200-231
Red to White
232-255
Color change slow - fast
*
15
*
LED gobo
0 -4
NO gobo
5 -9
Gobo1
10 -14
Gobo2
15 -19
Gobo3
…
…
190 -194
Gobo38
195 -199
Gobo39
200 -204
Gobo40
205 -224
Gobo change slow down
225 -234
stop
235 -255
Gobo change speed up
*
16
*
Built-in effects
0 -4
No function
5 -34
Built-in effects1
35 -64
Built-in effects2
65 -94
Built-in effects3
95 -124
Built-in effects4
125-154
Built-in effects5
155-184
Built-in effects6
185-255
after 1 mins auto change
*
17
*
Effect speed
0 -255
LED built-in effect speed Slow-Fast
*
18
*
Effect slow input
0 -255
LED built-in effects Gradient Overlay
*
19
*
Effect red
0 -255
Red Dimmer Dark-Bright
*
20
*
Effect green
0 -255
Green Dimmer Dark-Bright
*
21
*
Effect blue
0 -255
Blue Dimmer Dark-Bright
*
22
*
Effect white
0 -255
White Dimmer Dark-Bright

*
23
*
Effect Dimmer
0 -255
Dimmer Dark-Bright
*
24
*
Effect backlight
0 -255
Dimmer Dark-Bright
*
25
*
Reserve
0 -255
*
*
15
R1Dimmer
0 -255
R1Dimmer Dark-Bright
*
*
16
G1Dimmer
0 -255
G1Dimmer Dark-Bright
*
*
17
B1Dimmer
0 -255
B1Dimmer Dark-Bright
*
*
18
W1Dimmer
0 -255
W1Dimmer Dark-Bright
*
*
…
…
…
*
*
27
R4Dimmer
0 -255
R4Dimmer Dark-Bright
*
*
28
G4Dimmer
0 -255
G4Dimmer Dark-Bright
*
*
29
B4Dimmer
0 -255
B4Dimmer Dark-Bright
*
*
30
W4Dimmer
0 -255
W4Dimmer Dark-Bright
