LED PIR Solarlight
“Sunnylight DUO Color“
These instructions relate ONLY to this product and contain important
information for using the product for the first time. Please keep these
instructions for later reference and should always accompany the
product in the event of transference to a new user.
1. Introduction
Dear Costumer,
Thank you for purchasing the solar light.
With this solar light you purchased a product manufactured according to
the current state of technology.
This product fulfils all requirements of the valid European
and national regulations. The conformity was proved. The
relevant declarations and documentation are deposited
with the manufacturer.
To maintain this state and guarantee a safe operation, you as the user will
have to follow this operating manual!
2. Safety Instructions
- In case of damages caused by not following this
operating manual, the warranty rights will expire!
We exclude liability for any consequential damages!
- We exclude liability for property or personal
damages caused by inappropriate handling or not
following the safety instructions.
- In these cases any guarantee rights will expire.
Due to safety and admission reasons (CE) it is not allowed to arbitrarily
reconstruct and/or change the solar light.
Therefore, please keep to the operating manual.
The accident prevention rules of the association of the industrial trade
cooperative association for electric plants and working material are to be
considered in industrial environments
3. Usage in Accordance with Requirements
The solar light is constructed for the outdoor usage and operation. The
integrated batteries are charged by the solar cell in the upper part of the
light.
The powerful „Nichia“ light-emitting diode will be switched-on at darkness
and upon detection of a motion (thermal change) in the detection range of
the PIR switch. The LED will shine for approx. 50 seconds after the detec-
tion of the last motion. The lighting color can be selected with a switch
between cold white and warm white.
-- However, please note that the duration of illumination may decrea-
se due to a lack of sunshine as well as in the winter months--
In case of longer periods without sunshine (insolation) the batteries are
charged only insufficiently and is thus not able to guarantee a permanent
readiness for operation. However, this does not indicate that the solar light
is defect. Please wait for the next sunny days and the light will again be
working accordingly
4. Initiation
1. Please carefully take all parts out of the package.
2. Please carefully connect the earth rod with the bar and insert it into the
ground.
Note: Please do not use force.

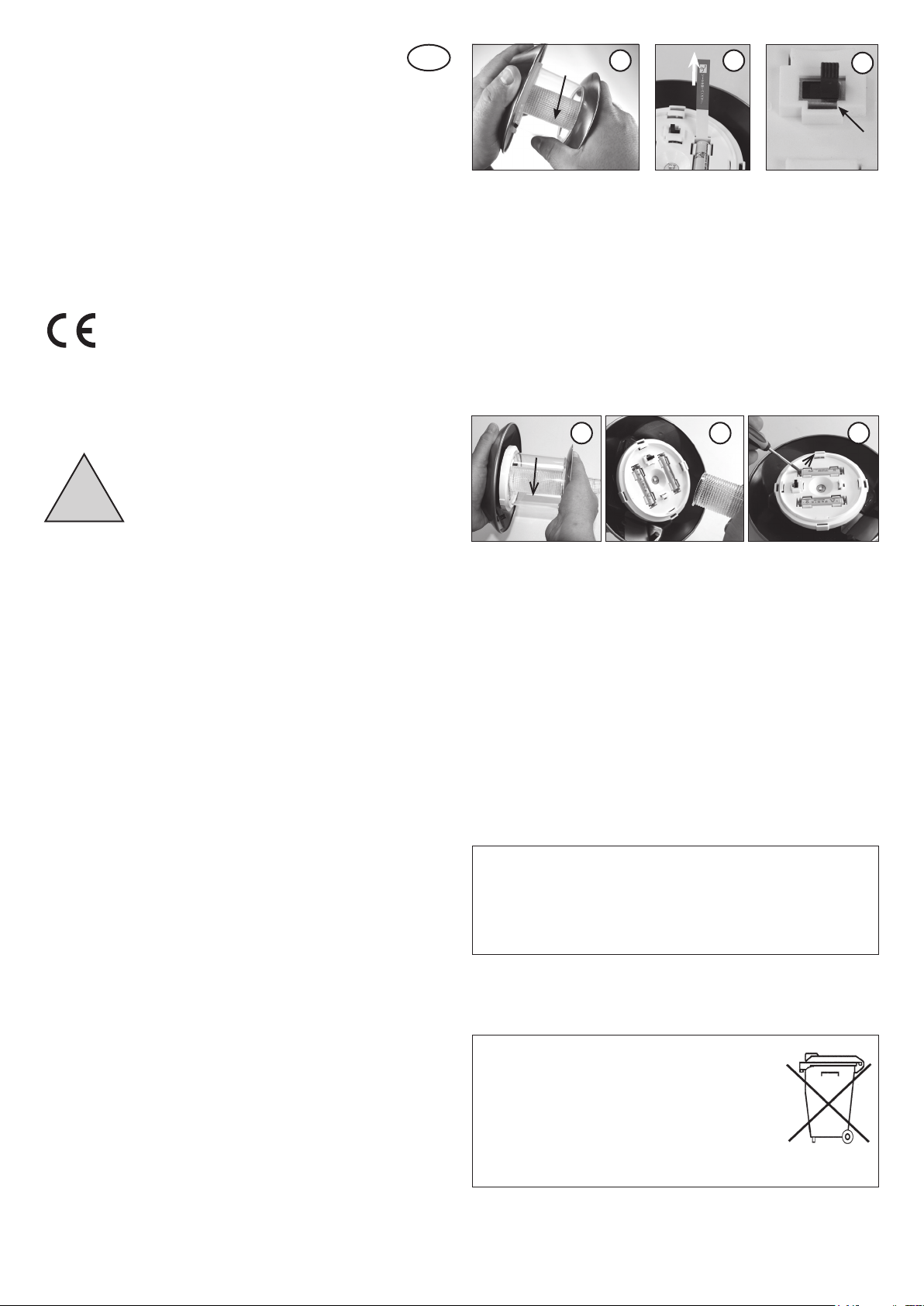

3. Unscrew the lamp head from the luminary anticlockwise (pic. 1) and
remove the strip from the battery case (pic. 2). With the switch you can
select the lighting color between cold white and warm white (pic. 3).
4. Now reassemble the illuminant with the upper part and carefully plug the
upper part of the lamp into adapter on the pole.
The solar light is now activated.
Note: In order to avoid scratching the wall carrier, do not use sharp-edged
tools when tightening the nuts.
Note: The duration of illumination is strongly dependent on the intensity
and duration of sunshine during the day. During the winter months the
duration of illumination will generally be shorter. If the lamp should not
irradiate on the first evening, please wait for a sunny day.
5. Exchange of batteries
1. Hold the upper part and screw off the lower part of the lamp head clock-
wise and take apart the parts (pic. 4).
2. Unscrew the reflector also clockwise and remove it (pic. 5).
3. Take the used batteries out of the battery compartment and insert two
new batteries, according to polarity, into the battery compartment. It is
recommended to charge the new batteries in a battery charger before
inserting them (pic. 6).
4. Re-assemble the lamp in reverse order.
Note: Used batteries or accumulators must be disposed of in a non-pollu-
ting way and do not belong into the domestic waste. Your dealer is legally
obliged to take back and recycle old batteries.
6. Malfunctions
-Lamp is not automatically switched on at darkness
- An outside light source (e.g. streetlight) simulates daylight and prevents the lamp
from switching on. Place the lamp at a darker location.
- Lamp is not switched on at darkness or only for a short period of time.
- Is the lamp connected?
- Batteries weak or defective. Exchange of the batteries.
7. Technical Data
Solar module: 0,4 Wp crystal silicon
Set of accumulators: 2 x NiMh 1.2 V/900 mAh (AAA-size)
Detection range motion detector: 90°/ 6m
Light emitting diode: 2 „Nichia“ light emitting diode (LED)
Luminous color: 2800 K (warmwhite) or 6500 K (coldwhite)
Luminosity: 14 lm
Duration of illumination: max. 8 hours in case of fully charged set
of accumulators
!
GB
Battery take-back
- Batteries must not be discarded into domestic waste.
- The consumer is legally required to return batteries after
use, e.g. to public collecting centers or to battery distribu-
tors.
- Contaminant-containing batteries are labeled with the sign
“crossed-out trashcan“ and one of the chemical symbols.
Used batteries should be disposed environmentally friend-
ly and should not be discarded into domestic waste. Your
dealer is legally required to take back old batteries. NiMh
1. 2.
switch
3.
Customer support:
If you have problems or questions regarding this product, simply contact us!
Monday to Friday 9 am to 12 noon and 1 pm to 4 pm.
By phone: [phone]
By e-mail for ordering spare parts: [email protected]
By e-mail for questions about the product: [email protected]
Product: Manufacturer Item No.: 102092
4. 5. 6.

Rechargeable battery notes
- Rechargeable batteries should not be played with by children. Never
leave rechargeable batteries lying around; they could be swallowed by
children or pets.
- Rechargeable batteries must never be short-circuited, disassembled or
thrown into fire. This leads to a danger of explosion!
- Leaking or damaged rechargeable batteries can cause chemical burns
when they come into contact with skin. For this reason, please make use
of suitable protective gloves.
- Rechargeable batteries should only be replaced by structurally identical
rechargeable batteries from the same manufacturer. Normal batteries
must not be used since these are not rechargeable.
- Make sure the rechargeable batteries are inserted with the correct pola-
rity.
- For long periods of time of non-use (for example, storage), remove the
inserted rechargeable batteries to avoid damages via the leaking rechar-
geable batteries.
Manufacturer / Importer
esotec GmbH
Gewerbegebiet Weberschlag 9 - D-92729 Weiherhammer
Tel.-Nr: [phone] - Fax.-Nr: [phone]
Internet: www.esotec.de
Disposal:
Dear customer,
please cooperate in avoiding waste. When you intend to dis-
pose of the product in future, please consider that it contains
valuable raw materials suited for recycling.
Therefore, do not dispose it of with domestic waste but bring
it to a collection point for the recycling of waste electrical and
electronic equipment.
Thank you very much for your cooperation!
Copyright, esotec GmbH
