Ecotec Monica Plus Quick start guide

Monica Plus Wood Pellet Burning Heater
Owner’s & Installation Manual
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET BURNING ROOM
HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY
INJURY, OR EVEN DEATH.
Contact your local building or re ofcial about restrictions and installation inspection requirements in your area.
economicaluser
friendly
leading
design
healthy
home
visible
ame
clean air
approved

2
Owner’s Section
Table of Contents
1. Introduction........................................................................................4
1.1 Specications .......................................................................................................4
1.2 Safety Warnings & Recommendations ...............................................................5
1.3 Deciding where to locate your wood pellet burning heater ..............................5
1.4 Ash .........................................................................................................................5
1.5 Clinkering...............................................................................................................5
1.6 Filling Fuel Hopper................................................................................................5
1.7 Flammable Liquids................................................................................................6
1.8 Installation .............................................................................................................6
1.9 Operating Instructions..........................................................................................7
1.10 Safety Devices.......................................................................................................7
1.11 Responsibility........................................................................................................7
1.12 Spare Parts ............................................................................................................7
2. Operating your Pellet Fire.................................................................8

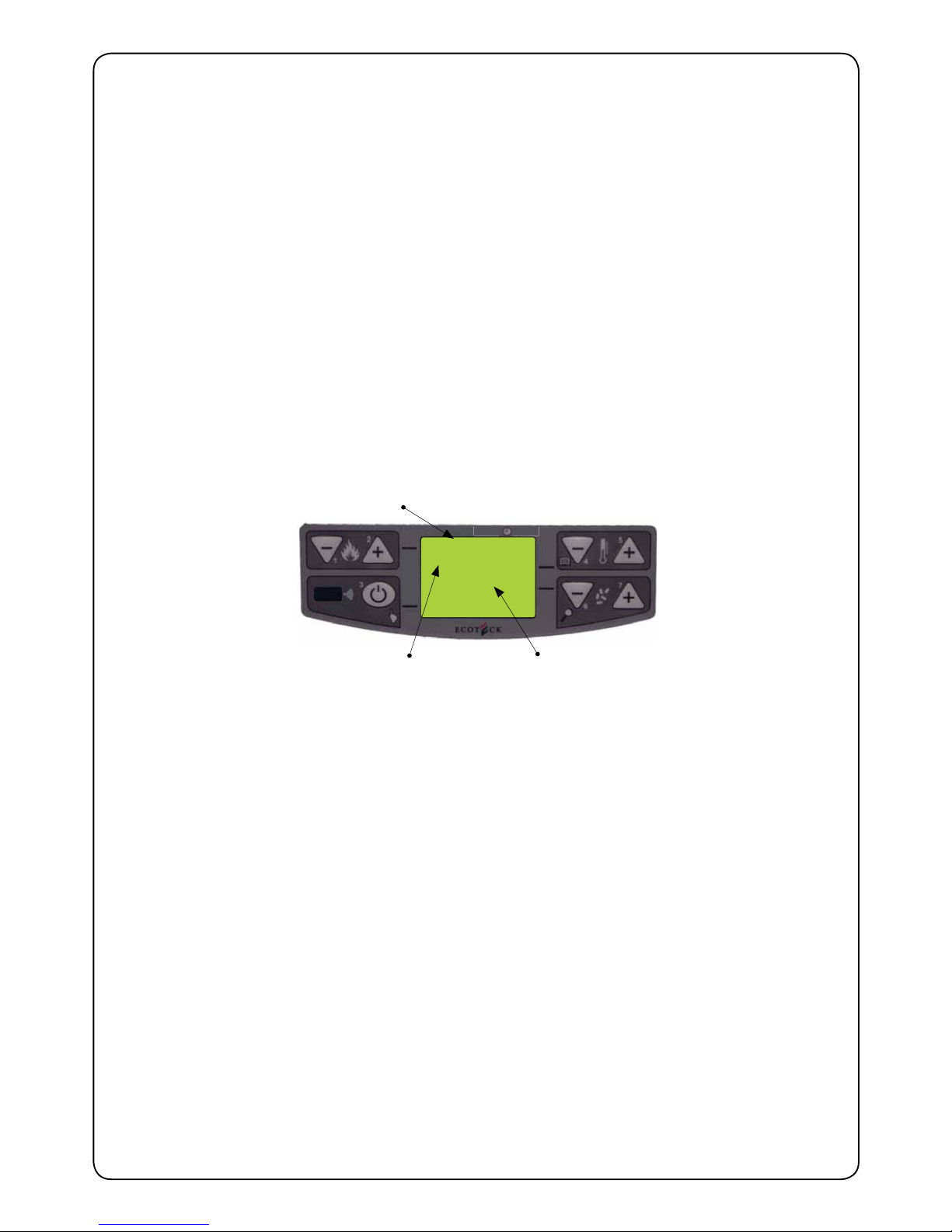

2.1 Description of the Controls..................................................................................8
2.2 Description of Remote control.............................................................................8
2.3 Switching on the Stove.........................................................................................8
2.4 Operating Precautions..........................................................................................8
2.5 Priming of the Screw (Auger)...............................................................................8
2.6 Description of Menus............................................................................................9
2.7 Setting the Clock (Clock Set Menu)...................................................................10
2.8 Chronothermostat Setting Menu .......................................................................10
2.9 Setting the Language (Language Menu)...........................................................14
2.10 Settings Menu......................................................................................................14
2.11 Description of the functions ..............................................................................14
2.12 Mode with Room Sensor Supplied ....................................................................14
2.13 External Thermostat Mode .................................................................................14
2.14 Stove Status Menu ..............................................................................................15
2.15 Working Hours Menu ..........................................................................................15
2.16 Description of Screen Displays .........................................................................16
2.17 Description of Alarms .........................................................................................16
3. Maintenance and Cleaning .............................................................18
3.1 Cleaning the surfaces.........................................................................................18

3
3.2 Cleaning the re pot before and after each lighting ........................................18
3.3 Cleaning the FIREX 600 ......................................................................................19
3.4 Cleaning the combustion chamber ...................................................................20
3.5 Cleaning the Flu .................................................................................................20
3.6 Access to the inspection hatches for cleaning the smoke ............................21
3.7 Frequency of Component Cleaning ..................................................................21
3.8 Cleaning the Ashes Draw ...................................................................................22
4. Guarantee.........................................................................................23
4.1 Certicate of Guarantee .....................................................................................23
4.2 Conditions of Guarantee ....................................................................................23
5. What are Wood Pellets?..................................................................24
6. The Components of the Stove........................................................24

4
1. Introduction
This manual is designed for both the technician and the home owner.
Please read this entire manual before installing or operating your Ecoteck Monica Plus Freestanding
Wood Pellet Burning Heater. Failure to follow these instructions may result in property damage, bodily
injury or even death. Any unauthorized modication of the appliance or use of replacement parts not
recommended by the manufacturer is prohibited. All national and local regulations shall be complied
with when installing this appliance. Your local Nature’s Flame dealer will be happy to assist you in
obtaining information with regards to your local building codes and installation restrictions.
1.1 Specications

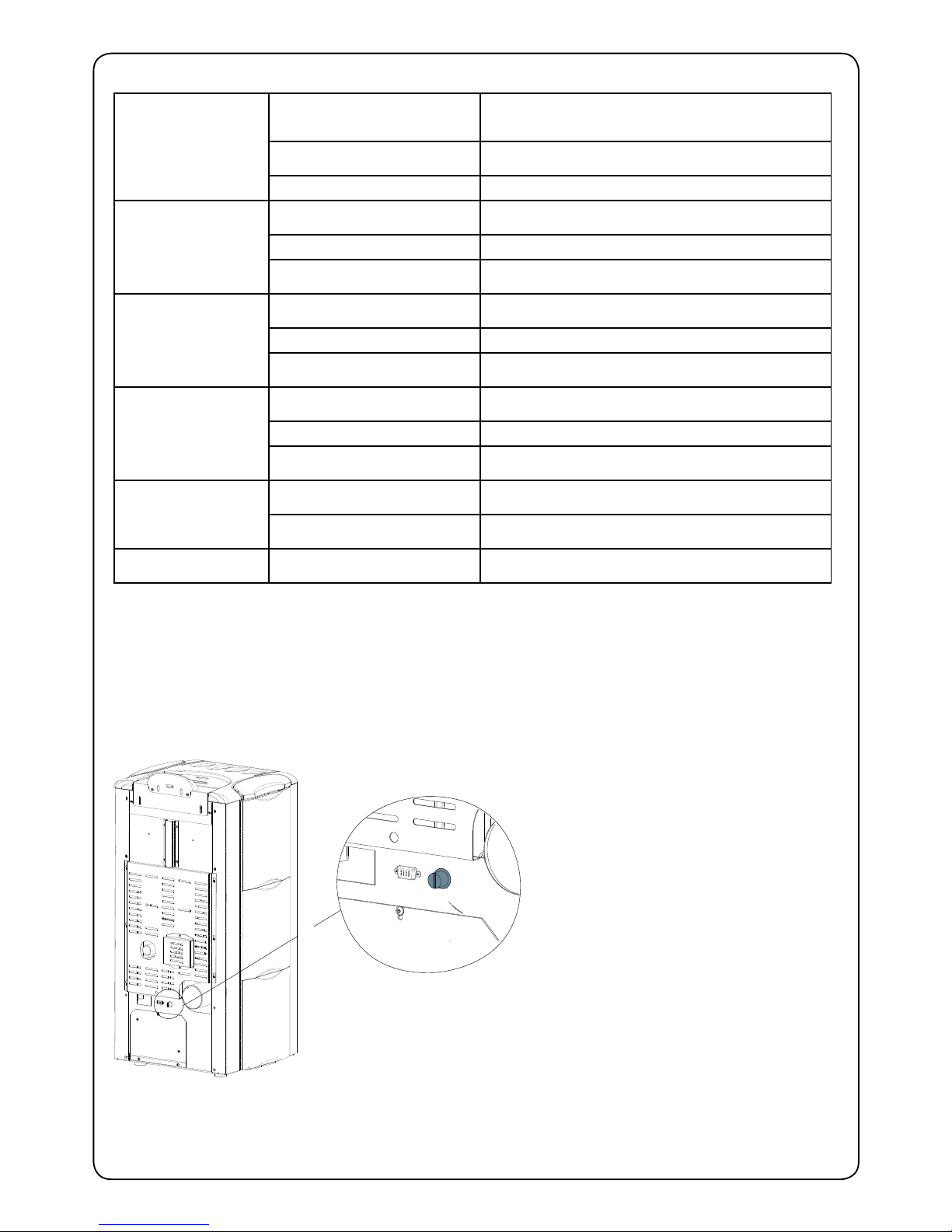

1.1.1 Rating label Location
Ecoteck Monica Plus Freestanding: The rating label is located on the back of unit.
*Note: Consumption will vary with the type of fuel used.
IMPORTANT: The above values were found during testing and may vary with the fuel type, climate and
installation style.
1.1.2 Clearances to Combustibles
This pellet heater requires oor protection which must be non-combustible, extending beneath the
stove the full width and depth of the unit including (150mm) in front for ember protection.
AS/NZS2918 states that a 300mm forward projecting and 200mm side projecting oor protector must
be used from any door opening extremity as an absolute minimum. Due to the operating nature of the
Monica Plus pellet heater where opening the door causes a loss of vacuum and the re will shut down
completely, meaning the likelihood of any hot embers or burning fuel escaping from the combustion
chamber is extremely minimal, a 150mm forward projecting oor protector will be sufcient.
Classication Testing Standard Description
Class I IP-20 Efciency: AS/NZS 5078:2007
Appliance: AS/NZS 4866:2007
Residential Wood Pellet Heater
Voltage 220- 240 Volt Current: 2.92 – 3.18 Amps Frequency: 50Hz
Max Power Requirement
550 watts
Unit with full hopper: 145kg Hopper Capacity: 15kg
Mean Flue Gas Temp –
High: 193 degrees
Mean Flue Gas Temp-
Medium: 174 degrees
Mean Flue Gas Temp-
Low: 158 degrees
Fuel Consumption –
High: 1.43 kg per hour
Fuel Consumption –
Medium: 1.16kg per hour
Fuel Consumption –
Low: 0.99kg per hour
Heat/Power Output –
High: 6.5kw
Heat/Power Output –
Medium: 6.1kw
Heat/Power Output –
Low: 5.0kw
Average Particular Emissions (dry weight)
0.31gms per kg
Average Emissions Rate
18mg/MJ
Average Efciency
85%
Gross Caloric Value of pellets (dry weight)
20.24MJ/kg
Fuel Type:
Wood pellets – 6mm dia, - complying
with draft standard AS/NZS 4014.6
2008

5
2. Safety Warnings & Recommendations
Pellet quality is important, please read the following:
Your pellet heater has been designed to burn ¼” (6mm) diameter wood pellets, manufactured to the
AS/NZS 4014.6 only.
DO NOT use this appliance as an incinerator.
DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any
warranties stated in the manual.
The performance of your pellet heater is greatly affected by the type and quality of wood pellets being
burned. As the heat output of various quality wood pellets differs, so will the performance and heat
output of the pellet stove.
Caution: It is important to select and use only pellets that are dry and free of dirt or any impurities such
as high salt content. Wood pellets manufactured to the AS/NZS 4014.6 standard are recommended.
Dirty fuel will adversely affect the operation and performance of the unit and will void the warranty. The
Pellet Fuel Industries (PFI) has established standards for wood pellet manufacturers. We recommend
the use of pellets that meet or exceed these standards. Ask your dealer for a recommended pellet type.
2.1 Deciding where to locate your wood pellet burning heater
1. Do not install the pellet heater in a bedroom or room where people sleep.
2. Locate the pellet heater in a large and open room that is centrally located in the house.
This will optimize heat circulation.
3. Check clearances to combustibles (refer page 30).
2.2 Ash
The ash content of the fuel and operation of your stove will directly determine the frequency of cleaning.
The use of high ash fuels may result in the stove needing to be cleaned daily. A low ash fuel may allow
longer intervals between cleaning.
2.3 Clinkering
Clinkers are silica (sand) or other impurities in the fuel that will form a hard mass during the burning
process. This hard mass will block the air ow through the Burn Pot Liner and affect the performance
of the stove. Any fuel, even approved types, may clinker. Check the Burn Pot Liner daily to ensure
that the holes are not blocked with clinkers. If they become blocked, remove the liner (when the unit is
cold) and clean/scrape clinkers out. Clean the holes with a small pointed object if required. Refer to
the section Routine Cleaning and Maintenance.
2.4 Filling Fuel Hopper
Check hopper for foreign objects, then empty the bag of pellets into the hopper. DO NOT OVER FILL
as miscellaneous pellets could smoke if left to rest on an operating heater.
Store pellets at least one metre (1m) away from the pellet stove.
Warning: parts of the appliance, especially the external surfaces, will be hot to touch when in operation
so use due care.

6
2.5 Flammable Liquids
Never use gasoline, gasoline – type lantern fuel, kerosene, charcoal lighter uid or similar liquids to
start or “freshen up” a re in the heater. Keep all such liquids well away from the heater while it is in use.
2.6 Installation
The stove must be installed and tested by specialised personnel approved by Nature’s Flame. Please
read this manual before installing or operating the stove. If you require further information, please
contact your Nature’s Flame dealer. Installation must be performed by authorized personnel, who must
give the purchaser a declaration of conformity of the appliance, and who will assume all responsibility for
the nal installation and consequent correct functioning of the product installed. It is also necessary to
take into consideration all the laws and national, regional, provincial and local regulations present in the
country in which the appliance has been installed. In the event of failure to respect these precautions,
Nature’s Flame declines all responsibility.
IMPORTANT:
• The place of installation of the heater must comply with local & national regulations. The
stove must be fuelled only with quality pellets manufactured to standard AS/NZS4014.6.
The stove cannot operate with traditional wood.
• The heater must not be used as an incinerator.
• Before connecting the heater electrically, the connection of the exhaust spigot must be
completed (specically for pellet stoves, not made from aluminum) with the ue. (All ue
joins must be sealed with maniseal exhaust cement).
• The protection grill inside the pellet tank must never be removed.
• There must be sufcient circulation of air in the room where the stove is installed. Never
open the door of the stove whilst it is functioning.
• When the heater is operating, the surfaces, the glass, the handle and the pipes become
overheated: during functioning, these parts must only be touched with the adequate
protection.
• Do not light the heater without having rst performed the daily inspection as described in
the MAINTENANCE & CLEANING chapter of this manual (see page 18).
• Scrupulously follow the maintenance program.
• Do not turn the heater off by disconnecting the electricity mains supply (use the control
panel or remote control).
• Do not clean the heater until the structure and the ashes have cooled down completely.
Carry out all operations in maximum safety.
Monica Plus should be installed in a centrally located position within the home. This will assist the
appliance to perform to the level required. As Monica Plus heats space by convecting air through heat
exchange tubes, the heater should face the majority of the area to be heated.
Monica Plus requires a power source to function. This is standard mains feed 240v plug - if this is
unavailable in close proximity a grounded extension lead may be used.
Monica Plus is to be installed on a non-combustible surface which must have a forward projection of a
minimum of 150mm from the glass door.
Please check all clearances to combustibles as listed on page 30 of this Owner’s/Technical manual.
In accordance with the requirements of AS/NZS 2918:2001 Monica Plus must be secured by seismic
restraint.

7
2.7 Operating Instructions
The heater is completely automated and will self-regulate the ignition phase, ve levels of power and
the switching off phase, guaranteeing safe functioning. The burn pot used for combustion allows most
of the ashes produced by the combustion of the pellets to fall into the collection drawer. However,
it is recommended that you check the burn pot every day, as not all pellets have high standards of
quality and could leave residue that is difcult to remove. The glass has special air circulation for self-
cleaning, however, a slight greyish lm cannot be avoided after a few hours of functioning. Pellets with
a diameter of 6mm, manufactured to the AS/NZ4014.6 or higher must be used with the stove.
2.8 Safety Devices
The heater is tted with sophisticated safety systems so that, in the case of breakage of one of the
individual parts or defects in the ue, no damage will be caused to the stove and the room in which it
is installed. In any case, when a problem arises, the pellets stop falling immediately and the switch off
phase is activated. The corresponding alarm will be shown on the display. The details can be seen in
the chapter on the alarms (page 16).
2.9 Responsibility
Nature’s Flame declines all responsibility, both civil and criminal, with the delivery of this manual, for
any accidents deriving from partial or total failure to observe the instructions it contains.
Nature’s Flame declines all responsibility deriving from the improper use of the stove, from its incorrect
use by the user, by unauthorised modications and/or repairs or from the use of spare parts which are
not original. The manufacturer declines all direct civil or criminal responsibility due to:
• Poor maintenance.
• Failure to observe the instructions in the manual.
• Use not compliant with the safety instructions.
• Installation that is not compliant with the regulations in force in the country.
• Installation by personnel who are not qualied or authorized.
• Modications and repairs that are not authorized by the manufacturer.
• Use of spare parts that are not original.
• Exceptional events.
2.10 Spare Parts
Use original spare parts only. Do not wait for the components to be worn before replacing them.
Replace a worn component before it is completely broken to prevent any accidents caused by the
sudden breakage of components. Perform the periodic maintenance checks as described in the
dedicated chapter on Maintenance (page 18).

8
3. Operating your Pellet Fire
3.1 Description of the Controls
3.2 Description of Remote control
IR receiver for remote control (12 volts batteries code LRV08 not included).
3.3 Switching on the Stove
1. Ensure burn pot is clean and free of ash
2. Slide the heat exchange cleaner in and out three times
3. To turn unit on hold down button ‘3’ (ON/OFF)
4. Control Screen will show START
5. Use buttons ‘1’ or ‘2’ to select desired heat
6. Use buttons ‘4’ or ‘5’ to select desired thermostat setting
7. To turn unit off hold down button ‘3’ (ON/OFF)
8. Control Screen will show FINAL CLEANING
3.4 Operating Precautions
• In case of faulty operation turn the stove off pressing button no. 3.
• Do not manually load the re pot with pellets.
• Any build up of unburned pellets inside the re pot after repeatedly trying to light the
stove, must be removed before further attempts.
• Do not use any fuels other than wood pellets.
• Should the ignition system be faulty, do not attempt to light the stove using ammable
materials.
3.5 Priming of the Screw (Auger)
To prime the screw/auger (when the stove is new or has been completely run out of fuel, the loading
20°C
10:00 20°C
OFF
P1 : Turns heat level down
P2 : Turns heat level up
P3 : Turns ire on-off
P4 : Turns thermostat down
P5 : Turns thermostat up
P6 : Menu button
P7 : Menu button
1
2
4
5
• P1 - P2 Temperature setting: allow setting the value of the desired
room temperature from a maximum of 40°C to a minimum of
6°C.
• P4 - P5 Power setting: allows setting the value of the working
power from a minimum of 1 to a maximum value of 5 displays.
• P1 + P4 ON/OFF: pressed for 2 seconds, they switch on and off
the stove manually.
Heat Exchange
Cleaner/Scraper

9
screw/auger is empty), proceed as follows:
1. Turn the stove off completely, using the general switch on the back
2. The display will show FINAL CLEANING and then OFF.
3. Turn the the power back on, using the general switch on the back.
4. Keep button P4 pressed for 2 seconds. CLOCK SETTING MENU will appear.
5. Press button P4 until the display shows STOVE STATUS MENU
3.6 Description of Menus
The stove has various functions, available in its individual programming menus. Some of these menus
are accessible by the user, others are protected by a password and accessible only by a Service
Technician.
The menus are as follows:
• CLOCK SETTING Menu
• CHRONO THERMOSTAT Menu
• LANGUAGE Menu
• SETTINGS Menu
• STOVE STATUS Menu
• WORKING HOURS Menu
• DATA BASE Menu (protected by a password)
2000
150°
SCREW 0
STATE
THE SCREW IS IDLE
PRESS BUTTON P5 TO ACTIVATE THE SCREW
(AUGER)
2000
150°
SCREW 1
STATE
SCREW ACTIVATED
Repeat the operation several times until you can see
the pellets fall into the re pot.
This operation is possible only if the stove is in nal
cleaning or shut down
IMPORTANT AFTER LOADING THE SCREW/AUGER, EMPTY THE FIRE POT INTO THE
HOPPER BEFORE SWITCHING ON.

10
3.7 Setting the Clock (Clock Set Menu)
To set the clock, proceed as follows:
1. Remove and reset the electric supply of the stove using the general switch on the back.
2. The display will show FINAL CLEANING and then OFF.
3. Keep the P4 button pressed for 2 seconds, CLOCK SET MENU will appear and conrm
with the button P6.
4. DAY CLOCK will appear: with buttons P4 and P5 set the current day according to the table
shown below and conrm with button P6.
5. TIME CLOCK will appear on the display and the current time will be shown: using buttons
P4 and P5 adjust the hours and conrm with button P6.
6. MINUTES CLOCK will appear on the display; set the minutes with buttons P4 and P5 and
conrm with button P6.
7. Conrm with button P6 to return automatically to MENU’ 01 CLOCK SETTING.
3.8 Chronothermostat Setting Menu
With the chronothermostat function, switching on and off the stove for each day of the week can be
programmed in two independent time intervals (PROGRAMME 1 and PROGRAMME 2). To enter this
menu, proceed as follows:
1. Keep button P4 pressed for 2 seconds, CLOCK SETTING MENU will appear,
2. Press button P4 once; the display will show CHRONOTHERMOSTAT SETTING MENU
3. Access with button P6: the display will show the screen desired.

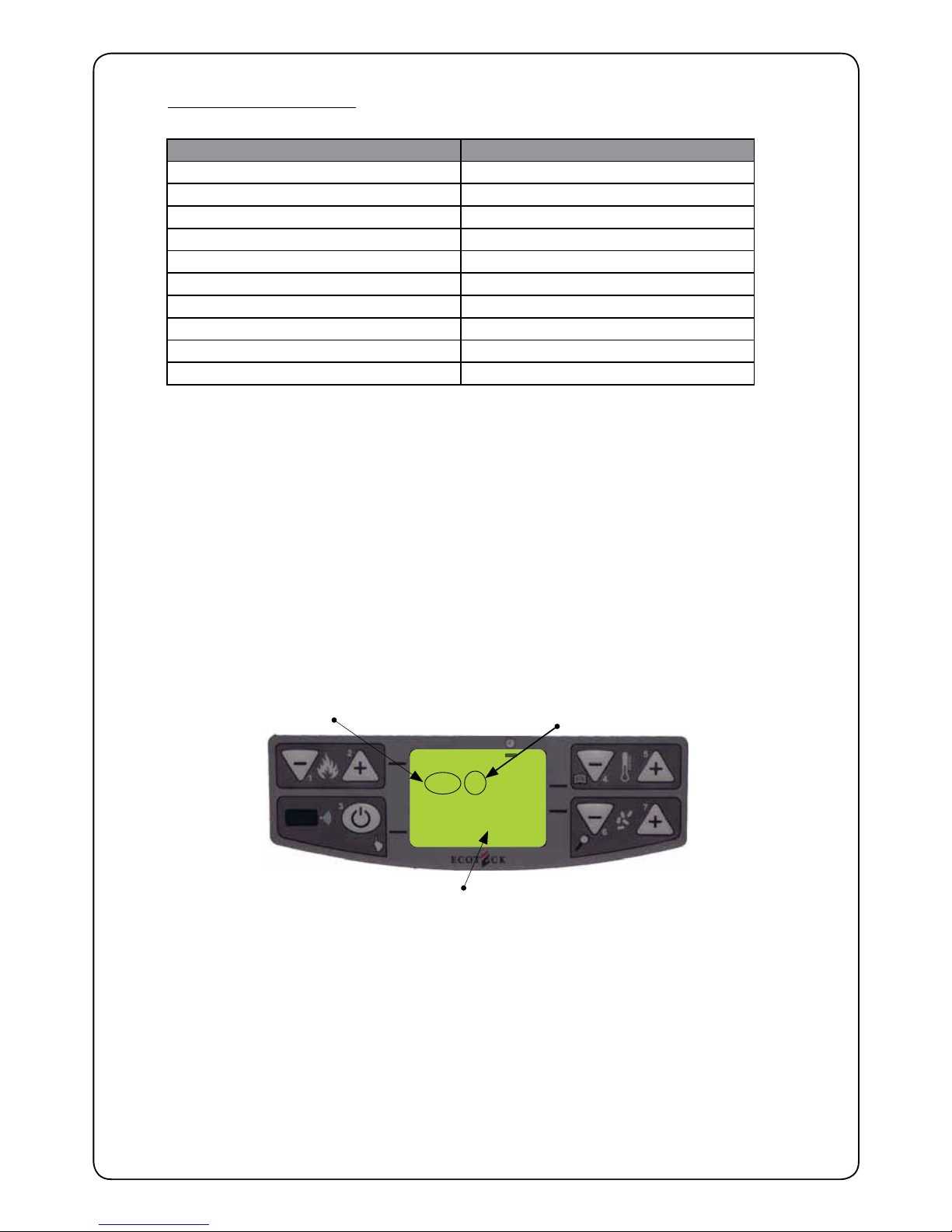

Display Meaning
01 Monday
02 Tuesday
03 Wednesday
04 Thursday
05 Friday
06 Saturday
07 Sunday
OFF Deactivated
10:00
PROG - 1
START

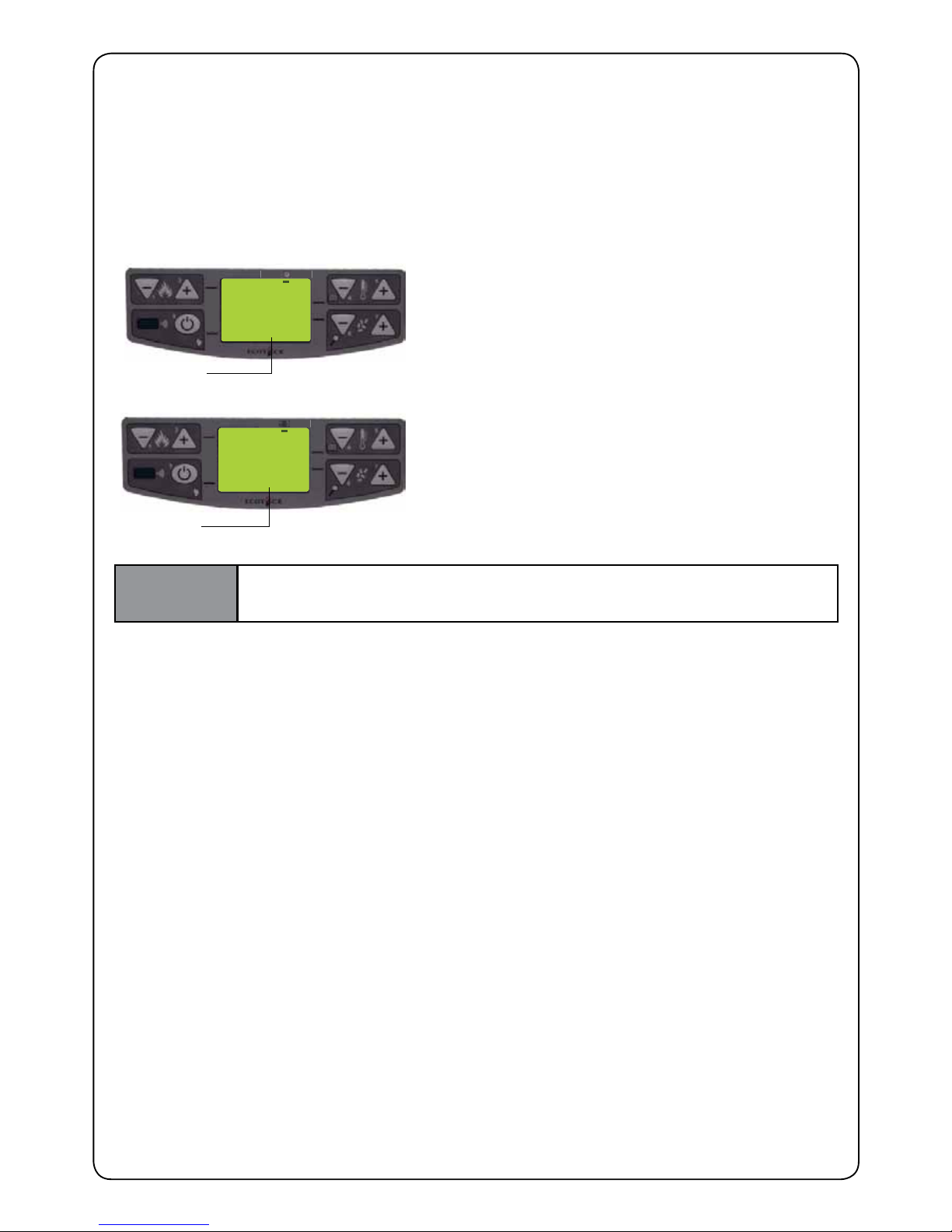

If this black segment is not lit up on the display
corresponding with the symbol of the clock, it
will not be possible to programme anything.
To activate it, please see the chapter on
setting the current day (Setting The Clock)
as the value must be other than OFF.

11
3.8.1 Description Of The Strings
START PROG: This parameter shows the switch ON time of Programmes 1 and 2.
STOP PROG: This parameter shows the switch OFF time of Programmes 1 and 2
DAY PROG: With this parameter we set which day you want Program 1 and 2 to be active.
To set this parameter, proceed as follows: set with button P5 the days desired
(Monday is 1, Tuesday is 2, etc) and with button P4 select ON or OFF; if you
select OFF the programming set will not be activated on the days desired; if you
select ON the programming will be valid. At the and of this setting, press P6 to
go to next programme.
POWER PROG: This parameter shows the power the stove is set to when starting with CRONO.
SET TAMB PROG: This parameter shows the ideal temperature you want to be reached in the room,
where the stove is installed, when starting with CRONO on. This setting will have
priority over the manual setting.
Description Values that can be set
START PROG -1 From OFF to 23.50 with step of 10’
STOP PROG -1 From OFF to 23.50 with step of 10’
DAY PROG -1 Between on/off for days 1 to 7
POWER PROG -1 From 1 to 5
SET TAMB PROG -1 From 7° to MAN
START PROG -2 From OFF to 23.50 with step of 10’
STOP PROG -2 From OFF to 23.50 with step of 10’
DAY PROG -2 Between on/off for days 1 to 7
POWER PROG -2 From 1 to 5
SET TAMB PROG -2 From 7° to MAN
ON 1
ON 1
MONDAY
ON - OFF DAY DESIRED
INDICATION

12
Example
If you want the stove to switch ON at 6:00am and switch OFF at 8:30am (Program 1) and you want to
set a room temperature of 21°C and to reach such a temperature with Power 3, the steps to follow are:
At this stage, we have to decide on which days of the week we want the programs set above to
be active. Let’s simulate that we want PROGRAM 1 operative on Monday and Wednesday, but not
operative on the other days. The settings required are as follows:
06:00
PROG - 1
START
Display this screen as described in the instructions
above. Set the time desired for PROGRAM 1 to turn
on with buttons P4 and P5. Press button P6 to conrm
and continue with next screen. In the case of error,
press P7 to go back one step.
08:30
PROG - 1
STOP
Set the time desired for PROGRAM 1 to turn off with
buttons P4 and P5. Press button P6 to conrm and
continue with next screen.
ON 1
PROG - 1
MONDAY
Set the day on which we want PROGRAM 1 to
be active or not active with button P5 (in this case
Monday). At this point, set the value on/off with
button P4 which activates/deactivates PROGRAM 1
(MONDAY IS ON). SUMMARIZING, ON MONDAY
THE STOVE WILL SWITCH ON AT 6.00 A.M. AND
SWITCH OFF AT 8.30 A.M.
OFF 2
PROG - 1
TUESDAY
ON TUESDAY THE STOVE WILL NOT BE
SWITCHED ON
ON 3
PROG - 1
WEDNESDAY
ON WEDNESDAY THE STOVE WILL BE
SWITCHED ON AT 6.00 A.M. AND SWITCHED OFF
AT 8.30 A.M.
OFF 4
PROG - 1
THURSDAY
ON THURSDAY THE STOVE WILL NOT BE
SWITCHED ON

13
OFF 5
PROG - 1
FRIDAY
ON FRIDAY THE STOVE WILL NOT BE
SWITCHED ON
OFF 6
PROG - 1
SATURDAY
ON SATURDAY THE STOVE WILL NOT BE
SWITCHED ON
OFF 7
PROG - 1
SUNDAY
ON SUNDAY THE STOVE WILL NOT BE
SWITCHED ON
P - 3
PROG - 1
POWER
Set the desired power for PROG - 1 with
buttons P4 and P5
23° C
PROG - 1
SET TAMB
Set the desired temperature with buttons P4
and P5. Press P6 to conrm
IMPORTANT
USING THIS MODE, YOU HAVE TO MAKE SURE THAT EACH TIME THE
STOVE IS AUTOMATICALLY SWITCHED OFF, THE FIRE POT REMAINS
CLEAN IN ORDER TO GUARANTEE CORRECT AUTOMATIC IGNITION.
Carry out the same operations, changing times and days of activation for PROG-2 as well.
After we select the power we have to decide on the desired room temperature, independently from the
temperature we set during manual start-up setting. As soon as the room temperature is reached, the
stove will enter into modulation mode.
Conrm with button P6 to get into next program. At this point we select the power of PROG -1.

14
3.9 Setting the Language (Language Menu)
To set the language, proceed as follows:
1. Remove and reset the electricity supply of the stove using the general switch on the back.
2. The display will show FINAL CLEANING and then OFF.
3. Keep button P4 pressed for 2 seconds, CLOCK SETTING MENU will appear.
4. Press button P4 twice; the display will show LANGUAGE MENU.
5. Access with button P6: the display will show the language selected.
6. With buttons P4 and P5, select the language desired.
7. Conrm with button P6 to return automatically to MENU’ 03 SELECT LANGUAGE MENU.
3.10 Settings Menu
In this menu you can check the values of the parameters set in the control unit. This menu is used when
a Service Technician has to understand the parameters set in the machine, to nd any modications to
improve the functioning of the stove.
To enter this menu, proceed as follows:
1. Keep button P4 pressed for 2 seconds: CLOCK SETTING MENU will appear.
2. Press button P4 3 times; the display will show SEE SETTINGS MENU.
3. Access with button P6: the display will show the screen desired.
4. Scroll using the button P6 to display the parameters set.
5. Scroll till last parameter to return automatically to MENU’ 04 SEE SETTINGS MENU’.
3.11 Modications of the room temperature setting
The modes of functioning of the stove with the ambient thermostat activated can be divided into two
types:
- with room sensor supplied (not available on INSERTS) positioned on the back of the stove.
- with external thermostat (not supplied)
3.12 Mode with Room Sensor Supplied
If the room sensor supplied is used, the room temperature will be shown on the display.
To set the desired temperature (modication of the room temperature setting), press button P4 to
enter the appropriate menu and with buttons P4 and P5 adjust the desired value. When temperature is
reached on the display, MODULATION WORK will appear on the screen and the stove will reduce the
consumption of pellets to a minimum, reducing heating power.
3.13 External Thermostat Mode

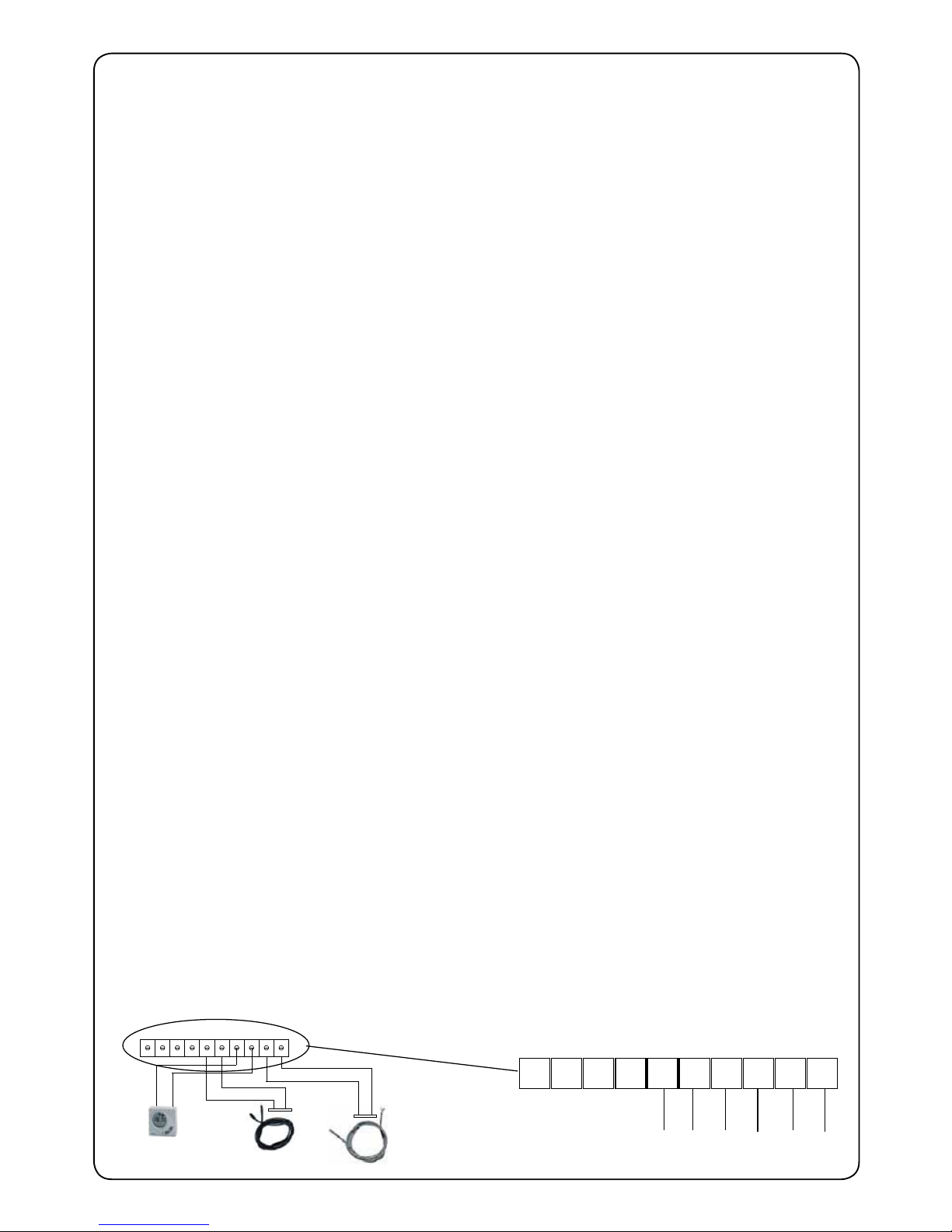

If an external thermostat is used, correctly connected to the board as shown in the electric wiring
diagram below, the room temperature will no longer be shown on the display but will show instead T
ON, when the contact is closed, or T OFF, when the contact is open.
1 2 3 5 6 7 8 9 104
-TC1+TERM.N.AMB.
SMOKE
PROBE
ROOM
TERMOSTAT
ROOM
PROBE
-TC1+TERM.N.AMB.N.H2ON.PEL.
Rosso
Blu
Nero
Nero
BLACK
BLACK
RED
BLU

15
REMARK: TOACTIVATE THE OUTER THERMOSTAT, PRESS BUTTON P4 AND THEN REPEATEDLY
ON P1 TILL YOU REACH THE SETTING “EST“ ON THE DISPLAY. CONFIRM WITH BUTTON P7.
The room temperature will be regulated directly by the wall-mounted thermostat. When the temperature
set is reached, the display will show MODULATION WORK: the stove will work then at lower power to
reduce the consumptionof the pellet.
3.14 Stove Status Menu
In this menu, you can check the correct functioning of the most important components of the pellet
stove.
To enter this menu, proceed as follows:
1. Keep button P4 pressed for 2 seconds, CLOCK SETTING MENU will appear.
2. Press button P4 4 times: the display will show STOVE STATUS MENU.
3. Access using button P6: the display will show the desired screen.
4. Conrm with button P6 to return automatically to MENU’ 05 STOVE STATUS. This menu
is for use by a service technician to diagnose performance issues and for the customer
when loading pellets into the pellet hopper when the stove has been completely run out
of fuel.
3.15 Working Hours Menu
The WORKING HOURS Menu shows the total hours of work done by the stove. In some cases, the
working hours may not be zeroed. i.e. numbers similar to 5000/15000/25000 may be shown. The
technician will zero set these numbers when lighting the stove for the rst time. A non-zero number
does not mean that the stove has worked for all those hours. It is only a setting given by the programme
during rst inspection at Ecoteck, before the stoves are packaged and sent.
To enter this menu, proceed as follows:
1. Keep button P4 pressed for 2 seconds: CLOCK SETTING MENU will appear.
2. Press button P4 5 times: the display will show WORKING HOURS MENU.
3. Access with button P6: the display will show the screen desired.
4. Conrm with button P6 to return automatically to MENU’ 06 WORKING HOURS MENU’.
MOTOR RPM
TEMPERATURE OF SMOKE STATE OF SCREW
2000
130°C
SCREW 0
STATE

16
3.16 Description of Screen Displays
3.17 Description of Alarms
SCREEN DISPLAY DESCRIPTION
FINAL CLEANING The stove is switching off, the cooling phase is not yet completed
ON The ignition phase has started,the pellets are loaded into re pot
WAITING FOR FLAME The pellet’s are ignited by the hot air passing through the ignition candle
FLAME PRESENT The ame is visibile in the re pot
WORKING The stove has completed the switch ON phase; you can now change the power
MODULATION WORKING The set room temperature has been reached
T ON The room sensor is off or an external thermostat has been connected
COOLING/WAITING FOR START The stove is cooling DOWN. When stove has cooled down it will start automatically.
ON/WAITING FOR RESTART The switch ON phase, when the stove is warm, started. The operation is same of
phase ON
HOT SMOKE The max temperature of smokes is reached: to reduce temperature, feeding pellets
and air draft reduce at POWER 01
OFF The stove is off
IMPORTANT IF DISPLAY SHOWS “HOT SMOKE“ THERE CAN BE PROBLEMS IN THE
COMBUSTION OF PELLETS. PLEASE CONTACT A SERVICE TECHNICIAN.
WARNING REASON SOLUTION
PELLETS FINISHED
ALARM
• The pellet hopper is empty • Check whether there are pellets in the hopper and rell if
necessary.
• The raio-motor does not load
pellets.
• Empty the hopper to check that no foreign objects have fallen
inside which could prevent the correct functioning of the
auger.
• Pellets not loading. • Regulate the pellet setting.
• IF THE PROBLEM CONTINUES, CONTACT YOUR LOCAL
SERVICE TECHNICIAN.
BLACK - OUT
• No electricity supply during
working phase. • Press the off button and repeat switching on the stove.
• IF THE PROBLEM CONTINUES, CONTACT YOUR LOCAL
SERVICE TECHNICIAN.
NO IGNITION ALARM
• The pellet hopper is empty • Check whether there are pellets in the hopper and rell if
necessary.
• Setting of pellets and of intake
during ignition phase insufcient • Contact local Service Technician
• The resistance for lighting is
defective or not in position • Contact local Service Technician
LOW FLAME ALARM
• The pellet hopper is empty • Check whether there are pellets in the hopper and rell if
necessary.
• Bad setting of pellet and air
during ignition • Contact local Service Technician
FAN RPM ALARM
• The revolution of smoke fan
lowering more than 15% of speed
to fan congestion
• Contact local Service Technician

17
By pressing the button P3 on the display the alarm can be reset. Try and repeat lighting after the
cooling phase.
FAN BROKEN ALARM
• Smoke extractor encoder is
not functioning or not correctly
connected
• Contact local Service Technician
• No electricity supply to smoke
extractor • Contact local Service Technician
• The smoke extractor is blocked • Contact local Service Technician
DEPRESSION ALARM
• The combustion chamber is dirty • Follow the cleaning operations of the stove as per the
instructions manual
• The ue is blocked • Check that the ue is clear and clean
• The vacuum switch is
malfunctioning • Contact local Service Technician
THERMAL ALARM WITH
RESET
• The thermostat with manual reset
has intervened
• Reset the thermostat pressing the button on the back of the
stove (see Figure below this table)
• The centrifugal fan is defective • Contact local Service Technician
• Combustion in the re pot is not
optimal
• Switch off the stove, clean the re pot and regulate
combustion with the setting of the pellets
HOT SMOKE ALARM
• Combustion in the re pot is not
optimal
• Switch off the stove, clean the re pot and regulate
combustion with the setting of the pellets
• The centrifugal fan is defective • Contact local Service Technician
• IF THE PROBLEM CONTINUES, CONTACT YOUR LOCAL
SERVICE TECHNICIAN.
SMOKE SENSOR ALARM
• The smoke sensor is
malfunctioning • Contact local Service Technician
• The smoke sensor has been
disconnected from the board • Contact local Service Technician
AUGER BLOCKED
ALARM • The auger does not load pellets • Contact local Service Technician
Unscrew the protection cap and press
the button to reset the thermostat alarm.

18
4. Maintenance and Cleaning
Before carrying out any maintenance take the following precautions:
• Make sure that the re has been turned off, and that the general power supply has been disconnected
(Ensure that the plug is disconnected from the socket, thus avoiding accidental electric shocks).
• Make sure that all parts of the pellet heater are cold.
• Make sure that the ashes have cooled completely.
• Make sure that the general switch is in the zero position (off).
• Always use appropriate tools for maintenance.
• When you have nished re-install all safety guards before using the pellet heater again.
The pellet heater requires little maintenance if quality wood pellets are used which is why we recommend
pellet fuel that is manufactured to the AS/NZS4014.6.
4.1 Cleaning the surfaces
To clean the surfaces on the painted metal parts, use a damp cloth.
Important: the use of aggressive detergents or abrasive cleaners can damage the surfaces of the stove.
4.2 Cleaning the re pot before and after each lighting
You must check that the re pot, where the combustion takes place, is clean and that no waste or
residue blocks the holes, in order to always guarantee excellent combustion of the stove. This will help
avoid possible overheating, which could causes changes in the colour of the paint, as well as failure to
light the stove.
Only a clean re pot can guarantee that the pellet stove will function without problems. During functioning,
deposits may be formed, which have to be immediately eliminated. It is easy to see when the re pot
has to be cleaned! It only needs a glimpse, each day, before switching on. For minor cleaning, it can be
left in the stove, but if the residue is difcult to remove, it has to be extracted from its housing and the
waste scraped out.
The residue of ash depends on the quality of pellets used.
Important: even with a new batch of pellets, although using the same brand, there may be differences
during combustion and therefore they may burn more or less cleanly.
Correct daily cleaning will allow the pellet heater to burn properly with high performance avoiding
problems in the long term which could require the intervention of a technician to repair the pellet heater.

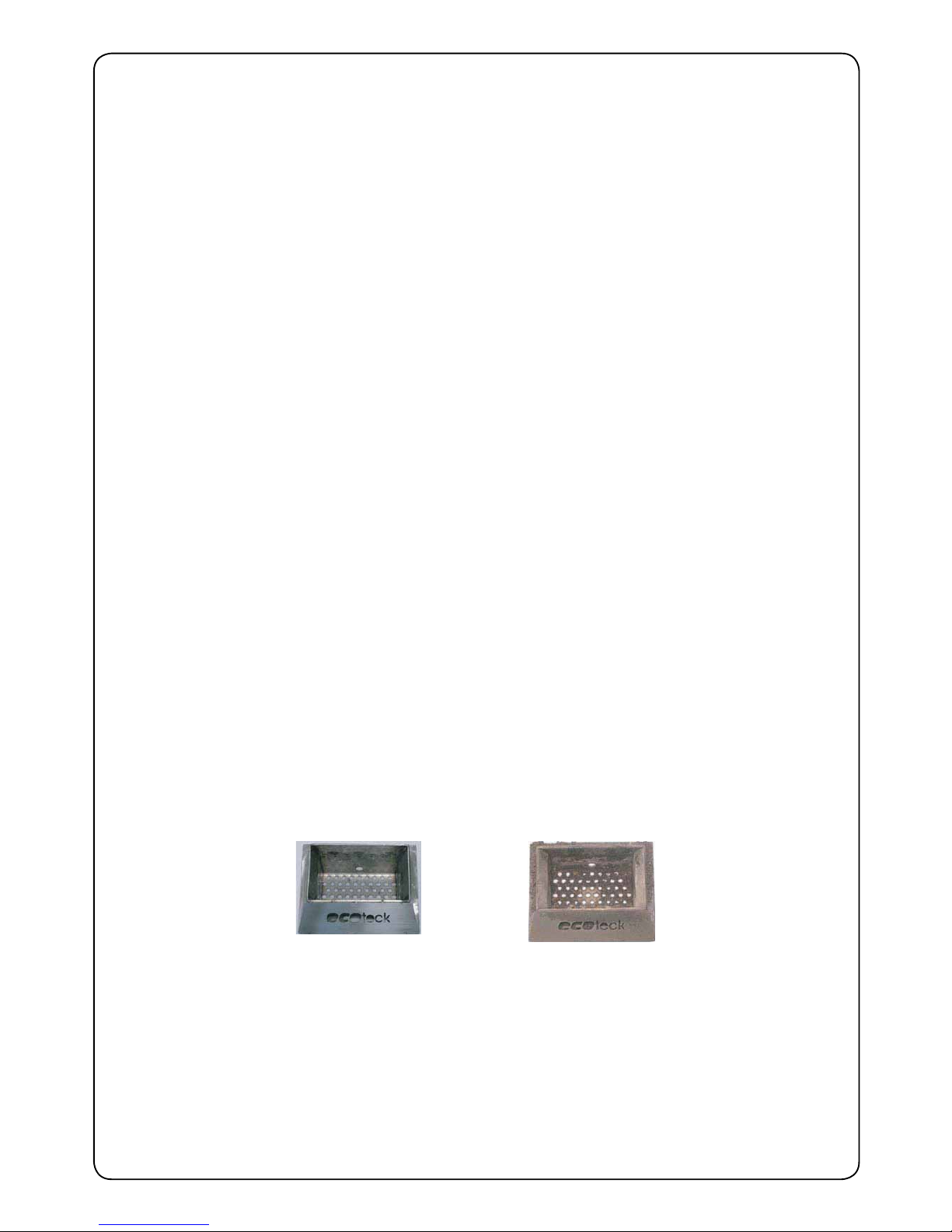

Clean basket with all the
holes clearly visible
Basket needing cleaning with
the holes blocked by ashes

19
4.3 Cleaning the FIREX 600
All Ecoteck products have a combustion chamber made with FIREX 600, a material based on
vermiculite, the result of research and development by Ecoteck. The main features of FIREX 600 is
its resistant to heat, its lightness and its excellent insulating capacities, which improve the combustion
and performance of the stove. During combustion, FIREX 600 turns white, due to an effect called
PYROLYSIS, making the ame clear and shining. If the combustion is regulated in an optimal way, the
FIREX 600 interior always remains clean and white.
The appearance and condition of the FIREX 600 is therefore an indicator of whether the combustion is
good or not.

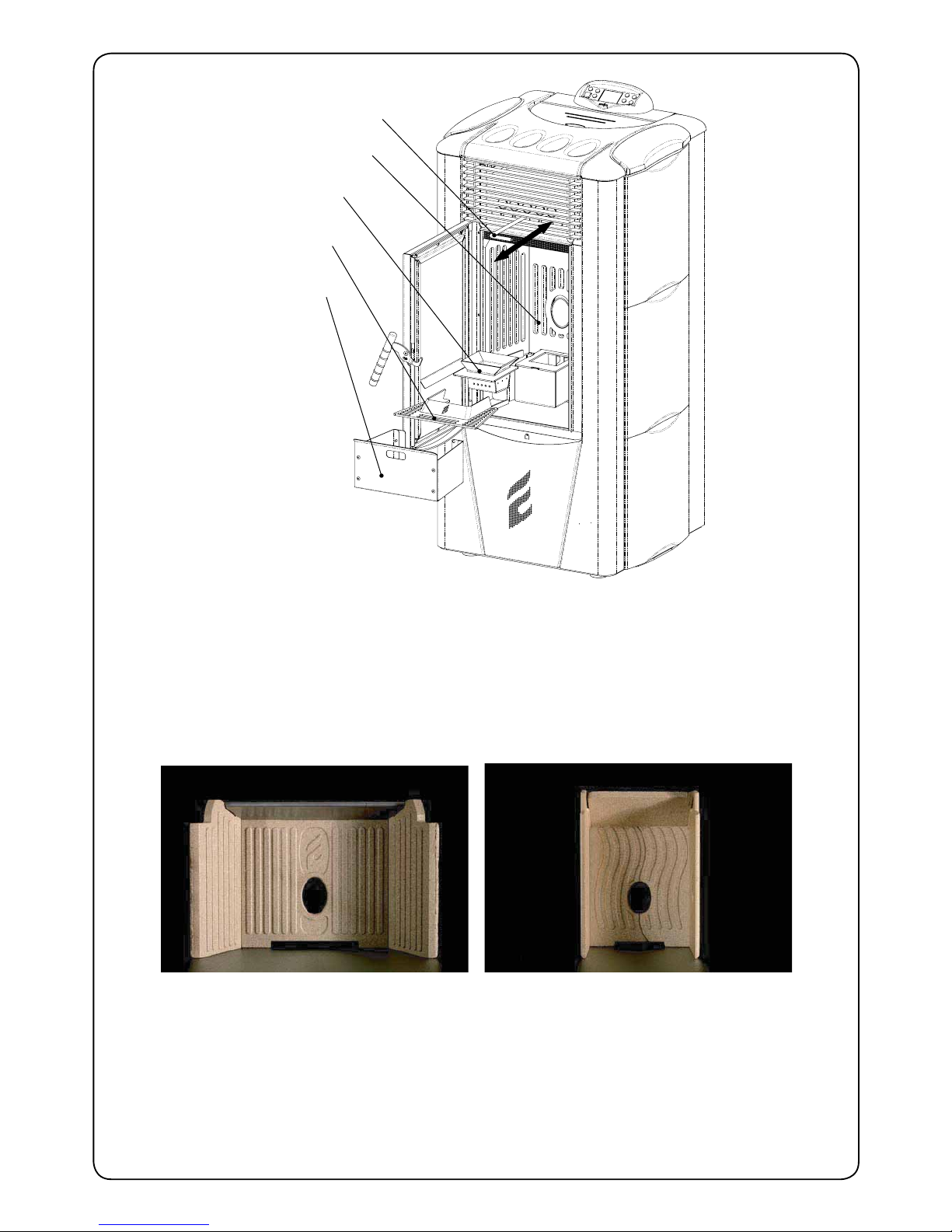

FIREX 600 LIGHT – EXCELLENT COMBUSTION
FIREX 600 DARK – POOR COMBUSTION
Combustion chamber
Fire pot
Ashes drawer
Fire pot grill
Scraper

20
Firex 600 does not require special maintenance, it only has to be dusted with a brush to remove the ash
that is deposited during combustion.
Abrasive sponges to clean the most resistant waste should not be used as they could compromise the
thickness of the FIREX600 panel, creating critical points of breakage.
The tube of the vacuum cleaner should not be used in direct contact with FIREX 600.
Wet cloths should not be used to clean FIREX 600.
FIREX 600 is resistant to heat but not to knocks; handle with care if moved.
FIREX 600 may show a slight abrasion after a few hours of functioning, this is perfectly normal as the
ame creates microgrooves in the panel without compromising it. The duration of FIREX 600 depends
only on how maintenance is carried out.
The pellet stove is a generator of heat with a solid fuel and as such requires servicing by qualied
personnel at least once a year at the start of the season. This maintenance has the purpose of
ascertaining and ensuring the efciency and safety of all the components.
We recommend you draw up an annual contract for maintenance of the product with your
installer/dealer.
4.4 Cleaning the combustion chamber
The stove requires simple but frequent cleaning to guarantee an efcient yield and correct functioning.
Therefore, clean the combustion chamber every day using a drum-type vacuum cleaner, making sure
that the ashes are cold rst.
4.5 Cleaning the Flue
The ue will require cleaning only once each winter providing that the correct fuel is used. You should
arrange for this when booking your annual service with your local Nature’s Flame service agent. Use
a drum type vacuum cleaner only.
