Harman XXV User manual

Thankyoufor purchasing the Harman XXV PelletStove.TheHarman XXV PelletStoveisthe culmination
ofelegance,convenience,functionalityanddependability
The
XXV wasthoughtfullydesignedto lookcaptivating ineveryhome.Intricatelydetailedoakleavesexpress
the magnitudeof craftsmanshipthat goes into makingthis stove a masterpiece.These beautifulcastings
are proudlymade inthe U.S.A.
Builtto strictHarmanstandards,the
XXV hasthe mostadvancedconstr~~ctionofany HarmanPelletStove.
This25thAnniversary Stoveisbasedon Harman'spatentedpelletstove technologyandgoesafew steps
further.The glasshopper lidallowsyou to see the fuel levelwhile the mirroredfront glasstransforms into
clear glasswith the radiance of thefire.
A new conceptfor the
XXV isthe abilityto usethetopvent option. Usingthis method,the XXV caneasily
replaceawood stove byplacingthe top vent adapter overthe rearvent.
We putallof ourfavoritefeatures intothe
XXV, fusingthe highestcaliber pelletstove innovationswith the
allureof cast iron.
We suggest that our pellet
hearth producls be Instatatled
and serviced by profeeslonals
who are certified in the U.S. by
the National Fkeplace lnstiie
(NFI) as NFI PelletSpecialiststs.
serial #:[ ]
This label is located on the back of the unit.
Pleasecopy the Serial Numberfor future reference.
Pleasereadthis entiremanualbeforeyou install
anduseyournewroomheater. Failureto follow
instructionsmayresultinpropertydamage,bodily
injury,orevendeath.
Harman Stove Company
352MountainHouseRoad
Halifax,
PA 17032

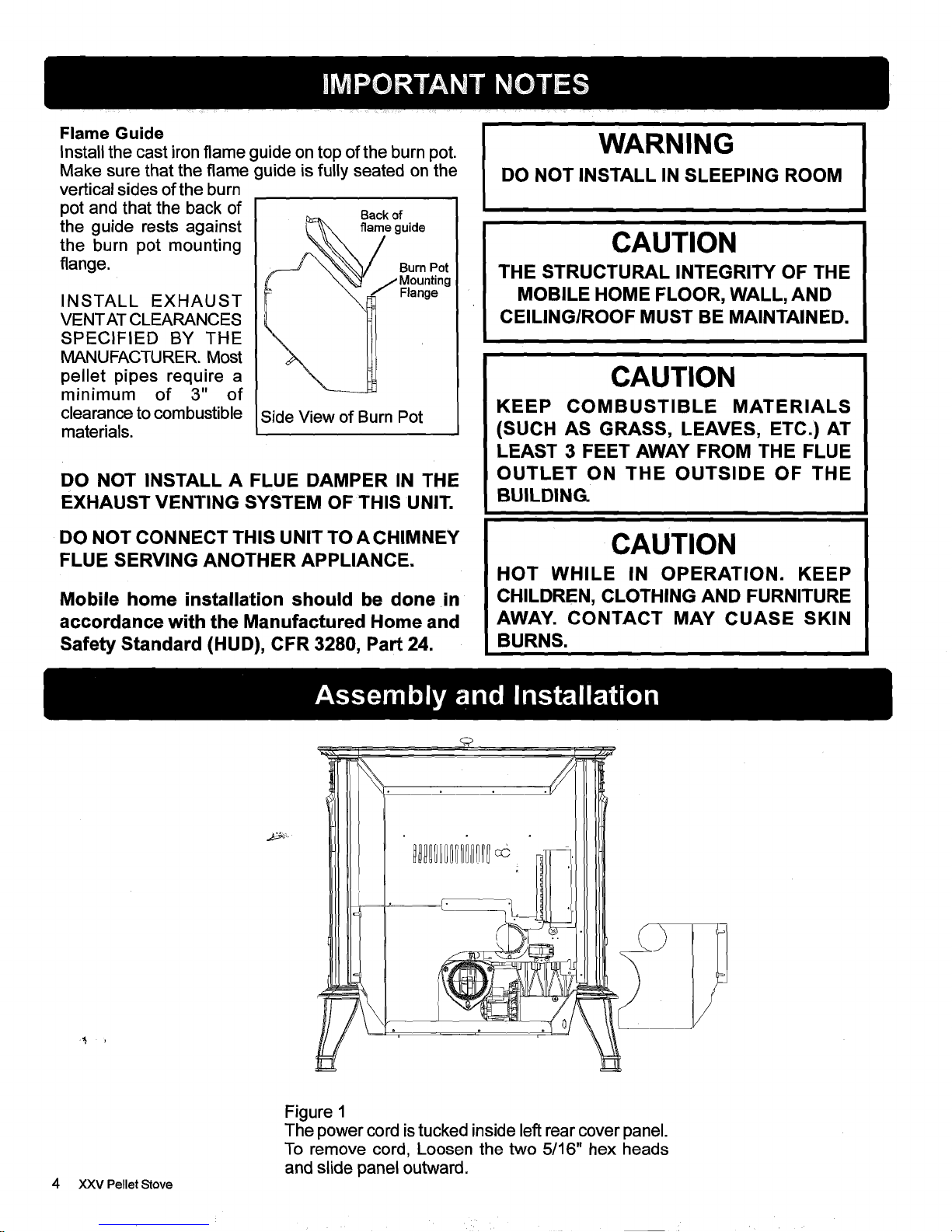

Flame Guide
Installthe cast ironflame guide on top ofthe burnpot.
Makesurethat the flame guide isfully seated on the
verticalsidesofthe burn
pot and that the back of
the guide rests against
the burn pot mounting
flange.
INSTALL EXHAUST
VENTAT CLEARANCES
SPECIFIED
BY THE
MANUFACTURER. Most
pellet pipes require a
minimum of
3" of
clearancetocombustible
materials.
DO NOT INSTALLA FLUE DAMPER IN THE
EXHAUSTVENTING SYSTEM OF THlS UNIT.
DONOTCONNECTTHlS UNITTOACHIMNEY
FLUE SERVINGANOTHER APPLIANCE.
Mobile home installation should be done
in
accordancewiththe Manufactured Homeand
SafetyStandard (HUD), CFR 3280, Part24.
DO NOTINSTALLINSLEEPING ROOM
CAUTION
THE STRUCTURAL INTEGRITY OF THE
MOBILEHOMEFLOOR,WALL, AND
CEILINGIROOFMUST BEMAINTAINED.
CAUTION
KEEP COMBUSTIBLE MATERIALS
(SUCH AS GRASS, LEAVES, ETC.) AT
LEAST 3 FEETAWAY FROM 'THE FLUE
OUTLET ON THE OUTSIDE OF THE
BUILDING
CAUTION
HOT WHILE IN OPERATION. KEEP
CHILDREN, CLOTHINGAND FURNITURE
AWAY. CONTACT MAY CUASE SKIN
BURNS.
4 XXV Pellet Stove
Figure 1
Thepowercordistuckedinsideleftrearcoverpanel.
To remove cord, Loosen the two
5/16" hex heads
andslide paneloutward.

\ - /
Mobile Home Installation
When installing this unit in a mobile home several
requirements must be followed (Reference HUD Regula-
tion #24CFR3280):
1. The unit must be bolted to the floor. This can be
done by using clips (part
# 2-0-677110) and 114" lag
screws.
2. The unit must also be connected to outside air.
See page 8.
3. Floor protection and clearances must be followed
as shown.
4. Unit must be grounded to the metal frame of the
mobile home.
CAU'TION: This appliance must be vented to the out-
side.
Duetohightemperatures, thestoveshouldbeplaced
out of traffic and away from furniture and draperies.
Children and adults should be alerted to the haz-
ards of high surface temperatures and should stay away
to avoid burns to skin and/or clothing.
Young children should be carefully supervised when
they are in the same room as the stove.
Clothing and other flammable materials should not
be placed on or near this unit.
Installationand repair of this Harman stove should be
donebya qualifiedserviceperson. We recommendthat the
stove be inspected before use and at least annually by a
qualified service person. Periodic cleaning is required Fig.
5: OptionalTOPVent PipeClearances
throughout the heating season and at the end of each win-
xxv PelletStove 5
ter for the stovetowork efficiently. See cleaning instructions
on page 21.
,-
\
Installing
Place the stove on a noncombustible
floor protector that extends a minimum of 6
inchesto thefront, 2 inchesto the sides and
flush with the rearof the hopper.Ash protec-
tion must also be positionedunder any hori-
zontallyrunflue pipe.Theminimumfloor pro-
tector materialis20 gaugesheet metal.Other
floor protector materials are ceramic tile,
stone, brick, etc.
Placethe stove away from combustible
walls at leastas far as shown in Figures2, 3
and 4.
Notethattheclearancesshownaremini-
,
mum for safety but do not leave much room
for access when cleaning or servicing. Please take this
into account when placingthe stove.
Connect the power cord to a 120 V.A.C. 60Hz
grounded receptacle. (A surge protector is recommended
to protect the circuit board.) If the voltage entering your
home is below 11
6 volts your stove may not work prop-
erly. Also be sure that the polarity of the outlet that the
stove is plugged into is correct.
Priorto installingthe flue pipe, connect adraftmeter.
(The draft meter must have a minimum range of 0-
.5.)Record the first reading. Connect flue pipe to stove
andbesure alldoorsandwindowsinthe homeareclosed.
Record the second draft reading . If the second
reading is more than .05" lower than the first reading,
check for possiblerestrictionsor the need for outside air
(see page 8). For more informationon the draft test pro-
cedure, refer to Page
20.
,
F I o o r Protectionmust be 2 inchesto
eachside,
6 inchestothe front, and 0 inchesto the
backofthestove. FloorProtectorminimum:
32" wide
FLUOR PROTECTOR
Fig. 4
-
I
n I
-
,noon VRorEcToR
3'
,.
Fig. 3

-

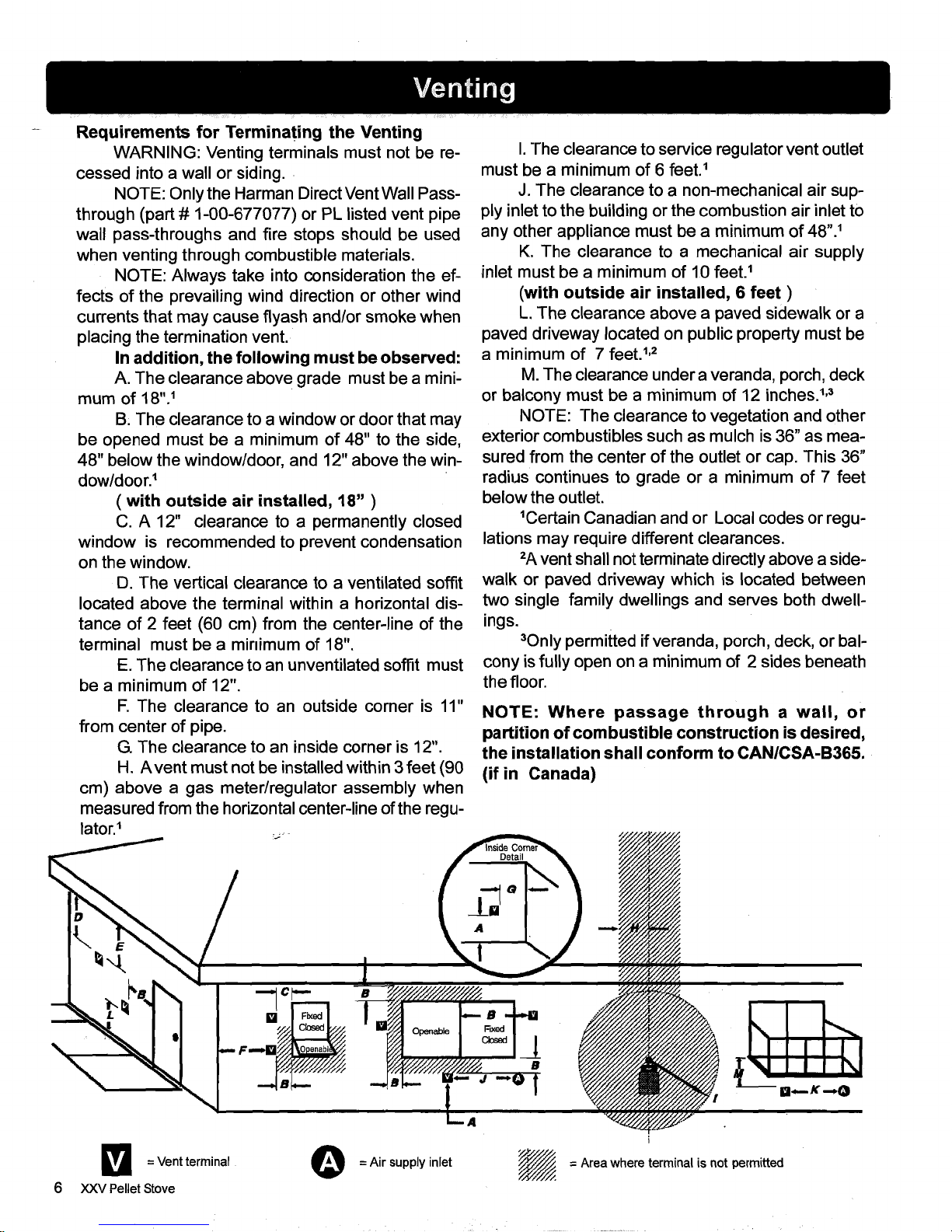

Requirements for Terminating the Venting
WARNIIVG: Venting terminals must not be re-
cessedinto a wall or siding.
NOTE: Onlythe HarmanDirectVentWall Pass-
through (part
# 1-00-677077)or PL listedvent pipe
wall pass-throughsand fire stops should be used
when venting through combustiblematerials.
NOTE: Always take into consideration the ef-
fects of the prevailingwind direction or other wind
currentsthat maycauseflyash andlorsmokewhen
placingthe terminationvent.
Inaddition,thefollowingmust beobserved:
A.Theclearanceabovegrade mustbea mini-
mum of 18.l
B. The clearanceto awindowor doorthat may
be opened must be a minimum of 48" to the side,
48" belowthe windowldoor, and 12"abovethe win-
dow1door.l
( with outside air installed, 18" )
C. A 12" clearance to a permanently closed
window is recommendedto preventcondensation
onthe window.
D. The vertical clearance to a ventilatedsoffit
located above the terminal within a horizontaldis-
tance of 2 feet (60 cm) from the center-line of the
terminal must bea minimumof 18".
E.Theclearancetoanunventilatedsofnt must
be a minimumof 12".
F. The clearance to an outside corner is 11"
from center of pipe.
G The clearancetoan insidecorner is 12".
H. Avent mustnotbeinstalledwithin3feet (90
cm) above a gas meterlregulator assembly when
measuredfromthe horizontalcenter-lineofthe regu-
I.The clearancetoserviceregulatorvent outlet
must be a minimumof
6 feet.l
J. The clearanceto a non-mechanicalair sup-
ply inlettothe buildingor the combustionair inletto
any other appliance must bea minimumof 48.l
K. The clearance to a mechanical air supply
inlet must bea minimum of 10feet.l
(with outsideair installed, 6 feet )
L.The clearance abovea paved sidewalkor a
paveddriveway locatedon publicpropertymustbe
a minimum of
7 feet.lv2
M. Theclearanceunderaveranda,porch,deck
or balcony must bea minimum of 12 inches.lr3
IVOTE: The clearanceto vegetation andother
exterior combustiblessuch as mulch is36"as mea-
suredfrom the center of the outlet or cap. This 36"
radius continues to grade or a minimum of 7 feet
belowtheoutlet.
ICertainCanadianandor Localcodesor regu-
lations may requiredifferent clearances.
2Aventshallnotterminatedirectlyaboveaside-
walk or paved driveway which is located between
two single family dwellings and serves both dwell-
ings.30nlypermittedifveranda, porch,deck,or bal-
cony isfully open ona minimumof 2 sides beneath
thefloor.
NOTE: Where passage through a wall, or
partitionofcombustibleconstructionisdesired,
the installationshall conformto CANICSA-B365.
(if in Canada)
0
= Air supply inlet
i
= Area where terminal is not permitted
6 MV PelletStove

@ = Positive Static Pressure
0 = Negative StaticPressure
Fig.
6
-E
Pellet Vent Pipe Or PL Vent Pipe Must Be Used
unlessthe unit is beinginstalledwiththe optional
top
6" FlueAdapter.
If using 6" FlueAda~terJ it is
to use
a sealed seam 6" 'Iue pipe
seam is not
recommended) and seal the joints with high
temperaturesilicone.
Insome cases itmay be necessaryto usea liner
intheexistingchimneytoobtainproperdraft.
I
be increased from 3" to 4" because a larger pipe
causes less flow resistance.
Be sure to use ap-
proved pellet vent pipe wall and ceiling pass-
throughfittingsto gothroughcombustiblewalls
and ceilings.
The use of a starting collar is not al-
ways necessary. The first piece of pipeshould be
fastened securely with at least
2 fasteners to the
flue collar of the stove. Ifa starting collar is usedto
attachthe ventingsystemto the stove,
the starting
collarmustbesealedtothestovewith hightemp
silicone caulking.

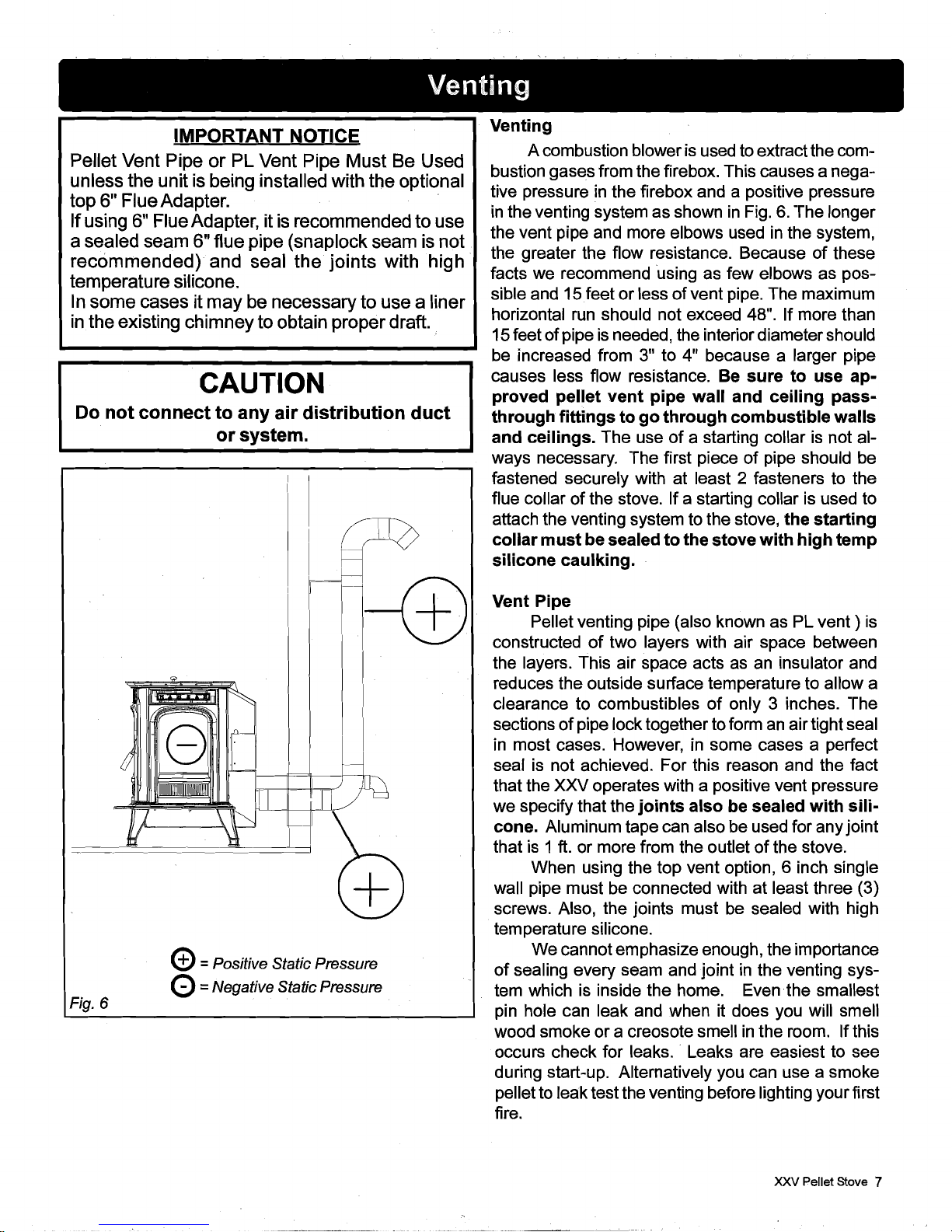

Venting
Acombustionbloweris usedtoextractthecom-
bustiongasesfromthefirebox.This causesa nega-
tive pressure in the firebox and a positive pressure
intheventingsystemasshown inFig. 6. Thelonger
the vent pipe and more elbows used in the system,
the greater the flow resistance. Because of these
facts we recommend using as few elbows as pos-
sibleand
15 feet or lessof vent pipe.The maximum
horizontal run should not exceed
48". If morethan
15feetof pipeisneeded,theinteriordiametershould
Vent Pipe
Pelletventing pipe (alsoknownas PLvent ) is
constructed of two layers with air space between
the layers. This air space acts as an insulator and
reducesthe outside surface temperatureto allow a
clearance to combustibles of only 3 inches. The
sectionsof pipelocktogether toformanairtightseal
in most cases. However, in some cases a perfect
seal is not achieved. For this reason and the fact
that the
XXV operateswith a positivevent pressure
we specify thatthe
joints also be sealed with sili-
cone.
Aluminumtapecanalsobeusedfor anyjoint
that is
1 ft. or morefrom the outlet ofthe stove.
When using the top vent option,
6 inch single
wall pipe must beconnected with at least three (3)
screws. Also, the joints must be sealed with high
temperaturesilicone.
Wecannotemphasizeenough,theimportance
of sealing every seam and joint in the venting sys-
tem which is inside the home. Even the smallest
pin hole can leak and when it does you will smell
wood smokeor a creosotesmell inthe room. Ifthis
occurs check for leaks. Leaks are easiest to see
during start-up. Alternatively you can use a smoke
pelletto leaktesttheventingbeforelightingyourfirst
fire.
XXV Pellet Stove 7

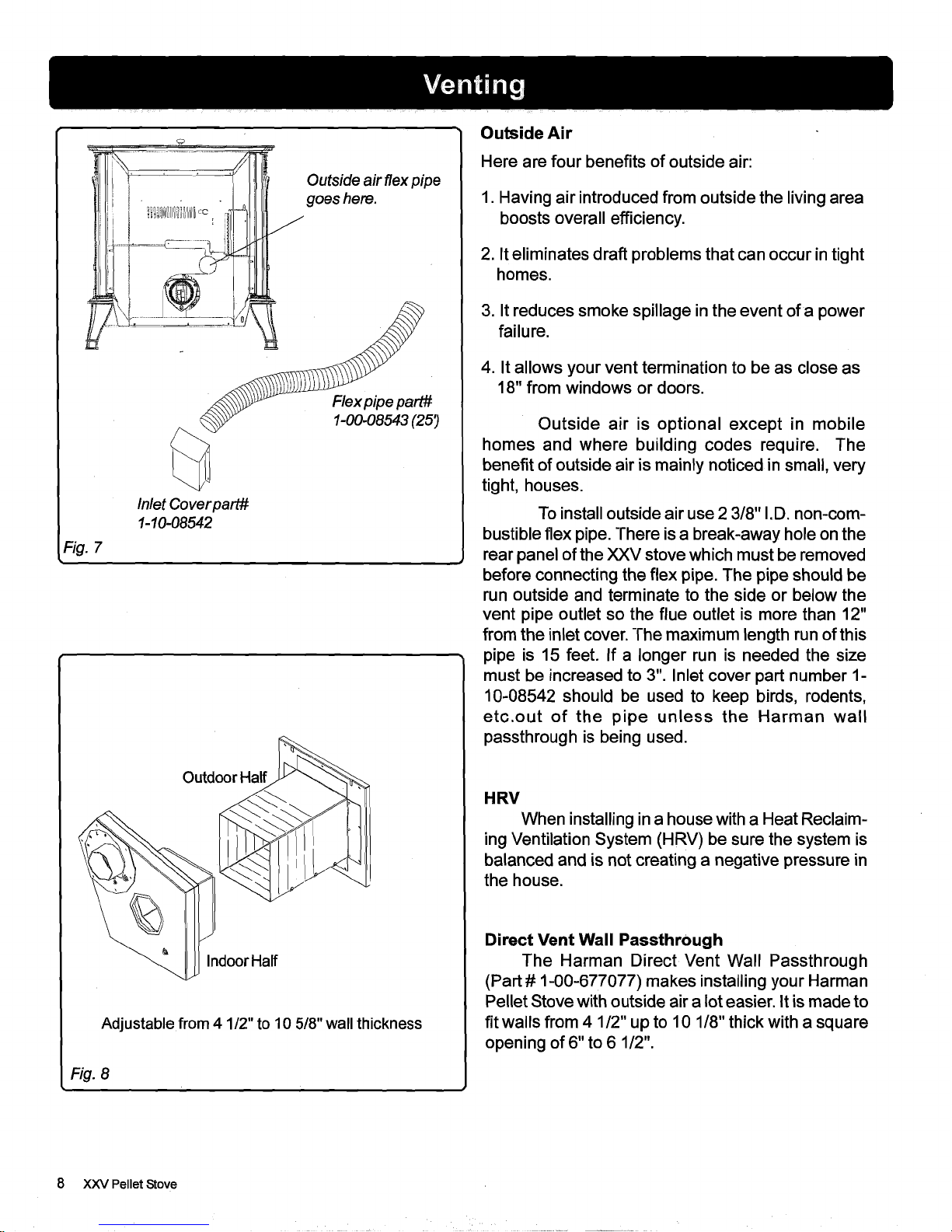

Outsideair flex pipe
8 \
Adjustablefrom 4 112"to 10 518" wall thickness
Fig. 8
\ 8
OutsideAir
Herearefour benefitsof outsideair:
1.Havingair introducedfrom outsidethe livingarea
boostsoverall efficiency.
2. Iteliminatesdraftproblemsthat canoccur intight
homes.
3. Itreducessmokespillageintheeventof a power
failure.
4. Itallowsyour vent terminationto beas closeas
18" from windows or doors.
Outside air is optional except in mobile
homes and where building codes require. The
benefitof outsideair ismainlynoticedinsmall,very
tight, houses.
To installoutsideairuse2 318" I.D. non-com-
bustiblellexpipe.There isa break-away holeonthe
rearpanelof theXXV stovewhich mustberemoved
beforeconnectingtheflex pipe.The pipeshouldbe
run outside and terminate to the side or below the
vent pipe outlet so the flue outlet is more than 12"
fromthe inletcover.Themaximumlengthrunofthis
pipe is 15 feet. If a longer run is needed the size
must be increasedto
3". Inletcover part number 1-
10-08542 should be used to keep birds, rodents,
etc.out of the pipe unless the Harman wall
passthrough is being used.
HRV
When installinginahousewitha HeatReclaim-
ingVentilationSystem (HRV) besure the system is
balancedandisnotcreatinga negativepressurein
the house.
DirectVent Wall Passthrough
The Harman Direct Vent Wall Passthrough
(Part
# 1-00-677077)makesinstallingyour Harman
PelletStovewithoutsideairaloteasier. Itismadeto
fitwallsfrom 4 112"upto 10 118" thick with a square
openingof
6" to 6 112".
8 XXV PelletStove

NOTICE
A chimneyconnectorshall notpassthrough an attic or roof space,closetor similar
concealedspace, or afloor, or ceiling.
Fig. 9
#I Preferred method (Fig. 8)
This methodprovidesexcellentventingfornor-
mal operation and allows the stove to be installed
closesttothewall. Two inchesfromthewall issafe;
however,four inchesallowsbetteraccessto remove
therearpanel.Theverticalportionofthevent should
be three to five feet high. This vertical section will
helpprovidenaturaldraftinthe eventofa powerfail-
w
tocombustibles
Fig. 10
tocombustibles
ure. Note: Do not placejoints within wall pass-
throughs.
#2 Preferred method (Fig. 9)
Thismethodalso providesexcellentventingfor
normaloperationbutrequiresthestoveto beinstalled
farther fromthewall. Theverticalportionofthevent
should be three to five feet high and at least three
inches from a combustible wall. This vertical sec-
tionwill provide naturaldraft inthe eventofapower
failure.
Ifthestoveisinstalledbelowgradebesurethe
vent
termination is at least 18" above grade. The
outletmust also be
I foot fromthe house/building.
Note: Donotplacejoints within wallpass-
throughs.
Keepany materialsthat may
be affected by the
elevated exhaust temperatures at least
3 feet
awayfrom the flue termination.
I 1 12" min. wall to outlet
Fig. 11 1 1
XXV Pellet Stove 9

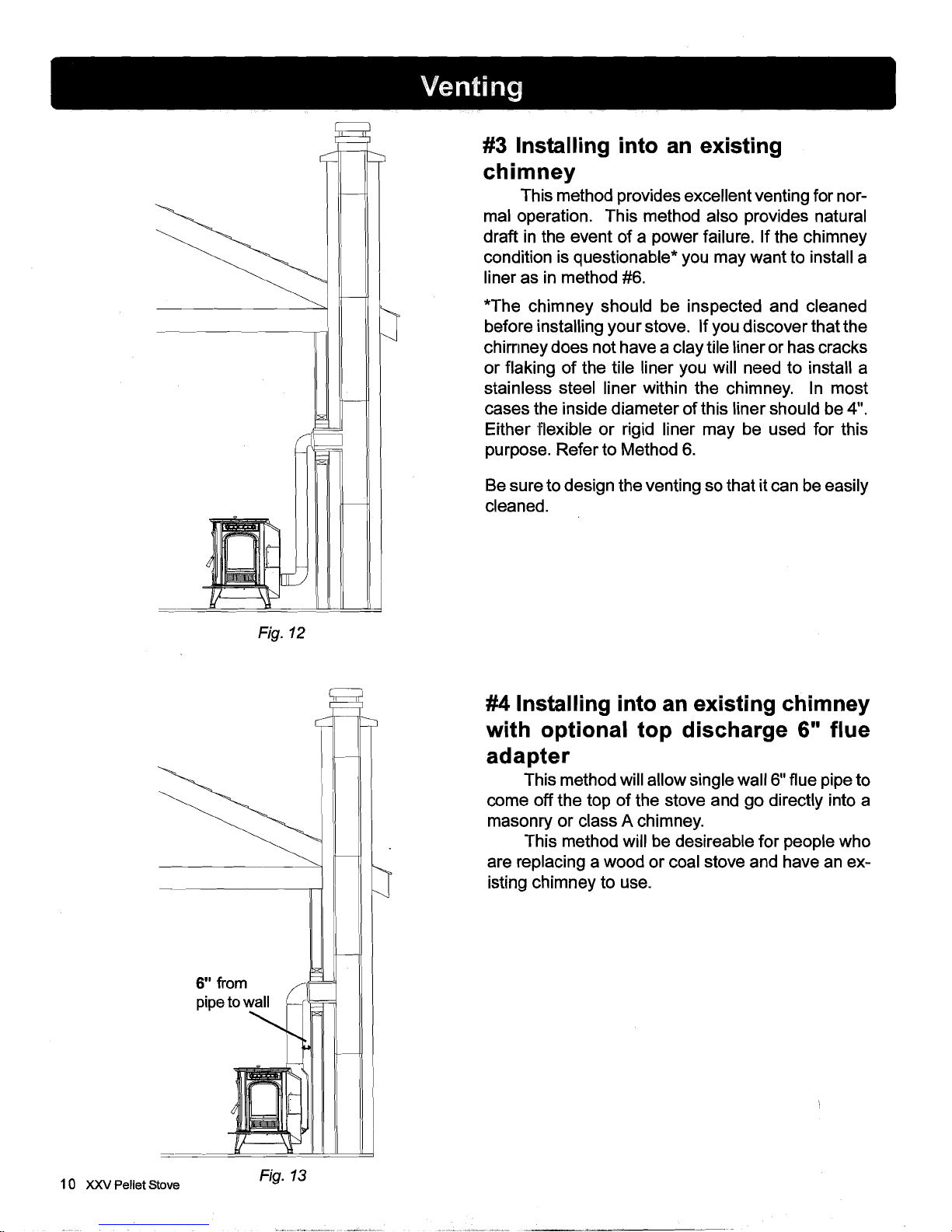

#3 Installing into an existing
1
chimney
Thismethodprovidesexcellentventingfor nor-
mal operation. This method also provides natural
draft inthe event of a power failure. Ifthe chimney
conditionisquestionable*you maywant to installa
lineras in method
#6.
Fig. 12
*The chimney should be inspected and cleaned
beforeinstallingyourstove. Ifyoudiscoverthatthe
chirr~neydoes nothavea claytile lineror hascracks
or flaking of the tile liner you will need to install a
stainless steel liner within the chimney. In most
casesthe insidediameterof this linershouldbe
4.
Either 'flexible or rigid liner may be used for this
purpose.Referto Method
6.
Besuretodesigntheventingsothatitcanbeeasily
cleaned.
#4 Installing intoan existing chimney
with optional top discharge
6" flue
adapter
Thismethodwillallowsinglewall 6" fluepipeto
come off the top of the stove and go directly into a
masonry or class
A chimney.
This methodwill be desireablefor peoplewho
are replacinga woodor coalstoveand havean ex-
istingchimneyto use.
10 XXV Pellet Stove
Fig. 13

#5 Installing into an existing
fireplace chimney
(US and Canada)
This methodprovidesexcellentventing for nor-
maloperation. Thismethodalso providesnaturaldraft
inthe event of a powerfailure.
In Canada and some places in the US it is re-
quiredthat the vent pipeextendallthewayto the top
ofthe chimney. Per ULC S628.
Inthismethoda capshouldalsobe installedon
thechimneyto keepout rain.Besureto useapproved
pelletvent pipefittings. Seal pipejoints with silicone
or aluminum tape in addition to the sealing system
used by the manufacturer. Pipe size should be in-
creased to
4" usingthis method.
Fig. 14
#6 Installing into an existing
chimney
(US and Canada)
Thismethodprovidesexcellentventingfor nor-
mal operation. This method also provides natural
draftinthe event of a powerfailure.
In this method a cap should also be installed
on the chimneyto keepout rain.
-----
MV Pellet Stove 11
Fig. 15

Fig. 16
#7 Installing into an existing chimney
using
3" pl vent in combination with
6" or 8" single or double wall stove
pipe.
This methodallows the installerto use 6" or 8"
singleanddoublewallstove pipe ( sealedseamnot
snap lock
) and
an existing masonry or classA chimney to vent the
stove.
Thestovemustuseapltypepelletventand
90 degree
elbow to start at the stove connector and then use
the approved pipe adapter to connect to the size of
vent that continues into the chimney connector.
Support of the assembly must follow any pipe and
connector manufacturers recommendations
Pipe manufacturer clearance to combustibles,
NFPA and or any local codes must befollowed for
this type of installation. Be sure to check with the
pipe manufacturerfor clearanceto combustibles.
#8 Installing through the ceiling
Through the ceiling vent, follow PLvent
manufacturersrecommendationswhen usingawall
or ceiling pass through.
Note: Do not placejoints
within wall pass-throughs.
insulation or
er combustible
terials are
(See Page
6 for
comerinstallation
12 XXV Pellet Stove

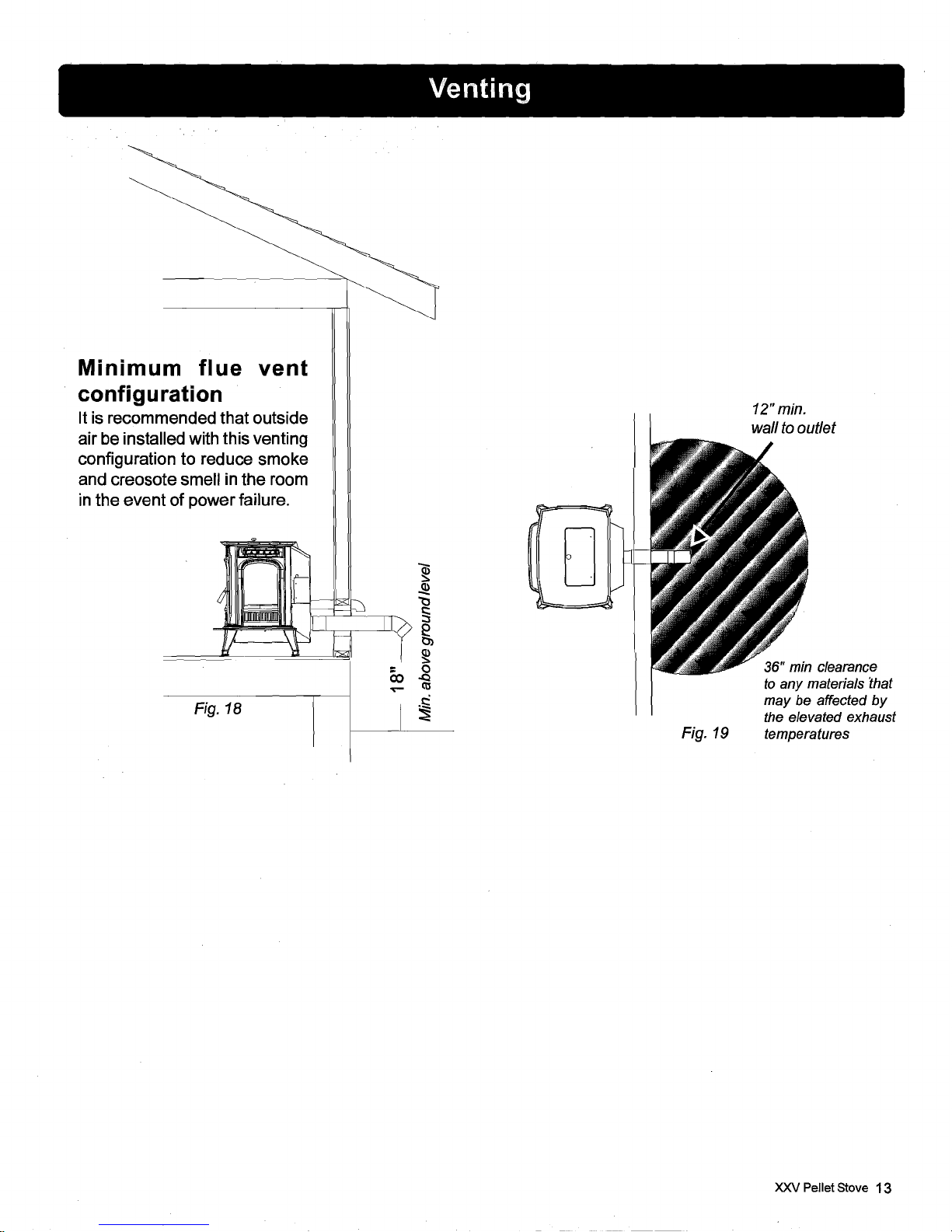

Minimum flue vent
configuration
Itisrecommendedthat outside
airbeinstalledwiththisventing
configurationto reducesmoke
andcreosotesmellinthe room
intheevent of powerfailure.
I
12" min.
walltooutlet
clearance
1 p to anv materials 'that
may be affected by
the elevated exhaust
Fig. 19 temperatures
XXV Pellet Stove 13

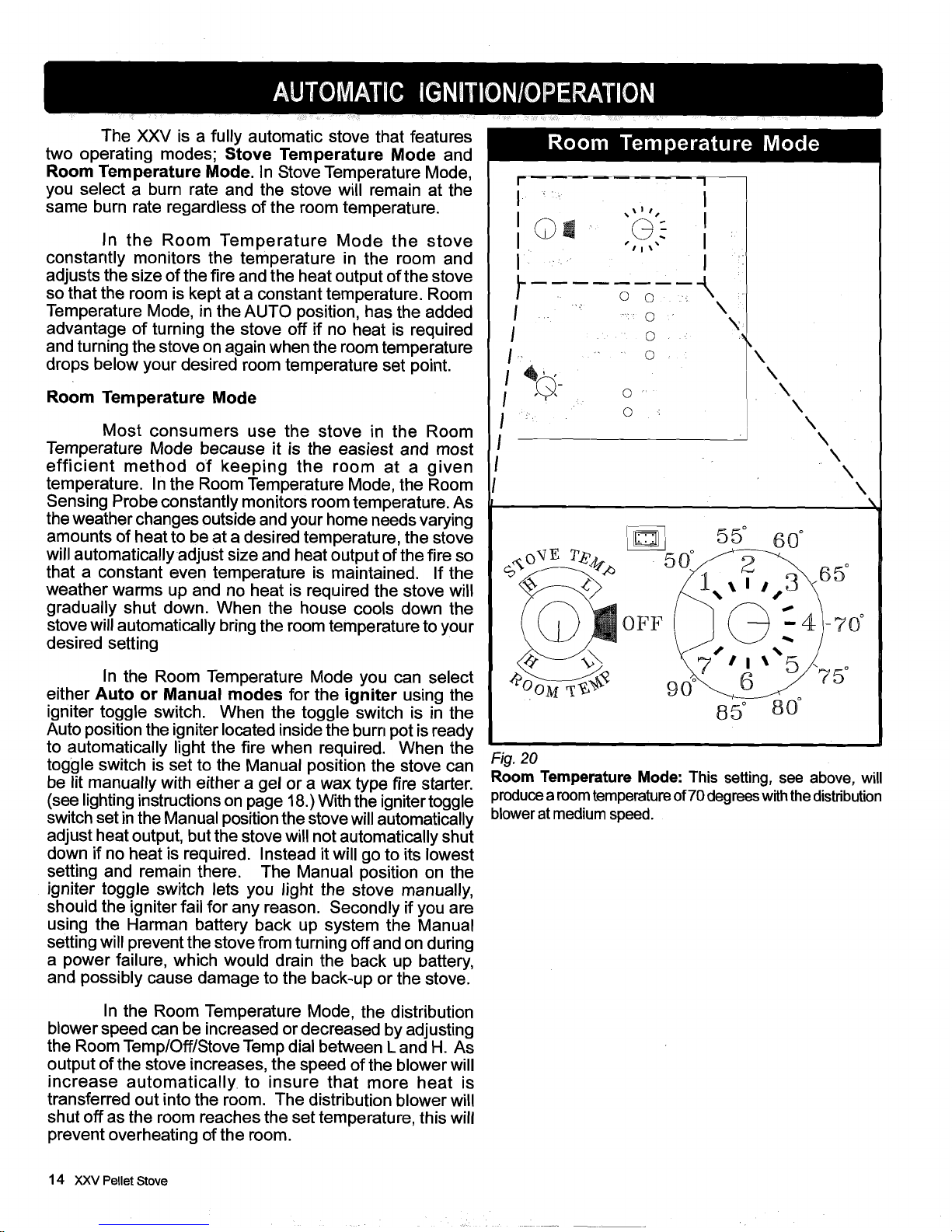

The XXV is a fully automatic stove that features
two operating modes;
Stove Temperature Mode and
RoomTemperatureMode. InStoveTemperatureMode,
you select a burn rate and the stove will remain at the
same burn rate regardlessof the roomtemperature.
In the Room Temperature Mode the stove
constar~tlymonitors the temperature in the room and
adjuststhesizeofthefire andthe heatoutput ofthestove
sothatthe room is keptat a constanttemperature.Room
Temperature Mode, intheAUTO position,has the added
advantage of turning the stove off if no heat is required
andturningthestoveonagainwhentheroomtemperature
drops belowyour desired roomtemperatureset point.
Room Temperature Mode
Most consumers use the stove in the Room
Temperature Mode because it is the easiest and most
efficient method of keeping the room at a given
temperature. Inthe RoomTemperatureMode,the Room
Sensing Probeconstantlymonitorsroomtemperature.As
theweatherchangesoutsideandyour homeneedsvarying
amountsof heatto beat a desiredtemperature,thestove
will automaticallyadjustsizeand heatoutputof thefire so
that a constant even temperature is maintained. If the
weather warms up and no heat is requiredthe stove will
gradually shut down. When the house cools down the
stovewillautomaticallybringthe roomtemperaturetoyour
desired setting
In the Room Temperature Mode you can select
either
Auto or Manual modes for the igniter using the
igniter toggle switch. When the toggle switch is in the
Autopositionthe igniterlocatedinsidethe burr1potisready
to automatically light the fire when required. When the
Fig 2o
toggle switch is set to the Manual positionthe stove can
be lit manuallywith either a gel or a wax type fire starter.
Room Temperature Mode: This setting, see above, will
(seelightinginstructionson page 18.) Withthe ignitertoggle
produces roomtem~eratureof70degree~withthedistribution
switchsetintheManualpositionthestovewillautomaticallv blower at medium Weed.
adjust heatoutput, butthe stovewill notautomaticallyshd
down if no heatis required. Insteaditwill go to its lowest
setting and remain there. The Manual position on the
igniter toggle switch lets you light the stove manually,
shouldthe igniterfail for any reason. Secondly if you are
using the Harman battery back up system the Manual
settingwill preventthestovefromturningoffandon during
a power failure, which would drain the back up battery,
and possiblycause damage to the back-upor the stove.
In the Room Temperature Mode, the distribution
blowerspeedcanbeincreasedor decreasedbyadjusting
the RoomTemp/Off/StoveTempdial betweenLandH. As
outputof the stove increases,the speedofthe blowerwill
increase automatically to insure that more heat is
transferredout intothe room. The distributionblowerwill
shutoffasthe roomreachesthe settemperature,this will
preventoverheatingof the room.
14 XXV Pellet Stove

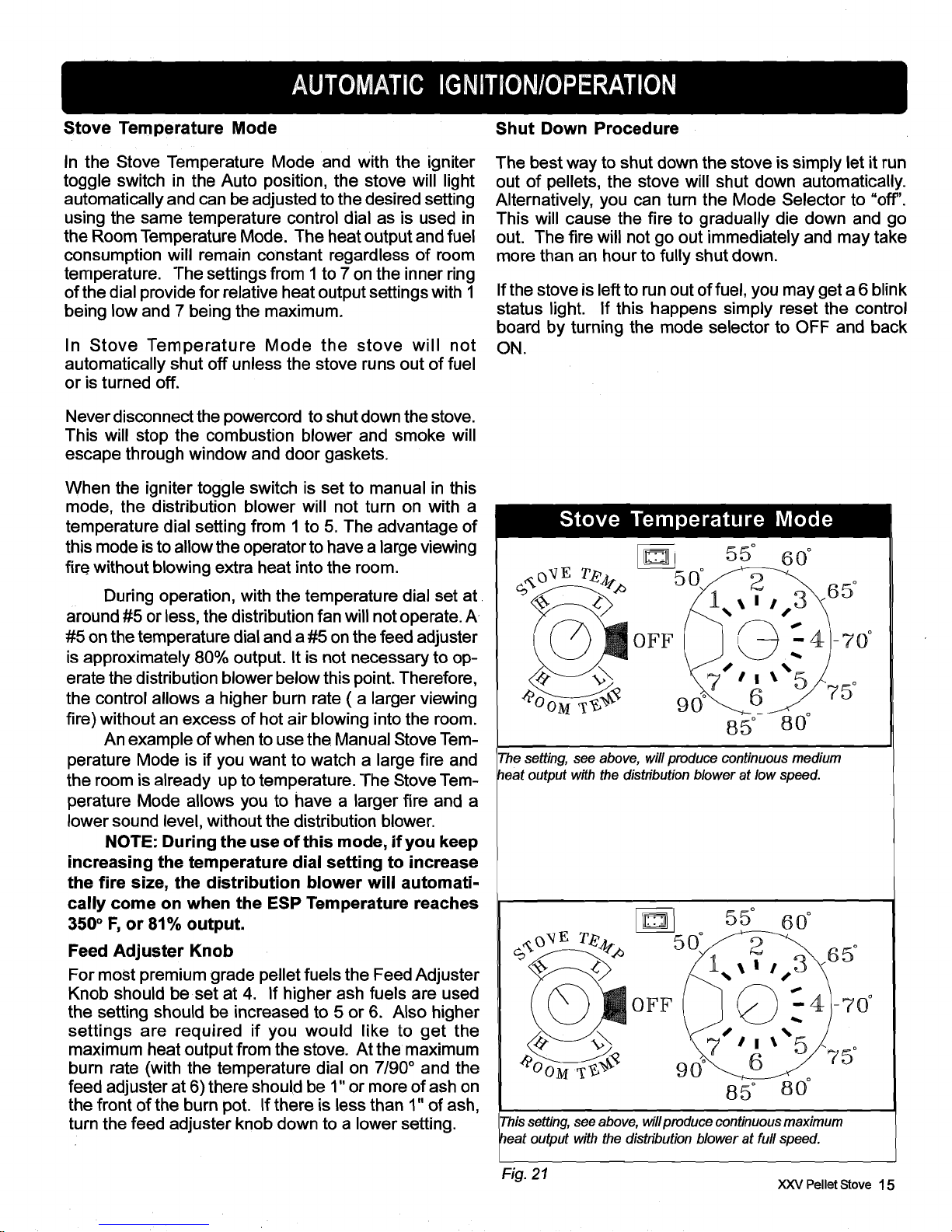

Stove Temperature Mode Shut Down Procedure
In the Stove Temperature Mode and with the igniter
toggle switch in the Auto position, the stove will light
automaticallyandcanbeadjustedto thedesiredsetting
using the same temperaturecontrol dial as is used in
theRoomTemperatureMode. Theheatoutputandfuel
consumptionwill remain constant regardless of room
temperature. 'The settingsfrom
1 to 7on the innerring
ofthedialprovidefor relativeheatoutputsettingswith
1
beinglowand 7 beingthe maximum.
In Stove Temperature Mode the stove will not
automaticallyshut off unlessthe stove runsout of fuel
or isturned off.
Neverdisconnectthe powercord toshutdownthestove.
This will stop the combustion blower and smoke will
escapethroughwindow and door gaskets.
When the igniter toggle switch is set to manualin this
The bestway to shut downthe stoveissimply let itrun
out of pellets, the stove will shut down automatically.
Alternatively, you can turn the Mode Selector to "OW'.
This will cause the fire to gradually die down and go
out. Thefire will not go out immediatelyand maytake
morethan an hourto fully shutdown.
Ifthe stoveisleftto runout offuel, you mayget a6 blink
status light. If this happens simply reset the control
board by turning the mode selector to OFF and back
ON.
thismodeistoallowtheoperatorto havealargeviewing
firewithout blowingextra heat intothe room.
Duringoperation, with the temperature dial set at
around#5 or less,the distributionfanwill notoperate.A
#5onthetemperaturedialanda#5onthefeedadjuster
isapproximately 80% output. Itisnot necessaryto op-
eratethedistributionblowerbelowthispoint.Therefore,
the control allows a higher burn rate
( a largerviewing
fire)withoutan excess of hot air blowingintothe room.
Anexampleofwhento usethe ManualStoveTem-
perature Mode is if you want to watch a largefire and
theroomisalready uptotemperature.The StoveTem-
perature Mode allows you to have a largerfire and a
lowersoundlevel,without the distributionblower.
NOTE:Duringthe useofthis mode,ifyou keep
increasingthe temperature dial settingto increase
the fire size, the distribution blower will automati-
cally come on when the ESPTemperature reaches
350" F, or 81% output.
Feed Adjuster Knob
For most premiumgrade pelletfuels the FeedAdjuster
Knob should be set at
4. If higher ash fuels are used
the setting should be increasedto 5 or
6. Also higher
settings are required if you would like to get the
maximumheatoutput fromthe stove. Atthe maximum
burn rate (with the temperature dial on 7/90" and the
feed adjuster at6) thereshouldbe
1" or moreof ashon
the front of the burnpot. Ifthereis lessthan
1" of ash,
turnthefeed adjusterknobdown to
a lowersetting.
I
Thesetting, see above, will produce continuous medium
heat output with the distribution blower at low speed.
setting, seeabove,willproduce continuousmaximum
eat output with the distribution blower at full speed.
Fig. 21
XXV Pellet Stove 15

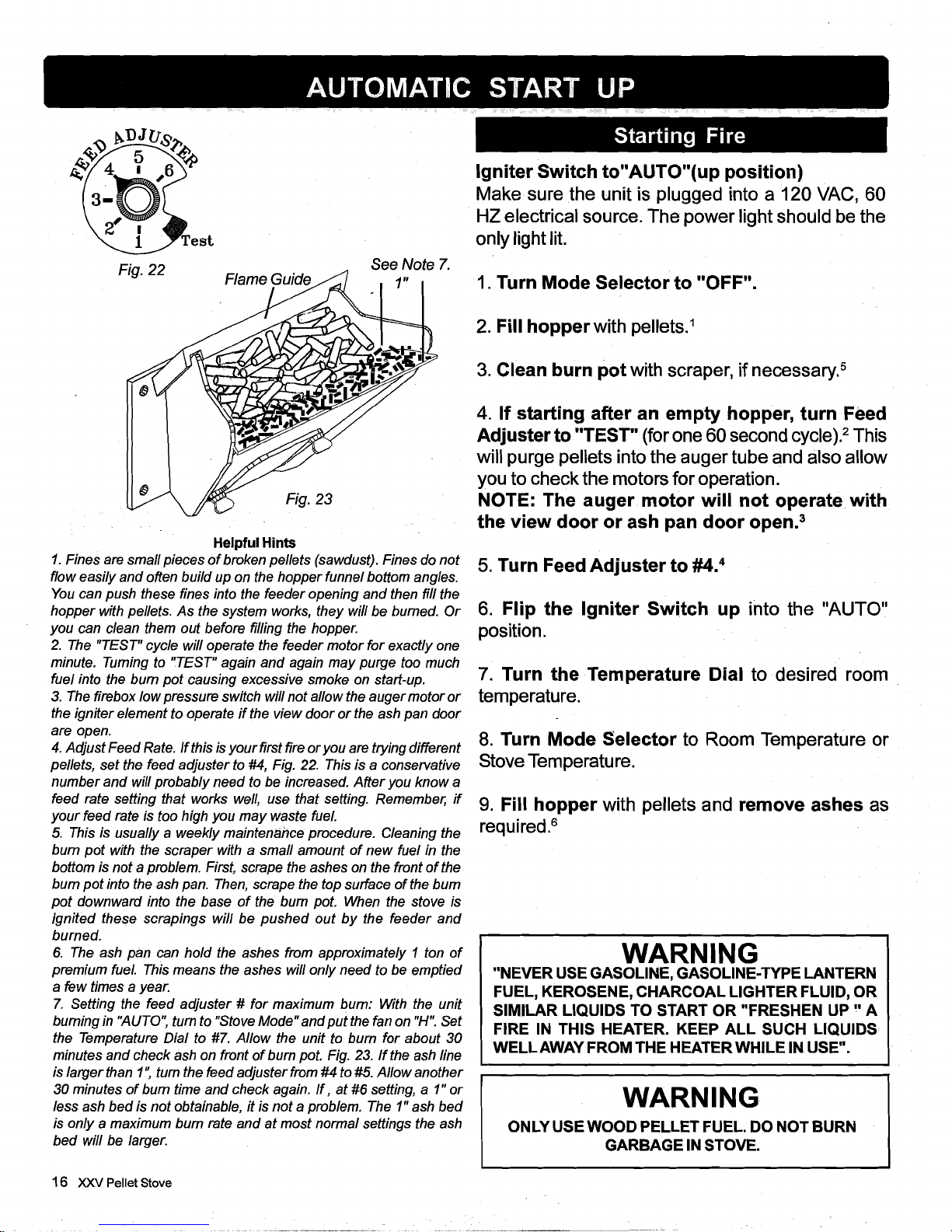

HelpfulHints
I. Fines are small pieces ofbrokenpellets (sawdust).Finesdonot
flow easilyand offen build upon the hopper funnelbottom angles.
You canpush these fines into the feederopeningand then fill the
hopper withpellets.As the system works, they willbe burned. Or
you can clean them out before filling the hopper.
2. The "TESTcycle will operate the feeder motor for exactlyone
lgniterSwitchto"AUTO"(up position)
Make sure the unit is pluggedinto a 120VAC, 60
HZ electricalsource.The powerlightshouldbethe
onlylightlit.
1.
Turn ModeSelectorto "OFF".
2. Fillhopper with pe1lets.l
3. Cleanburn pot with scraper, ifnecessary5
4. If starting after an empty hopper, turn Feed
Adjusterto "TEST"
(forone60secondcy~le).~This
willpurgepelletsintothe augertubeand alsoallow
you tocheckthe motorsfor operation.
NOTE: The auger motor will not operate with
the view door or ash pan door open.3
5. Turn FeedAdjuster to #4.4
6. Flip the Igniter Switch up into the "AUTO"
position.
minute. Tuming to "TEST again and again may purge too much
fuel into the bum pot causing excessive smoke on start-up.
7. Turn the Temperature Dial to desired room
3. Thefirebox lowpressure switch willnot allow theaugermotoror temperat~re.
the igniterelement tooperate if the viewdoor or the ash pan door
are open.
4. Adjust FeedRate.Ifthisisyourfirst fireoryou aretryingdifferent
8. Turn Mode Selector to Room Temperature or
pellets, set the feed adjusterto #4, Fig. 22. Thisis a conservative
StoveTemperature.
number and willprobably need to be increased.Affer you know a
feed rate
your feed
5. This is
setting that works well, use that Setting. Remember; if
9 Fill hopper with pellets and remove ashes as
rate is toohigh you may waste fuel.
usually a weeklymaintenanceprocedure. Cleaning the
req~ired.~
burn pot with the scraper with a small amount of new fuel in the
bottom is not aproblem. First, scrape the ashes on the front of the
bumpot into the ashpan. Then,scrapethetopsurface of thebum
pot downward into the base of the bum pot, When the stove is
ignited these scrapings will be pushed out by the feeder and
burned.
6. The ash pan can hold the ashes from approximately I ton of
premium fuel. Thismeans the ashes will only need to be emptied
a few times a year.
7, Setting the feed adjuster # for maximum bum: With the unit
bumingin 'XUTO",turnto"StoveMode" andput thefanon
"H". Set
the TemperatureDial to
#7. Allow the unit to burn for about 30
minutes and checkash on front of burnpot. Fig. 23. If the ash line
islargerthan
I", turnthe feedadjusterfrom #4 to #5. Allow another
30 minutes of bum time and check again. If,at
#6 setting, a I" or
less ash bed is not obtainable, it is not a problem. The
1" ash bed
is only a maximum burn rate and at most normal settings the ash
bed will be larger.
WARNING
"NEVERUSEGASOLINE,GASOLINE-TYPELANTERN
FUEL,KEROSENE,CHARCOALLIGHTERFLUID,OR
SIMILAR LIQUIDSTO START OR "FRESHEN UP
" A
FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS
WELLAWAY FROMTHE HEATERWHILE INUSE.
ONLY USEWOOD PELLETFUEL.DONOTBURN
GARBAGEINSTOVE.
16 XXV Pellet Stove

r------ 1
I
The XXV Pellet Stove is capable of manual operation. This also allows the
." I,
I
operatortomanuallycontroloperationduringanemergency(i.e. igniterfailure,when
I or , I
I I
usinga 502H batterybackup,or when usingcertain generators.)
I I
The unit can beswitchedbetween"AUTO"and "MANUAL" at any time during
k--- a " 0 -
operation.
I 0
'..
'..
NOTE: When starting the unit in the "AUTO
0 Room Mode: This mode and switching to "MANUAL", the fire must
!a- 0
setting, see below, will produce a
be large enough to start the distribution blower.
I
room temperature of 70 degrees The starting of the blower is a signal that the start
I
- with the
at cycle is completed and the fire will not go out.
medium speed.
I \
I I
Fig. 24
MANUAL @ 0 IGNITER u z
?" 5
IGNITER g
AUTO FEED
0 MOTOR 2 2
B *
COMBUSTION 0 BLOWER 5.g
D9
0
DISTRIBUTION 0 BLOWER
0
m
7
0 STATUS
0 POWER
I I
Fig. 25
Thissettingwillproduce alarge viewing fire
without a distributionbloweroperating.
laniter Switch to "MANUAL"
Room Temperature Mode
The fire will have to be lit with starting gel and a
match, or started automatically, see "Automatic Op-
eration" on Page 15. Turn to "Manual" positionwhen
thefire isestablished.
Thedifferencebetween"AUTO RoomTempera-
ture Mode and "Manual" Room Temperature Mode is
that the fire will not go out as the room temperature
goesabovethecontrolboardsetting.Theunitcanonly
go to low burnand will remainthere until it runsout of
fuel or until more heat is neededand thefeed rate in-
creases. Feed rate adjustmentsand dial settings are
thesameas"AUTO"settings.
'The blowerwillshutoff
completely
if thetemperatureonthe ESP istoo low.
laniter Switch to "MANUAL"
Stove Temperature Mode
Theadvantageofthis modeistoallowtheopera-
tor to have a large viewing fire without blowing extra
heatintothe room.
Duringoperation,with the temperaturedial setat
#5 or less,the distributionfan will notoperate.A#5on
the temperaturedial and a #5 on the feed adjuster is
approximately80% output. Itisnotnecessarytooper-
ate the distribution blower below this point. This con-
trol setting allows a higher burn rate (a largerviewing
fire)withoutanexcessof hotair blowingintothe room.
Anexampleofwhento usetheManualStoveTem-
perature Mode is if you want to watch a largefire and
theroomisalready uptotemperature.TheStoveTem-
perature Mode allows you to have a largerfire and a
lowersound level,withoutthe distributionblower.
NOTE: During the use of this mode, if you
keep increasingthe temperature dial setting to in-
crease the fire size, the distribution blower will
automaticallycome onwhenthe ESPTemperature
reaches
350" F, or 81 % output.
XXV Pellet Stove 17

IgniterSwitchtoWMANUAL"
(down position)
Makesure the unitispluggedintoa 120 VAC,
60
HZ electricalsource. The powerlightshould be
theonly lightlit.
I. Turn FEEDADJUSTER to desired feed rate.
No. 4 isgoodfor most pellet^.^
2. Turn the MODE SELECTOR to "OFF" and
then to the desired mode.
This will resetcon-
trolandstartthecombustionmotor.
3. TurntheTEMPERATURE DIALto the desired
setting.
4. Clean burn potwith scraper ifnecessary.=
5. Fillburr1potwith pellets,onlylevelwithfront
edge.
(DoNotOver Fill).
HelpfulHints
6. Add starting gel on top of the pellets. Stir gel
I. Finesare smallpieces of brokenpellets (sawdust).Finesdonot
flow easily and offenbuild up on the hopper funnel bottomangles.
intopelletsfor fast lighting.
You canpush thesefines into the feeder opening and then fill the
7. Lighfstartinggelwitha match,and closethe
hopper withpellets. As the system works, they will be burned. Or
door. operationwill beginwhenthefire reaches
you can clean them out before filling the hopper.As the system
works, they will be burned.
the propertemperat~re.~
2. The "T~T"cyclewilloperatethefeedermotorforexactlyone 8. ~i~~~~~~~~~it~~~~~~~~~~~~~~~~~~~~~~~
minute. Turning to "TEST" again and again may purge too much
fuel into the burn pot causing excessive smoke on start-up.
required.ls6
3. Thefirebox lowpressureswitch willnotallowtheaugermotor or
the igniter element to operate
if the view door or the ash pan door
are open.
4. Adjust Feed Rate. Ifthisisyourfirst fire oryou aretryingdifferent
pellets, set the feed adjuster to
#4, Fig. 26. This is a conservative
number and willprobably need to be increased.Affer you know a
feed rate setting that works well, use that setting. Remember, if
your feed rate is too high you may waste fuel.
5. Thisis usually a weekly maintenanceprocedure. Cleaning the
bum pot with the scraper with a small amount of new fuel in the
bottomis not aproblem. First, scrape the ashes on thefront of the
bumpot intothe ashpan. Then,scrapethe topsurfaceof the burn
pot downward into the base of the burn pot. When the stove is
ignited these scrapings will be pushed out by the feeder and
burned.
6. The ash pan can hold the ashes from approximately
I ton of
premium fuel. Thismeans the ashes will only need to be emptied
a few times a year.
7. Setting the feed adjuster # for maximum burn: With the unit
burningin 'HATO",turnto "StoveMode"andput thefanon
"H. Set
the Temperature Dial to
#7. Allow the unit to burn for about 30
minutesand check ash on front of burnpot. Fig.
28. If the ash line
islargerthan
I", turnthefeed adjusterfrom#3 to #4. Allow another
30 minutes of burn time and check again. If,at #6 setting, a
I" or
less ash bed is not obtainable,it is not a problem. The
I" ash bed
is only a maximum burn rate and at most normal settings the ash
bed will be larger.
18 XXV PelletStove
WARNING
"NEVERUSEGASOLINE,GASOLINE-TYPELANTERN
FUEL, KEROSENE,CHARCOALLIGHTERFLUID,OR
SIMILAR LIQUIDSTO START OR "FRESHEN UP " A
FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS
WELLAWAY FROMTHE HEATERWHILE INUSE".
ONLY USE WOOD PELLET FUEL. DO NOT BURN
GARBAGEINSTOVE.

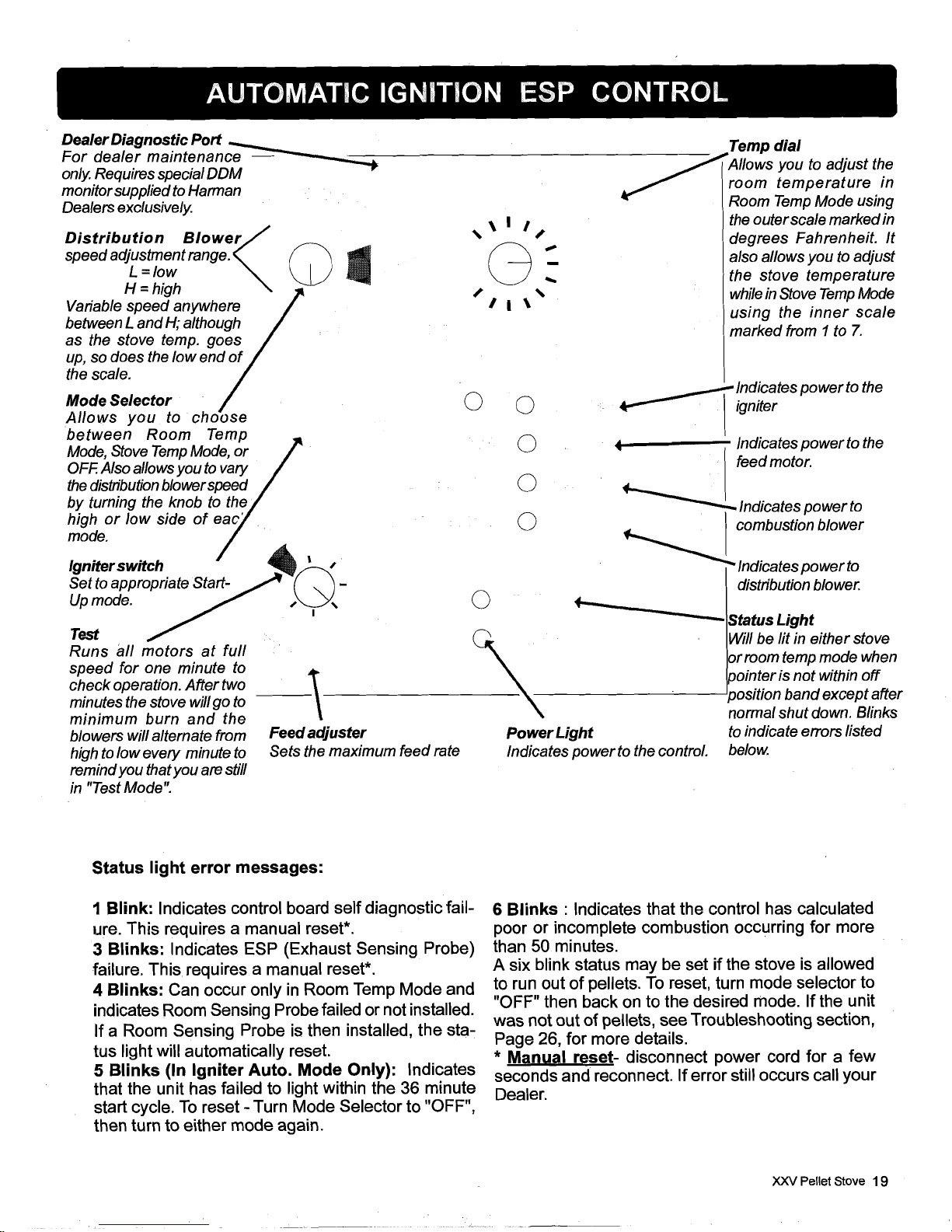

DealerDiagnosticPort
For dealer maintenan
only RequiresspecialDDM
monitorsuppliedtoHanan
Dealersexclusively
Distribution
speedadjustmentrange.
L=low
H = high
Variablespeed anywhere
betweenLandH; although
as the stove temp. goes
up,so doesthelow endof
thescale.
ModeSelector
/
Allows you to choose
,Temp dial
Allows you to adjust the
room temperature in
Room TempMode using
theouterscalemarkedin
degrees Fahrenheit. It
also allowsyou to adjust
the stove temperature
whileinStoveTempMode
using the inner scale
marked from
I to 7.
-Indicates power tothe
igniter
Status light error messages:
between Room Temp
0
I
Mode, StoveTempMode, or
4
lndicatespowertothe
I Blink: lndicatescontrolboardself diagnosticfail-
6 Blinks : Indicatesthat the control has calculated
we. This requiresa manual reset*. poor or incompletecombustion occurringfor more
3 Blinks: lndicates ESP (Exhaust Sensing Probe) than 50 minutes.
failure. This requiresa manual reset*.
A six blinkstatus may be set if the stove is allowed
4 Blinks: Canoccur only in RoomTemp Modeand to run out of pellets.TOreset,turn modeselector to
indicatesRoomSensingProbefailedor notinstalled.
"OFF" then back on tothe desired mode. Ifthe unit
was notoutof pellets seeTroubleshootingsection,
Ifa Room Sensing Probe is then installed, the sta-
Page 26, for more d;tails.
tus lightwill automaticallyreset.
* Manual- disconnect power cord for a few
(In Igniter Auto- Mode Only): Indicates
secondsandreconnect.Iferrorstilloccurscallyour
that the unit hasfailed to light within the
36 minute
start cycle.To reset -Turn ModeSelectorto
"OFF",
thenturnto either modeagain.
OFF:Also allowsyou tovary
XXV Pellet Stove 19
feedmotor.
thedistributionblowerspeed
by turning the knob to the
0
high or low side of
0
lndicatespower to
vustionblower
mode.
Igniterswitch Indicatespowerto
0
Test
Runs all motors at full
speed for one minute to
checkoperation.After two
distributionblower.
StatusLight
Willbe lit in eitherstove
orroomtempmode when
I
pointer isnot withinoff
minutesthestovewillgoto position bandexceptafter
minimum burn and the normal shutdown. Blinks
blowers willalternatefrom Feedadjuster PowerLight toindicateerrorslisted
high tolowevery minuteto Setsthemaximumfeedrate Indicatespower tothecontrol. below.
remindyou thatyouan? still
in "TestModeff.

Combustion
Bd
Fig. 29
Control
Low draft
onlyset
point.
The small
' straight
, screwdriver
slot isplastic;
therefore, the
unitcanbe
adjustedwhile
in operation.
g
These units are pre-tested at the factory with
exactly 120 Volts A.C., 60
Hz. They are checked and
adjusted for firebox tightness, gasket leakage, motor
operationandigniteroperation. TheXXV isthenfactory
setat a mid-pointadjustmentand inmost caseswill not
need any adjustments.
NOTE: The factory low draft
setting may not be correctfor the unit's permanent
installation conditions.
ThecontrolboardontheXXV isequippedwith a
low draft adjustment port. Located on the control face
just to the leftofthe igniterlight.Thisvoltage adjustment
is provided to allow the unit to be adjusted for the
household voltage where the unit is going to be in
permanent operation.
NOTE: The line voltage varies
from area to area and often home to home.
The low draft voltage should be adjusted to
achieve the most efficient burn on low burn or
"maintenance". This voltage adjustment allows the
installertochangethe lowvoltageset pointapproximately
10volts. Thisadjustmentshouldbedonebytheinstaller
duringsetupbecauseadraftmeter readingis
reauired
to insureproperset up.
If the unit is not adjusted properly, it does not
cause a safety concern. Ifthe unit isadjustedtoo high,
onlyeffiencyislost.Ifthe unitisadjustedtoolow, the low
draftpressureswitchwill notallowthefeed motoror the
igniterto operate.
DraftMeterboltholelocation
isjust behind the left front
leg, nearthe top of the ash
panarea.
1. /
Fig. 30
A simple draft test should be performed after
completingtheflue pipeinstallation.To recordthe results
for future reference:
1. Plugunit into a 120VAC,60
HZ outlet.
2. Close the hopper lid, front view door, and the ash
pan. Neitherpelletsor a fire are requiredfor this test.
3. With the mode selector in the "OFF" position, turn
thefeed adjusterto "TEST".
4. Recordthe highdraft inW.C. (Normalis-50to
-.60)The controlwill beon the HighDraftfor a totalof 2
minutes.
5. After 2 minutes, the combustion motor will go down
to low draft and the distributionblowerwill go on high.
Allow approximately 15 seconds to pass for the
combustionmotortoslow beforecheckingthe lowdraft.
6. Ifthe low draft is between
-.35 and -.45, record the
reading inW.C. If the reading is higher, slowly
turn the set screw counter-clockwise until the draft
lowers. If the reading is lower, verv slowlv turn the set
screw clockwiseuntil the draft increases.
NOTE: The test mode alternates from high to low
draft every
60 seconds. If more time is needed for
draftadjustment,wait untilthe nextlow draftcycle.
NOTE: In some cases, the draft may not go as low
as
-.35 to -.45 even with the set screw completely
counter-clockwise,ideally,you shouldjust set itas
lowas possible.
20 XXV PelletStove
