ECOVACS DEEBOT U2 Series User manual

Instruction Manual/Bedienungsanleitung/Manual de instrucciones
Manuel d'instructions/Manuale d'uso/Руководство по эксплуатации

2
EN
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician will be able to help you with your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS ofcial website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing DEEBOT!
Instruction Manual ����������������������������������������������������������������������������������������������������������� 2
EN
Bedienungsanleitung ���������������������������������������������������������������������������������������������������� 30
DE
Manual de instrucciones ���������������������������������������������������������������������������������������������� 59
ES
Manuel d'instructions ���������������������������������������������������������������������������������������������������� 87
FR
Manuale d'uso �������������������������������������������������������������������������������������������������������������� 115
IT
Руководство по эксплуатации�������������������������������������������������������������������������������� 143
RU

3EN
Important Safety Instructions
1. This Appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and knowl-
edge if they have been given supervision or
instruction concerning use of the Appliance
in a safe way and understand the hazards
involved. Children shall not play with the
Appliance. Cleaning and user maintenance
shall not be made by children without super-
vision.
2. Clear the area to be cleaned. Remove pow-
er cords and small objects from the oor
that could entangle the Appliance. Tuck rug
fringe under the rug base, and lift items such
as curtains and tablecloths off the oor.
3. If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the
step without falling over the edge. It may be-
come necessary to place a physical barrier at
the edge to keep the unit from falling. Make
sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply source
voltage matches the power voltage marked
on the Docking Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Use only the original rechargeable battery
and Docking Station provided with the Appli-
ance from the manufacturer. Non- recharge-
able batteries are prohibited.
8. Do not use without dust bin and/or lters in place.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE

4
EN
9. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environ-
ments (below -5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, ngers, and all
parts of body away from any openings and
moving parts.
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up ammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything
that is burning or smoking, such as ciga-
rettes, matches, hot ashes, or anything that
could cause a re.
17. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air ow.
18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power cord
as a handle, close a door on the power cord, or
pull power cord around sharp edges or corners.
Do not run Appliance over the power cord.
Keep power cord away from hot surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Docking Station if it is dam-
aged. The power supply is not to be repaired
and not to be used any longer if it is dam-
aged or defective.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or
Docking Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.

5EN
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.
23. The plug must be removed from the recepta-
cle before cleaning or maintaining the Dock-
ing Station.
24. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations be-
fore disposal of the Appliance.
26. Please dispose of used batteries according
to local laws and regulations.
27. Do not incinerate the Appliance even if it is
severely damaged. The batteries can ex-
plode in a re.
28. When not using the Docking Station for a
long period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable
or responsible for any damages or injuries
caused by improper use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace
the robot’s battery, please contact Customer
Service.
31. If the robot will not be used for a long time,
power OFF the robot for storage and unplug
the Docking Station.
32. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit DN622.13 provided with the Appliance.
To satisfy RF exposure requirements, a
separation distance of 20 cm or more should
be maintained between this device and
persons during device operation.
To ensure compliance, operations at closer
than this distance is not recommended. The
antenna used for this transmitter must not
be co-located in conjunction with any other
antenna or transmitter.
SAVE THESE INSTRUCTIONS

6
EN
To disable Wi-Fi module on DEEBOT, power the
robot ON.
Place the robot on the Docking Station making
sure the Charging Contacts on DEEBOT and the
Docking Station Pins make a connection.
Press and hold the AUTO Mode Button on the
robot for 20 seconds until DEEBOT emits 3 beeps.
To enable Wi-Fi module on DEEBOT, power the
robot OFF and then power ON. The Wi- Fi module
is turned on when DEEBOT is restarted.
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household waste
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
recycle your used device, please use the return
and collection systems or contact the retailer
where the product was purchased. They can safely
recycle this product.
For EU Countries
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
detachable supply unit
For EU Declaration of Conformity information, visit
https://www.ecovacs.com/global/compliance

7EN
Contents
1. Package Contents.............................................................................................................................................................8
2. Operating and Programming..........................................................................................................................................12
3. Maintenance ....................................................................................................................................................................20
4. Troubleshooting...............................................................................................................................................................26
5. Product Specications....................................................................................................................................................29

8
EN

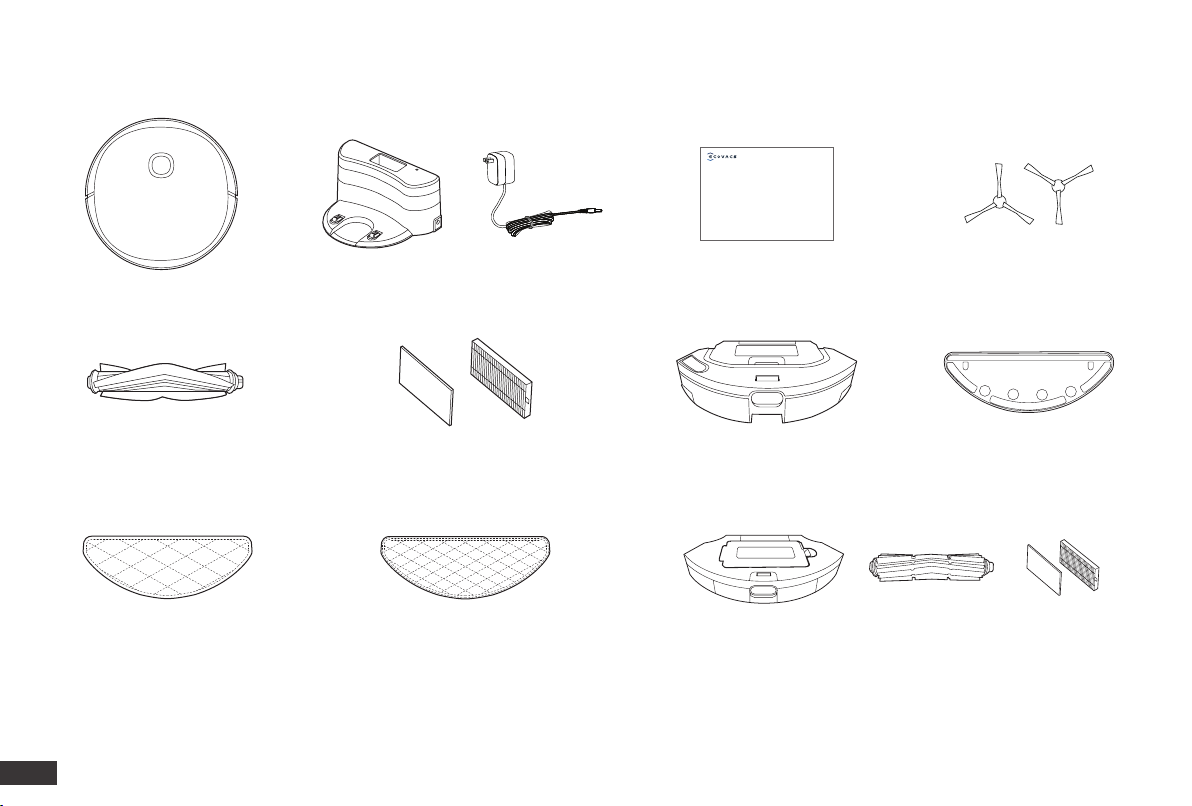

Robot Docking Station+Power Adapter Instruction Manual Side Brushes
High Efciency Filter &
Sponge Filter
Disposable Cleaning
Cloths
Cleaning Cloth Plate
Pet Care Kit (For DGN22-72 & DGN22-74)
XL Dust Bin + Tangle-free Brush + Filter for XL Dust Bin
Dust Bin and Reservoir
(Pre-installed)
Main Brush (Pre-installed)
Washable/Reusable
Microber Cleaning Cloth
1. Package Contents/1.1 Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
Instruction Manual
+ +

9EN
Robot
Wi-Fi Indicator
Infrared Anti-
Collision
Sensor and Bumper
AUTO Mode Button
RESET Button
Power Switch
(I=ON, O=OFF)
Bottom
Charging Contacts
Anti-Drop Sensors
Anti-Drop Sensors
Universal Wheels
Main Brush
Option
Battery
Driving Wheels
Side Brushes
Main Brush Release
Button
1. Package Contents/1.2 Product Diagram

10
EN

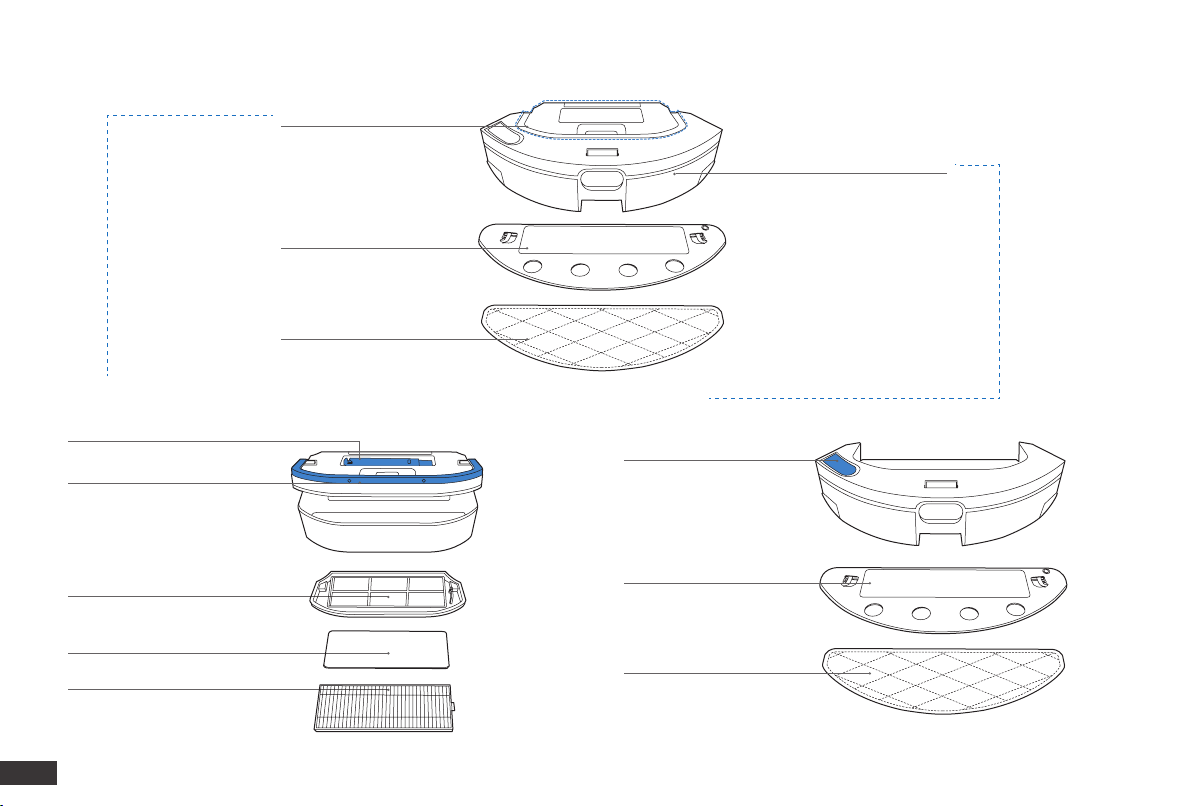

Dust Bin and Reservoir (Pre-installed)
Dust Bin Reservoir
Dust Bin
Reservoir
Cleaning Cloth
Cleaning Cloth Plate
Cleaning Cloth Plate
Cleaning Cloth
Water Inlet Cover
Filter Net
Sponge Filter
High Efciency Filter
Multi-function Cleaning Tool
Dust Bin Handle

11 EN
XL Dust Bin (For DGN22-72 & DGN22-74) Docking Station
Power Adapter Port
Infrared Signal Emitter
Charging Contacts
Sponge Filter
High Efciency Filter
Filter Cover Release Button
Dust Bin Release Button
Filter Net

12
EN
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place.
Put away objects including
wires, cloths and slippers,
etc. on the oor to improve
the cleaning efciency.
Before using the product on
a rug with tasseled edges,
please fold the rug edges
under.
It may be necessary to place a physical barrier at the edge of a drop
to stop the unit from falling over the edge.
Please do not stand in narrow
spaces, such as hallways,
and make sure not to block
DEEBOT.
2. Operating and Programming/2.1 Notes Before Cleaning

13 EN
1 Remove Protective Materials
2 Install Side Brushes
2. Operating and Programming/2.2 Quick Start
Click

14
EN

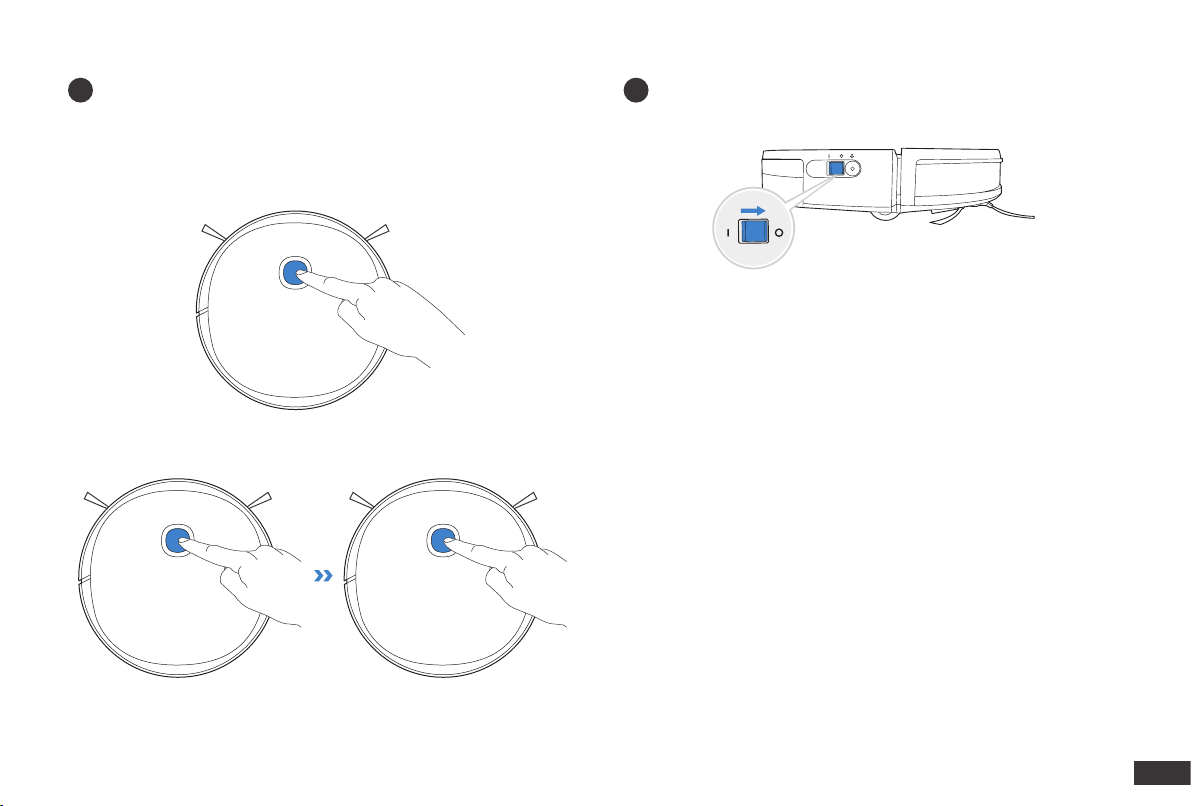

Note: I = ON, O = OFF
DEEBOT cannot be charged when being powered OFF.
4.5-5.5h
*Empty the reservoir and remove the Cleaning Cloth Plate before
charging DEEBOT.
*It is suggested to avoid picking up or moving DEEBOT during the
cleaning for DEEBOT to return to charge successfully.
2. Operating and Programming/2.3 Charging DEEBOT
1 Docking Station Placement 3 Charge DEEBOT
2 Power ON

15 EN

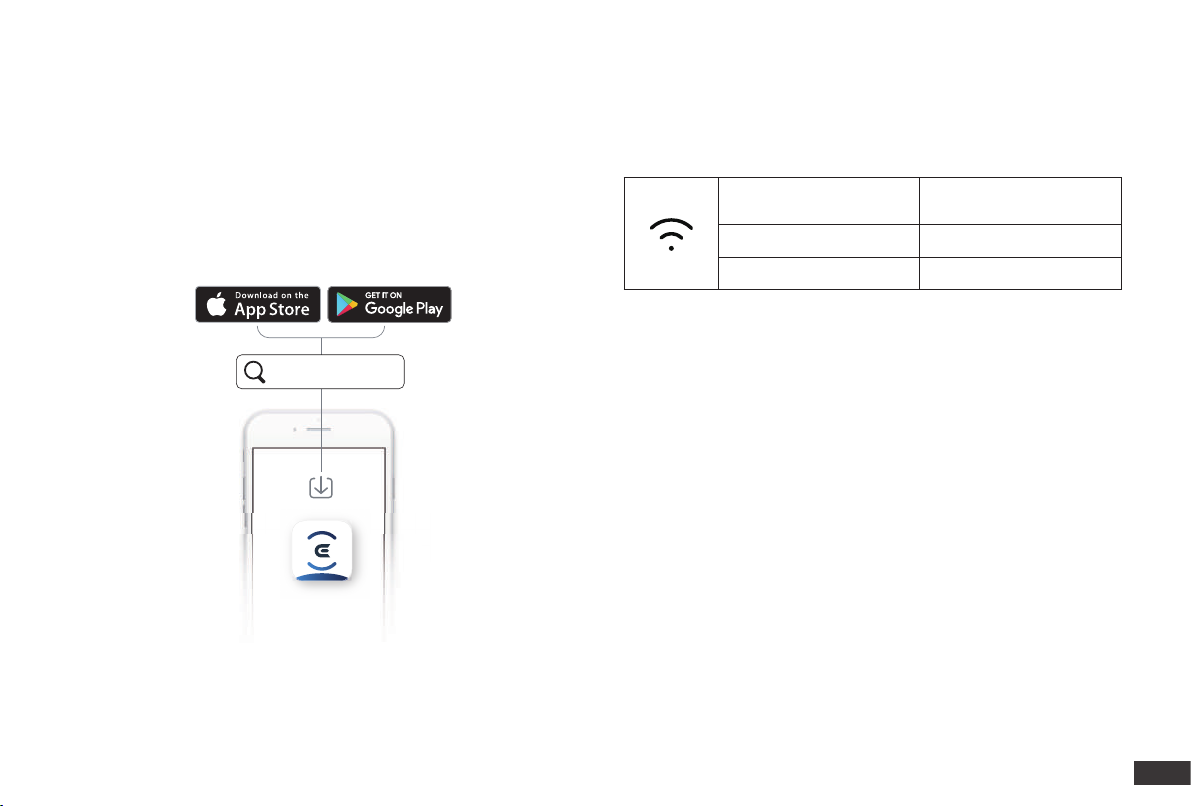

2. Operating and Programming/ 2.4 ECOVACS HOME App
ECOVACS HOME
HOME
To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app.
Wi-Fi Indicator LightBefore you start, make sure that:
Tips:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting > Wi-Fi Connection section in this manual.
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on DEEBOT is slowly ashing.
Slowly ashing Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly ashing Connecting to Wi-Fi
Solid Connected to Wi-Fi

16
EN
During the rst cleaning, please supervise DEEBOT and assist it should there be a problem.
2. Operating and Programming/ 2.5 Operating DEEBOT
1 Start

17 EN
The robot’s Control Panel stops glowing after the robot is paused for
a few minutes. Press the AUTO Mode Button on DEEBOT to wake up
the robot.
If the pause duration is shorter than 10 minutes, DEEBOT will return
to nish the cleaning where it left off.
Pause
Wake Up Start
*If DEEBOT will not be used for a while, fully charge DEEBOT and
power OFF before storage. Charge DEEBOT every 1.5 month to
prevent battery drain.
*When DEEBOT is not cleaning, it is recommended to keep DEEBOT
powered ON and charging.
2 Start/Pause 3 Power OFF

18
EN

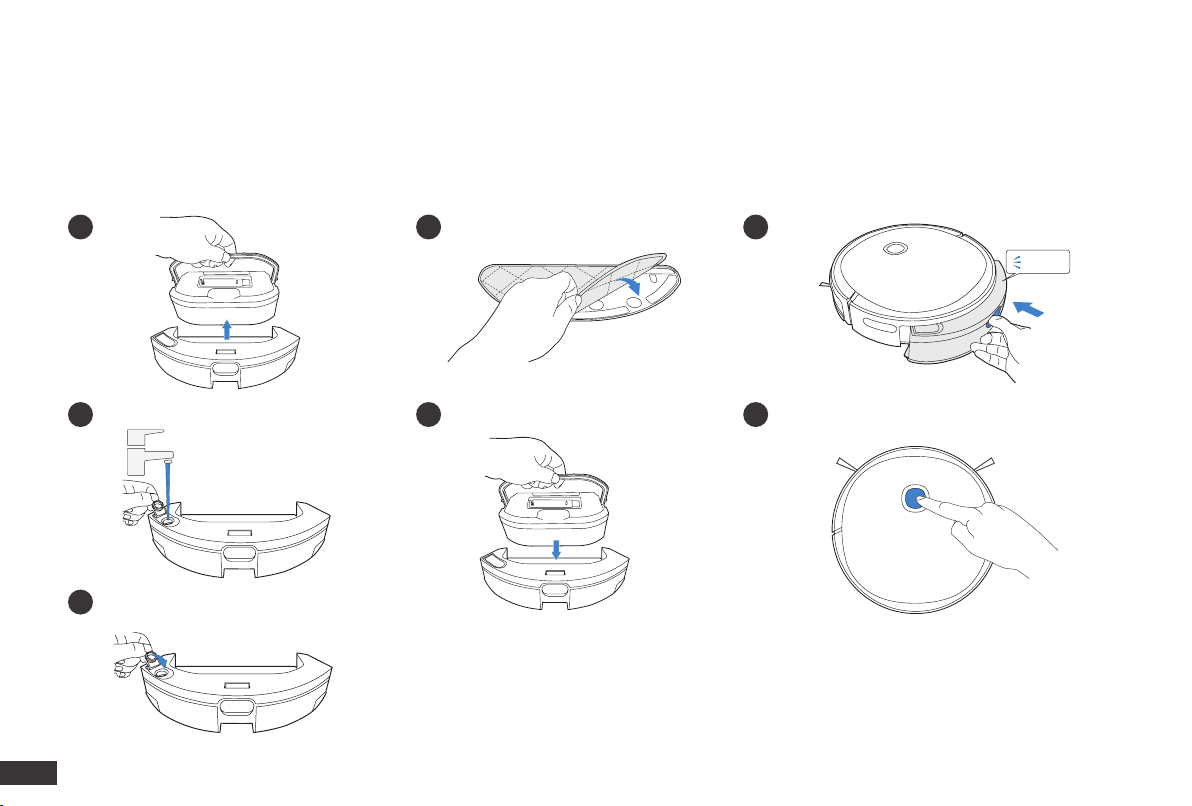

Add Water Install Dust Bin & Reservoir
Note:
1. To prolong the service life of the reservoir, it is recommended to use puried water or softened water.
2. Please avoid using the mopping system on the carpet.
2. Operating and Programming/2.6 Dust Bin & Reservoir
1 1
2
4
2
3
5
Click

19 EN
Install XL Dust Bin
Tangle-free Brush is specically designed to pick up hair without tangling. It is suggested to increase the vacuum power in ECOVACS HOME App
when using Tangle-free Brush.
Uninstall the Dust Bin and Reservoir
Install the XL Dust Bin
Install Tangle-free Brush
Release the Brush Cover
Uninstall the Main Brush
Install Tangle-free Brush
1 1
2
3
2
2. Operating and Programming/2.7 Pet Care Kit (For DGN22-72 & DGN22-74)
Click

20
EN
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Disposable Cleaning Cloth / Dispose after each use
Washable/Reusable Microber
Cleaning Cloth After each use Every 50 washes
Reservoir After each use /
Side Brush Once every 2 weeks Every 3-6 months
Main Brush
Tangle-free Brush Once per week Every 6-12 months
Sponge Filter/ High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Docking Station Pins
Once per week /
3. Maintenance/3.1 Regular Maintenance
