1. This Appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the Appliance
in a safe way and understand the hazards
involved. Children shall not play with the
Appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
2. Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Appliance. Tuck rug fringe
under the rug base, and lift items such as
curtains and tablecloths off the oor.
3. If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the step
without falling over the edge. It may become
necessary to place a physical barrier at the
edge to keep the unit from falling. Make sure
the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by the
manufacturer.
5. Please make sure your power supply voltage
matches the power voltage marked on the
Charging Dock.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Non-rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in
place.
9. Do not operate the Appliance in an area where
there are lit candles or fragile objects.
10. Do not use in extremely hot or cold
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
1. Important Safety Instructions

5EN
environments (below -5˚C/23˚F or above
40˚C/104˚F).
11. Keep hair, loose clothing, ngers, and all parts
of body away from any openings and moving
parts.
12. Do not operate the Appliance in a room where
an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a re.
17. Do not put objects into the suction intake. Do
not use if the suction intake is blocked. Keep
the intake clear of dust, lint, hair, or anything
that may reduce air ow.
18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Charging
Dock by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners. Do not run Appliance over the
power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
21. Do not use with a damaged power cord
or receptacle. Do not use the Appliance or
Charging Dock if it is not working properly,
has been dropped, damaged, left outdoors, or
come in contact with water. It must be repaired
by the manufacturer or its service agent in
order to avoid a hazard.
22. Turn OFF the power switch before cleaning or
1. Important Safety Instructions

6
EN
maintaining the Appliance.
23. The plug must be removed from the receptacle
before cleaning or maintaining the Charging
Dock.
24. Remove the Appliance from the Charging
Dock, and turn OFF the power switch to the
Appliance before removing the battery for
disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance.
26. Please dispose of used batteries according to
local laws and regulations.
27. Do not incinerate the Appliance even if it is
severely damaged. The batteries can explode
in a re.
28. When not using the Charging Dock for a long
period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable
or responsible for any damages or injuries
1. Important Safety Instructions
caused by improper use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace or
remove the battery, please contact Customer
Service.
31. If the robot will not be used for a long time, fully
charge the robot and power OFF for storage
and unplug the Charging Dock.
32.WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit YJS015F-1900600G/DK18-190060H-V
provided with this appliance.
33. The Remote Control requires two non-
rechargeable AAA batteries. To replace the
battery of the Remote Control, please turn
over the Remote Control, press and remove
its Battery Cover. Remove the batteries,
and insert the new batteries with the correct
polarity. Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be
recharged.
35. Different types of batteries or new and used

7EN
1. Important Safety Instructions
batteries are not to be mixed.
36. Batteries of the Remote Control are to be
inserted with the correct polarity.
37. Exhausted batteries are to be removed from
the Appliance and safely disposed of.
38. If the Remote Control is to be stored unused
for a long period, the batteries should be
removed.
39. The supply terminals are not to be short-
circuited.
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household
waste throughout the EU. To prevent possible
harm to the environment or human health
from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse
of material resources. To recycle your used
device, please use the return and collection
systems or contact the retailer where the
product was purchased. They can safely
recycle this product.
For EU Countries
To disable Wi-Fi module on DEEBOT, power the
robot ON.
Place the robot on the Docking Station making
sure the Charging Contacts on DEEBOT and the
Docking Station Pins make a connection.
Press and hold the AUTO Mode Button on the
robot for 10 seconds until DEEBOT emits 3
beeps.
To enable Wi-Fi module on DEEBOT, power the
robot OFF and then power ON. The Wi-Fi module
is turned on when DEEBOT is restarted.

8
EN
Charging Dock +
Power Adapter

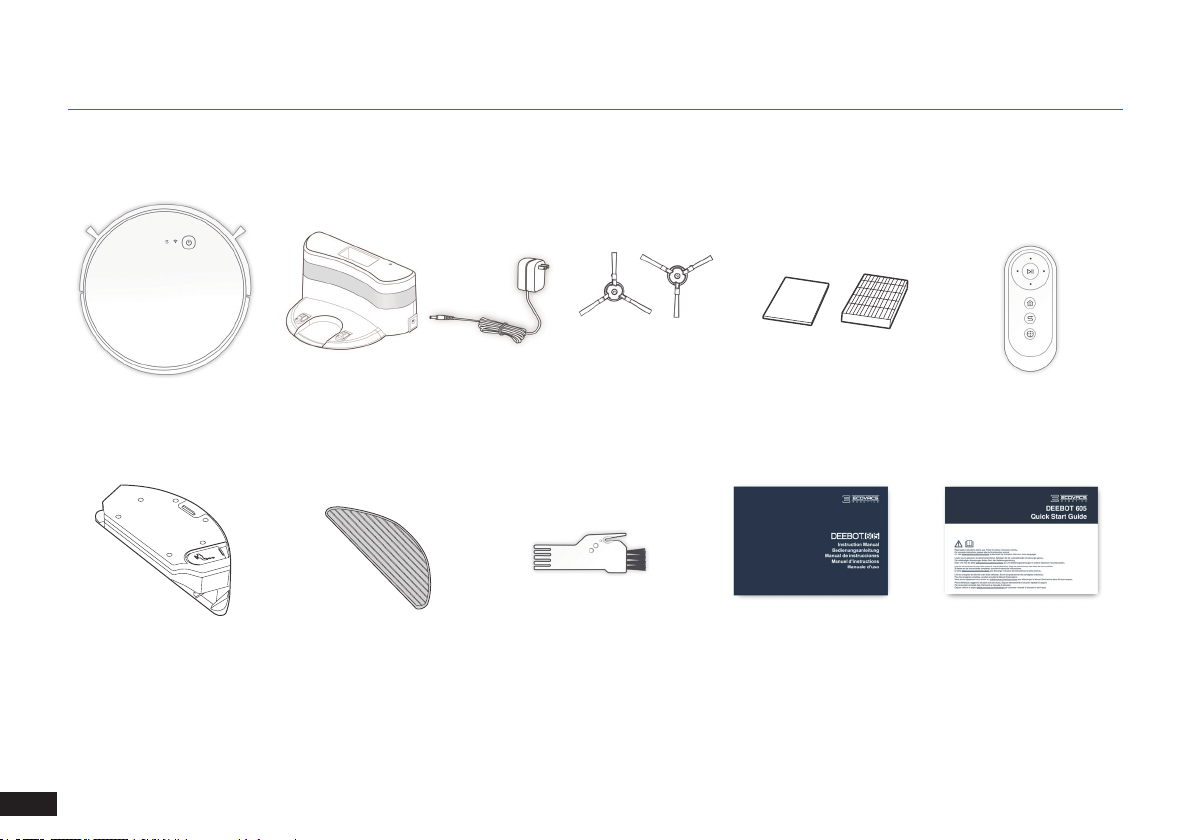

2.1 Package Contents
Robot Remote Control with
Batteries
Sponge Filter and High
Efciency Filer
(4) Side Brushes
Washable/Reusable
Microber Cleaning Cloth
Multi-Function Cleaning
Tool
Reservoir Instruction Manual Quick Start Guide
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
2. Package Contents

9EN
2. Package Contents
Anti-Collision Sensors and
Bumper

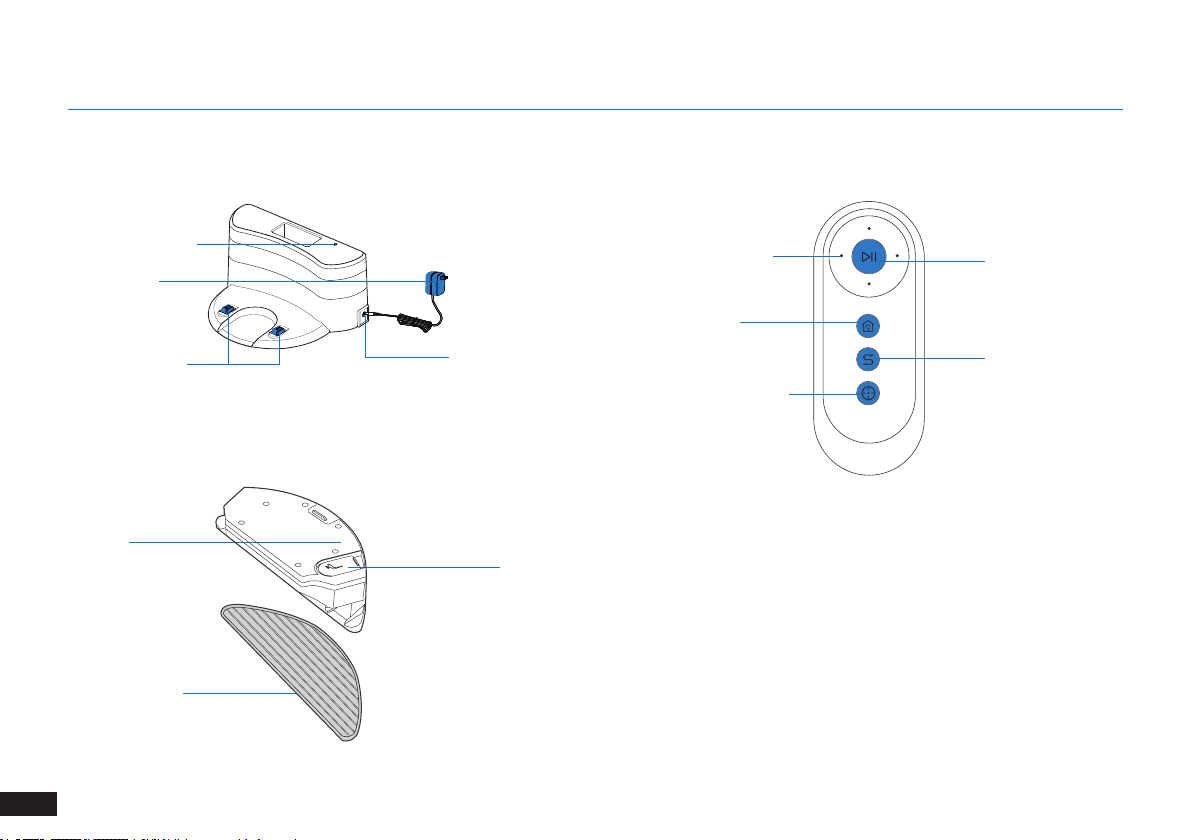

2.3 Product Diagram
Robot
AUTO Mode Button
Wi-Fi Indicator
Cleaning Mode Switch
Indicator
Power Switch
Reset Button
Dust Bin/
Reservoir Release Button
Anti-Drop Sensors
Main Brush Option
Dust Bin/Reservoir
Charging Contacts
Universal Wheel
Side Brushes
Bottom View

10
EN
2. Package Contents
Power Indicator Light
Power Adapter
Power Adapter Port
Water Inlet
START/PAUSE Button
Cleaning Mode Switch
Button
Charging Dock Pins
Reservoir
Washable/Reusable
Microber Cleaning Cloth
Direction Control Buttons
Spot Cleaning Mode Button
Return to Charger
Mode Button
Charging Dock
Advanced Mopping System
Remote Control

11 EN

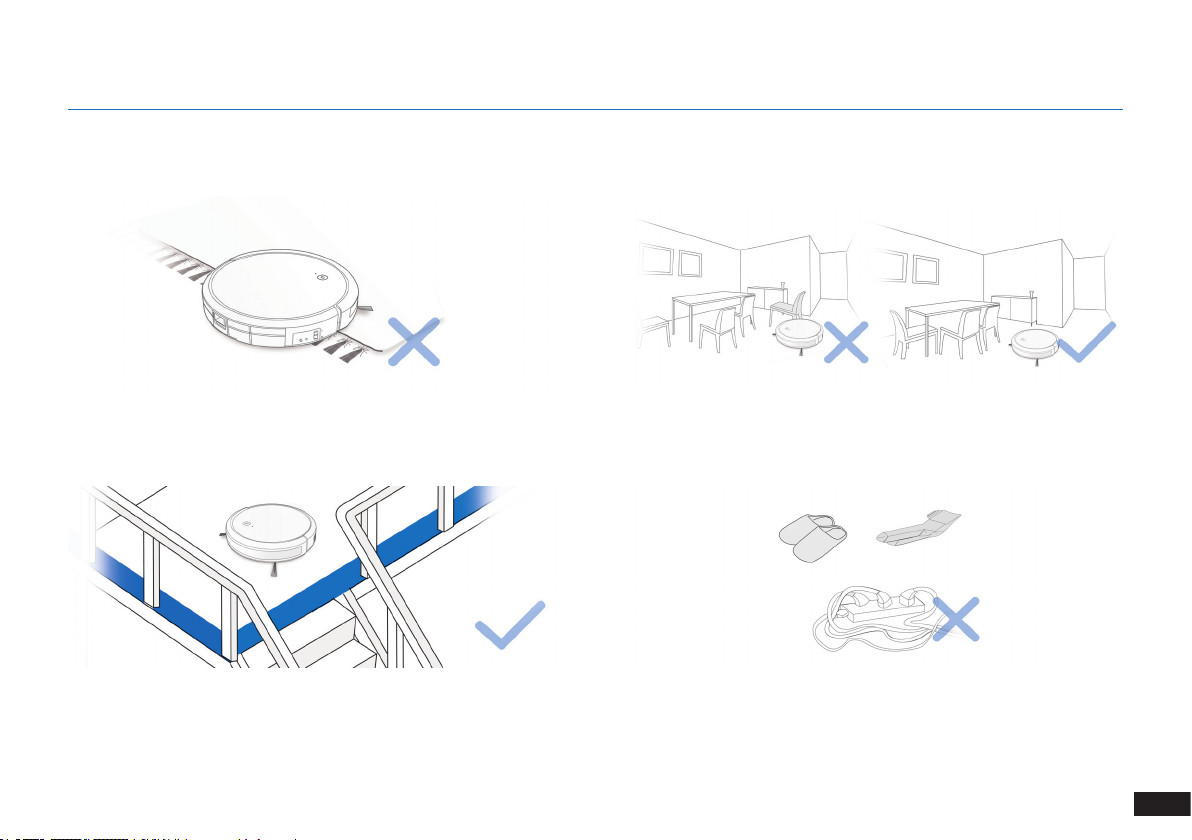

Before using the product on a rug with tasseled edges, please fold the
rug edges under.
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.
It may be necessary to place a physical barrier at the edge of a drop to
stop the unit from falling over the edge.
Remove power cords and small objects from the oor that the robot
could be obstructed by.
3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place.
3. Operating and Programming

12
EN
1Plug in Adapter 2Charging Dock Placement 3Install Side Brushes
4Power ON

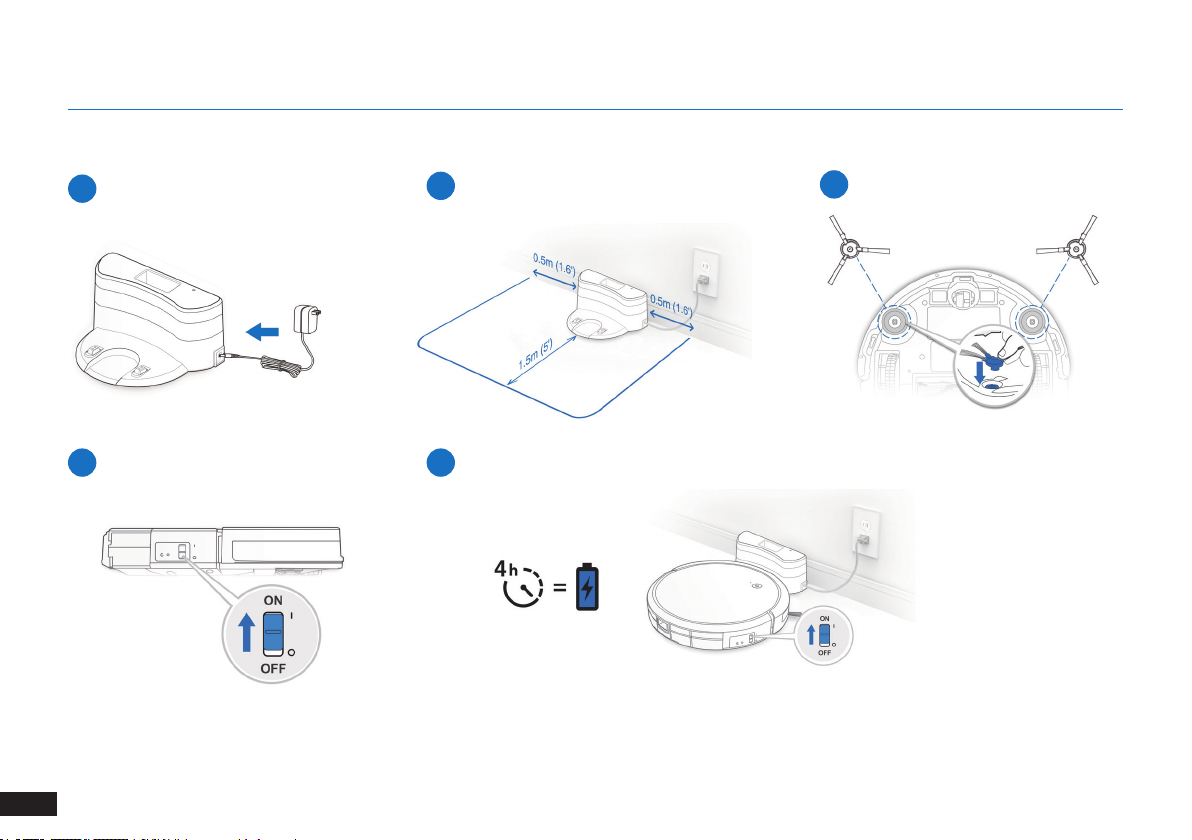

3.2 Preparation
Note: When DEEBOT completes the cleaning cycle or when battery power gets
low, DEEBOT automatically returns to the Charging Dock to recharge itself.
5Charge DEEBOT
3. Operating and Programming

13 EN
3. Operating and Programming
3Install Side Brushes
OR

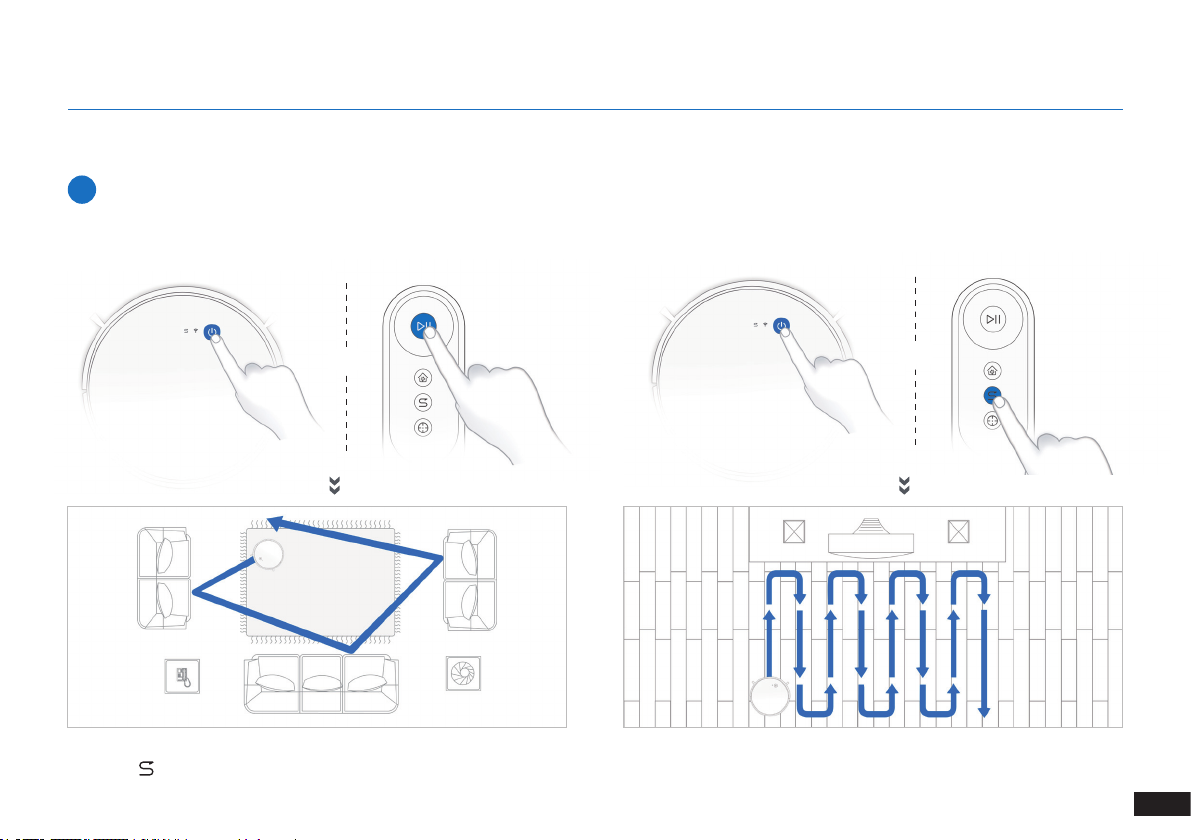

3.3 Selecting Cleaning Mode
1AUTO Cleaning Mode
ARandom Cleaning Pattern (optimized for carpets) will be selected by
default.
To switch to a Programmed Cleaning Pattern (optimized for hard oors)
or switch between these two patterns, perform the following action:
OR
x2
Note: Cleaning pattern cannot be switched until DEEBOT is paused or charging. DEEBOT will start a new cleaning cycle once cleaning pattern is
switched. will light up once Programmed Cleaning Pattern is enabled.

14
EN
All the functions mentioned above can be enabled on the App.
Download ECOVACS App to access more features, including Edge
Cleaning, Scheduled Cleaning, etc.
iOS 9.0 or later Android 4.0 or later
2
OR
2Spot Cleaning Mode (Less than 3 minutes)
3Return to Charging Dock
≥3s
3. Operating and Programming
ECOVACS HOME

15 EN
3. Operating and Programming
3.4 Pause, Wake Up, Power Off

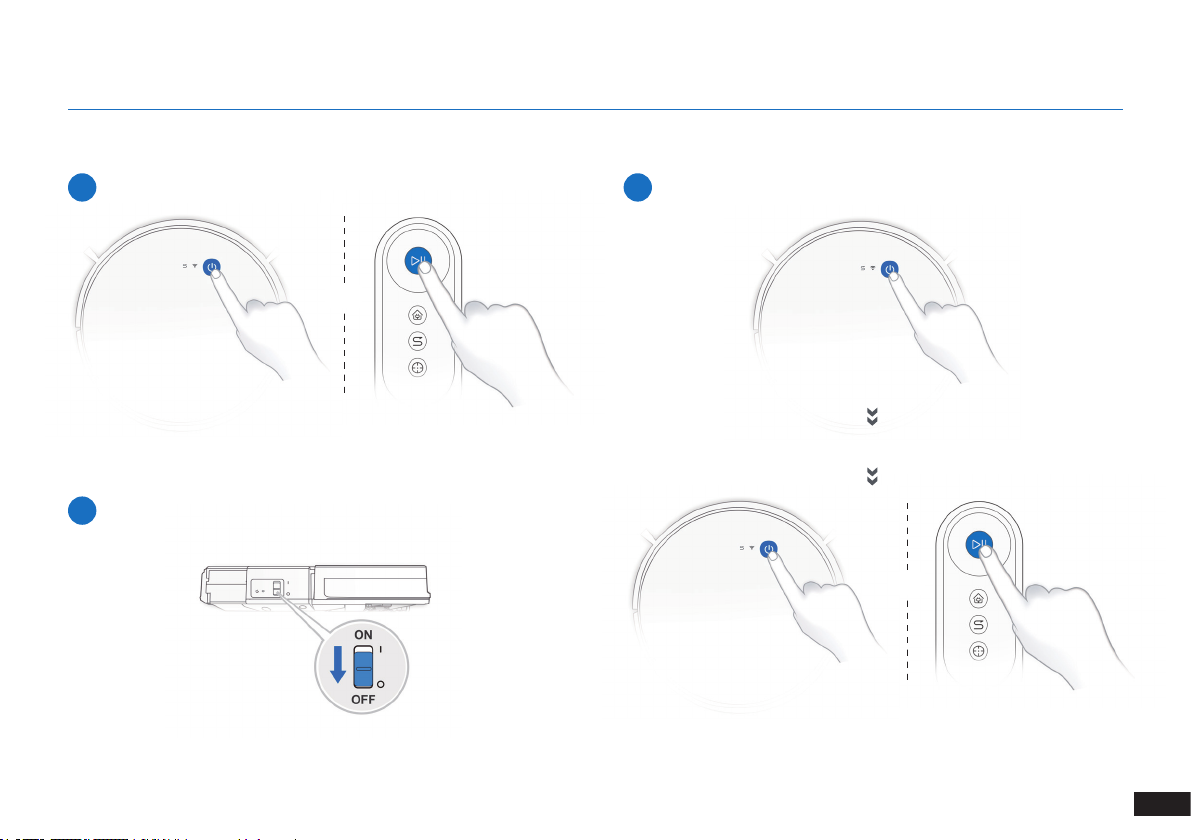

1Pause 2Wake Up
Note: The robot’s Control Panel stops glowing after the robot is paused
for a few minutes. Press the AUTO Mode Button on DEEBOT to wake
up the robot.
Press the AUTO button on DEEBOT to wake it up
3Power OFF
Note: When DEEBOT is not working, it is recommended to keep it
switched ON and charging.
OR
OR

16
EN
3.5 Optional Mopping System
Note: Empty the Reservoir and remove the Cleaning Cloth Plate before cleaning on carpet.
When using the mopping system, fold area rug edges under themselves so DEEBOT will avoid the rug.
Be sure to use only water, and do not put washer uid or any other cleaning solution in the Reservoir.
Note: After DEEBOT nishes mopping, empty any remaining water from the Reservoir.
OR
3. Operating and Programming

17 EN
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Charging Dock.
4.1 Optional Mopping System
4. Maintenance

18
EN
Dust Bin

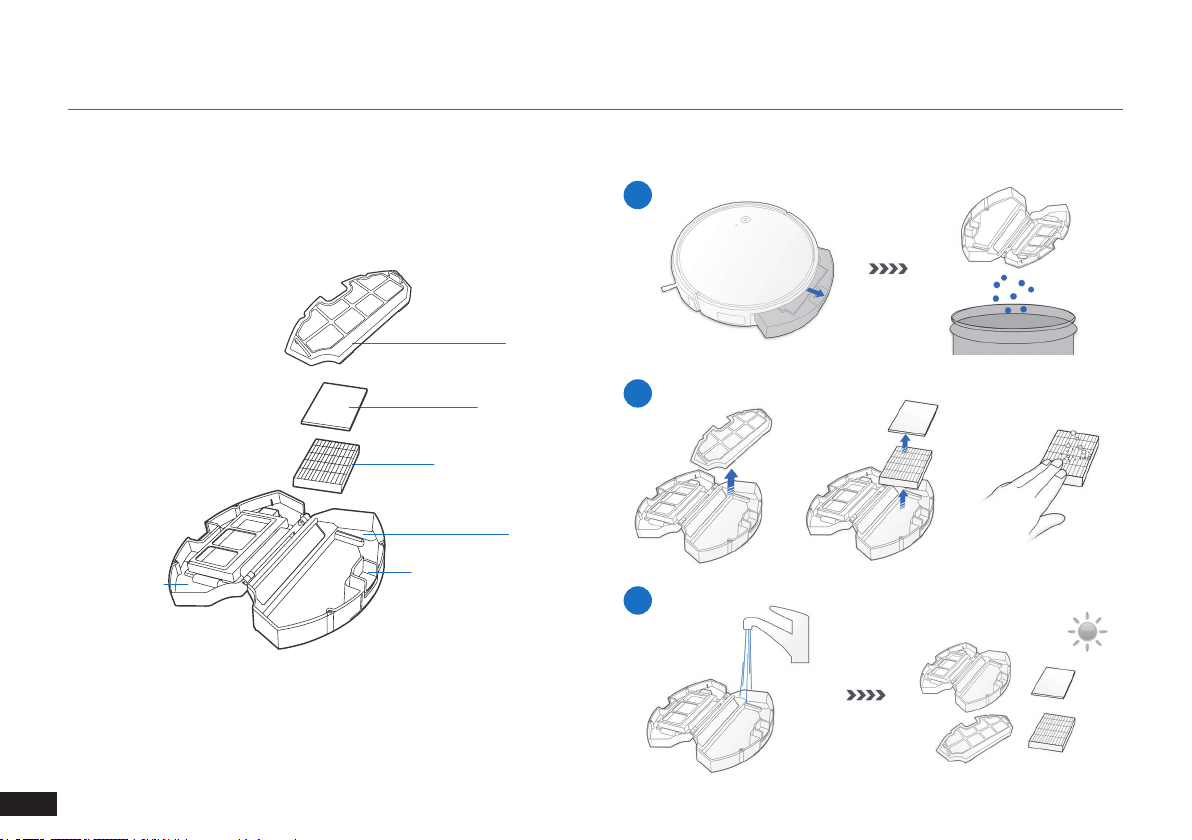

4.2 Dust Bin and Filters
1
2
3
Filter Net
Sponge Filter
High Efciency Filter
Dust Bin
Dust Bin Release Button
Dust Bin Cover
4. Maintenance

19 EN
4. Maintenance
Main Brush
4.3 Main Brush and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1
4
2
5
3

20
EN
4.4 Other Components
Side Brushes
1 2 3
4. Maintenance
