Ecowell WCVP03 User manual

ALTON INDUSTRY LTD. GROUP
643 Innovation Drive West Chicago, IL 60185
info @ altonindustries.com
https://www.altonindustries.com
MADE IN CHINA
Wet Dry Vacuum
Cleaner and Mop
MODEL:WCVP03
USER MANUAL
Read and understand this instruction manual thoroughly
before using the product. It contains important information
for your safety as well as operating and maintenance advice.

CONTENTS
02
IMPORTANT TIPS
01
PRODUCT OVERVIEW / TECHNICAL PARAMETERS
06
PRODUCT OVERVIEW / PRODUCT INTRODUCTION
08
PRODUCT OVERVIEW / PRODUCT DISASSEMBLING
14
DAILY MAINTENANCE / PRODUCT MAINTENANCE
17
DAILY MAINTENANCE / TROUBLESHOOTING
19
DAILY MAINTENANCE / STATISTICALTABLE OF
HAZARDOUS SUBSTANCE IN PRODUCTS
20
AFTER-SALES SERVICE
13
PRODUCT OVERVIEW / INSTRUCTIONS
21
WARRANTY

PRODUCT OVERVIEW /
TECHNICAL PARAMETERS
Technical Parameters
Category
Product model
Operating voltage(V)
Rated power(W)
Battery capacity (mAh)
Charging voltage
Battery model
Adapter model
Solution barrel capacity(L)
Primary charging time(h)
Continuous working time for one charge(min)
Overall dimension(mm)
Net weight(kg)
Technical parameters
WCVP03
29.6
180
2600
36 500mA
18650-2600
CZH015360050USWP
0.6
5~6
30
1089*280*237
3.7
CAUTION
The above data are from our laboratory, and the actual use varies according to the change of use environment.
Due to the need of continuous improvement of products, the information products shall be subject to the actual products,
and our company reserves the right to update the products.
Do not put any object into openings. Do not use with
any opening blocked; keep free of dust, lint, hair, and
anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of body
away from openings and moving parts.
Turn off all controls before unplugging.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible liquids,
such as gasoline, or use in areas where they may be
present.
Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to battery pack,
picking up or carrying the appliance. Carrying the
appliance with your finger on the switch or energizing
appliance that have the switch on invites accidents.
Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack
Use appliances only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
Do not use a battery pack or appliance that is damaged
or modified.
Do not expose appliance to fire or excessive
temperature. Exposure to fire or temperature above
130°C may cause explosion. The temperature of 130°C
can be replaced by the temperature of 265°F.
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY.
Do not use outdoors or on wet surfaces
Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
Use only as described in this manual. Use only
manufacturer’s recommended attachments.
Do not handle plug or appliance with wet hands.
Before using this product, please carefully read all the
contents of this manual and install the machine according
to the steps of this manual. Keep this manual properly. If
you transfer the product to a third party for use, please
attach this manual with the machine. Any operation
inconsistent with the instructions in the manual may cause
product damage or serious personal injury. This product is
only suitable for operation in conventional household
environment, not suitable for industrial or outdoor use.
IMPORTANT SAFETY INSTRUCTIONS
REDA ALL INSTRUCTIONS BEFORE
USING (THIS APPLIANCE)
IMPORTANT TIPS
0201
https://www.altonindustries.com [e-mail]
Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or
risk of injury.

Follow all charging instructions and do not charge the
battery pack or appliance outside of the temperature
range specified in the instructions.
Charging improperly or at temperatures outside of the
specified range may damage the battery and increase
the risk of fire.
Have servicing performed by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the product is maintained.
Do not modify or attempt to repair the appliance or the
battery pack (as applicable) except as indicated in the
instructions for use and care.
The product is not suitable for people with physical,
sensory or intellectual defects or lack of experience
and common sense (including children), unless
supervised or guided by others to ensure its safety.
The body and floor brush of the cleaning machine are
equipped with power on settings and cannot be
washed in water.
Do not touch the plug or any live part of the product
with wet hands to avoid the risk of electric shock.
If the charger or plug is damaged, please stop using it.
Please call our professional maintenance personnel to
replace it to avoid harm.
Do not smoke high-temperature substances (cigarette
butts, matches or hot ash, etc.), ultra-fine substances
(such as lime, cement, sawdust, gypsum powder, ash,
carbon powder, etc.), large sharp fragments (such as
glass, nails, pins, etc.), dangerous goods (such as
solvents, descaling agents, etc.), chemicals (such as
acids, cleaners, etc.), flammable and explosive liquids
(gasoline, alcohol products) And other substances with
uncertain physical properties.
Please keep the airflow channel and moving part of this
product away from long hair, loose clothing, fingers
and other parts of the body. Do not point the vacuum
tube, accessory suction head or tools towards your
eyes, ears or mouth.
When in use, if electric leakage or excessive motor
temperature and abnormal sound are found, such as
overheating, abnormal sound, peculiar smell, weak
suction, etc., stop using immediately and call the
professional maintenance personnel of the company.
When charging, please use the charger specially
equipped by our company for you; Other types of
chargers may cause battery failure or extreme thermal
effects.
If the product is not used for a long time, turn off the
power supply and unplug the plug of the charging base.
After using the machine, please clean the recycling
bucket in time to keep the ventilation path unblocked,
so as to avoid blocking, resulting in reduced suction
and motor heating, which will aect the service life of
the cleaning machine.
After using the machine, please keep it in a dry place.
Wet places will aect the insulation and service life of
electrical appliances.
Please regularly check the smoothness of the suction
nozzle. If there is any blockage, please remove it in time
to avoid the decrease of suction caused by the
blockage and affecting the service performance of the
machine.
Do not repair the machine by yourself in case of failure.
Please call the after-sales department of the company
for help.
All technical and other data reflected in this product
manual are obtained by our company or the designated
third-party testing company, and the final interpretation
right belongs to our company.
To Reduce the Risk of Fire and Electric Shock due to
internal component damage, use only + cleaning fluid
intended for use with this appliance. See the Cleaning
Fluid section of this manual.
To Reduce the Risk of Fire, do not use a flammable or
combustible liquid to clean a floor.
SAVE THESE INSTRUCTIONS
About the scope of use of the product
This product is suitable for hard floors in indoor
environment, including waxed floors, stone grinding
floors, rubber floors, marble floors, granite floors,
terrazzo floors, solid wood floors, composite floors,
bamboo floors and all kinds of mirror tiles, porcelain
tiles and other flat surfaces. If this product is used on
uneven ground surface, the best use effect may not be
achieved.
Do not use this product near or on the surface of
flammable and explosive objects, which may cause fire
and explosion.
Do not use this product near the working fireplace and
heater to prevent the deformation of the machine shell.
Do not use this washer to absorb detergents kerosene,
gasoline, alcohol, paint, perfume, etc. these liquids may
cause short circuit fire or explosion.
Do not use this cleaning machine to absorb the toner
and toner used inside the laser printer and copier,
which may cause fire or explosion.
Do not use this cleaning machine to absorb sharp
objects, such as glass fragments, small toys, pins,
paper clips, stones, gypsum, large pieces of paper, etc.
these objects may cause blockage and damage the
machine.
Do not use this cleaning machine to absorb any
burning or smoking objects, such as soot that has not
extinguished the heat source, burning cigarette butts
or matches, etc.
About cleaning solution
If a large amount of cleaning fluid penetrates into the
motor, it will cause danger.
Please follow the instructions to mix detergent. It is
recommended to use cleaners made by our company
and our standard manufacturers. The cleaner shall not
contain acid, alkali solution or substances harmful to
the environment.
Keep the detergent out of the reach of children. If the
cleaning solution accidentally enters the eyes, rinse it
thoroughly with clean water; In case of accidental
ingestion, seek medical attention immediately.
Local environmental regulations shall be followed
when treating sewage and cleaning solution.
About machine
Do not disassemble the closed machine by yourself.
There are no parts in the machine that can be repaired
by customers, and do not try to change the reliability of
the machine, which will lead to danger.
Using a voltage that does not correspond to the
specifications of this product will damage the motor
and more likely cause harm to the user.
The correct rated voltage is indicated on the nameplate.
Do not shake the machine up and down or collide
violently to prevent sewage from flowing into the motor.
When the motor is working, please do not lift or carry
the appliance up and down, and do not tilt the machine
to one side or lay it flat to prevent sewage from
entering the motor.
In order to prevent tripping, the machine should be
placed against the wall after use.
Do not use if the solution tank and recovery tank are
not properly installed.
Do not place any small objects at the air outlet, and do
not block the air outlet. Remove all small objects that
may hinder the smooth air flow at the air outlet to
prevent the machine from overheating.
Do not wet the machine body, otherwise fire and
electric shock may occur due to short circuit of the
machine.
0403
https://www.altonindustries.com [e-mail]

Genuine parts and accessories
We recommend using only with ECOWELL brand
solutions(for carpet and spot cleaners), parts, and
accessories. Damage caused by use with other than
ECOWELL brand solutions, parts, and accessories is not
covered by and may viod your warranty.
This product uses a Li-ion rechargeable and recyclable
battery. When the battery no longer holds a charge, it
should be removed from the vacuum and recycled. DO
NOT incinerate or compost the battery. When your battery
needs to be replaced, dispose of it or recycle it in
accordance with local regulations. In some areas, it is
illegal to place spent lithium-ion batteries in the bin or in a
municipal solid waste stream. Return spent batteries to an
authorised recycling center or to retailer for recycling.
Contact your local recycling center for information on
where to drop o the spent battery.
WARNING
O N LY U S E T H E S U P P LY U N I T
PROVIDED WITH THIS APPLIANCE.
PRODUCT OVERVIEW /
PRODUCT INTRODUCTION
Floor brush
front cover
Roller brush
Machine body
Handle
Dust bucket
Water tank
Air drying rack
for sponge filter
element
Storage tray
Drying method
of roller brush
Drying method
of sponge
Air drying rack
for roller brush
0605
https://www.altonindustries.com [e-mail]

Main engine
Charger
Drying method
of sponge Drying method
of roller brush
Receive package
(Tray+ Attachment bracket)
Roller brush
Insert the end of the handle into the port of the host along
the vertical direction of the wire, and the arrow mark on the
back completely submerges into the body. After hearing
the click, ensure that the handle is tight without looseness,
that is, the installation is successful.
If you want to disassemble, please insert a tool into the
removal hole on the back of the fuselage, firmly press the
stop block, and pull the handle upward at the same time to
complete the removal.
Handle installation instructions
PRODUCT OVERVIEW /
PRODUCT DISASSEMBLING
0807
https://www.altonindustries.com [e-mail]

Take out the
water tank
Take out the water tank
Install into the
water tank
Install into the water tank
To take out the solution barrel, hold the body with one hand
and press the solution bucket down with the other hand.
Rotate and take it out in the direction of arrow .
To install the solution barrel, hold the solution barrel and
align it with the bottle cap drop hole. First press it in the
direction of arrow , and then push it tightly in the
direction of arrow . After hearing the click, ensure that
the solution barrel is tight and stable. The installation is
complete.
① ②
A click indicates that the
installation is in place
①
②
Disassembly and assembly
Instructions of roller brush cover
To remove the front cover of the roller brush, press the
front release button with your thumb, pull it up and take out
the roller brush cover.
To remove the roller brush, pull up the left roller brush
handle with your fingers to remove it.
13
2 4
1009
https://www.altonindustries.com [e-mail]

Preparation
Start of work
Before use, please check whether your
cleaning machine has power. If not, please
charge it in time (refer to "product
charging" for details) and use it after it is
fully charged.
Select the use mode according to the
actual needs.
WARNING
Please do not use foam liquid.
It is recommended to use large-
scale water spraying in heavily
soiled environment.

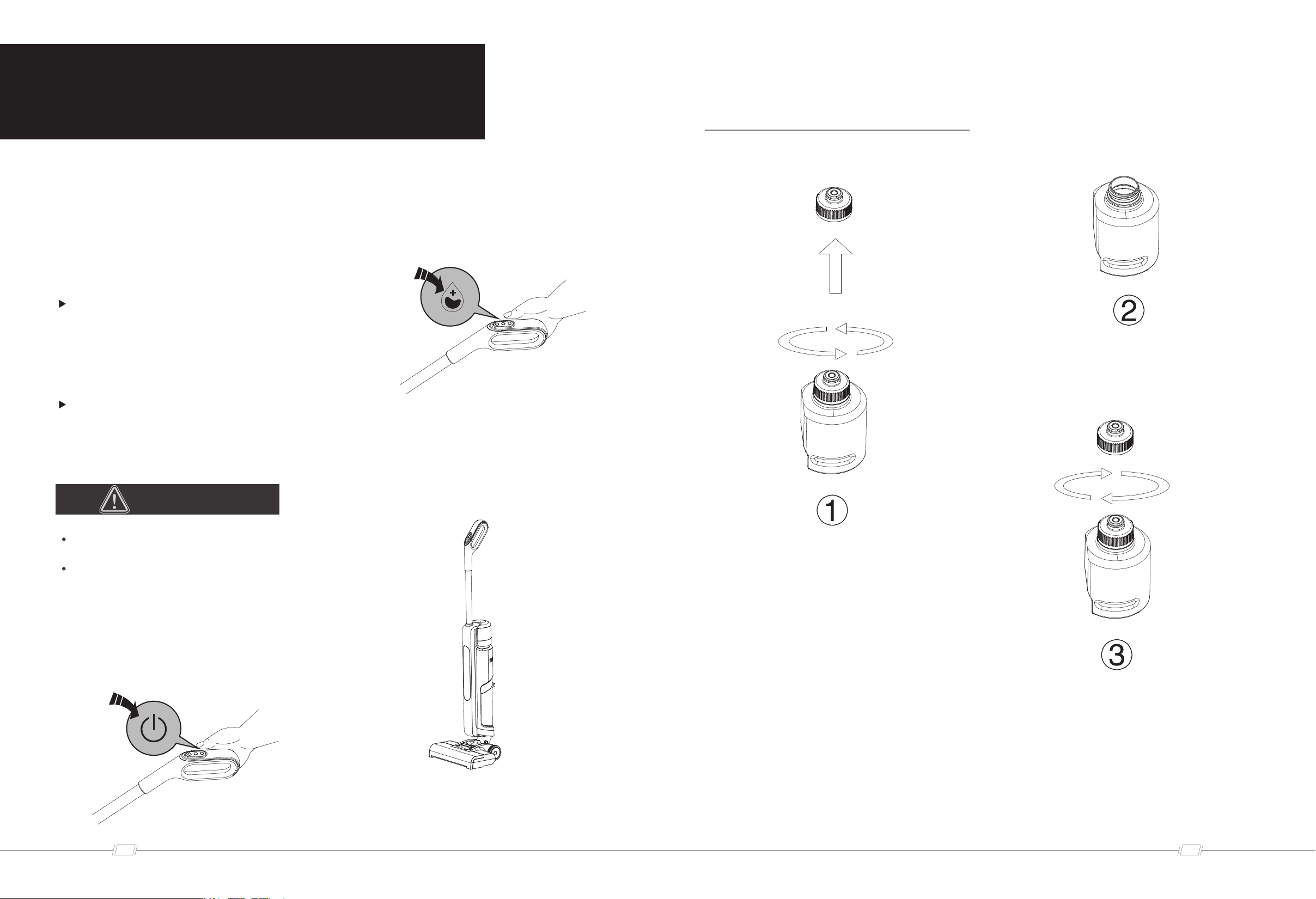

The on / off key of the machine is located above the handle,
as shown in the figure. Short press this key to start the
machine. After startup, the mode defaults to the normal
cleaning mode without water spraying. Short press this
key again to stop the machine.
The key button of water spray on is shown in the figure.
When working, press this key once to start small-scale
water spray for the floor brush. Press this key twice to start
large-scale water spray for the floor brush. Press this key
three times and the floor brush will stop spraying water.
After using the machine, it is recommended to place it
vertically on the tray specially equipped for you.
PRODUCT OVERVIEW /
INSTRUCTIONS
Fill tank with
water
Add tap water
water spray function. Do not add water higher than 40°C. It
is forbidden to add non original cleaning fluid and unknown
chemicals.
Tighten the cap
1.Unscrew the cap
2.Inject tap water (below 40 ℃) to the water level.
3.Tightly cover the upper cover of the solution barrel to
ensure that it is tight without looseness (Fig3).
1211
https://www.altonindustries.com [e-mail]

Product
charging
Charging hole
Connect one end of the charger to the host and the other
end to the home socket. When charging, please keep the
machine upright and close to the corner of the wall to
avoid tripping and other injuries.
About
indicators
General cleaning
mode
Green light
normally on
Insucient power Indicatorlight
Brush blocked Red light flashes
When charging
the product
Blue light is
like a marquee
When fully
charged
Blue light
normally on
CAUTION
Every 3 months after purchase,
please use the charger specially
equipped for you by our company to
charge the battery for 3 hours (there
is no need to fully charge)
Safe treatment method
of waste battery
When the battery contained in the appliance contains
materials harmful to the environment, the battery must
be removed from the appliance before abandoning the
appliance.
When removing the battery, the appliance must be
powered off.
Please dispose of the waste battery safely and
properly. Do not put it into fire, water and soil.
If the leakage of waste battery touches the skin or
clothing, please wash it with clean water to avoid skin
discomfort, and send it to a doctor for treatment
quickly.
Clean the main
engine(fuselage)
In order not to aect the performance of the
machine, it is recommended that you
maintain its parts regularly.
WARM TIPS
After cleaning, it is recommended to place
the whole machine upright in the tray, and
be careful not to put it in direct sunlight or
wet place.
1 .Pleas e s t o p t h e
m a c h i n e b e f o r e
cleaning (Fig. 1).
Scrub with water or
neutral detergent. Be
sure to dry the cleaning
cloth before scrub-
bing. Do not infiltrate
water into the electri-
cal components of the
machine (Fig. 2).
2
11 When the dust bucket is full of sewage and reaches the
warning line, the water level buoy rises to the preset
position, and the machine stops working. Please empty the
dust bucket as soon as possible.
3
4
5 7
6
89
Take out the
upper cover
of the dust
bucket
Pour out
sewage
Flushing sewage
bucket
Take out HEPA
Put HEPA into
the drying rack
The latch
rebounds in
place when
you hear a
click.
Clean the dust bucket
2 After stopping the work, take out the dust bucket, pour
out the sewage and wash it with water (Fig. 3-7).
3 Put the sponge filter element into the drying rack for
drying (Fig. 8).
4 After cleaning, close the dust bucket cover, install it back
to the machine body, and install it in place after hearing the
click (Fig. 9).
DAILY MAINTENANCE /
PRODUCT MAINTENANCE
1413
https://www.altonindustries.com [e-mail]

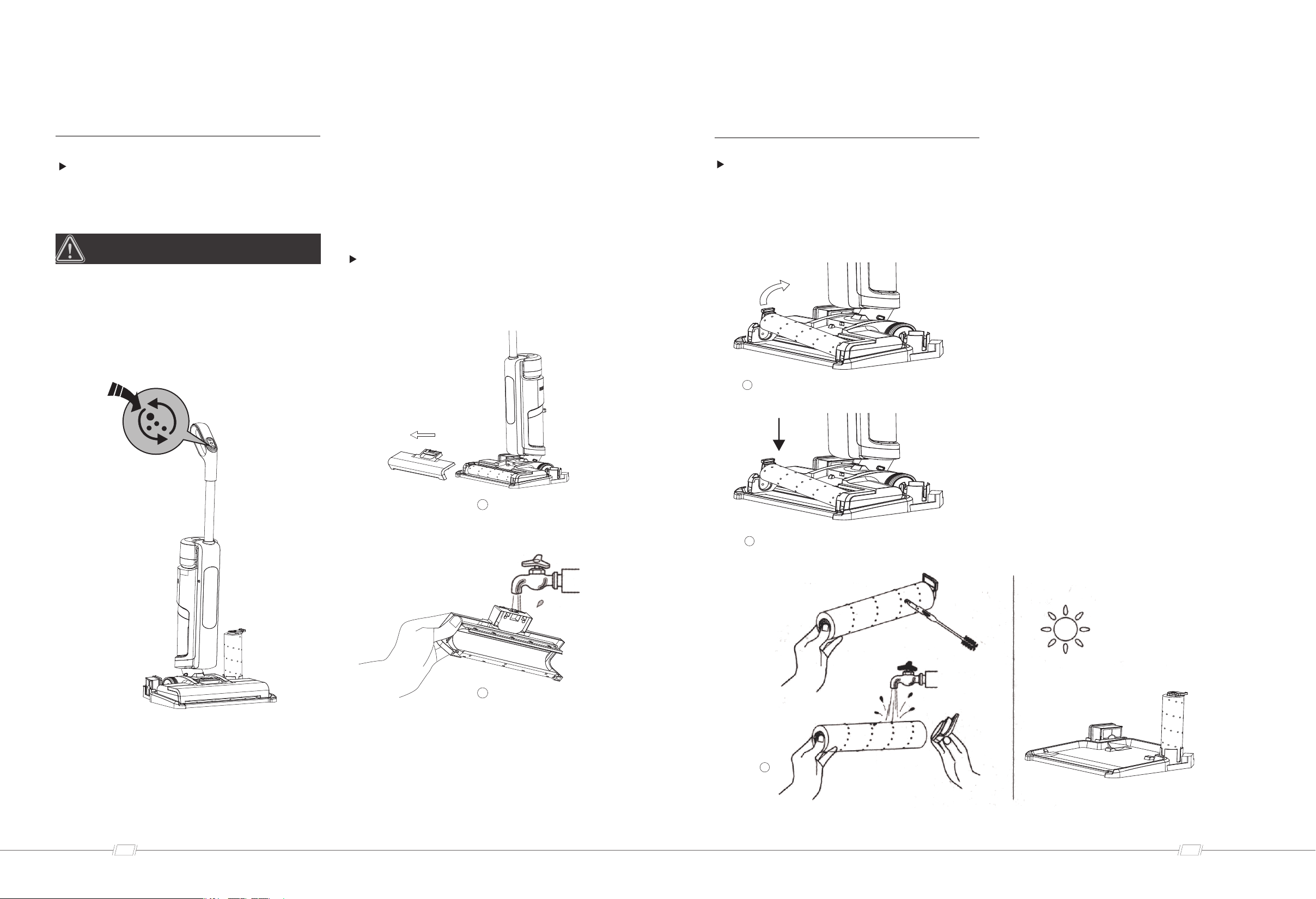

Roller brush
self-cleaning
After using the whole machine, please use
the self-cleaning function to keep it clean
and tidy.
ROLLER WARM TIPS
Before using the self-cleaning function and
after the self-cleaning, please clean the
sewage in the dust bucket.
Press and hold for 1 second
Before self-cleaning, please place the machine in the tray.
It is recommended to fill the solution bucket with water.
Long press the machine self-cleaning button for 1 second
to start the self-cleaning procedure. After self-cleaning,
the machine will shut down automatically. Each cleaning
time is 2 minutes and 5 seconds.
Roller brush self-cleaning
It is recommended to clean the roller
brush cover regularly after the whole
machine is used to keep it clean and tidy.
1
2
1 First put your finger on the position as shown in (Fig.1),
press the front release button with your thumb, break it up,
and take out the roller brush cover.
2 After removal, rinse with clean water until it is clean (Fig. 2).
Clean the roller
brush
It is recommended to clean the roller
brush after each use of the whole machine
to keep it clean and tidy.
1
2
3
1 Pull up the handle at the left end of the roller brush and
remove the roller brush (Fig. 1)
2 The handle of the roller brush can be removed. Please
use a tool to remove the hair or debris wrapped on the
roller brush head, and then wash and dry the roller brush
with clean water (Fig. 2).
3 After cleaning, first install the roller brush handle, and
then install the roller brush into the floor brush. During
installation, first align the right concave tooth structure of
the roller brush with the right protruding tooth structure,
and then push the left (one end with handle) along the left
groove (Fig. 3).
1615
https://www.altonindustries.com [e-mail]

Analysis and treatment
of common faults
It is recommended to clean the roller brush after each use of the whole machine to keep it
clean and tidy
Common faults Possible causes Solution
Four red lights are always on The standard charger of the
machine is not used for
charging
Use the standard charger of
the machine for charging
The last power indicator
flashes
The machine is low on power Charge the machine in time
Four red rights flash for 3
seconds
The machine in under
voltage protected
Charge the machine in time
The first red light of the
power indicator flashes
for 3 seconds
Floor brush blocking
protection
Clean the floor brush in time
after shutdown, and use it
after removing foreign matters
Other red and blue lights flash General prompt or fault prompt Please contact our after-sales
service person
White light of the water
spray indicator flashes
for five seconds
The sewage of the dust
bucket is full
Clean the sewage tank
DAILY MAINTENANCE /
TROUBLESHOOTING
If the product still cannot work normally according to the steps in the right table, please
contact our after-sales service department for help.
Common faults Possible causes Solution
Cleaning machine
not working
The product has no power or
insu cient powerThe roller
brush is entangled by hair and
other objects
Please fully charge the product
before use
Cleaning roller brush
Abnormal sound during
motor rotation
Clean the obstacles in the suction
nozzle
Take out the dust bucket and pour
out the sewage before use
The suction nozzle is blocked
The sewage of the dust bucket has
reached the specified capacity
The product cannot
be charged
Please check and connect it
Use the standard charger of the
machine for charging
The interface between the host and
the charger is not connected well
The standard charger of the machi
ne is not used for charging
The floor brush does
not water out
Fill the tank with water
Reinstall the tank
The tank without water
The tank is not installed properly
Leakage of air cover Install the filter sponge
Install the buoy
After washing or using the filter
sponge, please dry and use again.
Take out the dust bucket, pour
out the sewage and then use it
The filter sponge is not installed
The buoy is not installed
Filter sponges not dried after
washing or using
The sewage has reached
the specified capacity
Reduced product suction The sewage of the dust bucket has
reached the specified capacity
The roller brush cover or dust bucket
is not installed in place
The brush is entangled by hair and
other objects
The suction nozzle is blocked
The filter screen of sponge filter
element is dirty
The battery power is insucient
Please fully charge the
product before useCleaning
roller brush
Analysis and treatment
of common faults
1817
https://www.altonindustries.com [e-mail]

Statistical table of hazardous
substance in products
Component name/
Hazardous substance Lead Mercury Cadmium Hexavalent
chromium
Polybrominated
diphenyl
Polybrominated
diphenyl complex
Plastic parts
Wire assembly
Motor assembly
Silicone rubber assembly
Power cord
Hardware components
Circuit board (electronic)
assembly
Adapter
Battery
Sponge
O
O
O
O
X
O
X
X
X
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
X
O
O
O
O
O
O
O
O
O
X
CAUTION
Indicates that the content of the hazardous substance in all homogeneous materials of the component is
below the limit specified in the current eective version of GB/T 26572 and (EU) 2015/863
O:
It means that the content of the hazardous substance in at least one homogeneous material of the
component exceeds the limit requirements specified in the current eective version of GB / T 26572 and (EU)
2015/863, and there is no mature alternative in the industry at present, which meets the environmental
protection requirements of USA RoHS directive.
X:
The number in this sign indicates that the environmental protection service life of the product under normal
use is 10 years.
DAILY MAINTENANCE / STATISTICAL
TABLE OF HAZARDOUS SUBSTANCE
IN PRODUCTS
Warranty notice
From the date of purchase, the whole machine is
guaranteed for two years and the motor is guaranteed
for two years, including two years for battery. Gifts are
not within the scope of warranty.
Please keep your purchase invoice and relevant
vouchers as an important basis for warranty service.
Products purchased and used only in USA
If the product fails during the warranty period and
cannot be eliminated after checking the common
faults according to the instructions, please call the
national unified consulting service hotline
1-888-8999-0146 to contact us.
The company provides lifelong maintenance service
for products, but if it exceeds the warranty period,
customers need to pay maintenance fee, material fee
and transportation fee.
Warranty card: this card has detailed maintenance
record instructions, which can be used as a reference
for your normal maintenance or return and
replacement, so please keep this card properly
No warranty
coverage
Under the following circumstances, the company will
not be able to provide free warranty service for your
machine within the warranty period:
Failure to follow the instructions in the manual,
resulting in damage or failure due to improper use,
neglect of care, etc.
Normal wear and loss parts (such as roller brush, filter
material, cleaning brush, clean electric floor cleaning
fluid, etc.).
Normal wear and loss parts (such as roller brush, filter
material, cleaning brush, clean electric floor cleaning
fluid, etc.).
Abnormally blocked and not cleaned correctly
according to the instructions.
Non-absorbent products are used for damage or
failure caused by water absorption.
Damage or failure caused by using the clean electricity
product for any purpose other than normal household
use.
Damage or failure caused by using ECOWELL
accessories or accessories, or maintenance or
modification of ECOWELL .
The battery discharge time is shortened due to battery
aging or use.
Incorrect installation.
AFTER-SALE SERVICE
2019
https://www.altonindustries.com [e-mail]

Alton Industry Ltd. Group
2Y ear Limited Warranty
This warranty covers any defects in materials or workmanship of the enclosed product. Alton
Industry Ltd. Group will repair or replace any defective materials due to craftsmanship of the
product. This warranty does not cover any problem caused by misuse, abuse, accidents or acts of
God, such as floods or hurricanes. Consequential and incidental damages are not covered under
this warranty. Coverage terminates if you sell or otherwise transfer the ownership. If you feel you
have a defective product, please submit a copy of your receipt to the address below and call 1-
888-899-0146 for instructions prior returning this item to the store or sending back to:
Alton Industry Ltd. Group
643 Innovation Drive
West Chicago, IL 60185
We will inspect the product and contact you within 72 hours to give you the results of our
inspection. We reserve the right to repair or replace the product at our discretion. However, we
may replace the product with one of similar but not exact features. Parts and Service Information
available call Alton Industry at 1-888-899-0146. This warranty gives you specific legal rights. You
may have other rights which vary from state to state.
WARRANTY
21
https://www.altonindustries.com

印刷要求
使用说明书-2.0
WCVP03
ECOWELL
2022-02-28
Allen
157铜版纸
210X285(h)mm尺寸
材质
品牌
单黑双面印刷
骑马装订
