Audi B8 (Post-Facelift)
ECS Paddle Shifter Extension Set
Installation Instructions

AUDI B8 (POST-FACELIFT) PADDLE SHIFTER EXTENSION SET INSTALLATION
2WWW.ECSTUNING.COM© 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172
ES#3138238ES#2992724ES#2992723
Today we are going to install our ECS Tuning Carbon Fiber Paddle Shift Extension Set into a Post-Facelift Audi B8 RS5, but keep in mind the
process is the same for all finishes and B8 vehicles. These Paddle Shift Extension Sets have been designed by our engineers to install on top of
the factory paddles, without compromising their feel or operation. These paddles will provide some serious eye candy for your interior, and
they feature precision-cut openings to allow the OE backlit "-" and "+" symbols to shine through. Best of all these paddles only require a 1 size
Phillips screwdriver to install. Thank you for looking to ECS Tuning for all your performance and repair needs, we appreciate your business!
INTRODUCTION
Kit Contents - Carbon Fiber ...........................................................................pg.3
Kit Contents - Billet Aluminum.....................................................................pg.4
Installation & Safety Information.................................................................pg.5
Installing the ECS Paddle Shifter Extensions...........................................pg.6
Carbon Fiber Cleaning & Care.......................................................................pg.9
Schwaben Tools .................................................................................................pg.10
TABLE OF CONTENTS
Our Paddle Shift Extension Set will install directly
over your existing paddles without the need to
remove your steering wheel!

AUDI B8 (POST-FACELIFT) PADDLE SHIFTER EXTENSION SET INSTALLATION
3
Table of Contents
WWW.ECSTUNING.COM© 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172
ES#3138238ES#2992724ES#2992723
KIT CONTENTS - CARBON FIBER
Carbon Fiber Downshift Paddle Extension QTY 1
Carbon Fiber Downshift Backing Plate QTY 1
Carbon Fiber Upshift Paddle Extension QTY 1
Carbon Fiber Upshift Backing Plate QTY 1M3x6mm Screw QTY 8

AUDI B8 (POST-FACELIFT) PADDLE SHIFTER EXTENSION SET INSTALLATION
4
Table of Contents
WWW.ECSTUNING.COM© 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172
ES#3138238ES#2992724ES#2992723
KIT CONTENTS - BILLET ALUMINUM
Billet Downshift Paddle Extension QTY 1Billet Upshift Paddle Extension QTY 1
Billet Downshift Backing Plate QTY 1Billet Upshift Backing Plate QTY 1M3x6mm Screw QTY 8
Available in Black Anodized - OR -Clear Anodized finishes

AUDI B8 (POST-FACELIFT) PADDLE SHIFTER EXTENSION SET INSTALLATION
5
Table of Contents
WWW.ECSTUNING.COM© 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172
ES#3138238ES#2992724ES#2992723
NEVER get underneath a vehicle that is supported only by a jack, and
ALWAYS make sure that the vehicle is securely supported on jack stands.
• RH refers to the passenger side of the vehicle.
• LH refers to the driver side of the vehicle.
• Always use the proper torque specifications.
• If applicable to this installation, torque specifications will be listed throughout the document and at the end as well.
• Please read all of these instructions and familiarize yourself with the complete process BEFORE you begin.
• Park your car in a safe, well lit, level area.
• Shut the engine off and remove the key from the ignition switch.
• Make sure any remote start devices are properly disabled.
• ALWAYS wear safety glasses.
• Make sure the parking brake is applied until the vehicle is safely lifted and supported.
• Whether lifting a vehicle using an automotive lift or a hydraulic jack, be sure and utilize the factory specified lift points.
• Lifting a vehicle in an incorrect location can cause damage to the suspension/running gear.
• ALWAYS support the vehicle with jack stands.
• ALWAYS read and follow all safety information and warnings for the equipment you are using.
ECS Tuning cares about your health and safety, please read the following safety information. This information pertains to automotive
service in general, and while it may not pertain to every job you do, please remember and share these important safety tips.
INSTALLATION NOTES
GENERAL PREPARATION AND SAFETY INFORMATION

AUDI B8 (POST-FACELIFT) PADDLE SHIFTER EXTENSION SET INSTALLATION
6
Table of Contents
WWW.ECSTUNING.COM© 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172
ES#3138238ES#2992724ES#2992723
Step 1:
Step 2:
Begin by lowering the steering wheel and pulling it out as far as it
will go.
Turn the steering wheel 90ºclockwise so that the downshift paddle
is facing upwards.
INSTALLING THE ECS PADDLE SHIFTER EXTENSIONS

AUDI B8 (POST-FACELIFT) PADDLE SHIFTER EXTENSION SET INSTALLATION
7
Table of Contents
WWW.ECSTUNING.COM© 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172
ES#3138238ES#2992724ES#2992723
Step 3:
Step 4: #1 Phillips Screwdriver
First remove the backing plate and screws from the paddle shift
extension, be careful to not lose the screws since they are extremely
small. Place the downshift paddle extension on top of the OE paddle
(LH photo), then align the paddle backing plate as shown (RH photo).
Loosely install the four screws which secure the paddle backing
plate to the paddle extension, but DO NOT fully tighten them. These
screws must remain loose until we align the "-" symbol on the OE
paddle with the "-" slot in the paddle extension.
INSTALLING THE ECS PADDLE SHIFTER EXTENSIONS

AUDI B8 (POST-FACELIFT) PADDLE SHIFTER EXTENSION SET INSTALLATION
8
Table of Contents
WWW.ECSTUNING.COM© 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172
ES#3138238ES#2992724ES#2992723

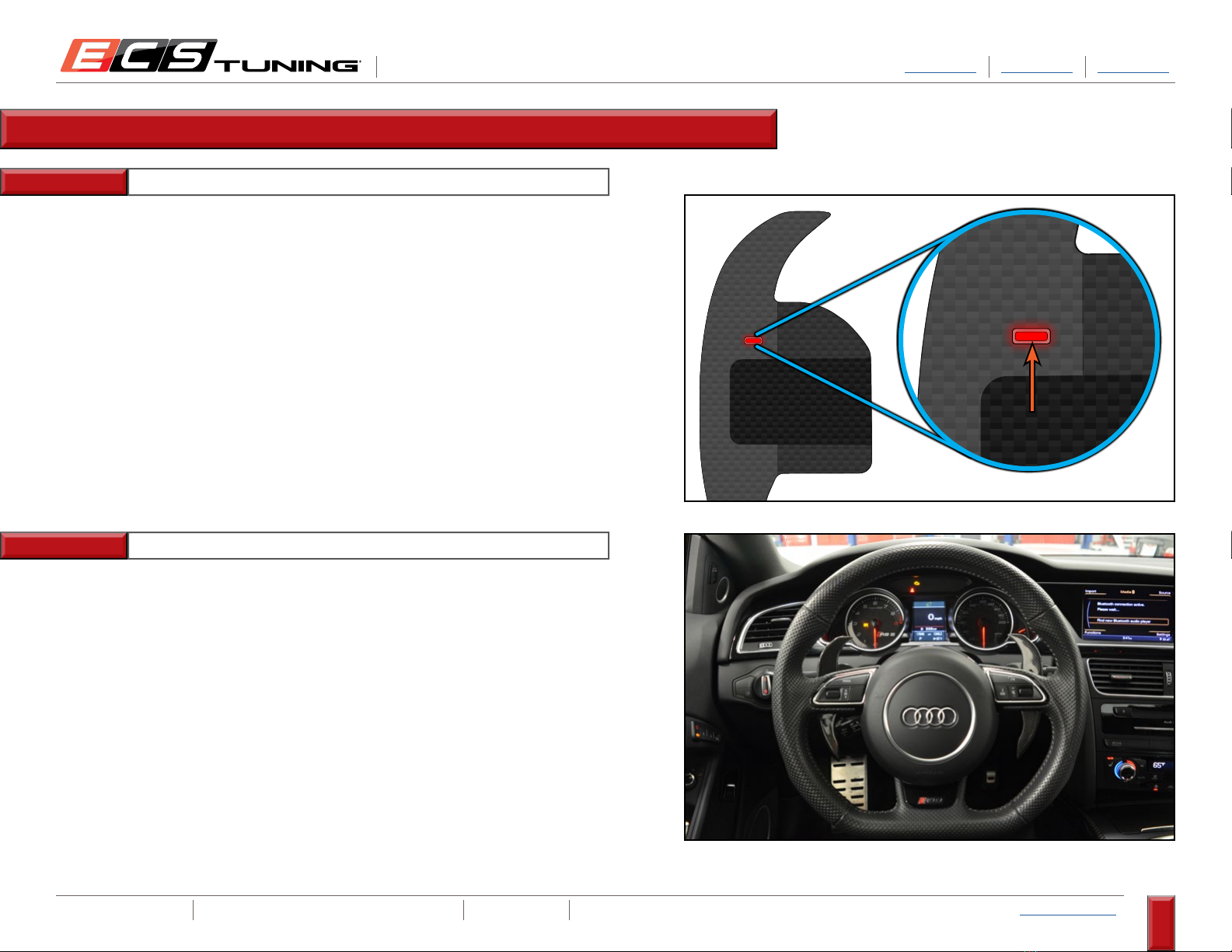

Step 5:
Step 6: #1 Phillips Screwdriver
The illustration on the right represents what you will see while
aligning the "-" symbol on the OE paddle with the "-" slot in the
paddle extension. With the backing plate screws loose, move the
paddle extension around until this symbol is fully visible through the
slot.
Tighten the backing plate screws until they make contact + ⁄ turn
(DO NOT overtighten these screws). Repeat these steps to install the
upshift paddle extension.
INSTALLING THE ECS PADDLE SHIFTER EXTENSIONS
Your ECS Paddle Shift Extension Set
installation is now complete!

AUDI B8 (POST-FACELIFT) PADDLE SHIFTER EXTENSION SET INSTALLATION
9
Table of Contents
WWW.ECSTUNING.COM© 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172
ES#3138238ES#2992724ES#2992723
CARBON FIBER CLEANING & CARE
ECS Tuning Carbon Fiber Intakes are clear coated for excellent finish durability and UV resistance right out of the box.
Carbon fiber can be washed with any gentle cleanser or soap. If it is safe for the paint on your car, it will be safe for the carbon fiber.
Be extra careful not to nick or deeply scratch the clear coat on the carbon fiber. This can lead to water intrusion into the carbon fiber which
will damage the finish and the integrity of the intake.
If the clear coat does get nicked or deeply scratched to expose the carbon fiber, seal the damaged area thoroughly with a clear coat touch
up or clear nail polish.
To retain UV resistance and protect the finish, we recommend regular waxing with a high quality caranuba wax.
Small surface scratches and light oxidation can be buffed out using the same methods and cautions you would use on the vehicle paint.
Carbon Fiber Cleaning and Care Kit
(available at ecstuning.com)
ES#2914954
