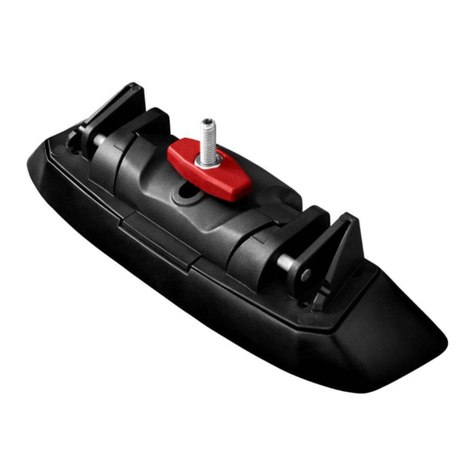

Whispbar K529W User manual

K529W
Fitting Kit
EN Fitting Instructions for Basic Carrier
PL Instrukcja systemu montażu
x 2 x 2 x 4 x 4
x 4 x 8 x 1
Revision No: 5D 1

Fitting Kit K529W
MAX kgs (lbs)
W/P WHD
Suzuki
Kizashi, 4dr Sedan 10-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)
Kizashi, 4dr Sedan 10-+ US 50 kgs (110 lbs) 50 kgs (110 lbs)
Kizashi, 4dr Sedan 10-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
Kizashi, 4dr Sedan 10-11 CN 50 kgs (110 lbs) 50 kgs (110 lbs)
Kizashi, 4dr Sedan 10-15 EU 50 kgs (110 lbs) 50 kgs (110 lbs)
2

Fitting Kit K529W
X
A B C 1 2 3
Kizashi, 4dr Sedan 10-+ (AU) -430mm 400mm - 910mm 856mm -
-16 -15/16ths" 15 3/4ths" - 35 13/16ths" 33 11/16ths" -
Kizashi, 4dr Sedan 10-+ (US) -430mm 400mm - 910mm 856mm -
-16 -15/16ths" 15 3/4ths" - 35 13/16ths" 33 11/16ths" -
Kizashi, 4dr Sedan 10-+ (NZ) -430mm 400mm - 910mm 856mm -
-16 -15/16ths" 15 3/4ths" - 35 13/16ths" 33 11/16ths" -
Kizashi, 4dr Sedan 10-11 (CN) -430mm 400mm - 910mm 856mm -
-16 -15/16ths" 15 3/4ths" - 35 13/16ths" 33 11/16ths" -
Kizashi, 4dr Sedan 10-15 (EU) -430mm 400mm - 910mm 856mm -
-16 -15/16ths" 15 3/4ths" - 35 13/16ths" 33 11/16ths" -
3

Fitting Kit EN
K529W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4

Fitting Kit EN
K529W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5

Fitting Kit EN
K529W
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6

Fitting Kit EN
K529W
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-250
B = 11-04-251
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
7

Fitting Kit EN
K529W
Fitment
●Open or remove fixed-point covers.
●Install adaptor plates into each fixed-point.
●Use the Hex Key to secure the adaptor
plate with the button head set screws.
●Repeat for all four positions.
●Place crossbar foot over grubscrews.
8

Fitting Kit EN
K529W
●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
●Check crossbar is securely attached to the
vehicle.
9

Fitting Kit EN
K529W
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
