Ziza® Interior Lighting Package Installation Procedures
R
Part Number ES2538942
for VW CC
This tutorial is provided as a courtesy by ECS Tuning.
Proper service and repair procedures are vital to the safe, reliable operation of all motor vehicles as well as the personal safety
of those performing the repairs. Standard safety procedures and precautions (including use of safety goggles and proper tools
and equipment) should be followed at all times to eliminate the possibility of personal injury or improper service which could
damage the vehicle or compromise its safety.
Although this material has been prepared with the intent to provide reliable information, no warranty (express or implied) is
made as to its accuracy or completeness. Neither is any liability assumed for loss or damage resulting from reliance on this mate-
rial. SPECIFICALLY, NO WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER WARRANTY IS
MADE OR TO BE IMPLIED WITH RESPECT TO THIS MATERIAL. In no event will ECS Tuning, Incorporated or its aliates be liable for
any damages, direct or indirect, consequential or compensatory, arising out of the use of this material.

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -2
Fits VW CC
R
LED Installation Instructions
Interior Lighting Kit for VW CC
ES2538942
Tools
Trim removal tool – ES517779 (Kit)
T20 Torx® Driver
Kit Contents
36mm white LED festoon (qty 2)
42mm white LED festoon (qty 1)
5-chip wedge base white LED (qty 6)

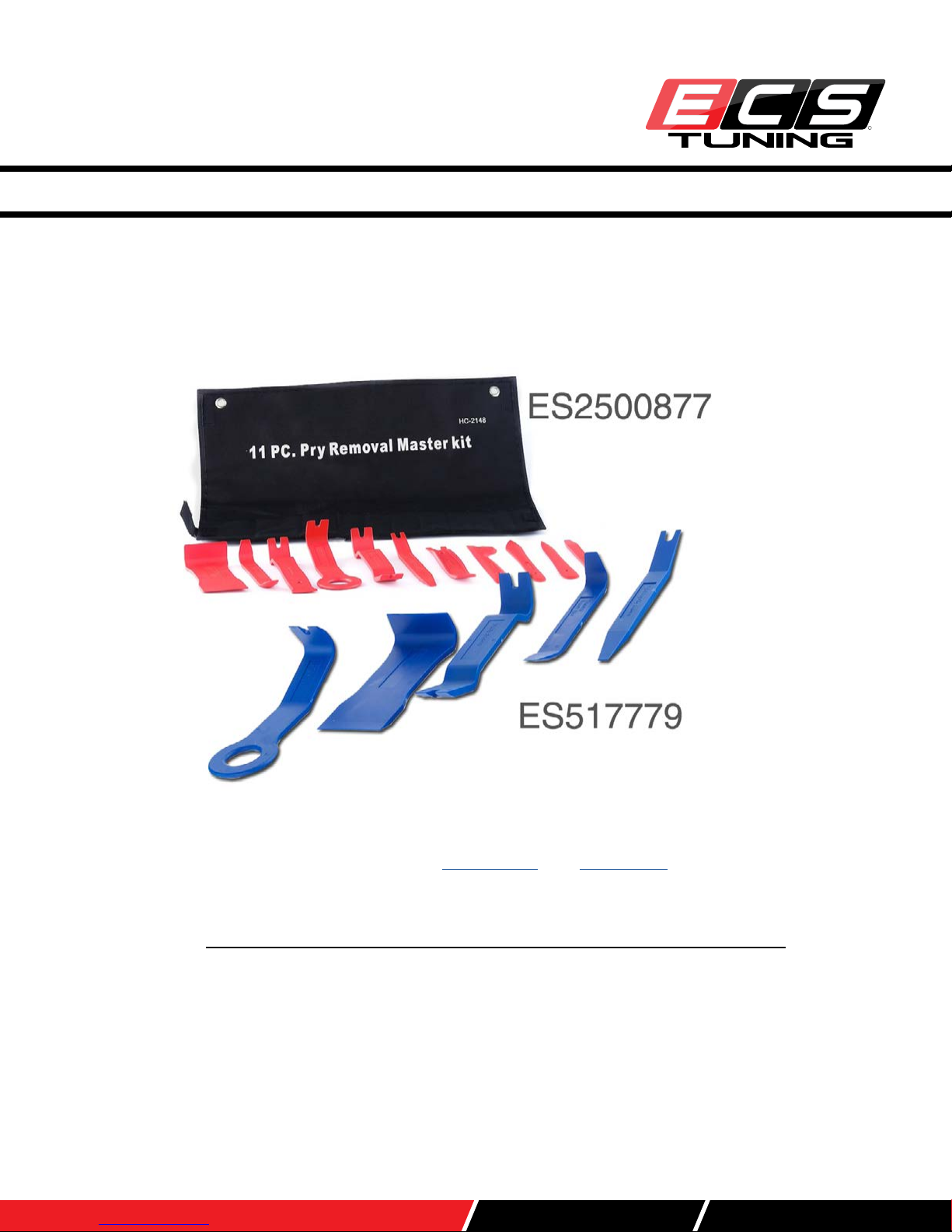

Make the job easier and prevent damage to headliners
and other interior trim with ECS Tuning Trim and Molding
Removal Tool Sets: ES2500877 and ES517779.
This tutorial explains how to install the LEDs in your Ziza Interior Lighting Kit.

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R

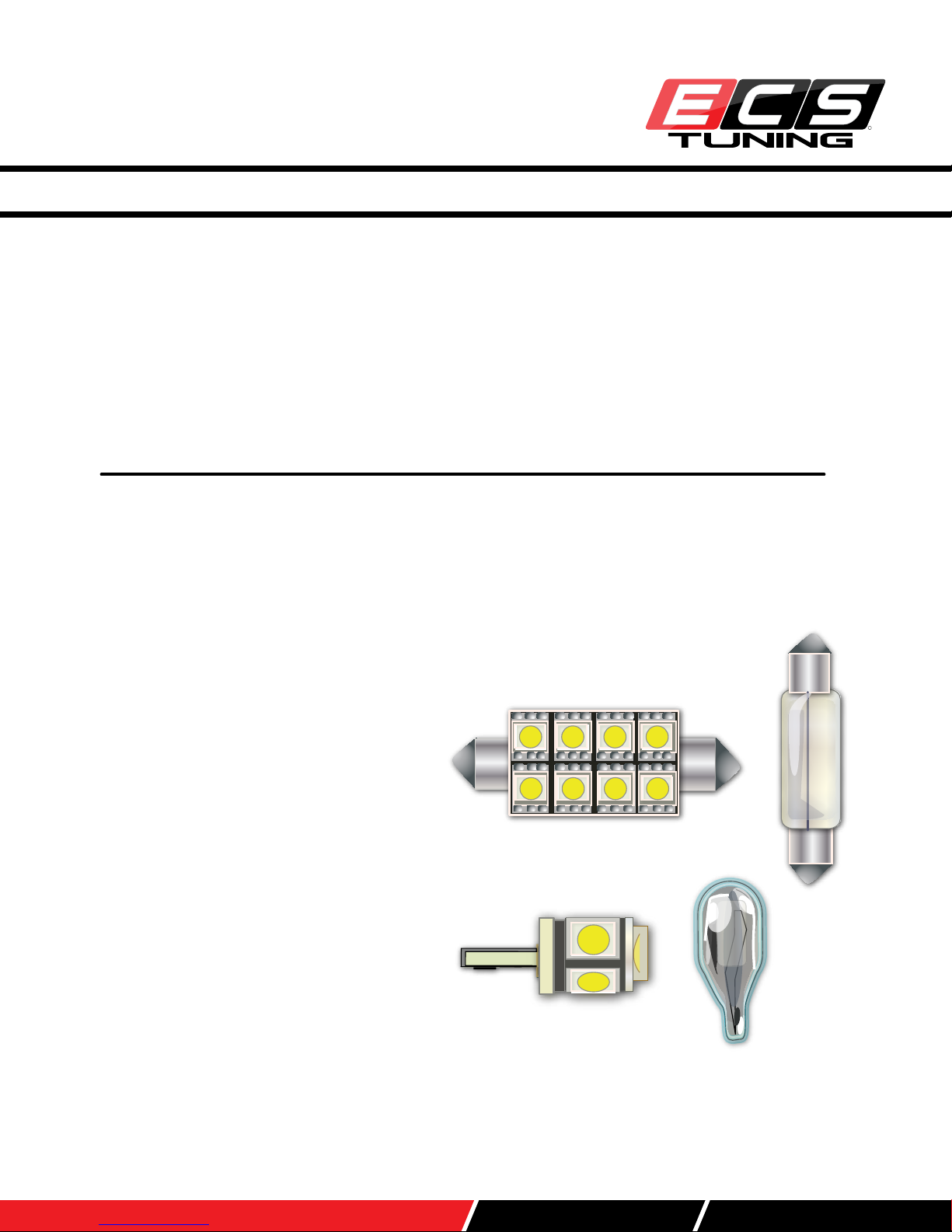

Bulb Types
This kit includes two bulb types, classied by their general shape.
What are LEDs?
LEDs are Light Emitting Diodes, solid state devices that emit light when connected to electrical
current. They have no moving parts or wire laments to burn out. They emit a whiter light, run
cooler, and last longer that the incandescent (lament style bulbs) we are replacing in this
tutorial.
Unlike lament bulbs, LEDs are polarity sensitive. They have plus and minus (positive and
negative) electrical terminals that must match the polarity of the applied voltage. Installing the
bulbs “backwards” in the light bulb sockets (with reversed polarity) will not harm them, but they
will not light. Flipping the bulb 180 degrees in the electrical connector cures this problem.
festoon
wedge
bayonet
FESTOON - Conventional incandescent festoon bulbs have a shape and general
appearance that is similar to a glass fuse.
Metal caps attached to both ends of a glass
tube are sealed to the tube and attached
to the bulb lament. End caps mount the
bulb in its holder and also conduct electrical
current.
LED festoon lights have the same pointed
end caps, but are attached to a bank of
LEDs instead of a lament tube.
WEDGE - Wedge style bulbs get their
name from the shape of the bulb base. The
tapered end of the bulb “wedges” into the
bulb socket.
LED wedge lights t the bulb socket like a
lament bulb, but are commonly polarity
sensitive.

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -4
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R
front dome
5-chip wedge (qty 2)
ES2526289

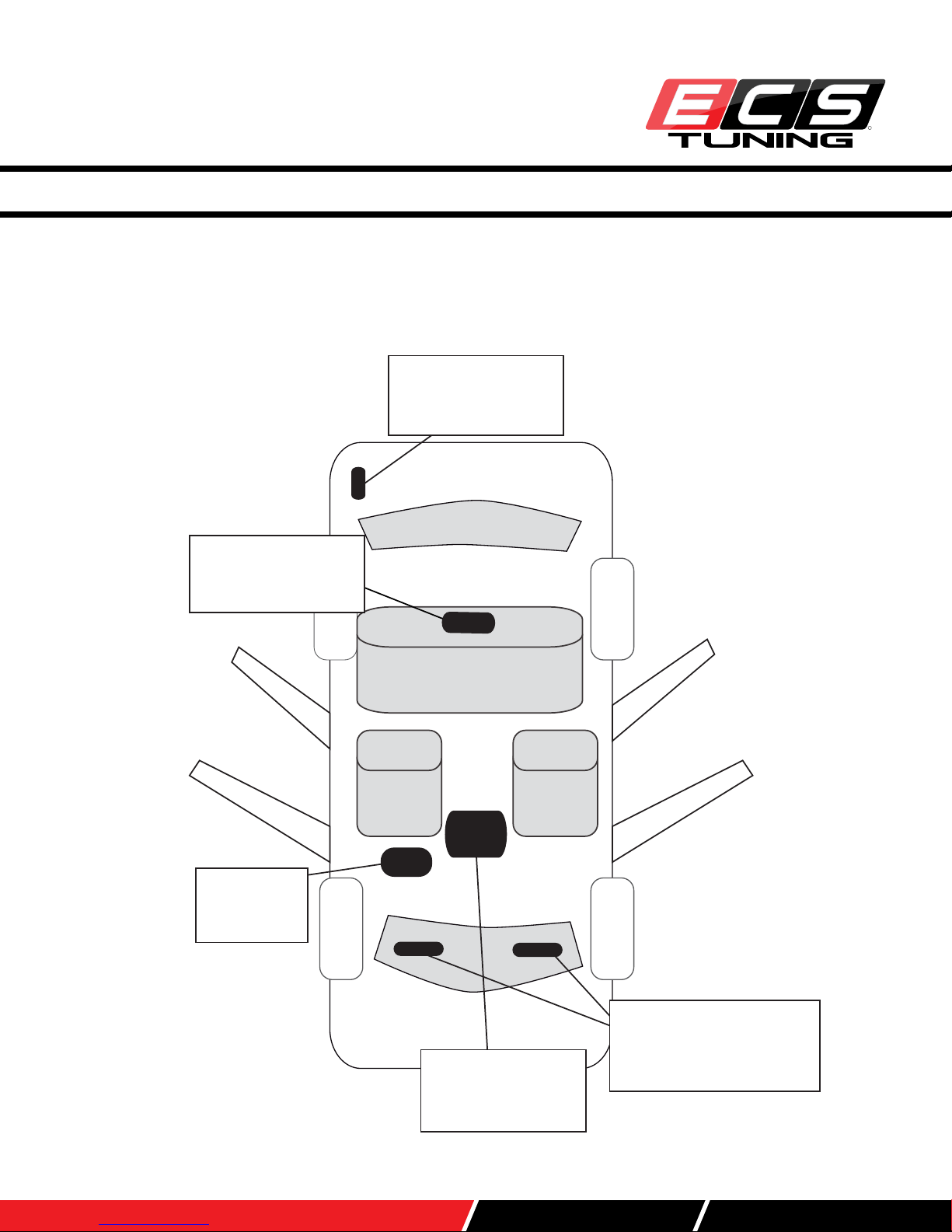

Ziza Interior Lighting Kit Locations
Make____VW______________________________________________
Model___CC______________________________________________
Kit Part Number_____ES2538942____________________________________
glove box
5-chip wedge
ES2526289
sun visor (qty 2)
36mm festoon
ES2515359
rear dome
5-chip wedge (qty 3)
ES2526289
trunk
42mm festoon
ES2515360

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -5
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R

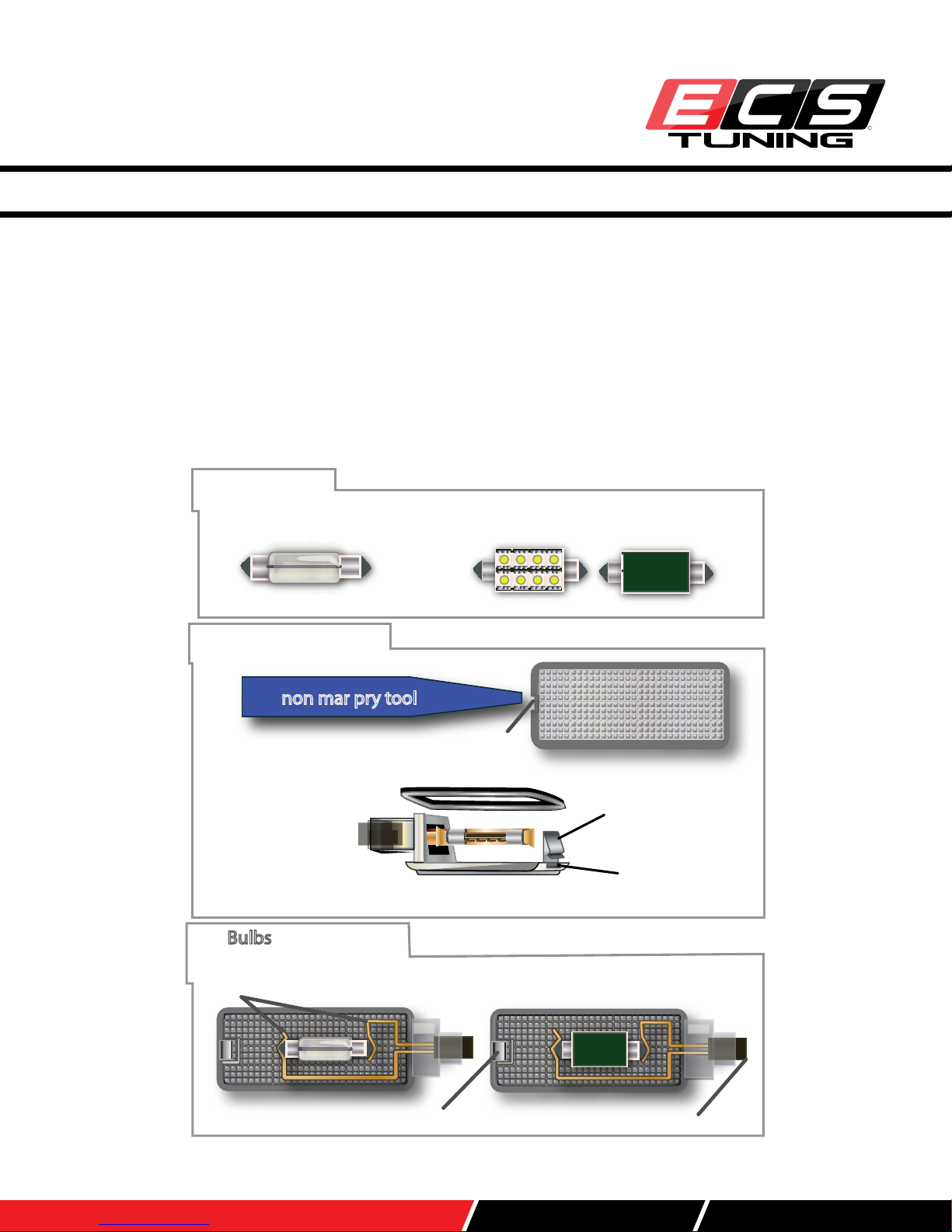

LED
backfront
notch
lens front
non mar pry tool
Bulbs
festoon
assembly removal
incandescent
electrical connector
lens back
spring bulb retainer
lens side clip
metal collar in trim panel
retaining clip
(plastic or metal)
notch
General Tips
• When prying down on the assemblies to remove them, pry on the notched end of
the lens. Insert the narrow tool tip between the lens plastic and any metal collar
used to reinforce the lens mounting hole. Push in on the retaining clip rst to
compress and release it. Then pry down.
• The spring bulb retainer is also the circuit conductor. If necessary, gently bend
the metal retainer so it holds the bulb tight. This will help prevent intermittent or
ickering LED operation caused by a loose connection.
• Install the bulbs with the LEDs facing toward the lens.

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -6
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R

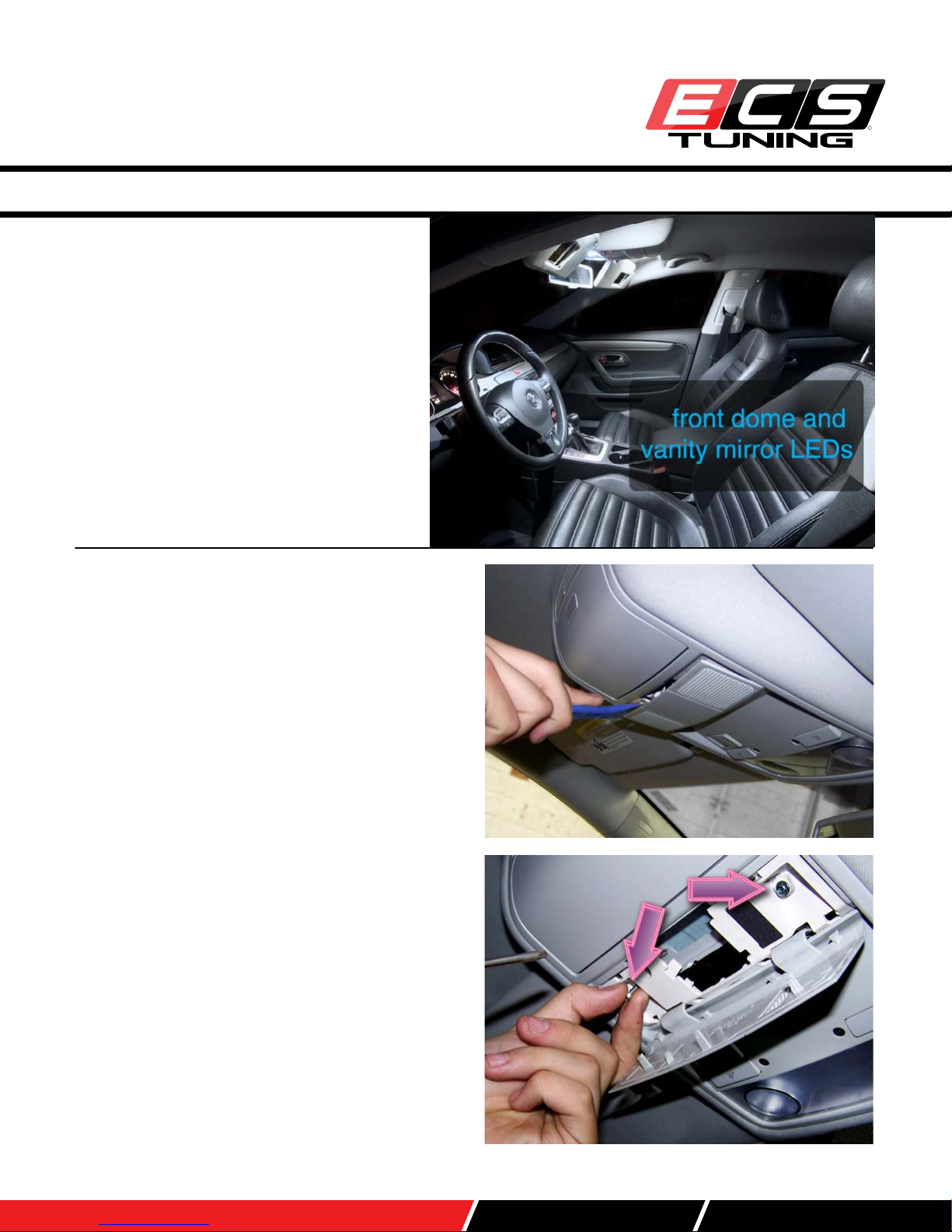

Front Dome - Step 1
The front dome light console is secured in the
headliner by plastic tabs and two Torx® head
screws.
To access the screws, use a non-marring trim re-
moval tool to pry down the rear console cover.
Let the cover tilt down and hang.
Front Dome - Step 2
Use a T20 Torx driver to remove the two attachment
screws (arrows).
Lower the front console.
Front Dome
and Vanity LED
Installation

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -7
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R

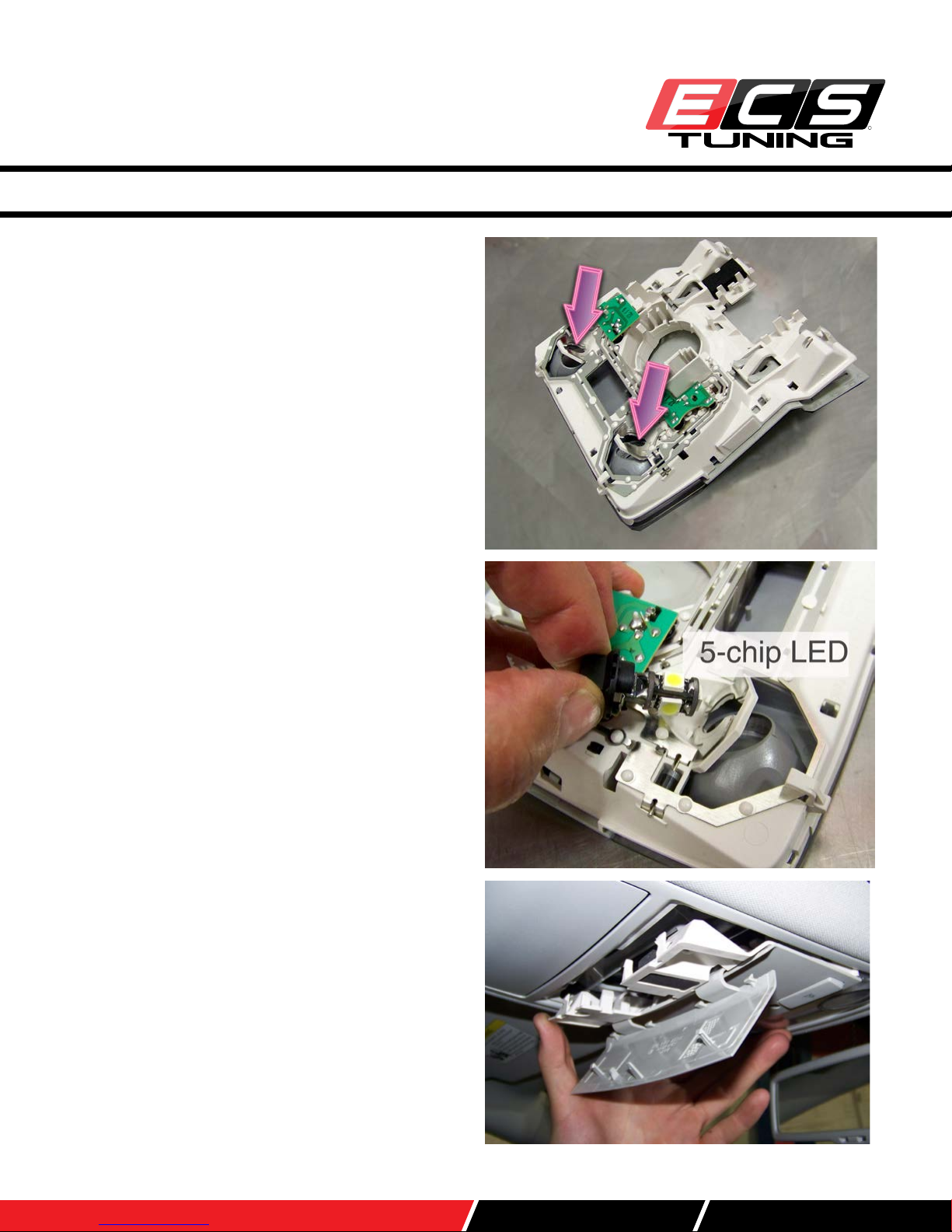

Front Dome - Step 4
Twist and pull each bulb holder to remove it from its
socket.
Remove the original bulbs and insert a new 5-chip
wedge base LED array in each bulb holder.
These LEDs are polarity sensitive. If they do not
work when initially installed, remove and rotate the
bulb holders 180 degrees.
Front Dome - Step 3
The front dome light has two wedge style bulb
holder sockets (arrows).
Front Dome - Step 5
Reinstall the front dome light console.
Insert the front of the console into the headliner
opening. Lift up on the rear of the console and hold
it in place in the headliner as you replace the two
Torx screws.
Push the rear console cover upward until it snaps in
place.

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -8
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R
Vanity Mirror Lights - Step 1
Using a non-marring trim removal tool, pry down on
the light assembly as shown to release it from the
headliner.
Vanity Mirror Lights - Step 2
Replace the original lament bulb with a 36mm fes-
toon array. The light chips should be installed facing
the lens.
The LED array is polarity sensitive. If it does not
light when rst installed, ip the array end-for-end,
and retest.
Snap the assembly back into the headliner and
repeat the process at the other vanity light.
Glove Box - Step 1
Using a trim removal tool, pry down the glove box
light assembly.
Pry the metal heat shield from the back of the light
assembly.

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -9
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R
Glove Box - Step 2
Replace the original lament bulb with a new 5-chip
wedge base LED array.
Reinstall the heat shield and replace the light
assembly in the glove box.
Trunk Step 1
Use the trim removal tool to pry the light assembly
from the trunk.
The assembly has a metal heat shield over the
bulb.
Trunk Step 2
Install a new 42mm festoon in the bulb holder
between the lens and heat shield.
The LED chips should face the lens, as shown.
If the LED array does not light initially, its polarity is
reversed. Flip it end-for-end and test again.

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -10
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R

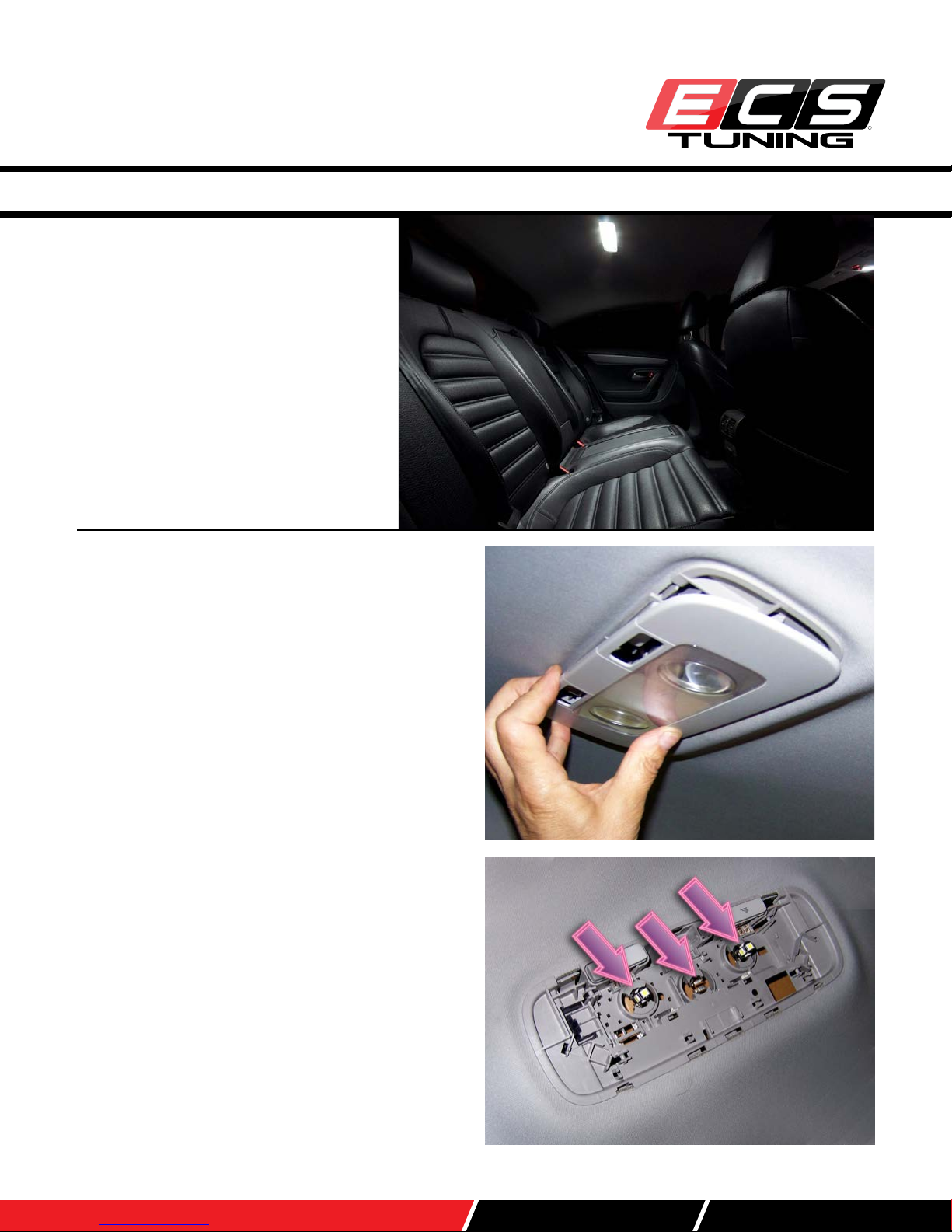

Rear Dome - Step 2
The rear dome light assembly has three wedge
base sockets.
Remove the old bulbs and install three new 5-chip
wedge LEDs in their place.
The LEDs are polarity sensitive. If any do not light
when rst installed, remove and rotate the LED,
reinsert it into the wedge socket, and retest.
When all lights are working, snap the trim bezel
back in place.
Rear Dome - Step 1
Using a trim removal tool or your ngers, carefully
pry or pull downward on the light assembly trim
bezel, and remove it.
Rear Dome LED
Installation

Address: 1000 Seville Road, Wadsworth, OH 44281 Phone: [phone] Web: www.ecstuning.com
Page -11
Ziza Interior Lighting Package Installation
ES2538942
Fits VW CC
R
This concludes the installation of the Ziza Interior Light Kit.
Make the job easier and prevent damage to headliners
and other interior trim with ECS Tuning Trim and Molding
Removal Tool Sets: ES2500877 and ES517779.
