Operator’s Instruction Manual
EDCO AIR COMPRESSORS
Gasoline Models PAC-5 & PAC-8
Electric Models PAC 1.5E & HCP-2
Model PAC-5
Model PAC-8 Model PAC-1.5E
Model HCP-2

E-PAC5,8,1.5,HCP2-1008
Printed in USA
©2008 TVW
Page 2
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activi-
tiescontainschemicalsknowntocausecancer,
birthdefects,orotherreproductive harm. Some
examples of these chemicals are:
•Lead from lead-based paints, and
•Crystalline silica from bricks and concrete and other
masonry products.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your risk:
workinawellventilatedarea, use adustcontrol system, such
as an industrial-style vacuum, and wear approved personal
safetyequipment, such as adust/particlerespiratordesigned
to filter out microscopic particles.
READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
Extreme care must be taken when operating electric
modelswithwaterpresent: Ensure power cord is prop-
erlygrounded, is attachedtoaGround-Fault-Interrupter
(GFI) outlet, and is undamaged.
•Check all electrical cables - be sure connections are tight and
cable is continuous and in good condition. Be sure cable is
correctly rated for both the operating current and voltage of
this equipment.
•Improperconnection oftheequipment-grounding conductorcan
result in a risk of electric shock. Check with qualified electri-
cian or service person if there is any doubt as to whether the
outlet is properly grounded. Adhere to all local codes and
ordinances.
•NOTE: In the event of a malfunction or breakdown, grounding
provides a path of least resistance for the electric current to
dissipate. The motor is equipped with a grounded plug and
must be connected to an outlet that is properly installed and
properly grounded. DO NOT modify the plug provided on the
motor. If the plug does not fit the outlet have a qualified electri-
cian install the proper receptacle.
•Switch motor OFF before disconnecting power.
•Engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reprodutive
harm.
• Gasoline is extremely flammable and poisonous.
It should only be dispensed in well ventilated areas,
and with a cool engine.
•Small gasoline engines produce high concentrations of car-
bon monoxide (CO) example: a 5 HP 4 cycle engine oper-
ation in an enclosed 100,000 cu. ft. area with only one
change of air per hour is capable of providing deadly con-
centrations of CO in less than fifteen minutes. Five changes
of air in the same area will produce noxious fumes in less
than 30 minutes. Gasoline or propane powered equipment
should not be used in enclosed or partially enclosed areas.
Symptoms of CO poisoning include, headache, nausea,
weakness, dizziness, visual problems and loss of consciou-
ness. If symptoms occur - get into fresh air and seek medical
attention immediately.
SAFETY
MESSAGES SAFETY MESSAGES
Indicates an imminent hazard which, if not
avoided, will result in death or serious injury.
Indicates an imminent hazard which, if not
avoided, can result in death or serious injury.
Indicates hazards which, if not avoided, could
result in serious injury and or damage to the
equipment.
•Safety Instructions are proceeded by a graphic alert symbol
of DANGER, WARNING, or CAUTION.
ELECTRICAL POWERED EQUIPMENT
GASOLINE/PROPANE POWERED EQUIPMENT
•Equipment should only be operated by trained personnel in
good physical condition and mental health (not fatigued). The
operator and maintenance personnel must be physically able
to handle the bulk weight and power of this equipment.
•This is a one person tool. Maintain a safe operating distance
to other personnel. It is the operators’responsibility to keep
other people (workers, pedestrians, bystanders, etc.) away
during operation. Block off the work area in all directions with
roping, safety netting, etc. for a safe distance. Failure to do so
may result in others being injured by flying debris or exposing
them to harmful dust and noise.
•This equipment is intended for commercial use only.
•For the operator’s safety and the safety of others, always keep
all guards in place during operation.
•Never let equipment run unattended.
•Personal Protection Equipment and proper safety attire must
be worn when operating this machinery. The operator must
wear approved safety equipment appropriate for the job such
as hard hat and safety shoes when conditions require. Hear-
ing protection MUST be used (operational noise levels of this
equipment may exceed 90db). Eye protection MUST be worn
at all times.
Keep body parts and loose clothing away from moving
parts. Failure to do so could result in dismemberment
or death.
•Do not modify the machine.
• Stop motor/engine when adjusting or servicing this
equipment.
Maintain a safe operating distance from flammable
materials. Sparksfromthe cutting-action of this machine
can ignite flammable materials or vapors.
GENERAL INSTRUCTIONS
DUST WARNING
•Donotdisconnectpower by pulling cord. Todisconnect, grasp
the plug, not the cord.
•Unplug power cord at the machine when not in use and be
fore servicing.

E-PAC5,8,1.5,HCP-2-1008
Printed in USA
TVW ©2008
Page 3
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
Equipment Instruction Manual
EDCO PAC-5 & PAC-8
HOW TO ORDER REPAIR PARTS
To ensure product safety and reliability, always use genu-
ine EDCO replacement parts when making repairs to the
equipment.
When ordering parts, please specify the MODEL and
SERIALNUMBER of the machine as given on the NAME-
PLATE. In addition, give part number, description and
quantity as listed on the parts list.
Please note: Due to improvements and changes in the
equipment the illustrations shown may be different from
the actual machine.
Toll Free: Voice 1-800-638-3326 • Fax [phone]
Figure 1
Table of Contents
Section Page Number
Specifications..................................................................................................
Safety Guidelines.............................................................................................
Controls............................................................................................................
Operation..........................................................................................................
Oil Type Table...................................................................................................
Belt Adjustment.................................................................................................
Gasoline Engine RPM Settings.........................................................................
Pilot Valve Adjustment......................................................................................
Schmidt Belt Tightening Device and Drive Pulleys...........................................
Trouble Shooting and Solutions........................................................................
Maintenance Schedule.....................................................................................

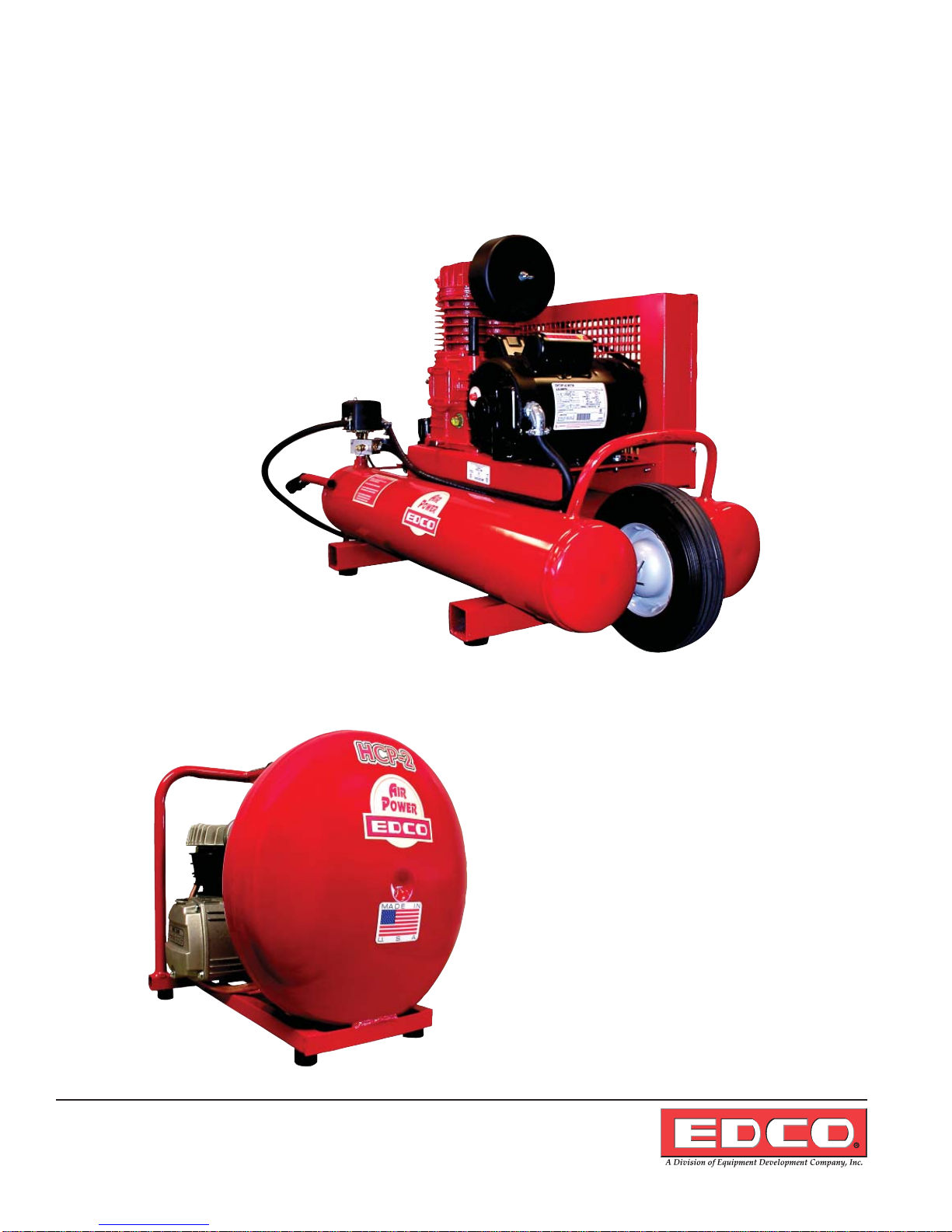

PAC-1.5 & HCP-2.............................................................................................
Operating Insturctions and Maintenance..........................................................
Trouble Shooting and Solutions. for HCP-2......................................................
Customer Responsibilities.................................................................................
Limited Equipment Warranty.............................................................................
3
4-5
6
7
7
8
8
9
9
10
11
12
13
14
15
Back Cover

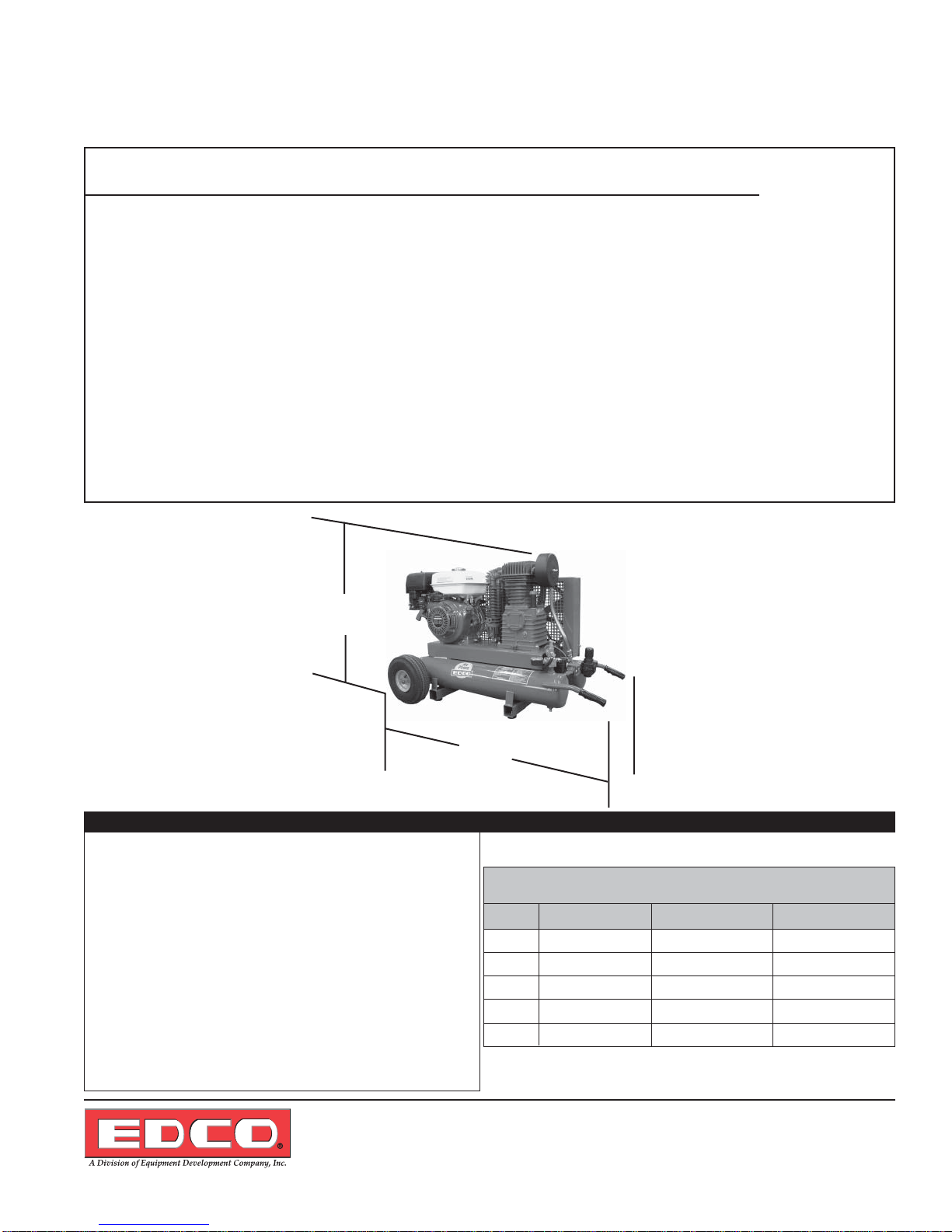

Model PAC-8 Shown
Height
Length
Width
Model
Width
Height
Length
Weight
Capacity
PAC-5 & 1.5
19” / 48.26 cm
28” / 71.12 cm
46” / 116.84 cm
200 lbs / 90.72 kg
8.9/6.9 CFM
PAC-8
28“ / 71.12 cm
35” / 88.9 cm
46“ / 116.84 cm
275 lbs / 124.74 kg
19.2 CFM
VACUUM SPECIFICATIONS
HCP-2
16“ / 40.64 cm
17” / 43.18 cm
18“ / 45.72 cm
60 lbs / 27.22 kg
4 CFM

E-PAC5,8,1.5,HCP2-1008
Printed in USA
©2008 TVW
Page 4
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
As with all gasoline powered equipment, care and attention must be exercised at all times during
use, in addition to ensuring that routine and preventative maintenance is carried out periodically to
ensure safe operation. Failure to carry out maintenance as necessary, including the replacement of
parts to correct standards could render this equipment unsafe.
This machine should not be used for jobs requiring more air pressure that it is capable of providing. If
used for this type of task damage to the equipment could result. You should contact your local distribu-
tor if you require a machine capable of performing larger tasks.
• Keep your machine clean.
• Keep filter(s) clean.
• Keep hoses clear.
• Replace any worn or damaged parts with genuine EDCO parts immediately.
•Regularly examine the air hose for damage, such as cracking or ageing. If damage is found, replace
the hose before further use. High pressure air can cause serious injury.
•Drain tanks frequently for optimum operation and safety.
• Do not use steam cleaners or pressure washers to clean the machine.
• Do not immerse in water for cleaning.
• Close Gasoline lever when transporting because gasoline will leak into cylinder draining into crankcase,
Read and understand the Operator’s Instruction Manual,
before operating this equipment.
Death or serious injury can result if this machine is used improperly.
Safety warnings and guidelines do not by themselves eliminate danger.
They are not substitutes for proper accident prevention and good judgement.
Safety Guidelines
Breathing
Hazard Eye Hazard Hearing
Hazard

E-PAC5,8,1.5,HCP-2-1008
Printed in USA
TVW ©2008
Page 5
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
• Maintain control of the air hose fittings while connections are being made. Air pressure in the hose can cause it to
whip if it is not secured.
• Do not attempt machine maintenance or cleaning unless the spark plug wire has been disconnected.
• Do not allow any modifications that do not meet the quality and standards of the original equipment.
• Do not use for heavy duty industrial equipment that require large continuous amounts of air pressure. Be certain
the air flow requirements of the equipment (CFM) do not exceed the compressor rated continuous CFM.
• Do not run over the air hose during operation as a hazard may occur.
• Do not try to pull on the air hose to move the machine, personal injury and damage to machine and air hose could
result.
***CAUTION***
***CAUTION***
THE COMPRESSOR UNIT MUST BE LEVEL PRIOR TO OPERATION.
This product is for commercial use only.
The compressor has to be operated on a level surface because it is splash lubricated, meaning there
is no oil pump for lubrication. If operated on a surface that is not level, damage can result because
of improper lubrication.
Do not expose the air hose to sharp corners or edges. Do not run over the air hose or connectors. Keep the air hose
away from heated surfaces. Do not use if the air hose or connector is damaged. Do not pull the unit using the air hose
as a pull rope. Damage to the air hose may result and cause damage or serious injury.
Ear protection should be worn if working in close proximity to the compressor for an extended period of time.
Failure to wear ear protection can result in permanent hearing damage.
• Do not operate the machine if it is not on a level surface. Damage to the machine will result.
• Shut engine off before transporting, angle will starve engine for lubrication oil. Damage to equip-
ment will result.
• Be sure to follow healthy and safety recommended lifting practices when moving the machine.
***WARNING***
***WARNING***
“DO IT RIGHT” OR RISK SEVERE PERSONAL INJURY.
FOLLOW INSTRUCTIONS CAREFULLY
•Do not exceed the maximum pressure of any of the tools connected to the compressor. Serious
injury or damage to the equipment can result. Be certain to adjust the pressure regulator.

E-PAC5,8,1.5,HCP2-1008
Printed in USA
©2008 TVW
Page 6
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
CONTROLS
START/STOP CONTROL (electric motor option only)
When the pressure in the air receiver reaches a designated low level, approximately 110 P.S.I.G. (drawing 9.9 Amps), the pres-
sure switch starts the motor. When the pressure in the air receiver reaches a designated high level, approximately 135 P.S.I.G., the
pressure switch stops the motor. Single stage compressors cut in at approximately 105 P.S.I.G. and cut out at approximately 125
P.S.I.G.
NOTE: An electric motor should not be subjected to more than fifteen (15) starts per hour. Damage to the
equipment will result.
CONSTANT SPEED CONTROL
The electric motor or gasoline engine is constantly running and the pump on the compressor is constantly pumping. When the
pressure in the air receiver reaches the designated high level, approximately 127 P.S.I.G., a pilot unloader valve will channel the
air being compressed into the atmosphere instead of into the air receiver. During this step, the motor or the engine, continues to
run (engine will idle). When the designated low pressure in the air receiver is reached, approximately 105 P.S.I.G. (drawing 9.9
Amps), the pilot unloader valve will redirect the air being compressed to the air receiver (the engine speed will return to the high
RPM level).
NOTE: All gasoline units must be built this way and any electrical units can be ordered with constant speed
control.
DUAL CONTROL
Compressors can be equipped with both start-stop and constant speed controls. With this feature the operator can change the
control of the unit as their needs change from start-stop to constant speed. (See Figure 2).
COLD-STARTING PROCEDURE
Cold weather conditions present starting problems for air compressors. As operating temperatures decrease, the oil weight used in
the air pump must be thinned according to the OIL TYPE TABLE on page 7.
It is also necessary to remove the effects of the back pressure (load) on a cold motor. A drain cock is installed on the 90º “finned”
aftercooler as a means to eliminate the load. Open the aftercooler drain cock and allow the motor and the pump to run “unloaded”
for one to two minutes. Repeat the procedure if the motor continues to struggle.
Available on electric with
dual control option only.
Figure 2
FOR START/STOP:
Rotate thumbscrew
completely clockwise.
Pilot
Unloader
Valve
FOR CONSTANT SPEED:
Rotate thumbscrew completely
counter-clockwise.
Electric
models
only

E-PAC5,8,1.5,HCP-2-1008
Printed in USA
TVW ©2008
Page 7
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
Drain air pressure to release load. Turn on gasoline shown below and follow engine manufacturers instructions.
LUBRICATION
Prior to daily operation, make a habit of checking the oil level in your compressor pump. A sight glass on the outside of the pump’s
crankcase is provided to make the job easier. Always maintain the oil level to read 2/3 full on the sight glass 1/2 minimum (See Fig-
ure 3). Oil levels over this amount will result in oil blowing past the rings or through the crankcase breather. Lower amounts of oil
will result in insufficient lubrication of moving parts.
Reciprocating compressors will consume a certain amount of oil under normal operation. If you are concerned about your oil con-
sumption, monitor and record oil consumption daily and consult your local dealer. When filling your crankcase with oil, be sure to
use a single viscosity, non-detergent oil. DO NOT USE A DETERGENT OIL! (See oil type table below)
OPERATION
Temperature 0-40º 40º & Above
NON-DETERGENT - Straight Weight 10WT* 30WT*
NOTE: Unit must be level when in operation.
On electric motor options, as the compressor starts, check the rotation of the flywheel. Direction of the rotation should conform to
the arrow on the flywheel. Should the rotation be incorrect, disengage the power supply and consult an electrician to check the mo-
tor wiring. OIL TYPE TABLE
*For maximum performance and service life, we recommend using a Premium Quality compressor oil.
IMPORTANT, DO NOT MIX STANDARD AND SYNTHETIC OILS
Tank 1/4” drain cock
one on each tank
Filter water trap
located between tanks
Model PAC-5
& PAC-1.5
Model PAC-8
Figure 3
2/3 Full
Gasoline
Shut off Gasoline Shut off

E-PAC5,8,1.5,HCP2-1008
Printed in USA
©2008 TVW
Page 8
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
Clean or replace air filter located on the top of the compressor (Figure 6) be sure to wear
appropriate protective gear if filter is of a cleanable type. If it is a dry filter - do not expose
to water.
BELT ADJUSTMENT
Compressor belt(s) can be adjusted by loosening the four (4) engine mounting bolts circled (See Figure 4 & 5) both models.
Figure 4
With engine bolts loosened adjust belt tension by turning belt tension adjusting bolt (SCHMIDT BELT TIGHTENING DEVICE) as
seen in (Figure 4) both models. Tighten four (4) engine mounting bolts circled in (Figure 4 & 5) both models.
Figure 5
Figure 6
NOTE: Engine RPM’s (High - Low Settings) are factory set for maximum efficiency. Adjusting RPM’s above
factory specifications will void the warranty.
Figure 6A
NOTE: Air pressure should be adjusted using the regulator circled in (Figure 6A), do not exceed
the tools operating air pressure, damage to the tool and personal injury could result. Regulator
- Pull up to unlock, turn clockwise to increase pressure, counter clockwise to decrease. Push
down to lock.
Air Filter
GASOLINE ENGINE RPM SETTINGS
Model
PAC-5
PAC-8
Top RPM
3000
3000
Idle RPM
1900
1900
Pump RPM
900
900

E-PAC5,8,1.5,HCP-2-1008
Printed in USA
TVW ©2008
Page 9
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
PILOT VALVE ADJUSTMENT
RESETTING DIFFERENTIAL (2)
Make sure the top toggle lever is positioned as shown. (See Figure 7). Loosen locknut
(1) by turning counter-clockwise several full turns. Gently turn differential setting (2)
clockwise only until the internal rod makes contact with the steel ball inside. After mak-
ing contact, turn differential (2) counter-clockwise 1/4 turn. Hold this position with one
wrench and proceed to top end setting.
TOP END SETTING (4)
Loosen locknut (3) by turning counter-clockwise several full turns. (4) is the top end
setting. Turning (4) clockwise will increase the top end pressure setting. Turning counter-
clockwise will decrease the top end pressure setting. Begin at a low setting by turning
counter-clockwise one full turn. Proceed to fine tuning instructions.
FINE TUNING INSTRUCTIONS
Start engine/motor and observe tank pressure gauge. As tank pressure approaches 130
P.S.I.G., the pilot valve should begin unloading at felt muffler and cause gas engine to
slow down to idle speed. If pilot valve does not unload as tank pressure approaches 130
P.S.I.G., slowly turn top end setting (4) counter-clockwise until pilot starts to unload. If pi-
lot valve starts to unload prematurely (at 100 P.S.I.G.), turn top end setting (4) clockwise
in 1/4 turn increments, tap down on the internal rod at toggle attachment, and repeat
until desired top end setting is reached. If pilot valve begins to rifle (sputter), fine tune dif-
ferential setting (2) 1/16 turn in either direction until rifling stops. After fine tuning, secure
settings by turning locknuts (1 & 3) clockwise until tight. Hold setting (2 & 4) in place with
one wrench while turning locknuts to secure.
SCHMIDT BELT TIGHTENING DEVICE
To adjust (tighten) belt tension, proceed as follows:
1. Loosen locknuts for engine hold-down bolts only until washers beneath spin freely.
2. Rotate 1/2” adjusting bolt clockwise until desired tension is reached. (See Figure 8).
3. Retighten hold-down bolts.
Felt Muffler
1
2
3
4
Toggle
Unloader
Valve
1
2
3
4
Figure 7
Clockwise rotation of 1/2” bolt
will increase belt tension
Figure 8
Drive pulleys must be properly aligned and drive
belt tension set to specifications. Improper pulley
alignment and belt tension can cause engine
overloading, excessive vibration, and premature
belt and/or bearing failure. (See Figure 9).
DRIVE PULLEYS
Electric
models
only>>>>>>>
Gasoline
models
only
<<<<
Span length
5 pounds of
force to give a
deflection of 1/64”
per inch of span
Small sheave
diameter
Direction of
force applied
Figure 9

E-PAC5,8,1.5,HCP2-1008
Printed in USA
©2008 TVW
Page 10
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
***CAUTION***
***CAUTION***
THE COMPRESSOR UNIT MUST BE LEVEL PRIOR TO OPERATION.
Model PAC-5Model PAC-8
A. Knocking 1. Loose motor pulley or compressor flywheel
2. Loose Belts
3. Lack of oil in crankcase
4. Worn piston pin
5. Worn main bearings
6. Worn con rod inserts
7. Dirty or defective check valve
8. Piston hitting valve plate, due to foreign matter or
carbon deposits
B. Overheating 1. Poor ventilation
Compressor 2. Incorrect flywheel rotation (electric only)
3. Dirty or defective check valve
4. Restricted air intake
5. Low oil level
6. Unit not run on level surface
7. Dirty or defective reed valves
C. Air pump is slow 1. Air leaks
to build tank pressure 2. Restricted air intake
3. Slipping belts
4. Blown gaskets
5. Compressor to small for load
D. Engine fails to 1. Loose belts
attain proper RPMs 2. Leaking pilot valve
E. Excessive oil 1. Worn piston rings
consumption 2. Compressor air intake restricted
3. Restricted crankcase breather
4. Excessive oil in the basic compressor pump
5. Wrong oil viscosity / type of oil
F. Engine starts hard 1. Air pressure in tanks
2. Gasoline shut off left open during transport
flooding engine.
TROUBLESHOOTING AND SOLUTIONS
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
1.Tighten appropriate parts (Heat engine pulley
before removing. Loctite is used to secure.)
2. Adjust belt tension (see page 9)
3. Add oil (Take to service center if knocking
persists)
4. Replace
5. Replace
6. Replace
7. Clean or replace
8. Inspect, repair or replace valves
and pistons
1. Move compressor to ventilated area
2. Rewire for correct rotation
3. Clean or replace
4. Replace filter
5. Add non-detergent, single viscosity oil
6. Level unit
7. Clean valve plates and replace valves
1. Check system for air leaks
2. Replace filter
3. Adjust belt tension (see page 9)
4. Replace gaskets
5. Consult dealer regarding larger EDCO
compressors
1. Adjust belt tension
2. Repair or replace
1. Replace rings
2. Replace filter
3. Clean crankcase breather
4. Check sight glass and adjust to proper oil level
5. Replace oil with non-detergent oil (See oil
chart on page 7)
1. Open drain cock to release air pressure
2. Clean & dry spark plug
Drain cock Drain cock Gasoline
Shut off
Tank drain
Gasoline
Shut off
Tank drain
Max hose length 100’ 1/2” diameter Max hose length 100’ 3/8” diameter
