PARTS LIST MANUAL
MODEL SK14
14” DOWNCUT - CONCRETE AND ASPHALT
WALK BEHIND SAWS
SKU # MODEL # POWER OPTION
45400D SK14-9H HONDA GASOLINE ENGINE MODEL GX270
45600D SK14-11H HONDA GASOLINE ENGINE MODEL GX340
48100D SK14-13H HONDA GASOLINE ENGINE MODEL GX390
REVISED STARTING
SERIAL # 121010002

Printed in USA
©2012 JWA
Page 2
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
Extreme care must be taken when operating electric
models with water present: Ensure power cord is prop-
erly grounded, is attached to a Ground-Fault-Interrupter
(GFI) outlet, and is undamaged.
•Check all electrical cables - be sure connections are tight and
cable is continuous and in good condition. Be sure cable is
correctly rated for both the operating current and voltage of
this equipment.
•Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with qualied electri-
cian or service person if there is any doubt as to whether the
outlet is properly grounded. Adhere to all local codes and
ordinances.
•NOTE: In the event of a malfunction or breakdown, grounding
provides a path of least resistance for the electric current to
dissipate. The motor is equipped with a grounded plug and
must be connected to an outlet that is properly installed and
properly grounded. DO NOT modify the plug provided on the
motor. If the plug does not t the outlet have a qualied electri-
cian install the proper receptacle.
•Switch motor OFF before disconnecting power.
•Engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reproduc-
tive harm.
• Gasoline is extremely ammable and poisonous.
It should only be dispensed in well ventilated areas,
and with a cool engine.
•Small gasoline engines produce high concentra-
tions of carbon monoxide (CO) example: a 5 HP 4 cycle
engine operation in an enclosed 100,000 cu. ft. area with
only one change of air per hour is capable of providing
deadly concentrations of CO in less than fteen minutes.
Five changes of air in the same area will produce noxious
fumes in less than 30 minutes. Gasoline or propane pow-
ered equipment should not be used in enclosed or partially
enclosed areas. Symptoms of CO poisoning include, head-
ache, nausea, weakness, dizziness, visual problems and
loss of consciousness. If symptoms occur - get into fresh
air and seek medical attention immediately.
SAFETY
MESSAGES
SAFETY MESSAGES
Indicates an imminent hazard which, if not
avoided, will result in death or serious injury.
Indicates an imminent hazard which, if not
avoided, can result in death or serious injury.
Indicates hazards which, if not avoided, could
result in serious injury and or damage to the
equipment.
•Safety Instructions are proceeded by a graphic alert symbol
of DANGER, WARNING, or CAUTION.
ELECTRICAL POWERED EQUIPMENT
GASOLINE/PROPANE POWERED EQUIPMENT
•Equipment should only be operated by trained personnel in
good physical condition and mental health (not fatigued). The
operator and maintenance personnel must be physically able
to handle the bulk weight and power of this equipment.
•This is a one person tool. Maintain a safe operating distance
to other personnel. It is the operators’ responsibility to keep
other people (workers, pedestrians, bystanders, etc.) away
during operation. Block off the work area in all directions with
roping, safety netting, etc. for a safe distance. Failure to do so
may result in others being injured by ying debris or exposing
them to harmful dust and noise.
•This equipment is intended for commercial use only.
•For the operator’s safety and the safety of others, always keep
all guards in place during operation.
•Never let equipment run unattended.
•Personal Protection Equipment and proper safety attire must
be worn when operating this machinery. The operator must
wear approved safety equipment appropriate for the job such
as hard hat and safety shoes when conditions require. Hear-
ing protection MUST be used (operational noise levels of this
equipment may exceed 85db). Eye protection MUST be worn
at all times.
Keep body parts and loose clothing away from moving
parts. Failure to do so could result in dismemberment
or death.
•Do not modify the machine.
•Stop motor/engine when adjusting or servicing this equipment.
Maintain a safe operating distance from ammable
materials. Sparks from the cutting-action of this machine
can ignite ammable materials or vapors.
GENERAL INSTRUCTIONS
DUST WARNING
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activi-
ties contains chemicals known to cause cancer,
birth defects, or other reproductive harm. Some
examples of these chemicals are:
•Lead from lead-based paints, and
•Crystalline silica from bricks and concrete and other
masonry products.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your risk:
work in a well ventilated area, use a dust control system, such
as an industrial-style vacuum, and wear approved personal
safety equipment, such as a dust/particle respirator designed
to lter out microscopic particles.
•Do not disconnect power by pulling cord. To disconnect, grasp
the plug, not the cord.
•Unplug power cord at the machine when not in use and before
servicing.

Printed in USA
JWA ©2012
Page 3
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
Section Page Number
Safety Messages and General Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
How To Order Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Illustration 1: Main Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4, 5
Illustration 2: Arbor & Blade Guard Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7
Illustration 3: Water Tank Assembly (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 9
Illustration 4: Engine & Belt Drive Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11
Wiring Diagram for Honda Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

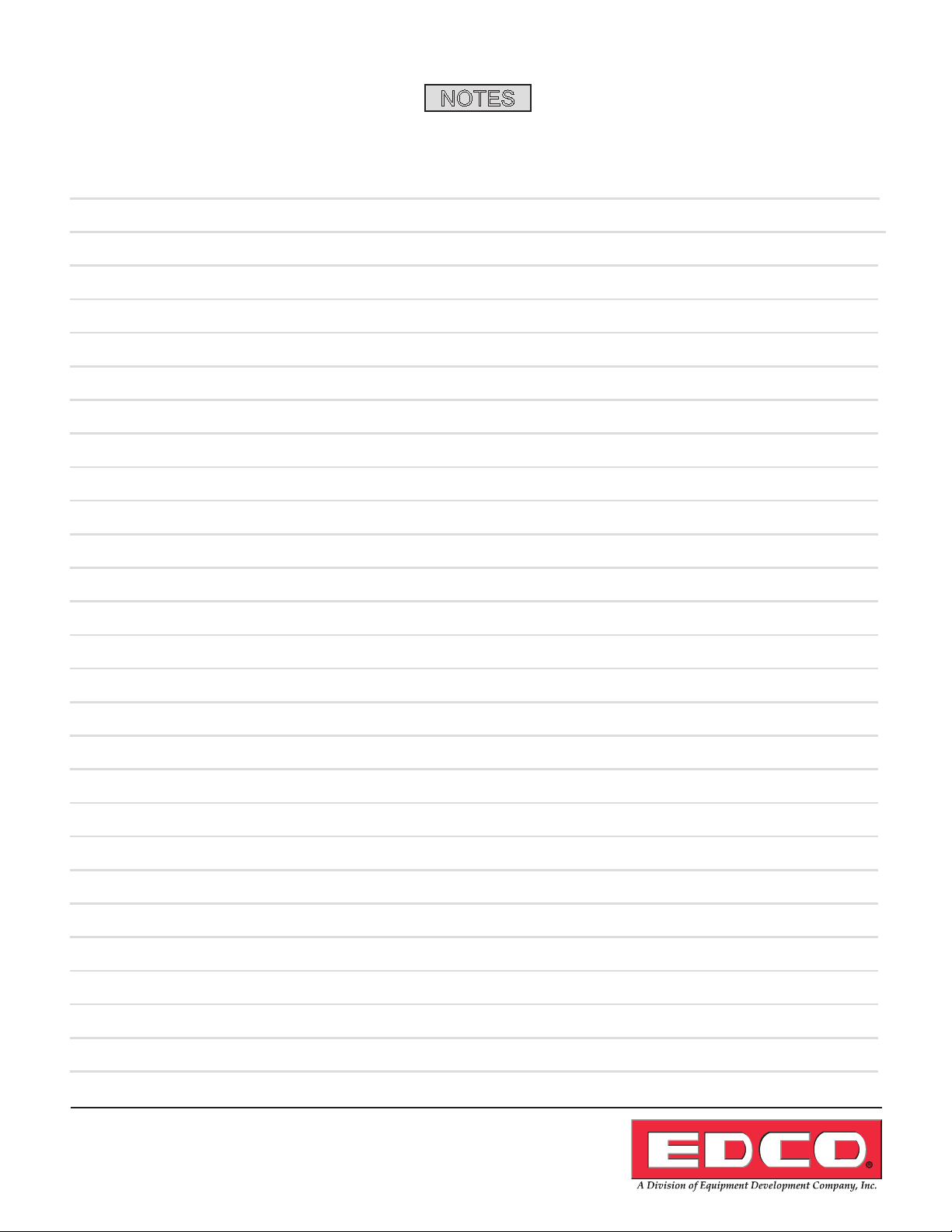

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Limited Equipment Warranty of Sale - Terms & Conditions . . . . . . . . . . . . . . . . . . 16 (Back Page)
HOW TO ORDER REPLACEMENT PARTS
 To insure product safety and reliability, always use
genuine EDCO replacement parts when making
repairs to the equipment.
 When calling for parts, specify the MODEL and
SERIAL number of the machine, which can be found
on the NAME PLATE. Keep that information in the
space provided. In addition to this information, give
part number, description, and quantity as listed on
the parts list to your parts representative.
 Please note: Due to improvements and changes
in the equipment, the illustrations shown may be
different than the actual machine.
FILL IN INFORMATION BELOW
Date of Purchase ______________________________
Model # _____________________________________
Serial # ______________________________________
SKU # ______________________________________
TABLE OF CONTENTS
PARTS LIST MANUAL
MODEL SK14
14” DOWNCUT - WALK BEHIND SAW

Printed in USA
©2012 JWA
Page 4
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
ILLUSTRATION 1: MAIN GROUPING

Printed in USA
JWA ©2012
Page 5
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
PARTS LISTING - ILLUSTRATION 1: MAIN GROUPING
ITEM # PART # DESCRIPTION QTY.
1 52070 MAIN FRAME, SK-14 1
2 52061 FORK, SK-14 1
3 52010 SPACER, FRONT WHEEL 3/4ID X 15/16 2
4 52001 WHEEL 4 X 1-1/2 X 3/4”BRG. ALUM/RUB 2
5 10009
11597
WASHER, FLAT 3/4 SAE ZINC
WASHER .755”ID X 1.25”OD X .060”THK (USE AS NEEDED)
2
2
6 10306 PIN, COTTER 3/16 X 1-1/2 2
7 52062 AXLE SHAFT 3/4”DIA. X 19-1/4”L 1
8 10009 WASHER, FLAT 3/4 SAE ZINC 6
9 79013 WHEEL, 8 X 2-1/2 X 3/4”BRG.POLY HUB 2
10 10306 PIN, COTTER 3/16 X 1-1/2 2
11 52021 HANDLE BAR, SK-14 1
12 10608 GRIP, HAND 1” MODEL AT 2
13 80008 HANDWHEEL, SMALL W/ 5/8-11 X 12”ROD 1
14 10411 SCREW, SKT. HD. CAP 1/2-13 X 4 ZINC 1
15 50550 SLEEVE, BRASS 1/2” TAPERED 1
16 14023 KNOB, BALL 1-3/8 W/ 1/2-13THD, BLK. 1
17 80009 BEARING, BALL 5/8” 2-HOLE (NO G.F.) 1
18 55010 SPACER, HANDWHEEL 5/8”ID X 3/4”L 1
19 10046 NUT, HEX 5/8-11 ZINC 1
20 10412 BOLT, CARRIAGE 1/4-20 X 1 FULL THD. 2
21 10602 WASHER, FLAT 1/4 SAE ZINC 2
22 10861 NUT, KEPS LOCK 1/4-20 ZINC 2
23 10029 SCREW, CAP 3/8-24 X 1-3/4 4
24 10025 WASHER, FLAT 3/8 SAE ZINC 8
25 10004 NUT, HEX LOCK 3/8-24 ZINC 4
26 52016 LINKAGE, CUT CONTROL, SK-14 1
27 10321 SCREW, CAP 1/2-20 X 1-1/4 1
28 10205 NUT, HEX LOCK 1/2-20 ZINC 1
29 52007 GUIDE BAR, SK-14 DOWN-CUT 1
30 50024 WHEEL 4 X 1-3/8 X 3/8”BORE 1
31 10885 SCREW, CAP 3/8-24 X 3 1
32 10025 WASHER, FLAT 3/8 SAE ZINC 4
33 10011 SPACER, STEEL 5/8OD X 3/8ID X 3/8T 1
34 10004 NUT, HEX LOCK 3/8-24 ZINC 2
35 10021 SCREW, CAP 3/8-24 X 1 1
36 52073 BAIL, LIFTING, SK-14 1
37 10021 SCREW, CAP 3/8-24 X 1 4
38 10004 NUT, HEX LOCK 3/8-24 ZINC 4

Printed in USA
©2012 JWA
Page 6
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
ILLUSTRATION 2: ARBOR & BLADE GUARD GROUPING

Printed in USA
JWA ©2012
Page 7
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
PARTS LISTING - ILLUSTRATION 2: ARBOR & BLADE GUARD GROUPING
ITEM # PART # DESCRIPTION QTY.
1 69050A ARBOR ASSY. COMPLETE (INCLUDES ITEMS 2 THRU 10) 1
2 69050 ARBOR SHAFT 19-1/4”L, SK-14 1
3 62022 BEARING, BALL 1” 2-HOLE FLANGE 2
4 10961 FITTING, GREASE 1/4-28 X 90° 1
5 10960 FITTING, GREASE 1/4-28 X 45° 1
6 10211 PIN, ROLL 5/16 X 2 1
7 56026 ARBOR BACKING PLATE 4” 1
8 56025 ARBOR BLADE CAP 4”OD W/1”HOLE 1
9 55009 WASHER, LOCK, INT. TOOTH 1” 1
10 50019 NUT, HEX JAM 1-14 ZINC GRADE A 1
11 10115 KEY 1/4SQ X 2 1
12 80027 SHEAVE 3”OD X 3GR.A X 1”BORE 1
13 10003 SCREW, CAP 7/16-20 X 1-1/4 ZINC 4
14 10450 WASHER, LOCK 7/16 ZINC 4
15 10481 NUT, HEX 7/16-20 ZINC 4
16 52005A GUARD, BLADE, ASSY. COMPLETE, SK-14
(INCLUDES ITEMS 17 THRU 22)
1
17 52005 GUARD, BLADE 14”, SK-14 DOWN-CUT 1
18 11562 BARB ELBOW 90, 3/8HOSE X 1/8MPT 1
19 81004 NOZZLE, COOLANT 1/8MPT W/ 4”TUBES 1
20 52002K LATCH KEEPER BRKT., EXT.LG. STYLE S 1
21 10830 SCREW, MACHINE SHWH 10-32 X 1/2 2
22 10832 NUT, KEPS LOCK 10-32 ZINC 2
23 52002 LATCH, FLEXIBLE DRAW W/ T-HANDLE
(INCLUDES LATCH KEEPER BRKT., ITEM 20)
1
24 10830 SCREW, MACHINE SHWH 10-32 X 1/2 2
25 10832 NUT, KEPS LOCK 10-32 ZINC 2
26 52022 BUMPER, RUBBER 1OD X 3/16ID X 7/16H 1
27 52023 RIVET, BLIND 3/16 X .7”L X .375HD 1
28 56022 BRACKET, WATER VALVE 1
29 10711 VALVE, BALL 1/2 FPT 1
30 80021 CONN., SWIVEL FEM. 3/4HOSE X 1/2MPT 1
31 10799 BARB ELBOW 90, 3/8HOSE X 1/4MPT 1
32 10846 SCREW, CAP STSHW 1/4-20 X 1/2 2
33 10038 WASHER, LOCK 1/4 ZINC 2
34 50069 CLAMP, HOSE, SAE #6, ADJ. TO 13/16 2
35 56023 HOSE, WATER 3/8”ID X 43”L 1
36 10982 TIE, CABLE, BLACK NYLON 11-1/4” 2
37 50445 WRENCH, ARBOR, 1-1/2” OPEN END 2

Printed in USA
©2012 JWA
Page 8
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
ILLUSTRATION 3: WATER TANK ASSEMBLY
OPTIONAL
PART # 52075

Printed in USA
JWA ©2012
Page 9
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
PARTS LISTING - ILLUSTRATION 3: WATER TANK ASSEMBLY
OPTIONAL - PART # 52075
ITEM # PART # DESCRIPTION QTY.
1 52074 MOUNT ONLY, WATER TANK, SK-14 1
2 10053 SCREW, CAP 5/16-18 X 3/4 4
3 10807 NUT, HEX LOCK 5/16-18 ZINC 4
4 52031 DRUM, PLASTIC 5 GALLON, 3/4NPT CAP 1
5 52035 TIE-DOWN STRAP, MOLDED RUBBER 24” 2
6 52034 BUSHING, HEX 3/4 X 1/4 NPT NYLON 1
7 56312 VALVE, BALL PVC 90°A 1/4MPT X BARB 1
8 50069 CLAMP, HOSE, SAE #6, ADJ. TO 13/16 4
9 52077 HOSE, WATER 3/8”ID X 10”L 1
10 56316 HOSE, WATER 3/8”ID X 2”L 1
11 11637 COUPLING, QUICK-DISCONNECT 3/8” SPL 1

Printed in USA
©2012 JWA
Page 10
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
ILLUSTRATION 4: ENGINE & BELT DRIVE GROUPING
PARTS LISTING
ITEM # PART # DESCRIPTION QTY.
1
15027
79045
15029
ENGINE WITH CYCLONE AIR CLEANER ...
HONDA GX270UT2-QXC9
HONDA GX340UT2-QXC9
HONDA GX390UT2-QXC9
1
PARTS LISTING CONTINUED ON THE NEXT PAGE

Printed in USA
JWA ©2012
Page 11
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
PARTS LISTING CONTINUED - ILLUSTRATION 4: ENGINE & BELT DRIVE GROUPING
ITEM # PART # DESCRIPTION QTY.
2 40388 CABLE, THROTTLE, LEVER-TYPE 24” 1
3 10877 SCREW, CAP STSHW 10-24 X 1/2 2
4 10831 WASHER, LOCK, INT. TOOTH #10 2
5 10982 TIE, CABLE, BLACK NYLON 11-1/4” 1
6 15201A
50084
10877
10831
10970
36042
SWITCH W/ WIRES, ROCKER RED ON-OFF
ADDITIONAL PARTS REQ’D. (NOT SHOWN):
TERM., RING #10 16-14GA. INSULATED
SCREW, CAP STSHW 10-24 X 1/2
WASHER, LOCK, INT. TOOTH #10
CONN., WIRE QUICK-SPLICE 18-14 GA.
CLIP, NATURAL CORD, 1/8” X 1/4”
1
1
1
1
1
2
7 10776 PIPE PLUG 1/4 NPT (BRASS) 1
8 11544 BARB, PUSH-ON 3/8 HOSE X 1/4FPT 1
9 52063 HOSE, PUSH-ON 3/8”ID X 10-1/2”L 1
10 11542 BARB, PUSH-ON 3/8HOSE X M12-1.5MALE 1
11 11565 CLAMP, LOOM, 5/8” (SAE SIZE 10) 1
12 10846 SCREW, CAP STSHW 1/4-20 X 1/2 1
13 10038 WASHER, LOCK 1/4 ZINC 1
14 10918 BOLT, CARRIAGE 5/16-18 X 1-3/4 F.T. 4
15 10213
10025
WASHER, FLAT 5/16 SAE ZINC
WASHER, FLAT 3/8 SAE ZINC
4
2
16 10801 WASHER, LOCK 5/16 ZINC 4
17 10054 NUT, HEX 5/16-18 ZINC 4
18 52015 BOLT, TAP 3/8-16 X 3-1/2(FULL THD.) 1
19 10404 NUT, HEX 3/8-16 ZINC 1
20 52072 BRACKET, BELT COVER, SK-14 1
21 10113
10011
SPACER, STEEL 9/16OD X 3/8ID X 7/32 (HONDA GX340 & GX390)
SPACER, STEEL 5/8OD X 3/8ID X 3/8 (HONDA GX270)
2
4
22 10213 WASHER, FLAT 5/16 SAE ZINC 2
23 10801 WASHER, LOCK 5/16 ZINC 2
24 10048
11691
SCREW, CAP 5/16-24 X 3/4 (HONDA GX340 & GX390)
SCREW, CAP 5/16-24 X 1-1/2 (HONDA GX270)
2
2
25 10307 KEY 1/4SQ X 2-1/4 1
26 80027 SHEAVE 3”OD X 3GR.A X 1”BORE 2
27 10115 KEY 1/4SQ X 2 1
28 10253 BELT AX-27 (GATES TRI-POWER 1/2” x 29”) 3
29 52071 COVER, BELT, SK-14 1
30 10602 WASHER, FLAT 1/4 SAE ZINC 3
31 10038 WASHER, LOCK 1/4 ZINC 3
32 10018 SCREW, CAP 1/4-20 X 3/4 3

Printed in USA
©2012 JWA
Page 12
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
WIRING DIAGRAM FOR HONDA ENGINE

Printed in USA
JWA ©2012
Page 13
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
DECALS
DAILY
GREASE BEARINGS
CALIFORNIA PROPOSITION 65 WARNING
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
SK-14 14 x 17
P/N 92212 Rev. B
edcoinc.com 1-800-638-3326
edcoinc.com 1-800-638-3326
BEFORE CUTTING INTO ANY SURFACE,
INSURE THERE ARE NO BURIED GAS,
ELECTRICAL, HIGH PRESSURE AIR,
SEWER OR WATER LINES
DANGER
NOTE: Locate this decal so it is
visible from operator's position
WARNING
THERE IS NO OIL IN THIS MACHINE
YOU MUST READ OPERATOR’S INSTRUCTION MANUAL BEFORE OPERATING
CHECK OIL DAILY
exceeds 85dBA
R
DN UP
4
T
U
R
N
S
E
Q
U
A
L
A
P
P
R
O
X
I
M
A
T
E
L
Y
1
I
N
C
H
C
U
T
C
O
N
T
R
O
L
SK-14

Printed in USA
©2012 JWA
Page 14
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
Record here any repairs or changes made to the Equipment
NOTES

Printed in USA
JWA ©2012
Page 15
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
THIS PAGE IS LEFT BLANK INTENSIONALLY

Printed in USA
©2012 JWA
Page 16
E-SK14-PL-1012
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone [phone] • 1-800-638-3326
Fax [phone] • 1-800-447-3326
Website: www.edcoinc.com
Email: [email protected]
Equipment Development Company, Inc. herein referred to as EDCO (Seller) warrants that
each new unit manufactured by EDCO to be free from defects in material and workmanship
in normal use and service for a period of (1) one year (except for the cutter drum assembly
on all model concrete/asphalt planes, in which case the warranty period shall be 90 days)
from date of shipment to the original retail or equipment rental center owner.
Accessories or equipment furnished and installed on the product by EDCO but manufactured by
others, including, but not limited to engines, motors,electrical components, transmissions etc.,
shall carry the accessory manufacturers own warranty.
EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by
EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been
defective in material or workmanship.
EDCO reserves the right to modify, alter and improve any part or parts
without incurring any obligation to replace any part or parts previously sold without such
modified, altered or improved part or parts.
This warranty is in lieu of and excludes all other warranties, expressed, implied, statutory,
or otherwise created under applicable law including, but not limited to the warranty of
merchantability and the warranty of fitness for a particular purpose in no event shall seller
or the manufacturer of the product be liable for special, incidental, or consequential dam-
ages, including loss of profits, whether or not caused by or resulting from the negligence
of seller and/or the manufacturer of the product unless specifically provided herein. In ad-
dition, this warranty shall not apply to any products or portions there of which have been
subjected to abuse, misuse, improper installation, maintenance, or operation, electrical
failure or abnormal conditions and to products which have been tampered with, altered,
modified, repaired, reworked by anyone not approved by seller or used in any manner
inconsistent with the provisions of the above or any instructions or specifications provided
with or for the product
FORCE MAJEURE
Seller’s obligation hereunder are subject to, and Seller shall not be held responsible for, any
delay or failure to make delivery of all or any part of the Product due to labor difficulties,
fires, casualties, accidents, acts of the elements, acts of God, transportation difficulties,
delays by a common carrier, inability to obtain Product, materials or components or qualified
labor sufficient to timely perform part of or all of the obligations contained in these terms
and conditions, governmental regulations or actions, strikes, damage to or destruction in
whole or part of manufacturing plant, riots, terrorist attacks or incidents, civil commotions,
warlike conditions, flood , tidal waves, typhoon, hurricane, earthquake, lightning, explosion
or any other causes, contingencies or circumstances within or without the United States not
subject to the Seller’s control which prevent or hinder the manufacture or delivery of the
Products or make the fulfillment of these terms and conditions impracticable. In the event
of the occurrence of any of the foregoing, at the option of Seller, Seller shall be excused
from the performance under these Terms and Conditions, or the performance of the Seller
shall be correspondingly extended.
This document sets forth the terms and conditions pursuant to which the purchaser (“Pur-
chaser”) will purchase and Equipment Development Co.Inc. (“Seller”)will sell the products,
accessories, attachments (collectively the Products “) ordered by the Purchaser. These
terms and conditions shall govern and apply to the sale of Seller’s Products to Purchaser,
regardless of any terms and conditions appearing on any purchase order or other forms
submitted by Purchaser to Seller, or the inconsistency of any terms therein and herein.
1. PRICE
All prices set forth on any purchase order or other document are F.O.B. Sellers facility or dis-
tribution point, as may be determined by Seller (F.O.B.Point). All prices are exclusive of any
and all taxes, including, but not limited to, excise, sales, use, property or transportation taxes
related to the sale or use of the Products, now or hereafter imposed, together with all penalties
and expenses. Purchaser shall be responsible for collecting and/or paying any and all such
taxes, whether or not they are stated in any invoice for the Products. Unless otherwise speci-
fied herein, all prices are exclusive of inland transportation, freight, insurance and other costs
and expenses relating to the shipment of the Products from the F.O.B. point to Purchaser’s
facility. Any prepayment by Seller of freight insurance and other costs shall be for the account
of Purchaser and shall be repaid to Seller.
2. PAYMENT TERMS
Payment terms are as follows. 2% 10 days (to approved and qualified accounts). Net 30
days. This is a cash discount for invoices paid within 10 days after the invoice date, regard-
less of date of receipt of shipment. This is not a trade discount and will not be granted to
accounts that do not adhere to stated terms.
*All past due accounts are subject to a late payment fee of 1.5% per month or a maximum
allowed by law if different, along with the expenses incidental to collection including reason-
able attorney’s fees and costs.
*Seller reserves the right to hold shipments against past due accounts.
*Seller reserves the right to alter payment terms.
3. FREIGHT TERMS
All shipments will be made F.O.B. shipping point as designated in these Terms and Condi-
tions, and title shall pass at the F.O.B. point. Delivery to the initial common carrier shall
constitute delivery to the Purchaser. Any claims for loss or damage during shipment
are to be filed with carrier by the Purchaser. Seller will not assume responsibility for the
performance of the carrier.
Back orders will be shipped in the most practical fashion with charges consistent with
our freight policy established with the original order. UPS, FED EX, MAIL or shipments
by other couriers are subject to the same terms and conditions as outlined in paragraph
#3”Freight Terms”.
4. DELIVERY, DAMAGES, SHORTAGES
Seller shall use reasonable efforts to attempt to cause the Products to be delivered as provided
for in these Terms & Conditions. Delivery to the initial common carrier shall constitute the delivery
to the Purchaser. Sellers responsibility, in so far as transportation risks are concerned ceases
upon the delivery of the Products in good condition to such carrier at the F.O.B. point and all the
Products shall be shipped at the Purchaser’s risk. Seller shall not be responsible or liable for
any loss of income and/or profits, or incidental, special, consequential damages resulting from
Seller’s delayed performance in shipment and delivery.
5. RETURN OF DEFECTIVE PRODUCTS
Defective or failed material shall be held at the Purchaser’s premises until authorization has
been granted by Seller to return or dispose of Products. Products that are to be returned
for final inspection must be returned Freight Prepaid in the most economical way. Credit
will be issued for material found to be defective upon Seller’s inspection based on prices
at time of purchase.
6. PRODUCTS ORDERED IN ERROR
Products may be returned, provided that claim is made and Seller is notified within 7 days
of receipt of Products, and the Products are in original buyer’s possession not more than
30 days prior to return, subject to Seller’s approval. If Products are accepted for return,
they must be Freight Prepaid and buyer will be charged a minimum of 15% restocking
charge, plus a charge back for outbound freight charges if the original order was shipped
prepaid. Returns are not accepted for any Products that are specifically manufactured to
meet the buyer’s requirement of either specifications or quantity.
AGREEMENTS
These Terms and Conditions constitute the entire agreement between Seller and Purchaser as
it relates to terms and conditions of sale, and supersedes any and all prior oral or written agree-
ments, correspondence, quotations or understandings heretofore in force between the parties
relating to the subject matter hereof. There are no agreements between Seller and Purchaser
with respect to the Product herein except those specifically set forth in and made part of these
terms and conditions. Any additional terms, conditions and/or prices are rejected by Seller.
These terms and conditions may be modified, cancelled or rescinded only by a written
agreement of both parties executed by their duly authorized agents.
USE ONLY GENUINE EDCO PARTS & ACCESSORIES
For your own safety, the safety of others and the life of your machine.
Equipment Development Company, Inc.
LIMITED EQUIPMENT WARRANTY OF SALE - TERMS & CONDITIONS
