Garden Treasures PG167H-A User manual

1
Garden Treasures® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
SerialNumber PurchaseDate
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Friday.
ITEM #0574424
GAS PATIO HEATER
MODEL #PG167H-A
Français p. 21
Español p. 42
EB14168

2
TABLEOFCONTENTS

FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your
gas supplier or fire department.

Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.


Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this
equipment.

For Outdoor Use Only
Product Specifications…….....................................................................................................3
Package Contents……...........................................................................................................4
Hardware Contents…….........................................................................................................5
Preparation……....……….......................................................................................................5
Safety Information……...........................................................................................................6
Assembly Instructions…….....................................................................................................8
Operating Instructions……...................................................................................................15
Care and Maintenance……..................................................................................................16
Troubleshooting…….............................................................................................................18
Warranty……........................................................................................................................18
Replacement Parts List…….................................................................................................19
DANGER WARNING
WARNING: WARNING

3
PRODUCT SPECIFICATIONS
Certification CSA
Height Overall 86.6 inches
Reflector Diameter 31.5 inches
Rated Heat Input 45,000 BTU/HR
Fuel Propane-LP
Gas Supply 20-Lb LP-Gas Cylinder
Manifold Pressure 11 inches W.C.
Injector Size (Diameter) 2.07 mm
Safety Features Thermocouple & Tilt Switch
Gas Supply Pressure Max 150 PSI, Min 5 PSI

4
PACKAGECONTENTS
PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY
A Top Dome 1 K Screw Sheath 2
B KD Dome 4 L Door Handle Bezel 2
C Burner Assembly 1 M Door Handle 1
D Pole Assembly 1 N Rear Panel 1
E Deck Ring 1 O Right Panel Assembly 1
F Table 1 P Tank Holder 1
G Table Support Bracket 2 Q Door Beam 1
H Table Rack 1 R Base Assembly 1
I Left Panel Assembly 1 S Cover 1
J Door Assembly 1
I
R
Q
P
O
H
G
F
E
D
C
B
A
M
N
L
K
J

5
HARDWARE CONTENTS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 30 minutes.
Tools Required for Assembly (not included): Phillips screwdriver and adjustable open wrench.
AA BB DD EE FFCC
HH IIGG JJ KK
M6 x 16 mm
Bolt
Qty. 20
M6 Washer
Qty. 4 M6 Spring
Washer
Qty. 4 M6 x 30 mm
Bolt
Qty. 4
M6 Nut
Qty. 4
M5 x 8 mm
Bolt
Qty. 15
M5 Nut
Qty. 12 M5 Washer
Qt
y
. 12 Reflector
Spacer
Qty. 3
Wing Nut
Qty. 3
Battery
Qty. 1

6
SAFETYINFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
·CALIFORNIA PROPOSITION 65 WARNING: Chemicals known to the state of California to cause
cancer, birth defects or other reproductive harm are created by combustion of propane.
·The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1 /NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling Code, B149.2.
DANGER
·Young children should be carefully supervised when they are in the area of the item.
·Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris. Use this
appliance in a well-ventilated space only. Do not use it in a building, garage or any other enclosed
area.
·Use this appliance in outdoor areas described below:
(a) With walls on all sides, but at least one permanent opening at ground level and no overhead
cover.
(b) Within a partial enclosure that includes overhead cover and no more than two walls. These
walls may be parallel, or at right angles to each other.
(c) Within a partial enclosure that includes overhead cover and no more than two walls. The
following shall apply:
(i) One wall that is equivalent to at least 25% of the total wall area is completely open.
(ii) 30% or more in total of the remaining wall area is open and unrestricted.
· Store the cylinder outdoors in a well-ventilated area (not in a building, garage, or other enclosed
area) out of the reach of children.
·Do not store a spare LP-gas cylinder under or near this appliance.
· Never fill the cylinder beyond 80 percent full.
WARNING
·Inspect the visible portion of the hose before each use of the appliance
·Perform a leak test with a soapy solution:
(a) To check gas connections.
(b) After connecting a new cylinder.
(c) Upon re-assembly after disassembly.
Please refer to the leak test procedure indicated in this instruction manual on page 15.
·Replace the hose assembly prior to the appliance being put into operation if there is evidence of
excessive abrasion or wear, or if the hose is damaged. The pressure regulator and hose
assembly supplied with the appliance must be used. The replacement hose assembly/regulator
shall be that specified by the manufacturer.
·Place the propane hose with regulator assembly out of pathways where people may trip over it or
in areas where the hose will not be subjected to accidental damage.

7
SAFETYINFORMATION
·The cylinder used must include a collar to protect the cylinder valve.
·Installation and repair should be done by qualified service person; the heater should be inspected
before use and at least annually by a qualified service person.
·Do not obstruct the flow of combustion and ventilation air.
· The LP-gas supply cylinder to be used must be:
(a) Constructed and marked in accordance with the Specifications for LP-gas cylinders of the
U.S. Department of Transportation of Dangerous Goods and Commission, CAN/CSA-B339,
as applicable;
(b) Provided with a listed overfilling prevention device; and
(c) Provided with a cylinder connection device compatible with the connection for the appliance.
· Disconnect the cylinder when the appliance is not in use.
·Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed
from the appliance.
·Materials or items when stored under the heater will be subjected to intense heat and could be
seriously damaged.
·Clothing or other flammable materials should not be hung on the heater, or placed on, under or
near the heater.
·Children and adults should be alerted to the hazards of high surface temperatures and should
stay away from the item to avoid burns or clothing ignition.
· Place the dust cap tightly on the cylinder valve outlet whenever the cylinder is not in use. Install
only the type of dust cap on the cylinder valve that is provided with the cylinder valve. Other types
of caps or plugs may result in a propane leak.
CAUTION
·Minimum clearance to the combustible materials is 44 inches.
·If you don’t feel the heater is on a stable surface, use a ground screw to fix the base of the heater
on the surface where the heater is installed. Fix the base on an incline no wider than 15 degrees.
·This heater is equipped with a battery-operated ignition device; please refer to the Assembly
Instructions on page 8.
· Any guard or other protective device removed for servicing the heater must be replaced prior to
operating the heater.
· More frequent cleaning may be required as necessary. It is imperative that the control
compartment, burners and circulating air passageways of the heater to kept clean.
·Keep the appliance area clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
· Inspect the visible portion of the hose before each use of the appliance. When portions of the
hose are located within the confines of the heater post, instructions to inspect the entire hose
assembly at least annually. If disassembly is required, the instructions shall also include the
proper procedure for leak checking the connections upon re-assembly.
·More frequent cleaning may be required as necessary. It is imperative the control compartment,
burners and circulating air passageways of the heater are kept clean.
· Keep this manual for future reference and to educate new users of this product.

8
ASSEMBLYINSTRUCTIONS
HardwareUsed
HardwareUsed
HardwareUsed
1. Attach left panel assembly (I) to base assembly
(R) using M6 x 16 mm bolts (AA).
Note: Do not tighten M6 x 16 mm bolt (AA)
completely until after sliding the left panel
assembly (I) enough that the bolt rests in the
narrow end of the keyslot.
Repeat this side for right panel assembly (O).
2. Attach rear panel (N) to left panel assembly (I)
and right panel assembly (O) using M6 x 16
mm bolts (AA).
3. Attach door beam (Q) to the inside front of
the left panel assembly (I) and right panel
assembly (O) using M6 x 16 mm bolts (AA).
1
AA M6X10 Bolt X 4
AA M6X10 Bolt X 4
AA M6X10 Bolt X 4
3
M6 x 16 mm Bolt
M6 x 16 mm Bolt
AA
Q
I
O
Q
M6 x 16 mm Bolt
x 4
x 4
x 4
2AA
N
I
O
O
I
AA
R

9
ASSEMBLYINSTRUCTIONS
HardwareUsed
HardwareUsed
4. Attach door handle bezel (L) on both sides of the
door handle (M). Insert screw sheaths (K) into
the holes on the backside of door assembly
(J). Then, attach door handle assembly to
door assembly (J) using M6 x 16 mm bolts
(AA) through the screw sheaths (K) and into
the preassembled door handle bezels (L) on
door handle (M).
5. Insert the preassembled sheath on the
bottom of door assembly (J) into the base
assembly (R). Then, push down the
preassembled spring sheath at the top of
door assembly (J) until it locks into door
beam (Q).
AA M6X10 Bolt X 2
6
6. Place table rack (H) into the cabinet and
table support bracket (G) against right panel
assembly (O). With holes aligned, secure
using M6 x 16 mm bolts (AA).
Repeat for left panel assembly (I).
AA M6X10 Bolt X 6
M6 x 16 mm Bolt
M6 x 16 mm Bolt
x 2
x 6
AA
G
H
O
I
J
Q
R
5
4
ML
K
J
AA
LM

10
ASSEMBLYINSTRUCTIONS
HardwareUsed
7. Open door assembly (J). Then, from inside,
secure pole assembly (D) to table rack (H)
using M6 x 30 mm bolts (DD), M6 washers
(BB), M6 spring washers (CC) and M6 nuts
(EE).
BB
CC
DD
EE
X4
M6 Washer 18X6.5X1.5
M6 Nut X4
M6 Stretchy Washer X4
M6 X 30mm Bolt X4
7
8. Remove the bolts and washers preassembled
underneath the table (F). Insert table (F) over
the pole assembly (D), carefully resting it on
table support rack (G). Secure from underneath
with previously removed bolts and washers.
M6 Washer
M6 Spring Washer
M6 x 30 mm
M6 nuts
x 4
x 4
x 4
x 4
F
G
D
F
G
8
H
D
EE
BB
CC
DD
J

11
ASSEMBLYINSTRUCTIONS
9. Insert the deck ring (E) over the pole
assembly (D) so it rests on top of table (F). 9
10. From inside the cabinet, secure the left
end of the tank holder (P) into the holder
preassembled on left panel assembly
(O). Then lock the other end of the tank
holder (P) into the holder on right panel
assembly (I).
Note: The tank holder (P) is highly
recommended to be installed as it can
prevent a gas tank from shaking.
10
E
F
D
P
O
I

12
ASSEMBLYINSTRUCTIONS
HardwareUsed

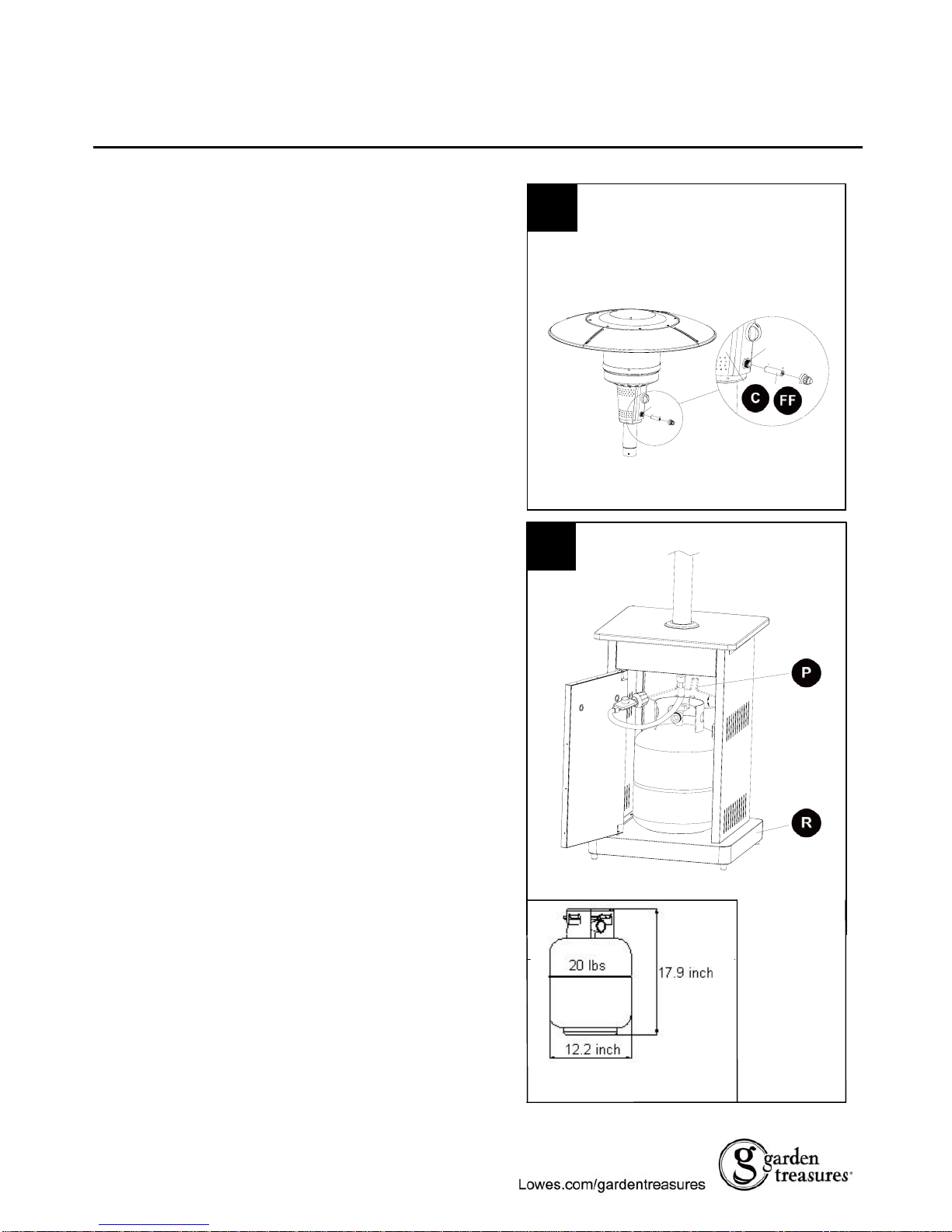

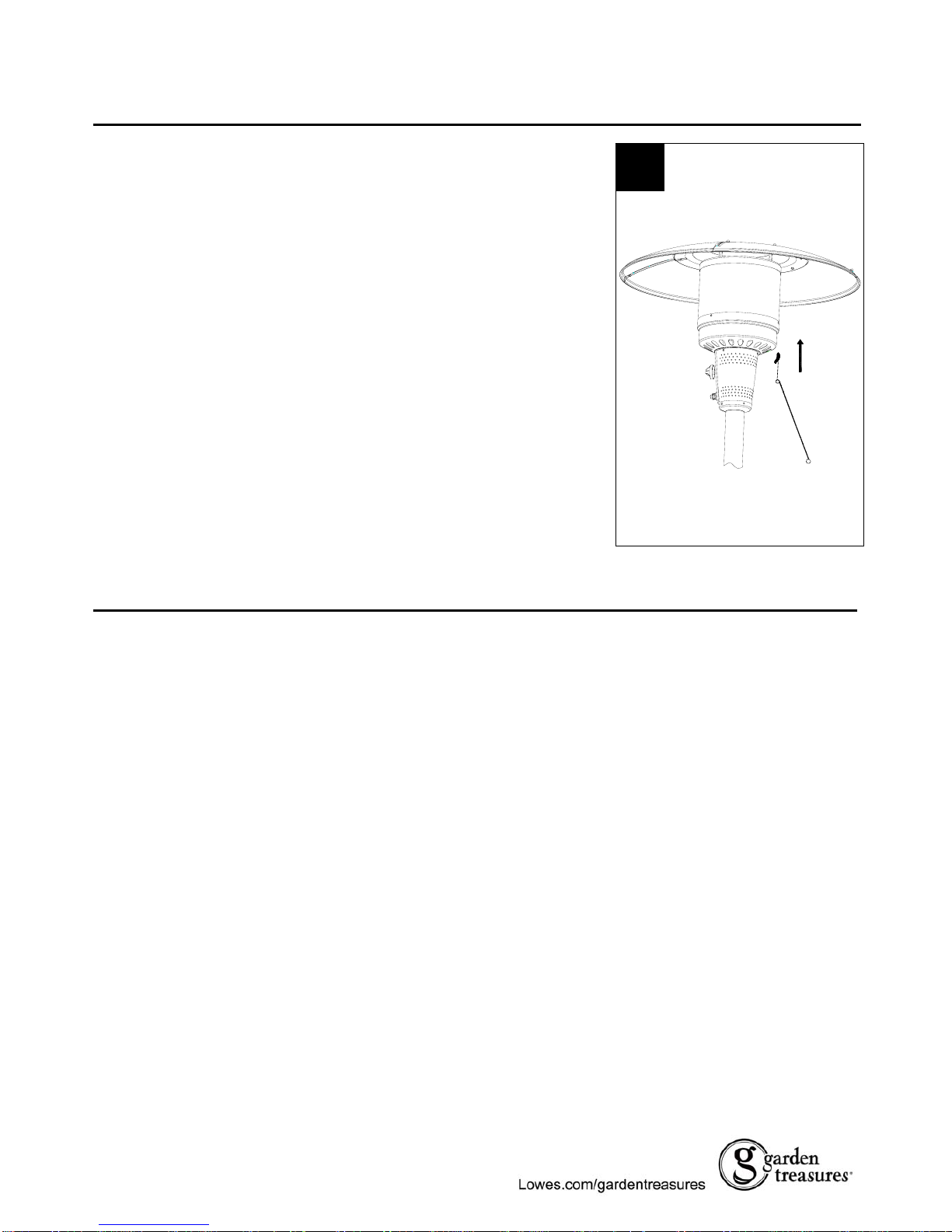

12. Thread the regulator assembly
preassembled to burner assembly (C)
through the pole assembly (D). Once the
burner assembly (C) rests on pole
assembly (D), secure with M5 x 8 mm
bolts(GG).
11. Insert reflector spacers (JJ) into the
top of burner assembly (C).
12
X 12
M5 X 8 mm Bolt
X 12
5 mm Washer
M5 Nut X 12
HH
II
GG M5 x 8 mm Bolt x 3
11 JJ
C
11
C
C15
D
D
FF
C

13
ASSEMBLYINSTRUCTIONS
HardwareUsed
HardwareUsed
HardwareUsed
Attach KD domes (B) using M5 x 8 mm bolts
(GG), M5 nuts (HH) and M5 washers (II). Then,
complete dome assembly by attaching top dome
(A) to KD domes (B) with M5 x 8 mm bolts (GG),
M5 nuts (HH) and M5 washers (II).
14.Attach dome assembly to burner assembly
(C) by securing wing nuts (KK) to reflector
spacers (JJ).
A
B
II
HH
GG
HH
II
GG
13
A
B
KK
C
JJ
14
Wing Nut
KK x 3
Wing nut x 3
13.
X 12
M5 X 8 mm Bolt
X 12
5 mm Washer
M5 Nut X 12
HH
II
GG M5 x 8 mm Bolt x 12
x 12
x 12
M5 Nut
M5 Washer

14
ASSEMBLYINSTRUCTIONS
16. Connect the preassembled regulator
assembly from burner assembly (C) to a
20-lb. LP-gas cylinder (sold separately).
Line up threads on cylinder fitting with those
on regulator and rotate clockwise until tight.
HAND TIGHTEN ONLY. DO NOTUSE ANY HAND
TOOLS TO MAKE THIS CONNECTION. Be
careful not to cross threads when screwing in
fitting.
To disconnect the LP-gas cylinder, first
make sure the cylinder valve is in the "OFF"
position. Then, turn the knob on the
regulator assembly counterclockwise until it
is loose.
Warning
Before connecting, be sure there is no
debris caught in the head of the LP-gas
cylinder regulator valve or in the head of the
burner and burner ports.
Check for leaks after connecting the gas
cylinder every time according to the
“Checking for Leaks” section
15. To install the battery (FF), unscrew the igniter
cap preassembled to burner assembly (C).
Insert battery (FF) into the igniter, ensuring the
positive "+" end faces outward. Then replace
the igniter cap.
15
16
Igniter
Igniter CLL
P
R

15
OPERATING INSTRUCTIONS
Fig.15
Lighting Instructions
1. Ensure the LP-gas cylinder valve and the item's
control knob are in the "OFF" position. If not, turn
off and wait 5 minutes for any gas to clear.
2. Turn theLP-gas cylinder valve "ON" and push the
item's control knob in and rotate it to "PUSH." Then,
push the item's igniter button and control knob until
the burner lights. Note: If the burner fails to remain
lit or is extinguished, repeat step 2 after waiting the
necessary 5 minutes when completing the shutoff
process.
3. Once the burner has lit, continue to hold the control
knob in for 30 seconds, and then release.
4. Turn the controlknobfrom"LOW" to "HIGH" until
the desired heat setting is reached.

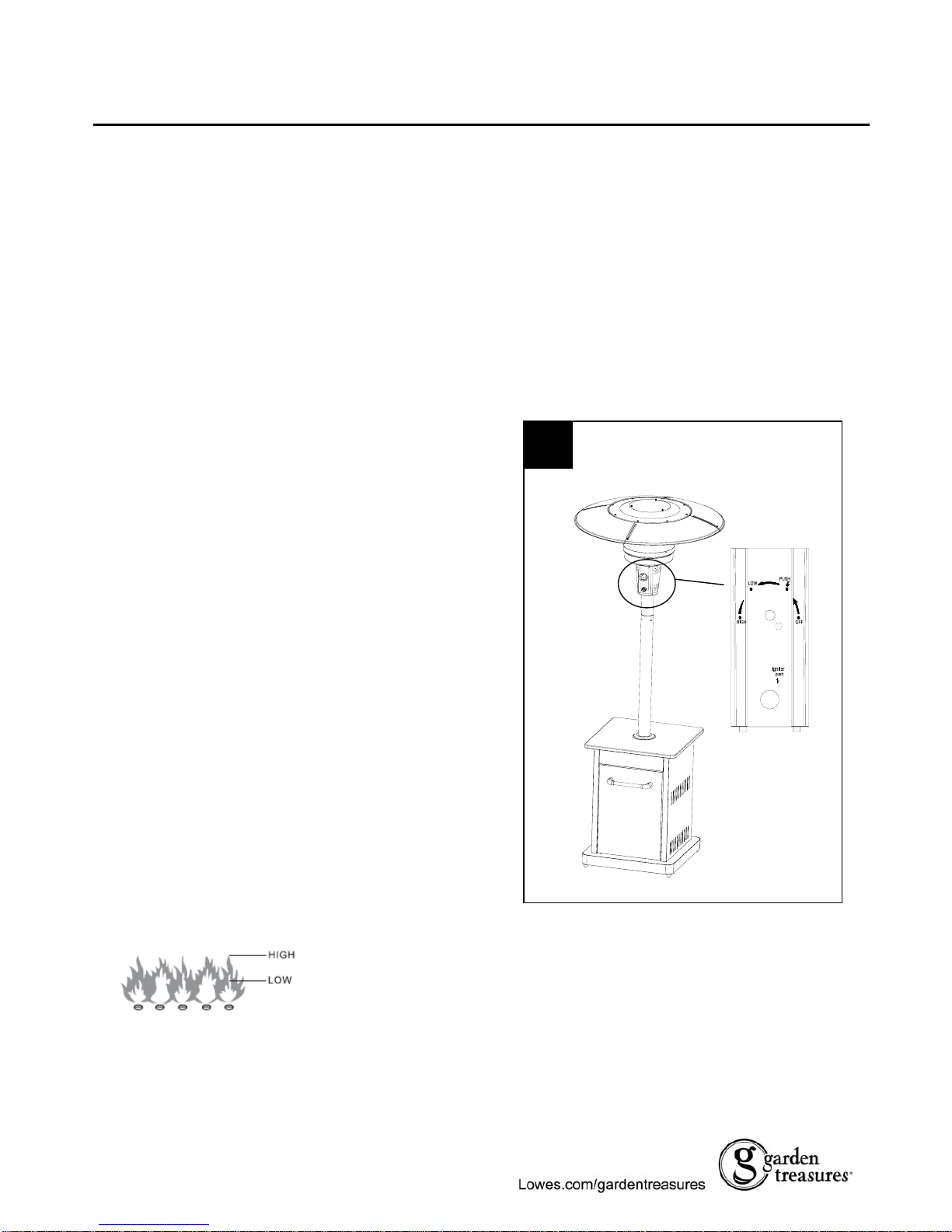

5. Visuallycheck the burner flame against the
illustrations below:
1) Flame should be blue with slight yellow tips.
2) You should see a smaller flame in LOW position
than seen on HIGH. Perform flame check prior
to each use. If only low flame is seen, refer to
“Burner flame is low” in the
“TROUBLESHOOTING” on page 18.

1
For complete shutdown:
1. Turn the item's control knob to "PUSH", then push and turn to "OFF" for a complete shutoff.
2. Turn the LP-
g
as c
y
linder valve to the "OFF"
p
osition, then remove the tank, if desired.
Checking for Leaks
a. Make leakage solution by mixing 1-part liquid dish soap and 3-parts water.
b. Spoon or brush several drops (or use squirt bottle) of the solution onto the gas hose/regulator and
regulator/cylinder and hose connections.
c. Turn on gas cylinder valve. Inspect the connections and look for bubbles.
1. If no bubbles appear, the connection is safe.
2. If bubbles appear, there is leakage. Loosen and re-tighten this connection. If it still leaks, please call
customer service.
Note: Whenever gas connections are loosened, removed or re-assembled, you must perform a complete
leak test.

16
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
·Abrasive cleaners will damage this product.
·Never use oven cleaner to clean any part of heater
·Do not clean any heater part in a self-cleaning oven. The extreme heat will damage the finish.
·More frequent cleaning may be required as necessary. It is imperative that control compartment,
burners and circulating air passageways of the heater be kept clean.
·Spiders and insects can create a dangerous condition that may damage heater or make it unsafe.
Keep burner area clean of all spiders, webs or insects. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away smaller particles.
·Inspect heater before each use.
· Have heater inspected annually and repairs should be made by a qualified service person.
·Check heater immediately if any of the following conditions exist:
a. The smell of gas in conjunction with extreme yellow tipping of burner flames
b. Heater does not reach proper temperature.
c. Heater’s glow is excessively uneven.
d. Burner makes popping noises during use.
Note: A slight pop is normal when burner is extinguished.
·Carbon deposits may create a fire hazard. Keep dome and emitter clean at all times.
·Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
·Do not paint engine, engine access panel or dome.
·This heater should be thoroughly cleaned on a regular basis.
·After a period of storage and/or non use, check for leaks, burner obstructions and inspect for any
abrasion, wear, cuts to the hose.
· Periodically check the hose located within the confines of the cylinder housing for damage.
In any case of failure of normal ignition, please use the ignition bar
with a match to reach the burner for ignition through the hole on the
bottomofburnerdiffuser. Insert the match from the back side of
the burner assembly where is opposite to the control panel.
WARNING
If at any time you are unable to light burner and smell gas, wait 5
minutes to allow gas to dissipate before attempting to light heater.
WARNING
DO NOT touch or move heater for at least 45 minutes after use.
Allow emitter and dome to cool before touching.
WARNING: Avoid inhaling fumes emitted from the heater’s first
use. Smoke and odor from the burning of oils used in
manufacturing will appear. Both smoke and odor will dissipate after
approximately 30 minutes. The heater should NOT produce thick
black smoke.
2

17
CARE AND MAINTENANCE
Cleaning
·Wipe surfaces clean with mild dish detergent or baking soda.
·For stubborn surfaces use a citrus-based degreaser and a nylon scrubbing brush.
·Rinse clean with water.
Note: While cleaning the unit, be sure to keep the area around the burner dry at all times. Do not
submerge the control valve assembly. If the gas control is submerged in water, do NOT use it. It
must be replaced.
TIP: Use high-quality automobile wax to help maintain the appearance of the heater. Apply to
exterior surfaces from the pole down. Do not apply to emitter screen or domes
Maintenance
·Keep exterior surfaces clean.
·Air flow must be unobstructed. Keep controls, burner and circulating air passageways clean.
Signs of possible blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Note: In a salt-air environment (such as near an ocean) corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
Storage
Between uses or during periods of extended inactivity:
·Turn control knob to "OFF".
·Disconnect LP cylinder and move to a secure, well-location outdoors.
·Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
Note: Never leave LP gas tank exposed to direct sunlight or excessive heat.
·If desired, use cover (s) to protect the heater and help prevent buildup in air passages.
CAUTION: Wait until heater is cool before covering.

18
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Burner doesn’t light. 1. Gas pressure is low.
2. The orifice is blocked.
3. Control knob is not in “ON”
position.
1. Turn the gas cylinder valve “OFF”
and replace the cylinder.
2. Clear blockage.
3. Turn control knob to “ON”
Burner flame is low. 1. Gas pressure is low.
2. The control knob is not
positioned at “High”.
3. The burner jet is partially
blocked.
4. Outdoor temperature is less
than 40°F and/or tank is less
than 1/4 full.
5. Supply hose is bent or kinked.
1. Turn the gas cylinder valve “OFF”
and replace the cylinder.
2. Position the control knob at “High”
3. Clear blockage.
4. Use a full gas cylinder.
5. Straighten the hose.
Carbon buildup. Seasonal accumulation. Wipe off before lighting.
Thick black smoke. Blockage in burner. Remove blockage and clean burner
inside and outside.
WARRANTY
The appliance has been manufactured under the highest standards of quality and workmanship. We
warrant to the original consumer/purchaser that all aspects of this product will be free of defects in
material and workmanship for one (1) year from the date of purchase. Replacements for any
defective part will be supplied free of charge for installation by the consumer. Defects or damage
caused by the use of other than genuine parts are not covered by this warranty. This warranty shall
be effective from the date of purchase as shown in the purchaser’s receipt. This warranty is valid for
the original consumer purchaser only and excludes industrial, commercial or business use of the
product, product damage due to shipment or failure which results from alteration, product abuse or
product misuse, where performed by a container, service company or consumer. We will not be
responsible for labor charges and/or damage incurred in installation, repair or replacement, nor for
incidental or consequential damage. This warranty gives you specific legal rights, and you may also
have the other rights that vary from state to state.

19

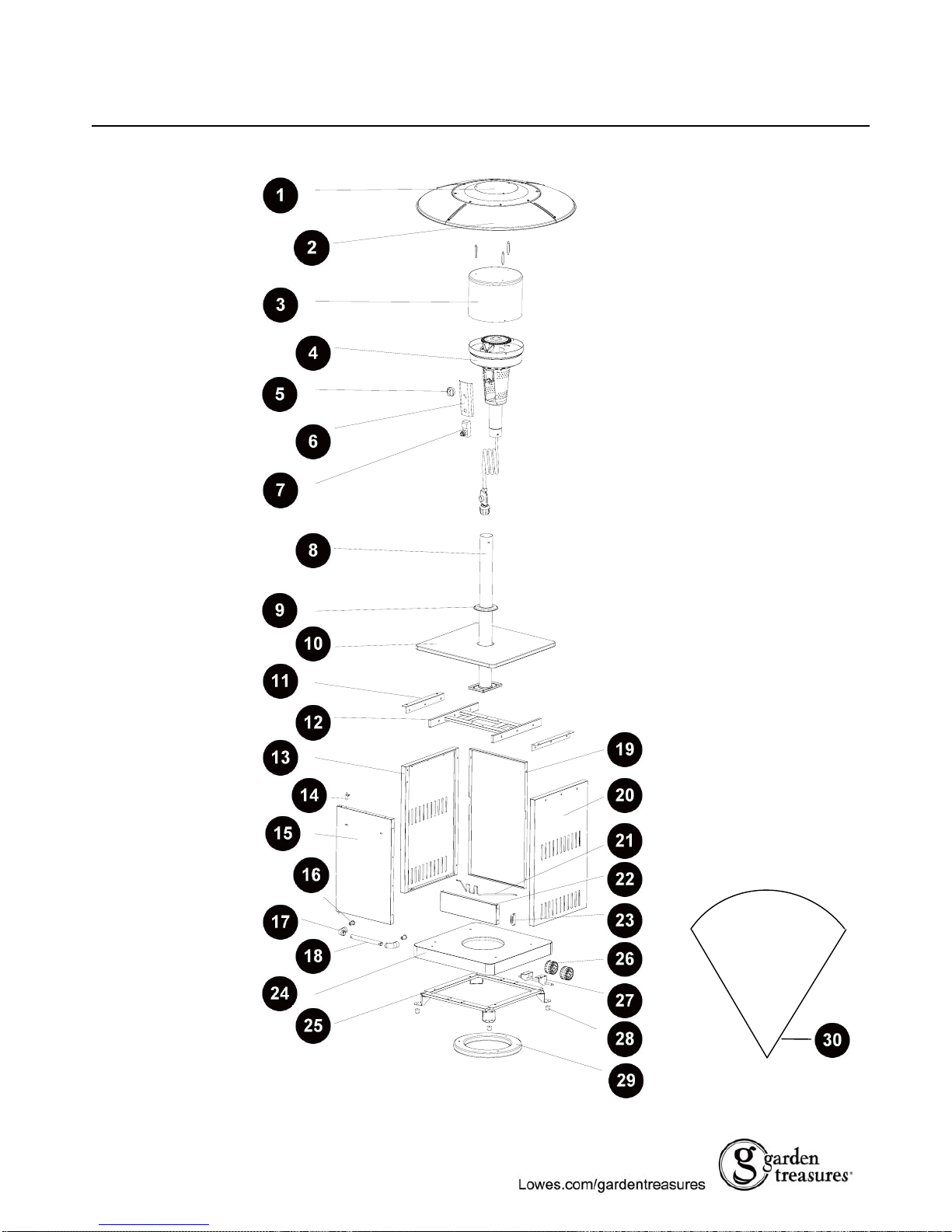

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 8 p.m.,
EST, Monday - Friday

20
REPLACEMENT PARTS LIST
PART DESCRIPTION PART # PART DESCRIPTION PART #
1 Top Dome 5007755 17 Door Handle Bezel 2406488
2 KD Dome 5007756 18 Door Handle 5015240
3 Burner Chamber Assembly 5203139 19 Rear Panel 5203093
4 Burner Assembly
0574423
-4 20 Right Panel 5203092
5 Knob 2100462 21 Tank Holder 2406489
6 Valve Shroud Cover 5203146 22 Door Beam 5203094
7 Igniter 2406521 23 Magnet 2306622
8 Pole Assembly 5203088 24 Base 5203097
9 Deck Ring 5201949 25 Base Support 5203098
10 Granite Table 2406487 26 Wheel 2404747
11 Table Support Bracket 5203089 27 Wheel Support 5203099
12 Table Rack 5203090 28 Tip Cushion 2404076
13 Left Panel Assembly 5203091 29 Weight Plate 2406533
14 Spring Sheath 2306703 30 Cover 3106103
15 Door
0574424
-15 31 Hardware Pack 5203215
16 Screw Sheath 2100481
Printed in China
Garden Treasures® is a registered trademark
of LF, LLC. All Rights Reserved.
