Edge-Core ECS4510-28T User manual

Installation Guide
www.edge-core.com
ECS4510-28T
28-Port Layer 2
Gigabit Ethernet Switch

I NSTALLATION G UIDE

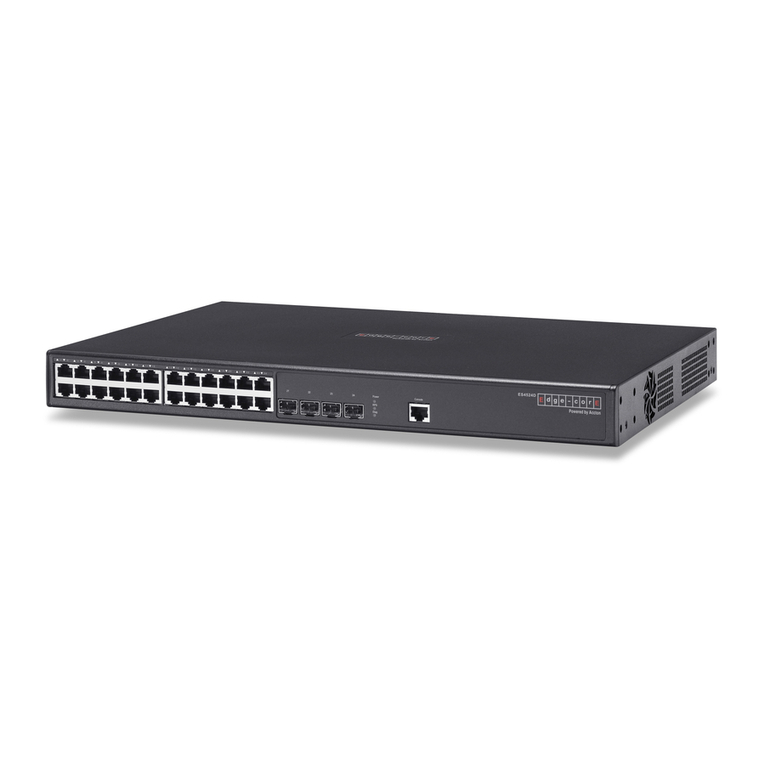

ECS4510-28T GIGABIT ETHERNET SWITCH
Layer 2 Gigabit Ethernet Switch
with 24 10/100/1000BASE-T (RJ-45) Ports,
2 10 Gigabit SFP+ Ports,
and 1 10-Gigabit SFP+ Extender Module Slot
ECS4510-28T
E072012-CS-R01
150200000433A

– 5 –
COMPLIANCES AND SAFETY
STATEMENTS
FCC - CLASS A
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the
equipment.
You may use unshielded twisted-pair (UTP) for RJ-45 connections - Category 3
or better for 10 Mbps connections, Category 5 or better for 100 Mbps
connections, Category 5, 5e, or 6 for 1000 Mbps connections. For fiber optic
connections, you may use 50/125 or 62.5/125 micron multimode fiber or 9/125
micron single-mode fiber.
INDUSTRY CANADA - CLASS A
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of
Communications.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables
aux appareils numériques de Classe A prescrites dans la norme sur le matériel
brouilleur: “Appareils Numériques,” NMB-003 édictée par le ministère des
Communications.
JAPAN VCCI CLASS A

C OMPLIANCES AND S AFETY S TATEMENTS
– 6 –
CE MARK DECLARATION OF CONFORMANCE FOR EMI AND SAFETY (EEC)
This information technology equipment complies with the requirements of the
Council Directive 89/336/EEC on the Approximation of the laws of the Member
States relating to Electromagnetic Compatibility and 73/23/EEC for electrical
equipment used within certain voltage limits and the Amendment Directive 93/
68/EEC. For the evaluation of the compliance with these Directives, the following
standards were applied:
RFI Emission: ◆Limit class A according to EN 55022: 2010, Class A/B
◆Limit class A for harmonic current emission according to EN 61000-3-
2: 2009, Class A
◆Limitation of voltage fluctuation and flicker in low-voltage supply
system according to EN 61000-3-3: 2008
Immunity: ◆Product family standard according to EN 55024: 2010
◆Electrostatic Discharge according to IEC 61000-4-2: 2008
◆Radio-frequency electromagnetic field according to IEC 61000-4-3:
2010
◆Electrical fast transient/burst according to IEC 61000-4-4: 2011
◆Surge immunity test according to IEC 61000-4-5: 2005
◆Immunity to conducted disturbances, Induced by radio-frequency
fields: IEC 61000-4-6: 2008
◆Power frequency magnetic field immunity test according to
IEC 61000-4-8: 2009
◆Voltage dips, short interruptions and voltage variations immunity test
according to IEC 61000-4-11: 2004
LVD: ◆EN 60950-1: 2011

C OMPLIANCES AND S AFETY S TATEMENTS
– 7 –
SAFETY COMPLIANCE
Warning: Fiber Optic Port Safety
Avertissment: Ports pour fibres optiques - sécurité sur le plan optique
Warnhinweis: Faseroptikanschlüsse - Optische Sicherheit
PSE ALARM
本製品に同梱いたしております電源コードセットは、
本製品専用です。本電源コードセットは、本製品以外の
製品並びに他の用途でご使用いただくことは出来ません。
製品本体に同梱された電源コードセットを利用し、他製品
の電源コードセットを使用しないで下さい。
When using a fiber optic port, never look at the transmit laser while it
is powered on. Also, never look directly at the fiber TX port and fiber
cable ends when they are powered on.
Ne regardez jamais le laser tant qu'il est sous tension. Ne regardez
jamais directement le port TX (Transmission) à fibres optiques et les
embouts de câbles à fibres optiques tant qu'ils sont sous tension.
Niemals ein Übertragungslaser betrachten, während dieses
eingeschaltet ist. Niemals direkt auf den Faser-TX-Anschluß und auf
die Faserkabelenden schauen, während diese eingeschaltet sind.
CLASS I
LASER DEVICE
DISPOSITIF LASER
DE CLASSE I
LASERGER
DER KLASSE I
ÄT

C OMPLIANCES AND S AFETY S TATEMENTS
– 8 –
POWER CORD SAFETY
Please read the following safety information carefully before installing
the switch:
WARNING: Installation and removal of the unit must be carried out by qualified
personnel only.
◆The unit must be connected to an earthed (grounded) outlet to comply with
international safety standards.
◆Do not connect the unit to an A.C. outlet (power supply) without an earth
(ground) connection.
◆The appliance coupler (the connector to the unit and not the wall plug) must
have a configuration for mating with an EN 60320/IEC 320 appliance inlet.
◆The socket outlet must be near to the unit and easily accessible. You can
only remove power from the unit by disconnecting the power cord from the
outlet.
◆This unit operates under SELV (Safety Extra Low Voltage) conditions
according to IEC 60950. The conditions are only maintained if the
equipment to which it is connected also operates under SELV conditions.
France and Peru only
This unit cannot be powered from IT†supplies. If your supplies are of IT type,
this unit must be powered by 230 V (2P+T) via an isolation transformer ratio
1:1, with the secondary connection point labelled Neutral, connected directly to
earth (ground).
†Impédance à la terre
I MPORTANT ! Before making connections, make sure you have the correct cord
set. Check it (read the label on the cable) against the following:

C OMPLIANCES AND S AFETY S TATEMENTS
– 9 –
Veuillez lire à fond l'information de la sécurité suivante avant d'installer
le Switch:
AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à
un personnel qualifié.
◆Ne branchez pas votre appareil sur une prise secteur (alimentation
électrique) lorsqu'il n'y a pas de connexion de mise à la terre (mise à la
masse).
◆Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la
masse) afin de respecter les normes internationales de sécurité.
◆Le coupleur d’appareil (le connecteur du groupe et non pas la prise murale)
doit respecter une configuration qui permet un branchement sur une entrée
d’appareil EN 60320/IEC 320.
Power Cord Set
U.S.A. and Canada The cord set must be UL-approved and CSA certified.
The minimum specifications for the flexible cord are:
- No. 18 AWG - not longer than 2 meters, or 16 AWG.
- Type SV or SJ
- 3-conductor
The cord set must have a rated current capacity of at least 10 A
The attachment plug must be an earth-grounding type with NEMA
5-15P (15 A, 125 V) configuration.
Denmark The supply plug must comply with Section 107-2-D1, Standard
DK2-1a or DK2-5a.
Switzerland The supply plug must comply with SEV/ASE 1011.
U.K. The supply plug must comply with BS1363 (3-pin 13 A) and be fitted
with a 5 A fuse which complies with BS1362.
The mains cord must be <HAR> or <BASEC> marked and be of type
HO3VVF3GO.75 (minimum).
Europe The supply plug must comply with CEE7/7 (“SCHUKO”).
The mains cord must be <HAR> or <BASEC> marked and be of type
HO3VVF3GO.75 (minimum).
IEC-320 receptacle.

C OMPLIANCES AND S AFETY S TATEMENTS
– 10 –
◆La prise secteur doit se trouver à proximité de l’appareil et son accès doit
être facile. Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant
son cordon électrique au niveau de cette prise.
◆L’appareil fonctionne à une tension extrêmement basse de sécurité qui est
conforme à la norme IEC 60950. Ces conditions ne sont maintenues que si
l’équipement auquel il est raccordé fonctionne dans les mêmes conditions.
France et Pérou uniquement:
Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si
vos alimentations sont du type impédance à la terre, ce groupe doit être
alimenté par une tension de 230 V (2 P+T) par le biais d’un transformateur
d’isolement à rapport 1:1, avec un point secondaire de connexion portant
l’appellation Neutre et avec raccordement direct à la terre (masse).
Cordon électrique - Il doit être agréé dans le pays d’utilisation
Etats-Unis et Canada: Le cordon doit avoir reçu l’homologation des UL et un certificat de
la CSA.
Les spécifications minimales pour un cable flexible sont AWG No.
18, ouAWG No. 16 pour un cable de longueur inférieure à2
mètres.
- type SV ou SJ
- 3 conducteurs
Le cordon doit être en mesure d’acheminer un courant nominal
d’au moins 10 A.
La prise femelle de branchement doit être du type à mise à la
terre (mise à la masse) et respecter la configuration NEMA 5-15P
(15 A, 125 V).
Danemark: La prise mâle d’alimentation doit respecter la section 107-2 D1 de
la norme DK2 1a ou DK2 5a.
Suisse: La prise mâle d’alimentation doit respecter la norme SEV/ASE
1011.
Europe La prise secteur doit être conforme aux normes CEE 7/7
(“SCHUKO”)
LE cordon secteur doit porter la mention <HAR> ou <BASEC> et
doit être de type HO3VVF3GO.75 (minimum).

C OMPLIANCES AND S AFETY S TATEMENTS
– 11 –
Bitte unbedingt vor dem Einbauen des Switches die folgenden
Sicherheitsanweisungen durchlesen:
WARNUNG: Die Installation und der Ausbau des Geräts darf nur durch
Fachpersonal erfolgen.
◆Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose
angeschlossen werden.
◆Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche
die internationalen Sicherheitsnormen erfüllt.
◆Der Gerätestecker (der Anschluß an das Gerät, nicht der
Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320
konfigurierten Geräteeingang haben.
◆Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein.
Die Stromversorgung des Geräts kann nur durch Herausziehen des
Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.
◆Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen
(Sicherheitskleinstspannung) gemäß IEC 60950. Diese Bedingungen sind
nur gegeben, wenn auch die an das Gerät angeschlossenen Geräte unter
SELV-Bedingungen betrieben werden.
Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden:
Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen einhalten.
Europe Das Netzkabel muß vom Typ HO3VVF3GO.75 (Mindestanforderung)
sein und die Aufschrift <HAR> oder <BASEC> tragen.
Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”).

C OMPLIANCES AND S AFETY S TATEMENTS
– 12 –
WARNINGS AND CAUTIONARY MESSAGES
ENVIRONMENTAL STATEMENTS
The manufacturer of this product endeavours to sustain an environmentally-
friendly policy throughout the entire production process. This is achieved though
the following means:
◆Adherence to national legislation and regulations on environmental
production standards.
◆Conservation of operational resources.
◆Waste reduction and safe disposal of all harmful un-recyclable by-products.
◆Recycling of all reusable waste content.
◆Design of products to maximize recyclables at the end of the product’s life
span.
◆Continual monitoring of safety standards.
W ARNING : This product does not contain any serviceable user parts.
W ARNING : Installation and removal of the unit must be carried out by
qualified personnel only.
W ARNING : When connecting this device to a power outlet, connect the
field ground lead on the tri-pole power plug to a valid earth ground line
to prevent electrical hazards.
W ARNING : This switch uses lasers to transmit signals over fiber optic
cable. The lasers are compliant with the requirements of a Class 1
Laser Product and are inherently eye safe in normal operation.
However, you should never look directly at a transmit port when it is
powered on.
C AUTION : Wear an anti-static wrist strap or take other suitable
measures to prevent electrostatic discharge when handling this
equipment.
C AUTION : Do not plug a phone jack connector in the RJ-45 port. This
may damage this device.
C AUTION : Use only twisted-pair cables with RJ-45 connectors that
conform to FCC standards.

C OMPLIANCES AND S AFETY S TATEMENTS
– 13 –
END OF PRODUCT LIFE SPAN
This product is manufactured in such a way as to allow for the recovery and
disposal of all included electrical components once the product has reached the
end of its life.
MANUFACTURING MATERIALS
There are no hazardous nor ozone-depleting materials in this product.
DOCUMENTATION
All printed documentation for this product uses biodegradable paper that
originates from sustained and managed forests. The inks used in the printing
process are non-toxic.

C OMPLIANCES AND S AFETY S TATEMENTS
– 14 –

– 15 –
ABOUT THIS GUIDE
PURPOSE
This guide details the hardware features of the switch, including the physical and
performance-related characteristics, and how to install the switch.
AUDIENCE
The guide is intended for use by network administrators who are responsible for
installing and setting up network equipment; consequently, it assumes a basic
working knowledge of LANs (Local Area Networks).
CONVENTIONS
The following conventions are used throughout this guide to show information:
RELATED PUBLICATIONS
The following publication gives specific information on how to operate and use
the management functions of the switch:
The Management Guide
Also, as part of the switch’s software, there is an online web-based help that
describes all management related features.
N OTE : Emphasizes important information or calls your attention to
related features or instructions.
C AUTION : Alerts you to a potential hazard that could cause loss of data,
or damage the system or equipment.
W ARNING : Alerts you to a potential hazard that could cause personal
injury.

A BOUT T HIS G UIDE
– 16 –
REVISION HISTORY
This section summarizes the changes in each revision of this guide.
JULY 2012 REVISION
This was the first revision of this guide.

– 17 –
CONTENTS
COMPLIANCES AND SAFETY STATEMENTS 5
ABOUT THIS GUIDE 15
CONTENTS 17
TABLES 19
FIGURES 21
1I
NTRODUCTION 23
Overview 23
Description of Hardware 24
2NETWORK PLANNING 29
Introduction to Switching 29
Application Examples 30
Application Notes 34
3INSTALLING THE SWITCH 35
Selecting a Site 35
Ethernet Cabling 36
Equipment Checklist 37
Mounting 38
Installing an Optional Module into the Switch 42
Installing an SFP or SFP+ Transceiver 43
Connecting to a Power Source 44
Connecting to the Console Port 45
4MAKING NETWORK CONNECTIONS 47
Connecting Network Devices 47

C ONTENTS
– 18 –
Twisted-Pair Devices 47
Fiber Optic SFP Devices 50
10 Gbps Fiber Optic Connections 52
Connectivity Rules 53
Cable Labeling and Connection Records 55
ATROUBLESHOOTING 57
Diagnosing Switch Indicators 57
Power and Cooling Problems 58
Installation 58
In-Band Access 59
BCABLES 61
Twisted-Pair Cable and Pin Assignments 61
Fiber Standards 65
CSPECIFICATIONS 67
Physical Characteristics 67
Switch Features 69
Management Features 69
Standards 70
Compliances 70
10GBASE-SFP+ Extender Module 71
GLOSSARY 73
INDEX 79

– 19 –
TABLES
Table 1: Port Status LEDs 25
Table 2: System Status LEDs 26
Table 3: Optional Transceivers 43
Table 4: Serial Cable Wiring 45
Table 5: Maximum 1000BASE-SR Gigabit Ethernet Cable Lengths 53
Table 6: Maximum 10GBASE-LR 10 Gigabit Ethernet Cable Length 53
Table 7: Maximum 10GBASE-ER 10 Gigabit Ethernet Cable Length 54
Table 8: Maximum 1000BASE-T Gigabit Ethernet Cable Length 54
Table 9: Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths 54
Table 10: Maximum 1000BASE-LX Gigabit Ethernet Cable Length 54
Table 11: Maximum 1000BASE-LH Gigabit Ethernet Cable Length 54
Table 12: Maximum Fast Ethernet Cable Lengths 55
Table 13: Maximum Ethernet Cable Length 55
Table 14: Troubleshooting Chart 57
Table 15: Power/RPS LEDs 58
Table 16: 10/100BASE-TX MDI and MDI-X Port Pinouts 62
Table 17: 1000BASE-T MDI/MDI-X Port Pinouts 64
Table 18: Fiber Standards 65

T ABLES
– 20 –
