EDIFIER W830BT User manual

Wireless Stereo Headphones
W830BT
Operating instructions

1
Before use the headphone, please read these operating instructions
carefully. Keep the operating instructions safe for future reference.
■ Features
■ Specications
■ Introduction
Bluetooth Version: Bluetooth V4.1
Bluetooth Profiles: HFP, HSP, A2DP, AVRCP
Audio Decoder: Qualcomm® aptX™
Operating Distance: 10m
Operating Time: About 95 hours
Charge Time: About 4 hours
Rated Power Input: 5.0V 1A
Frequency Range: 20Hz-20KHz
Sensitivity (SPL): 96dB
Nominal Impedance: 24ohm
Frequency Band: 2.402GHz - 2.480GHz
RF Power Output: ≤20 dBm (EIRP)
• 40mm drivers delivers deep powerful bass ideal for all music genres
• 90°-degree swivel ear pads optimise movement while ensuring
overall comfort
• Bluetooth V4.1 supports HSP, HFP, A2DP and AVRCP protocol
• CSR8645 chip with AAC and Qualcomm® aptX™ audio decoding
technology
• Supports 95 hours of continuous play
• Bluetooth connects up 10 meters
• Sleek metal bracket and headband styled with soft leather ear caps
and head cushion
• Accessories include: Travel case x1
3.5mm audio cable x1
USB charging cable x1

2
Headset Travel case
USB charge cable
User manual
3.5mm audio cable
I. Diagram
1. Press: volume increase /press and hold: next track
2. Multi-function key
3. Press: volume decrease/press and hold: previous track
4. micro USB charging port
5. 3.5mm audio jack
1
2
3
4
5
■ Box Content
■ Operating Instructions

3
II. Charge batteries
I. ON/OFF
Warning: The rechargeable batteries that provide power for this
product must be disposed properly for recycling.
Do not dispose of batteries in fire to preventing an explosion.
ON
OFF
Long press the multi-function
key for 3 seconds
Long press the multi-function
key for 3 seconds
Function Operation
The blue light flashes quickly
Indicator off
Indicator
II. Connection
1. Bluetooth connection
Please complete the connection with your mobile before use.
Follow the steps below:
• The distance between your mobile and the headset should be kept
within 1m. The closer the better.
Red light on = Charging Red light off = Charge complete
Battery full Battery low
The headset is equipped with a built-in rechargeable battery. Fully
charge the battery before first use. While in use, the headset will beep
and flash red light to indicate battery low. You shall recharge the device.
1. Attach the USB charge cable to a standard USB power adapter.
2.
Attach the charge cable to the Micro USB charge port on the headset.
3. Charge time: approximately 4 hours for a full charge.
■ Using the Headset

4
2. NFC connection
If your Bluetooth mobile supports NFC (Near Field Communication),
enable your mobile’s NFC function first and switch on the headset.
Then touch the NFC area of W830BT with the NFC area of your mobile
to pair your devices.
Note:
• When the mobile hibernates or is screen-locked, it cannot pair with
NFC.
• The first time you try to pair, it requires
keeping your mobile in touch with
W830BT for slightly longer time. Wait
till W830BT entering the pairing mode
before you take away the mobile.
• If no device is connected, you may use
NFC to establish pairing; if a device is
already connected, NFC function can
also be used to disconnect.
Note:
• While in pairing state, if a connection cannot be established within
3 minutes, it will automatically exit the pairing mode;
• If prompted for a passkey, enter“0000”;
• Once successfully paired, the headset and your mobile will
remember each other. When the headset is turned on again, it will
connect to the last connected device automatically.
NFC
• Switch on the headset. Press and hold the multi-function key for
5 seconds to enter pairing mode.
• Enable your mobile’s Bluetooth and search for Bluetooth devices.
Select ”EDIFIER W830BT” to pair. Once successfully paired, LED flashes
blue slowly and you hear prompt beep.

5
3. Pair another device
The headset can simultaneously connect two Bluetooth devices.
Follow the steps below:
• Pair your headset with Device 1.
• Switch off the headset. Long press the multi-function key to restart
the headset and enter pairing mode. Connect device 2.
• Now operate on the device 1. Tap the headset in Bluetooth
connection settings to connect and complete pairing with two
devices.
Note: When two connected mobiles have different operating systems
(e.g. One on Android™ and the other one on iOS ® ), certain cross-system
operations may show some delay (e.g. The song in mobile A will pause
while play the song in mobile B). This is considered normal.
III. Making calls
1. Basic operations
Function
Answer a call
Reject a call
End a call
Increase volume
Decrease volume
Direct a call to
the mobile
Mute the mic
Unmute
Call back last
call
Headset status
Incoming ring
Incoming ring
Talking
Talking
Talking
Talking
Talking
Talking (with
mic muted)
Device
connected
Device
connected
Operation
Short press the multi-function key
Long press the multi-function key for
approx. 2 seconds
Short press the multi-function key
Tap the volume + key
Tap the volume - key
Long press the multi-function key for
approx. 2 seconds
Long press the volume – key for approx.
2 seconds
Long press the volume + key for approx.
2 seconds
Long press the multi-function key for
approx. 2 seconds
Enable voice
assistant Double press the multi-function key
Direct a call
to the headset Talking Long press the multi-function key for approx. 2 seconds

6
IV. Play music
1. Bluetooth audio mode
When the headset is connected to a mobile that supports
Qualcomm® aptX™, you may enjoy WIFI music via the headphones:
Note:
• When the headset is turned up to its maximum volume, you will
hear a prompt tone from the headset.
Operation
Tap + key
Tap - key
Long press - key
Long press + key
Tap the multi-function key once
Tap the multi-function key once
Function
Increase volume
Decrease volume
Last song
Next song
Pause play
Resume play
Headset status
Play music
Play music
Play music
Play music
Play music
Pause play
2. Three-way calling
3. Calls with two mobiles connected
Function
Answer new call and
end the current call
Answer new call and keep
the current call on hold
Switch between calls
End current call
Headset status
Second incoming
call
Second incoming
call
Talking (on hold)
Talking (on hold)
Operation
Tap the multi-function key once
Tap the multi-function key twice
Double-tap the multi-function key
Tap the multi-function key once
Function
End call with mobile 1
and answer a call from
mobile 2
Put the call from mobie 1
on hold and answer the
call from mobile 2
Switch calls
End the current call and
switch back to the
mobile on hold
Talking with mobile 1 while
2nd mobile calling
Talking with mobile 1 while
2nd mobile calling
Talking with one while
the other call is on hold
Talking with one call while
the other call is on hold
Headset status Operation
Tap the multi-function
key once
Tap the multi-function
key twice
Double-tap the
multi-function key
Tap the multi-function
key once

7
V. Restore factory setting
Headphone is under power off and charging status, press and hold the
Volume + key and volume - key simultaneously for about 3 seconds.
The blue light flashes 3 times quickly. The factory settings are restored.
Note:
Once the factory settings are restored, the pairing list of the headphone
is erased. When you power on the headphone again, it will automatically
begin the pairing process rather than automatic connecting. If it needs
to connect a device, you will have to go through the pairing again.

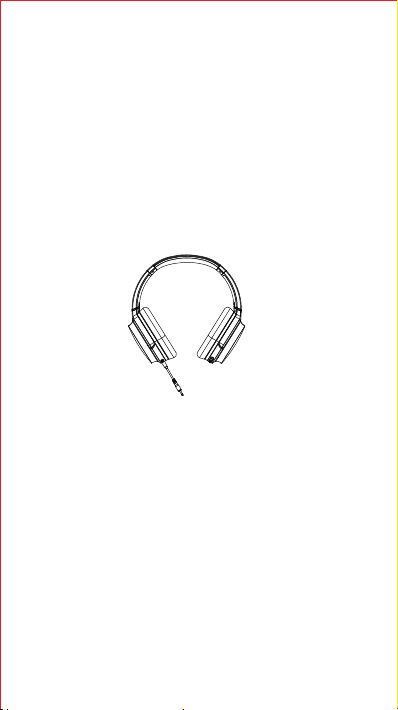

2. AUX IN audio mode
The headset supports AUX IN audio input. Using 3.5mm to 3.5mm
audio cable to connect the headset to a music player and enjoy the
music on line.
Note:
• Plugging in a 3.5mm audio cable will turn off the headset and
automatically disconnect the connection with the Bluetooth. AUX IN
audio input is now in effect.
• If you want to go back to Bluetooth, unplug the 3.5mm audio cable
and restart the headset to pair.

8
• Do not place the product in wet places to avoid adverse effect to
internal circuits of the product.
• Do not expose the product to direct sun light or heat. High
temperature will shorten electronic components’life, damage battery,
and cause deformation of certain plastic parts.
• Do not expose the product to excessive cold to avoid damage to
internal circuits.
• Do not attempt to disassemble the product. A non-professional is
likely to damage the product.
• Do not drop, intensively vibrate, or impact the product with hard
object. It will damage the internal circuits.
• Do not clean the headset with harsh chemical solvents.
• Do not scratch the product surface with sharp objects. It will damage
the housing and appearance.
In the event the product does not work properly, take it to an
authorized service center. The staff will help you solving the problem.
■ Maintenance

9
Red light ashes in place of blue.
• It tells that your headset battery is low and need to recharge.
The red light does not light up during charging.
• Make sure the charge device connects to the headset properly.
• The battery hibernates when the headset is not used for an extended
period of time. In this case, it needs about 30 minutes of charge
before the red light lighting up.
Don’t hear anything in the headset.
• Make sure the headset is on.
• Make sure the headset is set to a proper volume.
• Make sure the headset has a valid connection with the mobile.
• Make sure the headset is within a normal working range.
Headset’s call quality is bad.
• Make sure the mobile is in a location with strong signal.
• The headset has an effective working range of 10m. Please make
sure the headset is within the working distance without obstacles
between the headset and the mobile.
During playing, why the headset cannot perform controls over
pause, resume, last song and next song?
• This function requires that the device paired with your headset
must support AVRCP (Audio/Video Remote Control Profile).
Cannot use NFC for pairing.
• Make sure your mobile’s NFC function has been enabled.
• When pairing at the first time, you need to keep your mobile in
contact with the headset for about 3 seconds until the blue and red
lights of the headset flash alternatively before taking away the mobile
or a pairing may not be successful.
■ FAQs

10
Correct Disposal of this product. This marking indicates that this product
should not be disposed with other household disposal, recycle it
responsibly to promote the sustainable reuse of material resources.
To return your used device, please use the return and collection systems
or contact the retailer where the product was purchased. They can take
this product for environmental safe recycling.
•“To prevent possible hearing damage, do not listen at high volume
levels for long periods.”
•“Fully understand user manual before use.”
•“Ensure your player at low volume levels or power off before you
leaving.”
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
A warning that batteries (battery pack or batteries installed) shall not be
exposed to excessive heat such as sunshine, fire or the like.

WARNING!
Danger of explosion if the battery is incorrectly replaced. Replace only
with the same or equivalent type.
For products with removable battery, the battery must be properly
recycled or disposed. For products with built-in battery, disassembling
is prohibited.
Never disassemble, hit with force, squeeze batteries or dispose of
batteries in fire. Do not expose batteries in conductive materials, liquid,
fire or heat. Do not let metal object contact two battery poles. If the
battery looks swollen, leaking, discolored, having odor or any abnormal
appearance, stop using it. Do not use the battery after immersed in
water.
Improper use of battery may lead to explosion or leakage, causing skin
burn or other injuries; in the event of battery leakage, handle it with
care and immediately dispose of the battery in the manner in
compliance with applicable laws and regulations in your locality.
11

To guarantee your personal safety, please do not wear or keep
earphones in the vicinity (closer than 10cm) of a pacemaker.
Supervise children when using the equipment, the product is
not a toy.
Earphone listening at high volume levels – particularly, over
extended periods of time – may damage your hearing.
The operation of switches on your hi-fi system or plugging in
the earphones may cause clicks which at high volume setting
may affect your hearing. Therefore, always set the volume
control to minimum before switching between different
sources (tuner, turntable, CD player, etc.) or plugging in the
earphones.
For traffic safety, do not use earphones while driving or cycling.
EN · Warning!
12

13
CN · 安全注意事項！
為保證您的人身安全， 請勿將該耳機佩戴或放置在離心臟
起搏器過近的位置（小於10CM）。
兒童應在成人監督下使用本設備， 本產品並非玩具。
在高音量下使用耳機⸺特別是長時間使用⸺可能會對您
的聽力造成損傷。
操作高保真音響開關或插入耳機時可能會發出尖利的聲音，
其在高音量設置下可能會影響您的聽力。 因此， 在切換各種
音源或插入耳機前， 請將音量控制設置為最低。
為交通安全起見， 駕駛時或騎自行車時請勿使用耳機。

14
Pour votre sécurité, ne portez pas et ne posez pas ce casque à
proximité immédiate (moins de 10 cm) d'un pacemaker.
Surveillez vos enfants s'ils utilisent l'appareil. Ce produit n'est
pas un jouet.
Un casque d'écoute utilisé à un volume élevé risque de
provoquer de troubles de l'audition, en particulier s'il est porté
de façon prolongée.
Lorsque vous procédez à un réglage sur votre installation hi-fi
ou que vous branchez le casque sur l'installation, des bruits
dangereux pour l'oreille peuvent se produire si le son est réglé
sur un volume élevé. Pour cette raison, il faut toujours mettre le
son au minimum avant de passer d'une source à l'autre (radio,
platine, lecteur de CD...) ou de brancher le casque.
Pour ne pas mettre en danger votre sécurité au volant ni celle
des autres usagers de la route, n'utilisez jamais le casque lorsque
vous conduisez ou que vous roulez à vélo.
FR · Conseils de Sécurité!

15
Al fine di garantire la sicurezza personale, fare attenzione che
queste cuffie non siano posizionate in prossimità del proprio
eventuale pace maker (con una distanza inferiore a 10 cm).
Sorvegliare i bambini quando utilizzano il dispositivo. Questo
apparecchio non è un giocattolo.
L'utilizzo delle cuffie ad alto volume, soprattutto se prolungato,
può danneggiare l'udito.
Maneggiare le manopole del Vostro sistema hi-fi o inserire le
cuffie quando il volume è troppo alto, potrebbe produrre dei
rumori che potrebbero danneggiare l'udito, soprattutto se il
volume è alto. Si consiglia pertanto di regolare il volume al
minimo prima di passare da una fonte all'altra (radio, giradischi,
lettore CD, ecc.) o prima di collegare le cuffie.
Per la sicurezza nel traffico, si prega di non usare mai le cuffie
mentre si guida o si va in bicicletta.
IT · Attenzione!

16
Untuk menjamin keselamatan diri Anda, jangan memakai atau
menyimpan earphone di sekitar (dekat dari 10 cm) alat pacu
jantung.
Awasi anak-anak saat menggunakan peralatan, produk ini bukan
mainan.
Mendengarkan earphone pada tingkat volume tinggi – khususnya,
selama waktu yang lama – dapat merusak pendengaran Anda.
Penggunaan sakelar pada sistem hi-fi Anda, atau penyumbatan
pada earphone dapat menimbulkan klik yang pada pengaturan
volume tinggi dapat memengaruhi pendengaran Anda.
Karena itu, selalu mengatur kontrol volume paling rendah
sebelum beralih di antara berbagai sumber (penala, pemutar
piringan hitam, pemutar CD, dll) atau penyumbatan pada
earphone.
Untuk keselamatan lalu lintas, jangan gunakan earphone selama
mengemudi atau berkendara.
ID · Peringatan!

17
Om uw persoonlijke veiligheid te garanderen, dient de
koptelefoon niet te worden bewaard of gedragen in de buurt
van (minder dan 10 cm) een pacemaker.
Houd toezicht op kinderen tijdens het gebruik van het apparaat;
dit product is geen speelgoed.
Luisteren met de koptelefoon op hoog volume – met name
gedurende een langere periode – kan leiden tot schade aan
uw gehoor.
De bediening van de schakelaars op uw hifisysteem of het
insteken van uw koptelefoon kan leiden tot harde klikgeluiden
wat uw gehoor kan aantasten. Om deze reden dient de
volumeknop altijd op een minimum te worden geschakeld,
voordat er tussen de verschillende bronnen (tuner, draaitafel,
cd-speler, enz.) wordt geschakeld of de koptelefoon wordt
aangesloten.
Met het oog op verkeersveiligheid dient de koptelefoon niet te
worden gebruikt tijdens het rijden of fietsen.
NL · Waarschuwing!

18
안전상의 이유로, 이헤드폰은 심장박동 조절장치 근처 (10cm
이내) 에두어서는 안됩니다.
어린이가 헤드폰을 사용할 때는 보호자의 주의 깊은 관찰 이
필요합니다. 이제품은 장난감이 아닙니다.
헤드폰을 높은 볼륨상태에서 특히 장기간 사용할 경우 청 각에
해가 될수 있습니다.
하이파이 오디오 시스템상에서 스위치를 바꾸거나 헤드 폰을
하이파이 오디오 시스템에 연결할 경우, 높은 볼륨상 태에서는
청각에 해를 줄수 있는 클릭소리가 날수 있습니 다. 그러므로
하이파이 오디오 시스템상의 한소스기기에 서 다른 소스기기
(라디오, 레코드 플레이어, CD-플레이어...) 를선택하거나
헤드폰을 연결시킬 경우에는 항상 볼륨을 초저상태로 조정해
놓으십시오.
여러분의 운정상태와 다른 운전자들의 안전을 보호하기 위해
운정 중이거나 자전거를 타고 이동할 시에는 헤드폰 착용을
삼가 해주십시오.
KR
·
경고!

19
Um lhre persönliche Sicherheit zu garantieren, achten Sie bitte
darauf, dass dieser Kopfhörer nicht in nächster Nähe (näher als
10cm) zu lhrem Herzschrittmacher getragen oder auf-bewahrt
wird.
Beaufsichtigen Sie ihre Kinder bei der Benutzung des Geräts.
Das Produkt ist kein Spielzeug.
Die Verwendung von Kopfhörern kann bei großer
Lautstärke – vor allem im Dauerbetrieb – zur Schädigung des
Gehörs führen.
Bei Umschaltvorgängen an lhrer HiFi-Anlage oder bei Anschluss
des Kopfhörers an die Anlage können Knackgeräusche auftreten,
die bei hoher Lautstärke das Gehör beeinträchtigen.Drehen Sie
daher den Lautstärkeregler immer auf Minimum, wenn Sie an
lhrer HiFi-Anlage zwischen verschiedenen Quellen (Radio,
Plattenspieler, CD-Player…) wählen oder den Kopfhörer anschließen.
Um lhre Fahrtüchtigkeit und die Sicherheit anderer
Verkehrsteilnehmer nicht zu gefährden, verwenden Sie
Kopfhörer keinesfalls beim Lenken eines Kfz oder beim Radfahren.
DE · Sicherheitshinweis!
