Edirol V-1600HD User manual

Printed in Japan. MAY 2010 RAM-20007 GEN
All specifications and appearances are subject to change.
All trademarks used in this catalog are the property of their respective companies.
www.rolandsystemsgroup.net
SD-SDIHD-SDI COMPONENT
HDMI RGB S-VIDEODVI-D COMPOSITE STILL IMAGE
An All-In-One Multi-Channel,
Multi-Format Live Video Switcher
Video Processing Output Connectors
Processing
Supported
Formats
SD
HD
RGB
STILL
Composite
S-Video
Analog HD/RGB
Analog SD
Analog HD
(Component)
DVI-D
HD/SD-SDI
Analog RGB
4:2:2 (Y:Pb:Pr), 10 bit
480/59.94i, 576/50i, 480/59.94p, 576/50p
BMP
1080/59.94p, 1080/50p
1080/59.94i, 1080/50i
720/59.94p, 720/50p
640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz,
1280 x 1024/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
* Confirms to VESA DMT Ver 1.0 Revision 10
* Reduced blanking to be applied to 1920 x 1200
1.0 Vp-p, 75 ohms
Luminance Signal : 1.0 Vp-p, 75 ohms
Chrominance Signal : 0.286 Vp-p, 75 ohms (NTSC)
0.3 Vp-p, 75 ohms (PAL)
0.7 Vp-p, 75 ohms (H, V : 5VTTL)
S-Video (4 pin mini DIN type)x 1
Composite (BNC type)x 1
* Select one from menu
Y/Pb/Pr (BNC type)x 2
D-Sub 15 pin type x 2
* Combined use with analog RGB
R/G/B/H/V (BNC type)x 2
D-Sub 15 pin type x 2
* Combined use with analog HD (Component)
Single Link Type x 2
BNC type x 8
* Conforms to SMPTE 259M-C, SMPTE 292M
Analog SD
Analog HD
(Component)
DVI-D
HD/SD-SDI
S-Video (4 pin mini DIN type)x 1
Composite (BNC type)x 1
Y/Pb/Pr (BNC type)x 1
D-Sub 15 pin type x 1
* D-Sub 15 pin type : combined use with analog RGB
Analog RGB D-Sub 15 pin type x 1
* Combined use with analog HD (Component)
Single Link Type x 2
BNC type x 2
* Conforms to SMPTE 259M-C, SMPTE 292M
TALLY D-Sub 15 pin type x 3 (200 mA, Open Collector type)
Remote MIDI (IN, OUT/THRU)
RS-422 (D-Sub 9 pin type)x 1
USB port (host)A type x 1 for USB memory
REFERENCE BNC type (IN, THRU)
* Black Burst, Bi-Level, Tri-Level Sync
Transition Mix, FAM, NAM, Wipe (9 patterns)
Composition PinP, Chroma Key, Luminance Key, Split, DSK
Others Output Fade, Edge Blending, Multi Screen (Video Wall)
Power Supply AC117 V, 220 V, 230 V, 240 V (50/60Hz)
Power Consumption 90 W
Dimensions 482 (W)x 319.4 (D)x 206.2 (H)mm
19 (W)x 12-5/8 (D)x 8-1/8 (H)inches
Weight 8.1kg
17 lbs 14 oz
Accessories Power Cord,
Owner's Manual
Input/Output Level and Impedance
Input Connectors * Loop thru connectors are equipped for all inputs
Other Connectors
Effects
Others

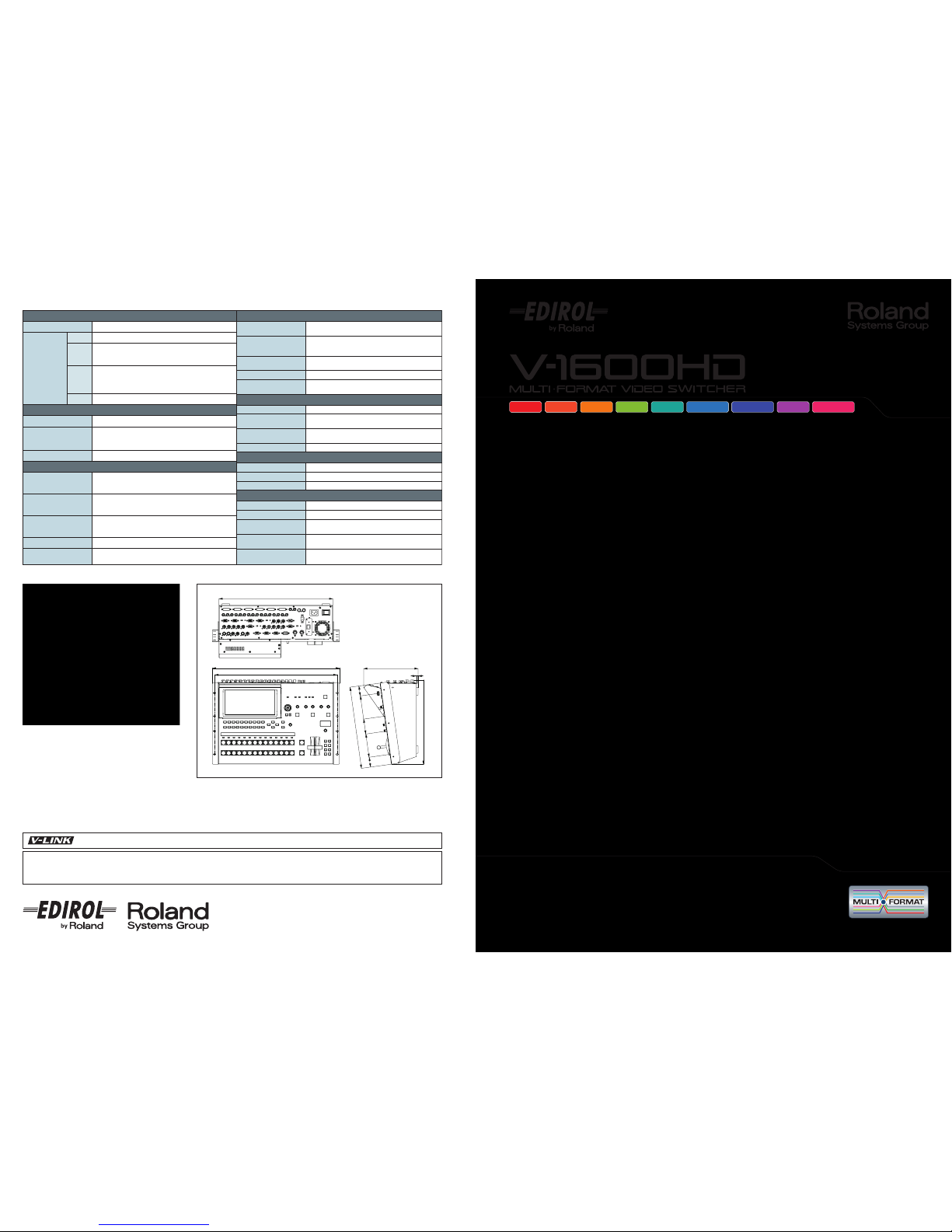

nSpecifications
nDimensions nRackmount Setup
465
482
432 Unit: mm
206.2
319.4
6.5
37.8 89 57 89 37.8
310.6
Ensuring high quality while protecting the environment: Roland is ISO9001 and ISO14001 certified
At Roland, several group companies have obtained ISO9001 certification. In addition, in January 1999, Roland also received ISO14001 international environmental management system certification. We’re
actively seeking ways to maintain harmony with the environment. (ISO=International Standardization Organization: an organization for the promotion of standardization of international units and terms. They
provide different categories of certification: ISO9001 Series certification is a product quality certification for products that undergo a certain level of quality control from the design stage to the after service stage;
ISO14001 Series certification is for environment-related standards. Each member of the Roland Group is striving to obtain certification.)
Using V-LINK, musicians can “play” video from their electronic instrument when used with EDIROL video products. With V-LINK, musicians have a powerful interface for realtime
audio and video integration.

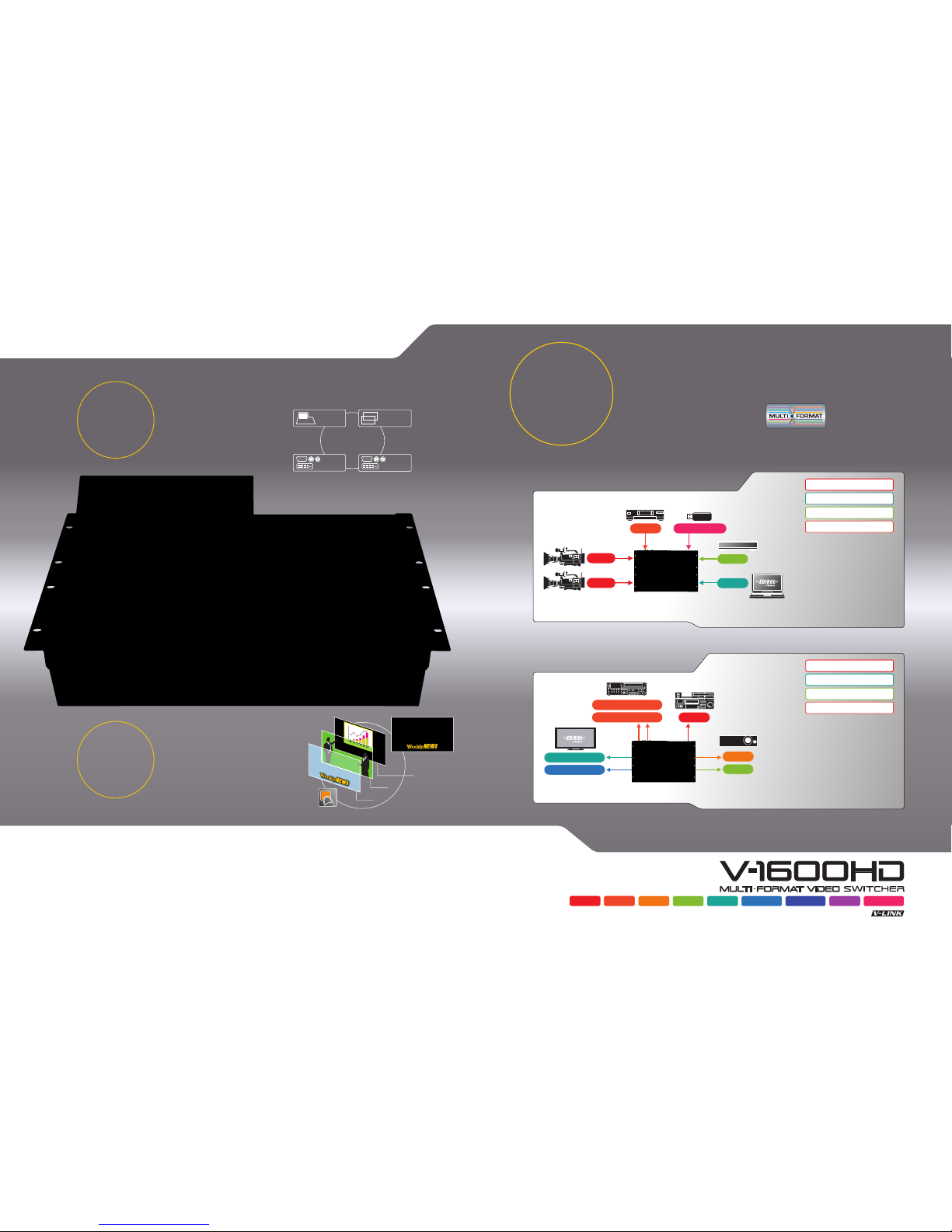

The All-in-One Solution for Any Live Event
INPUT
SCALER
MONITOR
OUTPUT
SCALER
FRAME
SYNCRONIZER
All-In-One
SD-SDIHD-SDI COMPONENT
HDMI RGB S-VIDEODVI-D COMPOSITE STILL IMAGE
Equipped with HD/SD SDI for
professional video equipment
as well as DVI-D for directly
connecting PC/Mac. Also
included is analog RGB,
Component, S-Video and
Composite.
Output digital/analog HD
resolution while
down-converting at the same
time. Display to a primary
screen with secondary feed
to recording or broadcast.
Spread output across two
screens including ability to
edge-blend.
Connect, seamlessly mix and output a variety of video sources such as cameras, VTR's, RGB Computer
Sources, Blu-ray/DVD, and high-end SD/HD-SDI video sources. The V-1600HD's all-in-one design
combined with professional quality and features makes it the ideal choice for live video production.
All-In-One
Multi-Format
Intuitive Operation
Built-in Monitor, Scalers and
Multi-Format Inputs and Outputs.
Multiple input and output formats with
no need to purchase extra cards.
DSK, Key Composition, and PinP are
controlled using simple operations.
64 Memory banks provide storage and
instant recall of setup parameters.
Multiple Video Input Formats
Multiple Video Input Formats
Multiple Video Outputs
Multiple Video Outputs
V-1600HD
SD STILL IMAGE
HDMI
720P
1080i RGB
*
V-1600HD
HD-SDI
DVI-D
HDMI
ANALOG RGB
COMPONENT
SD(COMPOSITE)
SD(S-Video)
*
Key
DSK
Memory
Bank
Background
8HD/SD-SDI INPUTS
4RGB/COMPONENT INPUTS
2DVI-D/HDMI INPUTS
2SD INPUTS
2HD/SD-SDI OUTPUTS
2DVI-D/HDMI OUTPUTS
2RGB/COMPONENT OUTPUTS
2SD OUTPUTS
*DVI-D - HDMI adaptor is needed.
*DVI-D - HDMI adaptor is needed.

MULTI-ZOOM
DVI-D
RGB
HD-SDI
SD
V-1600HD
PR-1000HD
DVI-D
AUX MODE
PC for Presentation
Video Camera
Main Screen
Projector
Recorder
DVD
HD
S-VIDEO
HD-SDI
HD
RGB V-1600HD
DSK MODE
Video Camera
PC
Recorder
HD Monitor/Screen
V-1600HD
CH1
CH1
CH2
CH3
CH2
CH3
Thru Output
Thru Output
Video Camera
HD-SDI
HD-SDI
Video Camera
RGB
Component
PC for Presentation
HD Monitor/Large Screen
P-10
Visual Sampler
S-VIDEO
DUAL MODE
V-1600HD
Camera PC
DVDPC
screen
Video Player
HD-SDI
HDMI
with DVI Adaptor
HDMI V-1600HD
Projector L Projector R
HD Video Camera
Video Camera
SPAN MODE
Various video sources can be mixed seamlessly without
external video converters.
Two independent outputs enable powerful multi-screen video productions.
Text/Graphic from a PC/Mac can be composited on
background video content. HD output is available for
display, recording, or broadcasting and SD output is
available for monitoring, live streaming or recording.
Displays a single image across two screens.
Edge Blending function enables seamless image
across a wide screens.
Using the thru out connectors, one video input can be daisy-chained to
multiple inputs. The scaler for each input can zoom into any position in the
video image enabling a virtual multi-camera environment. This gives the
appearance that you have additional cameras connected.
Using SPLIT Mode, two video inputs can be displayed on one
display. This is useful for comparing two videos on a single screen.
Using the DUAL Mode, two video inputs can be switched
individually. Switching the both inputs at same time is also
possible. Preview monitoring of each output enables confident
operation.
*In DUAL Mode, PinP, Key, DSK, External Control
are not available. Video transitions available
are CUT and Mix (Fade In/Out).
*In SPLIT Mode, PinP, Key, DSK, External
Control are not available. Video transitions
available are CUT and Mix (Fade In/Out).
Multi-Format Solution for the HD Generation
HD video sources are now a common video format. The need to also
mix in other video sources and formats makes the V-1600HD
a necessary component for today's live video production.
LIVE PRODUCTION MULTI-SCREEN SOLUTIONS
lEvent Production
l
Multi-Screen With Edge Blending
lIndependent Outputs
lStudio Production
lDUAL Mode lSPLIT Mode
Video 1
Video 1
Video 2
Video 2
*At SPAN Mode, PinP, Key, DSK, External Control are not
available. Video transitions are CUT and Mix (Fade In/Out).
*In DUAL Mode, PinP, Key, DSK, External Control
are not available. Video transitions available
are CUT and Mix (Fade In/Out).
*In DSK mode, outputs are same format.

3 Monitor Selections
Monitor sources can be selected
from PGM (Program), PVM
(Preview), and AUX (Auxiliary) bus.
14 channels of PGM/PST
PGM/PST (Program/Preset) style buttons are
similar to those used in broadcast switchers. If signal
is present, green color indicator is lit.
64 (8x8) Memory
Presets
Save favorite setups
for convenient and
instant recall.
Manual Transition
Equipped with TAKE button and
flip flop style T-bar fader.
Quick Access to
Functions
Dedicated setup
buttons enable quick
and easy setup.
nREFERENCE Input
Reference input is available for synchronizing external
equipment.
Everything You Need in One Unit
Four D-Sub 15-pin connectors for analog RGB input, including two
switchable component connectors. Also supports RGBHV.
RGB/COMPONENT Input x 4
Various Transition
Effects
Includes Dissolves, NAM, and
FAM mixing types. 4 types
of wipe patterns are also
included.
FAM (Full Additive Mix) transition:
Images will transition with the luminance
level held steady.
NAM (Non-Additive Mix) transition: The two
images will be compared, and the pixels
that have a higher brightness level will be
shown while the images are switched.
Cross Point
Image A Image B Image A Image B
FAM, NAM Transition
Dissolve Transition
Image A
Video Image at Cross Point
Dissolve Transition FAM Transition NAM Transition
Image B
HD-SDI, SD-SDI is recognized automatically. If output setup and aspect ratios
are different from input, you can choose letterbox, crop or fill options.
*Embedded audio is not available.
HD/SD-SDI Input x 8
nTALLY Output
TALLY signal is provided for
camera or external monitors.
nRS-422 REMOTE Connector
Controllable using RS-422 via computer software.
nMIDI Connector
Control the V-1600HD via any MIDI device or any
V-LINK enabled product.
Still Images from USB
Memory
Up to 1920 x 1200 pixel BMP
images can be assigned.
Synchronize using V-LINK
EDIROL video mixers/video
presenters and RSS digital audio
mixers can be synchronized with
the V-1600HD using V-LINK.
PinP (Picture in Picture)
Two images can be
combined in one video
image using PinP function.
Key Composition
Enable Chroma/Luminance
Key composition, including
semi-translucent
composition using Linear
Key.
DSK (Downstream Keyer)
DSK function is suitable
for compositing logos or
text. Key source can be
confirmed by PVW monitor.
Summer Music Festival
Summer Music Festival
Summer Music Festival
Summer Music Festival
Switchable Inputs
Input format types are
switchable on Ch 11-14. The
selected format is indicated
on the backlit input status
indicator.
PC monitor or Projector can be
connected from analog RGB
or component connector.
An output source is assignable
from PGM/PVW/AUX.
*Output format depends on output mode.
RGB/COMPONENT Output x 2
Composite input (BNC type) and
S-Video (Y/C)
SD Input x 2
Four DVI-D inputs are supplied. HDMI* signal can be input
using HDMI to DVI adapter.
*Does not supports HDCP and HDMI 1.3 or later. Embedded audio is not available.
DVI-D/HDMI Input x 2
High Resolution 8.5 inches LCD Monitor
The built-in high quality monitor provides the ability to preview
each video source eliminating the need for external preview
monitors. Additionally, menu functions and parameters can be
on the built-in screen.
PVW (Preview) BUS enables
previewing of the visual effect
before PinP composition.
Menu setup is available with
output monitoring.
Connect a projector or monitor that
supports a digital connection. HDMI
output is possible using an HDMI to
DVI-D adapter. Output 2 is assignable
one signal source from PGM/PVW/AUX.
DVI-D/HDMI Output x 2
SD video can be output from the AUX bus using
built-in scaler. An output source is assignable from
PGM/PVW/AUX. *Output format depends on output mode.
SD Output x 2
Supports HD-SDI or SD-SDI output formats. Output 2 is
assignable one signal source from PGM/PVW/AUX.
SDI Output x 2
MULTI-INPUT
MULTI-OUTPUT
CONTROL INTERFACE
* All inputs have individual thru out connectors for flexible system configuration.
