The HD67C70-B2 is a EnOcean / MQTT Converter.
It allows the following characteristics:
Electrical isolation between Ethernet and ower Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGUR TION:
You need Compositor SW67C70 software on your C in order to perform the following:
Define the parameter of MQTT;
Define the parameter of EnOcean line;
Define the list of MQTT topic to publish;
Define the list of MQTT topic to subscribe;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 7 of 31
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
V C
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/V ]
HD67C70-B2 3.5
HD67C70-B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 8 of 31
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 9 of 31
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: EnOcean communication
(yellow) Blinks when EnOcean data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: MQTT communication
(yellow) Blinks when MQTT data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 10 of 31
ETHERNET:
The Ethernet port is used for programming the device and for MQTT communication.
The Ethernet connection must be made using Connector2 of HD67C70-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 11 of 31
ENOCE N:
EnOcean is a protocol designed for energy harvesting devices communication. The main
fields of application are building automation and domotics, but it can also be potentially
used in the industrial field.
EnOcean products include solutions for environment monitoring, smart metering and
lighting. Each device uses a unique ID for identification and one of the standardized profiles
(EE s) for data transmission. Communication process may be secure or unsecure and may
be unidirectional or bidirectional (for devices that support Smart Acknowledge operating
mode).
EnOcean is based on wireless communication on 868.3 MHz ASK.
It is possible to connect up to 100 EnOcean devices to a single converter, where up to 32
can be in Secure Mode and up to 19 with Smart Acknoledge.
The Antenna connector is a SMA Female (‘Female Outer Shell’ and ‘Female Receptacle’) so
the Antenna must have a SMA Male connector.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 12 of 31
USE OF COMPOSITOR SW67C70:
To configure the Converter, use the available software that runs with Windows called SW67C70. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67C70, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
F
igure : Main window for SW67
C
70

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 13 of 31
NEW CONFIGUR TION / OPEN CONFIGUR TION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “EnOcean / MQTT - Converter” in order
to configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 14 of 31
SOFTW RE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67C70 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 15 of 31
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 16 of 31
SET COMMUNIC TION:
By ressing the “Set Communication” button from the main window for SW67C70
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The window is divided in different sections in order to define the different parameters
of the converter:
MQTT
Ethernet
TLS (Transport Layer Security)
NT (Network Time rotocol)
Figure 3a: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 17 of 31
Figure 3
b
: “Set Communication

MQTT” window
MQTT:
This section is used to define the main parameters of MQTT line. The means of the
fields are:
In the field “Server URL” the URL or the I Address of the MQTT Server is
defined;
In the field “Server Port” the port used for MQTT communication is defined;
In the field “Client ID” the Client ID of the converter is defined (if ned);
In the field “Keep live (seconds)” the delay with which the Keep Alive
message is sent on MQTT is defined;
If the field “Clean Session” is checked, the last MQTT messages are deleted
by the Server and the Client in case of missing ACK. If unchecked, the
Server and the Client hold the last MQTT messages and, in case of incorrect
disconnection or missing ACK, they try to send again them since all the ACK
messages are exchanged correctly (valid only for QoS 1 and QoS 2);
If the field “Will Flag” is checked, the converter will publish the Will topic at
the connection to the Server. With this feature, in case of incorrect
disconnection, the Server will publish this topic to all the MQTT Clients that
subscribed it;
In the field “Topic Name Will” the topic used for Will message is defined;
In the field “Message Will” the payload of the Will message is defined;
In the field “Retained Will” the converter will send the Will message with Retain flag enabled. In this way, the Server will hold the
last Will message;
In the field “QoS Will” the QoS type for Will message is defined;
In the field “Username” the username for the connection to the MQTT server is defined;
In the field “Password” the password for the connection to the MQTT server is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 18 of 31
Figure 3c: “Set Communication  Ethernet”
window
Figure 3d: “Set Communication  TLS” window
E THERNET :
This section is used to define the general parameters of Ethernet. The means of the
fields are:
In the field “Ip ddress” the I address of the converter is defined;
In the field “SubNet Mask” the Subnet Mask of the converter is defined;
In the field “Gateway” the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field “DNS” the DNS address is defined. This field is required if the
server address is define by URL and not I Address.
TLS (T R NSPORT L YER S ECURITY ):
This section is used to define the parameters of TLS protocol. The means of the
fields are:
If the field “Enable TLS” is checked, the TLS protocol for secure connection
is enabled;
If the field “Server uthentication” is checked, the authentication of the
Server using TLS is enabled. If enabled, in the field “Server Certificate” the
certificate from the Server is defined;
If the field “Client uthentication” is checked, the authentication of the
Client using TLS is enabled. If enabled:
oin the field “Client Certificate” the certificate from the Client is
defined;
oin the field “Client Key” the private key of the Client is defined;
oin the field “Client Key assword” the password for the private key of the Client is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 19 of 31
Figure 3e: “Set Communication  NTP” window
NTP (N ETWORK T IME P ROTOCOL ):
This section is used to define the parameters of NT protocol. The means of the
fields are:
In the field “Server URL” the URL or the I Address of the NT Server is
defined;
In the field “Poll Time (seconds)” the polling time for the time
synchronization is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/ MQTT
Document code: MN67C70_ENG Revision 1.000 age 20 of 31
Figure 4: “EnOcean Access” window
ENOCE N CCESS:

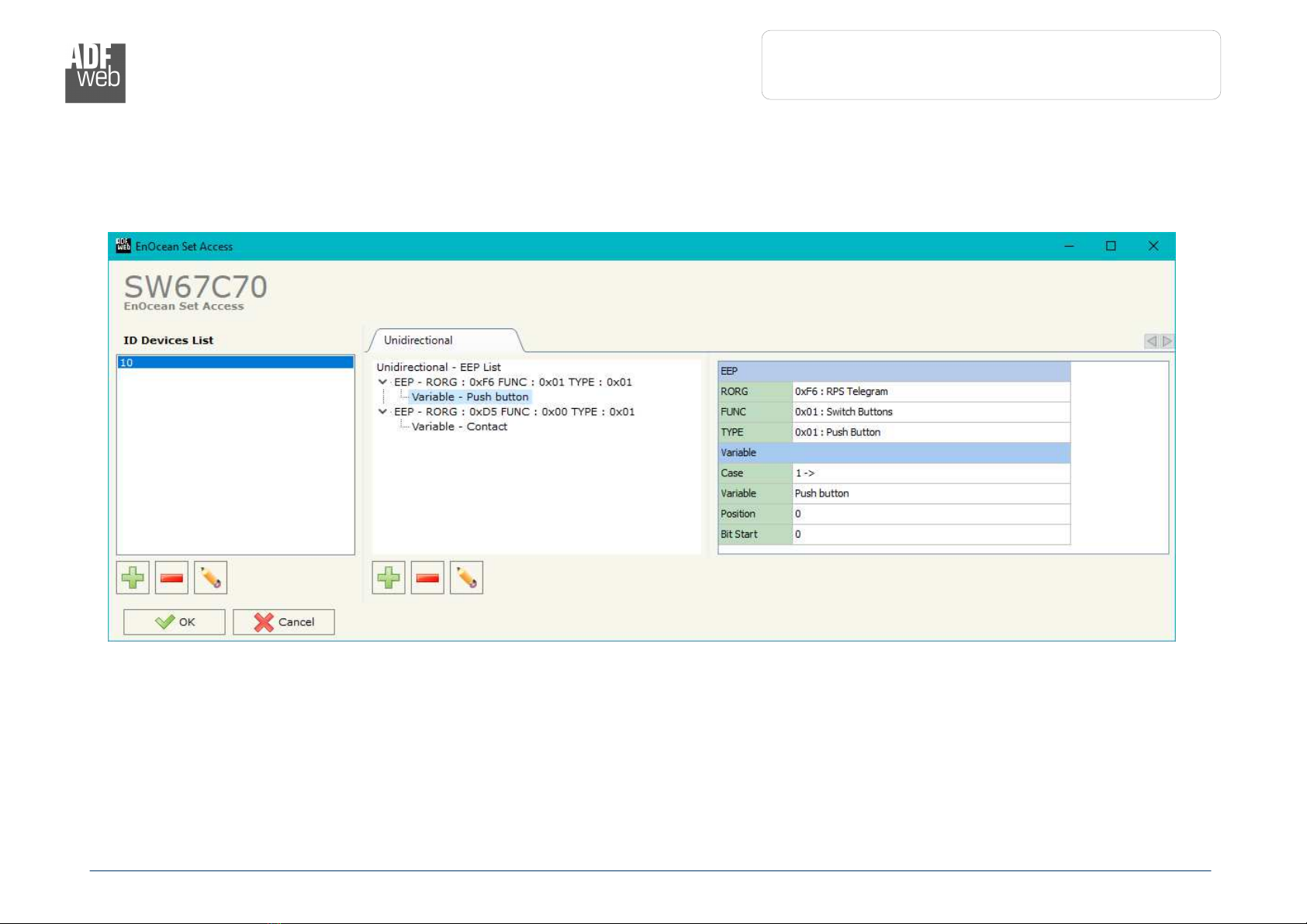

By ressing the “EnOcean Set ccess” button from the main window for SW67C70 (Fig. 2) the window “EnOcean Set Access” appears (Fig.
4). This section is used to define the list of the EnOcean devices to read/write.
