Ednet Pro User manual

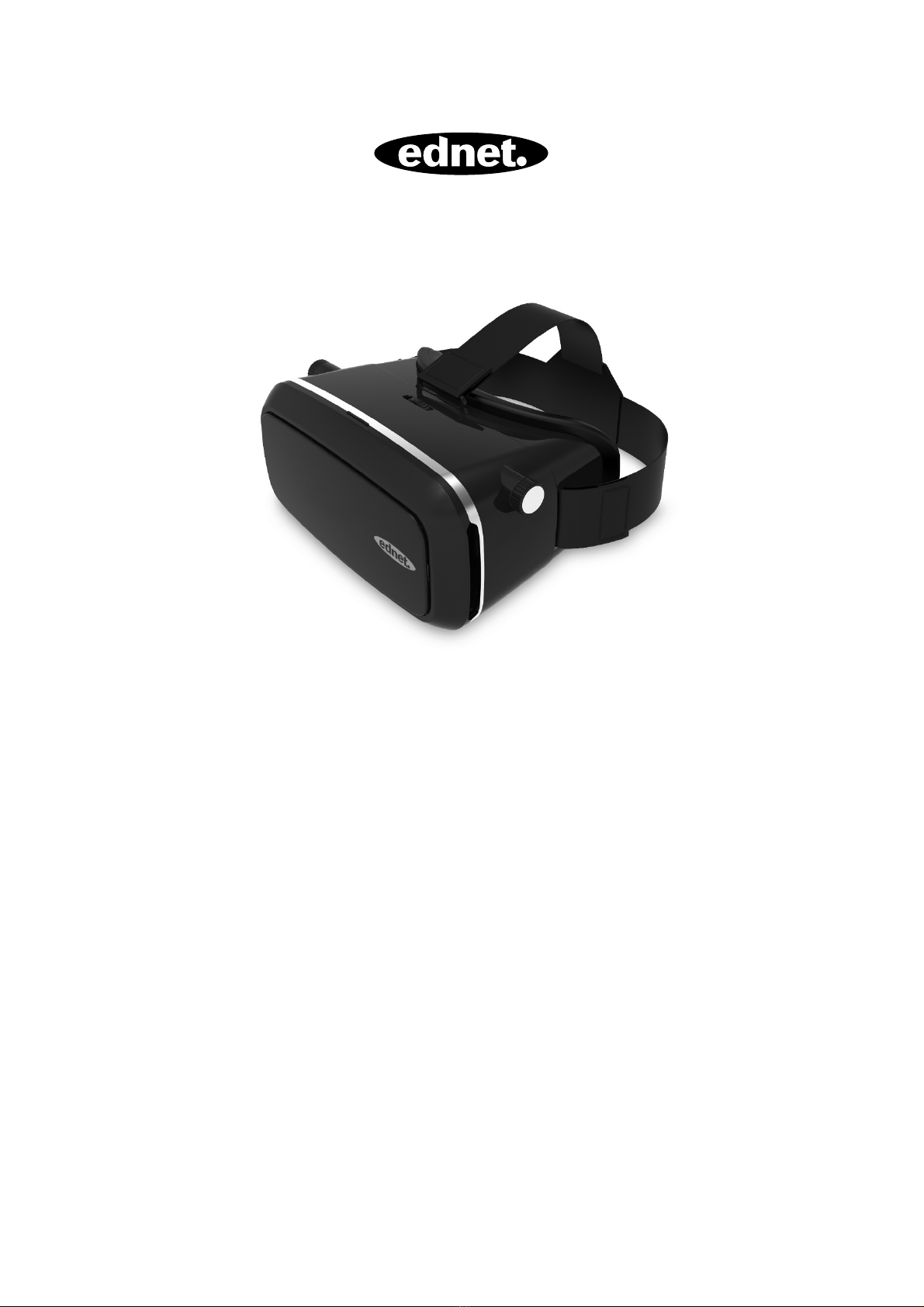

Virtual Reality Glasses Pro
Quick Installation Guide
87004
The ednet Virtual Reality Glasses Pro are designed for regular users. Thanks to soft
memory foam as well as PU leather, they promise a high degree of comfort. They’re
suitable for smartphones with a screen diagonal of 3.5" to 6.0". The headband,
which can be individually adjusted using Velcro strips at three points, promises a
comfortable feel and is suitable for every type of head. The nano-coated synthetic
resin lenses can be finely adjusted by means of control dials. Pupil distance and
range of vision can thus be individually adjusted to your needs. The removable
magnetic front cover is suitable when using the smartphone camera for augmented
reality applications or even for heat dissipation during extended use. The
smartphone is simply inserted into the magnetic front cover and there, thanks to the
included upholstery, fixed gently in place. Immerse yourself in the breathtakingly
realistic virtual reality and enjoy the VR games, movies, as well as videos in 3D–with
the ednet Virtual Reality Glasses Pro.

Technical Features:
Suitable for smartphones with a screen diagonal of 3.5" to 6.0"
Optimal adjustment of the range of vision as well as pupil distance by means of
control dials
Very comfortable to wear thanks to soft memory foam and PU leather
Adjustable headband –fits every head type thanks to individual size adjustment by
means of Velcro at three points
Aspherical synthetic resin lenses with high transmission and nano-coating
Aspherical synthetic resin lenses with high transmission and nano-coating
Housing material: ABS
Padding material: Memory Foam + PU leather
Headband material: Nylon + PU
Angle of vision: 90 degrees
Dimensions: L 14.0 x B 20.0 x H 10.0 cm
Weight: 380 g
Color: black
Using the device is strictly prohibited when the mobile phone is under
charging, the consequences for improper use shall be borne by the user.
Warm prompt: In order to improve the viewing comfort, we suggest that the angle
of back and seat is 60°. In order to protect your vision, it is recommended that the
viewing time should not be more than 30 minutes.

Diagrams:
Adsorption type switch
The object
distance
adjusting knob
Removable adsorption front cover
Pupil distance adjusting knob
Comfortable PU
leather +
memory foam
padding
Optical glasses Focus adjustment knob

Download and play test video
Please use a mobile phone to get into App download interface(as shown in picture
A, suggested in WiFi environment), Based on the game menu to select installation
a video player or game software, test if it supports Left-and-Right split screen
display (as shown in picture B) and full-screen display.
How to use the device

Gently open the adsorption type switch at the top (as shown in picture C) hold the
mobile screen facing inwardly, gently touch scale adjustment card slot, place your
cell phone, and then close the cover plate (as shown in picture D). If you find the
picture is upside down, please adjusting the direction of mobile phone
The lens adjustment function
PD adjustment (as shown in picture E): Adjust the PD of lens
Object distance adjustment (as shown in picture F): Object distance adjustment can
adapt myopia, without wearing myopia lens
Focal adjustment (as shown in picture G): For the best clarity, you can adjust the lens
focal length from left and right
The body sensuous control
Viewing screen choice: Put the mobile phone into the device, you can choose the
video screen by shaking your head from left and right in the video list (as shown in
picture H). VR games: playing 3D games also can be controlled through the body
sensuous (as shown in picture H)

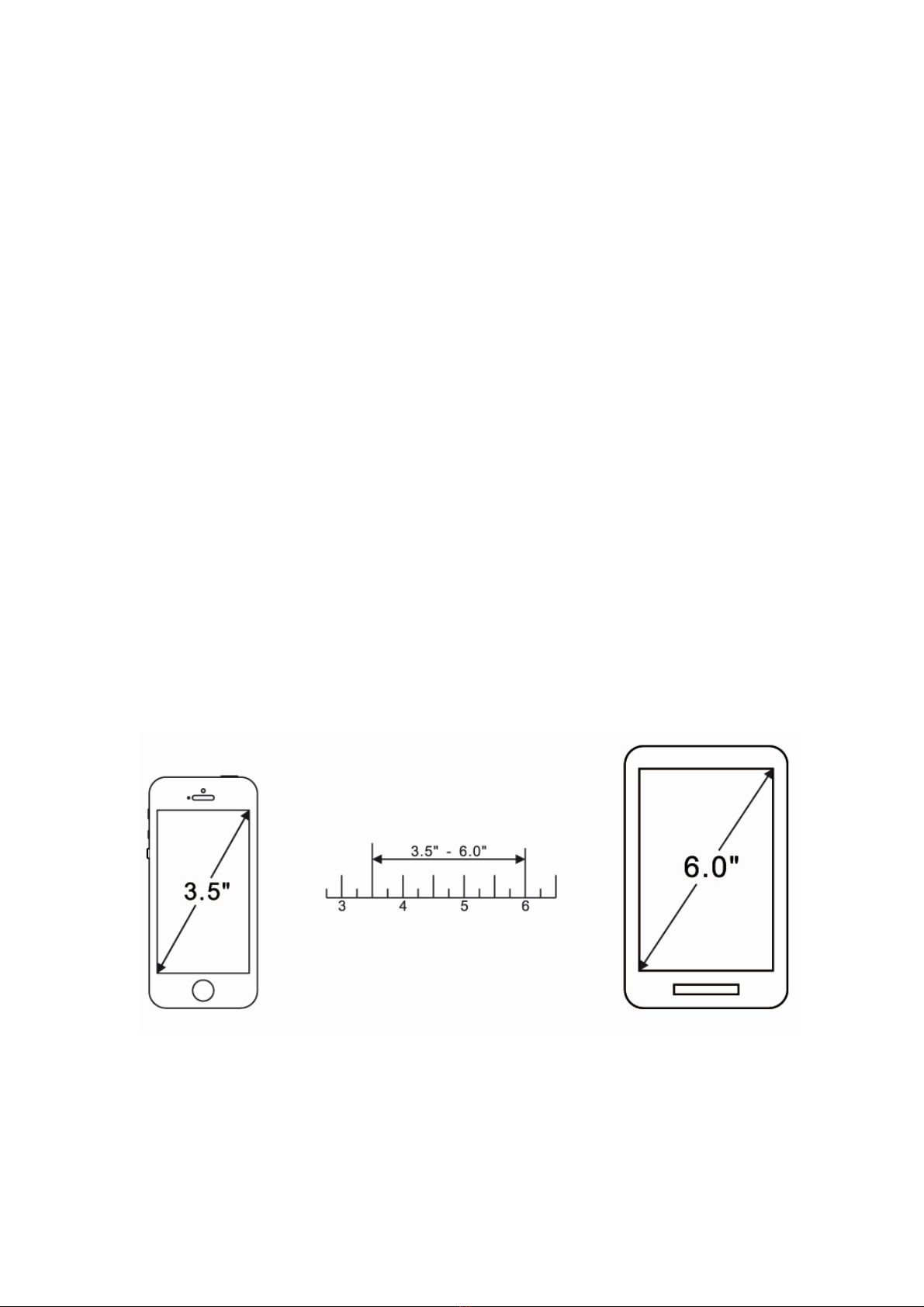

Compatible with different sizes of smartphones
Virtual Reality glasses are compatible with 3.5-6.0 inch Smartphones. (L Max: 154mm;
W Max: 82mm)

Be free to enjoy 3D movies anytime anywhere
Virtual Reality glasses which you can be free to have 3D movie or gaming fun
anytime anywhere
Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements
of Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be
requested by post under the below mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living
environment. In this case, the user can be requested to undertake appropriate measures to prevent
interference.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
