83-SA1-01002XLNB Installation Guide
SwitchAir 1U Network Switch Cooling
For Rear Air Intake-Front (Port) Exhaust Switches
Installation Precaution:
●Install SwitchAir such that the required airow for safe operation of equipment is not compromised.
●Take precaution to avoid interference with the switch input power cords when installing on a live unit.
SwitchAir 1U Installed in Rack
Installs in minutes while network switch is live.
83-SA1-01002XLNB Specications
Rail Depth Range 28 ½” to 30” (724mm to 762mm)
Chassis/Extender Depth 12 ¾” to 21” (324mm to 533mm)
Airow Passive (Switched Generated)
Switch Intake Rear/Front
XLNB Option Includes Extra Long Insert with New Build Side Rails
www.edpeurope.com

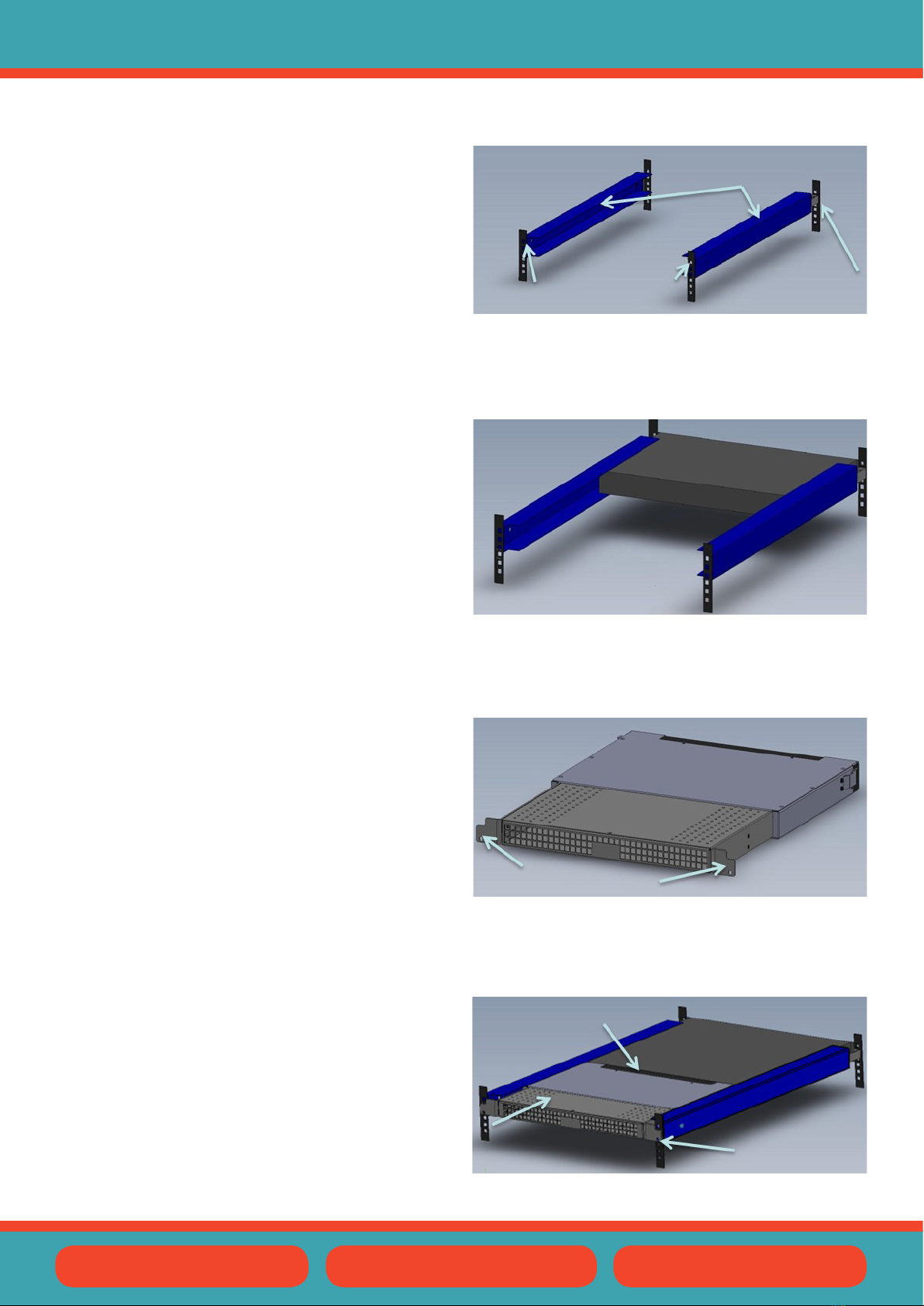

Installing the SwitchAir
1. Mount the adjustable rails using customer
provided cage nuts and screws. The new build
rails will be used to support the network switch,
SwitchAir chassis and insert. Attach the new
rails using only the top front screw holes on
both rack front rails. The rail extension tab
attaches to the rack rear using a single cage nut
and screw. Use the centre hold of the 1U space
for this attachment.
2. Slide the network switch into the rails and
mount to the rack using customer provided
cage nuts and screws.
3. SwitchAir is not in the fully extended position
when shipped from the factory. Pull evenly
on the chassis mounting tabs for the desired
depth.
4. Insert SA1 into the rails and push unit until the
insert comes into contact with the network
switch and the chassis tabs are in contact with
the rack. During this process route the cables
through the brush openings. Install the bottom
SA1 chassis screws on both sides.
5. Install is complete.
Install Adjustable Rails
For SA1
Install Top Cage Nuts
& Screws to Both
Sides of Rack
Mount to Centre Hole
of 1U Space
Pull Evenly on Tabs to
extend
Route Cables
Attach to Rails
Slide SA1 into Chassis
Network Switch
Insert
Ver: EDPSA1002XLNBIG1118.1
