EDS eSense EMS-100WL User manual

EMS-100WL
ENVIRONMENTAL MONITORING SYSTEMS
WIRELESS MONITORING PANEL
Installation Manual
www.edselectronic.com

2
eSense appliance is designed to detect temperature, pressure, humidity, noise and
voltage & frequency changes.The system consists of control panel and sensors and
used in wide range of applications and markets such as medical, pharmaceutical,
industrial, commercial and many more. eSense transmits the sensor data with wire
or wireless 24/7 to the server. Stored data are available as report and user is able to
view graphically from web interface and mobile application.
DESCRIPTION
1
Product Family
P/N Description
EMS-100WL Wireless Monitoring Panel
EMS-100L Wired Monitoring Panel
EMS-100GSM GSM Monitoring Panel
ENS-100 Wired Humidity Sensor
ENS-100T Wireless Humidity Sensor
ES-100 Wired Temperature Sensor
ES-100T Wireless Temperature Sensor
EB-100 Wired Pressure Sensor
EB-100T Wireless Pressure Sensor
EGS Noise Sensor
EVF-100 Voltage and Frequency Sensor
EIO-100 Digital Access Module
EMAS-100 Analog Access Module

3
PHYSICAL
2

4
SPECIFICATIONS
3
Model EMS-100WL
Environmental class II Indoor
Type Wireless
Electrical
Adapter input 5.6V DC/1A
Sound indicator Piezo buzzer
Sound intensity 68dB (1m)
Power LED Green
Network 10/100Mpbs
Maximum network distance 30m
LCD 2x16 LCD screen
Wireless operating frequency 434.2 Mhz
Modulation type gfsk
Sensor
Sensor connection 8
Sensor communication
distance 20-30m (indoor)

5
General
Operating temperature 0OC / +45OC
Dimensions (HxWxD) 120x150x20 mm
Weight 189.5 g
Year of Manufacture The year and week of manufacture is included in the rst four digit of
your product serial number (located on the product identication label)
Manufacturer EDS Elektronik Destek Sanayi ve Ticaret Ltd.
Meclis Mah. Teraziler Cad. Hayran Sk. No: 4 34785
Sancaktepe / İstanbul / Turkey
Recycle

6
1
3
5
2
4
6
Environmental Monitoring Systems
MOUNTING
4

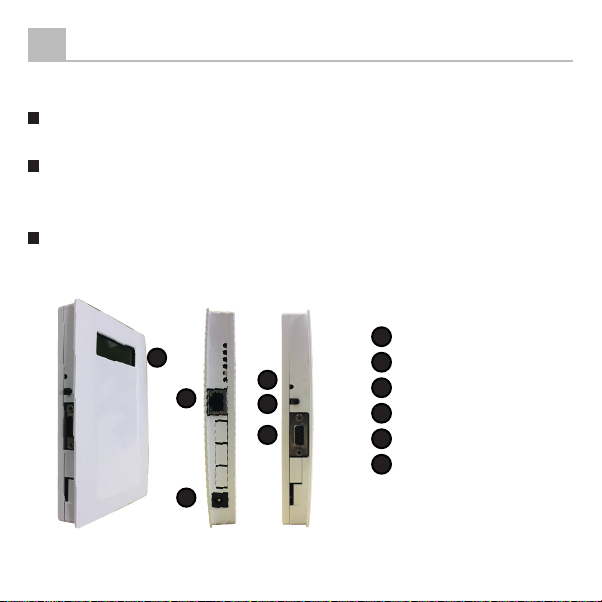

The Esense Control Panel has an LCD screen that shows the date-time and
sensor values.
With the FN (Function Key) located on the left side of the Esense Media
Control Panel, you can see the values of your sensors with more than one on
the LCD screen. There is one RS232 connection.
The Esense Control Panel has an Ethernet port and DC 5,6V 1A adaptor
input on the right side.
LCD Screen
Ethernet wire entry
Power AC housing
LED Indicator
Function key
Serial port (RS232)
connection
6
5
4
1
2
3
Figure 1: EMS-100WL

7
Mounting of the Esense Media Control Panel
Remove the Esense Media Control Panel and connection apparatus from
the contents of the box. For wall mounting, you can mount the wall with
dowels and screws and/or attach it to the wall with silicone tape.
1
2
Screw place
Cable slot
Figure 2: Panel Wall Mounting
1
1
2 2
It is recommended that the surface on which the wireless monitoring panel
and sensors will be mounted is not ferromagnetic material (cold room
warehouse door, steel, metal etc.). As this type of material will weaken the
signal transmission, if possible, install it on a non-ferromagnetic surface that
does not block the signal. If it is mandatory to install on this type of surface,
the products should be mounted at least 15 cm with the surface.

8
Remove the Internet Wire from the contents of the box. Connect it to Ethernet
port on the Esense Control Panel. Connect its other end to your devices such
as modem/switch/hub.

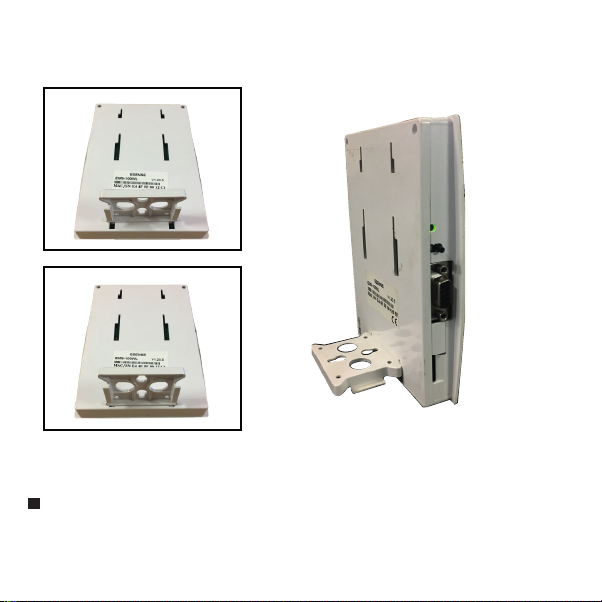

Figure 3: Panel Vertical / Horizonal Mounting
If you do not want to mount on the wall, you can place on your table etc.
vertically or horizontally.

Connect your Wired Sensor to the one relevant socket on the right side
of the Esense Control Panel. Please do not position sensor next to the air
conditioner.
Connect DC 5,6V 1A adaptor to plug. Connect it to the adaptor socket on
the Esense Control Panel.
Note on the LCD screen on the Esense Control Panel by following the IP
address assigned by DHCP. The IP address will rapidly pass in the rst 5
seconds, then the date-time and sensor value will come.
9
Figure 5: Wired / Wireless Humidity Sensor
Figure 4: Wired / Wireless Temperature Sensor

10
Figure 5: LCD screen
With Esense Control Panel, the wireless sensor should be placed within
a maximum of 20m in closed area and within a maximum of 150m in open
area. Wireless sensors work with two alkaline batteries. You can replace the
batteries by removing the two screws on the back of the wireless sensors.
You can connect your wired sensors to the relevant ports located on the left
or right side of the Esense Control Panel to attach additional wireless sensor.
Wait until the sensor you have attached to the device is displayed.
By shortly pressing the FN key (max 1sn) on the device, you can check
multiple sensors and values.
WARNING
If you see the IP address 169.254.254.169, the internet wire cannot be
regularly connected. Please check your internet and wire connection.

11
MONITORING
REPORTING
5
6
Monitoring the Values over Web Browser
Enter the IP address of your Esense Control Panel with the 8089 port at the
end of the web browser address line. Select Get Data Values from the web
page to be opened.
You can also follow-up the values measured in the ambiance from the web
page.
Example: http://X.X.X.X:8089
User could enter their username and password to reach the web site
www.esense.com.tr via web browser and view data in graphical and report
forms.
User could view the data by downloading the eSense application from
Google Play and the App Store.

RECYCLE
7
You could send your old devices back to our company for free recycling.
The above symbol indicates that this product and / or battery must not be
disposed of with household waste.
When your device has reached the end of its useful life, contact your local
authority for disposal and recycling options, take it to a collection point for
the recycling of electrical and electronic equipment, or hand it over to EDS
Elektronik.
This product does not contain harmful or prohibited substances specied in
the Regulation on the Control of Waste Electrical and Electronic Equipment
issued by the Turkish Republic Ministry of Environment and Urbanization.
Complies with WEEE regulations.
The above symbol means that your product and / or battery must be disposed
of separately from household waste in accordance with local laws and
regulations. When this product has reached the end of its useful life, hand it in
at the collection point indicated by your local authority. The separate collection
and recycling of your product and / or battery at the time of disposal will help
to conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment.
European Union
12

The terms of the warranty is valid for products sold in Europe Union.
Failure to occur during loading, unloading and shipment after delivery of
the goods is not covered by the warranty.
Damage, malfunction and information services caused by operating errors
are not covered by the warranty.
Damage and malfunctions due to low or high voltage, faulty electrical
installation, voltage other than the voltage indicated on the product label are
not covered by the warranty.
Failures and damages resulting from natural disasters (earthquake, flood,
etc.), re and lightning are not covered by the warranty.
The warranty is void if the document is tampered with and the original
serial number is removed.
WARRANTY CERTIFICATE
8
13

1. The warranty period starts from the delivery date of the product and is for
1 years.
2. The product is completely under the warranty scope of our company
including all the pieces.
3. In case of the product’s breaking down within the warranty period, so the
repair period is added to the warranty period. The maximum repair period of
the product is 20 working days. This period starts from the notication date
of the product’s failure to the service station and in default of the service
station, so one of those as the product’s seller, dealer, agent, representation,
importer or importer-producer. If the product is not troubleshot within 10 days,
the importer-producer or importer must assign another product within similar
properties to the use of the consumer till the product’s repair is completed.
4. In case of the product’s breaking down within the warranty period either
due to material and labor, or mounting failures; then the repair shall be made
without requesting any charge as labor cost, shanged part fee or under any
name.
5. Despite the consumer uses the repair right;
5.1. Since the product is delivered to the consumer and provided that being
within the warranty period, if the same failure repeats more than two, or the
different failures occur more than four, or the total elements of the different
failures exceed six times within the specied warranty period in one year, as
well as these failures perpetuate not to benet from the product,
WARRANTY CONDITIONS
14

5.2. If the maximum period required to repair is exceeded,
5.3. In the situations of the determination that the failure’s repair is impossible
with a report to be issued by the rm’s service station and in the unavailability
of the rm’s service station, respectively by one of the seller, dealer, agent,
representation, importer or importer-producer; the consumer can request the
free change of the product, refund or price discount at defection rate.
6. The failures arising from the use of the product contrary to the particulars
in the user’s manual are outside the scope of warranty.
7. For the problems to be arisen regarding the Warranty Certicate, you
can apply to the Directorate-General of Consumer Protection and Market
Surveillance of the Ministry of Customs and Trade.
15
Manufacturer title / Service address:
EDS Elektronik Destek San. ve Tic. Ltd. Şti.
Meclis Mah. Teraziler Cad. Hayran Sok. No:4 34785
Sancaktepe/İstanbul/Turkey
Tel: [phone] Fax: [phone]
e-mail: [email protected] www.eds.com.tr

PRODUCT INFORMATION
Type of product : Wireless Monitoring Panel
Brand : EDS
Model : EMS-100WL
Serial no and bandrol :
Warranty period : 2 Year
Maximum repair time : 20 Day
Product us Liftetime : 5 Year
Delivery date and place:
Title
Address
Phone
Faks
E-mail
Title
Address
Phone
Faks
E-mail
Date and number of invoice
Delivery Date and Place
: EDS Elektronik Destek San. ve Tic. Ltd. Şti.
: Meclis Mah. Teraziler Cad. Hayran Sok.
No:4 34785 Sancaktepe/İstanbul/Türkiye
: 0216 528 45 00
: 0216 314 17 80
: [email protected] - www.eds.com.tr
:
:
:
:
:
:
:
Seller
Stamp / Signature:
Producer
Stamp / Signature:
MANUFACTURER OR IMPORT COMPANY SELLER COMPANY
16

Technical specications are subject to change without prior notice.
03.20V2
WARNING
Keep instructions for use, follow all warnings, follow all procedures and
instructions.
Use the adapter provided in the box.
The unit works with a 5.6V DC/1A adapter.
Do not reverse voltage.
Do not short circuit.
For good performance, follow the instructions given in the installation
section.
In case of a problem with the operation of the device, immediately
disconnect the power supply and call the authorized service.
