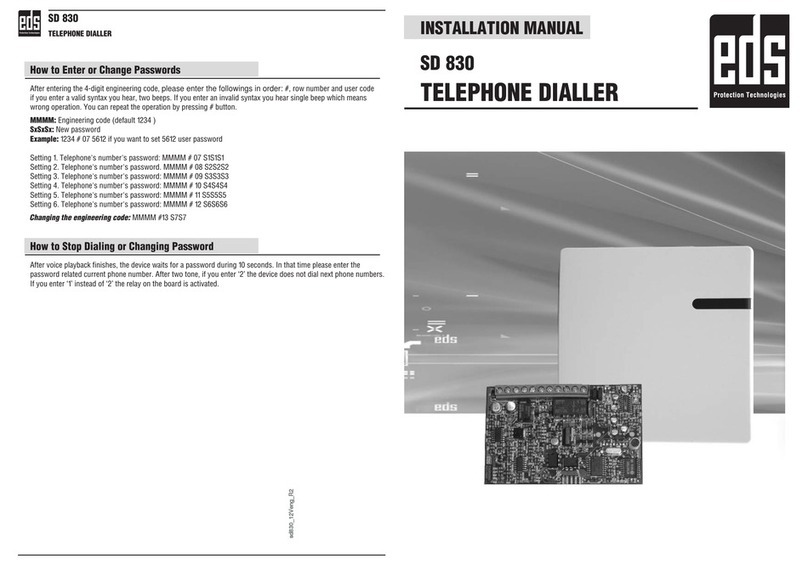

EDS SD 830 Service manual

SD 830
INSTALLATION MANUAL
TELEPHONE DIALLER
SERVICE
sd830eng
EDS Elektronik Destek
Sanayi Ticaret Ltd. Þti.
Fac.
Tel.
Fax
: Meclis Mah. Teraziciler Cad.
Kýlýç Sok. No:4 34785
Sarýgazi/ Ýstanbul
:([phone]
:([phone]
www.eds.com.tr [email protected]

Operating Voltage
Power Consumption
Line frequency
Diallable phones
Voice recording time
Record listening
Calling time
User password
Programming password
Alarm input
Microchip technology
Repeated dials(when line is busy or no answer )
Ringing time when there's no answer
Automatic alarm detection
Uninterrupted power supply
Takeover dial (forceably dropping a busy line )
Restoring to factory defaults
Dimensions(mm)
Weight
Operating temperature
Model SD 830
12VDC
17mA(suspended) / 65mA (alarmed)
Available
6 passwords
1 password
Available
Available
5 dials
Available
Available
Available
Available
390-490Hz
6
16sc.
70sc. (Tone)
70sc.
110x110x39
111gr
-10°C ~ +50°C
Connection Examples
You'll hear a double-tone confirmation sound after entering “4 digit engineering password, [#], 13, new password”
EEEE : Engineering password(Used for programming, changing password and removing tel. numbers)
NNNN : The new engineering password
To change the engineering password: Enter EEEE [#] 13 NNNN
Technical Specifications
TELEPHONE DIALLER TELEPHONE DIALLER
SD 830
ALRM
LINETEL
+-
12V
Connect the phone line to the LINE ports. To be able to program the SD830, a telephone device with tone dial must be
connected to the tel. connector.
First, connect the jumper units(J1 and J2) to the P(Program) side as shown in Figure 1. While in normal operating
condition, jumper units must be in N(Normal) position as shown in Figure 2.
SD830 has the feature of automatic alarm detection. The alarm input condition is accepted as the normal input
condition at the first start-up. If the alarm input condition changes, it is considered as a trigger.
LINE
N
Figure2/Normal
Connections
Triggering Input
SD 830
P
Figure1/Programming
N P
Operation may start 3 seconds after the initial power-up.
A siren sound will be heard on the phone when picked up during an alarm condition.
The alarm output of the alarm panel may trigger positive or negative, SD830 will automatically detect it
(Connections are shown in Figure3 and Figure4)
Factory default engineering password is: To restore the factory settings, shut down and unplug the
power source first. .
Then set the J4 jumper position and power up again. You'll hear a confirmation sound on the programming telephone.
Remove the jumper J4.
Now, you can do the programming.
1234.
Notes
To record voice into the device:
To listen the record:
(J1 and J2 must be in the programming position)
Open the device cover and set the J3 jumper into position, see the LD1 LED turn on. Get closer to the microphone on
the board to record your voice message and do not exceed 16 seconds. Recording time ends when the LD1 LED turns
off. Unsettle the jumper J3. Close the device cover.
Enter EEEE [#] 14 and listen to the 16sc recordings. You should wait until the end of 16 seconds
before moving to another process.
Programming Parameters
You should hear a double-tone confirmation sound right after every programming and password changing processes.
If a single-tone error sound is heard, you can repeat the process after pressing the [#] button. You can press the [#] button
to cancel any process at any time and return to the beginning of the menu.
You should program the device before operating it. During the programming process, J1 and J2 jumper positions must be
set as shown in Figure1. During the programming process, you can assign 6 phone numbers and a specific password and
engineering password for each phone number.
You'll hear a double-tone confirmation sound after entering ”four digit engineering password, [#], order no, tel no and [#]”.
Figure 3 Figure 4
TEL
LINE
ALARM
+
-12V
SD 830
LINEI
12VDC
POWER

Y
•
+
-
'TEL
LINE
ALARM
+
-12V
SD 830
LINE
12VDC
POWER •
+
-
'
ALARM POWER
For telephone number 1: For telephone number 4:
For telephone number 2: For telephone number 5:
For telephone number 3: For telephone number 6:
EEEE [#] 01 Tel No [#] EEEE [#] 04 Tel No [#]
EEEE [#] 02 Tel No [#] EEEE [#] 05 Tel No [#]
EEEE [#] 03 Tel No [#] EEEE [#] 06 Tel No [#]
(EEEE: 4 digit engineering password)
Changing The Engineering Password
Recording Voices and Listening Records
You'll hear a double-tone confirmation sound after entering “4 digit engineering password, [#], order no, [#]”
(EEEE: 4 digit engineering password)
Removing tel. Number 1: EEEE [#] 01 [#] Removing tel. number 4: EEEE [#] 04 [#]
Removing tel. number 2: EEEE [#] 02 [#] Removing tel. number 5: EEEE [#] 05 [#]
Removing tel. number 3: EEEE [#] 03 [#] Removing tel. number 6: EEEE [#] 06 [#]
Removing Telephone Numbers
