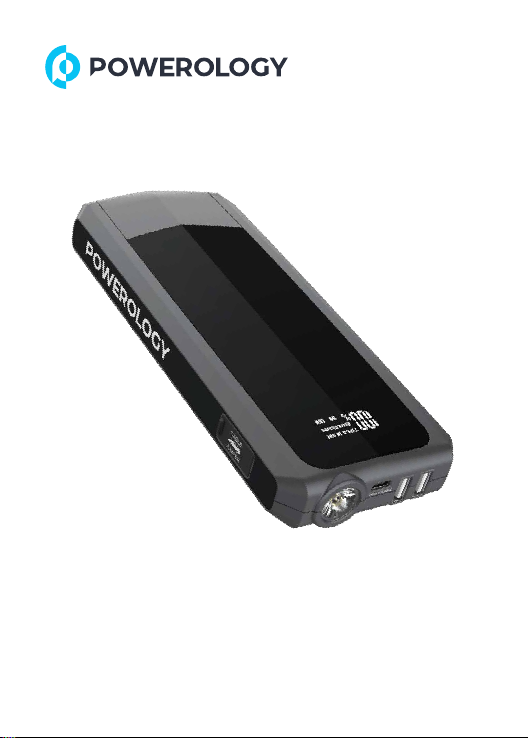

POWEROLOGY PPBCHA29 User manual

16000mAh
JUMPSTART
POWER BANK PPBCHA29

Jump start socket
Switch
LED Flash Light
LCD
5V2.1A output port
Quick charge
output port
15V10A
output port
USB-C input(output) port
For 12 V ve hicle produ ct s
Jump er c able with clamp s
15V 10A output port
USB-C input
(output) port
Jump start socket
B
A
PRODUCT LAYOUT
Thank you for choosing the Powerology, Always follow basic safety
precautions when using electrical appliances. Read all instructions
carefully Please keep this instruction manual for easy reference.

1.Connect the blue plug fully seated into the host,
and make sure the Cable Indicator is off.
2.Connect Red Clamp to the positive (+) battery
terminal, Black Clamp to the negative (-) battery
terminal.
3.Operate following the instruction of the Cable
Indicator:
1. Plug the home adaptor into the universal socket.
2. Connect USB-C input port of EPower to the other end of home
adaptor .
BOOST
reverse correct

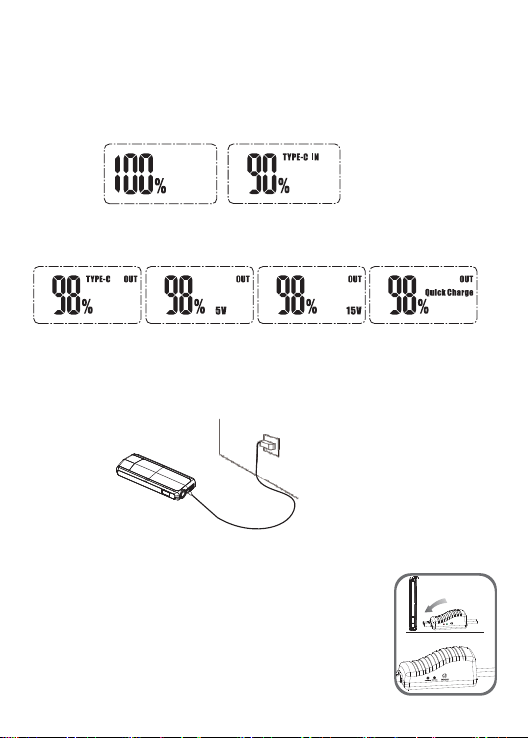

Touch the ON/OFF switch button, press the switch button again,
the display shows XX%, indicating the battery has XX% of power;
100% is displayed, indicating that the battery is full. When display
shows "TYPE-C IN", it means it is charging.
When the LCD shows “TYPE-C/5V/15V/Quick Charge+OUT”, it
means it is in use TYPE-C/5V/15V/Quick Charge and other output
functions.
CHARGING INSTRUCTION:
JUMP START 12V VEHICLE INSRUCTION:
LCD DISPLAY INSTRUCTION

CHARGING CELL PHONE OR TABLET INSTRUCTION:
FOR POWER SUPPLY TO 12V VEHICLE PRODUCTS
OR 12V ELECTRONICS
1. Plug the optional switch cable to 15V 10A output port.
2. Connect the optional switch cable and 12V vehicle product or
12V electronics.
3. Press the switch button to power supply.
Telling the
connection is wrong, and
buzzing to alarm to correct
the clamps as step 2
mentioned above, wait until
the GREEN LIGHT is on to
turn on the engine.
Telling the connection
is correct and the
circuit is working, you
can turn on the engine
to jump-start directly.
Beep ,Beep
Saying the vehicle
battery is low, press the
“BOOST” button, wait
GREEN LIGHT becomes
solid, then turn on the
engine within 30s.
Saying the vehicle's battery
maybe damaged, after
confirm the clamps
connection is correct, press
the “BOOST” button, wait
GREEN LIGHT is on, and
then turn on the engine
within 30s.
4.Start the vehicle.
5.When the vehicle is started, remove the jumper cable from the
vehicle battery. Leave the vehicle's engine running.
1. Plug the switch cable to USB-C output port.
2. Select appropriate connector and connect it to your mobile
phones or tablet.
3. Touch the switch button, it can recognise eletronic products's
suitable parameters, start to charge for mobile phone/tabletc
etc.
Green light on:
Green light blinking:
Red light on with buzzing
No Lights on, No buzzing

Press the switch 3 seconds to start the LED flash light.
There are 4 modes of LED light appear in order (normal. strobe.
SOS. off) if you press slightly.
Dimension: 222*88*28mm
Weight: 595g
Battery Capacity: 16000mAh(59.2Wh)
Output: Quick Charge(5V 3A,9V 2A,12V 1.5A);5V 2.1A;15V 10A;
Full charging time: About 3 hours
Start current: 500A
Peak current: 1200A
Operating temperature : -20℃~60℃
Input: USB-C PD18W
USB-C PD18W,12V jump start
# Parts Name
1
2
Host
Home adaptor
3Intelligent jumper cable
# Parts Name Quantity
4 Switch cable A 1
5Switch cable B 1
6User Manual 1
Quantity
1
1
1
LED FLASH LIGHT
PARTS LIST
TECHNICAL SPECIFICATIONS

Q. How to turn off this appliance?
A. This appliance will power off automatically when no load or
charging is complete.
Q. How long time to full charge the EPower?
A. Approx. 3 hours through the USB-C input port.
Q. How many times can this appliance charge for my cell phone?
A. Depend on the battery capacity of your cell phone. Take
iPhone6 as an example, can full charging 7 times.
Q. How many times can this appliance jump start the 3.0L vehicle
if it is in full battery?
A. Approx. 35 times.
Q. What's the lifetime of EPower?
A. Usually 3-5 years in normal condition.
Q. How long does the battery last still can jump start the car after
fully charged?
A. 6-12 months, however, we suggest to recharge it every 3
months.
Finding Cause Remedies
No response when
pressing the switch
button.
Low voltage protection of
EPower is started.
Plug the adaptor into the
USB-C input port to
activate.
FAQ
TROUBLE SHOOTING

WARNING:
O：Indicate all homogeneous materials' hazardous substances content are
below the MCV limit specified in the Standard 2002/95/EC(RoHs).
Composition and amount of toxic and harmful substances in EPower.
Pb Hg Cd Cr(Vi) PBB PBDE
1.Read the instruction manual carefully before using this unit.
2.DO NOT use in place of a vehicle battery.
3.Do NOT use as a toy.
4.To reduce the risk of injury, close supervision is necessary
when the product is used near children.
5.Jump for 12V vehicles , it would be hazard if for other jumping.
6.Use of an attachment not recommended or sold by power pack
manufacturer may result in a risk of fire, electric shock, or
injury to persons.
7.Do NOT connect the two clamps together.
8.Before starting, ensure that there is no corrosion at the
interface and no foreign matter adheres. Connect the main
unit to the battery holder tightly to avoid the impact of the
interface connection.
9.After successfully starting the car, please remove the product
from the car battery within 30s, otherwise it may cause
damage.
10.Do NOT Jump Start more than 3 times in a row,It could
damage the unit by overheating. When starting up multiple
times, each start-up interval is two minutes.
11.Don’t use the jumper cable to charge other equipments.
12.Do NOT store in locations where the temperature may
exceed 60℃
13.Charge only at ambient temperature between 0℃and 45℃.
14.Do not expose the product to rain or water
15.Do NOT expose product to extreme heat or fire.
16.Do NOT operate the product in explosive atmospheres, such
TOXIC AND HARMFUL SUBSTANCES

as in the presence of flammable liquids, gases or dust.
17.Make sure someone should be within range of your voice or
close enough to come to your aid when working with batteries.
18.Remove personal metal items like rings, bracelets,
necklaces, etc. When using the products.
19.To reduce risk of damage to the electric plug and cord, pull
the plug rather than the cord when disconnecting the power
pack.
20.Do not use a battery pack or appliance that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk of
injury.
21.Charge only using the charger provided with this unit or the
same standard with the host input port.
22.After jump start the car,don’t charge this unit immediately.
23.Do NOT use the unit to jump start a vehicle while charging the
internal battery.
24.Under extreme conditions, the battery may leak. If a liquid is
noticed coming from product do not handle with bare hands. In
case of skin contact wash with soap and water immediately. If
liquid comes in contact with eyes rinse eyes with cold running
water for at least 10 minutes and get medical attention
immediately.
25.Product contains lithium based battery, at end of product life
dispose of product according to local regulation.

1.We offer a limited warranty for this product against any defects
in material and workmanship for a period of 6 months from the
date of purchase by the end user/consumer. The conditions of
the warranty are as follows:
2.The warranty is only valid upon presentation of the original
receipt (from dealer/retailer) by the original purchaser with the
product to be repaired or replaced.
3.The warranty is void if the serial number, date of purchase and
label has been removed.
4.The warranty does not cover damage or product failure
resulting from normal wear and tear, physical abuse, improper
installation, misuse, modification or repairs by unauthorized
third parties.
5.We do not assume responsibility for any loss or damage
incurred during shipment or as a result of a force majeure.
6.We are not liable for any incidental or consequential damages
arising from the use or misuse of this product.
7.All warranty claims are limited to repair or replacement of the
defective product and at the sole discretion of us.
8.If we repair or replace the product, the product will be covered
for the remaining time of the original warranty period. Repair or
replacement may involve the use of reconditioned units which
are equivalent in function. Replaced part or product becomes
the property of us.
9.Consumable components such as batteries are not covered by
the warranty.
WARRANTY INFORMATION
