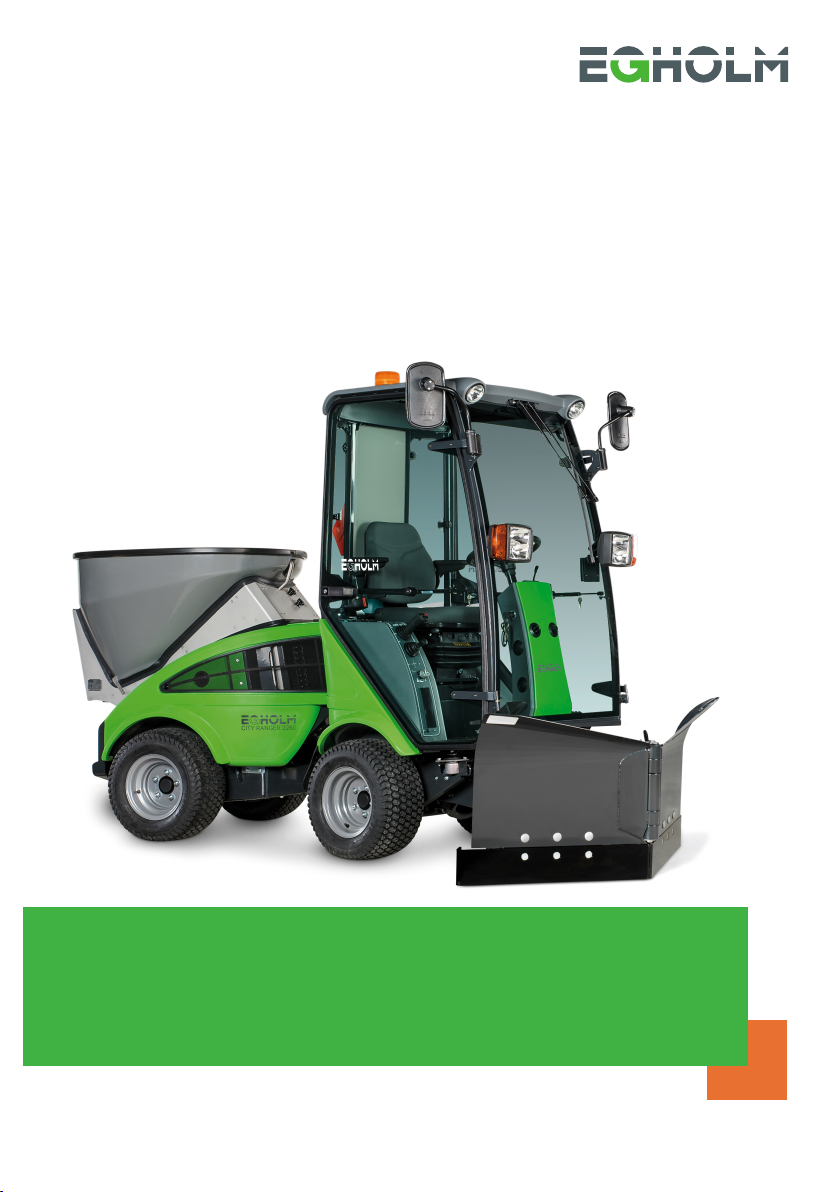

Egholm City Ranger 2260 User manual

Operator´s
manual
Snow V-plough
City Ranger 2260/2250

2Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
Dear Customer
Congratulations with your Egholm product
The City Ranger 2260/2250 is a Danish-designed and manufactured product, which offers a very
exible way of maintaining outdoor areas.
Optimal use of your City Ranger 2260/2250 snow V-plough
To ensure the optimal performance of your City Ranger 2260/2250 snow V-plough, please read this
operator’s manual carefully before using the machine. Failure to do so can result in personal injury
and damage to the machine.
Safety
The snow V-plough is equipped with various devices to ensure optimal operational safety, both for
the user and the surroundings. We ask you to pay particular attention to section 1.1 Safety. The
machine must only be serviced by professionals.
The snow V-plough is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator.
Do not lend to anyone who has not been thoroughly trained and who has not read this manual
carefully.
The operator’s manual should be considered as a permanent part of the machine and must remain
with it if the machine is sold.
Warnings
Some items in this operator’s manual are marked with this warning symbol. The warning
indicates areas where extra care must be taken to avoid personal injury or damage to the
machine and its accessories. The warning also shows what you should pay special
attention to.
Reservations
As it is the Egholm policy to make continuous improvements, we reserve the right to alter the
specications and equipment at any time without notice.
Egholm accepts no liability for errors or omissions in the operator’s manual.
Contact us
Should you have questions of any kind regarding your new Egholm product, do not hesitate to
contact Egholm.
Best regards
Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: [e-mail] · www.egholm.eu
Introduction
Egholm app - easy access to useful material
Download our Egholm app, enter the serial number of your machine and possibly add
attachments, and get access to videos, manuals, technical specications and much more.
If you agree to receive notications, you will be notied about product and service information,
offers etc. The app is available for Apple and Android mobile phones.

3
Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
The snow V-plough uses the tip of the ‘V’ to cut
through heavy and encrusted snow, separating
and pushing it to both sides. Even large
amounts of snow are removed with ease.
The V-plough can also be congured as a ‘Y’ to
allow snow to be transported away – very useful
in car parks, markets, enclosed courtyards
and other locations where snow needs to be
gathered in one place.
The snow V-plough is equipped as standard
with a safety tilt system to protect paths and the
machine.
The V-plough support has sideways suspension,
so that the snow V-plough always adjusts to
ground conditions.
Useful tips
Adjust the skids to suit ground conditions. If
there are a lot of raised edges, set the skids high
so they do not cut into the edges.
Use the snow V-plough for big drifts. The snow
V-plough removes most of the snow and then
the snow sweeper nishes off the job.
Ensure the snap couplings are clean before
tting, as this protects the hydraulic system.
Daily cleaning and maintenance will extend
the lifetime of both the machine and the
attachment.
Contents
General information ..........................................................................5
1.1 Safety .................................................................................5
1.2 EU Declaration of Conformity ............................................................6
1.3 Technical data .........................................................................7
Operator’s manual ...........................................................................9
2.1 Assembly / Disassembly ................................................................9
2.2 Important before start-up ..............................................................10
2.3 Start-up ..............................................................................10
2.4 Adjustment ...........................................................................11
Service and maintenance ....................................................................13
3.1 Cleaning ..............................................................................13
3.2 Maintenance ..........................................................................13
Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Complaints ...........................................................................17
4.3 Disposal ..............................................................................17
Notes .....................................................................................18

General information

5
Ophold i knækområdet
er forbudt
Aufenthalt im Knickbereich ist verboten
Activities around the articulation point is forbidden
Ne séjournez jamais dans la zone d’articulation
1
2
3Max. 10°
Operator’s Manual City Ranger 2260/2250 Snow V-plough

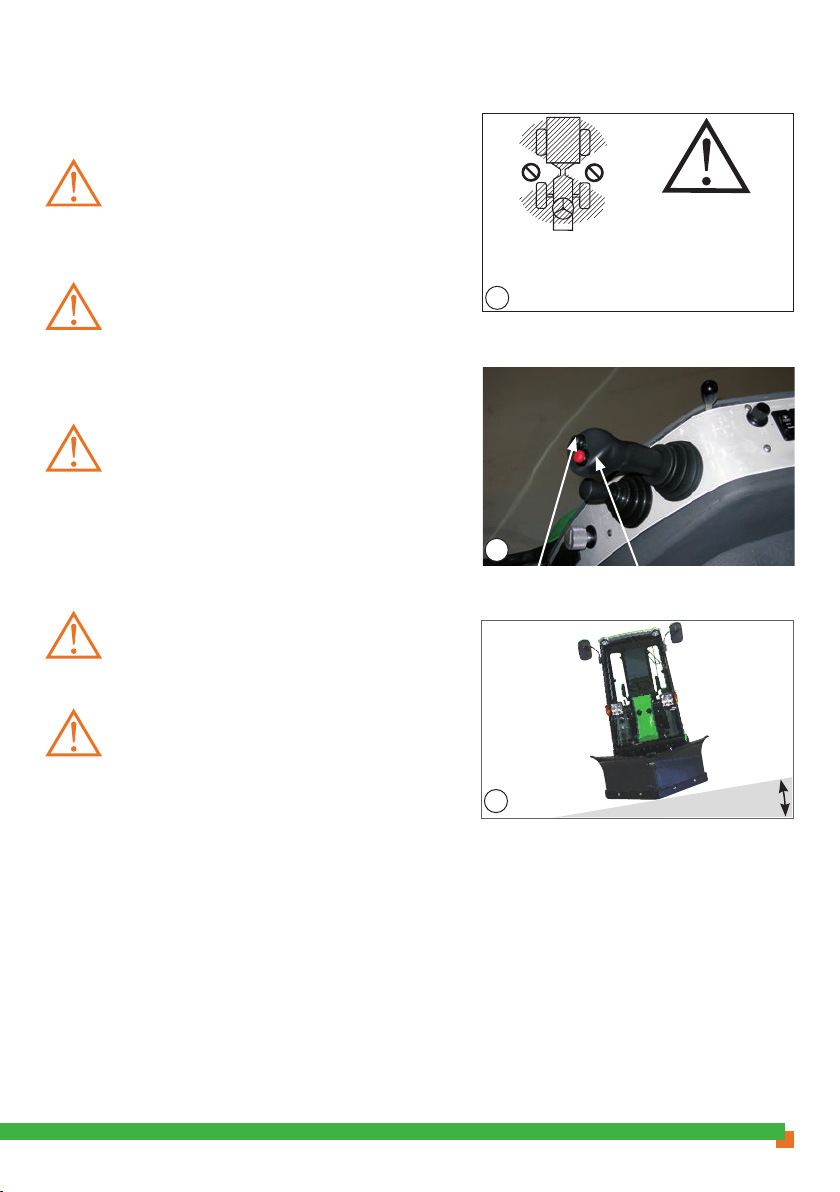

1.1 Safety
Make sure no one is standing close
to the machine while it is in use
Make sure that no one is near the
machine while it is in use as there is a
danger of crushing.
Attention
As it is articulated, the rear end of the
machine swings out when turning.
Make sure that no one is standing
near the machine while it is in use.
(Picture 1)
The snow V-plough left blade swings
to the side when the joystick is moved
left or right. The right blade swings
to the side when the black joystick
button is pressed and the joystick is
moved left or right. Make sure that
no one is standing near the machine
while it is in use. (Picture 2)
Avoid crushing ngers
Keep your hands and ngers away
from areas where there is a danger of
crushing.
Avoid roll-overs
Do not drive the machine in a place
where it can slide, tip or roll. Do not
drive on slopes with an incline of more
than 10°. (Picture 3)
Do not drive on slopes with an incline of
more than 10°
Prevent people from standing in the
working area.
Black button Joystick
General information

6Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
1.2 EU Declaration of Conformity
Manufacturer: GMR maskiner a/s
Address: Saturnvej 17 · DK-8700 Horsens
Telephone: [phone]
herby declares that
Machine: Snow V-plough 2260/2250
Type: FS 1300 VLE 2250
· has been manufactured in conformity with:
European Parliament and Council directive 2006/42/EC of 17 June 2006 on approximation of the
laws of the Member States on machinery.
Any alteration, rebuilding or addition of implements, accessories or other equipment not
manufactured by Egholm automatically results in the cancellation of type approval, CE approval,
any other approval, as well as any warranty on machine and attachments.
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the
data originator (data originator) of all data generated by the machine and attachments during use.
Place: Lemvig
Date:
Signature:
Rainer Flanz, Senior Ingenieur
General information

7
Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
1.3 Technical data
Dimensions
Length (L):
Width (W):
Height with cab (H):
Fitted
3,000 mm
1,400 mm
1,960 mm
Storage dimensions
500 mm
1,400 mm
600 mm
Technical data
Type description
Weight on snow V-plough
Clearing width:
Ground clearance below scraping edge, lifted
Ground clearance below skids, lifted
22VP
118 kg
1,200 -1,400 mm
240 mm
215 mm
Attention
Specications may be changed without prior notice
General information

Operator´s manual

9
1
2
3
Operator’s Manual City Ranger 2260/2250 Snow V-plough

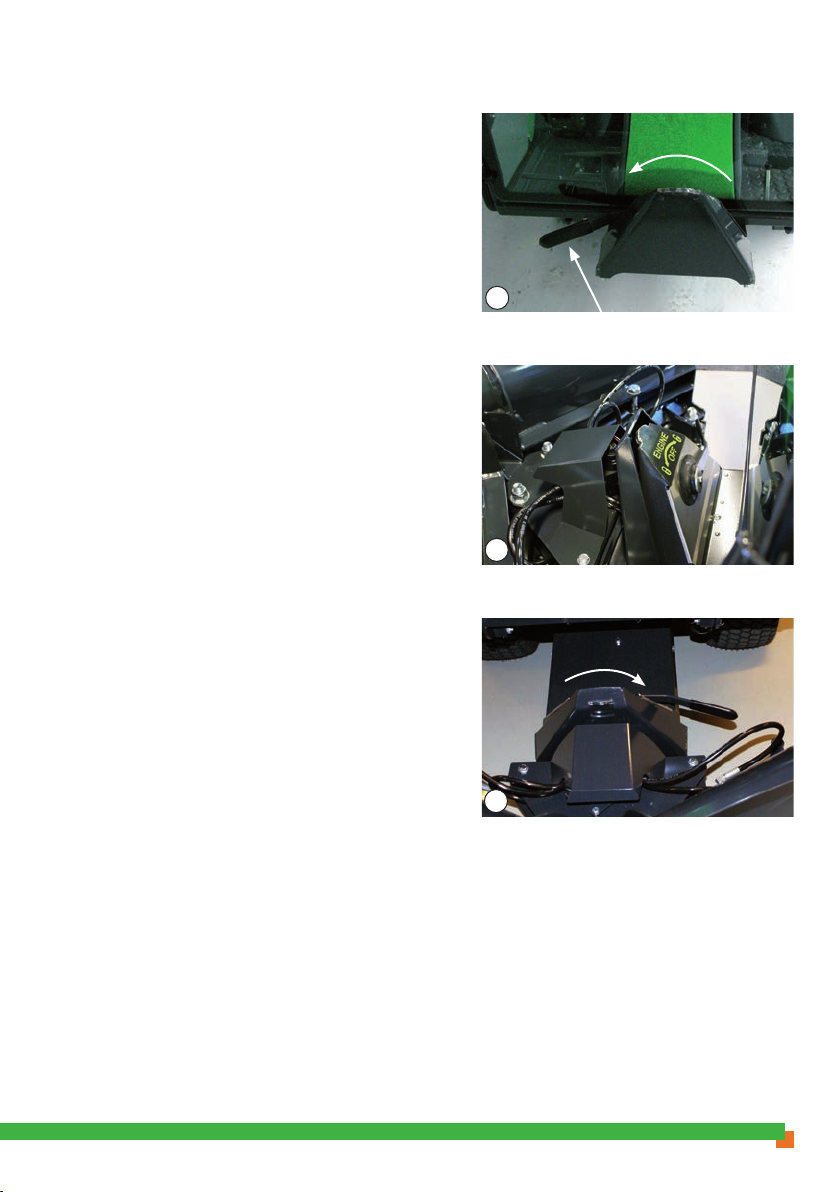

2.1 Assembly / Disassembly
1. The locking handle on the A-frame of the
basic machine must be in the unlocked position.
(Picture 1)
2. Drive the base machine right up to the A-frame
of the snow V-plough, so the A-frames t into
each other. (Picture 2)
3. Raise the A-frame by pulling the joystick back
until the snow V-plough is suspended and free of
the ground.
4. Stop the machine.
5. Lock the snow V-plough in place with the
locking handle on the A-frame. (Picture 3) The
locking handle can only be engaged when the
machine has been stopped.
Disassembly
Follow the procedure for tting in reverse order.
To make attachment and removal easier, set the
left and right blades evenly.
Locking handle
Attaching
Locking
L
o
c
k
e
d
Operator’s manual
U
n
l
o
c
k
e
d

10
4
1
2
3
Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough

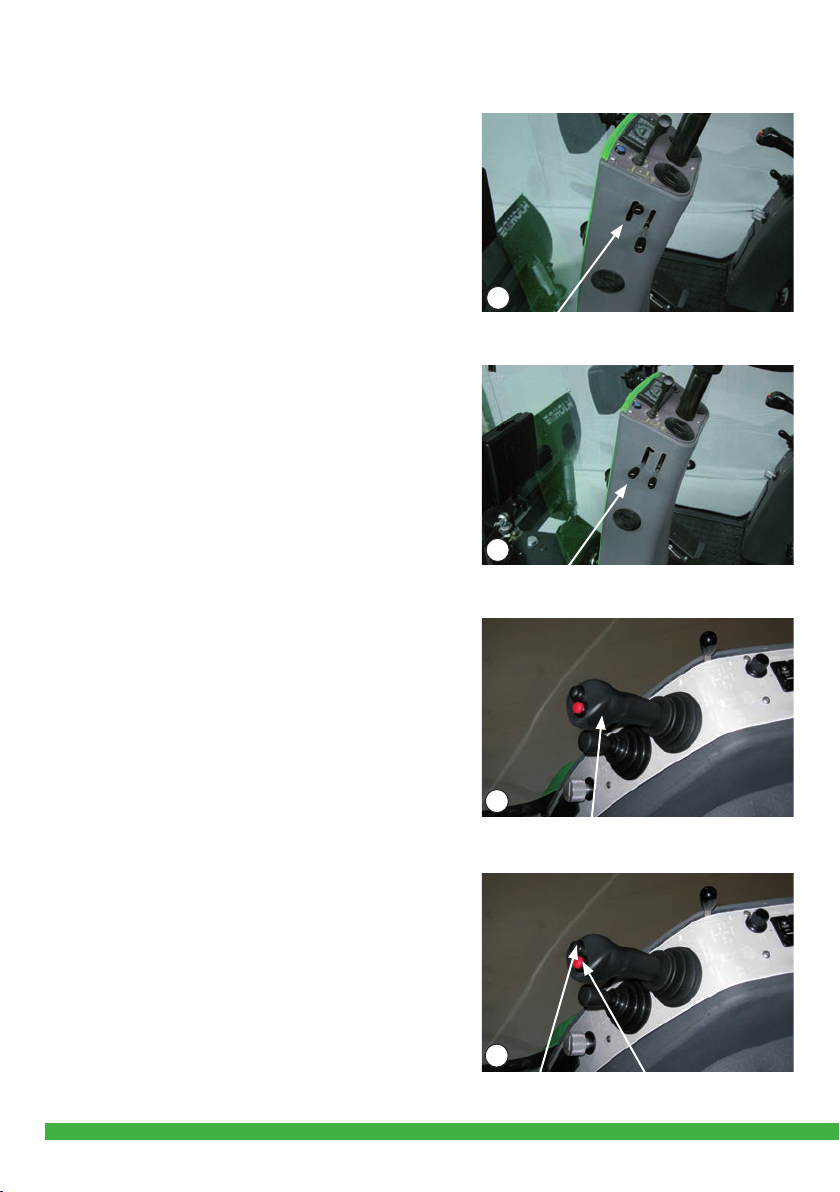

2.2 Important before start-up
During transport
Lock the snow V-plough in the raised position
using the transport lock. This prevents the
attachment from lowering during transport.
How to use the transport lock
Move the handle to the uppermost position. Lift
the A-frame by moving the joystick up. As the
A-frame lifts the transport lock is automatically
activated. (Picture 1)
How to use the transport lock
Unhitch the handle and lift the A-frame to the
uppermost position. The attachment can now be
lowered again. (Picture 2)
2.3 Start-up
1. Start the machine.
2. Lower the snow V-plough by moving the
joystick down. (Picture 3)
3. Activate the weight distribution with the red
button on the joystick (Picture 4). The snow
V-plough will now adjust to ground conditions.
To adjust the weight distribution read the
operator’s manual for the basic City Ranger
2260/2250 machine.
4. Turn the left blade of the snow V-plough by
moving the joystick to the left or to the right.
When the joystick is moved to the right, the
blade swings forwards.
5. Turn the right blade snow V-plough by
pressing the black joystick button and moving
the joystick left or right. (Picture 4) When the
joystick is moved to the right, the blade swings
forwards.
Transport lock in locked position
Transport lock
Joystick
Locked
Black button Weight distribution
Unlocked
Operator’s manual

11
1
2
3
Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
Transport lock
Locked
2.3 Start-up - continued
Attention!
Make sure no one is standing close
to the machine while it is in use.
N.B!
When turning, the rear of the
machine swings out so there is a risk
of crushing or collision.
Warning!
Collision with solid obstacles – such
as kerbstones – may damage the
snow V-plough. This damage may
cause bolts to snap or parts of the
snow V-plough to bend. Damage
of this type is not covered by the
warranty.

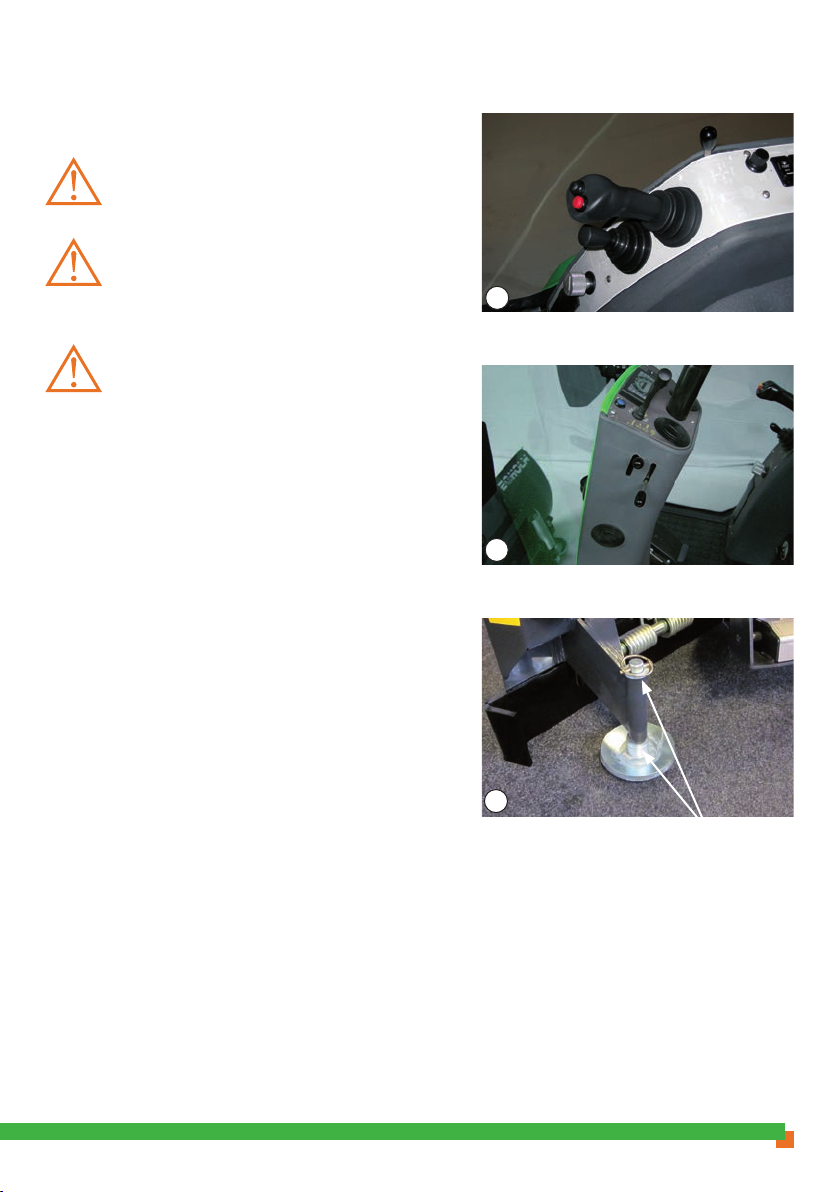

2.4 Adjustment
Adjust the skids to the ground conditions.
If there are a lot of raised edges set the skids
high so they do not cut into the edges.
Adjusting the scraping height
1. Raise the snow V-plough by pulling the
joystick up. (Picture 1)
2. Lock the snow V-plough in the raised position
using the transport lock. (Picture 2)
3. Stop the machine.
4. Remove the locking ring on the skid.
(Picture 3)

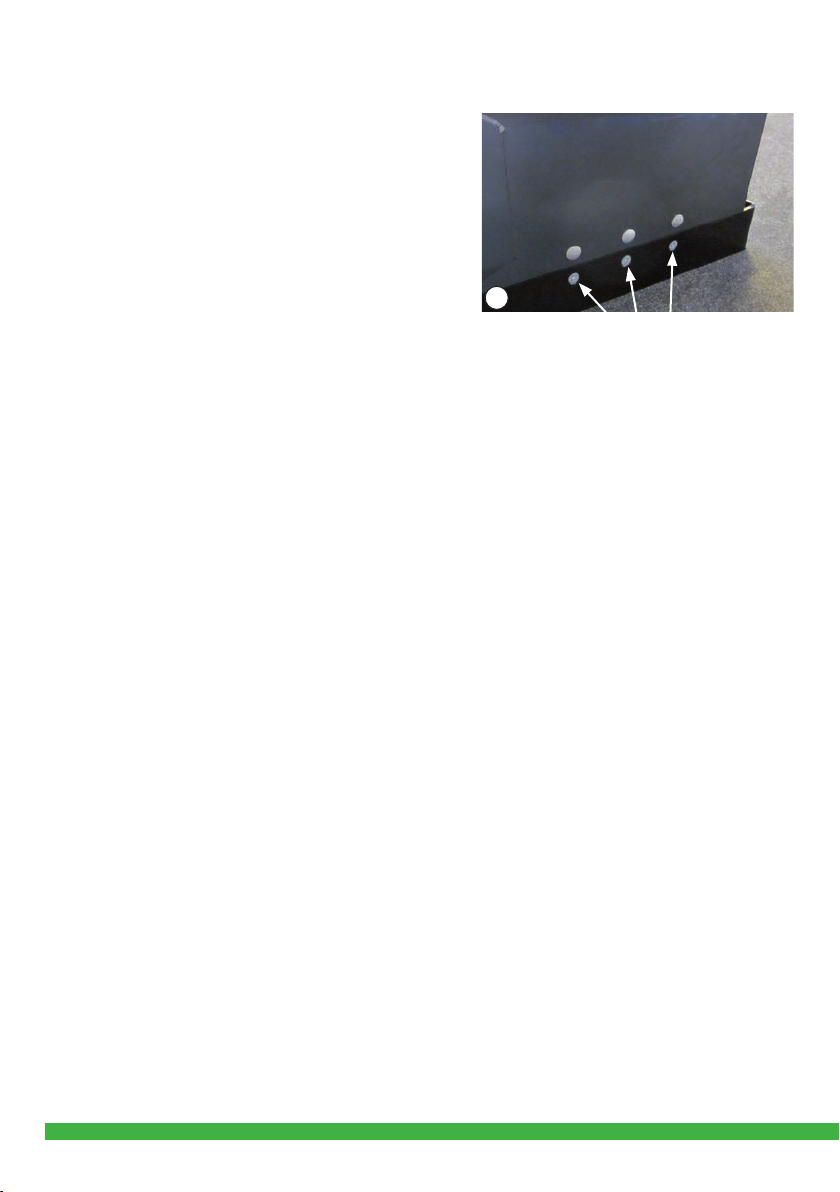

Adjust the skid height by moving washers up or
down.
Skid
The snow V-plough is raised using the
joystick
Operator’s manual

Service and
maintenance

13
2
1
2
3
Operator’s Manual City Ranger 2260/2250 Snow V-plough
Location of lubrication nipples
3.1 Cleaning
Daily cleaning and maintenance will extend
the lifetime of both the machine and the
attachment.
After use clean the snow V-plough with clean
water.
Avoid high pressure cleaning of the snap
couplings.
Open the ap over the snap couplings. Use
pressurised air to clean around the snap
couplings. The couplings can be dried with a
cloth (Picture 1). It is important the couplings
are intact before the attachment is tted.
3.2 Maintenance
Lubricating the bearings
The bearings in the pivot joint of the snow
V-plough should be greased regularly with good
quality grease.
1. Stop the machine.
2. Clean the lubricating nipples and lubricate the
bearings until the grease starts to come out of
the bearing. (Picture 2)
There are ve lubrication nipples in the centre
swivel.
There are four lubrication nipples on the
cylinder. (Picture 3)
Note
After 10 hours of operation - check if
bolts and nuts are tightened.
Snap couplings
Location of lubrication nipples
Service and maintenance

14
1
Operator’s Manual City Ranger 2260/2250 Snow V-plough
3.2 Maintenance - continued
Replacing the scraping edges
The scrapers at most can be worn down to the
scraper guard.
1. Lift the snow V-plough to the uppermost
position and lock with the transport lock.
(See Section 2.2)
2. Stop the machine.
3. Remove the nuts and bolts holding the
scraper edges and remove the scraper edges.
(Picture 1)
4. Fit the new scraper edges by reversing the
procedure.
New scraper edges and skids can be ordered
from an authorised Egholm distributor.
Storage outside the season
When the snow V-plough is to be stored outside
the season, it is recommended to remove any
loose paint and to repaint any damaged areas.
It is recommended the attachment is greased /
sprayed with protective lubricant.
Nuts that hold the scraper
Service and maintenance

Conditions

16 Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
4.1 Warranty
The warranty period for the materials and manufacture of this snow V-plough is 12 months from the
date of purchase. In case of errors or defects on the machine within the warranty period, Egholm
will carry out the necessary repairs at no charge to the customer, including materials and working
hours, in accordance with the terms and conditions listed below.
The scope of warranty
1. The Egholm warranty is only valid on presentation of the original receipt supplied with model
description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the warranty.
3. All inquiries concerning the warranty are to be addressed to the distributor from whom the
machine was purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Egholm reserves the right to reject any claim made within the warranty period.
7. Egholm reserves the right to make improvements and design-related alterations to the machine
without being obliged to modify previously delivered models in relation hereto.
The warranty does not cover
· Wear and tear, accidents, damage to the equipment caused by operating errors, improper
utilization of the machine, changes to the construction of the machine or use of non-Egholm spare
parts or attachments.
· Machines with illegible serial numbers.
· Damage caused by force majeure such as lightning, ood, re, war, civil disturbance, etc. or other
causes over which Egholm has no control.
Conditions

17
Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
4.2 Complaints
All inquiries regarding the machine should be made to the distributor from whom the machine was
purchased. This applies to inquiries concerning normal use, service, maintenance and spare parts
as well as complaints (if any).
We wish you many years of safe and satised use of your machine.
Best regards
Egholm A/S
4.3 Disposal
When — many years from now — your snow V-plough has reached the end of its working life, it
should be disposed of in a responsible manner that conforms with relevant disposal regulations.
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site.
2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable
environmental legislation.
3. After the parts mentioned have been removed, the machine is ready to be handed over to an
approved scrap merchant.
Conditions

18 Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
Notes

19
Operator’s Manual City Ranger 2260/2250 Snow V-plough Operator’s Manual City Ranger 2260/2250 Snow V-plough
Notes

Egholm A/S
Transportvej 27
7620 Lemvig, Denmark
T.: [phone]
www.egholm.eu - [e-mail]
Egholm A/S
Transportvej 27
7620 Lemvig, Denmark
T.: [phone]
www.egholm.eu - [e-mail]
FS 1300 VLE 2250_01 EN
