Egholm Park Ranger 2150 User manual

Operator´s
manual
Snow Blower
Park Ranger 2150

2Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
Dear Customer
Congratulations with your Egholm product.
The Park Ranger 2150 is a Danish designed and manufactured product, which offers a very exible
way of maintaining outdoor areas.
Optimal use of your Park Ranger 2150 snow blower
To ensure optimal performance of your Park Ranger 2150 snow blower, please read this manual
carefully before using the machine. Failure to do so can result in personal injury and damage to the
machine.
Safety:
The snow blower is equipped with various devices to ensure optimal operational safety, both for the
user and the surroundings. We therefore ask you to pay particular attention to Safety section 1.1.
The machine must only be serviced by professionals.
The snow blower is intended only for professional use, and on delivery, the user will receive
thorough instructions in the use of the machine and will thus become a competent operator.
Do not lend the machine to anyone who has not been thoroughly trained and has not read this
manual carefully.
The operator’s manual should be considered as a permanent part of the machine and so
must remain with it if the machine is sold.
Warnings:
Some items in this operator’s manual are marked with this warning symbol.
The warning indicates areas where extra care has to be taken to avoid personal
injury or damage to the machine and its accessories. The warning also shows
what you should pay special attention to.
Reservations:
As it is Egholm policy to make continuous improvements, we reserve the right to alter the
specications and equipment at any time without notice. Egholm accepts no liability for errors or
shortcomings in the operator’s manual.
Contact us:
Should you have questions of any kind regarding your new Egholm product, do not hesitate to
contact Egholm.
Best regards
Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: [e-mail] · www.egholm.eu
Introduction

3Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
1. General information
The snow blower is a tool for dealing with large
volumes of snow and quickly deals with up to 50
cm of snow in a working width of 1 metre.
It can plough through snowdrifts and send the
snow wherever you wish via the hydraulically
adjustable discharge chute.
The snow blower is very powerful and can throw
snow high up over hedges or other obstacles –
far away from cyclists and pedestrians.
Useful tips
Spray silicone inside the discharge chute
before use. This makes it smoother and so the
discharge capacity is increased.
Wipe the snap couplings before tting, as this
protects the hydraulic system.
Daily cleaning and maintenance will extend
the lifetime of both the machine and the
attachment.
Contents
General information ..........................................................................5
1.1 Safety .................................................................................5
1.2 EC Declaration of Conformity for Machinery...............................................7
1.3 Technical data .........................................................................8
Operator’s manual ..........................................................................10
2.1 Assembly / Disassembly ...............................................................10
2.2. Before start-up .......................................................................11
2.3 Start-up ..............................................................................11
2.4 Adjustment ...........................................................................12
Service and Maintenance ....................................................................14
3.1 Cleaning ..............................................................................14
3.2 Maintenance..........................................................................14
3.3 Troubleshooting.......................................................................15
Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 Complaints ...........................................................................18
4.3 Disposal ..............................................................................18
Notes ......................................................................................19

General information

5
1
3
4
2
Ophold i knækområdet
er forbudt
Aufenthalt im Knickbereich ist verboten
Activities around the articulation point is forbidden
Ne séjournez jamais dans la zone d’articulation
Operator’s Manual Park Ranger 2150 Snow Blower

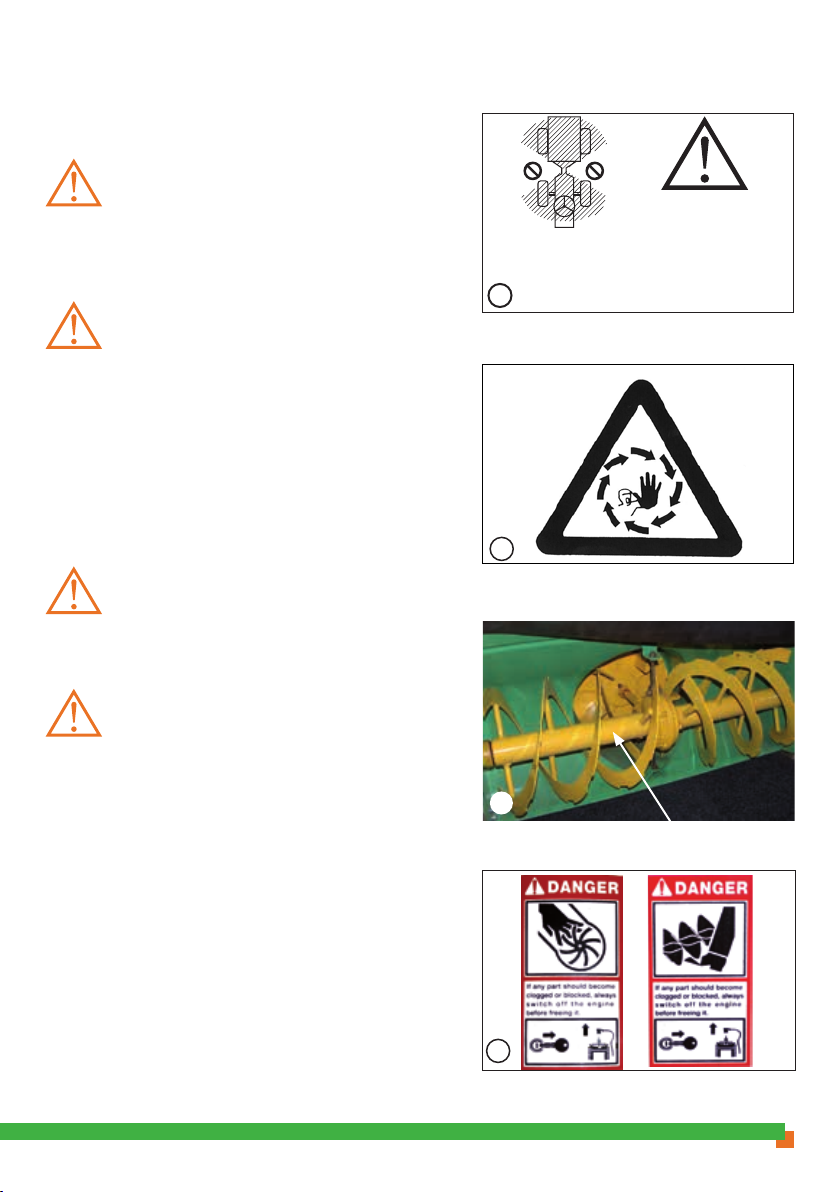

1.1 Safety
N.B!
As it is articulated, the rear end of the
machine swings out when turning.
Make sure that no one is standing near
the machine while it is in use.
(Picture 1)
Make sure no one is standing too close
to the machine while it is in use:
Make sure that no one is near the
machine while it is in use as there is a
danger ofcrushing.
Make sure there are no people or objects
which can be damaged within 60 metres
of the discharge direction. There can be
things hidden in the snow which can be
ejected at high speed, with subsequent
risks of serious injury or damage.
Inspect the working area:
The working area must be inspected
carefully before snow clearing is started,
foreign elements can be very dangerous
if they are discharged with the snow.
Warning! Rotating parts!
Make sure that no one puts their ngers
or toes into the snow blower while it
is running, to avoid personal injuries.
(Pictures 2 - 4)
Make sure that no one puts their hands or
any objects into the discharge chute when
the snow blower is running, to avoid
injuries. (Picture 2)
Prevent people from standing
in the working area
Warning! Rotating parts!
Keep away from the auger
General information

6
2
1Max. 10°
Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
Avoid crushing ngers:
Keep your hands and ngers away
from areas where there is a danger of
crushing.
Stop the machine before
servicing the snow blower:
No form of service whatsoever may
be carried out on the snow blower
while the machine is running.
Avoid roll-overs:
Do not drive the machine in a place
where it can slide, tip or roll. Do not
drive on slopes with an incline of more
than 10°. (Picture 1)
Reduction of noise and
energy consumption:
It is recommended not to drive with a
higher engine speed than necessary,
to reduce the noise and the energy
consumption.
Avoid damage to your hearing:
Use approved hearing protectors while
the machine is in use. (Picture 2)
Do not drive on slopes with an incline of more
than 10°
Use approved hearing protectors
General information

7Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
1.2 EC Declaration of Conformity for Machinery
Manufacturer: Egholm A/S
Address: Transportvej 27 · DK-7620 Lemvig
Telephone: [phone]
hereby declares that
Machine: Snow blower 2150
Type: SN100
· has been manufactured in conformity with the provisions of the Machinery Directive, Directive
2006/42/EU
The Park Ranger 2150 tted with the FH 2100 cab (ROPS approved)
· has been tested at the Danish Institute of Agricultural Sciences at Bygholm in conformity with
directive 86/298/EEC concerning rear mounted, roll-over protection structures of narrow-track
wheeled agricultural and forestry tractors.
Place: Lemvig
Date:
Signature:
Knud Olsen, Senior Engineer
General information

8Operator’s Manual Park Ranger 2150 Snow Blowerr
1.3 Technical data
Dimensions:
Length (L)
Width (W)
Height with cab
Height
Assembled:
2,740 mm
1,015 mm
1,935 mm
Storage
dimensions:
790 mm
1,010 mm
1,050 mm
Technical data:
Type description
Clearing width
Intake height
Ground clearance below snow blower
Weight of snow blower
SN100
1,000 mm
600 mm
420 mm
105 kg
N.B!
Specications may be changed without prior notice.
General information

Operator´s manual

10
1
2
3
4
A B
B1 B2
C
D2 D1
D3
Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower

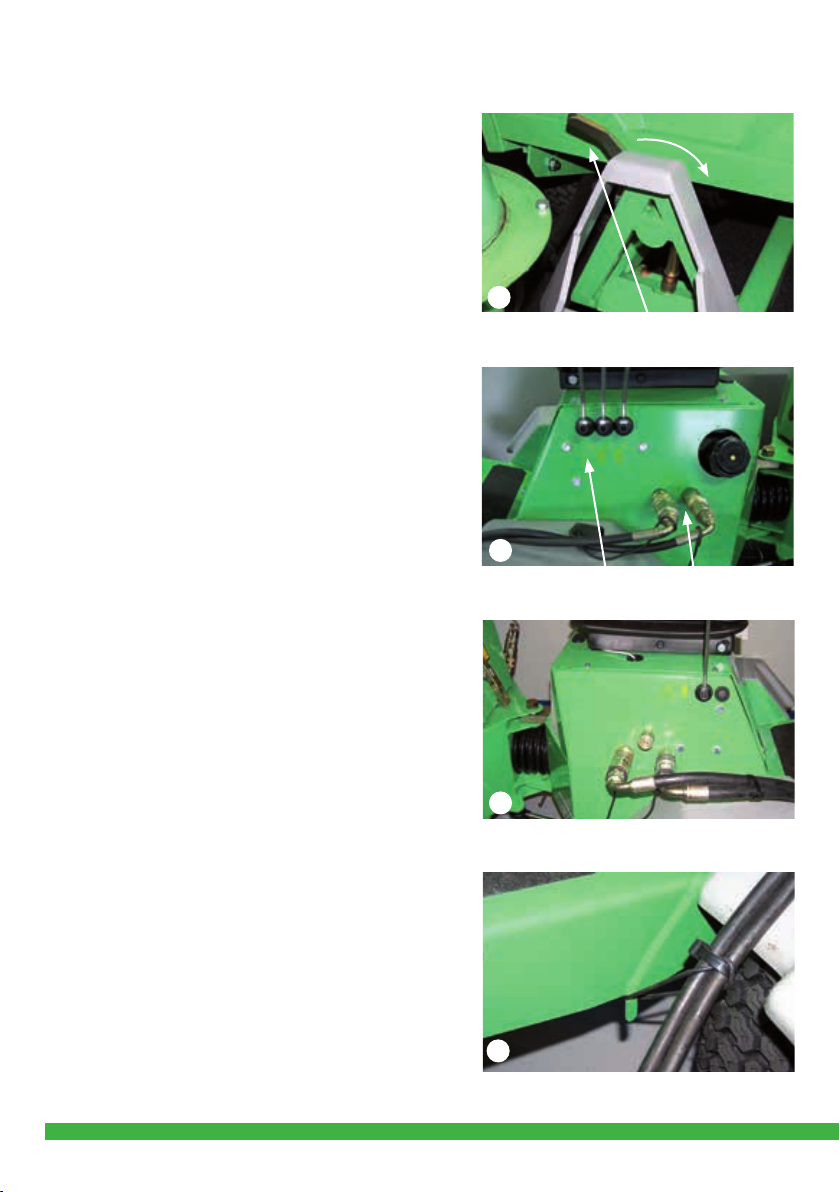

2.1 Assembly / Disassembly
1. Make sure to keep the hydraulic hoses clear
and free from dirt when the snow blower is being
tted.
2. The locking handle on the A-frame of the basic
machine must be in the open position. (Picture 1)
3. Drive the basic machine right up to the A-frame
of the snow blower, so the A-frames t into each
other.
4. Raise the A-frame with lever A until the snow
blower is freely suspended above the ground.
(Picture 2)
5. Lock the snow blower in place with the locking
handle on the A-frame. (Picture 1)
6. Stop the machine. (See the operator’s manual
for the basic machine, section 2.2)
7. Fit the hydraulic hoses for turning the discharge
chute to the B-connectors. (Picture 2)
8. Fit the hydraulic hoses for rotating the auger to
the D-connectors. (Picture 3)
9. Attach the hydraulic hoses with the rubber ring
under the running board to ensure it runs
correctly over the screen. (Picture 4)
Disassembly
Follow the procedure for tting in reverse order.
Put the protective caps on the snap couplings to
protect them from dirt.
Locking handle on the A-frame - open
Lever A B-connector
D-connectors
The hoses are fastened with a rubber strap
Right side
Left-hand side
L
o
c
k
e
d
Operator’s manual

11
2
3
1
A
D
B C
4
Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
Transport lock
Lever A Lever B
Changing the discharge direction
Lever D

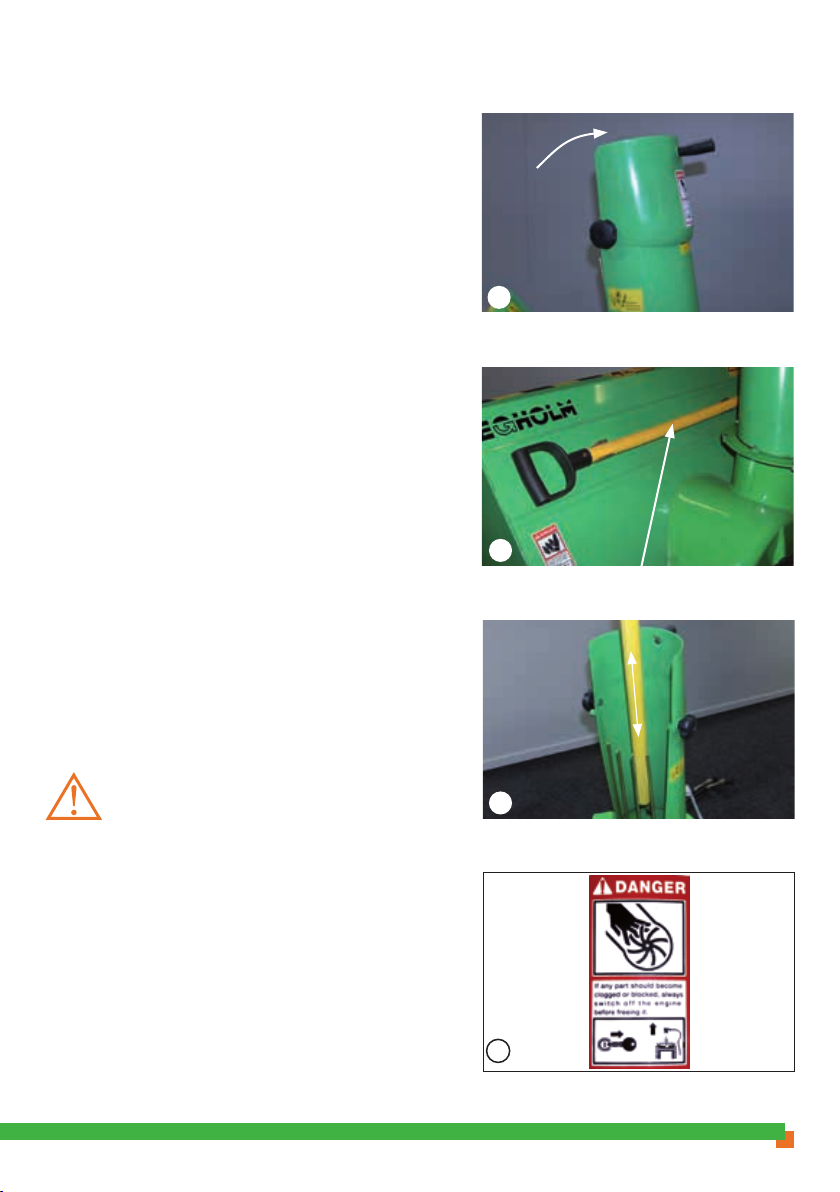

2.2. Before start-up
During transport lock the snow blower in the
raised position with the transport lock. (Picture 1)
2.3 Start-up
1. The angle of discharge is altered manually by
changing the angle of the upper part of the
discharge chute; stop the machine before
changing the angle. (Picture 2)
2. Start the machine. (See the operator’s manual
for the basic machine, section 2.2)
3. Lower the snow blower by pushing lever
A down to position 2 and holding it there for
approximately 2 seconds; the snow blower is now
in a oating position and follows the contours of
the ground. (Picture 3)
4. Turn the discharge chute using lever B until it is
in the required position. (Picture 3)
5. Start the auger by pushing lever D up to
position 1. (Picture 4)
6. Adjust your driving speed so that the snow
blower can deal with the snow.
N.B!
The working area must be inspected
carefully before snow clearing is
started, foreign elements can be very
dangerous if
they are discharged with the snow.
Right side
Left side
L
o
c
k
e
d
Operator’s manual

12
1
Operator’s Manual Park Ranger 2150 Snow Blowerr
N.B!
Make sure there are no people or
objects which can be damaged
within 60 metres in the discharge
direction. There can be things hidden
in the snow which can be ejected at
high speed, with subsequent risks of
serious injury or damage.
After clearing the snow:
Let the snow blower run for a couple of minutes
after you have nished clearing the snow to make
sure no snow is left, as this can freeze up the
auger.
2.4 Adjustment
Adjusting the intake height:
Adjust the skid shoe to the correct height above
the ground. Stones and pebbles can cause
damage both to the machine and to other things.
1. Unscrew the nuts and bolts which hold the skid
shoe.
2. Reattach the skid shoe at the required height.
Adjust the skid shoes on the opposite side in the
same way.
Adjusting the skid shoes
Operator’s manual

Service and
maintenance

14
2
1
Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
3.1 Cleaning
Daily cleaning and maintenance will extend
the lifetime of both the machine and the
attachment.
Clean the snow blower with water after use.
3.2 Maintenance
Lubricating the swivel for the discharge chute
The swivel for the discharge chute must be
lubricated regularly with good quality lubricant.
1. Stop the machine.
2. Clean the lubricating nipple and lubricate
the swivel until the grease starts to come out.
(Picture 1)
Changing the safety bolts
In each of the two augers there is a safety
bolt which can shear if the auger catches on
something in the snow.
1. Stop the machine. (See the operator’s manual
for the basic machine, section 2.2)
2. Disconnect the hydraulic hoses.
3. Remove the sheared bolt.
4. Push a new bolt through the auger and put on
the nut.
These safety bolts must be original bolts, which
can be ordered from an authorised Egholm
distributor.
Egholm item no. E03200430 and E03803060
Location of the lubricating nipple on the
discharge chute
Safety bolts
Service and Maintenance

15
1
2
3
4
Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
Before storing the snow blower after the
season, do the following:
1. Inspect the snow blower carefully for any
damage, and repair any damage found.
2. Remove any loose paint and repaint any
damaged areas.
3. Spray the snow blower with preservative oil
(to prevent rust).
3.3 Troubleshooting
Blockage in the discharge chute:
1. Stop the machine. (See the operator’s manual
for the basic machine, section 2.2)
2. Remove the hydraulic hoses.
3. Move the top section of the discharge chute so
that it is completely upright. (Picture 1)
4. Pick up the wooden shaft which is on the snow
blower and push down the compacted snow until
the chute is no longer blocked. (Pictures 2 and 3)
5. Put the shaft back in place.
6. Reconnect the hydraulic hoses.
Stop the machine before
working on the snow blower:
No form of service whatsoever may
be carried out on the snow blower
while the machine is running.
Adjust the spout so that it is completely
upright
Use the wooden shaft
to push out the snow
Service and Maintenance

Conditions

17Operator’s Manual Park Ranger 2150 Snow Blower
4.1 Warranty
The warranty period for the materials and manufacture of this snow blower is 12 months from the
date of purchase.
In case of errors or defects on the machine within the warranty period, Egholm will carry out the
necessary repairs at no charge to the customer, including materials and working hours, in accordance
with the terms and conditions listed below.
The scope of warranty:
1. The Egholm warranty is only valid on presentation of the original receipt supplied with model
description, serial number and date of purchase.
2 . Regular checks, adjustments, services and technical alterations are not covered by the warranty.
3. All inquiries concerning the warranty are to be addressed to the place where the machine was
purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Egholm reserves the right to reject any claim made within the warranty period.
7. Egholm reserves the right to make improvements and design-related alterations to the machine
without being obliged to modify previously delivered models in relation hereto.
The warranty does not cover:
· Wear and tear, accidents, damage to the attachment caused by operating errors, changes to the
construction of the machine or use of non-Egholm spare parts or attachments.
· Machines with illegible serial numbers.
· Damage caused by force majeure such as lightning, ood, re, war, civil disturbance, etc, or other
causes over which Egholm has no control.
Conditions

18 Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
4.2 Complaints
All inquiries regarding the machine should be made at the distributor from whom the machine was
purchased. This applies to inquires concerning normal use, service, maintenance and spare parts
as well as any complaints.
We wish you many years of safe and satised use of your machine.
Best regards
Egholm A/S
4.3 Disposal
When, in many years from now, your snow blower has reached the end of its working life, it should
be disposed of in a responsible manner that conforms with relevant disposal regulations.
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site.
2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable
environmental legislation.
3. After the aforementioned parts have been removed, the machine is ready to be handed over to a
local approved scrap merchants.
Conditions

19Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
Notes

20 Operator’s Manual Park Ranger 2150 Snow Blower Operator’s Manual Park Ranger 2150 Snow Blower
Notes
