Ego Power+ CH2100 User manual

WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
OPERATOR’S MANUAL
56-VOLT
CHARGER
MODEL NUMBER CH2100/CH2100-FC
Español p. 41
Français p. 21
16-0531_EGO_CH2100_Charger_manual_NA_V1

56V CHARGER — CH2100/CH2100-FC2
TABLE OF CONTENTS
FCC Statement.......................................... 3
Safety Symbols ......................................... 4
Safety Instructions.....................................5-10
Introduction ........................................... 11
Specifications ......................................... 11
Description ........................................... 12
Operation...........................................13-15
Maintenance .......................................... 16
Troubleshooting ........................................ 17
EGO Limited Warranty .................................18-19

56V CHARGER — CH2100/CH2100-FC 3
READ ALL INSTRUCTIONS!
READ & UNDERSTAND
OPERATOR’S MANUAL
This battery charger has many features for making its use more pleasant and
enjoyable. Safety, performance, and dependability have been given top priority in the
design of this product making it easy to maintain and operate.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that
may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures: Reorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver. Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. Consult the
dealer or an experienced radio/TV technician for help.

56V CHARGER — CH2100/CH2100-FC4
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The
safety symbols and the explanations with them deserve your careful attention and
understanding. The symbol warnings do not, by themselves, eliminate any danger. The
instructions and warnings they give are no substitutes for proper accident prevention
measures.
WARNING: Be sure to read and understand all safety instructions in this
Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this tool. Failure to following all instructions listed below
may result in electric shock, fire, and/or serious personal injury.
WARNING: The operation of any power tools can result in foreign objects being
thrown into your eyes, which can result in severe eye damage. Before beginning power
tool operation, always wear safety goggles or safety glasses with side shields and a
full face shield when needed. We recommend a Wide Vision Safety Mask for use over
eyeglasses or standard safety glasses with side shields. Always use eye protection
which is marked to comply with ANSI Z87.1.

56V CHARGER — CH2100/CH2100-FC 5
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may appear on this product.
Read, understand, and follow all instructions on the machine before attempting to
assemble and operate.
V Volt Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
WWatt Power
min Minutes Time
Alternating
Current Type of current
Direct Current Type or a characteristic of current
n0No Load Speed Rotational speed, at no load

56V CHARGER — CH2100/CH2100-FC6
... /min Per Minute Revolutions per minute
Class II
Construction Double-insulated construction
Wet Conditions
Alert
Do not expose to rain or use in damp
locations.
Read &
Understand
Operator’s
Manual
To reduce the risk of injury, user must read
and understand operator’s manual before
using this product
Eye Protection
Always wear safety goggles or safety
glasses with side shields and a full face
shield when operating this product.
Safety Alert Precautions that involve your safety.
WARNING: Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious personal injury. The term
“power tool” in all of warnings listed below refers to corded power tools or battery
operated (cordless) power tools.
WARNING: To ensure safety and reliability, all repairs should be performed by a
qualified service technician.

56V CHARGER — CH2100/CH2100-FC 7
WORK AREA SAFETY
 Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
 Do not operate power tools in explosive environments, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks,
which may ignite the dust or fumes.
ELECTRICAL SAFETY
 Avoid body contact with grounded surfaces, such as pipes, radiators, ranges,
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
 Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with grounded power tools. Unmodified plugs and
matching outlets will reduce the risk of electric shock.
 Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
 Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging
the power tool. Keep the cord away from heat, oil, sharp edges, or moving parts.
Damaged or entangled cords increase the risk of electric shock.
 When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
 Use charge the EGO lithium-ion battery packs list below:
CHARGER BATTERY PACKS
CH2100/CH2100-FC
56V Charger
BA1400/BA1400-FC: 56V 2.5 Ah Lithium-ion;
BA2800/BA2800-FC: 56V 5.0 Ah Lithium-ion;
BA4200/BA4200-FC: 56V 7.5 Ah Lithium-ion;
BA1400T/BA1400T-FC: 56V 2.5 Ah Lithium-ion;
BA2242T/BA2242T-FC: 56V 4.0 Ah Lithium-ion;
BA2800T/BA2800T-FC: 56V 5.0Ah Lithium-ion;
BA3360T/BA3360T-FC: 56V 6.0Ah Lithium-ion;
BA4200T/BA4200T-FC: 56V 7.5 Ah Lithium-ion;
BA4480T/BA4480T-FC: 56V 8.0 Ah Lithium-ion;
BA5600T/BA5600T-FC: 56V 10.0 Ah Lithium-ion;
BA6720T/BA6720T-FC: 56V 12.0 Ah Lithium-ion

56V CHARGER — CH2100/CH2100-FC8
SERVICE
 Have your charger serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the charger is maintained.
 When servicing a charger, use only identical replacement parts. Follow
instructions in the Maintenance section of this manual. Use of unauthorized
parts or failure to follow Maintenance instructions may create a risk of shock or
injury.
SAFETY RULES FOR CHARGER
CAUTION:To reduce the risk of electric shock or damage to the charger and
battery, charge only those lithium-ion rechargeable batteries specifically designated
on your charger’s label. Other types of batteries may burst, causing personal injury or
damage.
 Before using the battery charger, read all instructions and cautionary markings
in this manual and on the battery charger, the battery and the product using the
battery to prevent misuse of the products and possible injury or damage.
 Do not use the charger outdoors or expose it to wet or damp conditions.
Water entering the charger will increase the risk of electric shock.
 Do not handle charger, including the charger plug and charger terminals
with wet hands.
 Use of an attachment not recommended or sold by the battery-charger
manufacturer may result in a risk of fire, electric shock, or injury to persons.
 Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of fire when used with
another battery pack.
 Do not abuse the cord or charger. Never use the cord to carry the charger. Do
not pull the charger cord to disconnect the plug from a receptacle. Damage to
the cord or charger could occur and create an electric shock hazard. Replace
damaged cords immediately.

56V CHARGER — CH2100/CH2100-FC 9
 Make sure that the cord is located so that it will not be stepped on, tripped
over, come in contact with sharp edges or moving parts, or otherwise be
subjected to damage or stress. This will reduce the risk of accidental falls,
which could cause injury and damage to the cord, which could then result in
electric shock.
 Keep the cord and charger from heat to prevent damage to housing or
internal parts.
 Do not allow gasoline, oils, petroleum-based products, etc. to come in
contact with plastic parts. These materials contain chemicals that can damage,
weaken, or destroy plastic.
 Do not operate the charger with a damaged cord or plug, which could cause
shorting and electric shock. If damaged, have the charger repaired or replaced
by an authorized service technician at an EGO Service Center.
 Do not operate the charger if it has received a sharp blow, been dropped,
or has otherwise been damaged in any way. Take it to an authorized service
technician for an electrical check to determine if the charger is in good working
order.
 Do not disassemble the charger. Take it to an authorized service technician
when service or repair is required. Incorrect reassembly may result in a risk of
electric shock or fire.
 Unplug the charger from the electrical outlet before attempting any
maintenance or cleaning to reduce the risk of electric shock.
 Disconnect charger from the power supply when not in use. This will reduce
the risk of electric shock or damage to the charger if metal items should fall into
the opening. It will also help prevent damage to the charger during a power surge.
 Risk of electric shock. Do not touch the uninsulated portion of output connector
or uninsulated battery terminal.
 Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you lend this tool to someone else, also lend these
instructions to them to prevent misuse of the product and possible injury.

56V CHARGER — CH2100/CH2100-FC10
IMPORTANT SAFETY INSTRUCTIONS
 Save these instructions. This manual contains important safety and operating
instructions for 56V Charger CH2100/CH2100-FC.
 Before using the battery charger, read all instructions and cautionary
markings on the battery charger, the battery and the product using battery.
WARNING: When using electric appliances, basic precautions should always be
followed, including the following.
 To reduce the risk of injury, close supervision is necessary when an appliance is
used near children.
 Only use attachments recommended or sold by manufacturer.
 Do not use outdoors.
 For a portable appliance – To reduce the risk of electrical shock, do not put
charger in water or other liquid. Do not place or store appliance where or can fall
or be pulled into a tub or sink.
CAUTION:To reduce the risk of injury, charge only lithium-ion rechargeable
batteries. Other types of batteries may burst, causing personal injury or damage.

56V CHARGER — CH2100/CH2100-FC 11
INTRODUCTION
Congratulations on your selection of a new generation of 56V charger. It has been
designed, engineered and manufactured to give you the best possible dependability
and performance.
Should you experience any problem you cannot easily remedy, please contact EGO
customer service center 1-855-EGO-5656.
This manual contains important information on to the safe assembly, operation and
maintenance of your 56V Charger. Read it carefully before using the charger. Keep this
manual handy so you can refer to it at any time.
SERIAL NUMBER _____________________ DATE OF PURCHASE _________________
YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE
SPECIFICATIONS
Charger Input 120V~60Hz, 210W
Charger Output 56V, max. 12000 mAh, Li-ion type rechargeable
battery pack
Quick-Charge Time Approximately
50 minutes for BA1400/BA1400-FC battery pack;
100 minutes for BA2800/BA2800-FC battery pack;
145 minutes for BA4200/BA4200-FC battery pack;
50 minutes for BA1400T/BA1400T-FC battery pack;
80 minutes for BA2242T/BA2242T-FC battery pack;
100 minutes for BA2800T/BA2800T-FC battery pack;
120 minutes for BA3360T/BA3360T-FC battery pack;
145 minutes for BA4200T/BA4200T-FC battery pack;
160 minutes for BA4480T/BA4480T-FC battery pack;
190 minutes for BA5600T/BA5600T-FC battery pack;
230 minutes for BA6720T/BA6720T-FC battery pack
Recommended Ambient
Temperature for Charging 41°F-104°F (5°C-40°C)
Charger Weight 2.36 lb. (1.07 kg)

56V CHARGER — CH2100/CH2100-FC12
DESCRIPTION
KNOW YOUR CHARGER (Fig. 1)
Wall Mounting Holes
Power Cord
Electrical Contacts
LED Indicators
Cooling Air Port
Mounting Slot
1
LED INDICATORS: indicate the charging status.
MOUNTING SLOT: guides the battery pack when it is installed on the charger.
WALL MOUNTING HOLE: for convenient storage on the wall.
WARNING: The safe use of this product requires an understanding of the
information on the tool and in this operator’s manual, as well as knowledge of the
project you are attempting. Before use of this product, familiarize yourself with all its
operating features and safety rules.

56V CHARGER — CH2100/CH2100-FC 13
OPERATION
HOW TO CHARGE THE BATTERY PACK
WARNING:
Do not use the charger outdoors or expose it to wet or damp
conditions. Water entering the charger will increase the risk of electric shock.
NOTICE: Lithium-Ion battery packs are shipped partially charged. Before using it the
first time, fully charge the battery pack.
1. Connect the charger to the power supply
(120V~, 60Hz).

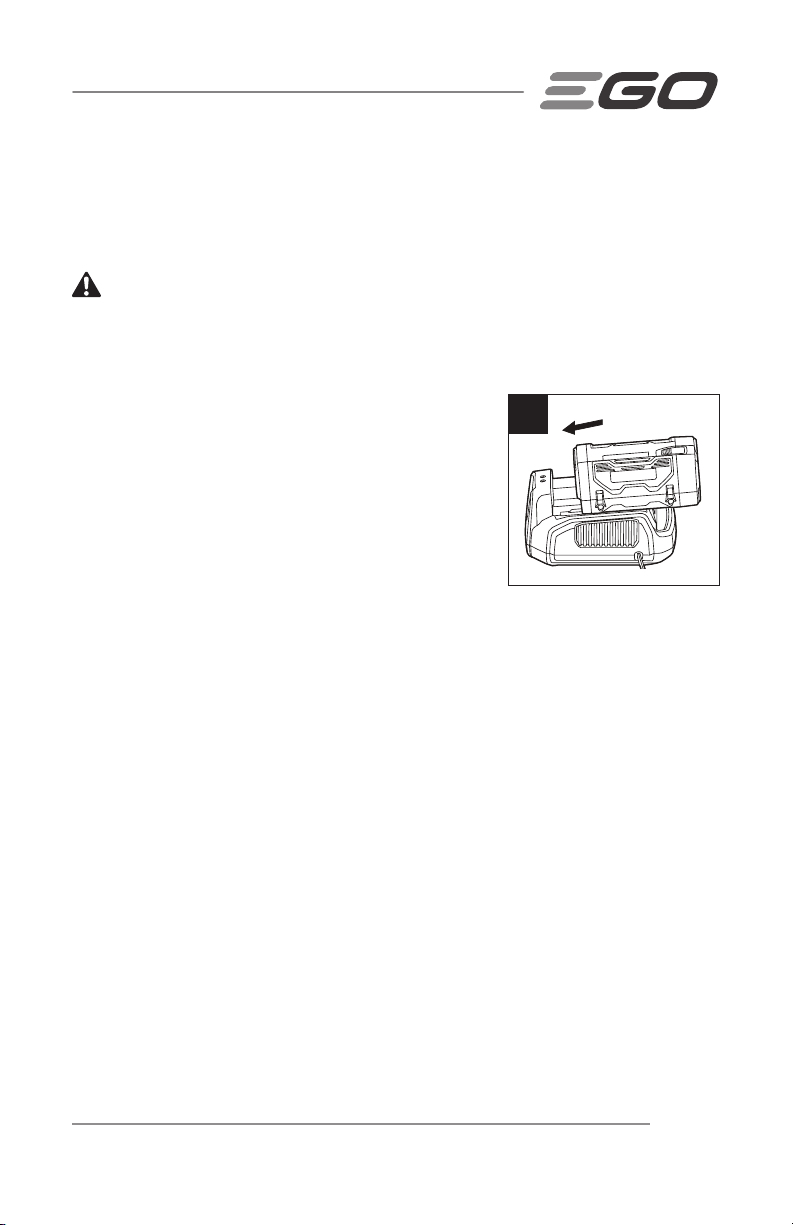

2. Align the raised ribs of the battery pack with the
mounting slots in the charger; slide the battery
pack down onto the charger (Fig. 2).
3. The charger will communicate with the battery
pack to evaluate the condition of the battery
pack.
4. When the battery pack is charging,
the green LED on the charger will flash.
The power indicator on the battery pack will flash in sequence: red, orange and
green (For BA1400, BA1400-FC, BA2800, BA2800-FC, BA4200 and
BA4200-FC). The last segment of 5-LED indicator on the battery pack will flash
green ( For BA1400T, BA1400T-FC, BA2242T, BA2242T-FC, BA2800T,
BA2800T-FC, BA3360T, BA3360T-FC, BA4200T, BA4200T-FC, BA4480T,
BA4480T-FC, BA5600T, BA5600T-FC, BA6720T and BA6720T-FC ).
5. When the battery pack is fully charged, the green LED will stop flashing and
will shine green continuously. The power indicator on the battery pack will go
out. Wait until the fan in the charger stops, remove the battery pack from the
charger and disconnect the charger from the power supply.
6. The battery pack will fully charge if left on the charger, but it will not overcharge.
If the battery pack remains on the charger for one month or more, it will perform
self-maintenance and drop to 30% charge capacity. If this occurs, reinstall the
battery pack on the charger to recharge it fully.
2

56V CHARGER — CH2100/CH2100-FC14
NOTICE:
 A significantly reduced run time after fully charging the battery pack indicates that
the batteries are near the end of their usable life and must be replaced.
 The charger may warm during charging. This is part of the normal operation of the
charger. Charge in a well-ventilated area.
LED FUNCTIONS OF CHARGER
LED Indicator Battery Pack Red LED on the
Charger
Green LED on
the Charger
Power Indicator
on the Battery
Pack
ACTION
HIGH
TEMP
DEFECTIVE
BATTERY
FULL
CHARGE
CHARGING
Charging Off Flashing Flashing
red, orange
and green
alternatively or
last segment
flashing green,
rest solid green
Charging
HIGH
TEMP
DEFECTIVE
BATTERY
FULL
CHARGE
CHARGING
Defective Flashing or off Off Off Battery pack
or charger is
defective
HIGH
TEMP
DEFECTIVE
BATTERY
FULL
CHARGE
CHARGING
Cold/Hot
Battery
On Off Off Charging will
begin when
battery pack
returns to
37°F (3°C)-
135°F (57°C)
HIGH
TEMP
DEFECTIVE
BATTERY
FULL
CHARGE
CHARGING
Fully charged Off On Off Charging is
complete.
Maintenance
charging.

56V CHARGER — CH2100/CH2100-FC 15
CHARGING A HOT OR COLD BATTERY PACK
If the battery pack is out of the normal temperature range, the red LED will shine and the
green LED will go off. When the battery pack cools down to approximately 135°F (57°C)
or warms to more than 37°F (3°C), the charger will automatically begin charging.
DEFECTIVE BATTERY PACK OR CHARGER
If the charger detects a problem, the red LED will begin flashing and the green LED will
go off.
1. If registering as defective, remove and reinsert the battery pack in the charger.
If the LEDs still read “defective” a second time, try charging a different battery
pack.
2. If a different battery pack charges normally, dispose of the defective battery pack
(refer to the instructions in the battery pack manual).
3. If a different battery pack also indicates “defective”, unplug the charger and wait
until the red LED goes out, then reconnect the plug to the power supply. If the red
LED on charger still displays defective, the charge may be defective.
WALL-MOUNT HOLES
The charger has hanging holes for convenient storage (Fig.1). Install screws in the wall
3 inches (76mm) apart. Use screws sufficiently strong to hold the combined weight of
the charger and battery pack (approximately maximum 8.7 lbs.)

56V CHARGER — CH2100/CH2100-FC16
MAINTENANCE
WARNING: To avoid serious personal injury, always remove the battery pack
from the tool when cleaning or performing any maintenance.
WARNING: When servicing, use only identical EGO replacement parts. Use of
any other parts may create a hazard or cause product damage.
WARNING: It is not recommended to use compressed dry air as cleaning
method of the charger. If cleaning with compressed air is the only method to apply,
always wear safety goggles or safety glasses with side shields when using compressed
air to clean the tool. If the operation is dusty, also wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to
damage from various types of commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING: Do not at any time let brake fluids, gasoline, petroleum-based
products, penetrating oils, etc. to come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
WARNING: When servicing, use only identical EGO replacement parts. Use of
any other parts may create a hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualified service technician at an EGO
Service Center.

56V CHARGER — CH2100/CH2100-FC 17
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Charger doesn’t work. The
red LED flashes red or all
the LEDs go out.
Battery pack or charger
is defective or bad
connection between the
battery pack and charger.
1. Try to remove and
reinsert the battery pack
in the charger.
2. Try charging a different
battery pack.
3. Unplug the charger
and wait until the red
LED goes out, then
reconnect the plug to
the power supply.
Charger doesn’t work and
red LED shines red.
Battery pack is too hot or
too cold.
Allow the battery pack to
reach normal temperature.
Charging will begin when
battery pack returns to
37°F(3°C)-135°F(57°C).
The charger produces a
rhythmic sound and the
power indicator on the
battery pack is OFF.
The battery pack is
over-discharged.
Leave the battery on the
charger and check in
30 minutes to see if the
power indicator on the
battery pack turns on. If
yes, the battery pack is
activated successfully. If
no, the battery pack may
be damaged.

56V CHARGER — CH2100/CH2100-FC18
EGO LIMITED WARRANTY
WARRANTY POLICY TERMS AND DURATION
Chervon North America, Inc. (“Chervon North America”) provides the following Limited
Warranty for EGO products to the original purchaser of EGO products.
The detailed warranty period for each EGO product can be found online at
http://egopowerplus.com/warranty-policy.
Please contact EGO Customer Service Toll-Free at 1-855-EGO-5656 any time you
have questions or warranty claims or would like a hard copy of the warranty.
LIMITED SERVICE WARRANTY
EGO products are warranted against defects in material or workmanship from the date
of original retail purchase for the applicable warranty period. For any properly and
timely submitted warranty claim, if Chervon North America determines a product to be
defective during the warranty period, the product will receive free repair or replacement
as determined by Chervon North America.
HOW TO OBTAIN SERVICE
For warranty service, within the applicable warranty period, please contact EGO
customer service toll-free at 1-855-EGO-5656. When requesting warranty service,
you must present the original dated sales receipt. An authorized service center will
be selected to evaluate and repair the product if defective according to the stated
warranty terms. When bringing your product to the authorized service center, there may
be a small deposit that will be required when dropping off your tool. This deposit is
refundable when the repair service is deemed to be covered under warranty.
ADDITIONAL LIMITATIONS & EXCLUSIONS
This limited warranty applies only to the original purchaser from an authorized EGO
retailer and is not transferable. EGO products shall not be considered defective, and this
warranty will not apply, where the claimed defect is attributable to any cause other than
the above-defined defects. This warranty shall be void if the product has been used for
rental purposes. This warranty shall not apply to damage caused by accident, abuse,
misuse, alteration, modification, unauthorized repair, liquid contact, fire, earthquake or
other external cause; operating the product outside EGO’s instructions, specifications or
guidelines; or failure to properly service of maintain the product. This warranty also does
not apply to cosmetic damage, including but not limited to scratches or dents; defects
caused by normal wear and tear or otherwise due to the normal aging of the product.

56V CHARGER — CH2100/CH2100-FC 19
THIS EXPRESS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR PARTICULAR PURPOSE OR USE, WHICH ARE DISCLAIMED. Any implied
warranties, including warranties of merchantability or fitness for a particular purpose,
that cannot be disclaimed under state law are limited to the applicable warranty period
defined at the beginning of this article. The sole and exclusive remedy in connection
with the purchase, installation, use, and/or performance of the EGO products is repair
or replacement of the product as determined by Chervon North America. Chervon North
America’s maximum liability shall not in any case exceed the purchase price paid for
the product. CHERVON NORTH AMERICA SHALL NOT BE LIABLE TO THE USER OR TO
ANYONE ELSE FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL, EXEMPLARY, INDIRECT,
OR PUNITIVE DAMAGES ARISING FROM USE OF THE PRODUCTS, INCLUDING BUT NOT
LIMITED TO PERSONAL INJURY, DEATH, PROPERTY DAMAGE, LOST PROFITS, OR OTHER
ECONOMIC INJURY. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Some states do not allow limitations on how
long an implied warranty lasts, the exclusion or limitation of incidental or consequential
damages, or the limitations on time to bring certain actions, so such limitations
contained herein do not apply to individual consumers in those states.
This warranty is subject to and shall be interpreted according to Michigan law without
regard to principles of conflicts of laws. No legal action shall be brought against
Chervon North America unless filed within one (1) year after the basis for such legal
action becomes known, or with the exercise of reasonable diligence should have
become known. Any action not timely filed shall be deemed waived.
For customer service contact us toll-free at: 1-855-EGO-5656 or
EGOPOWERPLUS.COM.
EGO Customer Service
769 Seward Ave. NW, Suite 102
Grand Rapids, Michigan 49504.
