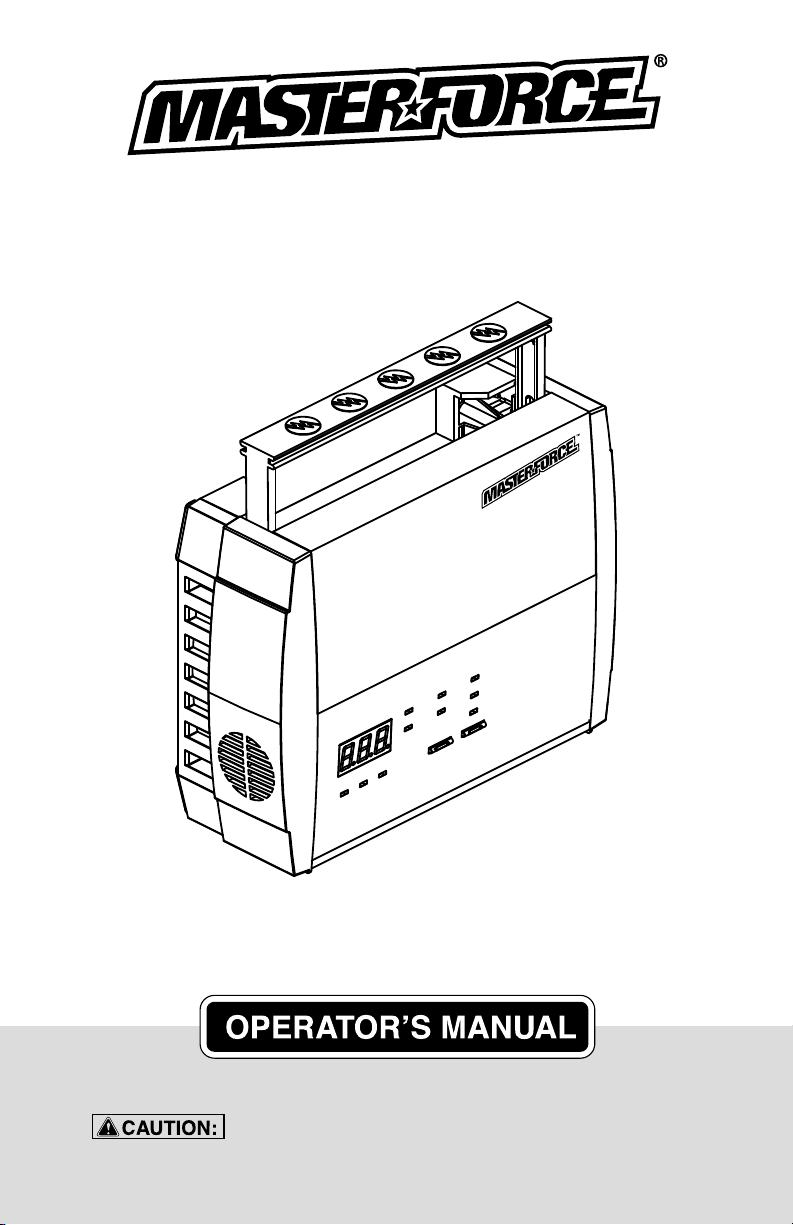

Master Forge 260-9511 User manual

To Reduce The Risk Of Injury, User Must Read And
Understand Operator’s Manual. Save These Instructions For Future Reference.
260-9511
0099002171-00
15A Automatic Battery Charger

TABLE OF CONTENTS
Safety Symbols...............................................................................Page 3
Safety Information ..........................................................................Page 4
Important Safety Instructions .......................................................Page 5
Personal Safety Precautions..........................................................Page 5
Preparing To Charge.......................................................................Page 6
Charger Location............................................................................Page 6
Dc Connection Precautions...........................................................Page 6
Follow These Steps When Battery is Installed in Vehicle ............Page 6
Follow These Steps When Battery is Outside Vehicle .................Page 7
Grounding and AC Power Cord Connections ..............................Page 7
Assembly Instructions....................................................................Page 8
Control Panel ..................................................................................Page 8

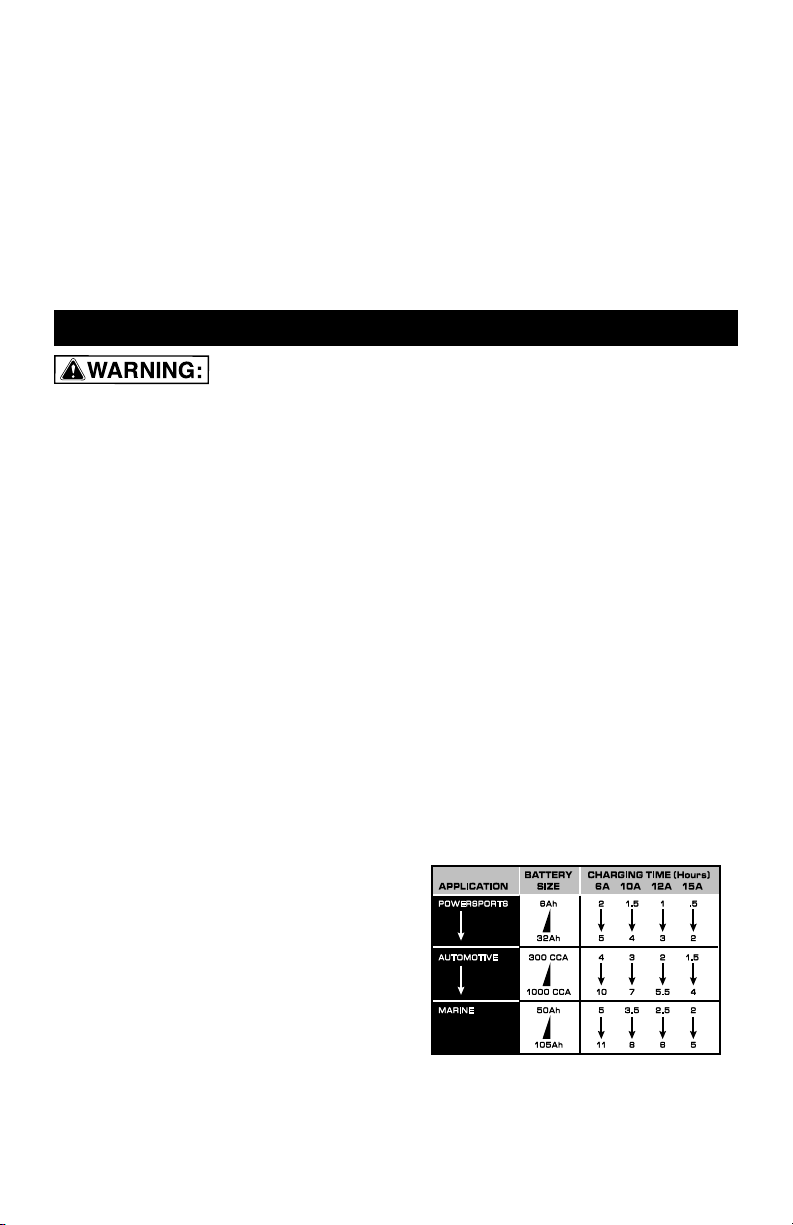

Operating Instructions....................................................................Page 9
Maintenance and Care.................................................................Page 11
Error Codes...................................................................................Page 11
Troubleshooting ............................................................................Page 12
Specifications ...............................................................................Page 12
Warranty ........................................................................................Page 13

Page 3
SAFETY SYMBOLS
Some of the following symbols may be used on your charger. Please study
them and learn their meaning. Proper interpretation of these symbols will allow
better and safer operation of the charger.
Symbol Name Designation/Explanation
VVolts Voltage
AAmperes Current
Hz Hertz Frequency
WWatts Power
~Alternating current Type of current
Direct current Type or characteristic of current
Class II construction Double-insulated construction
Read the operator’s
manual
To reduce the risk of injury, read and
understand the operator’s manual
Wear safety glasses Operation of the charger can result in
damage to unprotected eyes
Warning symbol Alerts user to warning message
Electric shock symbol
Connect only to properly grounded
outlets. Replace defective cords or
wire immediately.
Explosive gas symbol Risk of explosive gases during normal
operation of a lead-acid battery

This symbol designates that this charger is listed by
Underwriters Laboratories

Page 4
SAFETY INFORMATION
The purpose of safety symbols is to attract our attention to possible dangers. The
safety symbols, and the explanations with them, deserve your careful attention and
understanding. The symbol warnings do not by themselves eliminate any danger.
The instructions and warnings they give are no substitutes for proper accident pre-
vention measures.
Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols, such as “DANGER”, “WARNING” and
“CAUTION” before using this battery charger. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING or CAUTION.
May be used in conjunction with other symbols or pictographs.
Failure to obey this safety warning WILL result in death or serious
injury to yourself or to others. Always follow the safety precautions to reduce the risk
of fire, electric shock and personal injury.
Failure to obey this safety warning CAN result in death or
serious injury to yourself or to others. Always follow the safety precautions to
reduce the risk of fire, electric shock and personal injury.
Failure to obey this safety warning MAY result in personal
injury to yourself or others, or property damage. Always follow the safety precautions
to reduce the risk of fire, electric shock and personal injury.

Page 5
1. IMPORTANT SAFETY INSTRUCTIONS
1.1 SAVE THESE INSTRUCTIONS – This
manual contains important safety and
operating instructions.
1.2 Do not expose the charger to rain or
snow.
1.3 Use of an attachment not recom-
mended or sold by the battery
charger manufacturer may result in a
risk of fire, electric shock or injury to
persons.
1.4 To reduce the risk of damage to elec-
tric plug and cord, pull by the plug
rather than the cord when discon-
necting charger.
1.5 An extension cord should not be
used unless absolutely necessary.
Use of improper extension cord
could result in a risk of fire and elec-
tric shock. If an extension cord must
be used, make sure:
1.6 The pins on plug of extension cord
are the same number, size and shape
as those of plug on charger.
• The extension cord is properly wired
and in good electrical condition.
• The wire size is large enough for
AC ampere rating of charger as
specified in section 8.
1.7 Do not operate charger with dam-
aged cord or plug – replace the cord
or plug immediately.
1.8 Do not operate charger if it has
received a sharp blow, been dropped,
or otherwise damaged in any way;
take it to a qualified serviceman.
1.9 Do not disassemble charger; take it
to a qualified serviceman when ser-
vice or repair is required. Incorrect
reassembly may result in a risk of
electric shock or fire.
1.10 To reduce risk of electric shock,
unplug charger from outlet before
attempting any maintenance or
cleaning. Turning off controls will not
reduce this risk.
1.11
RISK OF EXPLOSIVE GASES.
a. WORKING IN VICINITY OF A LEAD-
ACID BATTERY IS DANGEROUS.
BATTERIES GENERATE EXPLO-
SIVE GASES DURING NORMAL
BATTERY OPERATION. FOR
THIS REASON, IT IS OF UTMOST
IMPORTANCE THAT YOU FOL-
LOW THE INSTRUCTIONS EACH
TIME YOU USE THE CHARGER.
b. To reduce risk of battery explo-
sion, follow these instructions
and those published by battery
manufacturer and manufacturer
of any equipment you intend to
use in vicinity of battery. Review
cautionary markings on these
products and on engine.
1.12 Keep out of reach of children.
2. PERSONAL SAFETY PRECAUTIONS
2.1 Consider having someone close
enough by to come to your aid when
you work near a lead-acid battery.
2.2 Have plenty of fresh water and soap
nearby in case battery acid contacts
skin, clothing, or eyes.
2.3 Wear complete eye protection and
clothing protection. Avoid touching
eyes while working near battery.
2.4 If battery acid contacts skin or cloth-
ing, wash immediately with soap and
water. If acid enters eye, immediately
flood eye with running cold water for
at least 10 minutes and get medical
attention immediately.
2.5 NEVER smoke or allow a spark or
flame in vicinity of battery or engine.
2.6 Be extra cautious, to reduce risk of
dropping a metal tool onto battery.
It might spark or short-circuit bat-
tery or other electrical part that may
cause explosion.
2.7 Remove personal metal items such
as rings, bracelets, necklaces, and
watches when working with a lead-
acid battery. A lead-acid battery can

Page 6
produce a short-circuit current high
enough to weld a ring or the like to
metal, causing a severe burn.
2.8 Use charger for charging only 6V and
12V LEAD-ACID (STD, AGM, GEL or
deep-cycle) rechargeable batteries.
It is not intended to supply power to
a low voltage electrical system other
than in a starter-motor application. Do
not use battery charger for charging
dry-cell batteries that are commonly
used with home appliances. These
batteries may burst and cause injury
to persons and damage to property.
2.9 NEVER charge a frozen battery.
3. PREPARING TO CHARGE
3.1 If necessary to remove battery from
vehicle to charge, always remove
grounded terminal from battery first.
Make sure all accessories in the vehi-
cle are off, so as not to cause an arc.
3.2 Be sure area around battery is well
ventilated while battery is being
charged.
3.3 Clean battery terminals. Be careful to
keep corrosion from coming in con-
tact with eyes.
3.4 Add distilled water in each cell until
battery acid reaches level specified by
battery manufacturer. Do not overfill.
For a battery without removable cell
caps, such as valve regulated lead
acid batteries, carefully follow manu-
facturer’s recharging instructions.
3.5 Study all battery manufacturer’s spe-
cific precautions while charging and
recommended rates of charge.
3.6 Determine voltage of battery by
referring to car owner’s manual and
make sure that output voltage selec-
tor switch is set at correct voltage. If
charger has adjustable charge rate,
charge battery initially at lowest rate.
4. CHARGER LOCATION
4.1 Locate charger as far away from bat-
tery as DC cables permit.
4.2 Never place charger directly above
battery being charged; gases from
battery will corrode and damage
charger.
4.3 Never allow battery acid to drip on
charger when reading electrolyte
specific gravity or filling battery.
4.4 Do not operate charger in a closed-in
area or restrict ventilation in any way.
4.5 Do not set a battery on top of charger.
5. DC CONNECTION PRECAUTIONS
5.1 Connect and disconnect DC output
clips only after setting any charger
switches to “off” position and remov-
ing AC cord from electric outlet. Never
allow clips to touch each other.
5.2 Attach clips to battery and chassis,
as indicated in sections 6 and 7.
6. FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE
A SPARK NEAR THE BATTERY MAY
CAUSE A BATTERY EXPLOSION. TO
REDUCE THE RISK OF A SPARK NEAR
THE BATTERY:
6.1 Position AC and DC cords to reduce
risk of damage by hood, door, or mov-
ing engine part.
6.2 Stay clear of fan blades, belts, pulleys,
and other parts that can cause injury
to persons.

Page 7
6.3 Check polarity of battery posts. POS-
ITIVE (POS, P, +) battery post usually
has larger diameter than NEGATIVE
(NEG, N, –) post.
6.4 Determine which post of battery is
grounded (connected) to the chas-
sis. If negative post is grounded to
chassis (as in most vehicles), see
(6.5). If positive post is grounded to
the chassis, see (6.6).
6.5 For negative-grounded vehicle, con-
nect POSITIVE (RED) clip from battery
charger to POSITIVE (POS, P, +)
ungrounded post of battery. Connect
NEGATIVE (BLACK) clip to vehicle
chassis or engine block away from
battery. Do not connect clip to carbu-
retor, fuel lines, or sheet-metal body
parts. Connect to a heavy gauge metal
part of the frame or engine block.
6.6 For positive-grounded vehicle, con-
nect NEGATIVE (BLACK) clip from
battery charger to NEGATIVE (NEG,
N, –) ungrounded post of battery.
Connect POSITIVE (RED) clip to
vehicle chassis or engine block away
from battery. Do not connect clip to
carburetor, fuel lines, or sheet-metal
body parts. Connect to a heavy
gauge metal part of the frame or
engine block.
6.7 When disconnecting charger, turn
switches to off, disconnect AC cord,
remove clip from vehicle chassis,
and then remove clip from battery
terminal.
6.8 See Operating Instructions for length
of charge information.
7. FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE
A SPARK NEAR THE BATTERY MAY
CAUSE A BATTERY EXPLOSION. TO
REDUCE THE RISK OF A SPARK NEAR
THE BATTERY:
7.1 Check polarity of battery posts. POS-
ITIVE (POS, P, +) battery post usually
has a larger diameter than NEGATIVE
(NEG, N, –) post.
7.2 Attach at least a 24-inch-long 6-gauge
(AWG) insulated battery cable to
NEGATIVE (NEG, N, –) battery post.
7.3 Connect POSITIVE (RED) charger
clip to POSITIVE (POS, P, +) post of
battery.
7.4 Position yourself and free end of
cable as far away from battery as
possible – then connect NEGATIVE
(BLACK) charger clip to free end of
cable.
7.5 Do not face battery when making
final connection.
7.6 When disconnecting charger, always
do so in reverse sequence of con-
necting procedure and break first
connection while as far away from
battery as practical.
7.7 A marine (boat) battery must be
removed and charged on shore. To
charge it on board requires equipment
specially designed for marine use.
8. GROUNDING AND AC POWER CORD CONNECTIONS
8.1 This battery charger is for use on a
nominal 120 volt circuit and has a
grounded plug. The charger must be
grounded, to reduce the risk of electric
shock. The plug must be plugged into
an outlet that is properly installed and
grounded in accordance with all local
codes and ordinances. The plug pins
must fit the receptacle (outlet). Do not
use with an ungrounded system.
8.2 Never alter the AC
cord or plug provided – if it does not
fit the outlet, have a proper grounded
outlet installed by a qualified elec-
trician. An improper connection can
result in a risk of an electric shock or
electrocution.
NOTE: Pursuant to Canadian Regu-
lations, use of an adapter plug is not
allowed in Canada. Use of an adapter
plug in the United States is not rec-
ommended and should not be used.

Page 8
8.3 USING AN EXTENSION CORD
The use of an extension cord is not
recommended. If you must use an
extension cord, follow these guide-
lines:
• Pins on plug of extension cord must
be the same number, size, and
shape as those of plug on charger.
• Ensure that the extension cord is
properly wired and in good electri-
cal condition.
• Wire size must be large enough for
the AC ampere rating of charger,
as specified:
Length of cord (feet) 25 50 100 150
AWG* size of cord 18 18 16 14
*AWG-American Wire Gauge
9. ASSEMBLY INSTRUCTIONS
9.1 Remove all cord wraps and uncoil
the cables prior to using the battery
charger.
10. CONTROL PANEL
LED INDICATORS
CLAMPS REVERSED (red) LED flashing:
The connections are reversed.
CHARGING (yellow/orange) LED lit: The
charger is charging the battery.
CHARGING (yellow/orange) LED flash-
ing: The charger is in abort mode.
CHARGED/MAINTAINING (green) LED
pulsing: The battery is fully charged and
the charger is in maintain mode.
NOTE: See the Operating Instructions
section for a complete description of the
charger modes.
DIGITAL DISPLAY
The display will show the battery VOLTAGE
when the charger is not charging a battery.
When it goes into charging mode, the dis-
play will automatically change to ON (to
show charging has started) and then show
the percent-of-charge of the battery being
charged and either 6 or 12 (the voltage of
the battery, determined by the charger). If
you manually stop the charging process
(by pressing the Rate button) before the
battery is fully charged, the display will
show OFF.
NOTE: During charging, the display will
go into sleep mode and will not show the
percentage of charge or voltage of the
battery. To turn the display back on, press
any button.
BATTERY % – The digital display shows
an estimated charge percentage of the
battery connected to the charger’s battery
clamps.
VOLTAGE – The digital display shows the
voltage at the charger battery clamps, in
DC volts.
RATE SELECTION BUTTON
Use this button to select one of the fol-
lowing:
3A MAINTAIN – For charging small bat-
teries, such as those commonly used in
garden tractors, snowmobiles and motor-
cycles. Also used to maintain fully charged
large batteries.
15A RAPID CHARGE – For charging auto-
motive, marine and light truck batteries.
Not intended for industrial applications.
BATTERY TYPE BUTTON
Use this button to set the type of battery.
• STANDARD – Used in cars, trucks and
motorcycles, these batteries have vent
caps and are often marked “low main-
tenance” or “maintenance-free”. This
type of battery is designed to deliver
quick bursts of energy (such as starting
engines) and has a greater plate count.
The plates are thinner and have some-
what different material composition.
Standard batteries should not be used
for deep-cycle applications.

Page 9
• AGM – The Absorbed Glass Mat con-
struction allows the electrolyte to be
suspended in close proximity with
the plate’s active material. In theory,
this enhances both the discharge and
recharge efficiency. The AGM batter-
ies are a variant of Sealed VRLA (valve
regulated lead-acid) batteries. Popular
uses include high-performance engine
starting, power sports, deep-cycle,
solar and storage batteries.
• GEL – The electrolyte in a GEL cell has
a silica additive that causes it to set
up or stiffen. The recharge voltages on
this type of cell are lower than those for
other styles of lead-acid battery. This is
probably the most sensitive cell in terms
of adverse reactions to overvoltage
charging. Gel batteries are best used in
VERY DEEP cycle application and may
last a bit longer in hot weather appli-
cations. If the wrong battery charger is
used on a gel cell battery, poor perfor-
mance and premature failure will result.
11. OPERATING INSTRUCTIONS
A SPARK NEAR BATTERY MAY CAUSE
AN EXPLOSION.
IMPORTANT: Do not start the vehicle with
the charger connected to the AC outlet,
or it could damage the charger.
NOTE: This charger is equipped with an
auto-start feature. Current will not be
supplied to the battery clamps until a bat-
tery is properly connected. The clamps
will not spark if touched together.
CHARGING A BATTERY
IN THE VEHICLE
1. Turn off all the vehicle’s accessories.
2. Keep the hood open.
3. Clean the battery terminals.
4. Place the charger on a dry, non-flam-
mable surface.
5. Lay the AC/DC cables away from any
fan blades, belts, pulleys and other
moving parts.
6. Connect the battery, following the pre-
cautions listed in sections 6 and 7.
7. Connect the charger to an electrical
outlet.
8. Select the battery type and charge rate.
9. When charging is complete, disconnect
the charger from the AC power, remove
the clamps from the vehicle’s chassis,
and then remove the clamp from the
battery terminal.
CHARGING A BATTERY
OUTSIDE OF THE VEHICLE
1. Place battery in a well-ventilated area.
2. Clean the battery terminals.
3. Connect the battery, following the pre-
cautions listed in sections 6 and 7.
4. Connect the charger to the electrical
outlet.
5. Select the battery type and charge
rate.
6. When charging is complete, discon-
nect the charger from the AC power,
disconnect the negative clamp, and
finally the positive clamp.
7. A marine (boat) battery must be
removed and charged on shore.
CHARGE RATE
The charger will automatically adjust the
charging current, based on battery size,
in order to charge the battery completely,
efficiently and safely.
BATTERY CHARGING TIMES
Times are based on a 50% discharged battery
and may change, depending on age and con-
dition of battery.

Page 10
AUTOMATIC CHARGING
When an Automatic Charge is performed,
the charger switches to the maintain mode
automatically after the battery is charged.
ABORTED CHARGE
If charging cannot be completed normally,
charging will abort. When charging aborts,
the charger’s output is shut off and the
display will show “bad / bat” and an error
code. Do not continue attempting to charge
this battery. Have it checked or replaced.
DESULFATION MODE
The display will show “SUL” when a sul-
fated battery is detected, and the charger
will go into desulfation mode. If the desul-
fation is not successful after 10 hours, the
charger will go into abort mode. The dis-
play will show “bAd / bAt / F02”.
COMPLETION OF CHARGE
Charge completion is indicated by the
green Charged/Maintaining LED. When lit,
the charger has switched to the maintain
mode of operation.
MAINTAIN MODE
(FLOAT MODE MONITORING)
When the green Charged/Maintaining LED
is lit, the charger has started maintain
mode. In this mode, the charger keeps
the battery fully charged by delivering a
small current when necessary. If the char-
ger has to provide its maximum maintain
current for a continuous 12 hour period,
it will go into abort mode (see Aborted
Charge section). This is usually caused by
a drain on the battery or the battery could
be bad. Make sure there are no loads on
the battery. If there are, remove them. If
there are none, have the battery checked
or replaced.
MAINTAINING A BATTERY
The 260-9511 maintains both 6 and 12 volt
batteries, keeping them at full charge.
NOTE: The maintain mode technology
allows you to safely charge and maintain
a healthy battery for extended periods of
time. However, problems with the bat-
tery, electrical problems in the vehicle,
improper connections or other unantici-
pated conditions could cause excessive
current draws. As such, occasionally
monitoring your battery and the charging
process is required.
USING THE BATTERY
VOLTAGE TESTER
1. With the charger unplugged from the
AC outlet, connect the charger to the
battery following the instructions given
in previous sections.
2. Plug the charger AC power cord into
the AC outlet.
3. If necessary, press the Battery Type but-
ton until the correct type is indicated.
4. Read the voltage on the digital display.
Keep in mind that this reading is only a
battery voltage reading; a false surface
charge may mislead you. Compare the
reading to the chart below.
6V Battery
Voltage
Reading
12V Battery
Voltage
Reading
Battery
Condition
6.4 or more 12.8 or
more Charged
6.1 to 6.3 12.2 to 12.7 Needs
charging
Less than
6.1
Less than
12.2 Discharged
POWER-UP IDLE TIME LIMIT
If no button is pressed within 10 minutes
after the battery charger is first powered
up, the charger will automatically switch
from tester to charger if a battery is con-
nected. In that case, the charger will be
set to charge at the 3A Maintain rate and
gel cell battery type.
TESTING AFTER CHARGING
After the unit has been changed from tes-
ter to charger (by selecting a charge rate),
it remains a charger. To change the battery
charger back to a tester, press the Rate
button until all charge rate LEDs are off.

Page 11
12. MAINTENANCE AND CARE
A minimal amount of care can keep your
battery charger working properly for years.
• Clean the clamps each time you are
finished charging. Wipe off any battery
fluid that may have come in contact
with the clamps to prevent corrosion.
• Occasionally cleaning the case of the
charger with a soft cloth will keep the
finish shiny and help prevent corrosion.
• Coil the input and output cords neatly
when storing the charger. This will help
prevent accidental damage to the cords
and charger.
• Store the charger unplugged from the
AC power outlet in an upright position.
• Store the clamps on the storage areas
provided on the handle. Do not store
the clamps clipped together, on or
around metal, or clipped to the cables.
13. ERROR CODES
CODE DESCRIPTION REASON/SOLUTION
bAd
bAT
F 01
The battery voltage is still
under 10V (for a 12V battery)
or 5V (for a 6V battery) after 2
hours of charging.
The battery could be bad. Have it checked or
replaced.
SUL
The charger has detected a
sulfated battery.
The charger will go into desulfation mode. If the
desulfation is not successful after 10 hours, the
charger will go into abort mode.
bAd
bAT
F02
The charger cannot desulfate
the battery.
The battery could not be desulfated; have it
checked or replaced.
bAd
bAT
F03
The battery was unable
to reach the “full charge”
voltage.
May be caused by trying to charge a large battery
or bank of batteries on too low of a current setting.
Try again with a higher current setting or have the
battery checked or replaced.
F04
The connections to the
battery are reversed.
The battery is connected backwards. Unplug the
charger and reverse the connections to the battery.
bAd
bAT
F05
The charger was unable to
keep the battery fully charged
in maintain mode.
The battery won’t hold a charge. May be caused by
a drain on the battery or the battery could be bad.
Make sure there are no loads on the battery. If there
are remove them. If there are none, have the battery
checked or replaced.
bAd
bAT
F06
The charger detected that the
battery may be getting too hot
(thermal runaway).
The charger automatically shuts the current off if
it detects the battery may be getting too hot. Have
the battery checked or replaced.
If you get an error code, check the connections and settings and/or replace the battery.

Page 12
14. TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE REASON/SOLUTION
Battery clamps do not
spark when touched
together.
The charger is equipped
with an auto-start feature. It
will not supply current to the
battery clamps until a battery
is properly connected. The
clamps will not spark if
touched together.
No problem; this is a normal
condition.
Three LEDs come on
for 2 seconds, then
turn off.
The charger is plugged into an
AC outlet.
No problem; this is normal.
The charger will not
turn on when properly
connected.
AC outlet is dead.
Poor electrical connection.
Battery is defective.
Check for open fuse or circuit
breaker supplying AC outlet.
Check power cord and
extension cord for loose
fitting plug.
Have battery checked.
I cannot select a 6V or
12V setting.
The charger is equipped
with Auto Voltage Detection,
which automatically detects
the voltage and charges the
battery.
No problem; this is normal.
I press the display
button, but do not
see the percentage of
charge.
When first connected to a
battery, the display shows
voltage only.
This is normal. The percentage
of charge is only displayed
during charging.
The display shows
“bAd / bAt / F 01 ”.
The battery voltage is still
below 10V (for a 12V battery)
or 5V (for a 6V battery) after 2
hours of charging.
The battery may be defective.
Make sure there are no
loads on the battery. If there
are, remove them. If there
are none, have the battery
checked or replaced.
The display shows
“bAd / bAt / F02”.
Desulfation was
unsuccessful, after 10 hours.
The battery may be defective.
Have battery checked or
replaced.
The display shows
“bAd / bAt / F05”.
Lack of progress is detected
after 12 hours in Maintain
mode.
The battery won’t hold a
charge. May be caused by
a drain on the battery or the
battery could be bad. Make
sure there are no loads on the
battery. If there are remove
them. If there are none,
have the battery checked or
replaced.
15. SPECIFICATIONS
Input Voltage..............................................................................120V AC @60Hz, 3.6A
Output Voltage ................................................ 6V or 12V, with Auto Voltage Detection
Output Current Rating ..........................................2A DC @6V DC; 15A DC @12V DC

15A Automatic Battery Charger
WARRANTY
90-DAY MONEY BACK GUARANTEE
This MASTERFORCE™ brand battery charger carries our 90-Day Money Back
Guarantee. If you are not completely satisfied with your MASTERFORCE™
brand product for any reason within ninety (90) days from the date of purchase,
return the item with your original receipt to any MENARDS®retail store, and we
will provide you a refund – no questions asked.
3-YEAR LIMITED WARRANTY
This MASTERFORCE™ brand battery charger carries our famous No Hassle
3-Year Limited Warranty to the original purchaser. If, during normal use, this MAS-
TERFORCE™ product breaks or fails due to a defect in material or workmanship
within three (3) years from the date of original purchase, simply bring the item
with the original sales receipt back to your nearest MENARDS®retail store. At its
discretion, MASTERFORCE™ agrees to have the item or any defective part(s)
repaired or replaced with the same or similar MASTERFORCE™ product or part
free of charge, within the stated warranty period, when returned by the original
purchaser with original sales receipt. Not withstanding the foregoing, this limited
warranty does not cover any damage that has resulted from abuse or misuse of
the Merchandise. This warranty: (1) excludes expendable parts including but not
limited to blades, brushes, belts, bits, light bulbs, and/or batteries; (2) shall be
void if this product is used for commercial and/or rental purposes; and (3) does
not cover any losses, injuries to persons/property or costs. This warranty does
give you specific legal rights and you may have other rights, which vary from
state to state. Be careful, battery chargers are dangerous if improperly used or
maintained. Seller’s employees are not qualified to advise you on the use of this
merchandise. Any oral representation(s) made will not be binding on seller or its
employees. The rights under this limited warranty are to the original purchaser
of the merchandise and may not be transferred to any subsequent owner. This
limited warranty is in lieu of all warranties, expressed or implied including war-
ranties or merchantability and fitness for a particular purpose. Seller shall not be
liable for any special, incidental, or consequential damages. The sole exclusive
remedy against the seller will be for the replacement of any defects as provided
herein, as long as the seller is willing or able to replace this product or is willing
to refund the purchase price as provided above. For insurance purposes, seller
is not allowed to demonstrate any of these products for you.
For questions/comments, technical assistance or repair parts—
Please call toll free at: 1-800-621-5485.
Page 13
1. WARRANTY

Page 14
NOTES

Page 15
NOTES

© 2020 Menard, Inc., Eau Claire, WI 54703 03/2020
