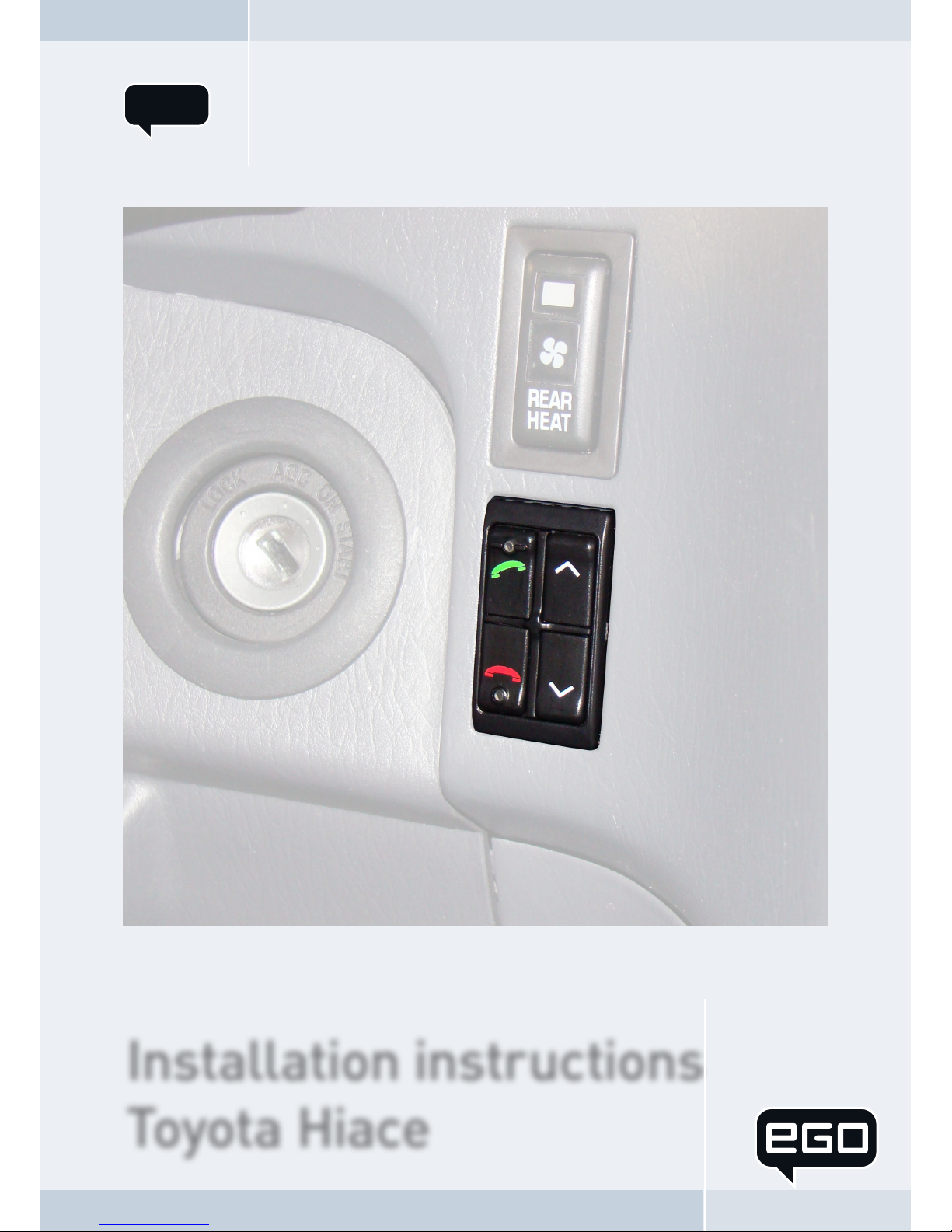

EGO TS User manual

Installation instructions
Toyota Hiace
128 8229 1.02
(Built from 1996)
GB
English

EGO TS
Table of contents
1 Introduction / Preface................................................................... 3
2 Safety Instructions ...................................................................... 4
3 Conformity statement ................................................................. 5
4 Scope of Delivery / Package content ........................................... 6
5 Installation instructions .............................................................. 7
5.1 Preparation............................................................................................ 7
5.2 Installation locations ............................................................................. 7
5.2.1 Checking cable lengths ................................................................................................ 7
5.2.2 Selection of the installation location for the electronics box...................................... 7
5.2.3 Selection of the point of installation for the microphone ............................................ 8
5.3 Mounting Components........................................................................... 9
5.3.1 Mounting the electronics box....................................................................................... 9
5.3.2 Mounting the microphone ............................................................................................ 9
5.4 Connection Concept............................................................................... 10
5.5 Installation of the components.............................................................. 10
5.6 Functional Test ...................................................................................... 15
5.7 Symbols ................................................................................................. 15

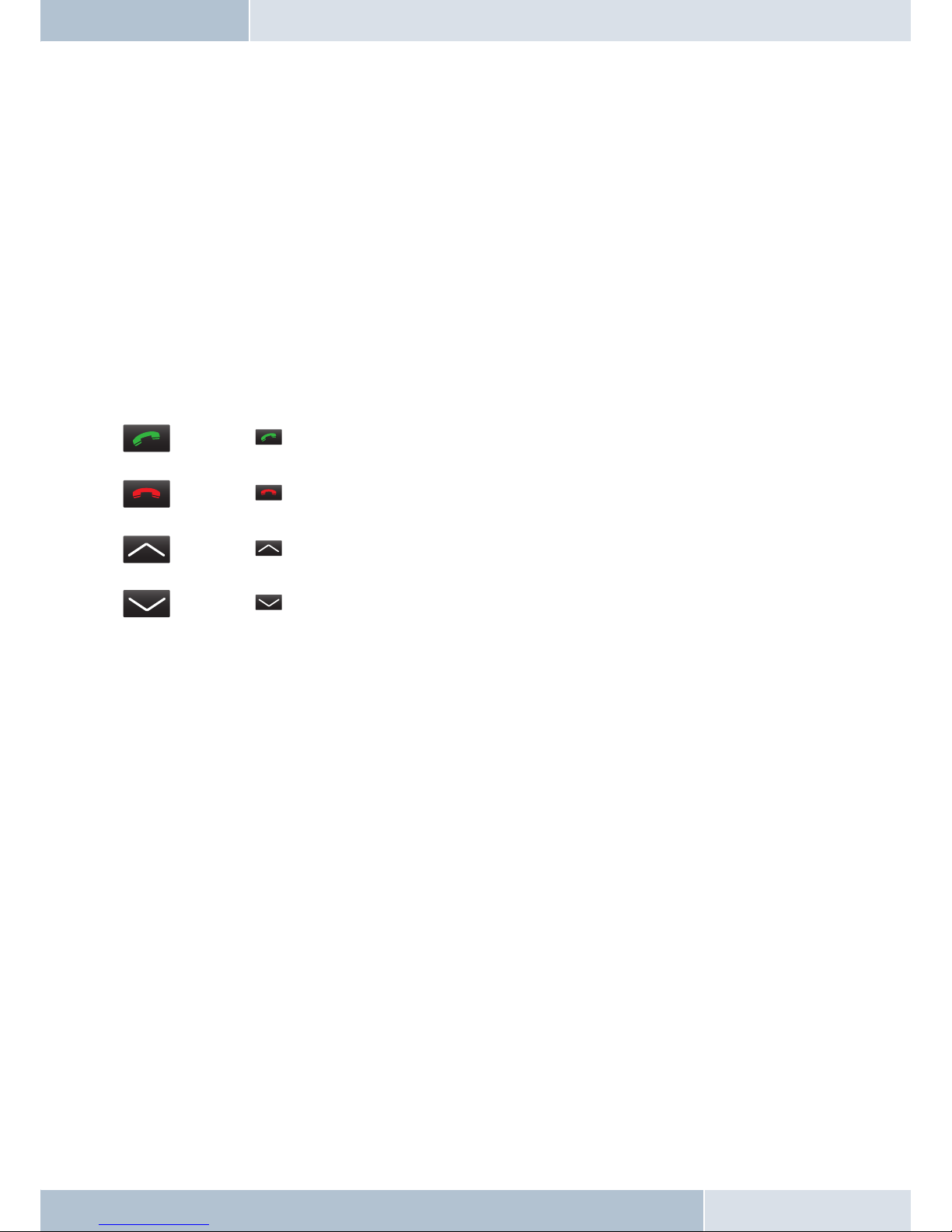

5.7.1 Key functions ................................................................................................................ 15
5.8 Getting started....................................................................................... 15
5.8.1 On / Off function ........................................................................................................... 15
5.8.2 Coupling........................................................................................................................ 16
5.8.3 Automatic coupling....................................................................................................... 16
5.8.4 LED status .................................................................................................................... 16
6 Troubleshooting .......................................................................... 17

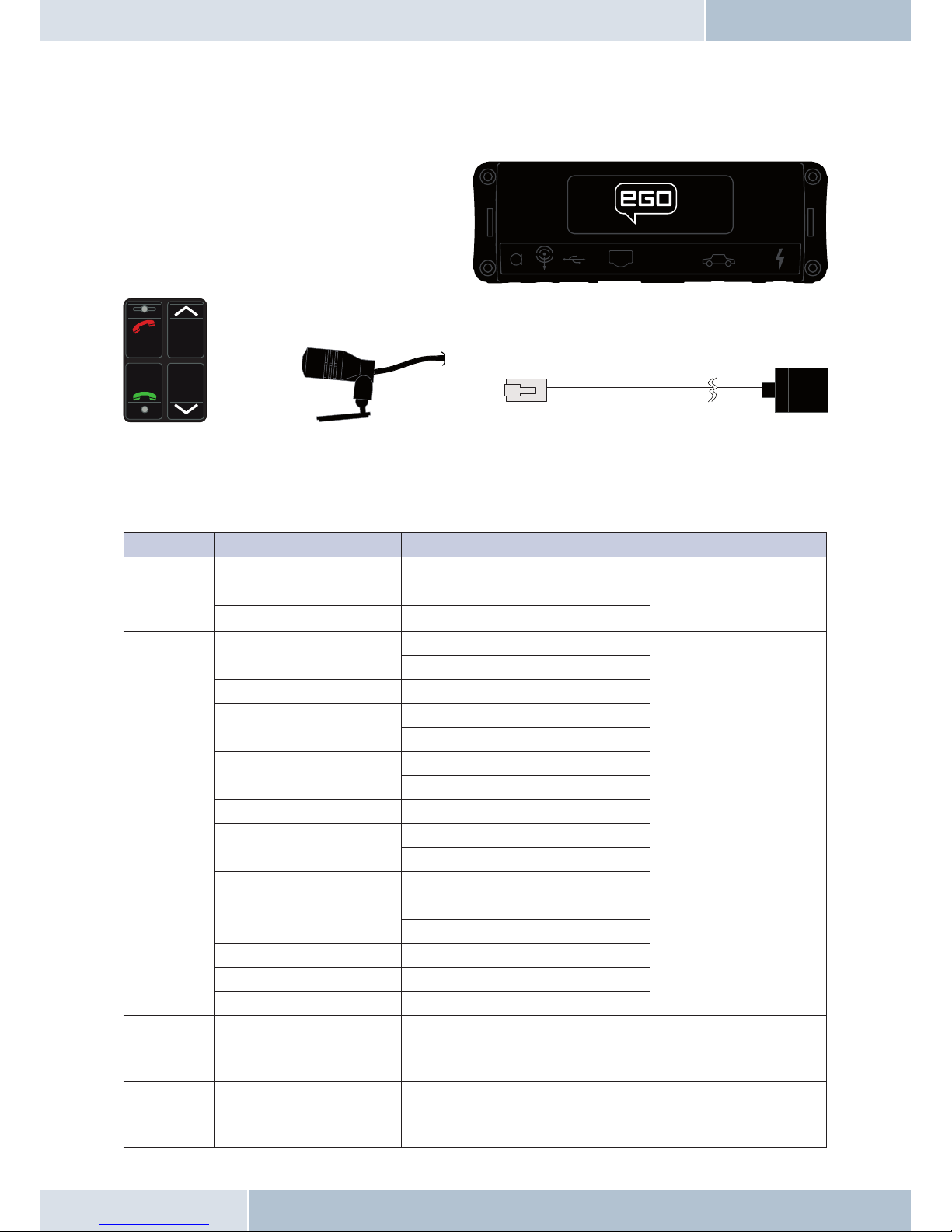

7 Spares and accessories .............................................................. 18
8 Technical specifications .............................................................. 19
9 Certification ................................................................................ 19
10 Hotline......................................................................................... 20

Introduction / Preface1
Congratulations on your new EGO!
EGO TS is the intelligent entry-level solution for telephone use in your car: simple to operate,
elegant and compact – with Bluetooth and audio enjoyment too.
The installation of your EGO TS in your car requires specialist knowledge and skills. We recom-
mend that the installation be carried out in a qualified professional workshop.
Before installation in your car, please make sure that your mobile phone is fully compatible with
EGO TS. If you are uncertain, please consult your dealer or a professional workshop. Our service
team will also be happy to help you with any information you may require. You can find further
information on compatibility between EGO TS and various mobile phones on our website.
2 |3

EGO TS
Safety Instructions2
Incorrect installation1. – Incorrect installation may lead to damage to the units and/or your
car! Special knowledge and skills are required for installing the system. We strongly re-
commend that the system be installed by a qualified professional workshop.
2. Risk of injury – Unsuitable installation locations may become a source of injury in an acci-
dent situation, or may inhibit the correct functioning of essential safety equipment. Please
read the notes in the „Installation“ chapter carefully!
3. Risk of injury/material damage – the removal of cladding within the vehicle with sharp or
pointed tools may lead to injuries or material damage.
4. Road safety risk – Distracted attention can lead to dangerous situations in traffic. Even
when using hands-free phone systems, your complete attention must be concentrated on
your driving and other road users. It is always advisable to do without phone calls in difficu-
lt traffic situations!
5. Damage to airbags – The wrong choice of location for installation may cause damage to
or inhibit the correct function of your airbags. Always install the components in a position
where they will not hinder the correct operation of airbags!
6. Insulation damage – Damaged insulation can lead to equipment and wiring damage. The
cables and leads may not be under tension when installed. Install the cables and leads in
such a way as to avoid pinching or abrasion.
7. Polarity and shorting damage – Cables connected with reversed polarity, or in such a way
as to produce a short circuit, can lead to serious damage to your equipment. Before com-
mencing installation, make sure that the car battery is disconnected.
8. Damage to essential vehicle components – Essential vehicle components or wiring can be
damaged when drilling mounting holes or screwing in self-threading screws. Please make
sure there is always sufficient space behind the screw holes and drilled holes!
9. Interference with on-board electronics – Despite the extreme protection against interfe-
rence, incorrect installation can lead to interference with the vehicle electronic systems.
Please read the vehicle manufacturer’s notes to this effect!
Appropriate use10. – This equipment is intended solely for use with mobile telephones in mo-
tor vehicles.
11. Damage caused by inappropriate replacement parts – Inappropriate spare or replacement
parts may lead to malfunctions. Please use only the approved parts listed in the section
„Spares and accessories“!
Road safety risk12. – For your own safety, never initiate the coupling procedure while your
vehicle is in motion!

Conformity statement3
This equipment employs Bluetooth®wireless technology. In some countries, the use of this
equipment may be restricted or forbidden. Please make sure you are familiar with such restric-
tions and do not use your equipment if you are unsure whether its use is permitted in particular
countries you may be visiting.
Bluetooth®is a registered brand name of Bluetooth SIG, Inc.
The firm of Funkwerk Dabendorf GmbH
Märkische Straße
D-15806 Dabendorf
herewith declares that the hands-free system „EGO TS“
in accordance with the essential requirements and other relevant provisions
of the Directive 1999/5/EC.
0681
4 |5

EGO TS

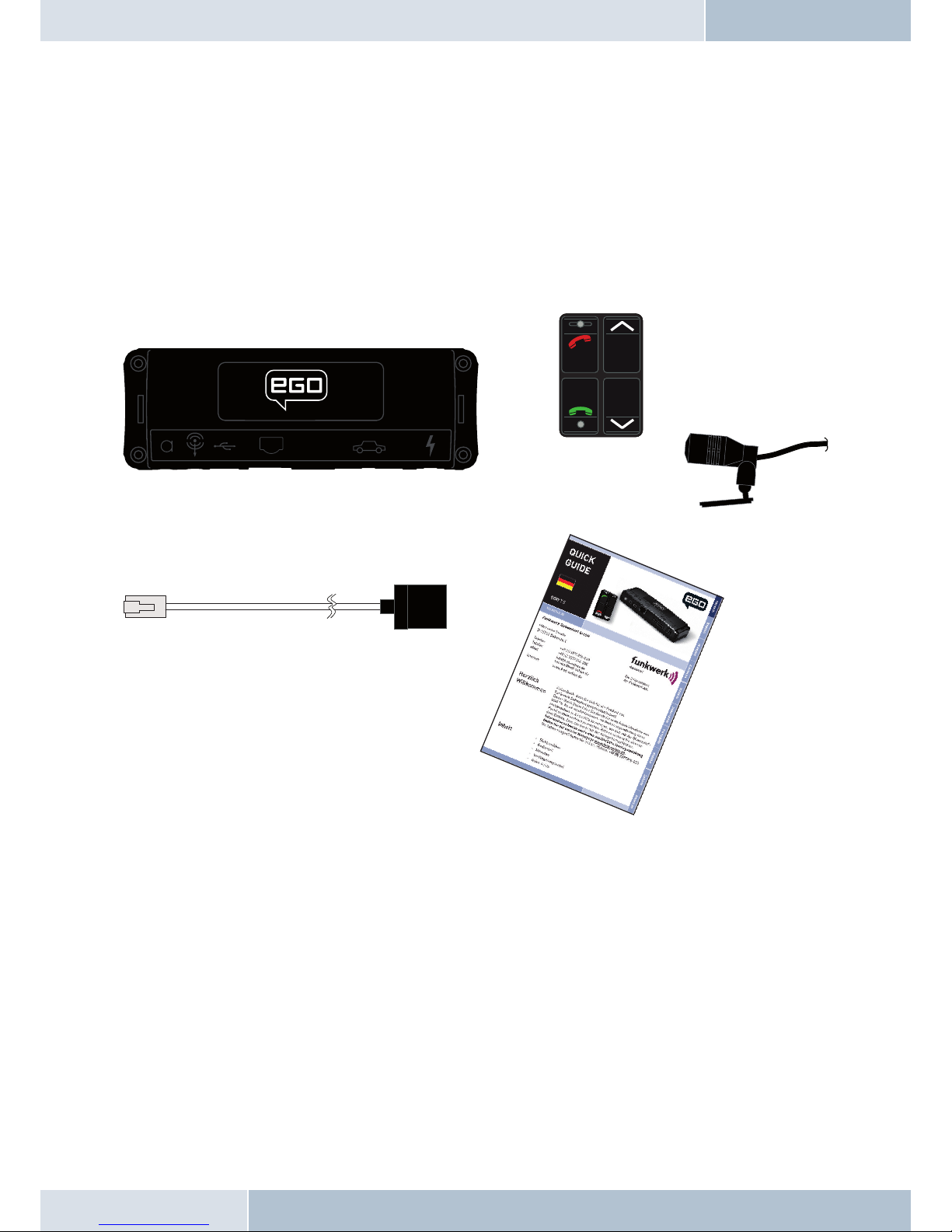

Scope of Delivery / Package content4
ÀElectronics box
ÁControl unit
ÂMicrophone
ÃExtension cable
ÄQuick Guide
À
Á
Â
ÃÄ

Installation instructions5
Improper Installation
Improper installation may cause damages to the unit or to the vehicle! The installation
of the hands-free car kit requires special knowledge and special abilities. Short circuits
or cables connected in reverse polarity can cause severe damage to the unit. Ensure the
vehicle’s battery is disconnected before you start the installation procedure. We therefo-
re recommend to have the installation done by a professional.
Preparation5.1
Test audio system-
Place protective covers on seats etc.-
Turn Off ignition-
Installation locations5.2
RISK OF INJURY!
Unsuitable installation locations may become a source of injury in an accident situation,
or may inhibit the correct functioning of essential safety equipment!
Checking cable lengths5.2.1
Before you fix the components securely, check that the installation locations have been selected
in such a way that the length of the cables is sufficient to connect the individual components.
Selection of the installation location for the electronics box5.2.2
The Bluetooth®antenna for the connec-
tion to the mobile phone is installed in
the electronics box. The antenna trans-
mits directionally towards the front. For
this reason, during installation, ensure
that the antenna faces into the passen-
ger cell (see Fig.). Vertical mounting is
ideal. Metallic screening between the
front panel and the passenger cell, such
as metal or metallised plastic panels,
are unsuitable and may interfere with
the Bluetooth®connection. Locations
behind the dashboard or in a metal-lined glove compartment are also unsuitable.
A covering in plastic, fabric or wood presents no problems whatsoever
6 |7

EGO TS
Suitable locations for the
electronics box:
- Passenger side, next to the centre
column under the panelling, model-
specific installation console (dealer)
- Our suggested installation locations
are shown in the illustration on the
right
Further unsuitable locations are:
Leg and knee height, potential head
impact zone, airbag inflation space,
engine compartment
Selection of the point of installation for the microphone5.2.3
Suitable for the microphone:
- where voice can reach the microphone
unhindered (distance between the spea-
ker and the microphone should be ap-
prox. 35 cm), on the A-column (between
windscreen and side window), next to
the driver‘s sun visor, on the dashboard
The illustration shows one of the po-
tential microphone mounting locations.
Alternatively, the microphone may be
attached to the sun visor with the clip
provided.
Unsuitable for the microphone:
-Close to the speakers (less than
80 cm), under the dashboard, in the air
stream from open windows or ventilator
outlets

Mounting Components5.3
DAMAGE TO ESSENTIAL VEHICLE COMPONENTS!
Essential vehicle components or wiring can be damaged when drilling mounting holes
or screwing in self-threading screws. Please make sure there is always sufficient space
behind the screw holes and drilled holes!

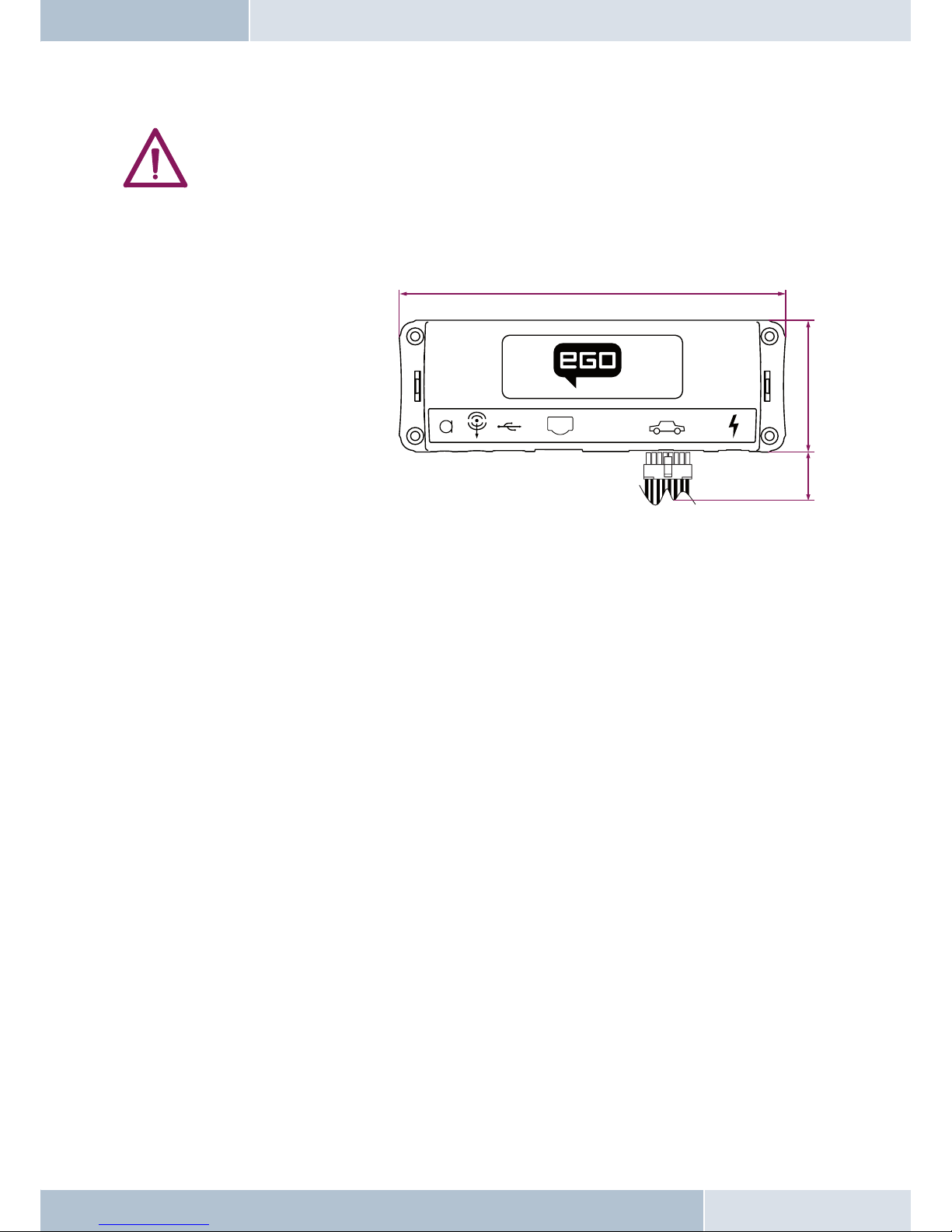

Mounting the electronics box5.3.1
Define the mounting points
Making sure that there is at least
70 mm space for the plug and
socket connectors. Mark the posi-
tions for the fixing screws.
Mounting the electronics box
For mounting the electronics box,
use four self-threading screws
and appropriate washers. We
recommend size “ST 2,9x25 DIN
7981”self-threading screws. These
are ideal for the fixing of the electronics box. Pre-drill the holes with a 2 mm drill.
Mounting the microphone5.3.2
Define the mounting location
The microphone holder has a self-adhesive strip on the back. The mounting location should
have the same form and area as the self-adhesive strip on the microphone holder. The location
selected must allow the microphone cable to reach the electronics box! Locate the microphone
with its head in the direction of speech.
Cleaning and degreasing the mounting location
The mounting location must be clean and free from grease and dirt/dust. Clean the proposed
area with a cleansing product such as methylated spirits. Only use cleansing products that
do not damage plastics or varnished wood finishes and are themselves free of oils or grease.
Unsuitable cleansers are, for example,: lighter fluid, acetone, turpentine, trichloroethylene and
similar products.
Attaching the microphone holder
Peel off the protective backing from the self-adhesive strip. Hold the microphone holder at a
distance of several millimetres above the desired mounting location. Recheck the positioning.
Repositioning after mounting is no longer possible. Place the microphone holder on the moun-
ting location and fix by applying short and light pressure.
Attaching the microphone
Attach the microphone by sliding it into the holder and orientate the microphone head in the
direction of speech.
130 mm
45 mm70 mm
8 |9

EGO TS
Connection Concept5.4
Installation of the components5.5
In order not to cause any damage while dismantling the interior panelling it is advisable
to use the so-called dismantling wedges! These leave no marks on the plastic parts!
Remove the ashtray to be able to remove the screws behind it.1.
Microphone Mounted
charger
(optional)
Control unit Connection
cable

Carefully remove the cover of the ventilation unit.2.
Loosen the connectors from the covering of the ventilation unit.3.
Loosen the screws, carefully pull the radio out of the slot and remove the connectors.4.
10 |11

EGO TS

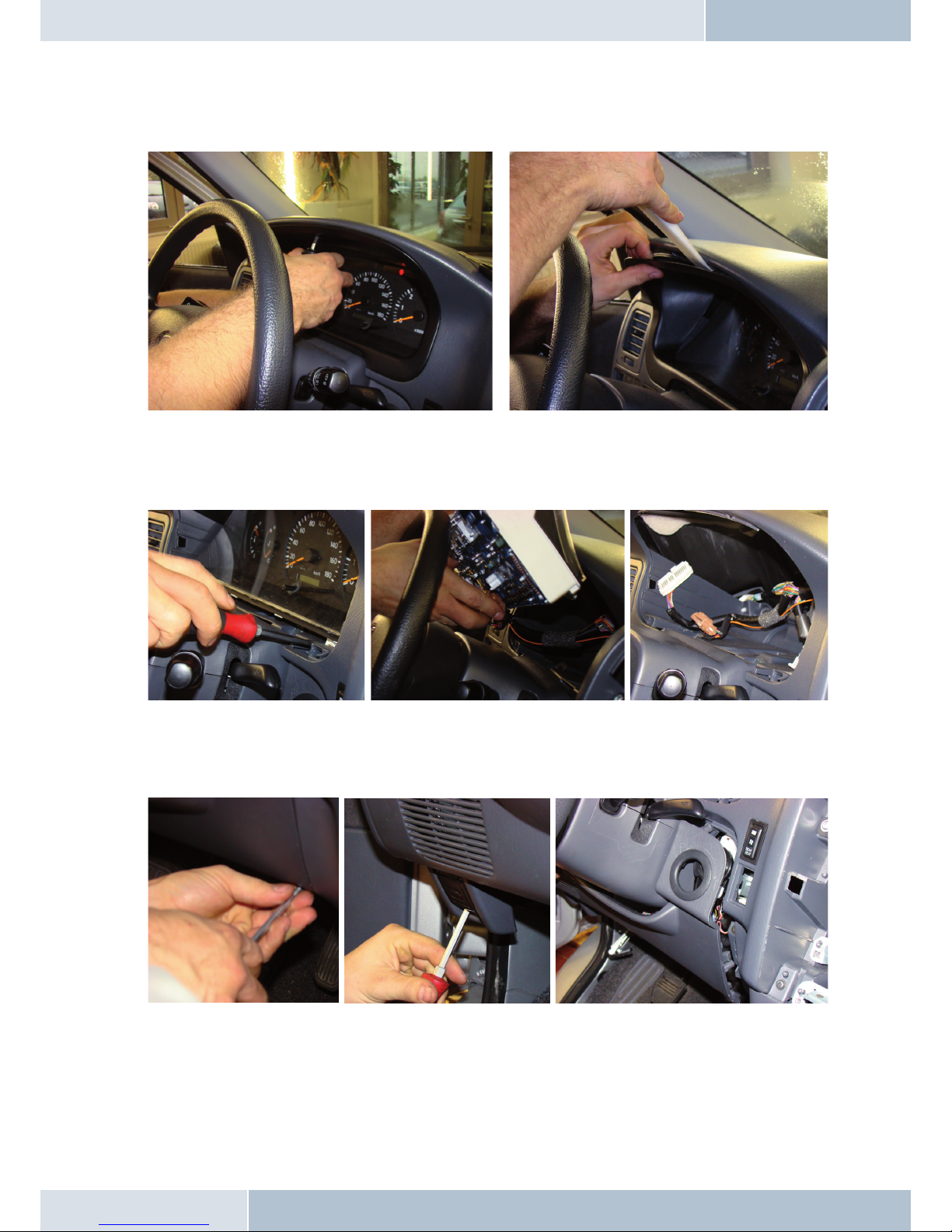

Loosen the screws of the panelling to dismantle the speedometer unit.5.
Loosen the screws of the speedometer unit and remove it carefully.6.
Loosen the panelling of the ignition below the steering column.7.

Choose a free installation slot for the EGO TS control unit. Carefully remove the covering and8.
replace it by the control unit.
* Control panel element on the left next to the steering wheel (Example 1)
* Control panel element on the right next to the
ignition. (Example 2)
Lay the microphone at a convenient spot, pay attention to our explanatory notes in9.
Chapter 5.2.3.
12 |13

EGO TS
Position the electronic box and lay the connection cable. Connect the control unit, the micro-10.
phone and the system connector to the electronic box. Please pay attention to our explanato-
ry notes in Chapter 5.2.2.
* Installation in legroom, on the right of the driver
Connect the adapter cables specific for the car to the radio.11.
NOTE: To prevent rattling sounds that may possibly occur we recommend that the cables be
fastened with cable straps and to position the electronic box tightly in the car.

Functional Test5.6
An operational test is only possible after coupling the system with a Bluetooth®- compatible
device. The procedure is explained in the sections „5.8. Getting started“.
Symbols5.7
The control console of the EGO TS has a total of 4 keys. The illustration on the right shows an
overview of the key locations. The functions of the individual keys are explained in the following
section.
Key functions5.7.1
→ The -key (green) is for accepting calls. It also controls the redial function,
private mode and connect manually.
→ The -key (red) is used for rejecting incoming calls and ending completed calls
(hang-up). It also controls the starts the phone‘s voice dialling function.
→ The -key increases the volume in phone.
→ The -key decreases the volume in phone.
Getting started5.8
Take enough time to familiarise yourself with the use of the system in combination with your
phone. First of all, make a few calls to determine the ideal volume and the best voice pick-up di-
rection before using the system in traffic. The best way of optimising conditions of use is to park
your car in a quiet place especially for this purpose. It is also helpful if another phone user can
take some time to assist you when making test calls.
On / Off function5.8.1
Turning the ignition key simultaneously activates the hands-free system. Immediately after the
system is activated, the two LEDs blink 4 times. This indicates that the system is in standby
mode and ready to make a connection. In order to use the system for phone calls, a Bluetooth®
compatible phone must be coupled to the EGO TS system. How this is done is explained in detail
in the following sections. When the ignition is turned off, the hands-free system also shuts
down. If the ignition is turned off during a call, phone ability is maintained and the system is shut
down only after the call has been completed.
14 |15

EGO TS
Coupling5.8.2
As long as no device is connected, the system is visible for all Bluetooth- ®devices.
The device to be used (mobile phone, PDA, etc.) must be logged in to the system.-
The Bluetooth®search and coupling are carried out by the device.
The name of the system is EGO TS.
The PIN has a default setting of 0000.-
Bei erfolgreicher Verbindung/Kopplung leuchten beide LED‘s dauerhaft.-
It can be 8 Bluetooth- ®phones be connected.
Automatic coupling5.8.3
If a phone is already connected with the system, the EGO TS tries to couple to this phone. When
a connection has been successfully made, the two LEDs are permanently on. The connection is
always made to the most recently coupled phone. If this phone is out of range, the system will
search for other phones registered in the system. When the search is successful, the connection
to this phone is completed automatically. If the search process was unsuccessful, the system
reverts to the coupling mode. This enables manual connection from the phone.
LED status5.8.4
Green blinks in short intervals → no device connected-
Both permanently on → device is connected-
Red on and green blinks periodically → active call-

Troubleshooting6
Problem Cause Correction
EGO TS doesn‘t
switch on
Power supply disabled If necessary, replace fuse and check
all leads and connections
Ignition not on Switch ignition on
Ignitions circuit disabled Check cable and 1 A fuse
Your call-partner can-
not hear you Microphone not plugged in
Connect microphone to electronics
box, defective cables require replace-
ment
Your call partner com-
plains about interfe-
rence
Microphone in air stream Mount microphone elsewhere or
reduce ventilation
Phone too close to EGO TS
components or car radio
Increase the distance between your
phone and
the EGO TS or radio
Your call partner hears
feedback
Distance between micro-
phone and speakers too
small
Increase distance or decrease volu-
me
Volume too high Decrease volume
Your phone cannot find
EGO TS during coupling
EGO TS already connected
to another device Disconnect existing connection
Sound is unclear, dis-
torted
Poor Bluetooth®connec-
tion
Reduce the distance between your
phone and the EGO TS or remove any
(metallic) obstructions
No connection to
coupled phone when
ignition switched on
Phone is out of range. Make sure your phone is within the
range of the EGO TS.
Phone Bluetooth®inter-
face is deactivated.
Switch phone Bluetooth®function to
”ON“ (Option ”Automatic“ is not suffi-
cient)
Phone requires confirmati-
on of connection set-up.
Confirm connection on your phone.
Deactivate security function (see
your phone manual)
One of the two devices no
longer has a valid connec-
tion code.
Repeat the coupling procedure.
16 |17

EGO TS
Spares and accessories7
Spares
ÀElectronics box
ÁControl unit
ÂMicrophone
ÃExtension cable
Accessories
Specific vehicle connection cable
À
Á
ÂÃ
Variant Vehicle Equipment Connecting cable
A
Corolla E12 Standard MY2001>2004 Toyota
DENGS-00982-07
FWD 1284-01000
Land Cruiser J12 Standard
Hilux KUN 15/25 Option Wide2DIN (TNS310)
B
Avensis T25 Standard
Toyota
DENGS-00983-07
FWD 1284-02000
Full Map Navigation
Yaris XP9 Standard
Corolla Verso R10 Standard MY2004>
Full Map Navigation
Corolla E12 Standard
Full Map Navigation
Prius
RAV4 A3 Standard
Full Map Navigation
Hilux KUN 15/25 Standard SOL (MP3)
Auris Standard
Full Map Navigation
HIACE
Avensis T27 Standard
Verso Standard
CLand Cruiser J12 Full Map Navigation
Toyota
DENGS-00984-07
FWD 1284-03000
EIQ Standard
Toyota
DENGS-01410-07
FWD 1284-05000

Technical specifications8
External dimensions: Electronics box (L x B x H) 130 mm x 45 mm x 23 mm
External dimensions: Control unit (L x B x H)TS 1 33,7 mm x 22,9 mm x 26,6 mm
TS 2 42,2 mm x 24,2 mm x 20,8 mm
TS 3 39,3 mm x 20,8 mm x 24,2 mm
Cable length: Control unit 230 mm
Operating voltage 11 V to 15 V
Quiescent current (ignition off) max. 0,1 mA
Fuse: Permanent positive 2 A
Fuse:Ignition 1 A
Temperature range -10 °C bis +55 °C
Supported Bluetooth®Profiles: Handsfree
Certification9
0681
Fully compliant with the EU R&TTE Directive 1999/5/EC
Model certification according to EU Directive 72/245/EWG (2006/28/EC) “Electromagnetic com-
patibility in motor vehicles”
Bluetooth®is a registered brand name of Bluetooth SIG, Inc.
18 |19

EGO TS
Hotline10
Any questions or suggestions? Would you like some more detailed information? Do you need an
adviser or service in your area? Just give us a call!
Our Hotline Team is there to help you at the following times:
Monday–Thursday from 7.00 a.m. to 5.00 p.m.
Friday from 7.00 a.m. to 4.00 p.m.
Before you call us with your problem, please check first with the following steps:
→ Check whether you can solve your problem with the „Troubleshooting“ checklist in chapter.
→ Try to explain your problem as precisely as possible.
You can contact our Hotline Team at the following numbers:
From Germany: Phone: 0800 - 0 393 393
From outside Germany: Phone: [phone] - 316 233
+49 (0) 3377 - 316 234
Fax: [phone] - 316 244
Funkwerk Dabendorf GmbH
Märkische Straße
D-15806 Dabendorf
Germany
Phone [phone] - 0
Fax [phone] - 300
Email [e-mail]
[e-mail]
Internet www.fwd-online.de A Funkwerk AG company.
Funkwerk Dabendorf reserves the right to modifications in the course of technological progress and deviations from the delivery
scope! All rights reserved! Reproduction, in whole or in part, is only permitted with the prior written consent of Funkwerk Daben-
dorf GmbH!
