Ei Electronics Ei207/208 Series User manual

Instructions
Read and retain carefully for as long as the product is being used. It contains vital information on the
operation and installation of your Alarm. This booklet should be regarded as part of the product.
If you are just installing the Alarm, this booklet must be given to the householder. This booklet is to be
given to any subsequent user.
Ei207 / Ei208 Carbon Monoxide Alarm Series
Battery Powered
Carbon Monoxide Alarms
Ei207/208 Series

Model
Ei207
2xAAA Replaceable Batteries
Model Chart
Long Life Battery Built-in
Ei207D
No
No
RF
Capability
No
No
RF Module
Supplied
No
Yes
LCD
Display
Model
Ei208W
Ei208WRF
Yes
Yes
RF
Capability
No
Yes
RF Module
Supplied
No
Ei208
No No No
No
Ei208DW
Ei208DWRF
Yes
YesNo
Yes
Yes
Yes
LCD
Display
2

3
2. Location & Positioning
1. Read This First ..........................................................................................
2. Carbon Monoxide – The Silent Killer ...............................................
3. Where to place CO Alarms ..................................................................
4. Installation ...............................................................................................
5. Testing / Monitoring & Maintenance ..............................................
6. What to do when the alarm sounds ................................................
7. How to Protect your Family ...............................................................
8. Technical Specification ........................................................................
9. Getting the CO Alarm Serviced ........................................................
10. Guarantees ..............................................................................................
11. Limitations of CO Alarms ...................................................................
12. Troubleshooting ....................................................................................
13. Display & Indicator Summary ..........................................................
14. Contact Us ..............................................................................................
Table of Contents
4
5
9
14
16
20
21
23
24
24
25
27
29
32
page

1. Read This First
• Congratulations on becoming the owner of an Ei Carbon Monoxide Alarm. This
will help protect you and your household from the dangerous effects of Carbon
Monoxide- the silent killer.
• The Carbon Monoxide Alarm (CO Alarm) is powered up by carefully rotating it onto
the mounting plate which activates the on/off switch. The indicator lights will
immediately flash in sequence to show they are working. (For the Display models, the
LCD screen will display all icons). Then wait 15 seconds after connecting the power
before button testing.
• Install a CO Alarm in every room that contains a fuel burning appliance, particularly
rooms where people spend a lot of time e.g. bedrooms, kitchens and sitting rooms.
• In rooms with an appliance, install (preferably) on the ceiling, (300mm from walls)
and between 1m to 3m horizontally from appliance. In rooms remote from the
appliance install at ‘head height’, where the light indicators can be seen.
• Test the Alarm weekly by pressing the test button, and check that the alarm sounds.
• Replace Alarm when the “REPLACE UNIT BY” date has been reached. Check the label
on the side of the alarm.
• Do not fit Alarm until all building work is completed to avoid contamination.
4

2. Carbon Monoxide – The Silent Killer
2.1 What is Carbon Monoxide ?
Many people are killed each year, and many more suffer ill health from Carbon
Monoxide (CO) poisoning. CO is an invisible, odourless, tasteless and extremely toxic
gas. It is produced by appliances and vehicles burning fuels, such as coal, oil, natural/
bottled gas, paraffin, wood, petrol, diesel, charcoal etc. CO is absorbed by red blood
cells in the lungs in preference to oxygen - this results in rapid damage to the heart
and brain from oxygen starvation.
High levels of CO in a house can be caused by:
• Incorrectly or poorly installed fuel-burning appliances.
• Blocked or cracked chimneys/flues.
• Blocked vents or draught-proofing which makes areas with fuel burning
appliances or fireplaces airtight.
• Engines of cars, lawnmowers etc. left running in confined spaces.
• Portable paraffin or gas heaters in badly ventilated rooms.
2.2 What happens when your CO Alarm detects Carbon Monoxide ?
When the Alarm detects potentially dangerous levels of CO, it flashes the red alarm
light immediately and then sounds a loud alarm if the CO persists. Table B below shows
how the CO Alarm reacts to different levels of CO gas and exposure time. At higher
levels of CO the alarm turns on sooner. The rate of flashing of the red light indicates
the level of CO. If your CO Alarm sounds follow the instructions on page 21. NEVER
IGNORE THE ALARM ! 5

2.3 Symptoms of Carbon Monoxide Poisoning
Table A
35 The maximum allowable concentration for continuous exposure in any
8 hour period according to OSHA *.
150 Slight headache after 1.5 hours.
200 Slight headache, fatigue, dizziness, nausea after 2-3 hours.
400 Frontal headaches within 1-2 hours, life threatening after 3 hours, also maximum
parts per million in flue gas (on an air free basis) according to US Environmental
Protection Agency.
800 Dizziness, nausea and convulsions within 45 minutes. Unconsciousness within
2 hours. Death within 2-3 hours.
1,600 Headache, dizziness and nausea within 20 minutes. Death within 1 hour.
3,200 Headache, dizziness and nausea within 5-10 minutes. Death within 25-30 minutes.
6,400 Headache, dizziness and nausea within 1-2 minutes. Death within 10-15 minutes.
12,800 Death within 1-3 minutes.
ppm
Concentration
of CO in Air Inhalation Time (approx) and Symptoms Developed
ppm = parts per million
*OSHA Occupational Safety & Health Association
6

7
Red Light Display Icon Sounder
(before horn sounds)(Pre Alarm) (Alarm)
Display Icon
(after horn sounds)
CO Gas Level
0 < ppm < 10 ppm
* unless it has alarmed previously (see CO Alarm Memory below)
ppm values shown in table are for example purposes only
Off* Blank Blank Off
10 < ppm < 30 ppm
Off* Off
Off
Off*
PPM level
PPM level (flash)
on - 4 seconds,
off - 12 seconds
PPM level (flash)
on - 4 seconds,
off - 12 seconds
PPM level
on within 60-90 mins
(typ 72 mins)
on within 10-40 mins
(typ 18 mins)
2 flashes
every 2 secs
on within 2 mins
(typ 40 secs)
4 flashes
every 2 secs
1 flash
every 2 secs
30 < ppm < 43 ppm
43 < ppm < 80 ppm
80 < ppm < 150 ppm
> 150 ppm
Table B: CO Alarm Response

8
Pre-Alarm: When the Alarm detects over 43 ppm CO the red light flashes in accordance
with Table B. This helps locate CO leaks as the unit gives an indication straight away.
(Without this feature the CO level would need to be at 43 ppm CO for typically 72
minutes for an alarm sound to be given). Note the Pre-Alarm signal may be triggered
by CO coming for example, from cooking with gas, from car engines or from nearby
barbecues. This is usually not a concern, unless the Pre-Alarm signal persists until the
alarm sounds and the CO source is unknown.
The display models will display CO concentrations greater than 10ppm in accordance
with Table B.
NOTE: The CO Alarm may sound if cigarette smoke is blown into it, or aerosols are
released nearby.
CO ALARM MEMORY
The CO Alarm memory is an important feature of the CO Alarm where even if the house
is unoccupied during an alarm condition it warns the homeowner that the unit has
previously detected CO gas and been in alarm. The memory feature has two operation
modes:
- memory indication for 24 hour period after alarm.
- memory recall on demand
24 hour memory indicators: After alarm, the RED light will flash at different rates
every minute (approx) depending on the level of CO detected - see Table C.
Memory recall on demand: To review the memory status after initial 24 hours, press
and hold the test button, the red led will flash in accordance to Table C. Display models
will show the peak level of CO measured.

Reset Memory: Hold down the test button until the red light stops and the green
light starts flashing. Cover the horn with a cloth to muffle the alarm during this time.
Please note that the memory will also be reset when the unit is switched off.
3. Where to place CO Alarms
3.1 Ideally a Carbon Monoxide Alarm should be installed in:
- Every room containing a fuel burning appliance, and
- Remote rooms where occupants spend a considerable amount of time
- Every bedroom.
However if the number of Carbon Monoxide Alarms to be fitted is limited, the
following points should be considered when deciding where best to fit the alarm(s)
- If there is an appliance in a room where people sleep, place a CO Alarm in
this room
- Locate a CO alarm in a room containing a flueless or open-flued appliance, and
- Locate an alarm in a room where the occupant(s) spend most of their time (e.g.
sitting room)
Table C: CO Alarm Memory Indicators
CO Gas Level
ppm > 43 ppm
2 flashes every minute (approx)
ppm > 80 ppm
4 flashes every minute (approx)
ppm > 150 ppm
8 flashes every minute (approx)
Red Light Response
24 Hours On Demand (Button Press)
2 flashes
4 flashes
8 flashes
9

- In a bedsit, the CO alarm should be placed as far away from the cooking appliance
as possible, but near to where the person sleeps
- If the appliance is in a room not normally used, such as a boiler room, the CO alarm
should be placed just outside the room so that the alarm will be heard more easily.
3.2 Unsuitable Locations
Do not place the CO Alarm in any of the following areas.
(1) In the immediate vicinity of a cooking appliance (keep it at least 1 metre
horizontally from it).
(2) Outside the building.
(3) In an enclosed space (e.g. in or below a cupboard).
(4) In a damp or humid area.
(5) Directly above a sink or cooker.
(6) Next to a door, window, air vent or anywhere that it would be affected by
draughts.
(7) Next to an extractor fan.
(8) Over heat sources such as radiators or hot air vents.
(9) Where it would be obstructed, e.g. by curtains or furniture.
(10) In an area where the temperature could drop below -10°C or rise above 40°C.
(11) Where dirt or dust could block the sensor.
(12) Where it could be easily knocked or damaged, or where it could be accidentally
turned off or removed.
10

(13) In a bathroom or other areas where the CO alarm may be exposed to
water splashes, dripping or condensation (e.g. above an electric kettle).
(14) Near paint, thinners, solvent fumes or air fresheners.
3.31 If locating the CO alarm in a room with a fuel burning appliance
(see figure 1)
• If it is mounted on a wall, it should be located at a height greater than the height of
any door or window but still be at least 150mm from the ceiling.
• If it is mounted on the ceiling it should be at least 300mm from any wall or light
fitting.
• The CO alarm should be a horizontal distance of between 1m and 3m from the
potential CO source.
• If there is a partition in the room, the CO alarm should be located on the same side
of the partition as the potential source.
• In rooms with sloped ceilings, the CO alarm should be located at the high side of
the room (see fig 2).
3.32 If locating the CO alarm in a bedroom or in rooms remote from a fuel
burning appliance (see figure3)
• Mount the CO alarm relatively close to the breathing zone of the occupants.
Whatever position is chosen make sure it is possible to view the three light indicators,
when in the vicinity of the alarm.
WARNING: Do not use the CO Alarm on an intermittent basis, or as a portable detector
for the leakage of combustion products from fuel burning appliances or chimneys.
11

12
300mm
150mm
1 to 3 m
1 to 3 m
DEAD AIR
DON'T LOCATE
HERE
CO Alarm
Figure 1
Location in room with a fuel burning appliance

13

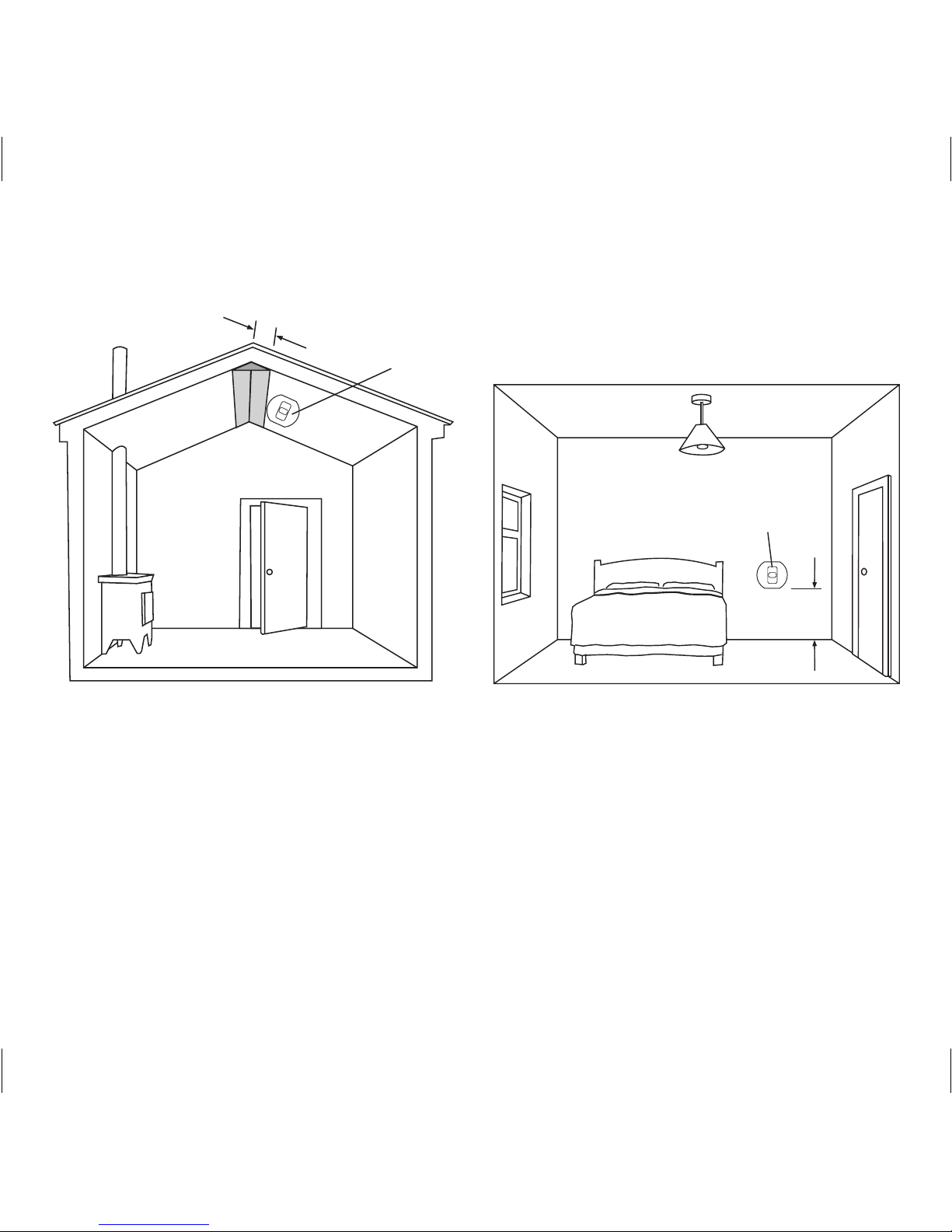

CO Alarm
about
1 to 2m
Figure 3
Location in bedrooms & other rooms
remote from the appliance
(i.e. at breathing level)
300mm
CO Alarm
Figure 2
Location in rooms with sloped ceilings,
the CO alarm should be located at the
high side of the room

4. Installation
Warning: The Installations of this apparatus should not be used for a subsitute
for proper installation, use and maintenance of fuel buring appliances including
appropriate ventilation and exhaust systems.
4.1 Installation Procedure
1. Select a location complying with the advice in
‘Where to place CO Alarms’ section.
2. Remove the mounting plate from the packaging/
Alarm.
3. Place the mounting plate on the ceiling/wall
exactly where you want to mount the Alarm. With
a pencil, mark the location of the two screw holes.
4. Taking care to avoid any electrical wiring in the
ceiling, drill holes using a 5.0mm drill bit through
the centre of the marked locations. Push the plastic
screw anchors provided into the drilled holes. Screw
the mounting plate to the ceiling/wall.
5. Alternatively, if desired, the CO Alarm will also
free stand on a flat surface with the mounting plate
attached.
6. If using the RadioLINK interconnection, ensure the RF module is fitted correctly into
the base of the Alarm. For further advice on the RadioLINK installation, see booklet
“RadioLINK Module for Battery Powered Carbon Monoxide Alarms”.
14
Figure 4

7. Carefully line up the Alarm on the base, gentle
press home & twist on – see figure 4. (This connects
the batteries). The red, amber & green lights will
immediately flash in sequence to show they are
working. In addition, the icons on the LCD display
on the Display models will also light up.
8. Press the Test button (after 15 seconds) to ensure
that the Alarm works (see figure 5).
9. Install all the other Alarms similarly.

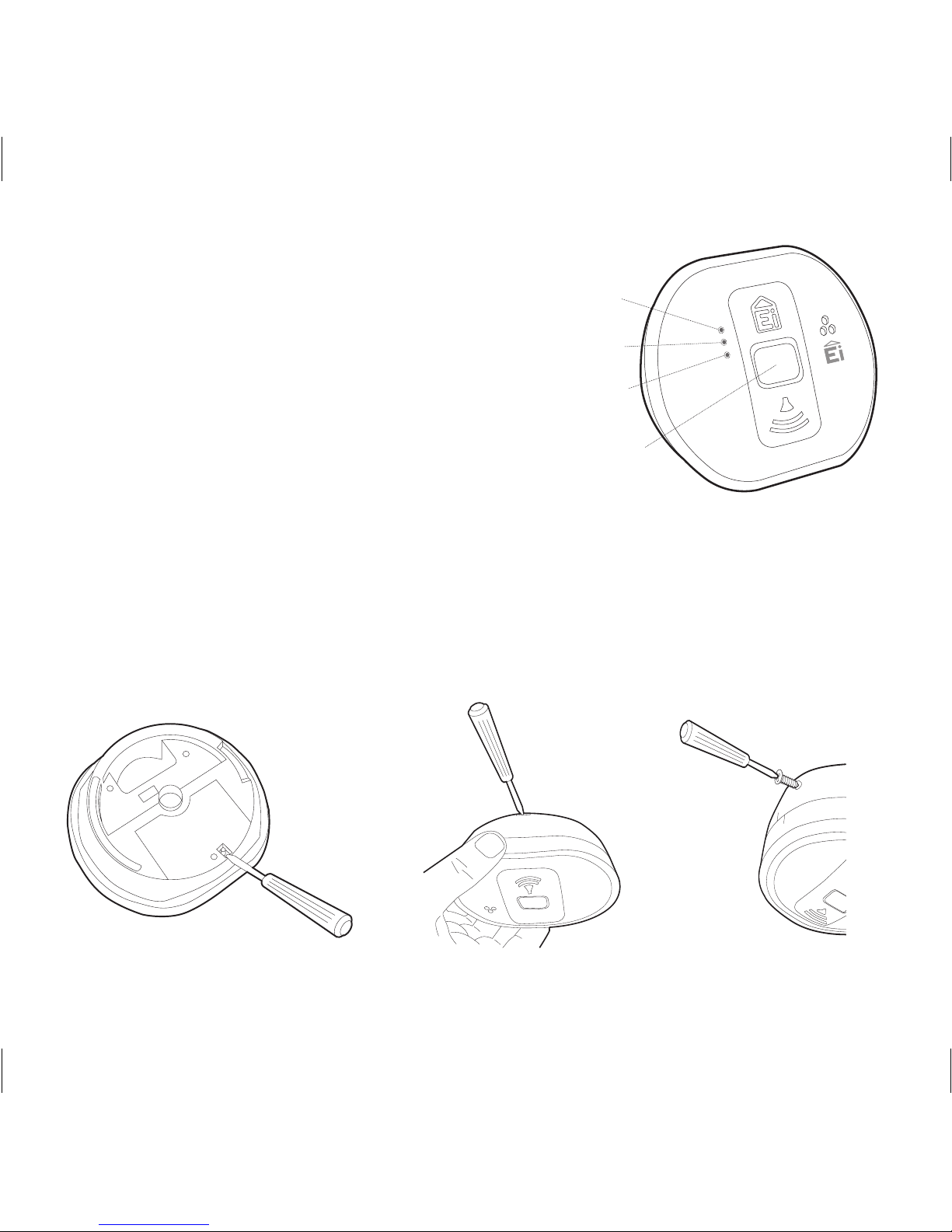

4.2 How to Tamperproof the Alarm
The Alarm can be made resistant to unauthorised removal. Break off the small pillar
on the base as shown in figure 6a. To remove the Alarm from the ceiling it is now
necessary to use a small screwdriver, to release the catch (push catch towards the
ceiling) and then twist off the Alarm (see figure 6b).
CARBON
MONOXIDE
ALARM
ALARM
FAULT
POWER
Red
Light
Amber
Light
Green
Light
Test
Button
Figure 5
15
Figure 6a Figure 6b Figure 7

If necessary it is possible to further secure or tamperproof the Alarm by using a No.2
or No.4 (2 to 3mm diameter - not supplied) self tapping screw 6 to 8mm long to firmly
lock the Alarm and its mounting plate together (see figure 7).
5. Testing / Monitoring & Maintenance
Testing
Frequent testing of the system is a requirement to ensure its continued and safe
operation. To test the alarm press the hold the test button.
The Green LED will flash and the horn will sound to indicate the alarm is operating
correctly.
Guidelines and best practices for testing are as follows
1. After the system is installed
2. Once weekly thereafter
3. After prolonged absence from the dwelling (.e.g. after holiday period)
4. After repair or servicing of any of the systems elements or household electrical
works.
Silencing (Hush)
When the Alarm sounds, after sensing CO, pressing the test/hush button will
immediately stop the horn (the red light will continue to flash). If CO is still present the
red light and the horn will turn on again after about 4 minutes. The unit can only be
silenced once during a CO incident. At levels > 150ppm CO the unit cannot be silenced.
16

Monitoring
The Ei207 / 208 series CO alarm will self check (monitor) itself and give a status update
every minute (approx) if there are any problems.
The status of the alarm can also be checked on demand by using the test button. The
table below shows the status response to both the self check and on demand testing.
If the alarms are indicating a fault, pressing the test button will silence the beeps for a
24 hour period. This is for your conveinence and can only be done once.
Maintenance
Clean the outside case by occasionally wiping with a clean damp cloth. Do not use any
cleaning agents, bleaches, detergents or polishes, including those in aerosol cans. Avoid
spraying air fresheners, hair spray, paint or other aerosols near the CO Alarm. Do not
place air fresheners near the unit.
Standby No visual or audible indication if unit is OK
Status Result
Unit OK ( Button Test) OffOff On On
Low Battery Off1Flash 1 Beep See NoteOff
Sensor Fault Off2Flashes 2 Beeps Replace UnitOff
Monitoring Summary
Red LED
(Alarm) (Fault) (Power)
Amber LED Green LED Sounder LCD Display Action
End of Life (EOL) Off3Flashes 3 Beeps Replace UnitOff
Note*- For model Ei207 alarms replace the batteries - For model Ei208 alarms check the replace by date on the side of the alarm
17

Use the narrow nozzle of a vacuum cleaner to remove fluff and other contamination
from the cover slots and gas entry holes.
Caution: Do not paint the CO Alarm.
Remove the CO Alarm when decorating. Do not allow water or dust to contaminate
the Alarm.
Warning: Do not open or tamper with the CO Alarm. There are no user serviceable
parts inside and this can damage the Alarm.
Battery Replacement (For Ei207 Models Only)
Check the ‘Replace by’ label on the side wall - if it
has been exceeded replace the entire unit. If the
Replace by’ label on the side wall has not been
exceeded, remove the Alarm from the mounting
plate, remove the battery cover (see figure 8)
and replace the batteries. Use only the following
Alkaline AAA size batteries: Duracell, Panasonic,
or Energizer.
Insert the new batteries with the orientation shown
on the base. Replace the battery cover and replace
the Alarm back on its mounting plate (this action
automatically switches on the batteries). Button
test the Alarm (after 15 seconds) to check the
batteries are installed correctly and that they are
not depleted.
18
Figure 8

(For Ei208 Models Only) These alarms uses powered for life lithium batteries and are
not replaceable. Check the ‘Replace by’ label on the side wall - if it has been exceeded
replace the entire unit. If the ‘Replace by’ date has not been exceeded, then the Alarm
maybe faulty and needs to be returned to the manufacturer – (See ‘Getting the CO
Alarm Serviced’ section.
For environmentally sound disposal, remove the Alarm from its mounting plate
(for Ei207 models, open the battery door and remove the batteries) and dispose in
accordance with best practice and guidance on WEEE disposal and recycling.
Quick Test with Carbon Monoxide
The Carbon Monoxide Alarm checks for CO gas every
4 seconds and when exposed to the CO gas, the red
light will flash (as per Table B) to confirm that it is
detecting the CO gas.
The Alarm can be tested with carbon monoxide gas
by using one of the kits that comes with the gas
either in a glass phial or aerosol can. Follow the
instructions on the kit.
If a test gas kit is not readily available it is also
possible to gas test the Alarm using a joss stick

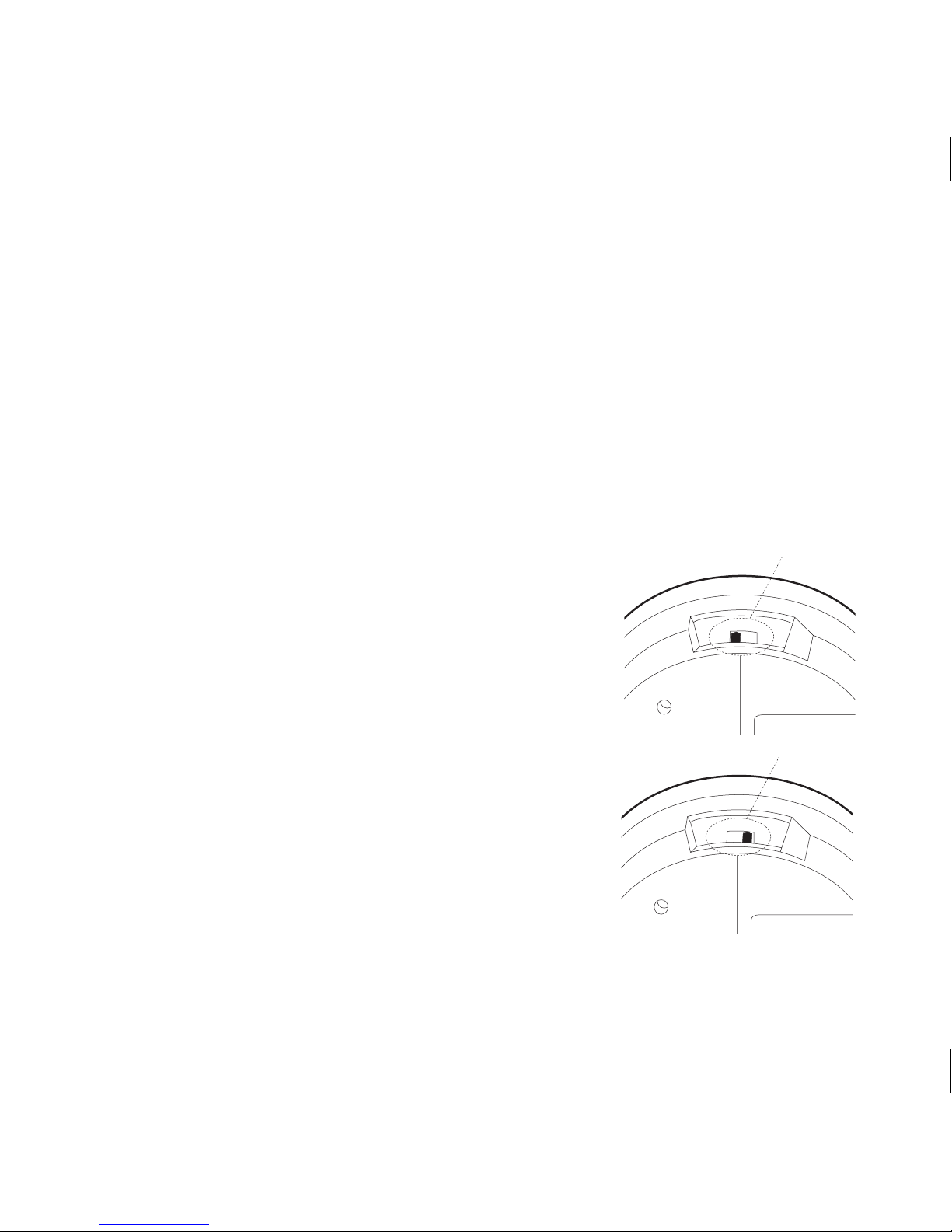

or cigarette smoke. To do this remove the Alarm
from its base and slide the power switch to the ON
position (See fig 9). Fill a suitable size plastic bag
with smoke from the joss stick or cigarette. Insert
OFF
Position
ON
Position
Figure 9
19

the Alarm into the smoke filled bag and seal it closed. Within seconds, the red light will
begin to flash (as per Table B) to confirm that the Alarm has detected the CO gas in the
bag.
To check the Alarm sound, momentarily press the test button and within seconds the
horn will sound briefly. Slide the power switch to the OFF position and replace the Alarm
on its mounting plate.
6. What to do when the alarm sounds
(1) Open the doors and windows to ventilate the area (see note).
(2) Turn off all fuel appliances where possible and stop using them. (The Alarm can be
silenced immediately by pushing the test/hush button).
(3) Evacuate the property leaving the doors and windows open.
(4) Get medical help immediately for anyone suffering the effects of Carbon Monoxide
poisoning (headache, nausea), and advise that Carbon Monoxide poisoning is
suspected.
(5) Ring your gas or other fuel supplier on their emergency number. Keep the number
in a prominent place.
(6) Do not re-enter the property until the alarm has stopped. (If the alarm has been
silenced by pressing the test/hush button, wait at least 5 minutes so the Alarm can
check that the CO has cleared).
(7) Do not use the fuel appliances again until they have been checked by a registered
installer or equivalent expert.
20
