Eight Stations BH-100 User manual

OWNER’S MANUAL
CAUTION: Read all precautions and instructions before using
this equipment. Save this manual for future reference.
EIGHT STATIONS
Model # : BH-100

01
CONTENTS
Model-Serial.No:XXXXX-XXXXXXXXXX-XXX
Original purchase date
Information about the place and conditions of use the product
Precise description of the issue/defect
02 General warnings and maintenance advice
51-30 Assembly Instructions
Explained as a series of steps,with each step containing:
Pictures and descriptions of the parts required
Notes
Diagram showing how the parts fit together
tsiLtraP91-61
CUSTOMER SUPPORT
Should you require any assistance regarding this product please contact us
using the details on the opposite page and have the following information to
hand:
Serial/batch number-found on the following sticker,located on the metal frame
●
●
●
●
●
●
●

Assembly Instructions
02
This exercise equipment is built for optimum safety. Be sure to read the entire
manual before you assemble or operate your equipment. Please note the
following safety precautions:
1. Keep children and pets away from the equipment at all times. Do not leave
children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms STOP the workout at once CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the equipment on a clear, level surface. DO NOT use the equipment
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the equipment.
7. Use the equipment only for its intended use as described in this manual.
DO NOT use attachments not recommended by the manufacturer.
8. Before using the equipment, always do stretching exercises to properly
warm up.
9. Never operate the equipment if the equipment is not functioning properly.
Before Your Begin

03
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●
STEP 1
1
15
44
45
N10
W10
W6
H10-5
CH6-4

04
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●

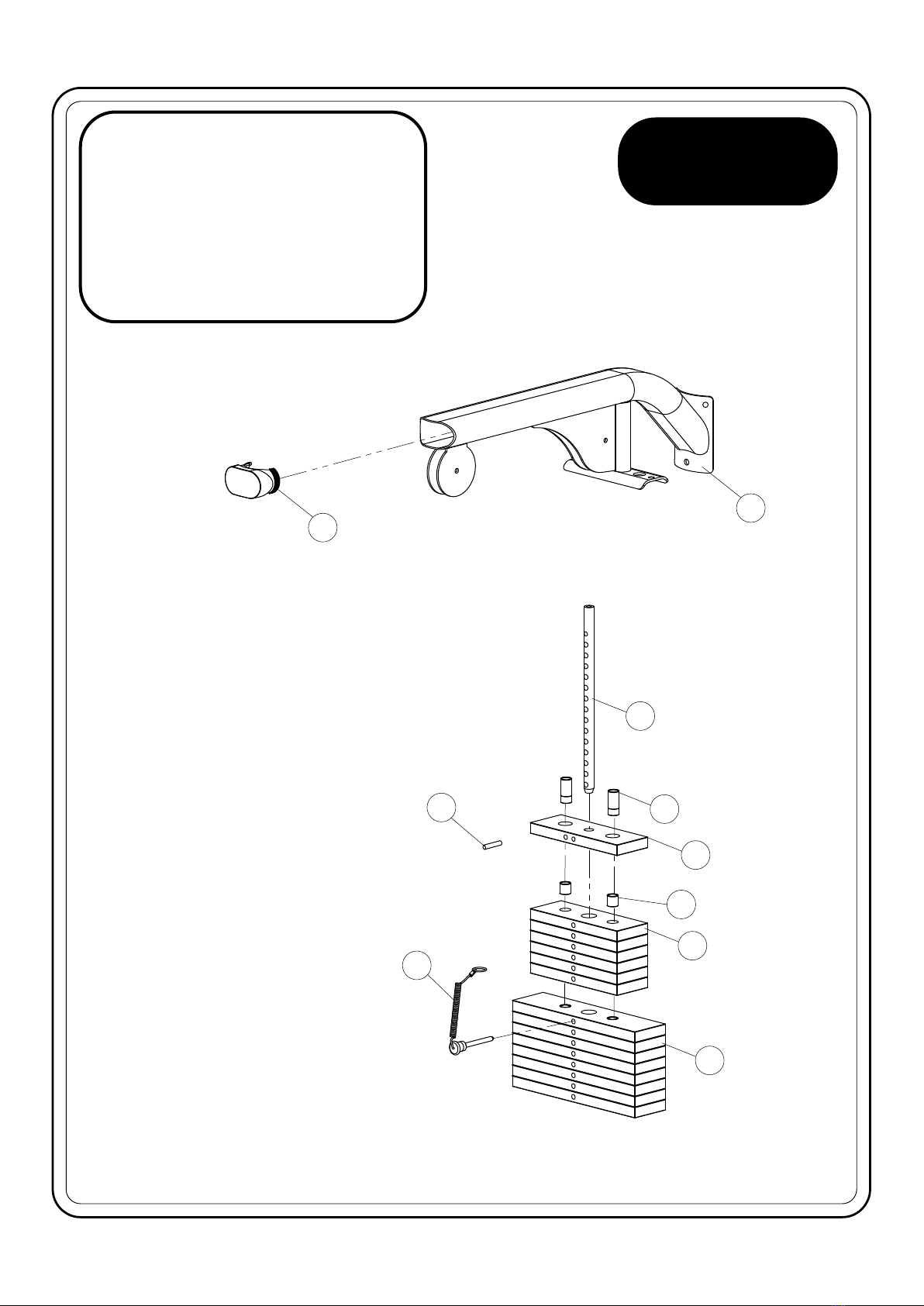

STEP 2
72
47
23
73
26
46
24 x6
21 x8
4
50

05
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●
STEP 3
●
NOTE:
In this step ,all the washers
and nuts which are not marked
are W10 and N10.
SC10-10
SC10-10
S8-10
SC10-5
SC10-5
43
25
31
32
41
42
48
48

06
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●

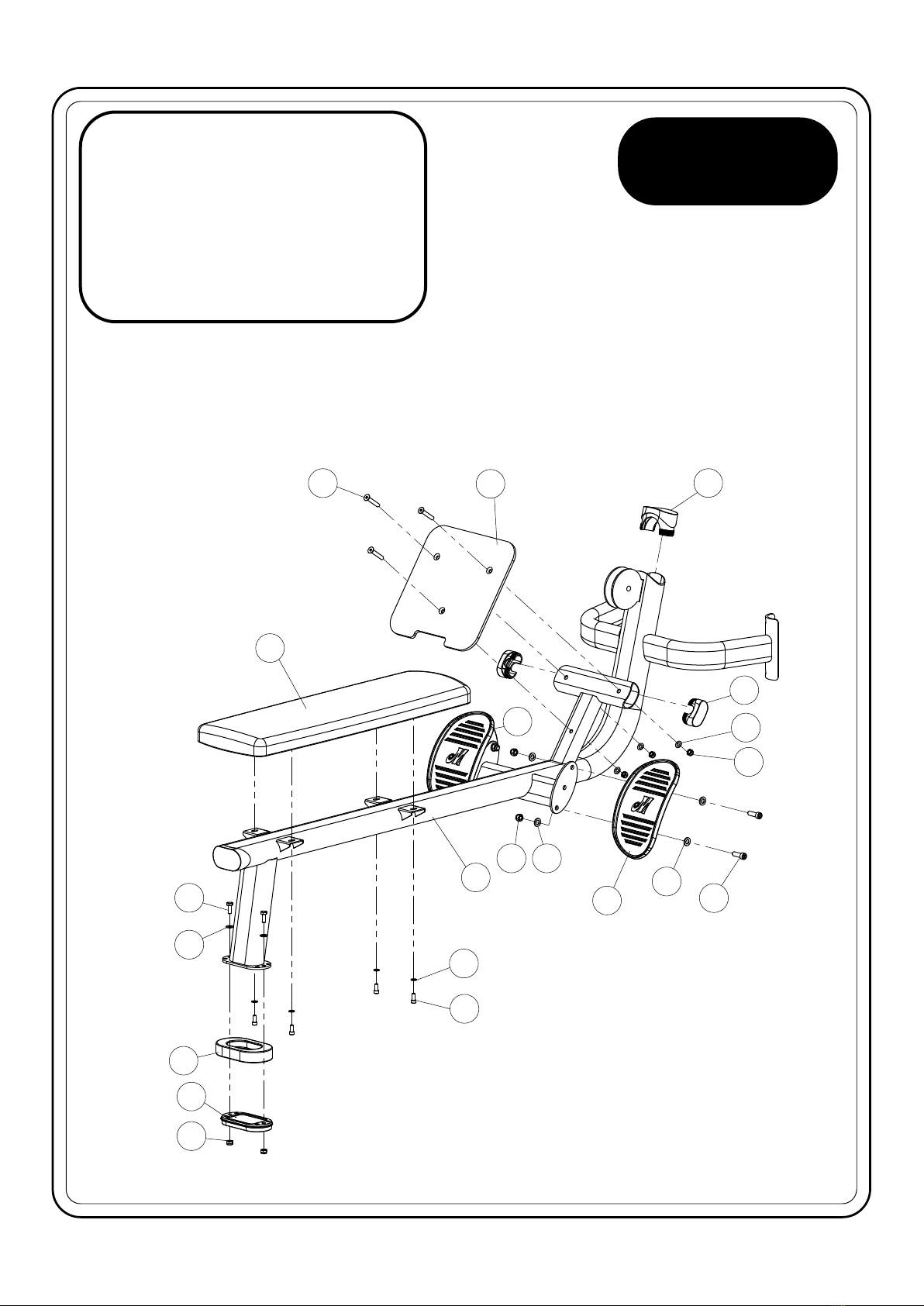

STEP 4
SC8-4
SC10-20
S6-3
N10
N10
N10
W10
W10
W10
W10
W8
SC10-12
SC8-4
H10-5
52
53
50
61
56
26
73
23
21 x6
47
72
46
22 x8
55
54
27
28 63
53 6
45
44
5
50
62
57 30
14

07
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●

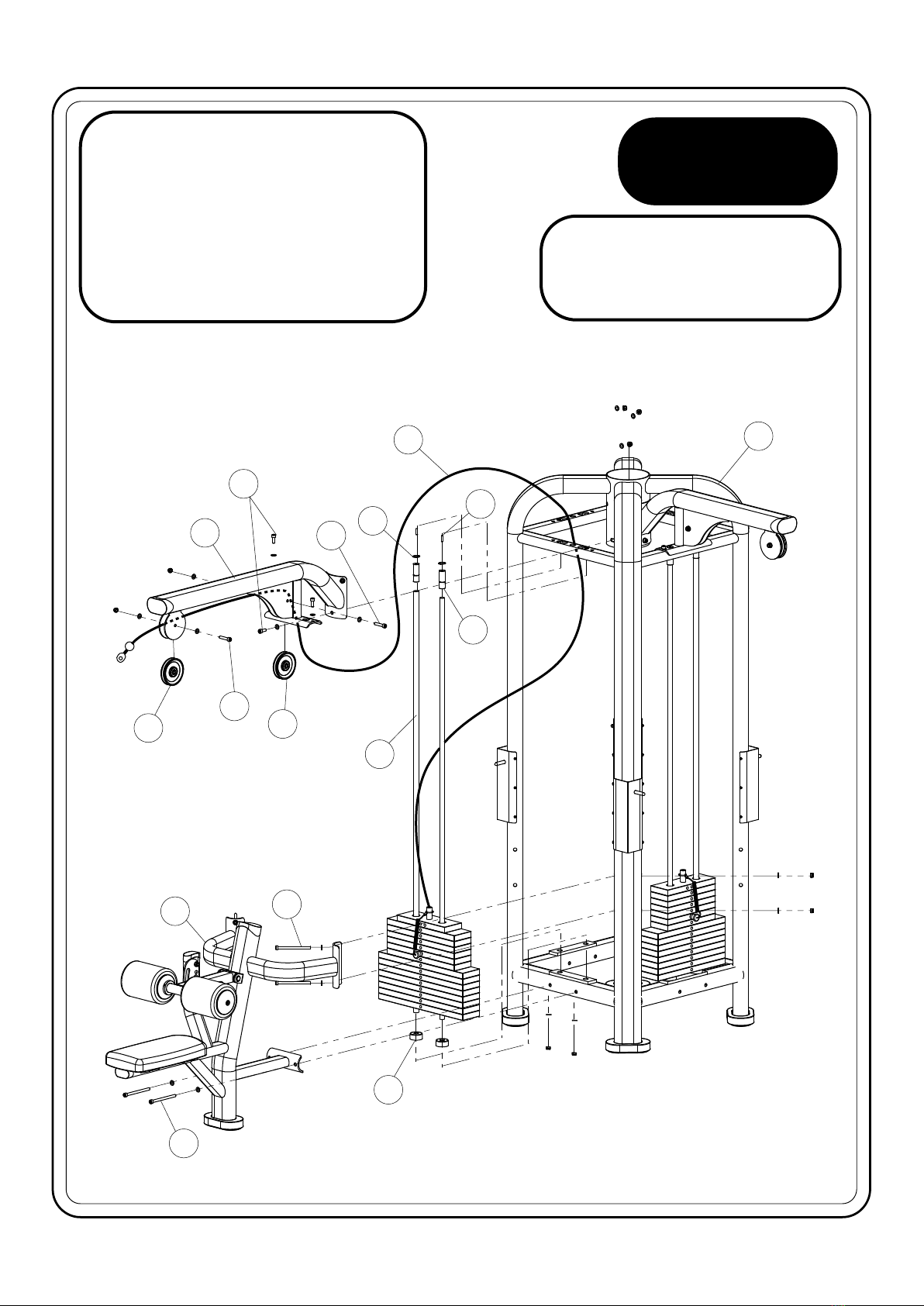

STEP 5
●
NOTE:
In this step ,all the washers
and nuts which are not marked
are W10 and N10.
SC10-10
S8-10
SC10-10
SC10-28
SC10-28
SC10-5
48 48
25
1
31
42
5
33
43
6

08
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●
STEP 6
72
26
74
58
75
75
75
75
38
37
36
11
10
41
58
58
39
60
59
58 40
73
23
46
24 x6
21 x8
47
●
NOTE:
In this step ,all the washers
and nuts which are not marked
are W10 and N10.
W4 CH4-5 SC10-20
SC10-22
A10-4

09
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●
STEP 7
●
NOTE:
In this step ,all the washers
and nuts which are not marked
are W10 and N10.
SC10-10
SC10-30
SC10-14
SC10-22
SC10-22
SC10-30
SC10-11
SC10-10
SC10-10
SC10-11
2
16
43
48
48 13
48
34
9
64
49
48
48
25
31
42
12
16
53
1
SC10-5
64
S8-10
82

10
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●
STEP 8
3
50
26
74
23
21
21 x6
72
46
22 x8
47

11
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●
STEP 9
C10-12
N10
N10
W10
W10
W8
N12 W12
W12
SC12-7
SC8-4
H10-5
7
19
20
18
51
44
45
50
53

12
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●
STEP 10
48
7
48
25
31
42
1
43
3
35 66
66
SC10-10
SC10-10
S8-10
S4-5
SC10-5
SC10-28
●
NOTE:
In this step ,all the washers
and nuts which are not marked
are W10 and N10.
S4-5
There are 2 screws(S4-5) in the main frame(1)
to lock the end cap(66).

13
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●

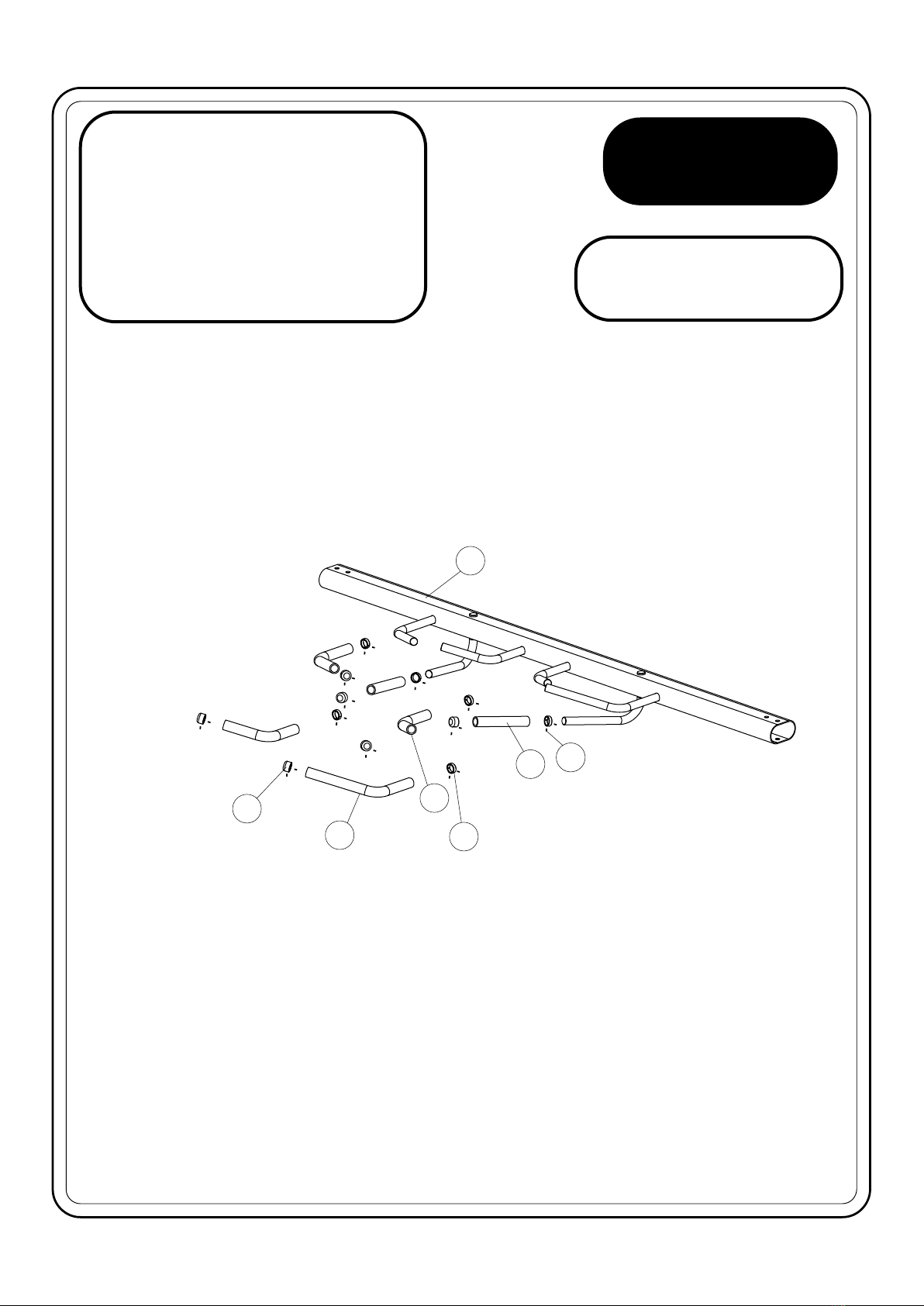

STEP 11
8
S4-1
69
67
68
70
71
●
NOTE:
This step is Pre-Assembly.

14
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●

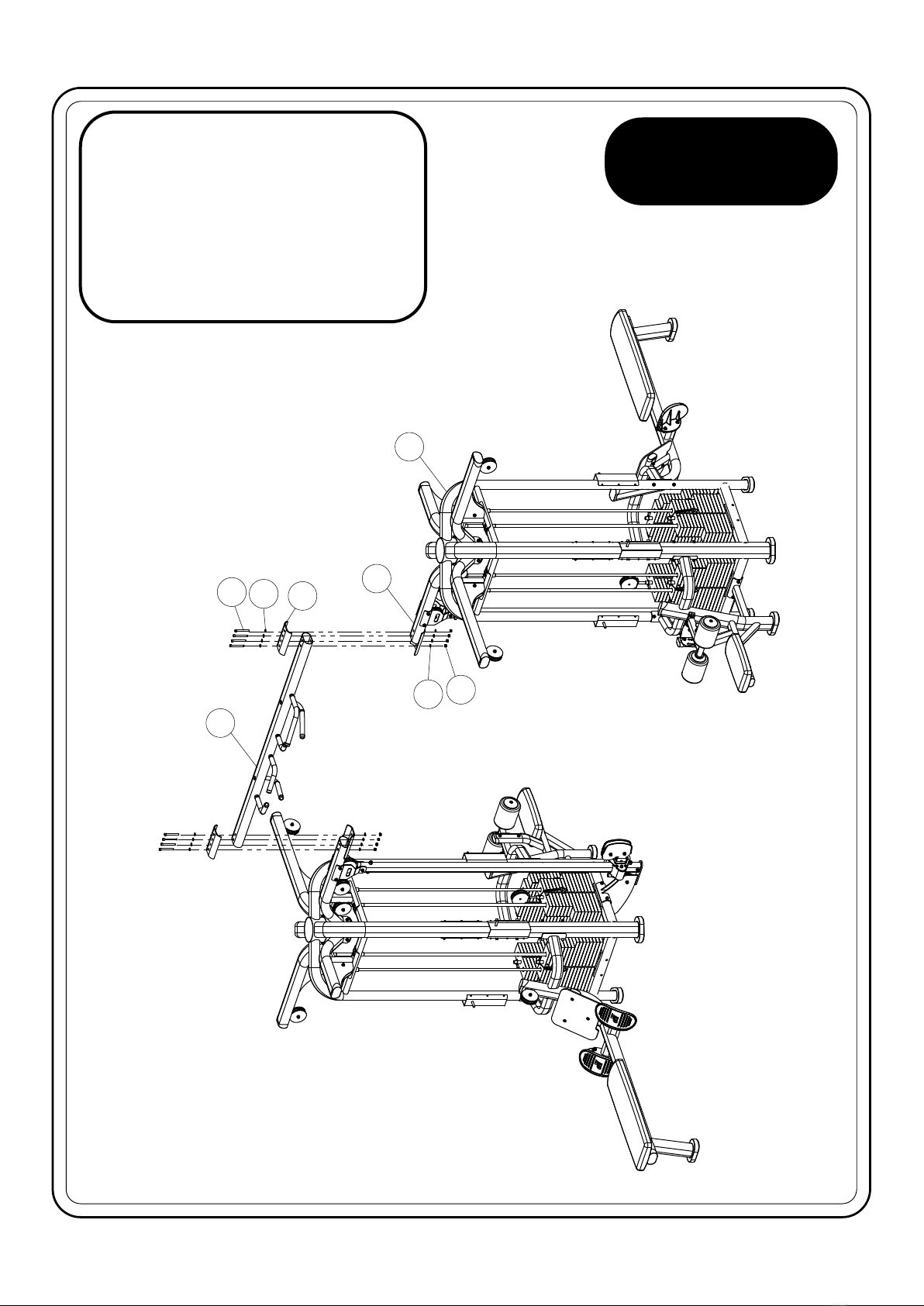

STEP 12
SC10-19
N10
W10
W10
8
1
2
17

15
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
T
ighten all the bolts/nuts.
●
●
●
STEP 13
76
77
78 79
80
81

16
PARTS LIST
Part# Description Qty
1 Main Frame 2
2 Top Frame 1 2
3 Top Frame 2 2
4 Top Frame 3 2
5 Top Frame 4 2
6 Lat Pulldown Assembly 2
7 ROW 2
8 Linking Tube 1
9 Adjuster Post 2
10 Swivel Pulley Carriage 2
11 Adjuster Lever Assembly 2
12 Pulley Bracket 2
13 Adjuster Post Base 2
14 Press Leg Tube Assembly 2
15 Lable Placard 8
16 Tube Top 4
17 Linking Plate 2
18 Left Footplate 2
19 Right Footplate 2
20 Footplate 2
21 15lbs Weight Stack 56
22 20lbs Weight Stack 32
23 10lbs Weight Stack Head 8
24 10lbs Weight Stack 24
25 Guide Post 16
26 Selecter Bar 8
27 Adjuster Plate 2
28 Shaft D19x111 2
29 Heavy Flanged Sleeve 4
30 Bushing 4

17
PARTS LIST
Part# Description Qty
31 Guide Post Bushing 16
32 Cable 1 L2420mm 2
33 Cable 2 L2780mm 2
34 Cable 3 L8165mm 2
35 Cable 4 L3325mm 2
36 Adjuster knob 2
37 Adjuster knob Cap 2
38 Lock Washer 2
39 Carriage Shround 2
40 Shaft D17x90.5 6
41 Shaft D17x76 2
42 Retaining rings D25 16
43 Shock Rubber Gasket 16
44 Rubber Foot 12
45 Footcover 12
46 Weight Stack Bushing 224
47 Weight Stack Pin 8
48 Pulley D114 26
49 Pulley D89 2
50 End Cap 114x65 12
51 Long Seat Pad 2
52 Short Seat Pad 2
53 End Cap 40x80 10
54 Ring 4
55 Inside End Cap 4
56 Outside End Cap 4
57 Pull Pin Assembly 2
58 Bearing 6203 16
59 shaft D19x117.5 2
60 Spring 2

18
PARTS LIST
Part# Description Qty
61 Foam roller 4
62 Bushing D10 2
63 Retaining rings D19 4
64 Plastic Stoper 8
65 Retaining rings D35 16
66 End Cap D180 4
67 Handle End Cap 6
68 Handle Ring 6
69 Grip 384 2
70 Grip 195 2
71 Grip 170 2
72 Spring Pin 8
73 Weight Stack Head Bushing 16
74 Slide Bushing 6
75 E Washer 16
76 V Lat Bar 2
77 Long Lat Bar 1
78 Short Lat Bar 1
79 Single Handle 2
80 Ankle Strap 2
81 Triceps Rope 2
82 Arc Plate 2
A10-4 Allen Bolt M10x20 2
H10-5 Hex Head Bolt M10x25 24
S4-1 Socket Set Screw M4x3 28
S4-5 Socket Set Screw M4x10 4
S6-3 Socket Set Screw M6x8 8
S8-10 Socket Set Screw M8x50 16
C10-12 Countersunk Head Screw M10x60 6
CH4-5 Cross Recessed Pan Head Screw M4x10 8

19
PARTS LIST
Part# Description Qty
SC8-4 Socket Cap Screw M8x20 20
SC10-5 Socket Cap Screw M10x25 40
SC10-10 Socket Cap Screw M10x50 24
SC10-11 Socket Cap Screw M10x55 6
SC10-12 Socket Cap Screw M10x60 4
SC10-14 Socket Cap Screw M10x70 2
SC10-19 Socket Cap Screw M10x95 8
SC10-20 Socket Cap Screw M10x100 4
SC10-22 Socket Cap Screw M10x110 10
SC10-28 Socket Cap Screw M10x140 20
SC10-30 Socket Cap Screw M10x150 8
SC12-7 Socket Cap Screw M12x35 8
W4 Washer φ4 8
W6 Washer φ6 48
W8 Washer φ8 20
W10 Washer φ10 280
W12 Washer φ12 16
N10 Nylon Nut M10 156
N12 Nylon Nut M12 8
S4-1 Socket Set Screw M4x3 28
