Stairmaster 4100PT User manual

The Results You Want
StairMaster 4100PT
Owner’s Manual
StairMaster
Division of Nautilus Health & Fitness
10757 E. Ute St.
Tulsa, OK 74116
800-331-3578
www.StairMaster.com
Manual Part # 25679A

- 2 -
STAIRMASTER HOME STEPPER
OWNER’S MANUAL
♦Table of Contents……………………………………………………………………… 2
♦Introduction Letter…………………………………………………………………… 3
♦Safety Requirements………………………………………………………………… 4,5
♦Machine Placement
•Right Hand vs. Left Hand..……………………………………………….. 6
•Moving Machine…………………………………………………………………. 7
•Leveling………………………………………………………………………………
7
♦Assembly Instructions
•Tool List……………………………………………………………………………..
8
•Hardware List………………………………………………………………….... 8
•Parts List…………………………………………………………………………....
8,9,10
•Assembly Instructions …………………………………….…………….... 11-18
♦Exercise Guidelines
•Achieving Fitness Goals…………………………………….………….... 19
•Intensity
–Target Heart Rate……………………….……………………….…….... 20
–Perceived Exertion…………………………………….………………... 21
–Talk Test……………………………………………………….……………....21
♦Console Layout…………………………………………………………….…………....
22,23
♦Operating Instructions
•Program Profiles/Description……………………..….………….... 24-26
•Detail Program Description
–Quick Start…………………………..….………….……………………….. 27
–Manual…………………………..….………………….………………………..
27
–Fat Burner………..…………………..….………….………………………..
27
–Fat Burner Plus…………………………….…….……………………….. 27
–Speed Interval…………………………..….….….……………………….. 27,28
–Constant HR……………….………..….………….……………………….. 28
–Interval Constant HR………………………...……………………….. 28,29
♦Preventive Maintenance
•Cleaning………………………………..…..….………….………………………..
30
•After each use…………………………..….………….……………………….. 30
•3 month/70 hrs………………………...….………….……………………….. 30
•1 year/300 hrs…..……………………..….………….………………………..30,31

- 3 -
♦Glossary…………………………..….…………………………….………………………..
32
♦Warranty/Customer Service Contacts.………..….………..…………..33

- 4 -
Dear Customer,
Congratulations! You have chosen one of the finest home exercise products in the world, from one of the
most recognized names in the fitness industry. The StairMaster 4100 PT exercise system provides a
clinically proven superior cardiovascular and complete lower body workout. The 4100 PT exercise
system is effective because the exclusive, patented independent step movement dynamically engages
every primary lower body muscle groups. You will feel the difference from the first workout.
Stepping has long been considered one of the best exercise options available. In as little as 20 minutes a
day, the low impact, biomechanically correct StairMaster Stepper will quickly help you meet your fitness
goals. Pounds will disappear, endurance will increase and your ability to manage stress will be
tremendously enhanced. The clinically proven health benefits from the StairMaster Stepper include:
1. Helps lose weight and keep it off
2. Conditions heart, lungs, and muscles
3. Strengthens and firms buttocks and thighs
4. Develops stronger, healthier bones
5. Increases energy and stamina levels
6. Helps to more effectively mange stress
7. Reduces risk of heart disease
8. Reduces risk of diabetes
The 4100 PT Stepper was designed specifically for home use by the same Engineers that design and build
the commercial StairMaster Steppers (i.e., 4000 PT, 4200 PT, 4400 PT/CL, and 4600 PT/CL). The 4100
PT is also built in the same factory in Tulsa, Oklahoma as the famous commercial StairMaster Steppers.
This is not a cheap imitation import, but a quality product that is American designed and built. You are
going to love it because:
1. It uses the same patented independent stepping action, so it feels like a commercial StairMaster
and provides a biomechanically correct workout.
2. It was built with commercial grade steel, giving the unit a solid feel.
3. It was designed to fit easily through home doorways, allowing easy movement.
4. It requires a smaller user space than most home fitness products allowing it to be used in any room
in the house, without compromising your decorating style.
5. It comes with soft pedal pads that will make your feet love this exercise.
6. The console is bright, easy to read and understand.
7. StairMaster backs the unit with the best warranty in the industry and a nationwide service force.
If we can be of any assistance during set-up or usage please call our toll free number at 1-800-331-3578
where trained Customer Service representatives are anxious to help you, or visit us at
www.StairMaster.com
Jay Kirkham
Vice President of Manufacturing and Customer Service

- 5 -
The StairMaster team has developed and produced this 4100
consumer StairClimber for optimum safety and has been tested to
assure compliance to all applicable structural and electrical
standards. However, for the customer to obtain the safest use
of this machine, PLEASE READ THE FOLLOWING SAFETY
INSTRUCTIONS.
CAUTION: RISK OF INJURY TO PERSONS – TO
AVOID INJURY, READ THE ENTIRE OWNER’S
MANUAL PRIOR TO OPERATING.
This symbol appearing throughout this manual means:
Attention! Be Alert! Your safety is involved.
Warning
1. The external power supply should always be unplugged
from the AC wall outlet before removing or installing
parts. Never make adjustments or repairs while an exercise
program is in progress.
2. close supervision is necessary whenever the machine is used
by or near children.
3. Keep your hands away from all moving parts and keep your
feet on the pedals while exercising. Do not operate machine
with covers removed.
4. Use this machine only for its intended use as described in
this manual. Do not use parts, attachments or accessories
other than those provided by StairMaster or Nautilus
Health and Fitness.

- 6 -
5. Do not use external power supply if it has a damaged cord
or plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Contact your equipment
dealer or our Customer Service Department at 1-800-331-
3578 to arrange for the return and replacement of
damaged parts.
6. Connect the external power supply to a properly grounded
AC wall outlet. Keep all cords away from heated surfaces.
7. To disconnect the external power supply, remove the plug
from the AC wall outlet.
8. Never drop or insert objects into any openings on the
machine.
9. Do not use this machine outdoors.
The safety level given by the design of this equipment can only be
maintained when the equipment is regularly examined for damage
and wear. Failure to follow guidelines may compromise the
effectiveness of the exercise experience, expose yourself and
possibly others to injury and reduce the longevity of the
machine. Follow all training instructions listed in the manual
and/or on the machine. Physical injury may result from
incorrect or excessive training.
The exercise guidelines provided in this manual are not meant to
substitute for trained medical or fitness professionals. Do not
begin any exercise program without first consulting with a
medical physician.

- 7 -
4100PT Placement
Right hand vs. Left hand
References to the right hand (RH) and left hand (LH) side of
the machine are based on the final user position facing the
console.
Placement
Your 4100PT StairClimber may be placed on either hard
flooring or low carpet.
We recommend placing a rubber mat or other protective
material under your stepper to prevent grease and oil from
damaging your flooring.

- 8 -
4100PT Placement
Moving
Your 4100 StairClimber is easily movable. Verify the two
transport wheels are secure with cotter pins. Then grasp
the siderails just below the console, with a foot resting
against the front frame leg, tilt the machine towards you so
it is balancing on two transport wheels. Push or pull
machine to the desired location and gently set the rear of
the machine back down to the floor.
For added convenience, the width of your 4100 is only
29.5”, narrow enough to fit through most residential
internal doorways.
CAUTION: Your 4100 StairClimber weighs approximately130
pounds, Always use care when moving equipment and ask for
additional assistance if necessary.
Leveling
The four hexagonal leg caps at the end of the front and
rear legs are used for leveling. The caps are asymmetric,
numbered 1-4 with 1 being the thinnest wall and 4 being the
thickest. To adjust, slide the caps off the ends of the legs
and rotate to the desired thickness and slide back over the
leg. The caps fit snuggly to the frame and some force may
need to be applied.

- 9 -
4100 PT Hardware/Parts List
For your safety, please read and follow all assembly
instructions. If you have any questions, please contact your
equipment dealer or StairMaster customer service @ 1-
800-331-
3578.
Hardware Included:
•(4) ¼-20 X 1.00” Button Head Screw [#25777]
•(2) ¼-20 X 2.25” Button Head Screw [#25795]
•(8) 3/8-16 X 1.00” Button Head Screw [#25796]
•(2) 3/8-16 X 2.437” Button Head Screw [#25807]
•(4) ¼” Internal Star Lock Washer [#22138]
•(16) 3/8” Flat Washer [#21462]
•(8) Plastic Rivets [#18072]
•(6) 3/8-16 Nylon Insert Nuts [#22029]
Loose Parts Included:
•(1) Rubber neck grommet [#21578]
•(1) Power Supply [#25726]
Tools Required
•Razor knife
•5/32” Allen wrench (included)
•7/32” Allen wrench (included)
•9/16 Open End wrench
•Hammer
•Tape

- 10 -
4100 PT Hardware/Parts List

- 11 -
4100 PT Hardware/Parts List

- 12 -
4100PT Unpacking and Assembling
1. Use a razor knife to cut Box 1 along the dotted line marked on the
box. Remove the cover.
2. Use a razor knife to cut the tape on Box 2. Remove the cover.
3. Remove the packing materials from around the Stepper.
4. Verify the all the components and hardware are in the boxes. (See
above Parts List.) .
5. Get Main Frame [#25744] and stand it on its back post and pedals.
(See Figure. 1) .
6. Install Front Leg [#25715] on Main Frame as shown in Figure 1.
7. Loosely install (qty 2) 3/8-16 x 1.00” screws [#25796], (qty 4) 3/8
flat washers [#21462], and (qty 2) 3/8-16 hex nuts [#22029] into
front leg and the front top flange of leg bracket on the main frame.
Once both screws are in place, tighten using a 9/16” open end wrench
and a 7/32” allen wrench. (See Figure 1)

- 13 -
4100PT Unpacking and Assembling
8. Set the stepper back in its upright position. (See Figure 2).
9. Install Rear Leg [#25790] by slightly lifting the rear of the stepper
and slide the front tube of the rear leg into the rear tube of the
stepper.(See Figure 2).
Align the holes in the two tubes and loosely install (qty 2) 3/8-16 x
2.437” screws [#25807], (qty 4) 3/8 flat washers [#21462], and (qty
2) 3/8-16 hex nuts [#22029]. Once both screws are in place tighten
using a 9/16” open end wrench and a 7/32” allen wrench. (See Figure
2)
Figure 2

- 14 -
4100PT Unpacking and Assembling
10.
Install Handle [#25716] by aligning the four holes on the
bottom flange of the handle with the four holes on the top front
flange of the stepper. The large hole with the contact heart rate
cable should be facing forward, away from the user position. (See
Figure 3)
11. Loosely install (qty 4) 3/8-16 x 1” screws [#25796], (qty 8) 3/8
flat washers [#21462], and (qty 4) 3/8-16 hex nuts [#22029]. Once
all four screws are in place, tighten using a 9/16” open end wrench
and a 7/32” allen wrench. (See Figure 3)
Figure 3

- 15 -
4100PT Unpacking and Assembling
12. Install Left Handrail [#25737] by aligning the hole on the
bottom rear flange of the handrail with the hole on the top of the
rear leg of the stepper. Make sure the top round bracket of the
handrail is cupping the front handle tube. (See Figure 4)
13. Loosely install (qty 1) 3/8-16 x 1” screw [#25796] and (qty1)
3/8 flat washer [#21462]. (See Figure 4)
14. Install Right Handrail [#25740] by aligning the hole on the
bottom rear flange of the handrail with the hole on the top of the
rear leg of the stepper. Make sure the top round bracket of the
handrail is cupping the front handle tube. (See Figure 4)
15. Loosely install (qty 1) 3/8-16 x 1” screw [#25796] and (qty1)
3/8 flat washer [#21462]. (See Figure 4)
16. Loosely install (qty 2) ¼”-20 x 2.25” screws [#25795] in the top
round flange of the handrail. (See Figure 4)
17. Once all four screws are in place, tighten the two 3/8-16 screws
using a 7/32” allen wrench and the two ¼”-20 screws using a 5/32”
allen wrench.
Figure 4

- 16 -
4100PT Unpacking and Assembling
18. Place the neck grommet [#21578] round the stepper neck with
the flange up and the slit in the grommet facing forward away from
the stepper. Use a small piece of tape to secure the grommet to the
around the neck. (See Figure 5)
Figure 5

- 17 -
4100PT Unpacking and Assembling

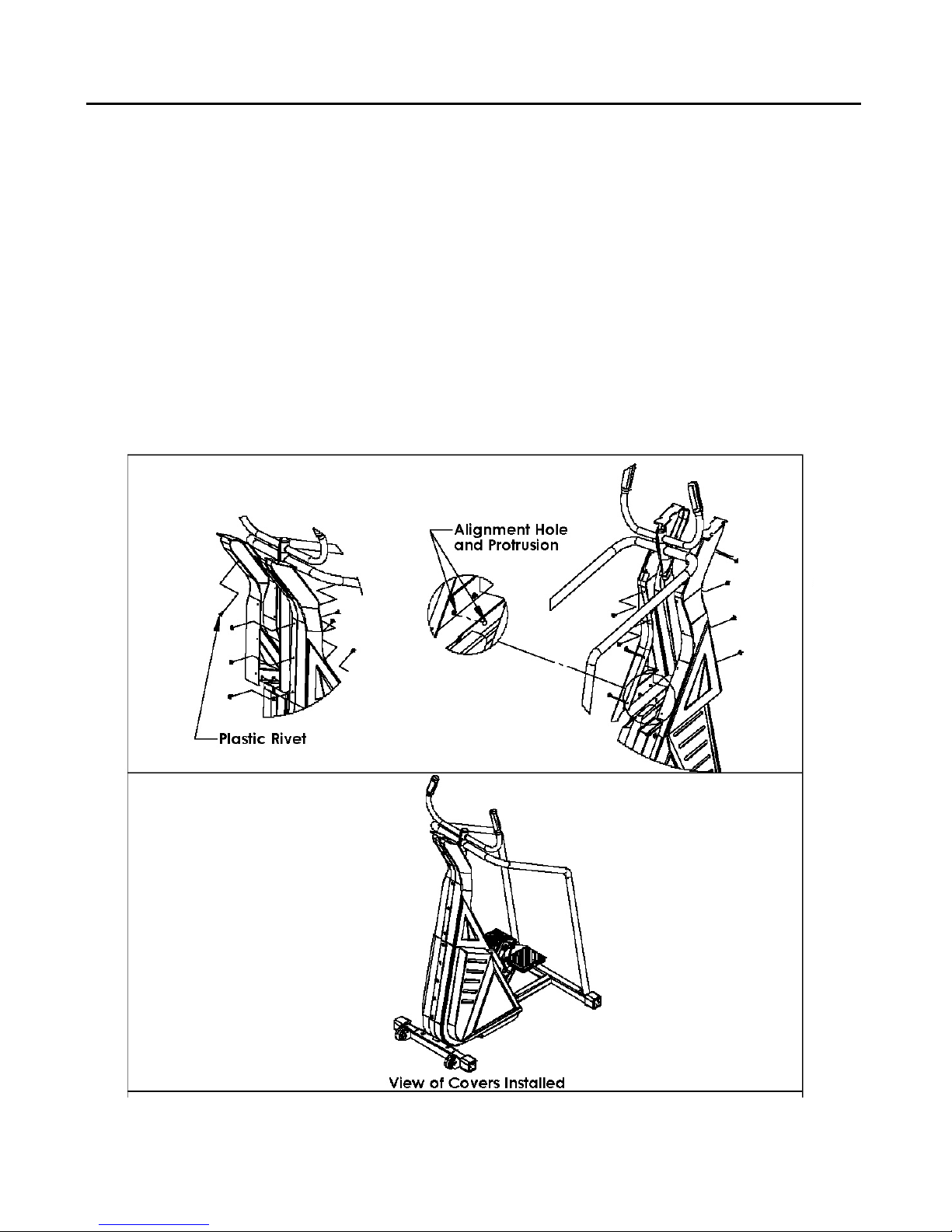

19. Hold the right neck cover [#21510] in place. There are two
holes in the top of the Main Stepper Cover that align with two round
protrusions in the bottom of the neck cover. Run the main power
cable and contact heart rate cable inside the cover through the top
center hole in the neck cover. (See Figure 6)
20. Install the left neck cover [#21511] by sliding it in place over
the inside edge of the right neck cover and align the two holes in the
top of the main stepper cover with the two round protrusions in the
bottom of the neck cover. Position the neck grommet so that the top
flange of the grommet in resting on the top of the neck covers. (See
Figure 6)
Align rivet holes in the two neck covers and install (qty 8) plastic
rivets. Lightly hammer the head of the rivet until it is seated in the body
of the rivet. (See Figure 6)
Figure 6

- 18 -
4100PT Unpacking and Assembling
21. Hold Console [#25773] between the handle and the neck
covers. Plug in the main power cables and the contact heart rate
cables.
22. Install Console [#25773] by aligning the four threaded holes
with the four slots in the top of the Neck Covers. Loosely install
(qty 4) ¼”-20 x 1” screws [#25777] and (qty 4) ¼” internal star lock
washers [#22138]. Once all four screws are in place, tighten the
four ¼”-20 screws using a 5/32” allen wrench. (See Figure 7)
Figure 7
23. Install Reading Rack [#22775] by aligning the edges of the
reading rack with the console and sliding it down onto the console.
(See Figure 8)
Figure 8

- 19 -
4100PT Unpacking and Assembling
24. Install Left and Right Pedal Pads [#18054] by positioning the
front edge of the pedal pad over the Front edge of the pedal and
snapping it out the front edge. Pull the pedal pad back and down
over the back edge of the pedal. The will require a slight amount of
force to stretch the pad over the pedal.
25. Plug Power Supply [#25726] into the bottom left side of the
stepper. See figure 9.
Figure 9

- 20 -
Exercise guidelines
For Healthy Aerobic Activity
As published by the American College of Sports Medicine
Fitness Goals: An Important step in developing fitness program is setting
your individual fitness goals. Some common exercise goals include:
•Weight loss
•Improve body tone and muscular strength
•Increase energy
•Increase cardiovascular endurance
•Reduce stress
The more specific and measurable your goals, the easier it will be to track
your progress. If you have very long-term goals, break them down into
smaller short-term goals to make them easier to achieve. Success breads
success! One of our goals at StairMaster is to help you succeed in
achieving your fitness goals!
Frequency: Exercise 3 to 5 days each week.
Warm up: 5 to 10 minutes before aerobic activity. When exercising, your
body needs more oxygen to fuel your muscles. This increase demand for
oxygen is what causes your heart rate, breathing rate and blood flow to
increase. Your warm-up activity should be progressive and involve all the
muscles you plan to use during your workout. A warm up should involve a
very gradual increase in intensity and range of motion. Your overall
fitness and type of workout will help determine the length of your warm-up,
5-10 minutes is normally recommended. Your warm-up should leave you with
a slightly increased heart and breathing rate but should not leave you
feeling fatigued.
Duration: Maintain your exercise intensity for 30-45 minutes. If weight
loss is a major goal, recommendations are to maintain at least 30 minutes 5
days a week.
Cool Down: Gradually decrease the intensity of your workout, The
opposite of the warm up is what is accomplished during the cool down. Your
muscles have been consuming large quantities of oxygen and a gradual
decrease in your intensity if best for your body. Again, the type of workout
and overall fitness will determine the length of your cool down but 5-10
minutes is recommended. The goal of the cool down is to gradually
decrease intensity and range of motion the same muscles used during your
workout. This will allow your heart and breathing rate to return to near
normal levels gradually. then stretch to cool down during the last 5 to
10 minutes.
