EKHO WMP-88 User manual

EKHO WMP-88 Heart Rate Watch
USER MANUAL

1
Our S-Pulse™ technology measures the electronic signals
that pass through your body as a result of the beating of
your heart. This measurement is obtained by the watch’s two
sensors: the top heart rate sensor and back battery door.
The battery door is actually the primary sensor plate that
measures these electronic signals off your arm.
The ECG (electrocardiogram) measurement is done when
you place your ngers from the opposite hand onto the top
sensor of the watch. This creates a loop across your body
the watch can now read.
Introduction to Your EKHO WMP-88
Heart Rate Watch
To Turn Your Watch On:
1. Remove the LCD display sticker on the watch
face.
2. Hold any button for 3 seconds until the screen
turns on.

Table of Contents
Watch Display and Button Overview..................................
Display Icons and Descriptions..........................................
Operation Overview...........................................................
HEART RATE
Measuring Your Heart Rate................................................
Heart Rate Lock.................................................................
Relative Heart Rate.........................................................
Target Heart Rate Zone................................................
Target Heart Rate Zone - Standard Setup........................
Target Heart Rate Zone - Manual Setup.......................
Heart Rate Zone Alert.......................................................
2
4
5
6
7
8
8-9
9-10
10
10-11
11

3
Table of Contents
WATCH
User Information Setup.....................................................
Calorie..............................................................................
Time and Date Setup........................................................
Alarm and Hourly Chime Alert......................................
Chronograph....................................................................
Countdown Timer - Setup...........................................
Countdown Timer - Operation..........................................
Dual Time.....................................................................
MISCELLANEOUS
Care and Maintenance......................................................
Troubleshooting - Heart Rate......................................
Specications.............................................................
Battery.............................................................................
Power Off Mode..............................................................
Patents............................................................................
Limited Five (5) Year Warranty........................................
Limitations...................................................................
Disclaimer.........................................................................
Contact Information..........................................................
12
13
14
14-15
15
15-16
16
16-17
17
18-19
20-21
21
22
22
23
23-24
24
25

Watch Display and Button Overview
4
The watch buttons are not intended for use in or under
water as this may force water past the seals.
* Image may vary
from actual watch

Icon Description
Display Icons and Descriptions
5
HEART RATE
RELATIVE HEART RATE
HEART RATE LOCK
PM
ALARM
HOURLY CHIME
CHRONO / TIMER
Indicates heart rate values; ashes during acquisitions
Indicates percentage of maximum heart rate
Indicates heart rate function is disabled
Indicates PM time
Indicates alarm function is ON
Indicates hourly chime function is ON
Indicates Chronograph and Timer modes; ashes
when mode is ON

Operation Overview
6
Measuring Your Heart Rate
To get your heart rate reading, follow these three simple
steps:
1. Strap the watch snugly around your wrist.
2. Place your ngers on the watch’s
Heart Rate Sensor and touch gently for
3-8 seconds.
3. Once detected, a
beep tone sounds and
your heart rate will be
displayed in beats per
minute (bpm). It’s that
easy!

Measuring Your Heart Rate
To get your heart rate reading, follow these three simple
steps:
1. Strap the watch snugly around your wrist.
2. Place your ngers on the watch’s
Heart Rate Sensor and touch gently for
3-8 seconds.
3. Once detected, a
beep tone sounds and
your heart rate will be
displayed in beats per
minute (bpm). It’s that
easy!
Your % of maximum heart rate will display along with your
heart rate reading if Target Heart Rate Zone is turned ON
(refer to Target Heart Rate Zone; p.9). Your reading will
remain displayed for 6 seconds after you release the Heart
Rate Sensor.
This watch is a sensitive monitoring device that reads your
ECG signals and reading times may vary. If you do not get
a reading, wait a couple of minutes and try again, or refer to
page 18 (Troubleshooting - Heart Rate).
7

8
Relative Heart Rate
Relative Heart Rate is your current heart rate divided by
your maximum heart rate, and can be a useful reference to
manage how hard you are working during your exercise.
Maximum Heart Rate is calculated as:
Male: 220 minus your age (220 – your age)
Female: 226 – your age
Your Relative Heart Rate will be displayed as a
percentage when displaying your heart rate.
Heart Rate Lock
To prevent triggering the heart rate feature from accidental
contact and environments where excessive water/moisture
are present. An example would be in a pool where the
watch is submerged in water. Since water acts as a natural
conductor, it can accidentally trigger the heart rate feature.
1. In Time mode, hold Reset for 3
seconds.
2. The “ ” icon will appear.
3. To unlock the heart rate feature,
repeat Step 1.

9
Target Heart Rate Zone
The Target Heart Rate Zone feature helps you compare your
acquired heart rate with your targeted heart rate zone.
If your heart rate is within the target zone,
the watch will beep once and your heart rate
will display.
If your heart rate is lower than your target
zone lower limit, the watch will beep twice
and your heart rate will display with the letter
“L”.
If your heart rate is higher than your target
zone upper limit, the watch will beep twice
and your heart rate will display with the letter
“H”.
Example of Relative Heart Rate:
Tom is 30 years old.
Maximum Heart Rate: 220 – age 30 = 190 bpm.
His current heart rate measured at: 133 bpm.
133/190 = 70% is Tom’s Relative Heart Rate.

10
Example: Debbie’s target zone is 80 bpm (L) to 120 bpm
(H). After 5 minutes of walking, Debbie measures her heart
rate.
If Debbie’s heart rate is “72”, she is under her target zone
and can decide to pick up her pace so her next reading falls
within her zone.
2. Press Mode to advance thru settings:
- Gender (male/female)
3. Edit this setting by using Start/Stop
or Reset.
4. To save the new settings, hold Mode
for 3 seconds.
Target Heart Rate Zone - Standard Setup
By entering your gender, the watch will provide a
recommended standard heart rate range (H/L).
1. In Target Heart Rate Zone/User Info mode, hold
Mode for 3 seconds until the display ashes.
1. In Target Heart Rate Zone/User Info mode, hold
Mode for 3 seconds until the display ashes.
2. Press Mode to advance thru settings:
- Target Zone Upper Limit (H)
- Target Zone Lower Limit (L)
3. Edit these settings by using Start/
Stop or Reset.
4. To save the new settings, hold Mode
for 3 seconds.
Target Heart Rate Zone - Manual Setup
You can manually override the standard heart rate range to
those of your own preference.

11
Heart Rate Zone Alert
 When OFF, your upper and lower limits
will be “hidden” and your Heart Rate Zone
Alert function will be disabled.
When ON, your upper and lower limits
will appear in the display and your Heart
Rate Zone Alert function will be enabled.
While in Target Heart Rate Zone/User Info mode, press Start/
Stop to toggle the Heart Rate Zone Alert function ON or OFF.
1. In Target Heart Rate Zone/User Info mode, hold
Mode for 3 seconds until the display ashes.
2. Press Mode to advance thru settings:
- Target Zone Upper Limit (H)
- Target Zone Lower Limit (L)
3. Edit these settings by using Start/
Stop or Reset.
4. To save the new settings, hold Mode
for 3 seconds.

12

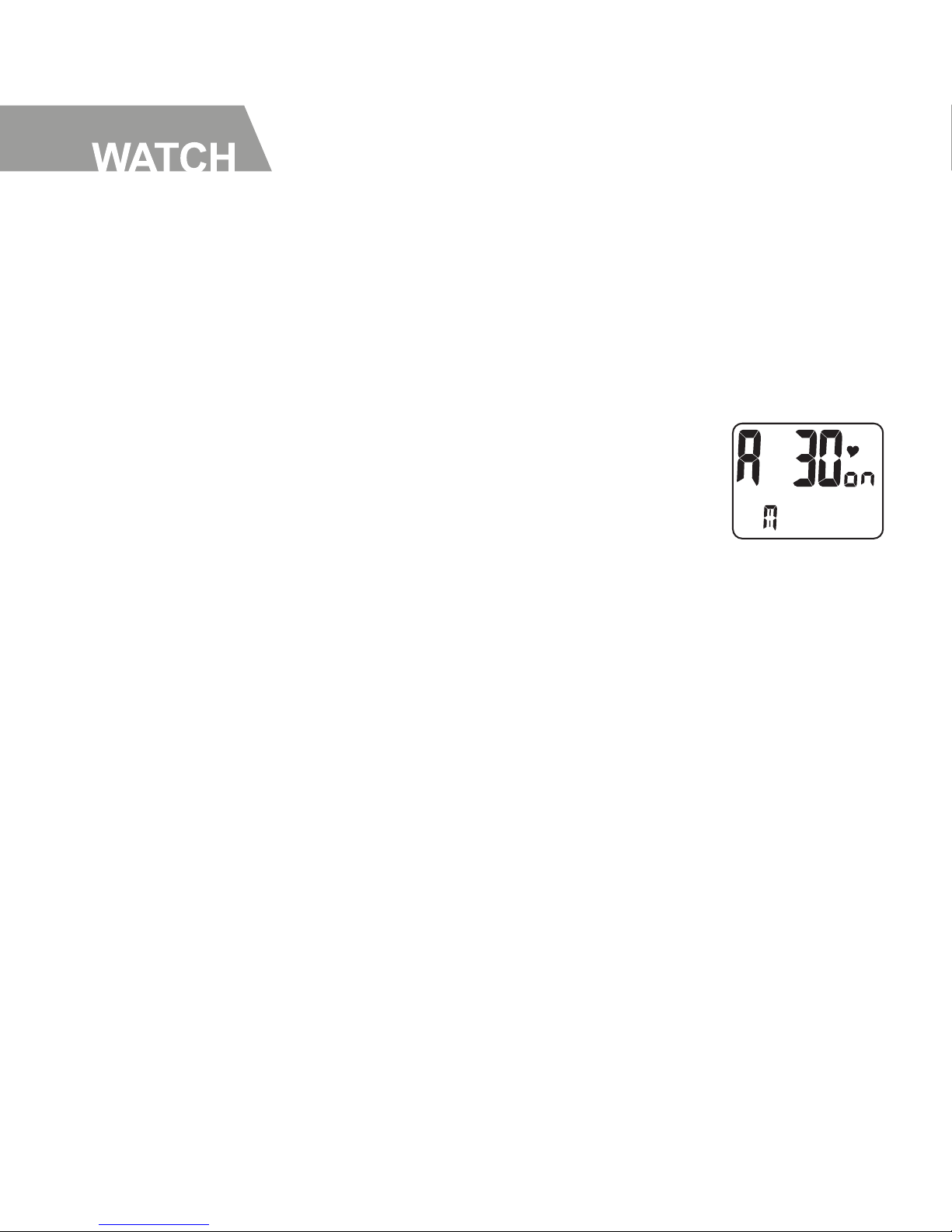

User Information Setup
To use your Calorie mode properly and ensure accurate
data, it is important to rst set your user information.
1. In Target Heart Rate Zone/User Info mode, hold
Mode for 3 seconds until the display ashes.
2. Press Mode to advance thru settings:
- Age
- Gender (male/female)
3. Edit these settings by using
Start/Stop or Reset.
4. To save the new settings, hold Mode
for 3 seconds.
1. In Calorie mode, press Start/Stop to
begin timer.
2. Touch the Heart Rate Sensor gently
until your heart rate is acquired (refer
to p.7).
3. Press Start/Stop again to stop timer.
4. To reset the calorie and timer data, press
Reset (the timer must be stopped).

13
Calorie
Calorie mode is coupled with an exercise timer and will
inform you of your calories burned. Calorie is calculated from
the last heart rate acquired. So for more accurate readings,
obtain your heart rate often throughout your workout.
1. In Calorie mode, press Start/Stop to
begin timer.
2. Touch the Heart Rate Sensor gently
until your heart rate is acquired (refer
to p.7).
3. Press Start/Stop again to stop timer.
4. To reset the calorie and timer data, press
Reset (the timer must be stopped).

Alarm and Hourly Chime Alert
Time and Date Setup
1. In Time mode, hold Mode for 3 seconds until the
display ashes.
2. Press Mode to advance thru settings:
- Seconds
- Minutes
- Hours
- Year
- Month
- Day
- Month/Day format
- 12/24 hr format
- Key Beep (beep with every button press)
3. Edit these settings by using Start/Stop or
Reset.
4. To save the new settings, hold Mode for 3
seconds.
1. In Alarm mode, hold Mode for 3 seconds until the
display ashes.
2. Press Mode to advance thru settings:
- Hours
- Minutes
14
P

Chronograph
1. In Chronograph mode, press
Start/Stop to begin timing.
2. Press Start/Stop again to stop
timing.
3. To reset the chronograph, press
Reset (the chronograph must be
stopped).
Countdown Timer - Setup
1. In Countdown Timer mode, hold
Mode for 3 seconds until the display
ashes.
15
In Alarm mode, press Start/Stop to toggle the Alarm
alert ON/OFF ( ); press Reset to toggle the Hourly
Chime alert ON/OFF ( ).
3. Edit these settings by using Start/Stop or
Reset.
4. To save the new settings, hold Mode for 3
seconds.

16
2. Press Mode to advance thru settings:
- Seconds
- Minutes
- Hours
3. Edit these settings by using Start/Stop or
Reset.
4. To save the new settings, hold Mode for 3
seconds.
Countdown Timer - Operation
1. In Countdown Timer mode, press Start/Stop to
begin the timer.
2. Press Start/Stop again to stop the timer.
3. To reset the countdown timer, press
Reset (the timer must be stopped).
Dual Time
Dual Time is the watch’s secondary form of time.
1. In Dual Time mode, hold Mode for 3 seconds until
the display ashes.
2. Press Mode to advance thru settings:
- Hours
- Minutes
3. Edit these settings by using Start/Stop or Reset.
4. To save the new settings, hold Mode for 3
seconds.

Care and Maintenance
To ensure proper function of your Heart Rate Watch:
17
The watch buttons are not intended for use in or under
water as this may force water past the seals.
Avoid rough usage or severe impacts to the watch
Keep the top sensor and back metal plate free from dirt,
oils, or other contaminants.
Periodically clean the watch using a soft cloth with mild
soap and water, or similar cleaning solution.
Keep the watch out of extreme heat or cold.
Do not expose the watch to intense direct sunlight for
long periods of time.
Do not expose the watch to chemicals such as gasoline,
alcohol, or solvents.
3. Edit these settings by using Start/Stop or Reset.
4. To save the new settings, hold Mode for 3
seconds.

18
Troubleshooting - Heart Rate
If you are having difculty measuring your heart rate, you
may want to try the following steps. Try each of these in
succession until you are able to measure your heart rate:
1. Make sure the watch is snugly strapped to your wrist.
A loose t makes it more difcult to properly measure
your heart rate.
2. When touching the heart rate sensor, make sure you are
using the soft, at pads of your ngers and not the tips
of your ngers.
3. Touch gently with enough pressure to activate the heart
rate measure mode. Muscle “noise” from pressing too
hard can make it difcult to measure your heart rate.
4. Make sure the back metal plate (battery door) of the
watch is laying at on your skin.
5. Make sure your wrist and ngers are clean and free from
dirt, oils, or lotions.
(c o n t i n u e d o n n e x t p a g e )
