Elaflex LTX 80 User manual

September 2010 LTX 80 / LTX 100 Mon age · Assembling
Schlauch gerade einspannen. Mit scharfem Schlauchmesser gera-
de ablängen.
Clamp hose straight. Cut straight / at an right angle.
(1) Beide Stahlwendeln kürzen und (2) für notwendige elektrische
erbindung mit dem Stutzen zur Schlauch-Innenwand umbiegen.
(1) Cut both steel helix with side cutter and (2) bend them inside as
shown for electrical conductivity with the hose tail .
Schlauchstutzen mit Wasser anfeuchten.
Wet hose tail with water.
Schlaucheinbindung nur mit Spezial-Schlaucharma ur VLTX 80-3"
(SLTX 80 Spannklemme und ST 80-3" aterstutzen aus Messing
oder Edelstahl). Keine anderen Armaturen verwenden.
Assemble onl with special coupling VLTX 80-3" (SLTX 80 clamps
and VST 80-3" BSP male hose tail or brass or stainless steel.)
Do not use other couplings.
Schlaucheinbindung mit S andard-Schlaucharma uren
(SPANNFIX oder SPANNLOC, und ater- oder Mutterstutzen DN 100).
Assemble with standard couplings (SPANNFIX or SPANNLOC,
male or female hose tails DN 100).
Schlauchstutzen in den Schlauch einsetzen.
Insert hose tail into hose.
2)
1)
LTX 80-3"X 100-4"
max. 10 mm
für / for
LTX 80
für / for
LTX 100
LTX 80 / LTX 100
Leicht-Tankwagenschlauch für die Schwerkraftabgabe
Lightweight Gravity Discharge Road Tanker Hose
Bi e beach en:
Montierte LTX-Schlauchleitungen sollen vor dem Einsatz druckgeprüft
werden - Prüfdruck 6 bar.
Ferner muss der Schlauchleitungshersteller nach erfolgter Montage die
Leitfähigkeit (Ω-Schlauch) überprüfen.
Enden der Schlauchleitung bei Nichtverwendung mit Blindkappen ver-
schließen, um das Innengummi zu schützen.
Please note:
Prior to first use, LTX hose assemblies should be pressure tested - test
pressure 6 bar.
Further, the assembling company should check electrical conductivity
(Ω hose).
Both ends of unused hoses must be capped to protect the lining.
Arretierstift vorsichtig einschlagen - fertig.
Carefully hammer down lock pin - ready.
SPANNFIX anlegen wie gezeigt. Für LTX 80 nur Spezial-Spann -
klemme SLTX 80 verwenden.
Assemble SPANNFIX safety clamp as shown. For LTX 80 onl use
special clamp SLTX 80.
SPANNFIX mit Hilfe des Schraubstocks zusammendrücken, bis
sie vollständig geschlossen ist.
se vice to compress SPANNFIX until it is completely closed.
Alternativ zu SPANNFIX kann LTX 100 auch mit SPANNLOC
eingebunden werden. Anleitung siehe Katalogseite 272.
Alternatively to SPANNFIX, LTX 100 can also be assembled with
SPANNLOC. Manual see catalogue page 272.

This manual suits for next models

1

Other Elaflex Construction Equipment manuals

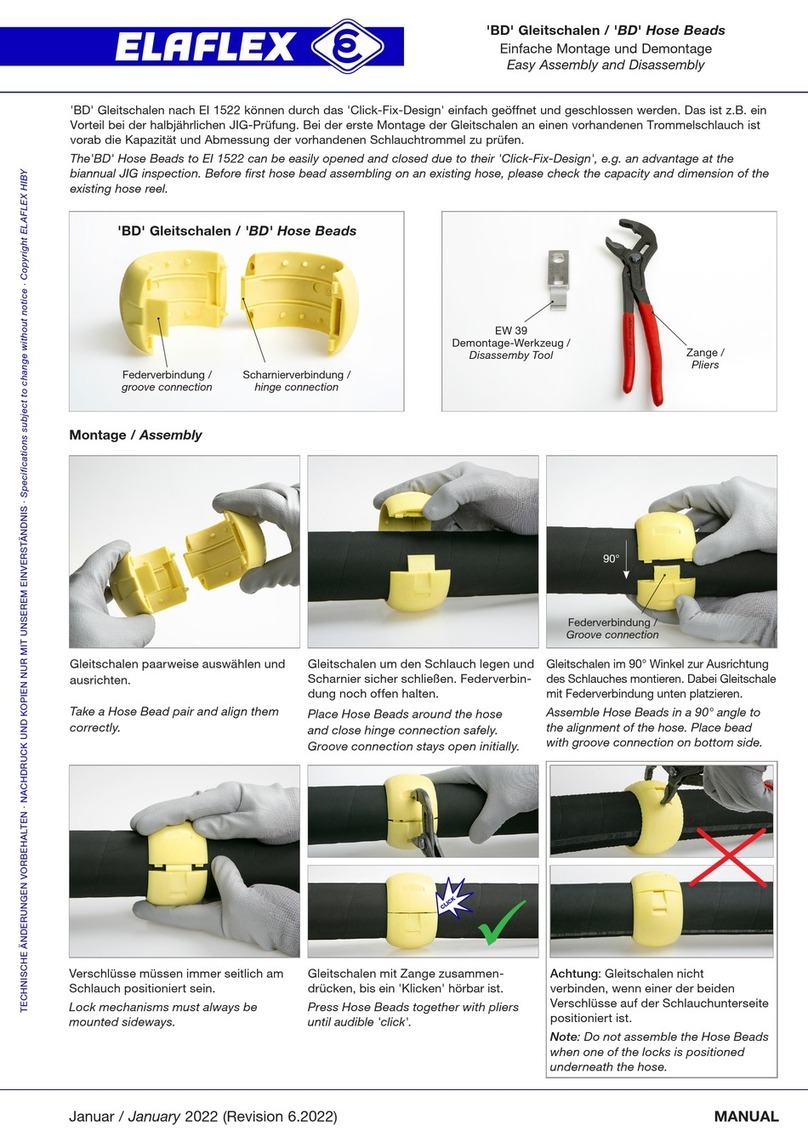

Elaflex BD Installation instructions
