ELAN Lighting CAB-5R-BEAM User manual

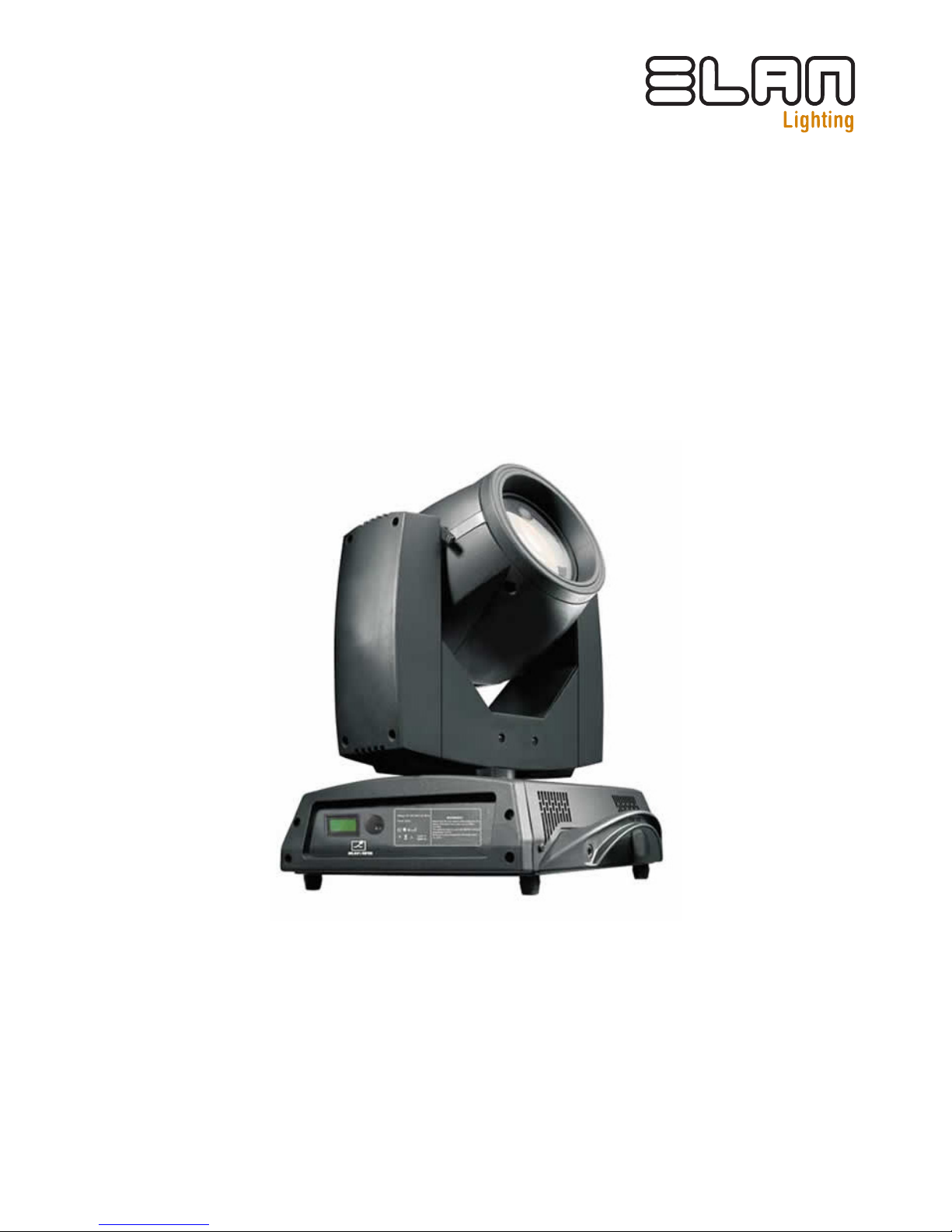

CAB-5R-BEAM
Thank you for purchasing the CAB-5R-BEAM. Every suit has been thoroughly
tested and shipped in perfect condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears to be
damaged, carefully inspect your unit for any damage and be sure all accessories
necessary to operate the unit has arrived intactly. In the case damage has been
found or parts are missing, please contact Acson Comercial or your local supplier
for further instructions. Do not return this unit without any warning.
USER’S MANUAL

2
Contents
FOR YOUR OWN SAFETY, PLEASE READ
THIS USER MANUAL CAREFULLY BEFORE
POWERING OR INSTALLING. SAVE IT FOR
FUTURE REFERENCE
1. Safety Precautions .................................................................................................................3
2. Before you start ......................................................................................................................4
DMX Linking
Power Supply Mains
Mounting Bracket
Opertating Modes
LCD display and button
3. Menu operation .......................................................................................................................6
4. DMX Chart ...............................................................................................................................6
5. Cleaning ...................................................................................................................................9
6. Troubleshooting ...................................................................................................................... 9
7. Specications .........................................................................................................................9

3
1. Safety Precautions
Caution!
There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void
your manufacturer warranty. In the unlikely event your unit may require service please contact the manufac-
turer or your dealer.
Please recycle the shipping carton whenever possible.
• Be sure that the local power outlet match that of
the required voltage for your unit,
• Do not attempt to operate this unit if the power
cord has been frayed or broken. Do not attempt
to remove or break off the ground prong from
the electrical cord. This prong is used to reduce
the risk of electrical shock and re in case of an
internal short.
• Disconnect from main power before making any
type of connection.
• Do not remove the cover under any conditions.
There are user serviceable parts inside.
• Never operate this unit when its rear cover is
removed.
• Never plug this unit into a dimmer pack.
• Always be sure to mount this unit in an area
that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes
damaged.
• During long periods of non-use, disconnect the
units main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that
they are not likely to be walked on or pinched
by items placed upon or against them, paying
particular attention to the point they exit from the
unit.
• Cleaning unit should be cleaned only as recom-
mended by the manufacturer. See ‘Cleaning” for
details
• Heat –The appliance should be situated away
from heat sources such as radiators, heat re-
gisters, stoves, or other appliances (including
ampliers) that produce heat.
• The unit should be serviced by qualied service
personnel when:
• The power-supply cord or the plug has been
damaged.
• Objects have fallen, or liquid has been spilled
into the appliance.
• The appliance has been exposed to rain or
water.
• The appliance does not appear to operate nor-
mally or exhibits s marked change in performan-
ce.
! !

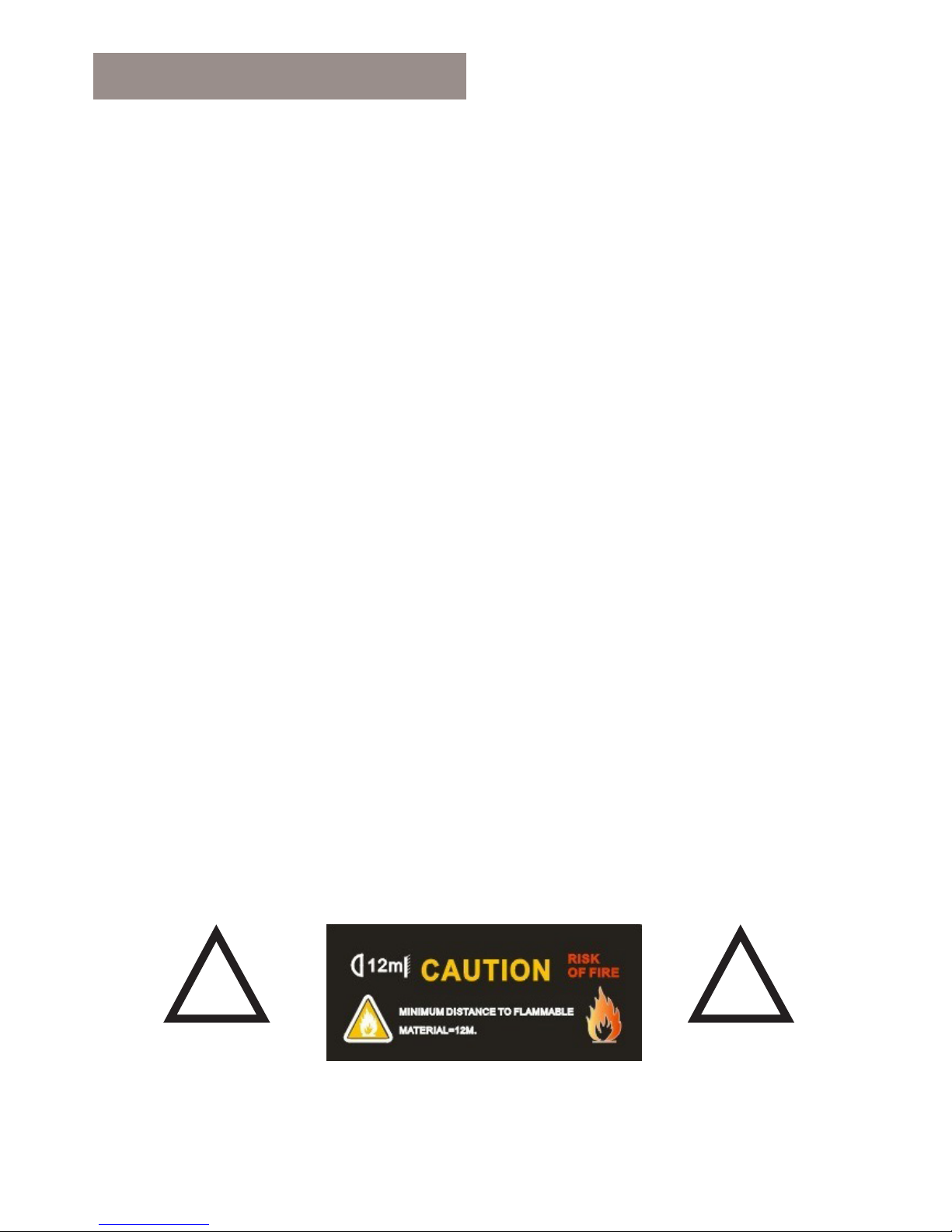

Avoid electric
shock
Avoid res: high
temperature of
bulb

4
2. Before you start
To ensure proper DMX data transmission, when using several DMX units try to use the shortest cable path
possible. The order in which units are connected in a DMX line does not inuence the DMX addressing. For
example; a unit assigned a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at
the end, or anywhere in the middle. When a unit is assigned a DMX address of 1, the DMX controller knows
to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.
Use the plug provides to connect the mains power to the projector paying attention to the voltage and fre-
quency marked on the panel of the projector. It is recommended that each projector be supplied separately
so that they may be individually switched on and off.
Every unit can be placed on the ground or hanging installation in any position. The fast lock system makes
it quick and simple to install bracket to four locations, see Figure:
• Auto Mode- The unit will automatically chase through the different colors.
• DMX control mode – This function will allow you to control each individual units traits with a standard
DMX 512 controller.
• Master-slave mode – One unit will work as the master in the one of the above three modes, other units
in the chain will work in synchronization towards the master.
There is one simple button beside the LCD screen controls whole operation: MENU, DOWN, ENTER, UP.
Press button to activate main menu, enter next menu or back. Turn button left to browse last options or
decrease DMX value, turn right to browse next options or increase DMX value.
When the xture is powered, resetting or connected to DMX console, the LCD display will show the image
below. Now, the xture is ready for work.
IMPORTANT
It is essential that each projector is correctly earthed and that electrical installation conforms to
all relevant standards. Power consumption of this projector is 400W.
DMX Linking
Power Supply Mains
Mounting Bracket
Operating Modes
LCD display and button
1
DMX Input OK!

5

6
3. Menu operation
4. DMX Chart
Setup
Enter Setup, there are DMX address, channel mode, return (ESC) for options. You can also enter channel
mode to select two different modes: 1. Standard 16CH 2.Vector 20CH
Option
Enter “Option” , there are 3 options for Invert, Display, Return(ESC). Invert Pan, Invert Tilt, Reversal, Backli-
ght, All of them can be activated by NO/YES.
Information
If you would like to know any information about this xture, you can enter this button, system version can
help you know which version you have. Fixture hours can help you know how many hours this xture keep
working. Lamp hours can help you know how many hours the lamp keeps working.
Manual Control
Once enter it, two options lamp and Return for your choice.” Lamp ON/OFF” means to select the lamp of
xture to be on once power on or lamp on when control by console only.
Reset
Among reset, there are 3 different types for your choice, system reset, Pan/Tilt Reset, Effect Reset, Effect
Reset, you can select any of them according to your demand. If you don’t need, Please enter Return to
escape.
Factory Reset
If you would like to do factory reset, rst you need to enter this button, then coming to input for operating its
number, the factory original password is 2222. Once you adjust the input number exactly be 2222, you can
further proceeding. Then you will see Color Adjust, Gobo Adjust, Shatter Adjust, Pan Adjust, Tilt Adjust, Pan
MaxSP Adjust for option, you can adjust its values to meet your demands.
Return (ESC)
The xtures stop working
Channel Function DMX Value Description
1 Color wheel
0-4 White
05-ago Color Half
09-dic Color 1
13-17 Color Half
18-21 Color 2
22-25 Color Half
26-29 Color 3
30-34 Color Half
35-38 Color 4

7
Channel Function DMX Value Description
1 Color wheel
39-42 Color Half
43-46 Color 5
47-51 Color Half
52-55 Color 6
56-59 Color Half
60-63 Color 7
64-68 Color Half
69-72 Color 8
73-76 Color Half
77-81 Color 9
82-85 Color Half
86-89 Color 10
90-93 Color Half
94-98 Color 11
99-102 Color Half
103-106 Color 12
107-110 Color Half
111-115 Color 13
116-119 Color Half
120-123 Color 14
124-127 Color Half
128-255 Color wheel rotation slow to fast
2 Strobe
0-7 Close
ago-97 Fast
98-101 NO function
102-126 Slow (slow-fast)
127-151 Slow (slow-fast)
152-155 No function
156-180 Slow
181-205 Slow
206-209 No function
210-249 Medium(slow-fast)
250-255 No function
3 Dimmer
0-255 OFF/ON
0-3 Open
04-jul Gobo1
08-nov Gobo2
dic-15 Gobo3 .
16-19 Gobo4 .
20-23 Gobo5 .
24-27 Gobo6 .
28-31 Gobo7 .
32-35 Gobo8 .
36-39 Gobo9 .
40-43 Gobo10 .
44-47 Gobo11 .
48-51 Gobo12 .
52-55 Gobo13 .

8
Channel Function DMX Value Description
4 Gobo wheel
56-59 Gobo14 .
60-63 Gobo15 .
64-67 Gobo16 .
68-71 Gobo17
72-113 Gobo rotation, backward fast-slow
114-117 Stop
118-159 Gobo rotation, forward slow-fast
160-166 Gobo1 Shake(slow to quick)
167-172 Gobo2 Shake(slow to quick)
173-179 Gobo3 Shake(slow to quick)
180-185 Gobo4 Shake(slow to quick)
186-191 Gobo5 Shake(slow to quick)
192-198 Gobo6 Shake(slow to quick)
199-204 Gobo7 Shake(slow to quick)
205-211 Gobo8 Shake(slow to quick)
212-217 Gobo9 Shake(slow to quick)
218-223 Gobo10 Shake(slow to quick)
224-230 Gobo11 Shake(slow to quick)
231-236 Gobo12 Shake(slow to quick)
237-243 Gobo13 Shake(slow to quick)
244-249 Gobo14 Shake(slow to quick)
250-255 Gobo15 Shake(slow to quick)
5 Prism 0-127 No prism
128-255 Prism
6Rotating
Prism
0-63 Rotation ne
64-126 Prism rotation, forward fast-slow
127-128 No function
129-191 Prism rotation, backward slow-fast
192-255 Gobo shake slow-fast
7NO Function 0-255
8Frost 0-255
9Focus 0-255
10 Pan 0-255
11 Pan ne 0-255
12 Tilt 0-255
13 Tilt ne 0-255
14 Pan/Tilt
speed 0-255 Fast-Slow
15 Reset
0-184 No function
185-191 Effect Reset
192-198 Pan/Tilt Resent
199-211 Fixture Reset
212-255 No function
16 Lamp control
0-59 No function
60-63 Lamp Off
64-255 Lamp On

9
5. Cleaning
6. Troubleshooting
7. Specications
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out
periodically to optimize light output.
• Use normal glass cleaner and a soft cloth to wipe off the outside casing.
• Clean the external optics with glass cleaner and a soft cloth every 20 days.
• Always be sure to dry all parts completely before plugging the unit back in.
• Cleaning frequency depends on the environment in which the unit operates (i.e. smoke, fog residue,
dust, dew).
Listed below are a few common problems the user may encounter, with solutions.
• Unit not responding to DMX:
• Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on
• Some other DMX devices pin 5 may be “hot”). Also, check that all cables are connected to the right con-
nectors; It does matter which way the inputs and outputs are connected.
• Model Name: CAB-5R-BEAM
• Power: 220V/50~60Hz (110V version is availa-
ble upon request.)
• Power consumption: 400W
• Working position: Any safe working position
• Lamp: Yodn 200W
• Motors: 13 step motors / Cooling: Forced venti-
lation with axial fans.
• Inputs: DMX512 signal
• DMX Channels: 16 CHs
• Pan: 540°
• Tilt: 270°
• Pan: 2.11°,
• Pan Fine: 0.008°,
• Tilt: 0.98°,
• Tilt Fine: 0.004°
• Waterproof IP rating: IP20
• Weight: 17Kgs

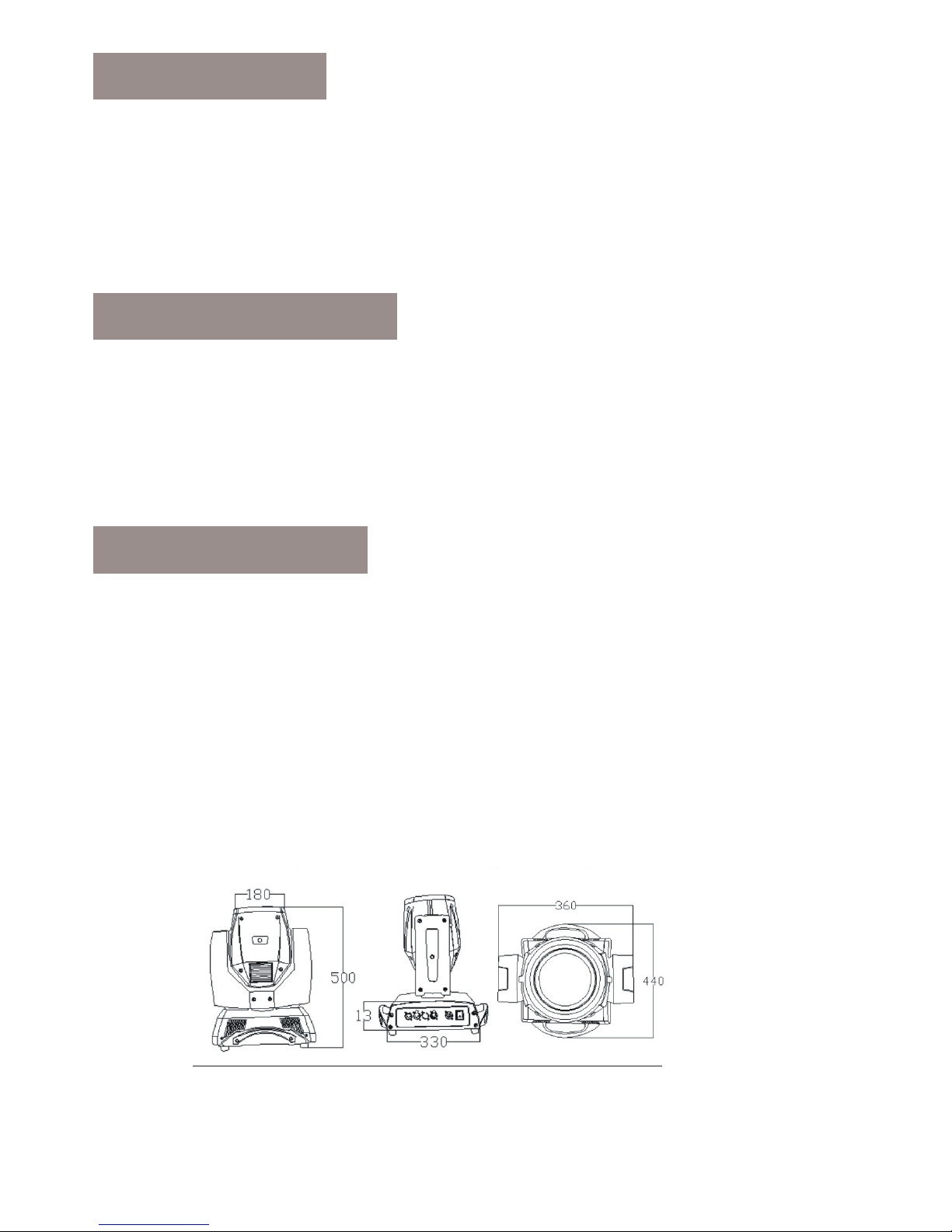

Dimensions

Note: All information is subject to change without prior notice.
IMPORTANT INFORMATION!
In order to optimize the recovery and recycling of the materials that old appliances contain
and reduce the impact on human health and the environment, please make sure that this
product is recycled at the end of its life.
Importer:
ACSON COMERCIAL
C/Pallars, 405
08019 Barcelona
www.acson.com
[email protected]
