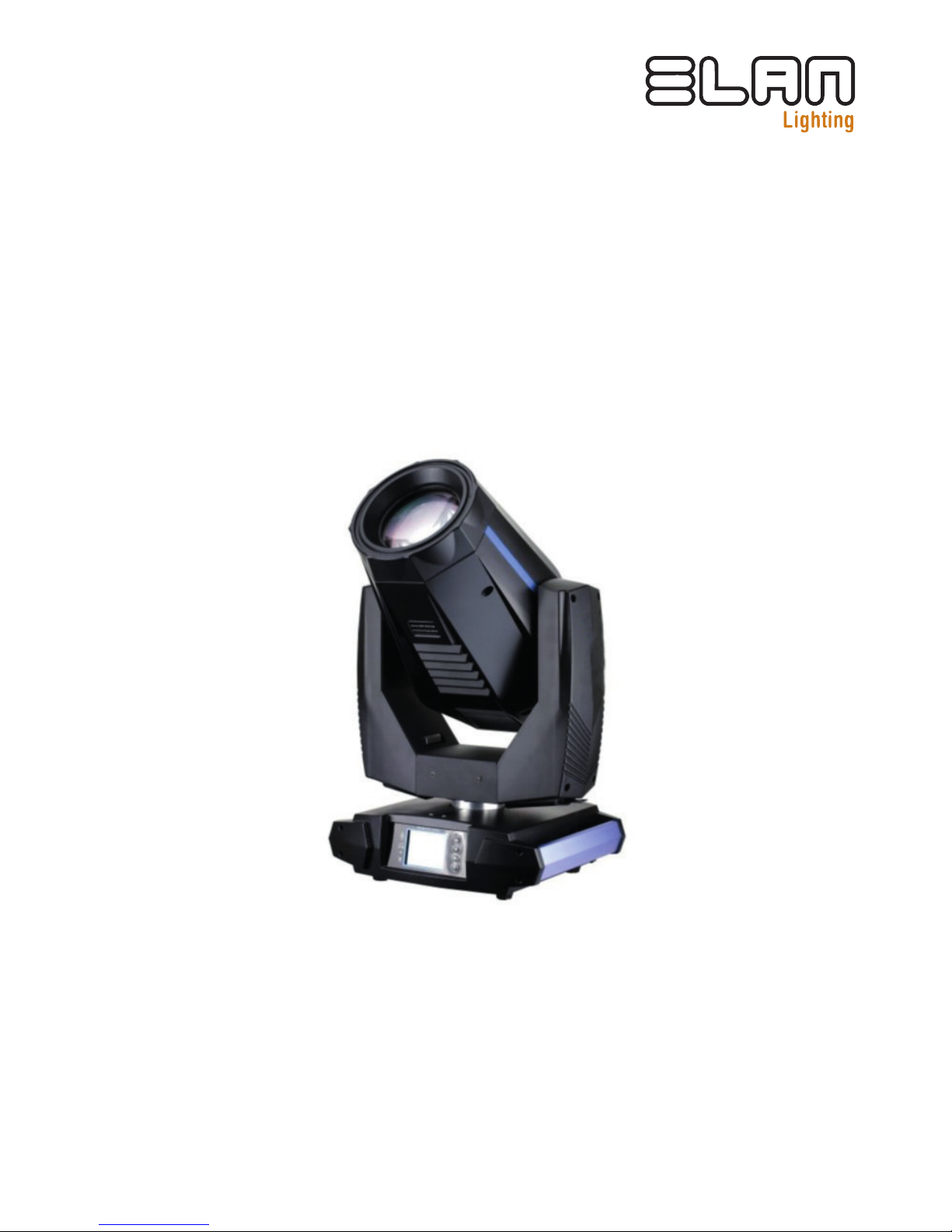

ELAN Lighting CAB-330-MULTI User manual

CAB-330-MULTI
Thank you for purchasing a product from our CAB-330-MULTI. Every suit has been
thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your unit for any damage and be sure all accessories necessary to operate
the unit has arrived intactly. In the case damage has been found or parts are missing, please
contact Acson Comercial or your local supplier for further instructions. Do not return this unit
without any warning.
USER’S MANUAL

2
Contents
FOR YOUR OWN SAFETY, PLEASE READ
THIS USER MANUAL CAREFULLY BEFORE
POWERING OR INSTALLING. SAVE IT FOR
FUTURE REFERENCE
1. Safety Instructions....................................................................................................................................3
2. Technical Parameters .............................................................................................................................3
3. Schematic Lighting Components.............................................................................................................4
4. Packing And Shipping..............................................................................................................................5
4.1 Packing.................................................................................................................................................... 5
4.2 Transport protection locks........................................................................................................................ 5
4.3 Unacking ................................................................................................................................................. 6
5. Installation................................................................................................................................................6
5.1 Installating rigging................................................................................................................................... 6
5.2 Fixed equipment...................................................................................................................................... 6
5.3 Data cable ............................................................................................................................................... 7
6. AC Power.................................................................................................................................................8
6.1 Fuse Size................................................................................................................................................. 8
6.2 Power Connection................................................................................................................................... 8
7. Function ...................................................................................................................................................8
7.1 Lamp Description..................................................................................................................................... 8
7.2 Changing the Lamp ................................................................................................................................. 8
7.3 Correction Bulbs ...................................................................................................................................... 9
8. Dynamic Effects .......................................................................................................................................9
8.1 Gobo wheel............................................................................................................................................. 9
8.2 Color Wheel ............................................................................................................................................. 9
8.3 Optical Lens Focusing ............................................................................................................................ 9
8.4 Prism Wheel And The Prism Enlarge ....................................................................................................... 9
8.5 Dimming and strobe................................................................................................................................ 10
8.6 Frost......................................................................................................................................................... 10
8.7 Horizontal And Vertical Scanning ............................................................................................................ 10
9. LCD Control ............................................................................................................................................10
10. DMX Channels.......................................................................................................................................11
11. Failure Scoreboard And Solutions ..........................................................................................................14
12. Cleaning ................................................................................................................................................15

3
1. Safety Instructions
2. Technical Parameters
• Before using this product, please observe carefully the product is not unwrap or damage during trans-
portation.
• As a result of damage during transporting , please do not use the lights, and contact with the dealer or
manufacturer.
• Before running products, to ensure that the voltage and Hertz in accordance with the requirements of
lights.
• It’s very important, connecting ground wire to avoid the electric shock.
• This product is for dry indoor environment.
• This product must be installed on the sufficient space, adjacent to interface the shortest distance of 50
cm, to ensure that the lights will not crash each other.
• Before moving or repairing the product, please unplug the power.
• When it working, ensure that no inflammable and explosive near objects.
• When installing this product, please use the safety rope. When handling this product, lift the armrest
base, rather than the lamp body.
• This product is suitable for a maximum temperature of 35 degrees Celsius, when the surrounding envi-
ronment is higher than 35 degrees Celsius, please do not use this product.
• Do not touch. When working, the product runs very fast. Prevent hand injury.
• Problems happens when operating performances, should immediately stop using the lights.
• Do not carry out maintenance, repair damage caused or likely to cause other problems.
• Please contact the company’s maintenance repair. During the repair process, use the same type of
accessories.
• Please read the instructions carefully, especially regarding the installation, using, maintenance parts.
• Always transport the lighting in a packed anti-shock protection carton or flight case
• DMX Channel: 16/24CHs
• Control model: DMX512,Auto model
• LED LCD Display+Press button
• Diplsay board intelligent flip function.
• Light Source:Yodn 16R lamp
• Super fast and ultra silent 3-phase step motots
• Color temperature is 8000K, life span is 2000Hs.
• 13 Color with white,dual color effect.
• 14 fixed gobo with open circle
• 9 changeable rotating three-dimensional gobo
with white.
• Any two-kinds prism stack can combine dynamic
effect positive and negative rotation switching
effect.
• Optical lens: High precision glued optical lens
combination
• Focus: Linear focus
• Zoom: Linear zoom.
• Dimmer: 0-100% linear dimmer.
• Beam angle: 2.5-35 degree.
• Strobe: two-pieces plate strobe(0.5-9FPS
• 16pcs super silence motors,pan&tilt 3-phase
step motors,16bit.
• Housing: High temperature resistant alloy plastic
• IP Rate: IP20
• Weight: 18.6KG
• Size: 361*300.8*601.8mm

4
Parts
Dimensions
3. Schematic Lighting Components

5
4.1 Packing
4.2 Transport protection locks
4.3 Packing
4. Packing And Shipping
Moving Head Beam light is packaged by carton or standard 2in1flight case.(selectable 1in1 or 4in1), Ran-
dom accessories items shown below
In order to transport it easy to protect the lamp body has two locks (XY axes each a lock), X-axis has four
lock position, Y-axis triple lock, lock locked in the center position in the transport and light a vertical position
with the arm member
1. Disconnect the power supply so that the lamp to cool completely before packaging equipment, at least
15 minutes or more.
2. Closing the light protect lock, when clean the surface of the light dust
3. Cover the light, seize the equipment both sides aluminum handles on to make it upside down and gently
placed in the box.
4. Add lighting accessories after placing the light in box.
5. Up to two crates stacked prohibited upside down.
Pan protection lock Tilt protection lock Lock position sketch map
Name Quantity Unit
User manual 1 piece
Signal line 1 piece
safe rope 1 piece
Hanging lamp
hook and fastener 2 piece
Power line 1 piece

6
4.4 Unpacking
5.1 Installating rigging
5.2 Fixed equipment
1. Open the box and bag
2. Seizing the equipment handles, lifting and carrying away the light from the box .Or opening the flight
case cover placing lift boom close to the light base, then equiping light hook on light base bottom tigh-
tening Quick Install locks. At last rising away boom to the top of the lamp from flight case, put the flight
case away.
3. Before turing on the light,should open the light protecting lock
Note:
Upon receipt of lamps, please check if there is damage to the fold closure caused by transport,
where there is transportation damage, please do not use this fixture, and as soon as possible
contact
Note:
Must use two clamps fixed equipment, and are 1/4 buckle fastening jig, only fully rotated 90
degrees clockwise to lock fastener.
Users should ensure that light and installation materials are checked for regular safety checks, Unprofessio-
nal incorrect installation can lead to dangerous, if the lack of working conditions and professional standards,
please operate the light by professionals. Do not use the light if the working temperature isn’t 15°-40° .When
the lighting installation, dismantling, moving, or servicing, do not stand directly beneath the lamp. The ope-
rator must ensure that the fixtures are secure connection, installing the light after professionals approving
electrical parameters make sure that these installation must be checked at least once per year by experts
RAMBO-330W beam moving head lights can be placed on the stage or on a stand in any direction. Quick
lock system can quickly and easily remove or install a light hook.
1. Before installing fixtures must verified rigging equipments are
not damaged, and can bear at least 10 times of light’s weight.
Check the building can be beared at least 10 times of total
weights of light, fixture, and cable accessories
2. Insert the locked hook fastener into base mounting holes
horizontally, grab the handle clockwise 90 degrees fasteners,
in the same way to install a second fastener, make sure the
fastener is fastened under the light base.
3. If truss can be lifted the equipment can be directly clamped
from flight caseand locked fixture base. Then hung on the
light and using safety rope fixed it. Before rising the light to
right height, connect the power cord and signal cable.
5. Installation
Add a safety rope attached the light’s
base insurance shelf, do not connect
the device handle.

7
Data cable is DMX512 signal
Signal line connections is X-type connector, X-type connector-----If the external flexible cable or cord of this
light is damaged, please replace professional cable or cord from the manufacture or its agent.Lights’ DMX
input and output connects to a three-pin XLR and five-pin XLR insert, first pin is grounded, then negative
signal is second pin, third pin connects to the positive polarity signal, fourth and fifth are empty.
In order to prevent reception reflection and interference control signal, a terminal plug must be installed on
the first branch of the connected device last 3-pin output jack.
The controller connects to the nearest input XLR 3-pin, then from the output of the device connects to the
input of the next device, continuous connection one by one, the final output data cable terminal equipment
plug one end into the terminal.
Lights must be placed vertically upward. The shortest distance between working lights must be
more than or equal to 900mm. Layout the lighting installation as shown above..
3XLR plug
1.Grounding
2.Signal-
3.Signal+
Terminal plug connect with XLR plug second or
third by a 0.25w 120ohm resistor, then connect
the resistor into last light’s DMX output jack
If the signal transmission is long-distance , 512 signal amplifier must be added.
DMX512 signal controller connect to the input of the amplifier first, then connect
to the fixture from its output, couple with the terminal plug last.
5.3 Data cable

8
Do not use two separate output connections. To connect the branch,
a separating consecutive DMX512 signal amplifier must be used to
separate.
Please use the shielded twisted-pair cable. Standard microphone
cables can not be reliably controlled long-distance data.
Power: 100-240v
Fuse: 8A 5 * 20 main fuse
If the external flexible cable or cord of this light is damaged, the line is up to the manufacturer or its service
agent or a similar qualified person to replace, in order to avoid danger. Connect the power supply personnel
must have the appropriate qualifications before proceeding, you must make sure you are using the power
supply voltage matches the voltage identified and have overload or leakage protection. Directly connect the
device to the power supply, do not connect to the silicon box dimming system, otherwise damage to the
equipment.
CAB-330-MULTI moving head beam light is used with Yodn Single-ended lamp is short arc point light sour-
ce, and its color temperature is 8000K and very stable, CRI>90. Life span is over 2000 hours (according the
using situation)
1. Disconnect the power, so that the lamp cooling, the arm of the lamp body lock locked in a horizontal
position.
2. Split bulbs: Remove thecover which is written “split this cover to replace the lamp head cover”
3. Use a Phillips screwdriver to remove the fan two thumb screws fixed side.
4. With the appropriate force, push down the bulb when the lamp cup beyond the edge of the stainless
steel shrapnel, taking up the lamp.
5. To install the bulb, reverse these steps.
6.1 Fuse Size
6.2 Power Connection
7.1 Lamp Description
7.2 Changing the Lamp
6. ACPower
7. Function
Attention!
1. Do not install other similar lamps. It will cause safety hazards or
equipment damage.
2. To reduce the risk of damage to the light, replace the lamp
before its life is over
3. Do not use the banned scratched and damaged bulb.
!

9
8. Dynamic Effects
Attention!
1. When replacing a lamp donot touch the bulb with bare hands.
Avoiding oil stained hands.
2. To prevent damage, make sure you handle the lamp with care
when installing and dismantelling. Do not let the bulb hit hard
objects around it as it will cause damage.
!
Lamp has been corrected before selling. In the rare case the lamp may need correction, follow these steps:
1. The light is reseted by turning on the power, using the menu or console light bulb to play a bunch of
white beam.
2. Using Phillips screwdriver to open the light body one bonnet side which is printed “this cover to replace
the lamp”
3. Using a flathead screwdriver to adjust the lamp bracket adjustment screw, turn the screw clockwise or
counter clockwise, and the lamp can be right or left to adjust.
Metal gobo with 12 gobos. Simple customization is
supported.
Color wheel is made by14 high standard fixed
color, the user can easily select their own favorite
color, to create a perfect lighting effect. Use the
gobo wheel at same time is better. It can be easi-
ly transformed a colorful gobo effect. (According
to customer needs may change at any time own
custom various color wheel).
Super silence motors with belt synchronous wor-
king,and two sets Adjust optics lenses to adjust
focus from 2.5 degree to 36 degree make perfect
focus function.
Clockwise and counterclockwise rotating, speed is
adjustable. Prism wheel can be created a variety of
brilliant lighting effects with color wheel and gobo
wheel. Prism wheel through two high-precision
ultra-fast eight-head screw motor spot size adjust-
ment cut prisms, and creates a wonderful prism
dynamic effects.
7.3 Correction Bulbs
8.1 Gobo wheel
8.2 Color Wheel
8.3 Optical Lens Focusing
8.4 Prism Wheel And The Prism
Enlarge
Gobos
Spot Rotating Gobo Wheel:

10
0-100% mechanical dimmer, you can instantly
switch freely adjustable strobe speed up to 12
times / sec, along with random strobe special
features.
Frost is a piece of atomizing lens, according to the
actual control to complete the frost effect as your
want .
Pan: 540°, Tilt 270° with 16BIT precise positioning
capabilities. Horizontal and vertical speed is adjus-
table.
8.5 Dimming and strobe
8.6 Frost
8.7 Horizontal And Vertical
Scanning
Colors
LCD Display
9. LCD Control
Pan Reverse off/on
Tilt Reverse off/on
Blackout pan/tilt off/on
Reset Total system Reset
pan/tilt reset | color system reset | gobo system
reset | strobe reset | optics reset
Manual control
Auto mode1/2/3
Calibrations
Internal control
Enter Access Code
Select 003 code then press enter into setting
Pan,tilt,color,static gobe,Rot.gobo, rotating
gobo,prism
1 prism rotation, prism 2, prism 2 Rotaion,-
zoom, frost, focus ,immer
Right1 lamp Icon
• Lamp status on/off
• Setting lamp on power off/on
• Control mode DMX/AUTO/SOUND
• Default settings
• Menu operating
DMX Address
Address setting, operate touch screen to set the
address, press the 6th enter key to save the selected
address.
Information
Fixture times,powe ontimes, power on number, lamp
on times, lamp on number
Setting
1. DMX presets 1.mode1 16CH 2.model 24CH
2. Display Intensity Display brightness 0-255 can
optionally from dark to light
3. Display saver Delay 0-600 Screensaver time
settings

11
10. DMX Channels
Channel Value Description
1: PAN 0-255 PAN 540 degree
2: pan: fine 0-255 Pan fine
3: Tilt 0-255 Tilt 270 degree
4: tilt: fine 0-255 Pan fine
5: pan/tilt: speed 0-255 Pan&tilt speed adjustment
6: function
130-139 lamp on
140-149 pan&tilt reset
150~159 color wheel reset
160-169 gobo wheel reset
170-179 strobe reset
180-189 zoom/focus/prism reset
200~209 complete reset
230-239 lamp off
7: color: wheel
0 white
9 dark red
18 dark blue
27 yellow
37 green
46 carmine
55 skyblue
64 red
73 dark green
82 amber
91 blue
101 orange
110 CTO
119 uv
128-129 white
130~134 dark red
135~138 dark blue
139~143 yellow
144~147 green
148~152 carmine
153~157 sky blue
158~161 red
162~166 dark green
167-171 amber
172-176 blue
177~180 orange
181~185 CTO
186~189 uv
190~220 clockwise rainbow effect from fast to slow
221~224 static
225~255 anticlockwise rainbow effect from slow to fast

12
8: colour: wheel (fine:
positioning) 0-255 color wheel fine
9 empty empty
10: static: gobo:
wheel
0~3 white
4-9 g gobo 1
10~15 gobo 2
16~21 gobo 3
22~27 gobo 4
28~33 gobo 5
34~39 gobo 6
40~45 gobo 7
46~51 gobo 8
52~57 gobo 9
58~63 gobo 10
64~69 white 1
70~75 white 2
76~81 white 3
82~87 white 4
88~95 gobo 1 shake
96~103 gobo 2 shake
104~111 gobo 3 shake
112~119 gobo 4 shake
120~127 gobo 5 shake
128~135 gobo 6 shake
136~143 gobo 7 shake
144~151 gobo 8 shake
152~159 gobo 9 shake
160~167 gobo 10 shake
168~175 white 1 shake
176~183 white 2 shake
184~191 white 3 shake
192~199 white 4 shake
200~201 white
202~227 clockwise from fast to slow
228~229 static
230~255 anticlockwise from slow to fast
11: spot: gobo: wheel
0 white
01~04 the biggest fixed open circle
5~7 spot gobo 1
8~10 spot gobo 2
11~13 spot gobo 3
14~16 spot gobo 4
17~19 spot gobo 5
20~22 spot gobo 6
23~25 spot gobo 7
26~28 spot gobo 8
29~31 spot gobo 9
32~34 spot gobo 1 auto rotating

13
11: spot: gobo: wheel
35~37 spot gobo 2 auto rotating
38~40 spot gobo 3 auto rotating
41~43 spot gobo 4 auto rotating
44~46 spot gobo 5 auto rotating
47~49 spot gobo 6 auto rotating
50~52 spot gobo 7 auto rotating
53~55 spot gobo 8 auto rotating
56~59 spot gobo 9 auto rotating
60~67 spot gobo 1
68~75 spot gobo 2
76~83 spot gobo 3
84~91 spot gobo 4
92~99 spot gobo 5
100~107 spot gobo 6
108~115 spot gobo 7
116~123 spot gobo 8
124~129 spot gobo 9
130~1371 spot gobo 1 auto rotating
138~145 spot gobo 2 auto rotating
146~153 spot gobo 3 auto rotating
154~161 spot gobo 4 auto rotating
162~169 spot gobo 5 auto rotating
170~177 spot gobo 6 auto rotating
178~185 spot gobo 7 auto rotating
186~193 spot gobo 8 auto rotating
194~199 spot gobo 9 auto rotating
200~201 white
202~227 gobo clockwise from fast to slow
228~229 static
230~255 gobo anticlockwise from slow to fast
12 spot gobo auto
rotating
1~127 Gobo rotating from fast to slow
128~255 gobo rotating anticlockwise from slow to fast
11: spot: gobo: wheel 0~255 auto rotation fine
14: prism
0~19 open circle
20~49 prisn 1 static
50~75 prism rotation
76~105 prism 1 static
106~127 prism 2 rotating
15: prism: rotating
0 static prism
1~127 clockwise from fast to slow
128~129 static
130~255 anticlockwise from slow to fast
16: frost 0~255 linear frost
17: zoom 0~255 empty
18: zoom: fine 0~255 empty
19: focus 0~255 empty
20: focus: fine 0~255 empty
21 empty empty

14
22: strobe
0~31 strobe off
32~63 s trobe on
64~95 strobe from fast to slow
96~127 strobe on
128~143 strobe on from fast to slow
144~159 shutter from slow to fast
160~191 strobe on
192~223 random strobe from slow to fast
224~255 strobe on
23: dimmer 0~255 0-100
24: dimmer: fine 0~255 dimmer fine
11. Failure Scoreboard And Solutions
12. Cleaning
Listed below are common approaches in the operation of a few common problems.
• Problem A: The lamp is not working, the bulb is not lit, the fan does not work
Solution 1: Check the power supply or the fuse is burned
Solution 2: The main power connector on the voltage detector
• Problem B: connect control units, lighting does not respond
Solution 1: After connecting control units, lighting should be working. If it is not working properly,
check the signal cable plugs and wires are connected correctly.
Solution 2: If the lamp is lit display, but the channel does not respond, check the address code is set
correctly and DMX output voltage polarity.
Solution 3: DMX signal problems if your lighting is off, check the input terminal and the circuit board
Solution4: Please change another one DMX controller
Solution 5: Check whether the signal cable near high voltage power lines caused DMX display
board inside the wire damage.
• Problem C: some channel is not working
Solution 1: stepper motor may be damaged, or the line connecting the motherboard burned out
Solution 2: IC driver board on the motherboard may be damaged
Regularly clean the outside of the optical lens focusing on the dust. Based on the number of lamps use a
clean environment to determine: Are they moist, smoked or is the surrounding environment particular-
ly dirty, which can cause dust deposition lamps.
Please use a glass cleaning solution and a soft cloth to wipe the focusing optical lens. Carefully dry each
part. At least 20 days to clean the dust outside a lens, the lens inside 30-60 days to clean up the dust once.
Regular inspection lamp fan and bottom case fan, a fan of at least 20\days to clean up dust deposition.
Cleaning must be executed in case of power failure.

15
Note: All information is subject to change without prior notice.
IMPORTANT INFORMATION!
In order to optimize the recovery and recycling of the materials that old appliances contain
and reduce the impact on human health and the environment, please make sure that this
product is recycled at the end of its life.
Importer:
ACSON COMERCIAL
C/Pallars, 405
08019 Barcelona
www.acson.com
[email protected]
