ELARABY TORNADO TPH-2000M User manual

PTC Heater
TPH-2000M
elarabygroup.com
Tornado
Thanks for Choosing Tornado
PTC Heater

2
Warning
Warning:
1. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children
without supervision.
- Children of less than 3 years should be kept away unless
continuously supervised.
- Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed
or installed in its intended normal operating position and they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate, and clean the appliance or perform user
maintenance.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons to
avoid a hazard.
5. Warning: to avoid overheating, do not cover the heater.
6.The heater must not be located immediately below a socket-outlet.
7.Do not use this heater in the immediate surroundings of a bath,
a shower, or a swimming pool.
8.CAUTION — Some parts of this product can become very hot
and cause burns. Particular attention must be given where
children and vulnerable people are present.
9. Do not use this heater if it has been dropped.
10. Do not use if there are visible signs of damage to the heater.
11. Use this heater on a horizontal and stable surface
12. WARNING: Do not use this heater in small rooms when they are
occupied by persons not capable of leaving the room on their
own, unless constant supervision is provided.
13. WARNING: To reduce the risk of fire, keep textiles, curtains, or
any other flammable material a minimum distance of 1 m from
the air outlet.

3
Components Description
Functions:
●Use the high-quality PTC heating element, can be
automatically trimming power
●Two gears power selection, heat adjustable
●Automatic air supply, wind downy, heat evenly
●The shaded pole motor, cooling rapidly
●The compact, the body is easy to carry and convenient to move
●Overheating protection device (temperature controller,
temperature fuse, temperature control switch), use more safety
●Tip-over safety protection
●The cold wind can control alone
●Swing single control, convenient to use

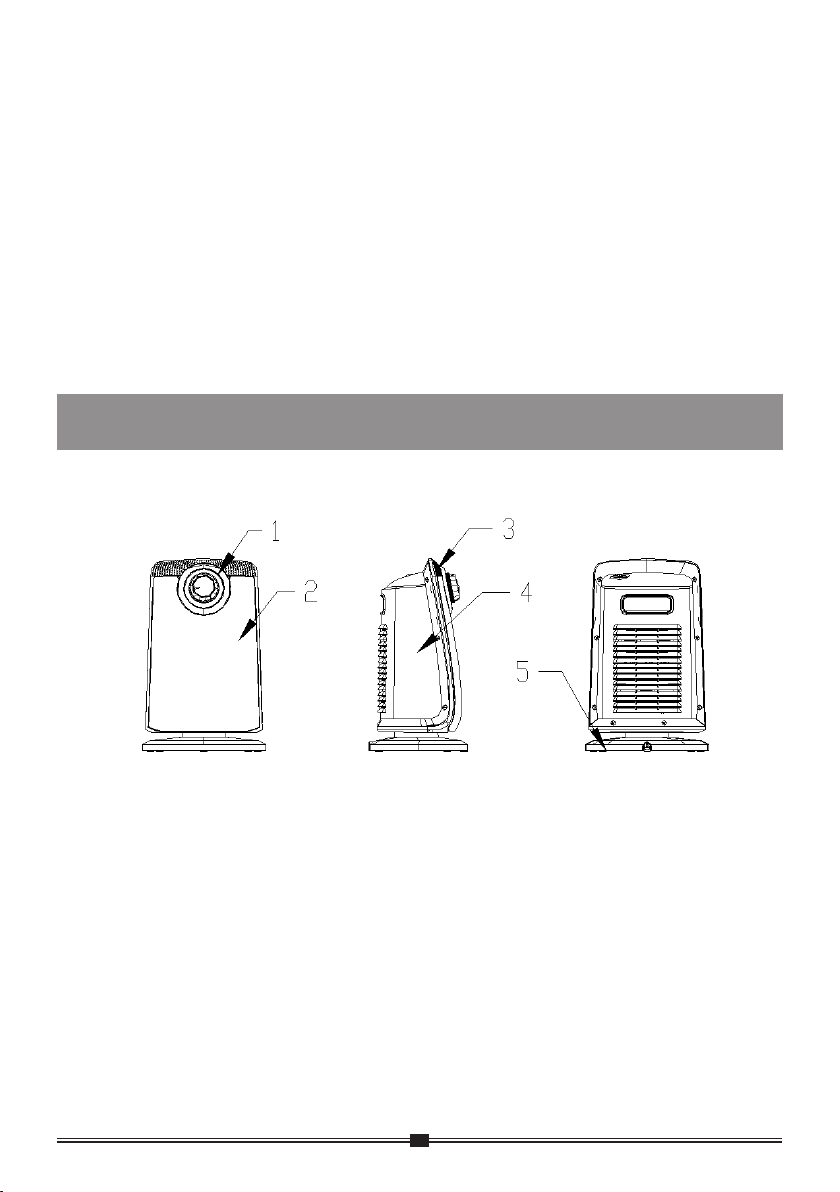

Product structure
1- control panel
2- Steel wind outlet
3- front cover
4- back cover
5- base

4

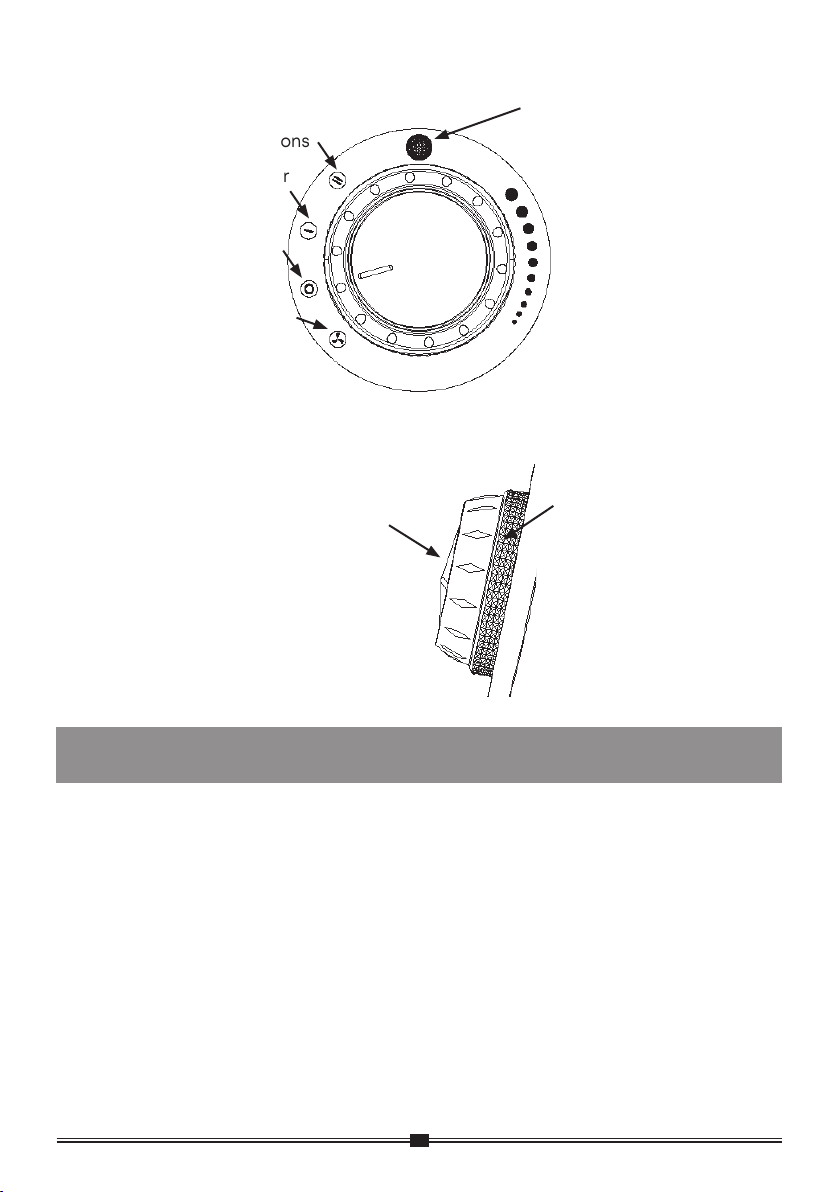

Display panel
Operation panel
LED indicator
High-power
Instructions
Low-power
instruction
Turn off
instructions
Fan
instructions
Gear knob Temperature
control knob
● Please refer to the Safety Notice, put the heater in the proper position,
and insert the plug to connect the power.
● Plug in the power cord, products into electricity state
● It is energized (switch on the power, and «gear knob» in a startup
state), rotate the temperature control knob «control» room temperature
adjustment function
● Temperature control knob in the designated effective range rotation
operation, knob stroke shall not exceed effective indication range, to avoid
damage the knob, influence the machine function.
Rotary «gear knob» for power and cold air option
● A total of four gears and the function are respectively: the cold wind/off/
power low/high power.
Operation instructions

5
● Stop using this unit please make «gear knob» in shutdown state.
«Gear knob» use effective stroke is: from «cold» to «upscale» 120 °
rotating within the scope of operation, when the gear knob in «cold»
position, do not continue to force left-hand, in «upscale» position, do not
continue to force right hand. In order to avoid damage the knob, influence
the machine function
● “key switch” can control wing function
● In the startup state (cold wind, cheap, high grade), the LED indicator will
light it
To use the product more conveniently and avoid any danger caused by
wrong operation please pay close attention to the notices instructed by
sign hereinafter. And then read the instructions carefully.
- CAUTION: In order to avoid a hazard due to inadvertent resting of the
thermal cutout, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
Safety warning & Safety Precautions

6
●With any indication of
malfunction, contact service
center repairs. Do not attempt
to disassemble the product
or replace faulty parts with
unauthorized components
because it will damage the unit.
●Do not hand the plug or product with
wet hands. Or it may cause electric
shock.
Do not stick sticks, metal, or other
object into the outlet, because it
will cause creepage or short circuit
or even damage the device.
●Do not use pesticide or other flam-
mable spray around the product. Be-
cause it will damage the device.
●Do not face the wind outlet to
baby directly for long. Or it will be
bad to baby’s health.
Do not pull the wires when unplug the
power cord plug, because it will da-
mage the wire or make creepage.
● Make sure there is no abnormal items
in the wire, and the plug is absolutely
plugged in. Otherwise it will cause
creepage.
● When there is unusual smell or unusual sound
from the device, then stop operang the device,
and unplug the plug.
● Do not broken power cord, or it can
result in creepage, short circuit and re,
Please contact service center for repairs.
● Do not fold power cord or place heavy object
on it, because it can cause creepage.
● Power o the device and unplug the
power cord when not using for a long me.
● Should avoid using the device, if there
is any child or animal or disable people or
people who is lack of self-control.
● Using the power outlet that meet the
inspecon requirements and the carrying
capacity of the socket is no less than 10A/220V.
● Ensure the power supply voltage is consistent
with the specied voltage in the machine
(AC220V).
● Make sure the service voltage when relocaon.
● Forbid to use the device around the tub,
sprinkler or swimming pool.
● Forbid to use the device directly below
the power outlet.
● Do not make the device close to the
walls, curtains or other combusble mate-
rials, because it may cause a re.
● To avoid overheang, do not cover the device
with the heater.
● Never place any objects in the device.

7
Maintenance & Cleaning
Technical Parameters
Make sure that the device is switched off before cleaning or maintenance.
1. Wipe the surface of the device by using a clean wet cloth or punctuate
washing-up liquid. Do not use the washing-up liquid, which is mordant, like
petrol, Tianna water. Do not submerge in water.
2. Dirt and dust may be caught on the air filter during operation. The
caught dirt and dust may negatively affect the function of the device. So,
clean the air filter regularly (at least once a month)
a) Do not use chemical liquids when cleaning the device.
b) Remove the air filter from the rear part.
c) Immerse the filter in clean water for several minutes and allow it to dry
thoroughly.
d) Place the clean, dry filter back into the back grill. Make sure that
assemble it correctly
Model NO. TPH2000-M
Voltage 240-220V~
Frequency 50Hz
Power High 2000W Low 1300W
Noise level. <50dB
Dimension 222mm×177mm×347mm

8
Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations:
hand in the non-working electrical equipments to an
appropriate waste disposal center.
