Thanks for Choosing Tornado
PTC Heater

2
Thank you for your belief and support as you choose our latest
design multifunctional, luxurious tower ceramic heater. Please
read the following instructions carefully before using the device
to function it well and keep this user manual for future reference.
Thank you again for your support, we believe our product would
bring your life convenience and great enjoyment.
Warning:
1. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
2. Children of less than 3 years should be kept away unless
continuously supervised.
3. Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed
or installed in its intended normal operating position and they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate, and clean the appliance or perform user
maintenance.
4. CAUTION — Some parts of this product can become very hot
and cause burns. Particular attention must be given where
children and vulnerable people are present.
5. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons to
avoid a hazard.
6. Warning: to avoid overheating, do not cover the heater.
7.The heater must not be located immediately below a socket-outlet.
8.Do not use this heater in the immediate surroundings of a bath,
a shower, or a swimming pool.
9. Do not use this heater if it has been dropped.
10. Do not use if there are visible signs of damage to the heater.

3
Product Features
11. Use this heater on a horizontal and stable surface.
12. WARNING: Do not use this heater in small rooms when they are
occupied by persons not capable of leaving the room on their
own, unless constant supervision is provided.
13. WARNING: To reduce the risk of fire, keep textiles, curtains, or
any other flammable material a minimum distance of 1 m from
the air outlet.
1. PTC ceramic heating element, change the power automatically
according to the variation of the ambient temperature. No
oxidation characteristics bring the product longer service life
2. High or low warm wind optional.
3. Small and exquisite machince body with handle, easy to carry.
4. With Dismountable dust filter structure, fully filter the dust in the air.
5. Automatically wing oullet,soft wind and heat evenly.
6. Using shaded pole motor, tubular wind wheel, which made the
device with high thermal efficiency and low noise
7. Tip-over safety protection,double over-heating protection
(Thermistor,temperature fuse),use more safely.
8. Convenient operation with infrared remote control function
9. With ECO energy saving function.

4
Components Description
Product structure
Operation Panel
Display panel
1- Front shell
2- Iron net support
3- Iron net
4- CD stripe
5- Display panel
6- Buttons
8- Screw
9- Back cover
10- Power cord
11- Air inlet

5
Components Description
Operation introduction
Remote control panel

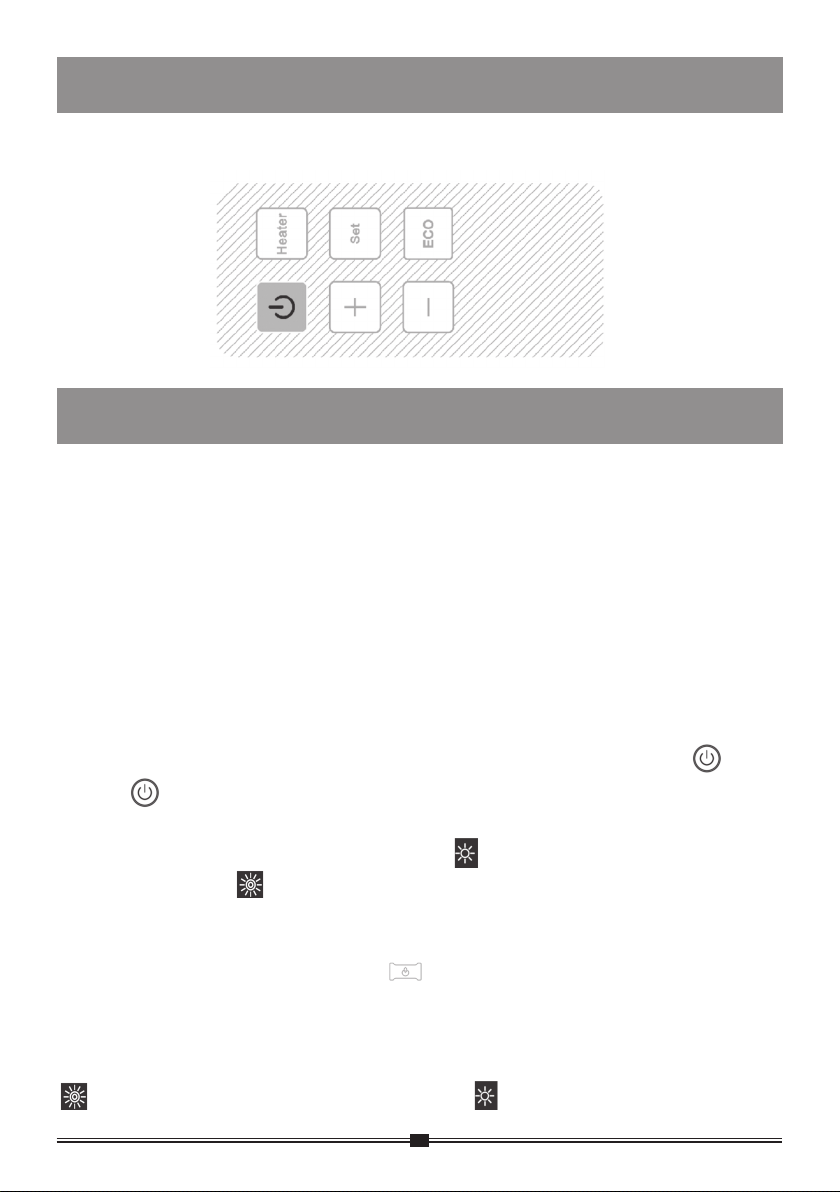

● Installation Method
a) Take out the machine from the package.
b) Carefully put the machine on a stable floor at the correct side.
● The function of buttons
1. Check up and make sure the plug voltage is accord with the
service voltage (220V-240V), then plug in.
2. Put on the power switch at the back of the machine, enters
standby mode after “Bi” sound, all functions and display are
closed.
3. Under standby model, all the pressing is invalid except key.
Press key, the device starts working. Press it again, the device
turn off. The default setting after turning on shows as below:
a) PTC:Low heating power indicator light on. Hing heating
power indicator light off
b) Timer: 0h(namely no timer), the indicator “ ” off.
c) Temperature:display default temperature.LED “ ” light on.
4. In working condition, press key to shift it from high heating
power to low heating power, second press turn into high power
heating again, followed by recycling.
a) Operated at low heating power: low heating power indicator
on (high heating power indicator off).

6
b) Operated at high heating power: high heating power indicator
on. (low heating power indicator off).
5. In working condition, press key to set the time.
a) Enter the timer setting mode, and the time indicator will be on,
the LED light will flicker per 0.5 second. At this time, press or
key to set the timer (within a range of 0-12 hours), the time will
be added or minus by 1h every press. When time of or
press length is more than 2 seconds, the display rapidly changes
in 0.2s.
b) When enter into the timer setting mode, the timer that has
been set before will not be changed. You can reset the time, only
when pressing or key, and timer that you have set will
effect at once.
c) If there is no operation to the keys after 5 seconds or press
other keys except or , then the LED indicator light on,
and will show the set timer. And minus down by per hour.
When the timer minus down to “0”, the machine turn off and enter
standby mode.
d) If the timer set as “0”, mean no timer is set. LED indicator light
off, and shows the room temperature. Machine enters
sandby mode.
6. In working condition, press key enter temperature setting.
a) temperature setting:Press key ,the temperature indicator
light will be on, the LED light will flicker per 0.5 second. You can
change the temperature by pressing or key. The range
of the temperature is from 5°C~ 35°C, the temperature will be
added or minus 1°C every press.
b) After entering temperature setting, the temperature that
has been set before will not be changed. You can reset the
temperature, only when pressing or key. Press key
to quit temperature setting, and the temperature that you have
set will be effect at once.
c) If no operation to the keys after 5 seconds or press other keys
except , and , then the LED indicator will show t
the room temperature(When the room temperature is >-10°C , it
shows LO, when then room temperature is >40°C, it shows HI).

7
e) The device will not judge the temperature within 10s when
power on the device. After the device work for 10s, if the
ambient temperature 2ohigher than the temperature that has
been set, the PTC heating will turn off, the low/high heating
power light will be off. (The rest indicators will not change.) If
the ambient temperature 2o lower than the temperature that
has been set, the heating function will be on again with the
corresponding heating power indicator on.
7. When setting the time and temperature at the same
time, timing,and the room temperature and timing display
interactively, interval is 30 seconds(Timer display shows for 30
sec, temperature display off , Temperature display shows
for 30 sec, timer display off, Timer display shows for 30 sec,
temperature display off ). When the timing is not set, only
display setting temperature.
8. In working condition, press key to shift the product into
ECO mode, indicator on.
ECO mode: The default se is 22°Cwhen environment
temperature is lower than 18°C, high power heating is on;
when environment temperature is higher than 18°C, Low power
heating is on. When the temperature reach 22°C, PTC shut
down. Indicator shows room temperature.
9. Continuous electric memory function:
under standby mode, press key the unit will keep working as
the same status as last time setting, except the timing function.
10. The whole machine working in a continuous mode after 1
minute, the brightness of the display section should be reduced
to 1/3 of the normal brightness, solving the problem of LED lamp
dazzling in night, it will restore the brightness after operation.
11. When the machine is tipped over during operation, PTC
stops, and wind wheel work for 10s more than stops. The
machine enters standby mode.

8
Safety warning & Safety Precautions
●To use the product more conveniently and avoid any danger
caused by wrong operation please pay close attention to
the notices instructed by sign hereinafter. And then read the
instructions carefully.
●Symbol introduction
●With any indication of malfunction,
contact service center repairs. Do
not attempt to disassemble the
product or replace faulty parts with
unauthorized components because
it will damage the unit.
●Do not hand the plug or product
with wet hands. Or it may cause
electric shock.
●Do not stick sticks, metal or other
object into the outlet, because it will
cause creepage or short circuit or
even damage the device.
●Do not use pesticide or other flam-
mable spray around the product.
Because it will damage the device.
●o not face the wind outlet to baby
directly for long. Or it will be bad to
baby’s health.
●Do not pull the wires when unplug
the power cord plug, because it will
damage the wire or make creepage.
●Make sure there is no abnormal
items in the wire, and the plug is
absolutely plug in. Otherwise it will
cause creepage.
●When there is unusual smell or
unusual sound from the device, then
stop operating the device, and un-
plug the plug.

9
Maintenance & Cleaning
(1) Before maintaining, please pull out the plug, and make sure the heater
has become cool.
(2) Please use soft cloth to wipe the dust on the heater’s surface; If the
surface is too dirty, it is better to wipe it with the water lower than 50C
mixed with neutral detergent
(3) Don’t use the gasoline, Thinner and any others which is easy to
damage surface.
(4) Please cooling, dry up heater before packing, place it in dry and
ventilate place
●Do not broken power cord, or it can
result in creepage, short circuit and
fire, Please contact service center for
repairs.
●Do not fold power cord or place
heavy object on it, because it can
cause creepage.
●Power off the device and unplug
the power cord when not using for a
long time.
●Should avoid using the device, if
there is any child or animal or disable
people or people who is lack of self-
control.
●Using the power outlet that meet
the inspection requirements, and the
carrying capacity of the socket is no
less than 10A/220V.
●Ensure the power supply voltage is
consistent with the specified voltage
in the machine (AC 220V).
●Make sure the service voltage
when relocation.
●Forbid to use the device around the
tub, sprinkler or swimming pool.
●Forbid to use the device directly
below the power outlet.
●Do not make the device close to the
walls, curtains or other combustible
materials, cause it may cause a fire.
●To avoid overheating, do not cover
the device with the heater.
●Never place any objects in the
device

10
Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations:
hand in the non-working electrical equipments to an
appropriate waste disposal center.
Model NO. TPH-2500R
Voltage 220-240V ~
Frequency 50Hz
Power 2500W
Noise level. <50dB
Dimension 352mm×183mm×348mm
