Rointe D SERIES User manual

MANUAL DE INSTALACIÓN Y USO
Página 26
MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO
Página 52
INSTALLATION AND USER MANUAL
Page 02
INSTALLATIE- EN GEBRUIKERSHANDLEIDING
Page 77
ES
EN
PT
NL
D SERIES Digital radiator with Wi-Fi / Radiador digital con Wi-Fi /
Radiador digital com Wi-Fi / Digitale radiator met Wi-Fi
GUARANTEE / GARANTÍA
/ GARANTIA / GARANTIE
ON THE BODY
EN EL CUERPO
NO CORPO
IN HET LICHAAM
YEARS / AÑOS
/ ANOS / JAAR
YEARS / AÑOS
/ ANOS / JAAR
ON ELECTRONICS
EN ELECTRÓNICA
NA ELECTRÓNICA
IN ELEKTRONICA

2
SYMBOLS
DANGER. This symbol indicates a medium-high risk hazard which can result in
serious injury or even death.
DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not
leave or place magazines, spray cans, volatile substances, or similar objects
within 250 mm of the radiator.
HOT SURFACE. This symbol indicates that your surfaces are hot during and
immediately after use. These must not be touched: danger of burns.
OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual
carefully before installing and using the product. Keep it for later use. Read all
instructions and safety warnings. Failure to follow these can result in electric
shock, re or serious injuries.

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
3
INDEX
1. General Warnings ............................................................................................................ 4
2. Technical information ....................................................................................................7
3. Installation........................................................................................................................ 8
4. Screen & Keypad ............................................................................................................ 11

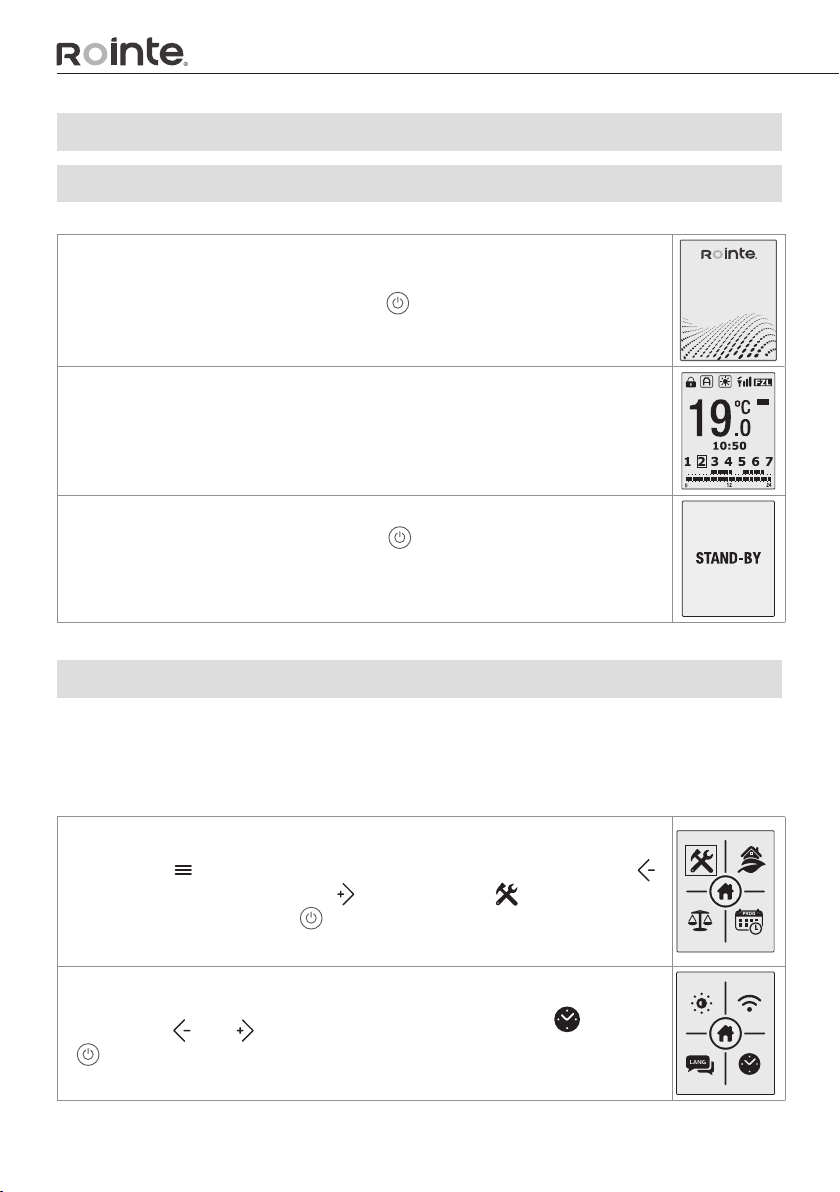

5. Functionality and programming ................................................................................. 12
5.1. ON / OFF (stand-by) ...............................................................................................12

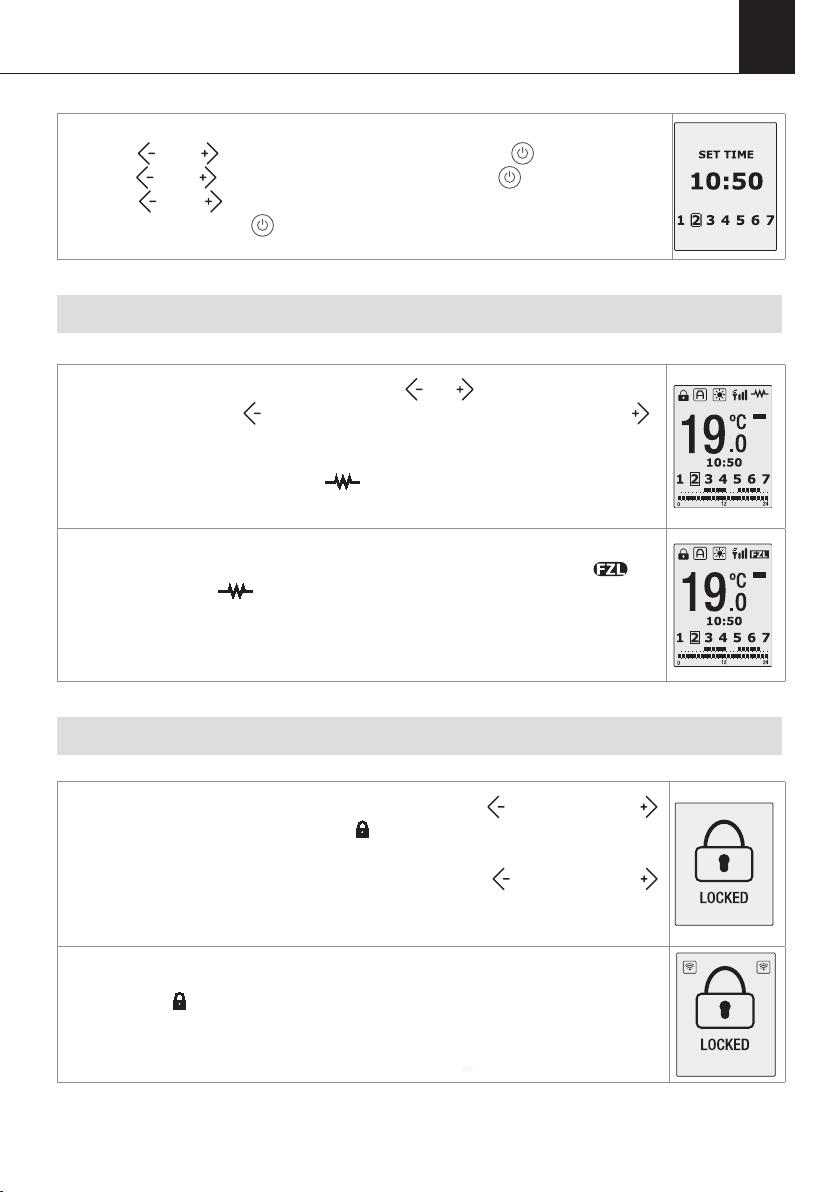

5.2. Adjust the day and time......................................................................................... 12
5.3. Adjust the temperature ........................................................................................ 13
5.4. Lock the control panel........................................................................................... 13

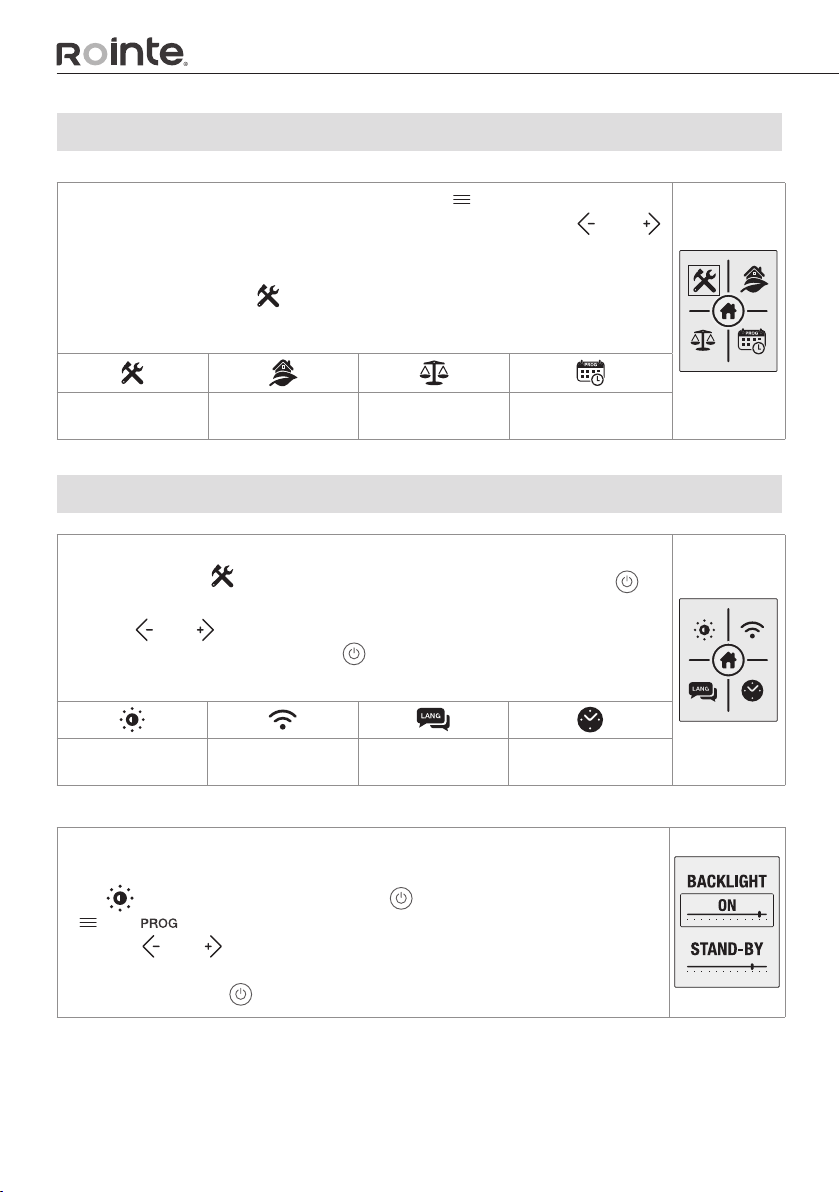

5.5. Main menu ............................................................................................................. 14
5.6. Main menu: Submenu settings ............................................................................ 14
5.7. Main Menu: Energy sub-menu .............................................................................. 15
5.8. Main menu: Equilibrium / Balance sub-menu .................................................... 17
5.9. Main menu: Program sub-menu .......................................................................... 17

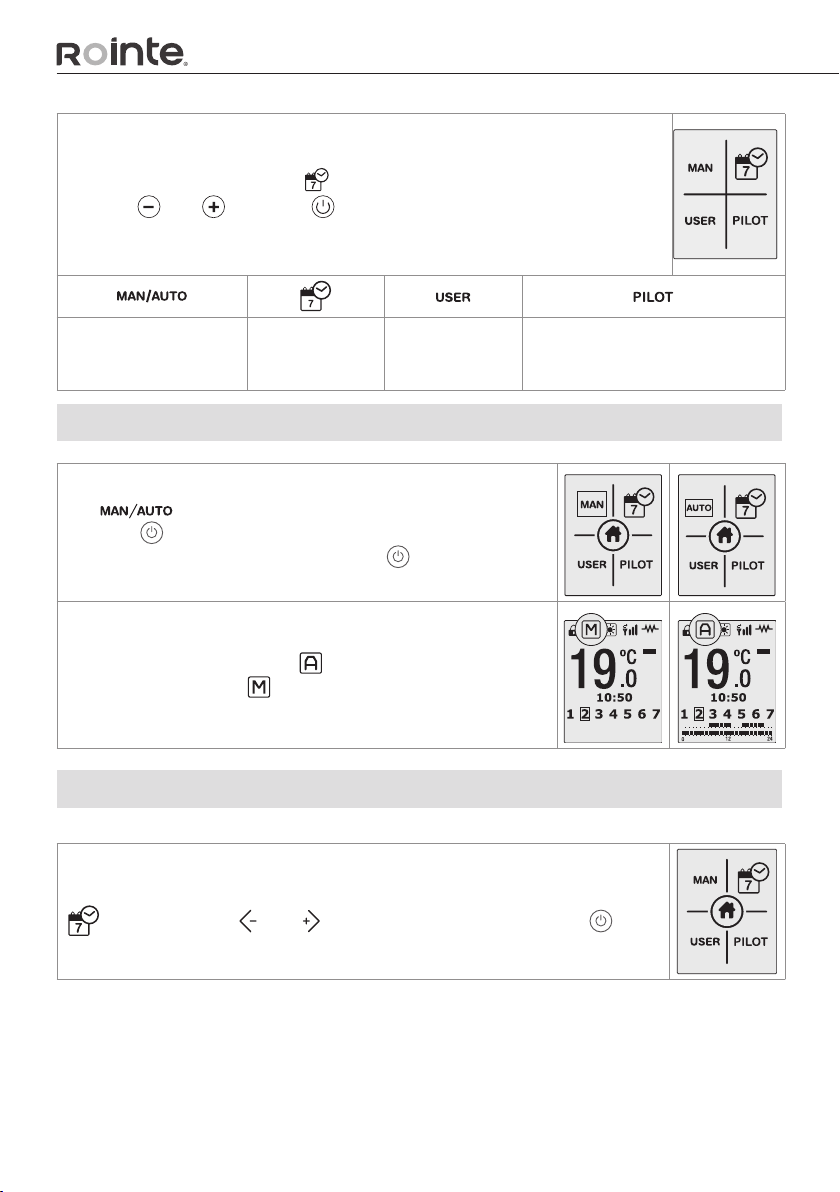

5.9.1. Manual/Automatic functions.......................................................................... 18
5.9.2. Programming options..................................................................................... 18

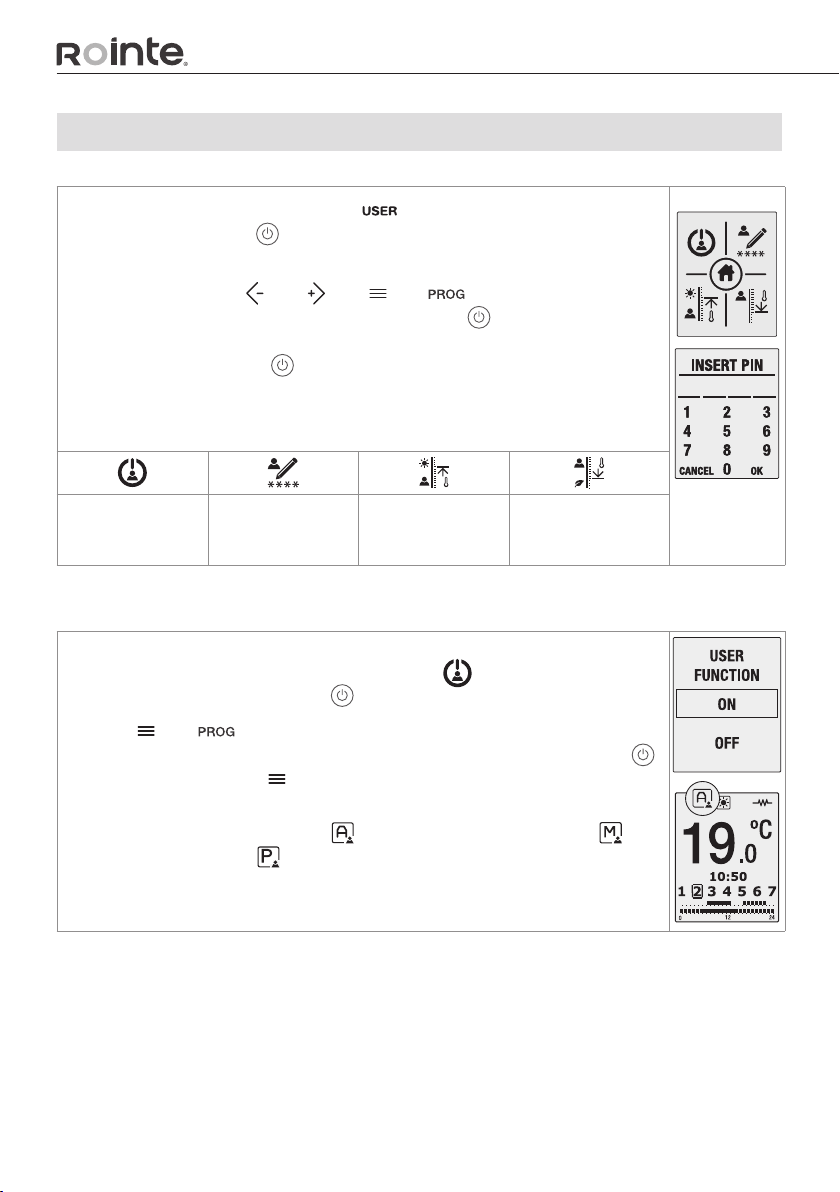

5.9.3. User mode........................................................................................................20
5.9.4. Pilot wire function ...........................................................................................22
5.9.5. Fuzzy Logic Control technology.....................................................................22
6. Wi-Fi Pairing ...................................................................................................................22
7. Maintenance and cleaning ...........................................................................................23
8. European Regulation (WEEE) 2012/19/EU ................................................................23
9. Guarantee ......................................................................................................................23
10. How to register your product guarantee ..................................................................26
Directive ERP Commission Regulation ....................................................................... .102
EU Declaration of Conformity ........................................................................................103

4
1. GENERAL WARNINGS
WARNINGS
This product may be used by children over 8 years of age
and by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge under strict
supervision or instruction in the safe use of the product and
if they understand the hazards involved. Children should not
plug, adjust, clean, play with, or perform maintenance on this
product. Children under 3 years of age should be kept away
from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons
present cannot leave the room independently and are not
under constant supervision.
DO NOT COVER. To avoid overheating, do not cover the
radiator.
DO NOT place spray cans, volatile substances, or similar
objects within 250mm of the product.
DO NOT use insecticides, paints, or chemicals on or near the
product.
Some parts of this product could reach high temperatures
and cause burns. DO NOT touch the external parts of the
product when in operation.
DO NOT install near curtains or other ammable materials.
Particular attention should be paid when children and
vulnerable people are present.

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
5
When using electrical appliances, precautions should be
taken to reduce the risk of re, electric shock and injury.
Never insert ngers, body parts or objects inside the product.
Make sure that the voltage indicated on the product’s
technical information corresponds to the voltage output you
have at your socket.
Any repair or maintenance that requires the product to
be opened the product must be carried out by personnel
authorised by ROINTE, who must also be notied if a leak
is observed. Only ocial spare parts approved by ROINTE
should be used. Please observe the current and relevant
regulations when disposing of this product and its thermal
uid.
If the power cable is damaged, it must be replaced by
personnel authorised by ROINTE to prevent any damage.
To avoid the risk of suffocation, do not leave the packaging
including bags and other items within reach of babies or
children.
The product has an IP24 degree of protection and can be
used in bathrooms, but not in the vicinity of bathtubs, taps,
showers, water connections, toilets, swimming pools or other
masses of water. The product must never be installed where
it, the switches or the control panel are within the reach of
people in the water. Never use the product with wet hands.
Do not place any water containers (glasses, vases, etc.) on or
near the product.

6
IMPORTANT
Disconnect the product from the power supply and make
sure the product is at room temperature before any cleaning
or maintenance. Do not use any abrasive substances on
the product, such as (but not limited to) chemicals, coarse
cloths, brushes, hard bristle, or wire/steel wool.
To disconnect the product from the power source, remove
the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
the product unless it has been followed by an ocial ROINTE
technical study.
Before the rst start-up, or before the start of winter, or when
the product has not been used for many days, the appliance
should be cleaned (follow the steps in the “maintenance”
section of this manual).
Do not sit or lean on the product.
Temperature contrasts can generate “clicks” or noises in
the device. This is not a fault of the product, but due to the
expansion/contraction of the materials.
When disposing of the product, the requirements set out in
the legislation for the waste treatment and recycling must be
followed. See WEEE in section 8.
!

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
7
2. TECHNICAL INFORMATION
MODELS 0330RAD 0550RAD 0770RAD 0990RAD 1210RAD 1430RAD 1600RAD
Number of elements 3 5 7 9 11 13 15 DIMENSIONS, WEIGHTS & FINISHES Width (mm) 350 510 670 830 990 1,150 1,310 Height (mm) 585 585 585 585 585 585 585
Depth (mm) 97 97 97 97 97 97 97 Installed depth (mm) 120 120 120 120 120 120 120
Weight (kg) 7,7 12,2 16.4 20.4 24.1 25.9 32.1 Finish White RAL 9016 / Graphite / RAL color ELECTRICAL CHARACTERISTICS Nominal power (W) 330 550 770 990 1,210 1,430 1,600
Effective power (W) 125 209 293 376 460 543 608
Voltage (V) 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V
Current (A) 1.5 2.4 3.4 4.3 5.3 6.2 7.0
SAFETY & INSTALLATION Safety thermostat ✓ ✓ ✓ ✓ ✓ ✓ ✓ Protection Grade IP 24 IP 24 IP 24 IP 24 IP 24 IP 24 IP 24 Template & Installation Kit ✓ ✓ ✓ ✓ ✓ ✓ EAN CODE
WHITE 8436045913708 8436045913715 8436045913722 8436045913739 8436045913746 8436045913753 8436045913760 GRAPHITE 8436045913777 8436045913784 8436045913791 8436045913807 8436045913814 8436045913821 8436045913838

8
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the
nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.
IMPORTANT: Prior to installation, please locate the metal tag located at the back of the
product and note the product reference and serial number. You will need this information
to register your guarantee. See section 10 for help on how to register the guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This
product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the xings supplied. Do not install the product in such a way that it
encounters the power cable.
The product must be mounted on the wall in the position
shown in the accompanying image using the brackets
and with the xings supplied.
Our products transfer heat through the natural air
convection. If the product is covered, this will disrupt
the airow and could cause overheating. It must be
positioned in accordance with the minimum distances
shown in the accompanying picture.
WARNING: The product has an IP24 degree of protection and can be used in bathrooms,
but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming
pools or other masses of water. The product can only be installed in zone 3 of the
accompanying picture. The product must never be installed where it, the switches or the
control panel are within the reach of people in the water. Never use the product with wet
hands. Do not place any water containers (glasses, vases, etc.) on or near the product.
ZONA EXTERIOR ZONA EXTERIOR
2.25 m
0.6 m 0.6 m
0.6 m
An installation kit is included in the product packaging. You will need a drill, a rubber mallet,
a spirit level and a pencil to complete the installation.

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
9

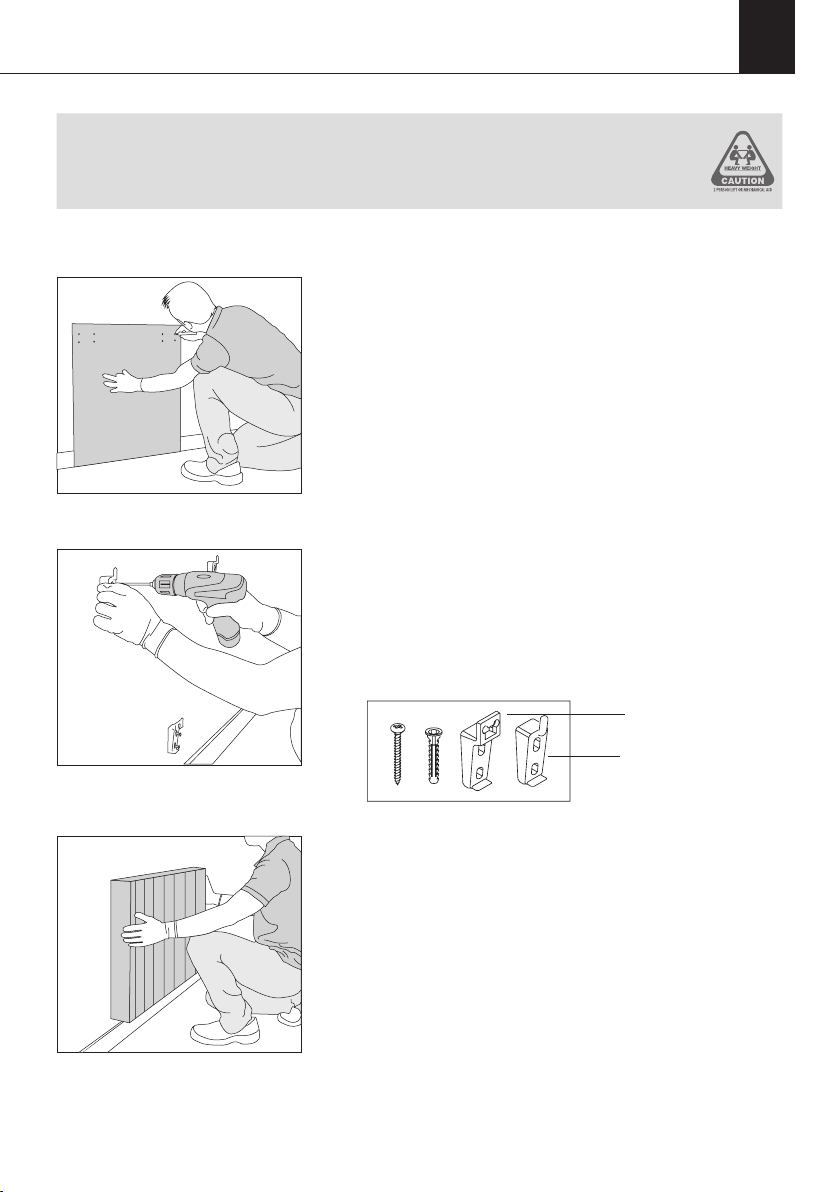

WARNING: The weight of some of the products may be heavy. The installation
may require two people.
IMPORTANT: Please follow these instructions carefully.
1. Remove the packaging and check that the installation
contains brackets, screws, rawl plugs and a cardboard
template.
2. Select a suitable location on the wall. Place the
template on the wall and mark the holes for the
brackets and screws. Observe the minimum distance
requirements from the previous page.
Use the oor as a base for the template, not the
skirting board.
3. Remove the template and carefully drill out the
marked holes.
4. Secure the upper brackets with the rawl plugs
and screws provided. Then x the lower bracket. To
distinguish it, the lower bracket has a different design
from the top ones.
Top bracket
5. Slide the product up and down over the xed
brackets.
6. Check the straightness with a spirit level and adjust
the supports accordingly if necessary.
Bottom bracket

10
7. Connect your product to the power supply and
switch it on.
8. See section 5 for operating instructions.
IMPORTANT: Measurement template per model.
0330RAD 0550RAD 0770RAD
0990RAD 1210RAD 1430RAD /
1600RAD
Floor
Floor
Floor
Floor
Floor
Floor

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
11

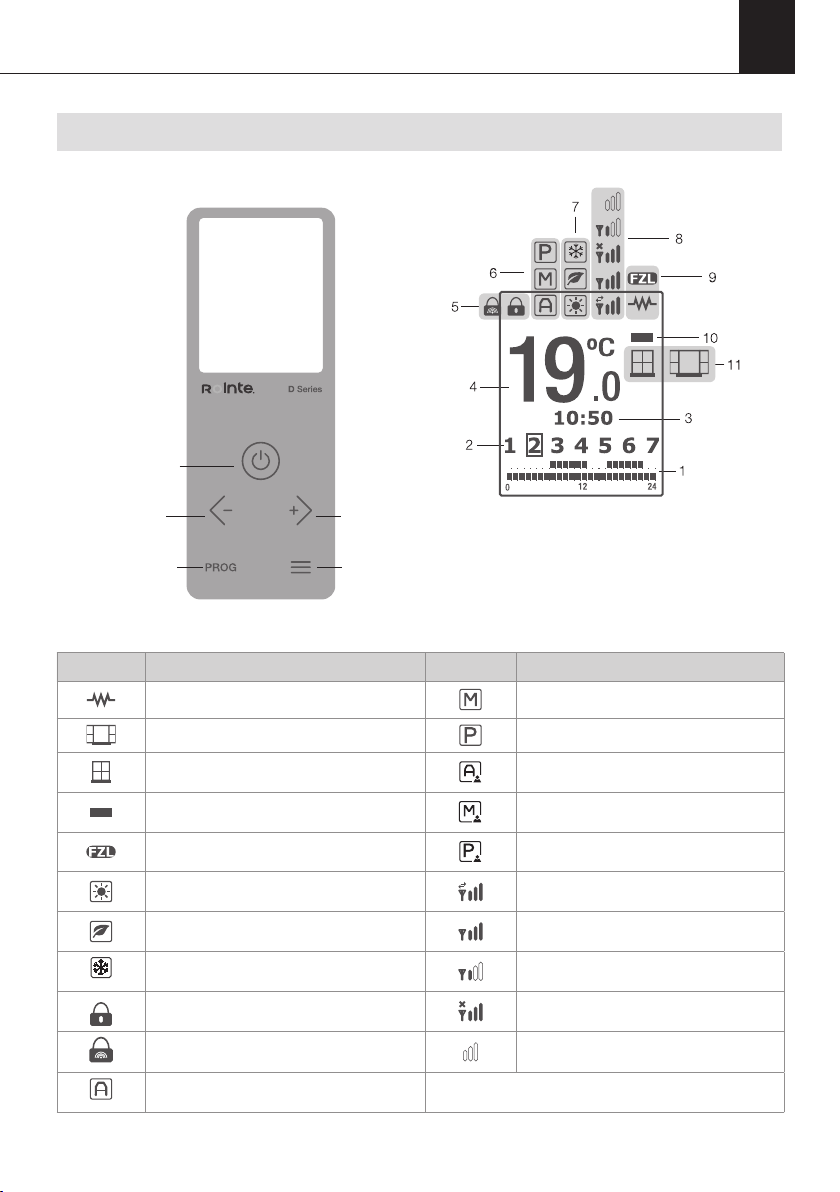

4. SCREEN & KEYPAD
* PILOT WIRE function not available in UK. Only on demand.
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
Heating element - active MANUAL function - active
OPEN WINDOWS function - DETECTED PILOT WIRE function - active
OPEN WINDOWS function - ACTIVE AUTOMATIC function - active when USER
mode active
Energy consumption status - green /
amber / red
MANUAL function - active when USER
mode active
Fuzzy Logic Control technology - active PILOT WIRE function active* when USER
mode active
COMFORT mode - active
Connected to the server and router -
sending and receiving.
ECO mode - active Connected to the server and router -
maximum net signal.
ANTI-FROST mode - active Connected to the server and router -
minimum net signal.
Control panel locked through keypad
Connected to router. Not connected to
the server.
Control panel locked through remote Not connected to the server
or to the router.
AUTOMATIC function - active * PILOT WIRE function not available in UK. Only on
demand.
On / Off button
Accept / Conrm button Programming
Time
Days of the week
Temperature selected
Control panel
locked / unlocked
MANUAL / AUTOMATIC
/ PILOT WIRE* function
indicator Heating element active /
Fuzzy Logic Energy Control
technology indicator
Wi-Fi connection
status indicator
COMFORT / ECO / ANTI-
FROST mode indicator
Energy consumption
indicator
OPEN WINDOWS
function indicator
Menu button /
Move upwards button
PROGRAMME button /
Move downwards button
Decrease temperature
/ Move left button
Increase temperature
button /
Move right button

12
5. FUNCTIONALITY & PROGRAMMING
5.1. SWITCHING ON AND OFF (STAND-BY)
To switch the product on, please press the button on the keypad once.
After 3 seconds the temperature, time and days of the week will show on the
display panel.
To switch the product off, please press the button again once.
The product will go into stand-by mode with the word ‘STAND-BY’ displayed on the
display panel. After 3 seconds the Rointe logo will appear.
5.2. ADJUST THE DAY AND TIME
It is possible to change the radiator time from the control panel, but it is preferable to wait
for automatic synchronisation once it is paired with the Rointe Connect application and the
product is connected to the E-life Technology servers.
Pressing the key, you can access the Main Menu. To move left press the
button and to move right press the button. Once the icon is highlighted
on the display panel, press the button to access.
Now use the and buttons again to select the clock option and press
to access.

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
13
Use the and buttons to set the hour and then press to conrm. Then
use the and buttons to set the minutes and press to conrm. Finally,
use the and buttons to set the day (1 = Monday, 2 = Tuesday etc.) and
conrm by pressing the button.
5.3. ADJUST THE TEMPERATURE
To change the temperature, please press the or button. To decrease the
temperature press the button and to increase the temperature press the
button.
When the room temperature is lower than the set temperature on the display panel,
the product will come on with the symbol appearing in the top right of the
display panel.
When the Fuzzy Logic Energy Control technology is activated the symbol will
replace the symbol in the top right of the display panel.
To learn more about Fuzzy Logic Energy Control technology please see section
5.9.5.
5.4. LOCK THE CONTROL PANEL
To lock the keypad manually, please hold and press the button AND the
button TOGETHER for 3 seconds. The symbol will appear on the display panel
and the keys will not respond.
To unlock the keypad manually, please hold and press the button AND the
button TOGETHER for 3 seconds. To lock the keypad using a remote control, please
see the corresponding instruction manual for the remote control separately.
When locking from the mobile application, the remote keypad lock icon will appear
on the screen . When pressing any key on the product, the image on the right will
be displayed on the screen. The remote keypad lock can only be unlocked from
the mobile application.

14
5.5. MAIN MENU
The Main Menu is accessed by pressing the menu button. You can navigate
through the different options available on the menu by pressing the and
buttons to move left and right respectively and to scroll through all 4 options.
The selected sub-menu will be highlighted with a frame, as shown in the image to
the right on the ‘Settings’ section of the display panel.
The below icons displayed on the screen take you to the following sub-menus:
Settings Energy Equilibrium
/ Balance Program
5.6. MAIN MENU: SETTINGS SUB-MENU
The `Settings´ sub-menu congures the technical parameters of your product. To
access, select the icon displayed in the Main Menu screen and press to
conrm.
Use the and buttons to move across the different options on the sub-menu
to choose your parameter and press to access.
The below icons displayed on the screen take you to the following parameters:
Display backlight
brightness Wi-Fi settings Language Time
• Adjust display backlight brightness
This allows you to change the brightness of the display panel in both the STAND-BY
and ON modes separately. To change the brightness of the display panel ensure
the icon is highlighted and press the button to conrm. Then with the
and buttons you can switch between the two modes.
With the and buttons you can increase or decrease the brightness as you
wish. The cursor indicates the intensity of the light. Once you have set the required
brightness press the button to save and exit.

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
15
• Wi-Fi settings
This option prepares the product to perform the PAIRING mode, creating its own
network to which we will connect for the correct conguration of the product. Make
sure that the icon is ashing and conrm with .
The next screen will show the data of the network created, the name of the Wi-Fi
network (NET:) and the password (PIN:). Pressing the button will exit the PAIRING
mode, returning to the main screen.
Both to enter and exit the submenu you have to wait about 15 seconds. In addition,
the product will restart.
• Change the language
To change the language of your product, ensure the icon is highlighted in the
‘Settings’ sub-menu and press the button to access.
Use the and buttons to move up or down respectively until your chosen
language is highlighted and conrm by pressing the button.
• Adjust the day and time
This option sets the hour, minutes and day of the week in your product. Please
refer to section 5.2.
5.7. MAIN MENU: ENERGY SUB-MENU
The energy submenu gives access to the functions related to the energy management
of the product. Select using the keys and the icon of the main menu.
Press to access this screen. The following icons allow access to the different
submenus:
OPEN
WINDOWS
function
Rointe Eye Detect function
* Not available in UK. Only on
demand*
Effective
Power
function
Information

16
• Open WINDOWS function
This option allows you to activate or deactivate the OPEN WINDOWS function. Use
the and buttons and , to select ON to activate and OFF to deactivate. Once
the desired option has been selected, press to conrm and exit.
• Rointe Eye Detect function
Allows you to enable or disable the Rointe Eye Detect function. Using the and
buttons select ON to activate or OFF to disable. Once the desired option is
selected press to conrm and return to the main display.
• Efective Power function
To check the Power status of your product, make sure the icon
is ashing in the ‘Energy’ submenu and press the button
to access. This option shows on the display the actual consumption
time of the product and the total time during which our product is
connected to the mains. After a few seconds without pressing any
button, the display will show the nominal power and the effective
power of the product. The effective power corresponds to the
average power value that our product actually consumes during
operation.
• Information
This function will display the software version, the date of this release and the
rated power of the product.
To access this information, ensure the icon is highlighted in the ‘Energy’ sub-
menu and press the button to conrm. The information will then show in the
display panel. To exit press the button or press the button again to move
onto the next display in the Information function.
Pressing , the screen displays the Wi-Fi connection status, connection type,
IP address, subnet mask and gateway. To exit press the or press to return
to the next screen in the information function.
WIFI STATUS
dhcp:assigned
IP, NM, GW:
xxx.xxx.x.xxx
xxx.xxx.xxx.x
xxx.xxx.x.xxx

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
17

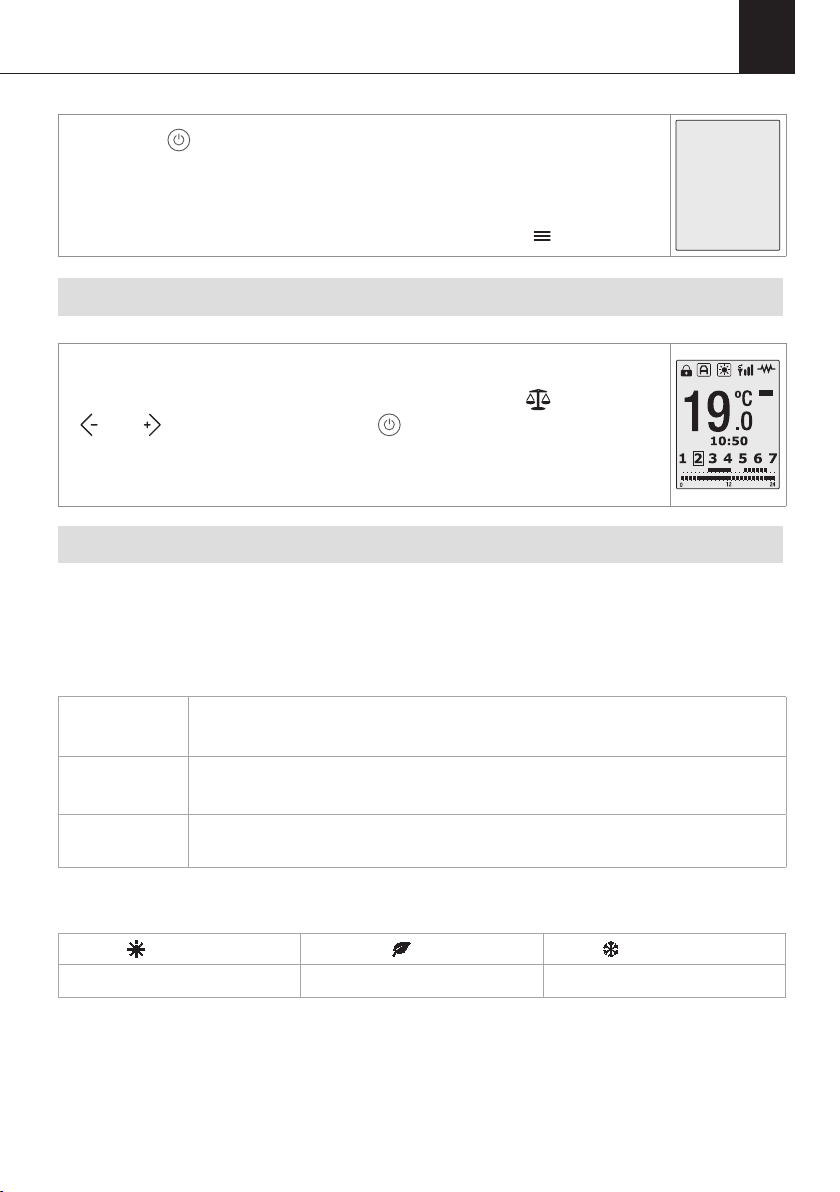

By pressing we can know the MAC address and RSSI, signal strength which
is measured in dbm. When this appears, if you press the power button once more,
it gives you the option to update the rmware. If you press the same button again
it will ask you “Wi-Fi?” and you will have to answer yes or no. It then restarts after
a few seconds of waiting. To exit the information screen, press .
WIFI STATUS
MAC:
0 :50:93
C4:03:F6
RSSI:-70
5.8. MAIN MENU: EQUILIBRIUM / BALANCE SUB-MENU
The balance submenu makes the product work in MANUAL function with a constant
temperature of 19 °C. Access it by selecting the balance icon using the keys
and . Conrm by pressing the key . Once pressed, the product returns
to the main screen, with the temperature set at 19°C and the MANUAL function
icon on.
5.9. MAIN MENU: PROGRAM SUB-MENU
This section explains the operational aspects of your product in its various functions and
modes.
What are the functions of MANUAL, AUTOMATIC and PILOT WIRE* functions?
MANUAL This function allows you to change the product between the COMFORT, ECO and
ANTI-FROST modes and to change the temperature (see section 5.3).
AUTOMATIC This function will activate the programming that has previously been set in the
product.
PILOT WIRE This function allows the product to be controlled by a central programmer.
* Not available in UK. Only on demand*
What are the COMFORT, ECO and ANTI-FROST modes?
COMFORT ECO ANTI-FROST
From 19ºC to 30ºC From 7.5ºC to 18.5ºC 7ºC

18
The ‘Program’ sub-menu provides access to functions related to programming the
product. To access, select the icon displayed in the Main Menu screen, the
buttons and and press to conrm. The icons below provide access
to the various submenus explained below:
MANUAL /
AUTOMATIC functions
Programming
options USER mode
PILOT WIRE function
* Not available in UK. Only on de-
mand.*
5.9.1. MANUAL / AUTOMATIC FUNCTIONS
To change or choose the MANUAL or AUTOMATIC function, ensure
the icon is highlighted in the ‘Program’ sub-menu and
press the button to conrm. You can change from AUTOMATIC
to MANUAL and vice versa by pressing the button again. The
Automatic function activates the programming set in the product.
On the display panel, the symbol will appear for the AUTOMATIC
function and the symbol for the MANUAL function.
5.9.2. PROGRAMMING OPTIONS
To start programming you must be in AUTOMATIC mode. Press the ashing icon
using the buttons and and conrm by pressing the button .

EN
D SERIES DIGITAL RADIATOR WITH WI-FI
19
• Start programming for AUTOMATIC function
To program the AUTOMATIC mode, see points above and ensure that START
PROGRAMMING is highlighted. Press the button to access and the display
panel will show a ashing screen.
STEP 1 - Select COMFORT mode temperature
COMFORT mode will be programmed rst. Select the COMFORT mode
temperature between 19ºC and 30ºC using the and buttons. The icon
and the temperature will ash. Press the button to conrm.
STEP 2 - Select ECO mode temperature
ECO mode will be programmed next. Select the ECO mode temperature between
7.5ºC and 18.5ºC using the and buttons. The icon and the temperature
will ash. Press the button to conrm.
STEP 3 - Select the Days
The days of the week will start ashing on the display panel and show as DAY 1,
DAY 2, DAY 3 etc.
Use the and buttons to move forwards or backwards through the days.
Press to select the day or days that you wish to include in your AUTOMATIC
program. The day will stop ashing once selected. Repeat for all the days you wish
to program and once all days are selected press the button to move onto
setting the hour.
STEP 4 - Select the Hours
Once step 3 has been completed, 0h appears on the display panel. 0h is equal to
midnight. Use the or buttons to select the hour you wish to change. Use
the button to change the mode (COMFORT, ECO or nothing) for the hour you
wish to modify. The corresponding icon for that mode will appear at the top of the
screen. To nish the programming press or leave for 30 seconds without
pressing any buttons. To change the programming go back to step 1 and proceed
as described before.
*If you wish to have individual days with different programming within your program
you will need to modify each day separately, starting from the Main Menu again
for each day/days. Follow Steps 1 to 4 above to program multiple differing days/
hours/temperatures.
If you wish to activate the anti-frost mode in the hours that do not have COMFORT
or ECO mode, from the main screen of the radiator and in automatic mode, press
the key . If you want to reverse this action, press .

20
5.9.3. USER MODE
To enter the USER function, ensure the icon is highlighted in the ‘Program’
sub-menu and press the button to access. A 4-digit PIN code is required in
order to access the menu. The default PIN is 0000.
To enter the PIN use the and and and buttons to move left, right,
up or down to select the correct numbers, pressing after each number is
highlighted to conrm. Once the full 4 digits have been entered, move to OK on the
display panel and press the button to conrm. Once the PIN number has been
entered correctly, the main USER function sub-menu will be shown.
The below icons displayed on the screen take you to the following functions:
ENABLE /
DISABLE
functions
Change PIN Upper
temperature limit
Lower
temperature limit
•Enable / Disable functions
To access the Enable/Disable function, ensure the icon is highlighted in the
‘Program’ sub-menu and press the button to access.
Use the and buttons to move up and down respectively to select ON to
enable or OFF to disable. Once the desired option is highlighted press the
button to conrm. Use the button to go back to the main display panel or leave
for 30 seconds without pressing any buttons.
On the main screen you will see the icon in AUTOMATIC function, the icon
in MANUAL function and when in PILOT WIRE* function.
*PILOT WIRE function not available in UK. Only upon demand.*
