Elation PLATINUM SPOT 5R PRO User manual

01/08/2011 – Visage Version 1.0
PLATINUM SPOT 5R PRO
Elation Professional
6122 S Eastern Ave
Los Angeles, Ca 90040
www.elationlighting.com

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 2 www.ElationLighting.com
CONTENTS
1. General Information………………………………………………………..………………...…… 3
a. Introduction……………..………………………………………………………………… 3
b. Unpacking………………………..………………………………………..……………… 3
c. Customer Support………………………..……………………………….……………… 3
d. Warranty Registration…………….……………….……………………………….…… 4
e. Discharge Lamp Warning………………………...............……………………………. 4
2. Safety Instructions……………………………………………………………..….......…………. 6
3. Features………………………………………………………………..………………..………… 8
4. General Guidelines…………..…………………………………………………...………………. 9
5. Fixture Overview………………………..…………………………………………...……………. 10
6. Lamp Installation…………………………………..…………………………………...…………. 13
a. Lamp Protection Circuitry.………………………..……………………….…..………… 13

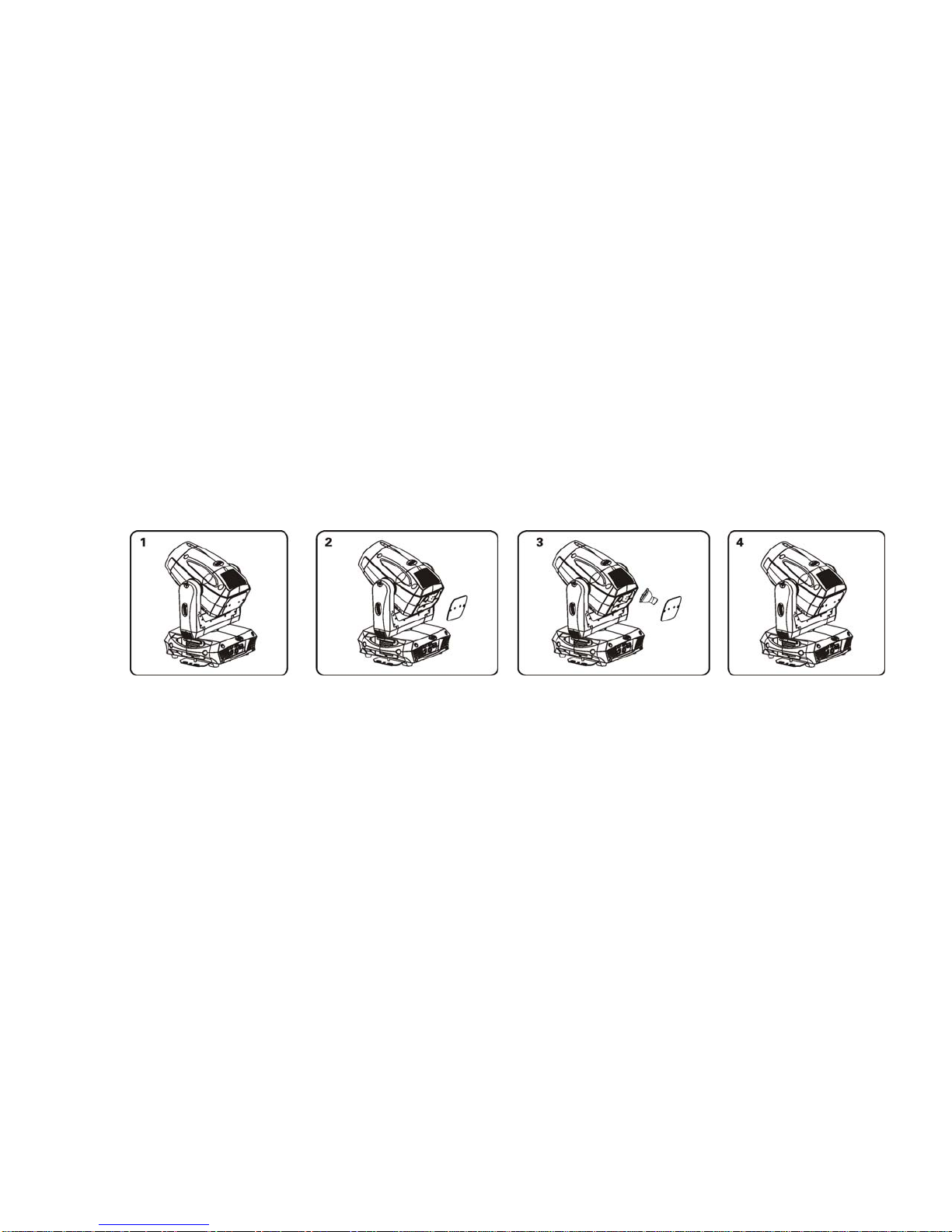

b. Lamp installation……………………………………………..…………….……..……… 14
c. Lamp optimization……………………………………………………..……..……..…… 15
7. Mounting and Installation………………………………………………………………...………. 16

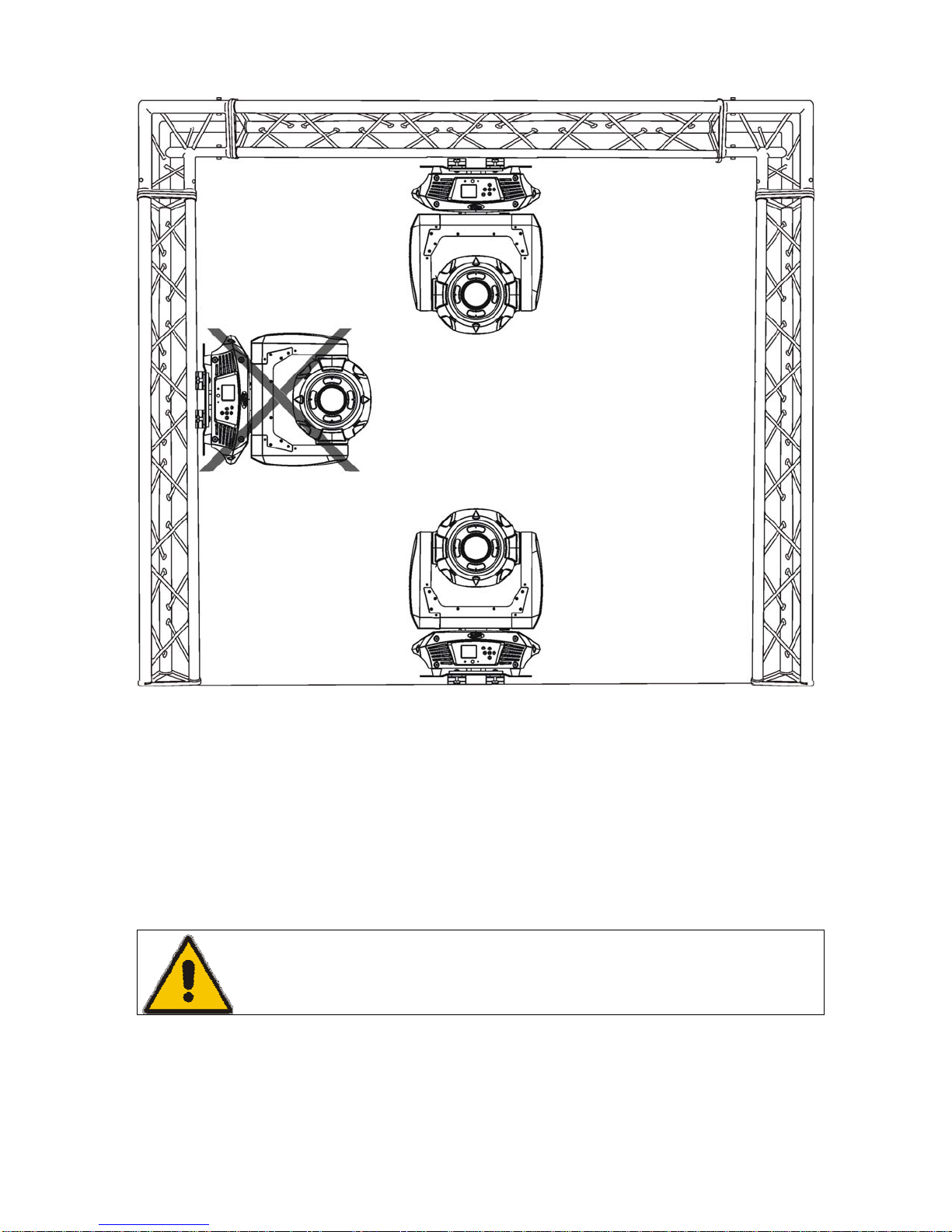

a. Mounting Positions…………..…………………………………………………………... 16

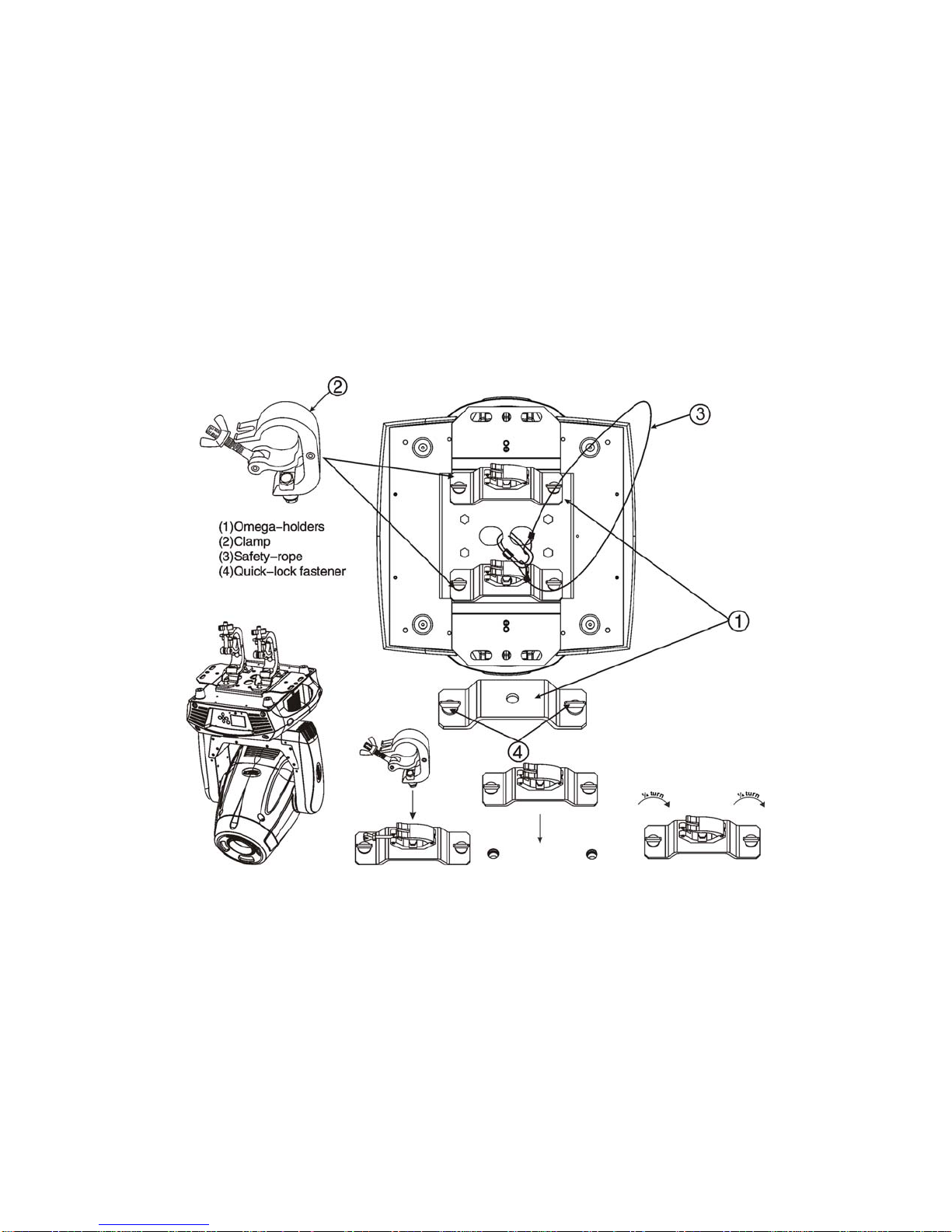

b. Mounting Points……...………………..…………………………………………………. 17
c. Securing………………...………………………..……………………………………….. 18
8. Understanding DMX……………..………………………………..……………………………... 19
a. DMX Cable Requirements…....…………………………………..……………………. 19
b. DMX Terminator………………..…………………………………………..……………. 20

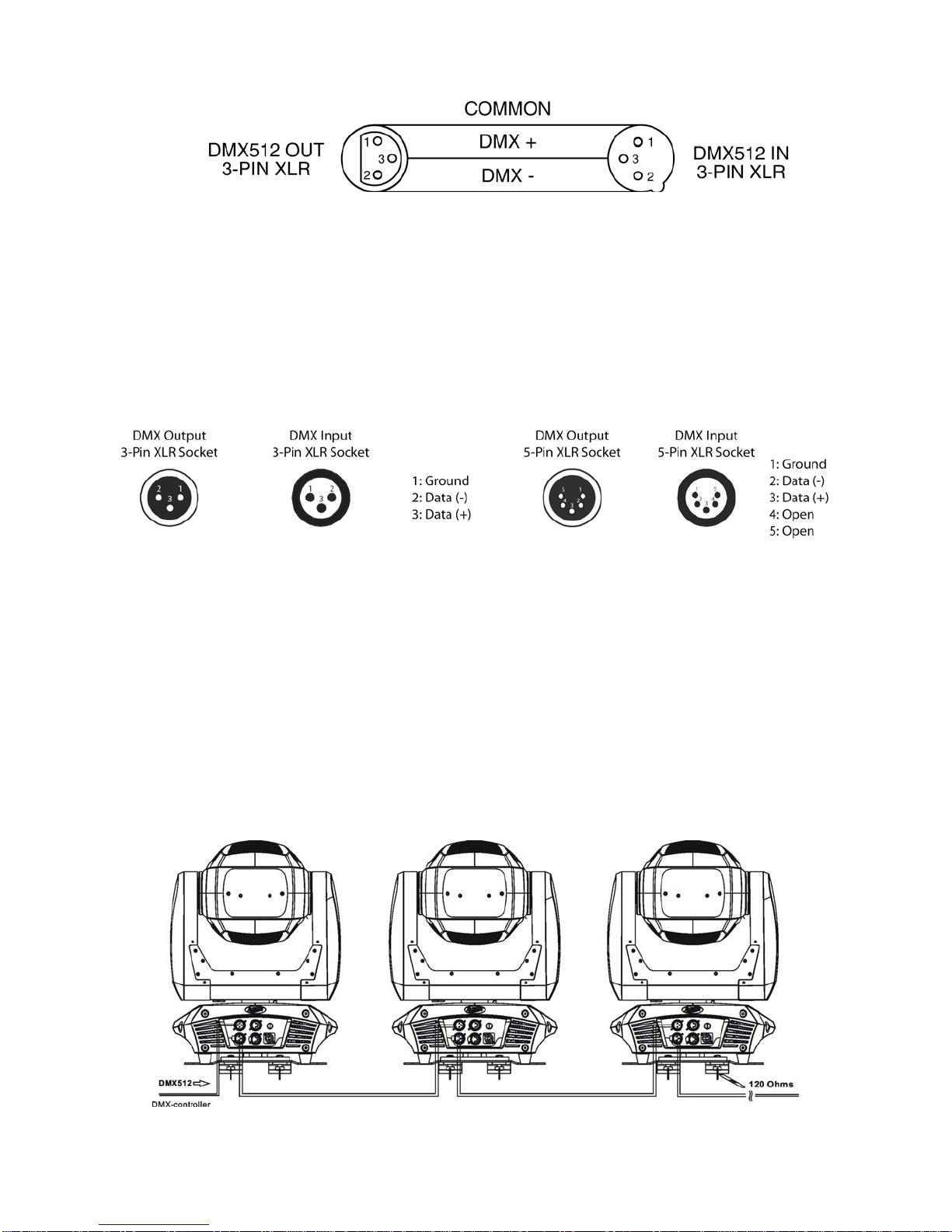

c. 3-Pin to 5-Pin Conversion……….………………………………………………………. 20
d. DMX Addressing…………………………….…………………………………………… 21
9. Fixture Menu…………………………………..………………..………………………………… 23
10. DMX Addressing..……………………………..………………………..……………..…………. 35
11. Operation………………………………………..………………………………..……………….. 37
12. Working with Built-In Programs..………………..………………………………………..…….. 39
13. DMX Channel Traits………….....….…………………………………………………………..… 42
a. DMX Channel Values…………..…………………..…………………………………… 42
14. Error Codes……………………………………….…………..…………………………….……. 48
15. Cleaning and Maintenance………………………………..…..………………………………… 51
16. Photometric Data………………………………………..…………...………..…………………. 52
17. Gobo Patterns……………………………………………..…………………..…..……………... 53
18. Dimensional Drawings…………...…………………………………..………….……………….. 54
19. Circuit Schematic………...………………..…………………………..…………………………. 55
20. Technical Specifications……………………………..………………..…...………….……….… 56
21. Warranty………………………………………………………..………..………………………… 58

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 3 www.ElationLighting.com
1. GENERAL INFORMATION
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and
reliable lighting fixtures on the market today! The Platinum Spot 5R Pro™ has been
designed to perform reliably for years when the guidelines in this booklet are followed.
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this unit, this fixtures uses a unique lamp that has very specific
guidelines that must be strictly followed.Themanual contains important information
regarding safety protocol that must be strictly adhered to at all times.
UNPACKING: Thank you for purchasing the Platinum Spot 5R Pro™ by Elation
Professional®. Every Platinum Spot 5R Pro™ has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to be damaged, carefully inspect
your unit for damage and be sure all accessories necessary to operate the unit have arrived
intact. In the event damage has been found or parts are missing, please contact our
customer support team for further instructions. Please do not return this unit to your dealer
without first contacting customer support at the number listed below.
CUSTOMER SUPPORT:Elation Professional®provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set up
or initial operation. You may also visit us on the web at www.elationlighting.com for any
comments or suggestions. For service related issue please contact Elation Professional®.
Service Hours are Monday through Friday 8:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Forum: www.ElationLighting.com/forum
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution!There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself, doing so will void your manufactures warranty.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 4 www.ElationLighting.com
WARRANTY REGISTRATION: The Platinum Spot 5R Pro™ carries a two-year (730 days)
limited warranty. Please fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support at [phone].
Important: Damages caused by the disregard of the instructions in this user
manual are not subject to warranty.
DISCHARGE LAMP WARNING:This fixture is fitted with a discharge
lamp, which is highly susceptible to damage if improperly handled.
Never touch the lamp with your bare hands, as the oil from your hands
will shorten lamp life. Also, never move the fixture until the lamps have
had ample time to cool. Remember, lamps are not covered under
warranty conditions.
Lamp Replacement: Please note that due to the nature of the Platinum 5RLamp and
the optical path of the Platinum Spot 5R Pro it is imperative to replace the lamp at the
rated 2000 hour lamp life!
UV RADIATION: This fixture emits intense UV radiation, which is harmful to the eyes and
skin. The intense luminance of the lamp can cause severe damage to the retina. Never
operate this fixture with the protective covers removed, these covers have been specially
designed to shield against UV radiation.
Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the lamp
at all times.
Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce lamp life
and intensity.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 5 www.ElationLighting.com
To achieve the intensity associated with discharge lamps, these lamps use gas sealed in a
high-pressure environment to emit a brilliant output. Due to the high pressure involved with
the construction of the lamp, the lamp may explode during prolonged extensive use. This risk
is increased with age; added care is encouraged when dealing with older lamps. Thus, lamp
must always be replaced at the end of their recommended duty cycle. Extreme caution
should be used when operated this or any fixture fitted with a gas discharge lamp.
Never open this fixture while in use!
During the initial operation of this fixture, a light smoke or smell may emit from the interior of
the fixture. This is a normal process and is caused by excess paint in the interior of the
casing burning off from the heat associated with the lamp and will decrease gradually over
time.
This device falls under protection-class 1. Therefore it is essential that the device be
grounded properly.
All electrical connections should be performed by a qualified electrician.
Be sure the available voltage matches the voltage requirements of the unit.
Be sure the power cord is never crimped or damaged. If the power cord is damaged, replace
it immediately with a new one of similar power rating.
Always disconnect from main power before performing any type of service or any cleaning
procedure.
Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion
of the cord.
This fixture is designed for use indoors. Use of this fixture outdoors will void the
manufactures warranty.
Please be aware that damages caused by manual modifications to the device are not
subject to warranty.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 6 www.ElationLighting.com
2. SAFETY INSTRUCTIONS
The Platinum Spot 5R Pro™ is an extremely sophisticated piece
of electronic equipment. To guarantee a smooth operation, it is
important to follow the guidelines in this manual. Elation will not
accept responsibility for damages resulting from the misuse of
this fixture due to the disregard of the information printed in this
manual.
1. Always be sure that the fan and the air inlets remain clean and are never blocked.
Allow about 6” (15cm) between this fixture and other devices or a wall to allow for
proper cooling.
2. Never touch the fixture during normal operation. This can cause severe personnel
injuries and/or damage to the fixture.
3. Be sure to unplug the Platinum Spot 5R Pro™ from the power outlet before
performing any service related issues.
4. Lamp Replacement; Allow at least 15 minutes after disconnecting main power
before you open the Platinum Spot 5R Pro™. To prevent personal injury, never
touch the lamp if you are not absolutely sure it has cooled.
5. Never look directly into the lamp beam. You risk injury to your retina, which may
induce blindness.
6. Be sure to track and record the lamp running time. The lamp should be changed at
the end of the specified lamp life, regardless of lamp output. You may also have to
change the lamp if it shows any deformations or damage. The same is with all
glass components, color filters, lenses and mirrors.
7. For safe operation, follow the Installation guide described in chapter two of this
manual. Operating the Platinum Spot 5R Pro™ without suited safety aids such as
safety cables or clamps can increase the risk of damage and/or personal injury.
8. Only qualified and certified personnel should perform installation.
9. When mounting this fixture, use only the original rigging parts included with this
fixture. Any structural modification will void the original manufactures warranty and

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 7 www.ElationLighting.com
may increase the risk of damage and/or personal injury.
10. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.
11. Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
Important Notice: Damages resulting from the disregard of safety and general user
instructions found in this user manual are not subject to any warranty claims.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 8 www.ElationLighting.com
3. FEATURES
•Pan 540° or 630˚(User selectable) / Tilt 270°
•3 operation mode: DMX controlled, stand alone, or sound activated
•8 user colors plus white (including UV filter)
•User selectable color change modes (mode 1: full colors, mode 2: split-colors)
•Two Gobos Wheels:
oWheel 1: Rotating gobo wheel with 8 gobos plus open, all gobos can be easily
replaceableand gobo indexing
oWheel 2: Static/Fixed gobo wheel with14 gobos plus open
•Strobeeffect: 0~13 flashes per second or random strobe
•Prism and prism rotation, with 16 prism macros
•Frost Filter for Soft and Hard Edge Spot
•Bright Phillips Platinum 5R Lamp (189W / 8000K / 2000Hrs / 7950Lm)
•Dimmer intensity from 0%~100%
•Electronic Power Supply (AC 100V-240V~, 50Hz/60Hz)
•Control board with full color LCD graphic display and foil touch keyboard
•RDMX (Remote DMX addressing from any DMX console)
•Auto test for all functions
•Automatic Pan/Tilt Correction
•Built-in Iris (5% ~ 100%), with Iris Pulse Effect
•Glass Dichroic Reflector for Even Lamp Output
•Anti-Reflective Coated Lenses
•USITT DMX-512 Complaint (3-pin and 5-pin DMX Connections)
•Electronic Focus via DMX
•Upgradable Firmware via Elation “E-Loader”
•7User Assignable Program Presets - Internal Program: Edit and save programs to the
incorporated EEPROM. Maximum of 64 scenes.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 9 www.ElationLighting.com
4. GENERAL GUIDELINES
This fixture is a professional lighting effect designed for use on stage, in nightclubs, in
theatres, etc. Do not attempt operation or installation without a proper knowledge on how to
do so.
This fixture was designed for indoor use only.
Consistent operational breaks may ensure that the fixture will function properly for many
years to come.
Do not shake the fixture around. Avoid brute force when installing or operating the device.
While choosing an installation location, please be sure that the fixture will not be exposed to
extreme heat, moisture or dust. The minimum distance between the fixture and a wall or flat
surface should be at least 1 meter (about 3.5ft).
Always install the fixture with an appropriate safety cable. When installing the fixture in a
suspended environment always be sure to use mounting hardware no less than M10 x 25
mm, also be sure the hardware is insert in the pre-arranged screw holes in the base of the
fixture.
When using the quick release “Omega” cam-lock system, be sure the four quick lock
fasteners are locked in the quick lock holes correctly.
Do not attempt to operate this fixture until you have familiarized yourself with its functions.
Do not permit operation by persons not qualified for operating this type of theatrical fixture;
most damages are the result of operations by nonprofessionals.
Please use the original packaging to transport the fixture in for service.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 10 www.ElationLighting.com
5. FIXTURE OVERVIEW
1: Lens
2: Display
3: Wireless indicator
4:DC Switch
5: Microphone
6: Left Button
7: Down Button
8: Right Button
9: Mode/Esc Button
10:Up Button
11:Enter Button
12: Wireless DMX Antenna
13: Handle
14: Lamp Access Panel
15: 3-Pin DMX in
16: 3-Pin DMX out
17: 5-Pin DMX in
18: 5-Pin DMX out
19: Power Cord
20: Fuse

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 11 www.ElationLighting.com
1. Lens – Main output lens.
2. LED Menu Display – Full color animated menu display.
3. Wireless indicator –Wireless indicator.
4. DC Switch -Controls menu and display power when the unit is disconnected from
mainpower.
5. Microphone – This microphone receives external low frequencies to trigger the unit
in Sound-Active mode. This microphone is designed to receive low frequency
sounds only, tapping on the microphone and high pitch sounds may not trigger the
unit.
6. Left Button – This button is used to toggle through the menu display.
7. Down Button – The down button is used to toggle down or back through the menu
functions and settings.
8. Right Button - This button is used to toggle through the menu display.
9. Mode/Esc Button - This button is used to access the menu functions.
10. Up Button – The up button is used to toggle forward through the menu functions and
settings.
11. Enter Button – The enter button is used to enter in to a certain menu function or to lock
a function into memory.
12. Wireless Antenna – This antenna works with the built-in wireless DMX receiver. The
built-in wireless DMX system works with any Elation wireless system or any compatible
“EWDMX” system.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 12 www.ElationLighting.com
13. Carrying Handle – Please use this intergraded handled to move the fixture form
location to location. Never carry the fixture by the head.
14. Lamp Access Panel – This panel provides access to the lamp and lamp socket
assembly. Always allow ample time for the lamp to cool before attempting access to
the lamp and lamp socket.
15. 3-PIN DMX Input Jack – This jack accepts an incoming DMX signal via a male, 3- pin
XLR jack.
16. 3-Pin DMX Output Jack – This jack is used to send an incoming DMX signal to the
next fixture in the DMX chain via a female, 3-pin XLR jack.
17. 5-PIN DMX Input Jack – This jack accepts an incoming DMX signal via a male, 5- pin
XLR jack.
18. 5-Pin DMX Output Jack – This jack is used to send an incoming DMX signal to the
next fixture in the DMX chain via a female, 3-pin XLR jack.
19. Power Cord – Plug into an appropriate power outlet to provide main power to the
fixture.
20. Fuse Holder Assembly – This assembly houses the 4amp GMA safety fuse. Always
replace the fuse with an exact match unless otherwise specified by an authorized Elation
Service Technician. Using a fuse other than that specified could seriously damage the
unit and will void your manufactures warranty.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 13 www.ElationLighting.com
6. LAMP INSTALLATION INSTRUCTIONS
Installing or replacing the lamp
For a proper and safe lamp change, please read this chapter carefully and follow all
instructions.
Lamp Protection Circuitry
Because of the nature of the extreme heat associated with the Platinum 5R lamp and the tight
nature of the internal optical system it is imperative that the lamp be replaced every 2000
hours. This is done to protect the internal optical system as well as prevent accidental lamp
explosion, which could lead to hot glass particles falling from the fixture. Failure to change the
lamp within 300 hours of operation will result in automatic shut down of the fixture’s
electronics.
At 2000 hours the display will begin to flash “Replace The Lamp” and the lamp will flicker for
the first five minutes of operation. At this point the lamp has reached the maximum rated life
and should be replaced immediately. After the lamp has flickered for about five minutes it
should strike normally allowing the fixture to be used temporarily until a replacement lamp
can be installed. The fixture will continue to operate for an additional 300 hours, however the
“Replace the Lamp” warning will continue to flash in the display. Keep in mind that the flicker
protection circuitry will only work for about 300 hours (lamp clock life of 2000-2300 hours).
After 2300 hours the fixture will no longer respond to DMX commands and immediately enter
a hibernation mode that will electronically discontinue all fixture functionality with the
exception of a few menu commands. The fixture will continue to enter hibernation mode until
the lamp is replaced and the lamp clock has been reset. To replace the lamp follow the safety
guidelines and procedures below;
Safety Regulations
• Always replace lamp every 2000 hours.
• Disconnect the unit’s main power supply.
• If you unit has been running, please allow the unit to cool for at least 15
minutes before attempting any type of service.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 14 www.ElationLighting.com
• Before the Platinum Spot 5R Pro™ is put into operation be sure all covers
have been replaced, otherwise you risk damage to the retina and expose to
UV radiation!
• When replacing an old lamp, always be sure to replace with an approved
replacement. In this case a Philips MSD Platinum 5R lamp is required. Be sure
the replacement lamp meets or exceeds the original lamp specifications, failure to do
so may damage the fixture and void the manufactures warranty.
• Be sure to follow all the lamp handling procedures included with the new
lamp. Never handle the new lamp with your bare hands as the oils from your skin
may damage the lamp and cause premature lamp failure.
Installation Procedure:
1. Set the fixture on a flat surface and remove the two screws marked “A” and “B”.
2. Remove the cover plate to access the lamp.
3. Gently remove the old lamp by grasping the ceramic socket base and twisting it
slightly in counter-clockwise direction until it becomes free.
4. Once the lamp becomes free, grasp the ceramic socket and gently pull away from
the lamp.
5. Insert the new lamp securely. The lamp will only seat one way, please be sure to
insert the lamp in the same position as the old one. Before reassembling the unit, be
sure the new lamp is securely seated in the lamp socket. Always be sure to only use
specified lamp types! (Philips MSD Platinum 5R).
6. Once the lamp has been inserted and secured into the socket, follow the lamp
optimization instructions outlined below, then lock the lamp cover back in to place by
securing screws “A” and “B”.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 15 www.ElationLighting.com
7. Be sure to reset the lamp run time in the system menu to avoid any possibly of the
lamp protection circuitry from accidently shutting off the lamp during normal
operation.
8. If the lamp protection circuitry has already been initiated and the lamp run time is not
reset the “Replace the Lamp” warning will continue to flash in the display and the
fixture will eventually shut down. To reset the lamp running time follow the
procedures below;
A. Activate the menu by pressing the “Mode/Esc” button and toggle to
“Information”
B. Once at “Information” tap the “Enter” button anduse the “Up” or “Down”
buttons to toggle to “Time Information”
C. Once at “Time Information” us either the “Up” or “Down” buttons to toggle to
“L-Timer Password” and tap the “Enter” button. Then use the “Up” or “Down”
buttons to enter the reset pass code, “038” and tap the “Enter” button once
again. The display will automatically revert to “L-Timer Password,” next
toggle down to “Clear Lamp Time”
D. Once at “Clear Lamp Time” tap the enter button and select “ON.” The lamp
timer has now been reset, use the “MODE/ESC” button to exit the menu and
return to the home screen.
Lamp Optimization
Unlike traditional discharge lamps the Platinum 5R lamp does not require optimization. The
lamp orientation and optimization procedure has been preset during the manufacturing
process of the lamp.
Please remember that a MSD Platinum 5R lamp is not a hot-restrike lamp therefore, you
must wait approximately 15 minutes before you can attempt to strike the lamp once it has
been turned off.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 16 www.ElationLighting.com
7. MOUNTING AND INSTALLATION
Cautions:
For added protection mount the fixtures in areas outside walking paths, seating areas, or in
areas were the fixture might be reached by unauthorized personal.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
Caution!
When install the fixture be sure there is no highly inflammable
material within a distance of 3.5 feet
Mounting
The Platinum Spot 5R Pro™ is fully operational in two different mounting positions, hanging
upside-down from a ceiling, or set on a flat level surface (see illustration on next page). Be
sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE0711-217
for proper installation in Europe To ensure proper installation, only
qualified staff should attempt installation.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 17 www.ElationLighting.com
Mounting points
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, a fine knowledge of the installation material being used, and periodic
safety inspection of all installation material and the fixture. If you lack these qualifications, do
not attempt the installation yourself. Improper installation can result in bodily injury.
CAUTION!
Be sure a qualified electrician performs all electrical
connections.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 18 www.ElationLighting.com
Clamp Mounting
The Platinum Spot 5R Pro™ provides a unique mounting bracket assembly that integrates
the bottom of the base, the included “Omega Bracket,” and the safety cable rigging point in
one unit (see the illustration below). When mounting this fixture to truss be sure to secure an
appropriately rated clamp to the included omega bracket using a M10 screw fitted through
the center hole of the “omega bracket”. As an added safety measure be sure to attached at
least one properly rated safety cable to the fixture using on of the safety cable rigging point
integrated in the base assembly
Securing the Platinum Spot 5R Pro™
Regardless of the rigging option you choose for your Platinum Spot 5R Pro™ always be sure
to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Be sure to only use the designated
rigging point for the safety cable and never secure a safety cable to a carrying handle.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 19 www.ElationLighting.com
8. UNDERSTANDING DMX
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most
lighting and controller manufactures as a form of communication between intelligent fixtures
and controllers. DMX allows all makes and models of different manufactures to be linked
together and operate from a single controller. This is possible as long as all the fixtures and
the controller are DMX compliant. A DMX controller sends the DMX data instructions to the
fixture allowing the user to control the different aspects of an intelligent light. DMX data is
sent out as serial data that travels from fixture to fixture via data “IN” and data “OUT” XLR
terminals located on the fixtures (most controllers will only have output jacks).
DMX Linking: To ensure proper DMX data transmission, always use proper DMX cables
and a terminator. When using several DMX fixtures try to use the shortest cable path
possible. Never split a DMX line with a “Y” style connector. The order in which the fixtures
are connected in a DMX line does not influence the DMX addressing. For example; a fixture
assigned a DMX address of 1 may be placed anywhere in the DMX chain, at the beginning,
at the end, or anywhere in the middle. The DMX controller knows to send data assigned to
address 1 to that fixture no matter where it is located in the DMX chain. The Platinum Spot
5R Pro™ can be controlled via DMX-512 protocol. The Platinum Spot 5R Pro™ is a
23channel DMX fixture (23 default, can also be 21 or 34). The DMX address is set
electronically using the controls on the LCD menu.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation):Your
fixture and your DMX controller require a standard 3-pin or 5-pin XLR connector for data
input and data output (the figure on the next page is of a 3-Pin XLR connector). If you are
making your own cables, be sure to use two conductor shielded digital DMX cable rated at
120 ohms; this cable is designed for DMX transmission and may be purchased from your
Elation dealer or at most professional lighting retailers. Your cables should be made with a
male and female XLR connector on either end of the cable. Also, remember that a DMX line
must be daisy chained and cannot be split, unless using an approved DMX splitter such as
the Elation Opto Branch 4™ or DMX Branch/4™.

Platinum Spot 5R Pro™
©Elation Professional, Los Angeles, Ca 20 www.ElationLighting.com
Be sure to follow the above figure when making your own cables. Do not use the ground lug
on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or
allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the
shield could cause a short circuit and erratic behavior.
DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head (Please refer to the diagram
below.). You can chain multiple moving heads together through serial linking. The cable that
should be used is two conductor, shielded DMX cable with XLR input and output connectors.
Always be sure daisy chain your in and out data connections, never split or “Y” your DMX
connections unless you are using an approved DMX splitter such as the Elation Opto
Branch 4™ or DMX Branch/4™.
