HDMI 1X2 Splitter by Single Cat5e/6 cable
User Manual
Table Of Contents
1.0 Introduction .......................................................................................
2.0 Features ............................................................................................
3.0 Specications ....................................................................................
4.0 Package Contents .............................................................................
5.0 Panel Descriptions ............................................................................
6.0 Connection And Operation ................................................................
Dear Customer
Thank you for purchasing this HDMI Splitter. For optimum performance and
safety, please read these instructions carefully before connecting, operating
or adjusting this product. Please keep this manual for future reference.
1.0 Introduction
This HDMI Extender by CAT5 x1 uses one piece of CAT5e/6 cable to
extend the HDTV display up to 50 meters for 1080p. It not only breaks
the limitation of the HDMI cable transmission length. but also has more
exibility and convenience in cable construction.
1.1 Benets
1) The length of HDMI cable is xed and unchangeable after. It is produced.
Because the HDMI connector can only be soldered or terminated by the
professional workers in factory, the users cannot reduce or increase by
themselves. However CAT-Se/6 cables are available everywhere and he
processed easily by the user or installer
2) Because the header of the lone HDMI cable is big, using it must in hidden
method. What's more, it is not easy to bend the HDMI cable and to pull it
through the in-wall tube or tray However, CAT5e/6 cable has no such problems
3) On the general HDMI cables, they must be customized when the length
is over 10 meters
2.0 Features
* One pair as a full functional module, no need of setting
* One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long
distance transmission
* Follow the standard of IEEE-568B
* Transmission distance can be up to 50 meters for1080p using CAT-6 Cable
* Auto-adjustment of feedback, equalization and amplify the user does not
need to care about the length of the cable
* Support highest video resolution 1080p
* Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
* Support 12bit per channel (36bit all chancel) deep color
* Support uncompressed 2 channel audio such as LPCM
* Support 3D
3.0 Specications
6.0 Connection And Operation
User information ex art. 26 D. 49/2014
The symbol labelled on the appliance (Annex IX D. 49/2014) indicates that
the rubbish is subject to “separate collection” and it has been placed on the
Italian market after the December 31, 2010.
The user must therefore assign or (have collected) the rubbish to a
treatment facility according to indications by the local administration, or
hand it over to the reseller in exchange for an equivalent new product. The
separate collection of the rubbish and the subsequent treatment, recycling
and disposal operations encourage the production of appliances made
with recycled materials and reduce negative effects on health and the
environment caused by improper treatment of rubbish.
In the case of very small WEEE (no external dimension more than 25 cm),
the user is eligible to get free of charge assignation to retail shops with sales
areas relating to EEE of at least 400 m².
Made in China
IMPORTED AND DISTRIBUTED BY:
ELCART DISTRIBUTION SPA
Via Michelangelo Buonarroti, 46
20093 COLOGNO MONZESE (MI)
ITALY
02
02
02
02
02
02
Note:
I. In order to achieve the high transmission quality, please choose
the shielded CAT-5e or CAT-6 cable
2. The cables with lower quality will not achieve the perfect transmis-
sion effect and long distance.
3. Theoretically the function of the product is normal when adopt
short distance transmission If the product cannot transmit long
distance this is to say there are quality problems in the transmission
cable.
4.0 Package Contents
1) Main unit NO.1 Sender X1
2) Main unit NO.2 Receiver X2
3) Three pieces of 5VDC Power Supply
4) Four "L"shape nogs
5) User Manual

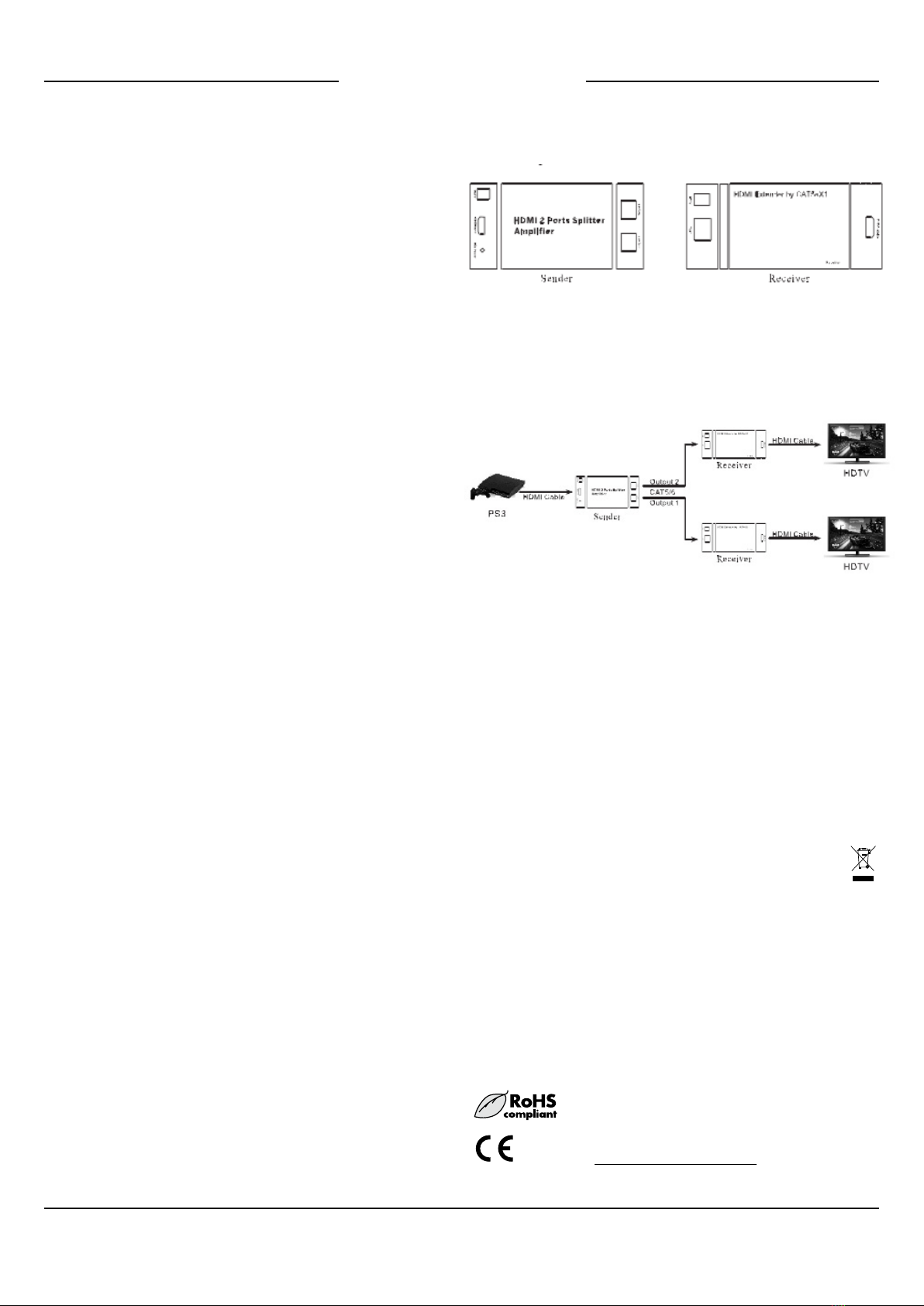

5.0 Panel Descriptions
Signal input HDMI Signal
Input Video Signal 0.5-1.0volts/p-p
Output video HDMI Signal
DTV/HDTV 480i/576i/480P/576P/720P/1080i/1080P
CAT-6 cable 50m for 1080p
Video. Amplier Bandwidth 2.25Gbps/225MHz
Vertical Frequency Range 50/60Hz
Interlaced
Resolutions(50&60Hz)
480i,576i,1080i
Progressive
Resolutions(50&60Hz)
480p,576p,720p,1080p
Operating Temperature 0°C to 70°C
Operating Humidity 10% to 85% RH (no condensation)
Storage Temperature -10°C to +80°C
Storage Humidity 5% to 90% RH (no condensation)
Power Supply 5V DC
Power consumption (MAX) 5W
