Elecom Eclear LEANUP User manual

Created: May 2018 (1st Edition)
Instruction Manual
HCT-BTP01 series
ECLEAR LEANUP
For use in Japan only.
A customer who purchases outside Japan should refer to the
localized manuals in the country of purchase.
www.elecom.co.jp/global/download-list/manual/
Thank you for purchasing Eclear leanup.
This Instruction Manual features operating methods, as well as precautions for safe handling of
the product.
Be sure to read this Instruction Manual prior to using the product. Store this Instruction Manual
for safekeeping once you have finished reading.

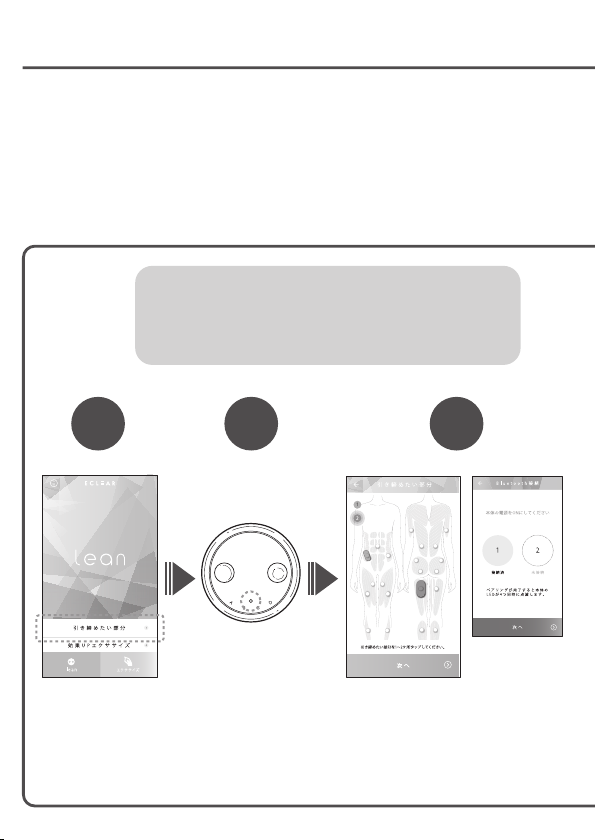

Advantages of the product
Simple four-step operations via the app
※Ensure that the Bluetooth®on your smartphone/
laptop is set to ON
Step
1
Step
2
Step
3
Select " 引き締めた
い部分 (place(s) to
be toned)"
Select one or two
places for toning
Power ON
(long press)
※When
unconnected
to the main
unit, the pairing
settings
interface is
displayed.
※Due to continuous version upgrades, specifications are subject to change without notice
2
This product is an EMS product that supports Bluetooth®connection. You can install
the dedicated app on your smartphone or other device, and use this product via the
app for workout.
All recommended workout moves are displayed in the app and are easy to learn.

Contents
Step
4
Set the intensity and
timer, and then start
Workout app Preface
About the product ................................... 4
Safety precautions (Important) .............. 5
Precautions for cordless (Wireless)
security..................................................... 9
Package contents ................................. 10
Names of individual components ........ 11
Preparation
Charging................................................. 12
Attaching the gel pad............................ 14
Use
Basic operations ................................... 16
Using the dedicated app "ECLEAR
APP" ....................................................... 18
Examples for applying gel pads........... 23
After Use
Storing .................................................... 26
Maintenance .......................................... 27
How to store .......................................... 28
Others
Disposing ............................................... 29
Troubleshooting..................................... 30
Product specifications.......................... 33
3
Download here
ECLEAR APP

About this product
Do not use this product when you are exercising vigorously.
Moisture in sweat may cause skin inflammation or the gel pad to lose
adhesive strength.
CAUTION:
4
■What is EMS?
EMS, short for Electrical Muscle Stimulation, is a product that stimulates
mechanical movements of muscles through electrical stimulation to achieve a
workout result.
■What is deep layer frequency?
The deep layer frequency is a high frequency in the range of 2,000 to 5,000 Hz.
The higher the frequency, the more body parts where fat has accumulated can
be stimulated. The core muscles of the body that are normally hard to stimulate
can be stimulated.
■What is relaxation frequency?
The relaxation frequency is a low frequency in the range of 20 to 30 Hz. By
relaxing the muscles contracted by the deep layer frequency, you can train for
long hours without exhausting your muscles.
■Stretching
By using this product while your muscles are stretched, you can train
hard-to-stretch tendons and improve flexibility.
■Dedicated app
By pairing this product with a smartphone using Bluetooth®, you can use up to
two products with the dedicated app. This product can also be used without
the dedicated app.
■Recommended operating time
Use the gel pad on one place in one day, for about 30 minutes. Do not use this
product for a long time since it might cause injury.
Set the product timer. The product will automatically power off 15 minutes after
the workout started.

Preface
Safety precautions (Important)
To avoid injury and property damage to the user and other people, comply with the
following instructions:
■The categories of degree of damage or risk caused by failing to following these
instructions are as follows:
DANGER This symbol indicates a high probability of death or serious injury.
WARNING This symbol indicates a probability of death or serious injury.
CAUTION This symbol indicates the possibility of bodily harm or damage to
property.
This symbol indicates a prohibited action.
These images indicates "compulsory" items that must be performed.
DANGER
Never use this product together with the following medical equipment:
• Internally implanted electronic devices such as pacemakers
• Electrical life support devices such as artificial hearts and lungs
• Wearable medical electrical devices such as an ECG
If used with the product, these types of medical devices may malfunction and
endanger life.
WARNING
The following people must not use this product.
• People suffering venous thrombosis or arterial thrombosis
• People who a doctor has instructed not to exercise
• Pregnant women
• People with telangiectasia due to prolonged use of steroid hormone drugs or
hepatic dysfunction
Do not use this product in the following cases.
• The skin near the gel pad(s) is painful • When drinking alcohol or smoking
• When you are extremely tired • During sleep or when taking a shower
Do not use the product for any other purpose than working out.
Otherwise, accidents and problems may occur.
5

WARNING
Do not let children use the device. Do not let children play or step on top device's
main unit or gel pads.
Doing so risks accidents or injuries.
Do not use this product on any of the following body parts:
•Chest and other parts near the heart; parts above the neck such as the head and face
• Mucosal surfaces such as wounds, eyes, mouth and genitals
• Areas where plastic surgery has been performed
• Where metal, plastic or silica gel is implanted
• Spine • Areas with tattoos • Abdomen (during menses)
• Parts where necklaces and watches are worn, or puncture sites

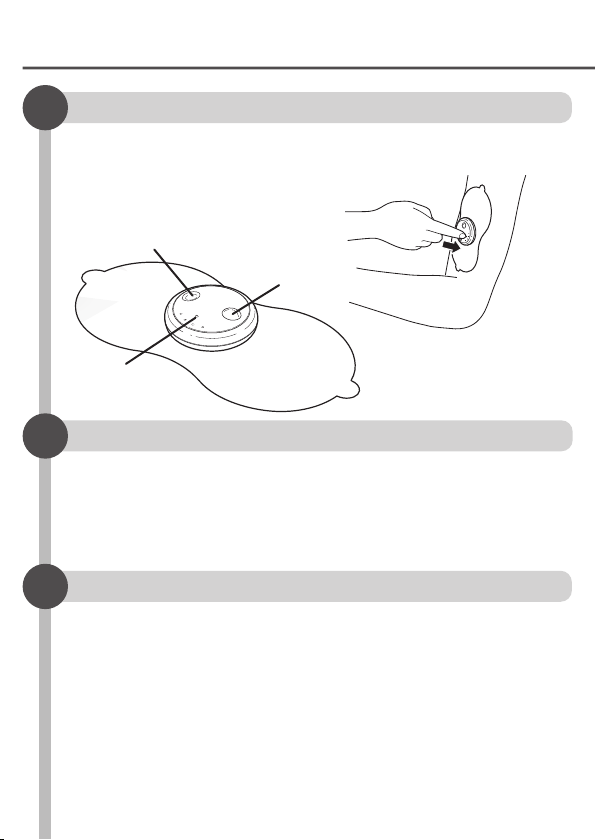

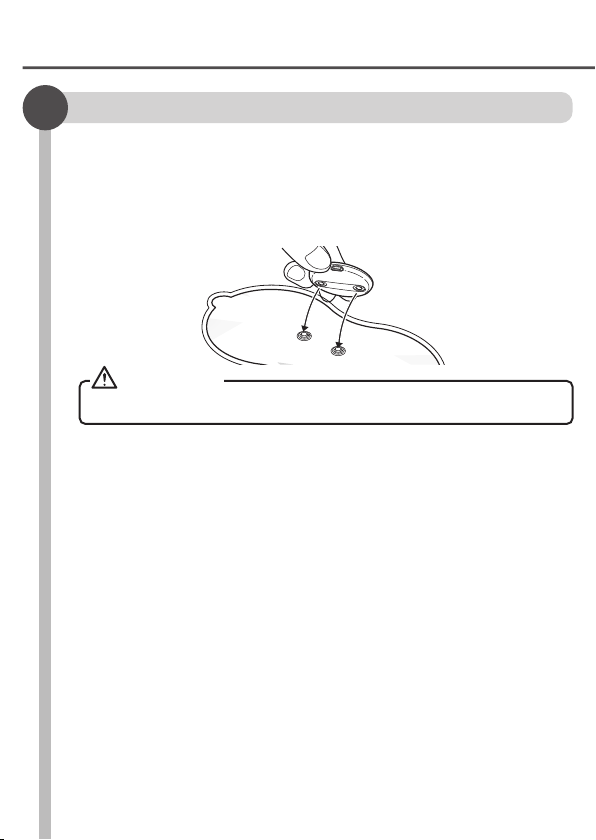

Turn off the power before connecting or removing the main unit and gel pads, and
before repasting or removing the gel pads.
Check for damage, chipping or deformation of the gel pad surface before use.
Otherwise, an accident, fault or malfunction may occur.
You must consult your doctor before using the product if any of the following
conditions apply:
• You are undergoing treatment or suffering a health condition
• Malignant cancer • Heart or cranial nerve abnormalities
• Your temperature is above 38℃ (fever)
※ Example 1: Acute onset of symptoms (e.g. fatigue, chills and blood pressure
fluctuation)
※Example 2: When feeling weak
• Infectious disease • Dermatological issues
• Acute pain, e.g., spinal fractures, contusions, or pulled muscle
• You are convalescing • Taking medication • Abnormal blood pressure
• Impaired mobility
• Impaired perceptual disability due to severe peripheral circulatory disorder caused by
diseases such as diabetes
• Low body temperature• Circulatory problems
• Your skin reacts badly to gel pads
• Epilepsy
Otherwise, accidents or discomfort may occur.
Do not disassemble, repair or modify the product.
Otherwise, a fire or electric shock may occur.
This product is intended for use by one person only. It cannot be used by multiple
people at a time.
Otherwise, an electric shock or accident may occur.
6
Do not
disassemble

Preface
CAUTION
Do not use or store the product in the locations described below.
•Areas exposed to direct sunlight
•Places near a heating device or other high-temperature unit
•Where humidity is high such as bathrooms
•Wet places •Dusty environments •On vibrating surfaces
Otherwise, fire, electric shock or malfunctions may occur.
Do not use while sleeping.
Doing so risks accidents or injuries.
Do not use immediately before driving or while driving.
Otherwise, accidents and problems may occur.
Do not leave the gel pads attached on the skin for a long time.
Otherwise, inflammation of the skin may occur.
Do not use a damp gel pad.
Otherwise, an electric shock may occur.
Use the gel pad in one place only on the same day. Do not use it for more than
30 minutes.
It may cause accidents or discomfort.
Ensure the main unit and gel pad are connected correctly and securely before use.
Do not use it on more than two locations at the same time.
It may cause accidents or discomfort.
Do not use the device until you are sure that all operation buttons are working
normally.
If you feel any discomfort or skin irritation such as eczema or redness or itching,
stop using the device immediately and consult a specialist.
It may cause accidents or discomfort.
When using the device for the first time or after storing a long time, follow the
instruction manual. Before use, check that the device is working.
Do not insert metal objects into the USB port.
This may cause heating and fire.
Do not touch the USB port with your hand, finger or any other body part.
Doing so may cause an electric shock, fault or malfunction.
7

CAUTION
Do not pull, bend or place a heavy object on top of a cable.
Otherwise, the cable may be damaged, and a fire or electric shock may occur.
The attached dedicated USB cable is for charging the main unit only.
The dedicated USB cable cannot be used for communications or charging
other devices.
Do not use a travel converter or other transformers to charge the product.
It may cause heating and fire.
Do not charge the device using a vehicle's cigarette lighter.
Otherwise, a fire, heating or electric shock may occur.
If you are charging it with a commercial charger using an AC power supply, read
the charger's instruction manual thoroughly and follow the safety instructions.
When charging, insert the dedicated USB cable all the way.
Otherwise, a fire or electric shock may occur.
Do not touch the special USB cable or gel pad with wet hands.
Otherwise, an electric shock, malfunction or accident may occur.
Do not use a special USB cable when it is damaged, or when the USB
connector insertion receptacle is loose.
Otherwise, a fire or electric shock may occur.
Do not pour water or any other liquid into the main unit. Do not let the main
unit get wet.
Otherwise, heating, cracks or fire may occur.
Keep the device away from children.
Otherwise, accidents may occur. If a child swallows the main unit, consult a
specialist immediately.
If any failures occur, stop using it immediately and turn it off. Contact the
distributor or our information center.
Follow local disposal requirements to dispose of the product.
Charge the product at least once every three months.
The product may not be able to charge if it is fully discharged.
Attach the gel pad onto the skin securely.
The main unit will automatically power off when the gel pad is removed from
the skin.
The gel pad cannot securely attach to body hair and doing so will age the gel pad.
8
No wet hands

Preface
Precautions for cordless (Wireless) security
This product is a radio device that uses the 2.4 GHz band, which does not
conflict with the frequency of detecting moving objects. FH-SS is adopted, and
the interference distance is 10 m.
Medical devices and WLAN devices under IEEE802.11b/11g/11n also use
2.4 GHz.
•Before using this product, ensure no other radios※are operating nearby.
•If a radio wave causes interference between this product and another
radio※, move to another location or stop using the product.
※Other radios include industrial, scientific, and medical devices that use 2.4 GHz;
other radio stations of the same type; internal radio stations used in assembly
lines; environments for detecting mobiles objects that require a license;
specific low-power radio stations that require no license; and amateur radio
stations.
WARNING
•Do not use this product on a machine that may have significant adverse
effects due to misoperation. This product may malfunction, slow down
or not react if it is interrupted by an external electromagnetic wave at
the same frequency or one generated by a mobile phone.
• Do not use this product in places where electromagnetic waves are
prohibited such as hospitals. The electromagnetic waves generated
from this product may affect electrical devices and medical equipment
such as pacemakers.
• This product cannot be used in an airplane cabin according to aviation
law, as it may compromise the safe running of the aircraft. Power off
the main unit before boarding. Do not use the product during a flight.
※
ELECOM assumes no liability for accidents and danger to the public
arising from product malfunctions.
9

Package contents
Make sure there are no missing parts before use. We've done everything
possible to ensure the quality of packaging. In case of missing components or
damaged packaging, please immediately contact the dealer or ELECOM
one-stop shop (P.35).
■Accessory
•Instruction Manual × 1
•Storage sheet × 1
•Storage bag × 1
•Dedicated USB
cable × 1
■Main unit × 2
(Ivory white/Gray)
•Core pad × 1 (consumable)
■Accessories (Sold Separately)
Inquire the retailer for details on separately sold accessories.
The following items are sold separately.
■Accessory
•Instruction Manual × 1•Storage sheet × 1
Used for HCT-P01 series gel pads only.
Twin pad (2 pieces) SN: HCT-P01G1
Core pad (1 piece) SN: HCT-P01G2
■Main unit type: HCT-BTP01
•Twin pad × 2 (consumable)
■Gel pad
■Accessory
•Instruction Manual × 1•Storage sheet × 1
■Twin pad × 2
(consumable)
■Core pad × 1
(consumable)
10
SN: HCT-BTP01G1
SN: HCT-BTP01G2
Twin pad (2 pieces)
Core pad (1 piece)
SN: HCT-BTP01G1
SN: HCT-BTP01G2

Preface
Names of individual components
Connection terminal (gel pad side)
Protective film
Gel Pad
■Main Unit
■Gel pad
■Dedicated USB Cable
USB A port USB micro B connector
※When using the core pad
11
Front side Back side
Power button
(switch mode button)
Convex
"Strong" button
USB port (for charging)
LED light
Concave
"Weak" button
Connection terminal
(Main Unit side)

Charging
[0 to 24%] [25~49%] [50~74%]
LED
The pattern of LED changes depending on the remaining amount of battery.
[75~99%] [Fully charged]
12
Before using the product (not long after purchasing or if it is has not been used for a long
time) or in case of a low battery during use, fully charge the product. (Charging time:
Approx. 2.5 hours)
Off Blink
Continuously lit
A blinks
D blinks, A, B, and C
are continuously lit
A, B, C and D are
all continuously lit
B blinks, A is
continuously lit
C blinks, A and B are
continuously lit
USB connector slot
PC
AC adapter
for charging
Dedicated USB cable
USB micro B connector
Hotel mobile phone charging services and
other methods are also supported
USB A port
①
②
①Connect the USB micro B connector of the dedicated USB cable to the
USB port of the main unit.
②Connect the USB A connector of the dedicated USB cable to the USB port
of a computer or AC charger to connect to the power supply.
③It makes a long beep when charging is completed.

• Use the 5V AC charger that has an USB output.
• Do not use a travel converter or other transformer to charge the
product, as it may cause it to heat up or start a fire.
• The product cannot be operated while charging.
• Certain mobile power supplies may not be suitable for charging.
• After repeated charging of the main unit, the time a full charge lasts
will gradually shorten. If the operation time becomes extremely short,
the battery has expired but it is not replaceable.
CAUTION:
Preparation
13

Attaching the gel pad
CAUTION:
Use only gel pads specified by ELECOM.
■When replacing the gel pad
14
Install the gel pad onto the main unit
1
①Take the gel pad out from the bag the first time you use it.
(Do not remove the protective film from the gel pad yet.)
②Make sure that the main unit is powered off (LED indicator is off).
③Connect the gel pad terminal to the main unit until you hear a click.
④Connect the gel pad terminal to the main unit until you hear a
click.
③Turn OFF the power supply to the main unit and ensure the
LED indicator is off.
②Take a new gel pad out from the package.
(Do not remove the protective film from the gel pad yet.)
①Remove the main unit from the gel pad.

Preparation
■Handling Gel Pads
• Do not touch the surface of the attachable side on gel pads. If
you have trouble applying the gel pads, refer to "Gel Pad
Maintenance" (P.27).
• Do not bend the gel pads.
• When using two products at the same time, ensure they do not
overlap.
Do not place the gel pads on top of metal, such as a necklace
or navel piercing. Do not apply gel pads on tattoos.
CAUTION:
15
Attaching the gel pad
3
Attach the gel pads to the desired body parts.
Attach the gel pad onto the skin securely.
※If the gel pad separates from the skin, or the main unit is removed
from the gel pad, the device automatically powers off.
Removing the protective film
2
Hold the grip on the protective film of the gel pad and peel it off.
※After the second time, remove from the storage sheet before use.

Basic operations
Power button
Concave "Weak" button
Convex
"Strong" button
16
Turning the power on
1
Switching mode
2
When the gel pads are applied on the skin, long press the power button to
turn on the power. A beep will sound and you can start your workout.
The LED light turns on.
When the product is running, press the power button to switch mode.
※When the power is connected, the product always starts in mode A.
• It beeps every time you press the power button and the mode changes.
"A→B→C→D→A→…"
It makes a long beep sound when it returns to mode A.
2
Adjusting the training level
3
You can choose the desired intensity from fifteen levels.
※When connecting to the power supply for the first time or when changing mode,
the intensity setting is "1".
•Press the convex "Strong" button. A "beep" is generated, and the intensity
setting increases by 1.
•Press the indented button. A "beep" is generated, and the intensity setting
decreases by 1.
• If you press the convex "Strong" button when the intensity setting is at "15" or
pressing the concave "Weak" button when the intensity setting is at "1", a beep
will be heard but the intensity level will not change.

use
17
Beeping sound ON Beeping sound OFF
Convex
"Strong" button
Concave
"Weak" button
Power button Power button
Pressing at
the same time
Pressing at
the same time
Setting the operation sound
4
Turning the Power Off
5
The buzzer can be turned on/off as required.
•If the concave "Weak" button is pressed at the same time, two
"beeps" will sound, indicating that all sound has been muted.
•If the convex "Strong" button is pressed at the same time, two
"beeps" will sound, indicating that all sound has been muted.
※For security reasons, sound is generated for certain operations even
in mute mode. This is not a fault.
※If you accidentally mute the system, you can press the convex "Strong"
button and the power button at the same time to turn on the sound.
About 15 minutes of starting, a "beep" sounds and the product
powers off automatically.
•You can long press the power button, the convex "Strong"button or
the concave "Weak"button to turn off the power during a workout.
※When the gel pad is removed from the skin or the main unit, the power
turns off automatically.

Using the dedicated app "ECLEAR APP"
Downloading the app using a data connection may incur fees.
CAUTION:
For details about how to use and set the "ECLEAR APP", refer to
the help pages of the "ECLEAR APP".
http://app.elecom.co.jp/eclear/
Windex.html
Two methods are available.
A Scan the QR code to visit B Enter the URL in the browser
iOS: Android OS:
Click [Download iOS version]
The APP Store download page is
displayed.
Click [Download Android version].
The Google Play download page
is displayed.
18
Please use the dedicated "ECLEAR APP" to activate and use the product.
Although this product can be used separately, you are advised to download the
dedicated app on your smartphone or laptop to get full access to its features.
■Install "ECLEAR APP"
Install "ECLEAR APP" on your smartphone or other device.
Access the "ECLEAR APP" download page
1
Download "ECLEAR APP"
Install "ECLEAR APP"
2
3
Follow prompts on the page to install "ECLEAR APP".
※Please confirm the latest terminal device and
the operating system on the download page.

(For example, iOS 11.2) (For example, Android 7.0)
Pairing should be completed using the dedicated "ECLEAR APP"
19
■Using the Dedicated "ECLEAR APP"
On a smartphone with the dedicated "ECLEAR APP" installed, pair the
smartphone with the product using Bluetooth®.
For details, refer to the smartphone user manual.
Paring phone and product
1
①Choose [Settings] -
[Bluetooth]. In the Bluetooth
page, set [Bluetooth] to "ON".
①Choose [Settings] -
[Bluetooth]. In the Bluetooth
page, set [Bluetooth] to "ON".
■iOS ■Android OS

For details about how to use the dedicated
"ECLEAR APP", refer to the help pages of
"ECLEAR APP".
•After the gel pads are applied to the skin and when the power button is
pressed, the A LED will light up, indicating pairing standby status.
Using the dedicated app "ECLEAR APP" (Continued)
20
Blinks in the sequence of
"A→B→C→D→A→…"
Power button
Starting the dedicated "ECLEAR APP"
2
Pair the product with a smartphone.
3
Tap the icon.
①When the power button is pressed, the power supply will be
connected, which is indicated by a "beep".
※Before successful pairing, workout at intensity level 1 in mode A.
Starting the Dedicated "ECLEAR APP".
Aislit
•The pairing enters standby status, and the LED blinks in the sequence
of "A→B→C→D→A→…".
